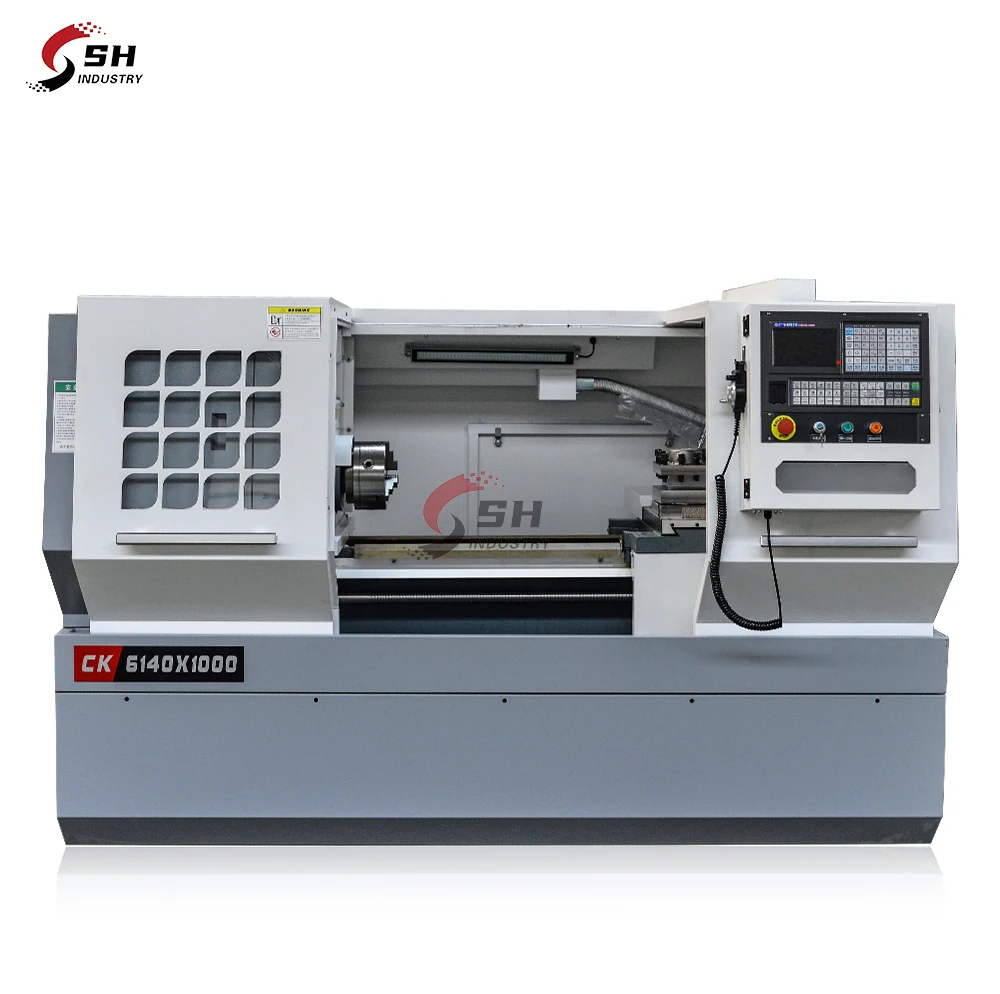

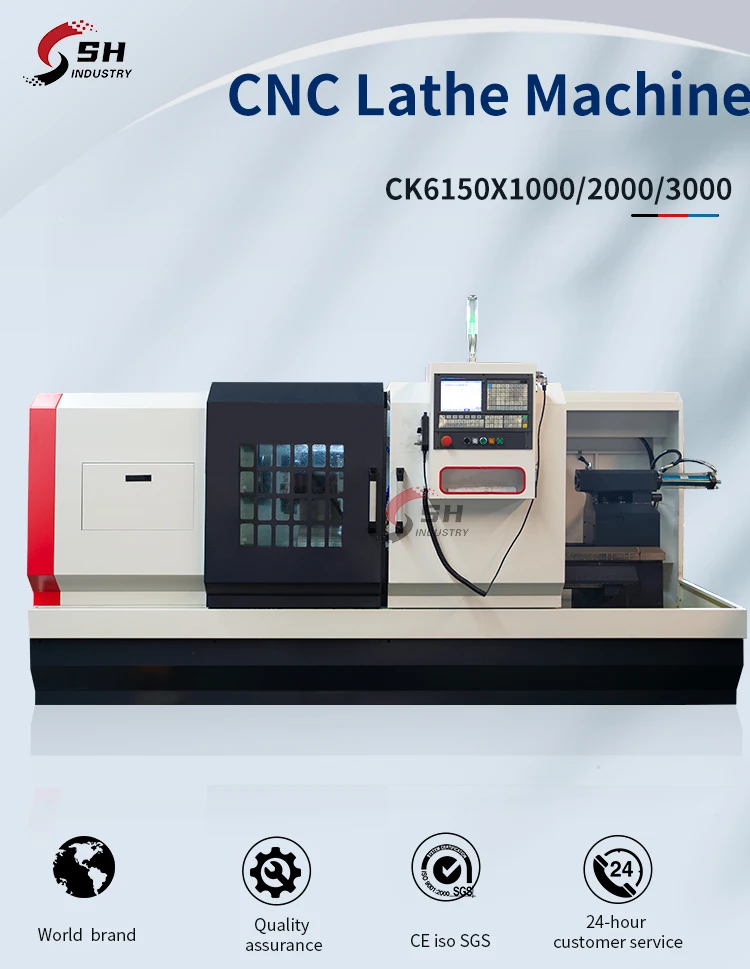

Cheap CNC Lathe Machine CK6140 ck6150 Low Cost Horizontal Flat Bed CNC Lathe
- Category: >>>
- Supplier: Zaozhuang Shenghuan Cnc Machine Tool Co. Ltd.
Share on (1600829032046):
Product Overview
Description
Product Description

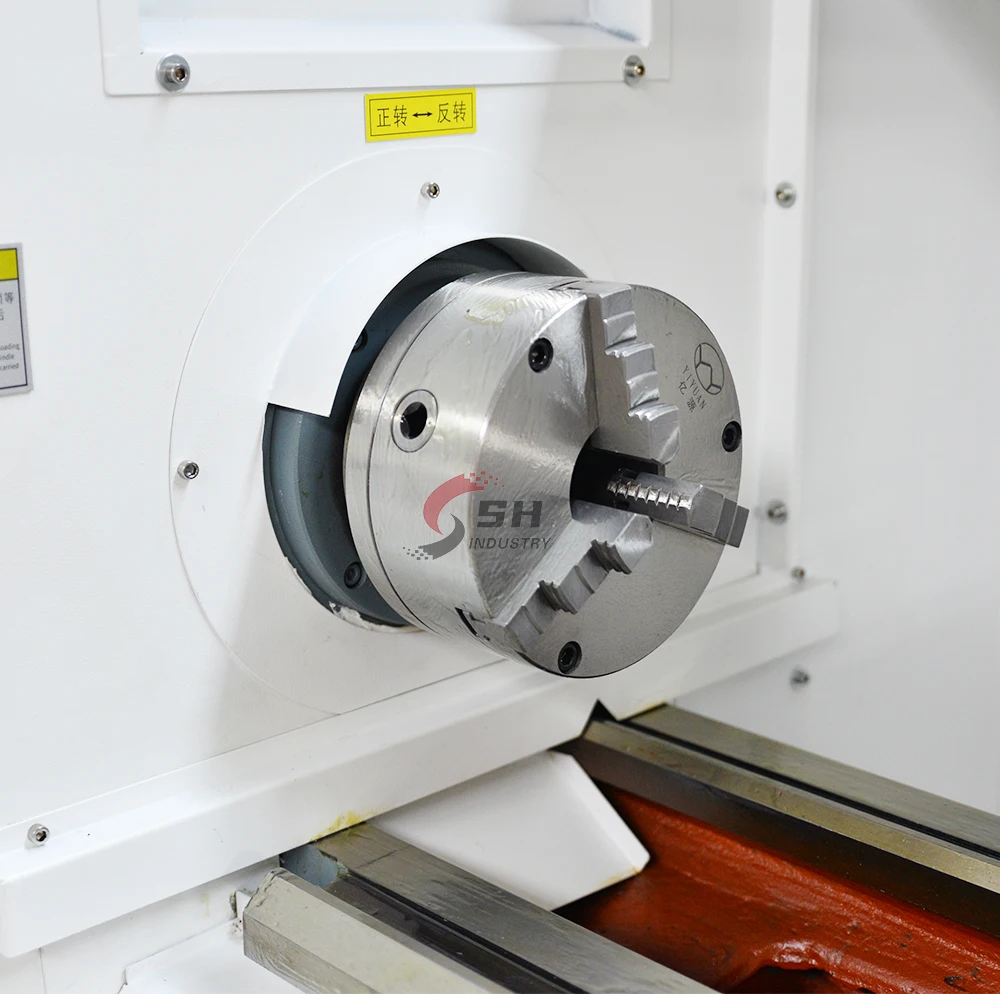

Spindle with Japan NSK bearing and high speed

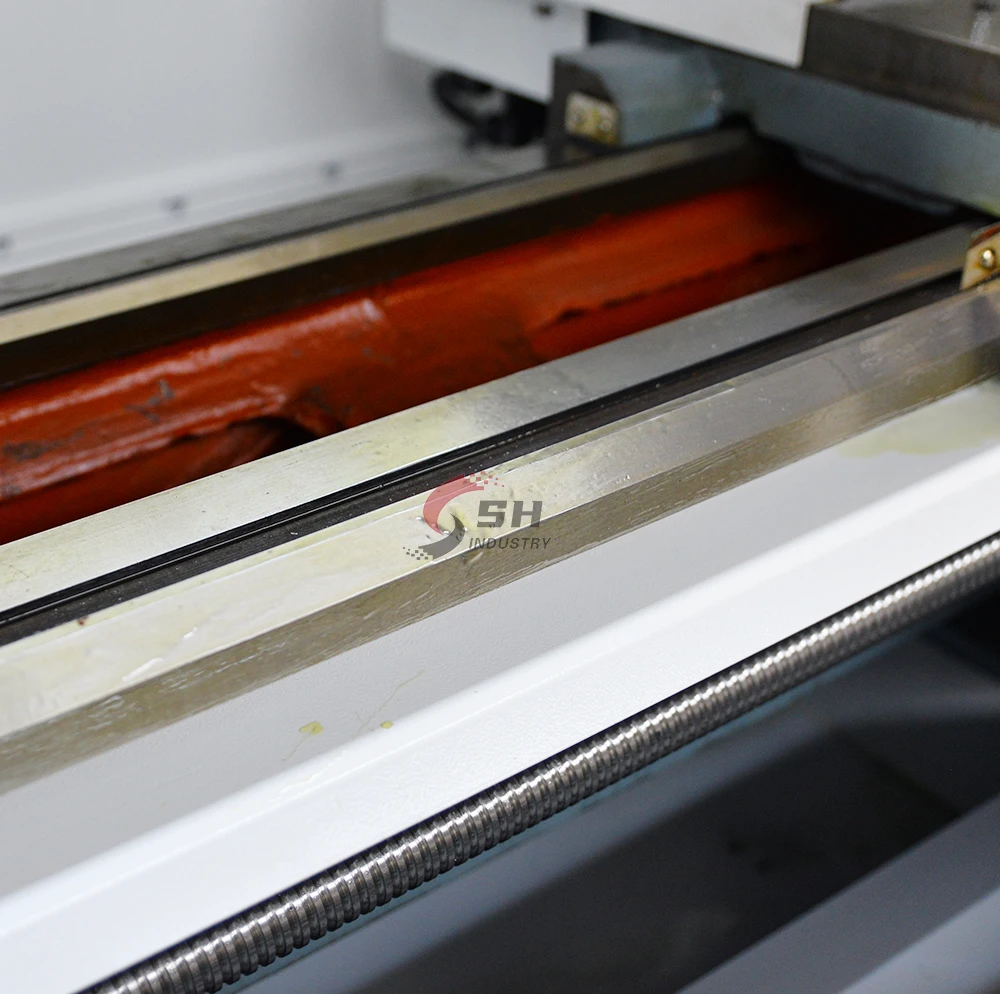

* Best igidity and stability Lathe body and guide* the guide is treated by super audio quenching with high hardness,
* Feed of X.Z axis are driven by all screw with servo-motor
* Electronic hand wheel equipped easy operation.
* Can be free to choose CNC system
* Three gears and stepless speed change with lower noise and high standard machining accuracy;
* Three kinds of spindle bore can be choose (52/80/105mm) while the diameter of chuck is φ250mm and 325mm
Standard Configuration Optional Configuration

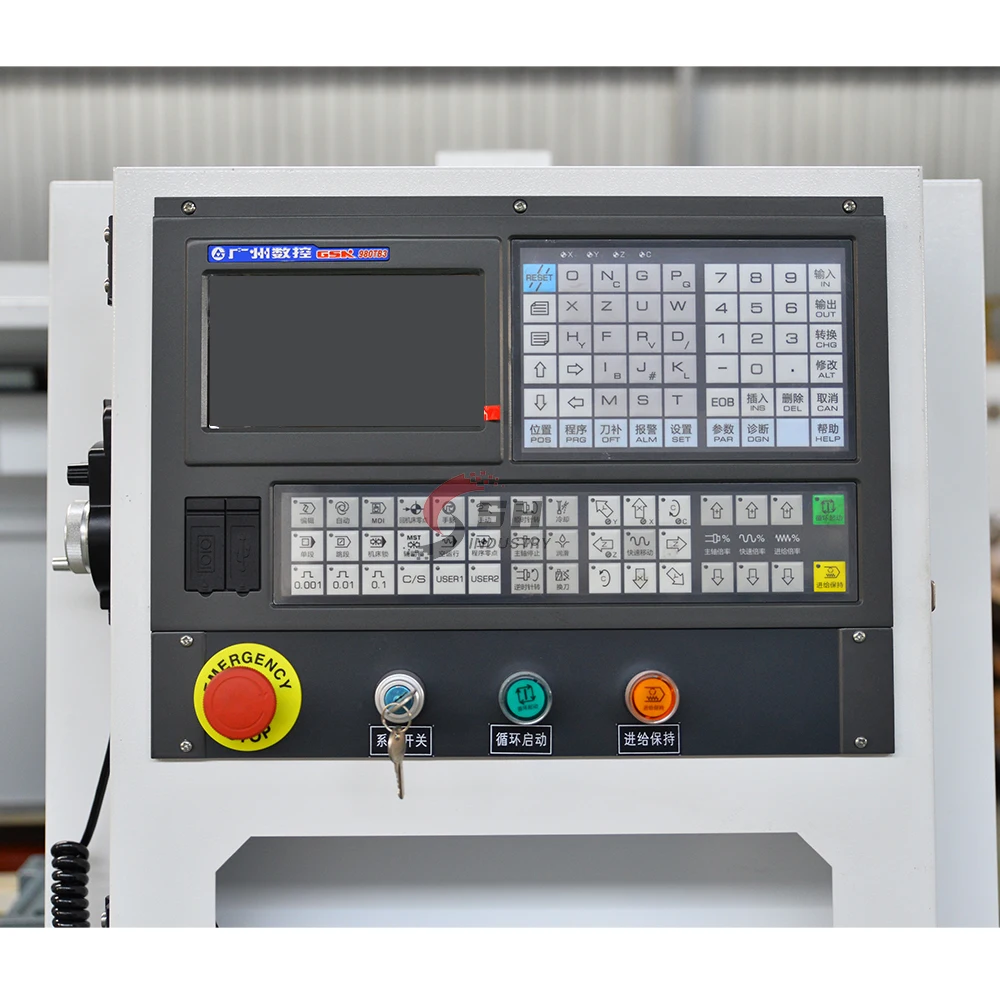

GSK980TB3 or GSK980TDC system Siemens or Fanuc system
Manual chuck,manual tailstock, Hydraulic chuck ,hydraulic tailstock

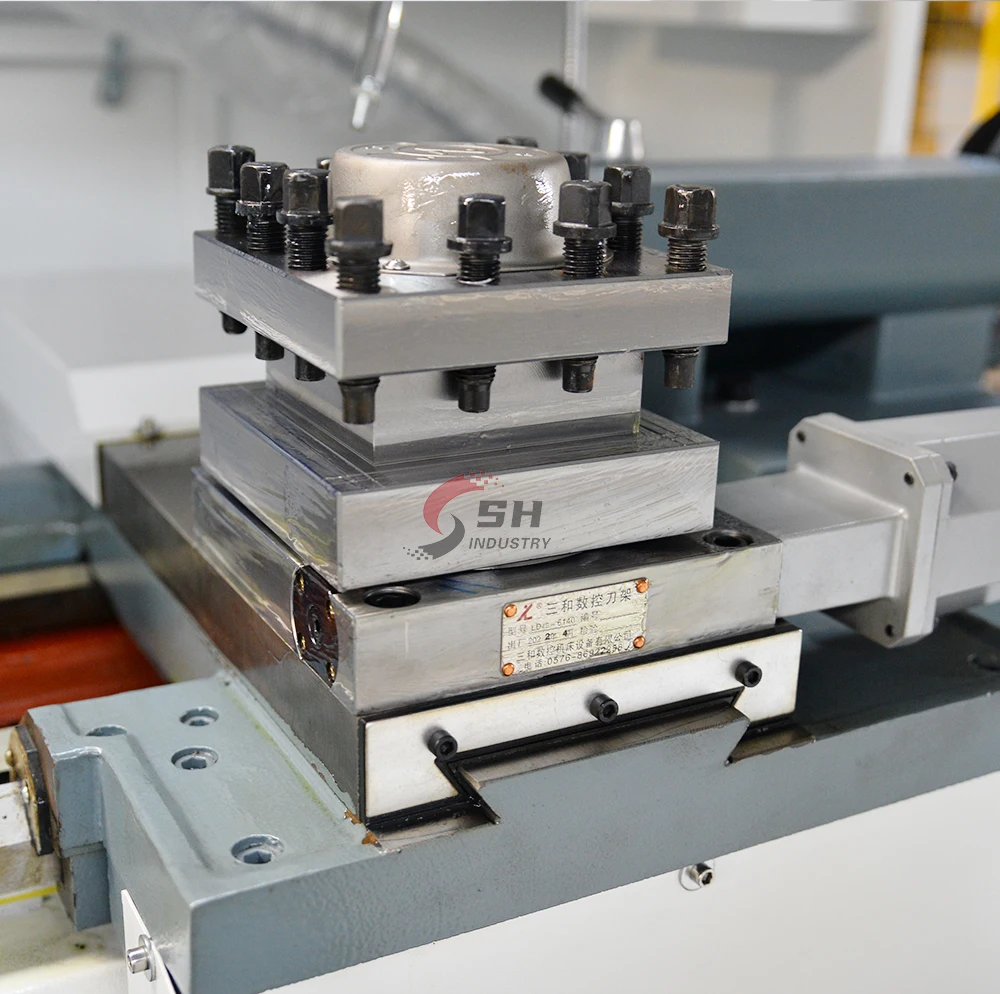

4 station electric tool post 6 or 8 station turret
Low-high two steps spindle speed Automatic chip conveyor
4 station electric tool post 6 or 8 station turret
Low-high two steps spindle speed Automatic chip conveyor
SPECIFICATIONS | Units | CK6136 | CK6140 | CK6150 | ||
Swing over bed | mm | 360 | 400 | 500 | ||
Swing over cross slide | mm | 200 | 220 | 280 | ||
Distance between centers | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 | ||
Spindle bore | mm | 52(Optional 80) | 52(Optional 80) | 52(Optional 80) | ||
Spindle bore taper | - | MT6 | MT6 | MT6 | ||
Spindle nose type | - | C6 | C6 | C6 | ||
Spindle speed steps | - | Manual 2 steps | Manual 2 steps | Manual 2 steps | ||
Spindle speed range | rpm | L:100-500 H:500-1800 (Optional 90-1800 stepless) | ||||
Turre/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position | ||
Tool size | mm | 25 x 25 | 25 x 25 | 25 x 25 | ||
X axis travel | mm | 200 | 230 | 280 | ||
Z axis travel | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 | ||
X axis rapid traverse | mm/min | 6000 | 6000 | 6000 | ||
Z axis rapid traverse | mm/min | 10000 | 10000 | 10000 | ||
Tailstock quill diameter | mm | 75 | 75 | 75 | ||
Tailstock quill taper | - | MT5 | MT5 | MT5 | ||
Tailstock quill travel | mm | 140 | 140 | 140 | ||
Main spindle motor | kw | 4 | 5.5 | 5.5 | ||
Coolant pump motor | kw | 0.9 | 0.9 | 0.9 | ||
Weight for 1000 | kg | 1700 | 1800 | 1900 | ||
Weight for 1500 | kg | 1800 | 1900 | 2000 | ||
Weight for 2000 | kg | 1900 | 2000 | 2100 | ||
Dimension for 1000 | mm | 2500x1600x1650 | 2500x1650x1700 | 2500x1700x1750 | ||
Dimension for 1500 | mm | 3000x1600x1650 | 3000x1650x1700 | 3000x1700x1750 | ||
Dimension for 2000 | mm | 3500x1600x1650 | 3500x1650x1700 | 3500x1700x1750 | ||
Exhibition
Customer visit
Certifications
Packing & Delivery
FAQ
1. Who are we?
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
Our headquarters is located in Shandong, China. Since 2017, we have sold products to South Asia (70.00%), East Asia (20.00%) and Southeast Asia (10.00%). There are 101-200 people in our office.
2. How can we guarantee the quality?
Before mass production, there is always a pre production sample; Final inspection before shipment;
3. What can you buy from us?
Milling machine, CNC machining center, CNC machine tool, wire cutting machine
4. Why should you buy from us instead of other suppliers?
The company has three factories in Chinese Mainland. From casting, processing to assembly, the whole production process is fully controlled, which is sufficient to ensure the quality of products.
5. What services can we provide?
Accepted delivery conditions: FOB, CIF;
Accepted payment currency: US, yuan;
Payment method: telegraphic transfer, letter of credit, D/P, D/A;
Languages: English, Chinese, Russian
