Популярная быстрая зарядная станция для электромобилей
- Category: Vehicle Parts & Accessories >>>
- Supplier: Guangzhou Kinouwell Technology Co. Ltd.
Share on (1600829040149):
Product Overview
Description
Products Description
Power Suppply | 3P+N+PE |
Rated Voltage | 400VAC±15%(50/60Hz) |
THDi | ≤5% |
Efficiency | ≥95% |
Power Factor | ≥0.98 |
Connector Type | CCS Combo 2 |
Output Voltage | 150-1000VDC |
Maximum Output Current | 200ADC |
Output Power Rating | 60KW/80KW/120kW/180kW,etc. |
Output Voltage Accuracy | ≤0.5% |
Output Current Accuracy | ≤±5% |
HMI | 7-Inch Touchscreen |
Payment Method | RFID Card,APP |
Cable Length | 5m |
Network Connection | Cellular modem:GSM/3G/4G LAN:10/100 Base-T Ethernet |
Communication Protocol | OCPP 1.6J |
Operating Noise Level | ≤60dBA |
Ingress Protection(IP/IK rating) | IP54 |
Power Meter | Accuracy Class 1 energy meter |
Enclosure | Galvanized steel |
Product Dimension | 700 x 550 x 1800mm(W x D x H) |
Package Dimension | 950 x 720 x 1950mm(W x D x H) |
Protection | Over Current,Under Voltage,Over Voltage,Short Circuit,Residual Current, Surge Protection,Over Temperature,Ground Protection |
Certification Standard | EN/IEC 61851-1、EN/IEC 61851-23、EN/IEC 61851-24、EN/IEC62196-1、EN/IEC62196-3 |
Operating Temperature | -35℃ to +50℃ |
Storage Temperature | -40°C to +75°C |
Maximum Installation Height | ≤2000m |
Operating Humidity | 5%–95% RH |

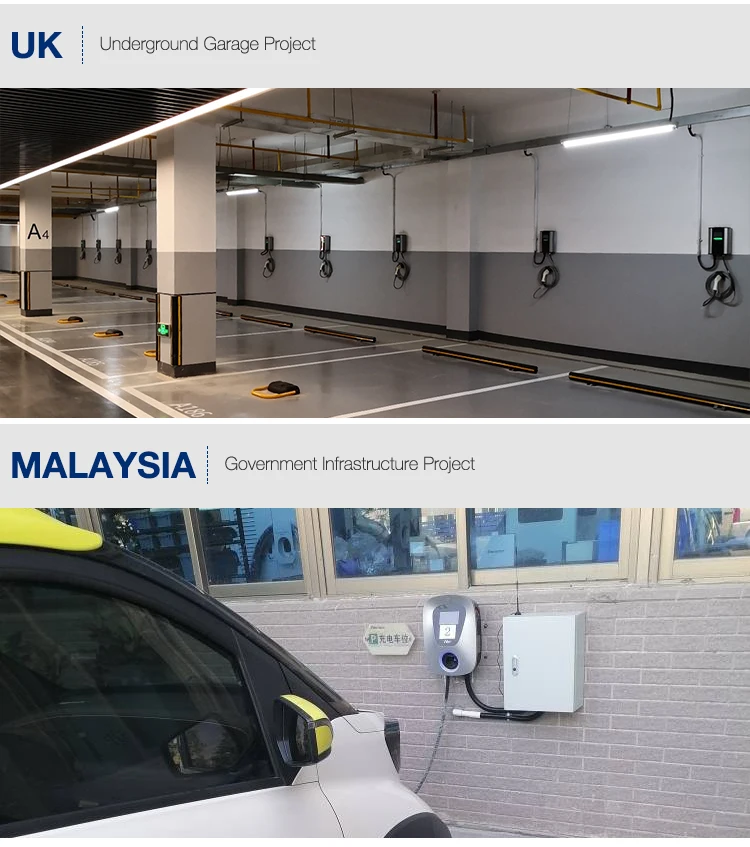

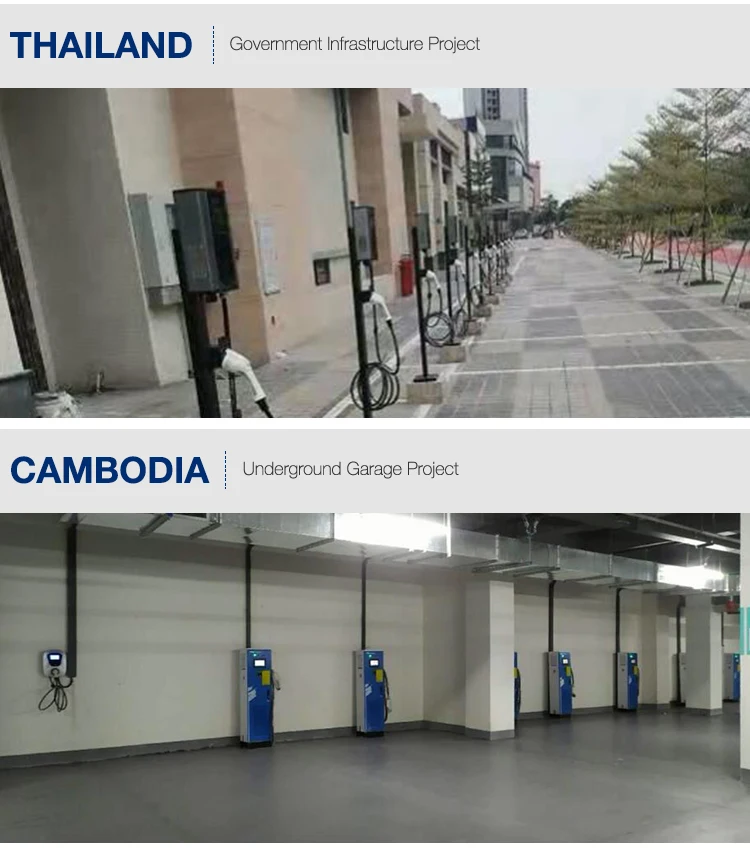

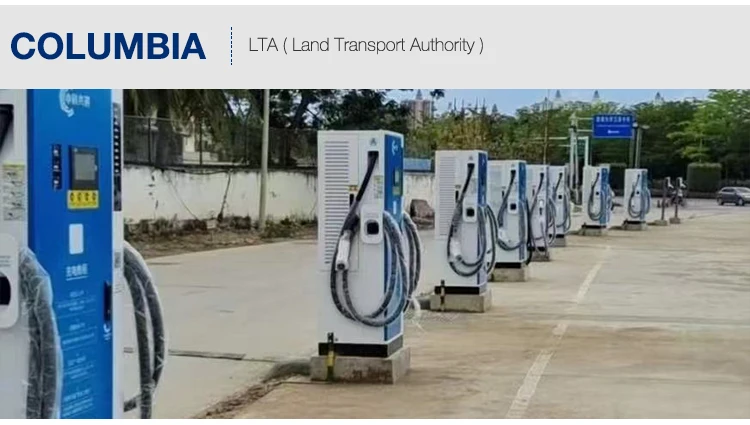

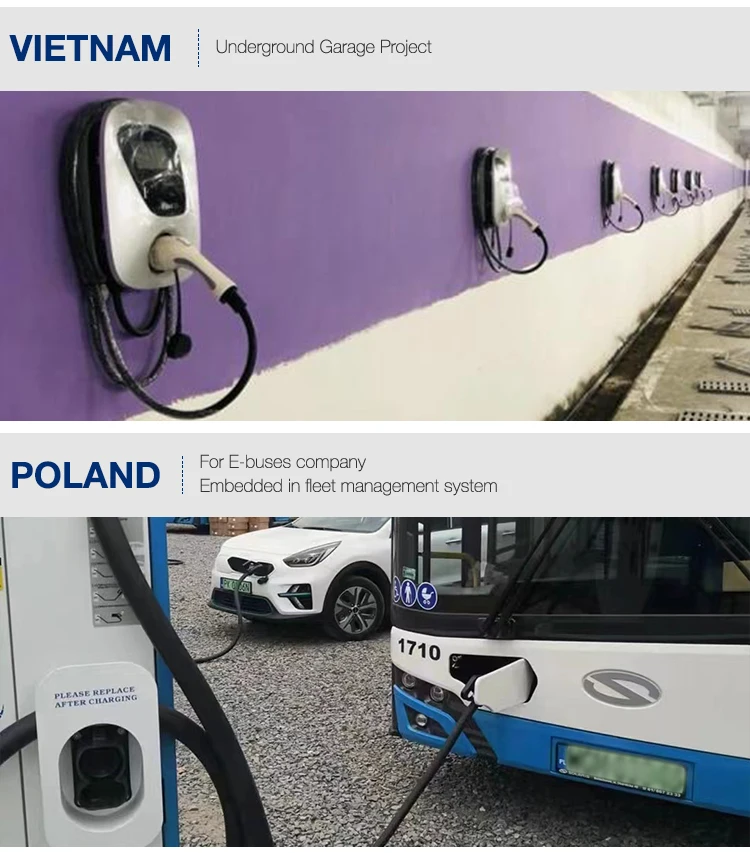

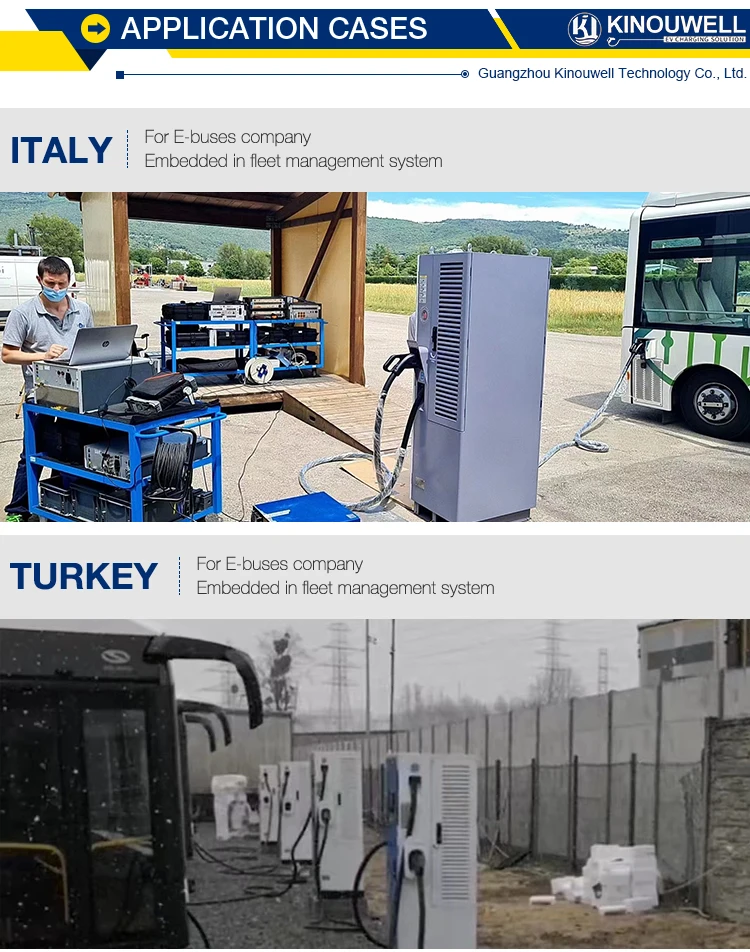

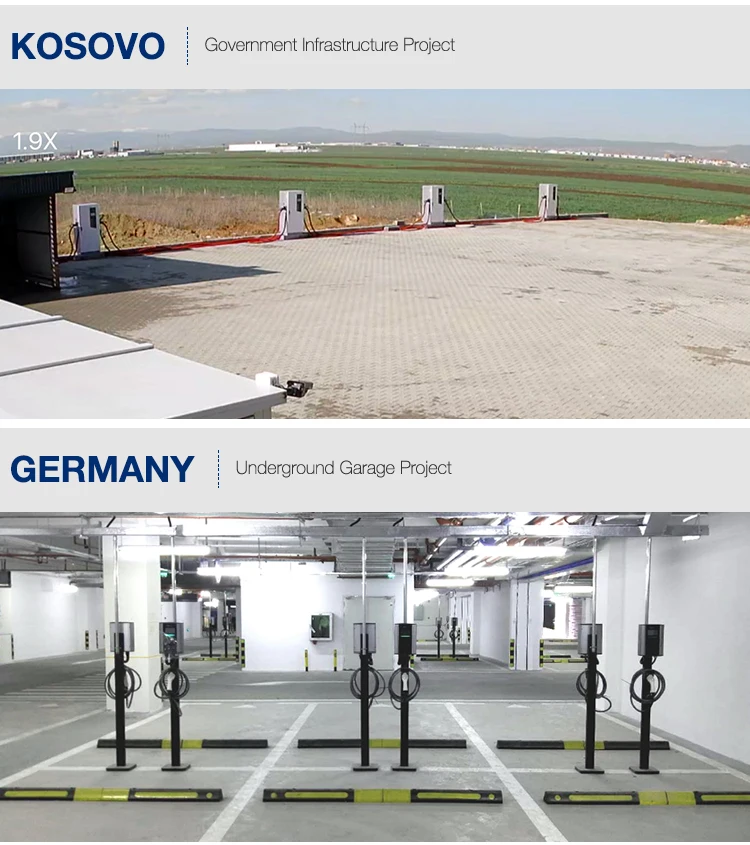

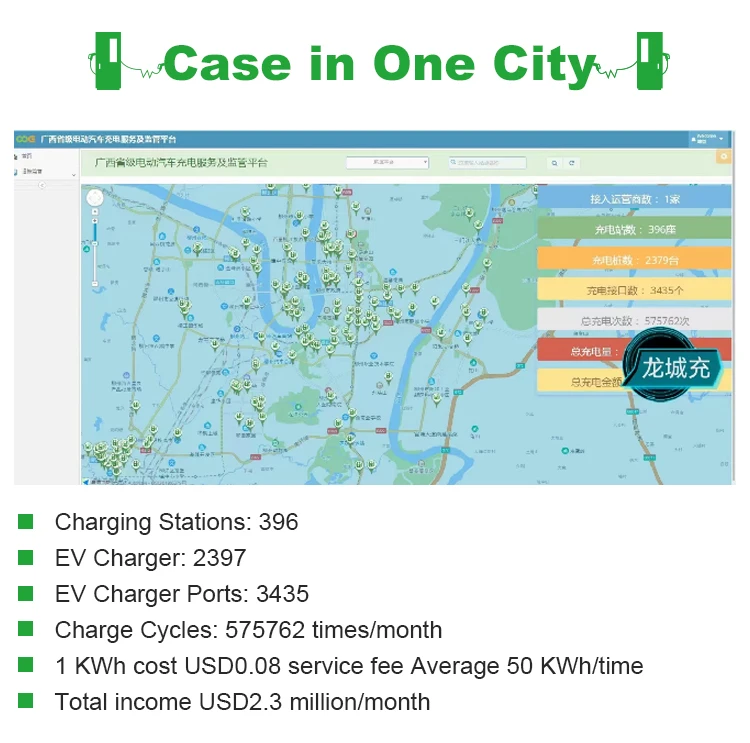

Our Case

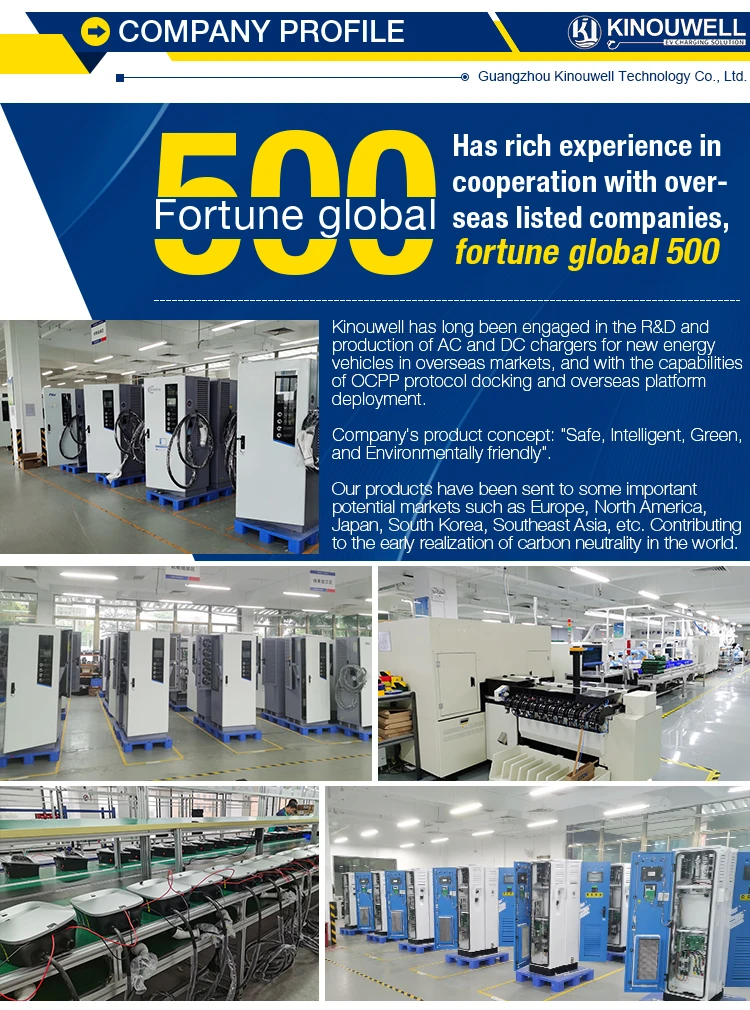

Company Profile
FAQ
