Come From China 5 Ton G series LPG&GASOLINE Forklift With 5000 Kg Rated Capacity And 600 mm Load Centre

Share on (1600829046508):


Price:$33,500.00 - $34,500.00

Quantity:


Product Overview

Description



Product Description

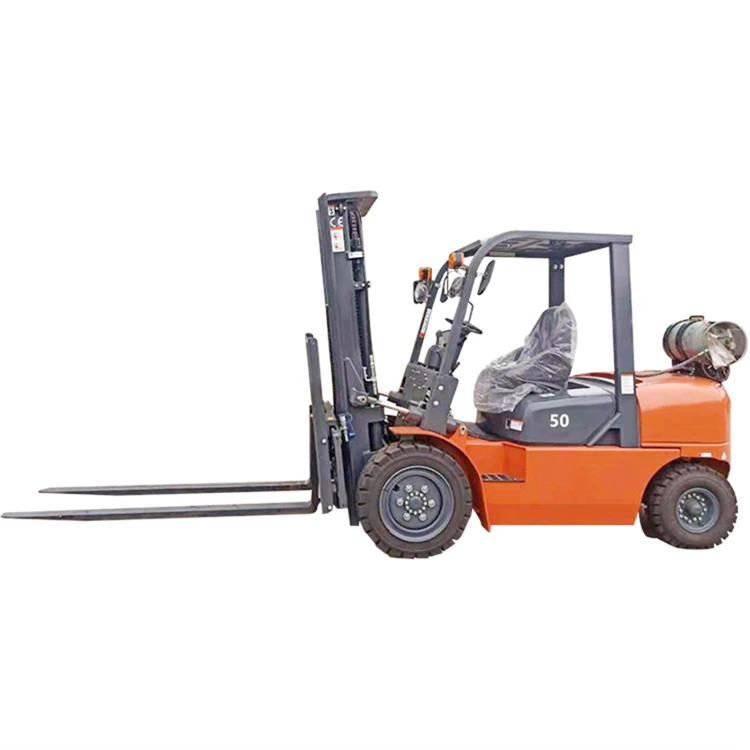

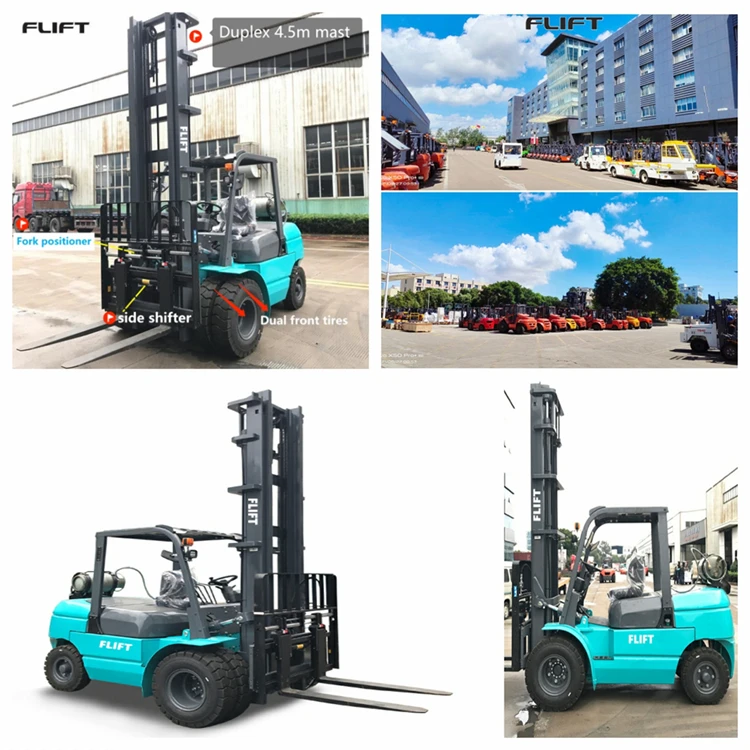

Come From China 5 Ton G-series LPG&GASOLINE Forklift With 5000 Kg Rated Capacity And 600 mm Load Centre

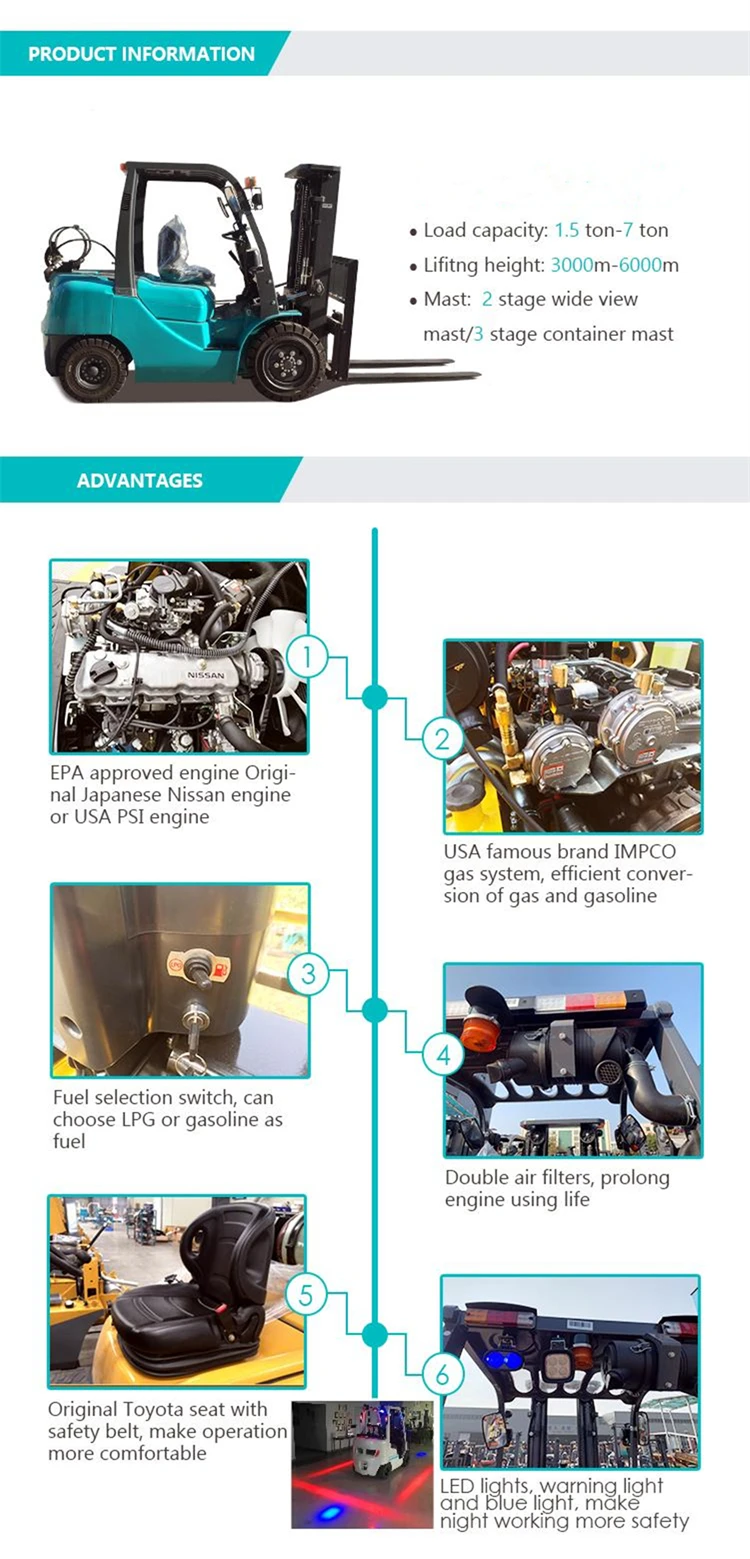

1. Reliable Instruments: The instruments offer easy access to the working condition of the truck, thus makes handling process more efficient and safe.




2. Super low and non-slip step(Low Non-slip step): Supper low and non-slip make operating convenient and safe.


3. Ergonomics Seat( Adjustable Safety Seat): Designed according to ergonomic principles, makes operation much comfortable and also relieves the fatigue caused by long time continuous operation.


4. Powerful Engine(Strong power system): The powerful engine ensures FLIFT Truck’s high handing performance and offers an inherent safety and efficient operation.

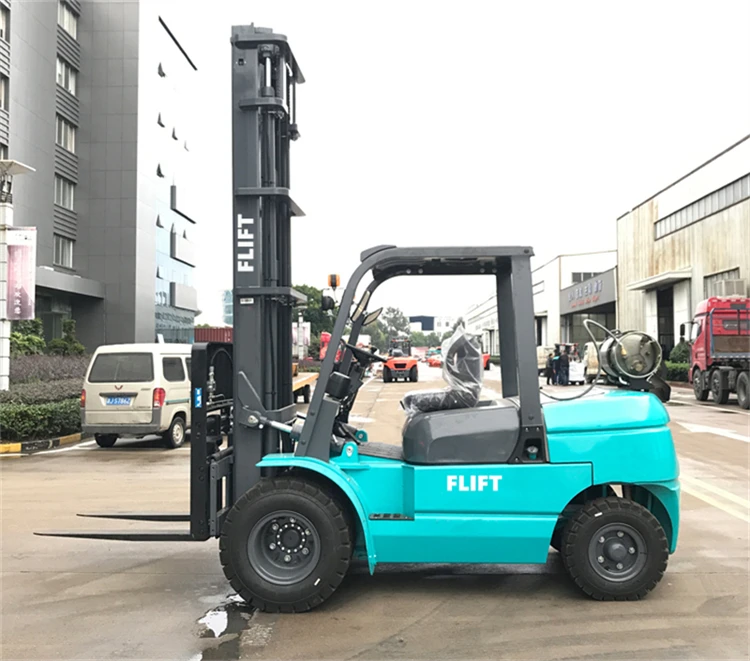

FY50-750-10

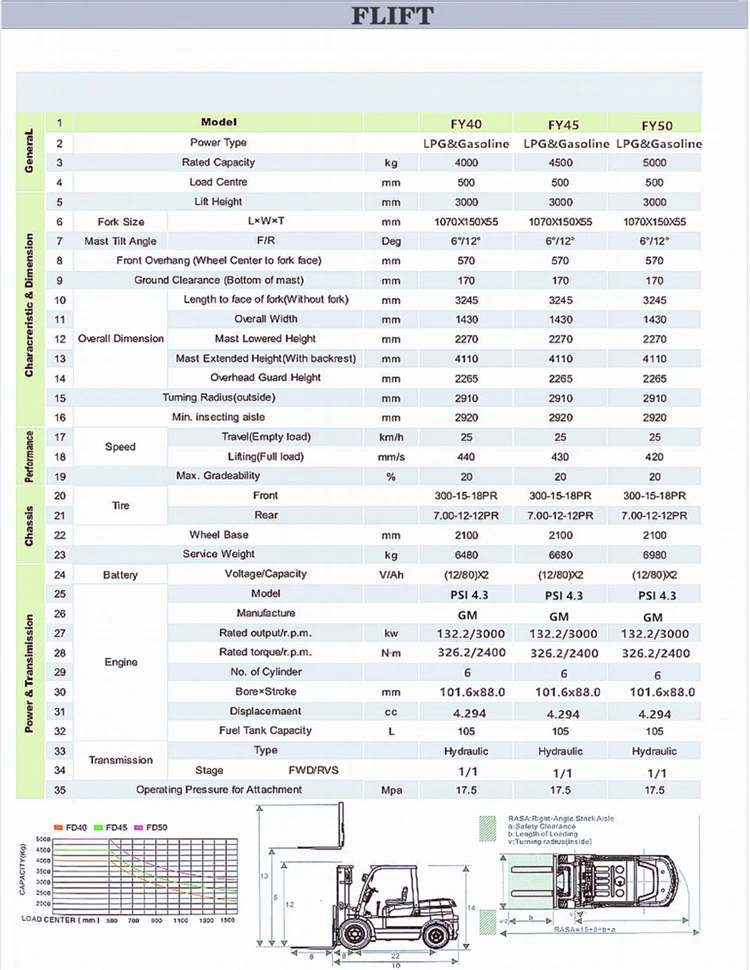

Product Parameters


































































































































































































5.0 Ton G-SERIES LPG&GASOLINE FORKLIFT
Model FY50
Power type LPG
Rated capacitykg5000
Load Centremm600
Lift Heightmm3000
Fork sizeL*W*Tmm1220*150*60
Mast Tilt AngleF/RDeg6°/12°
Front Overhangmm590
Ground Clearancemm200
Overall DimensionLength to face of forkmm3450
Overall widthmm2010
Mast lowered heightmm2500
Mast extended heightmm4415
Overhead guard heightmm2470
Turning Radiusmm3250
Min.insecting aislemm2960
SpeedTravel(Empty outside)km/h30
lifting(Full load)mm/s500
Max. Gradeability%20
TireFront 8.25-15-14PR
Rear 8.25-15-14PR
Wheel Basemm2250
Service Weightkg8150
EngineModel GM4.3L
Manufacture GM
Rated output/r.p.m.kw56/2200
Rated torque/r.p.m.N.m240/750
No.of Cylinder 6
Bore*Strokemm101.6*88.39
Displacementcc4300
Fuel tank capacityL140
BatteryVoltage/CapacityV/Ah(12/80)*2
TransmissionType Hydraulic
Stage   FWD/RVS 2
Operating Pressure for AttachmenMpa19




Company Information


HENAN JINGCHENG XIANDAI FORKLIFT CO., LTD. is the leading and professional supplier of forklift trucks in China. The company began production&sales of forklift in 2007 from 1-56ton. Nowadays, FLIFT has grown up as a large-scale enterprise manufacturing a comprehensive range of material handling equipment including 1-56ton I.C. forklift,1-12ton Electric forklift, side loader forklift, towing tractor, and other warehouse equipment.


The company equipment includes laser cutting machine, CNC plasma cutting machine, NC flame cutting machine, welding robots, sandblasting line, stoving vanish painting line, PRC testing line, etc. So far, FLIFT annual output of forklift trucks over 2800 units.


The company is ISO9001:2000 certified and SGS approved, the products passed European CE certificate, North American EPA certificates and Russia GOST certificate.
The forklift sales network in domestic covers national wide, exporting over 158 countries till the latest statistics in 2022.


CE Approved Chinese Factory Direct Supplier  3 Ton Diesel Forklift Truck Price

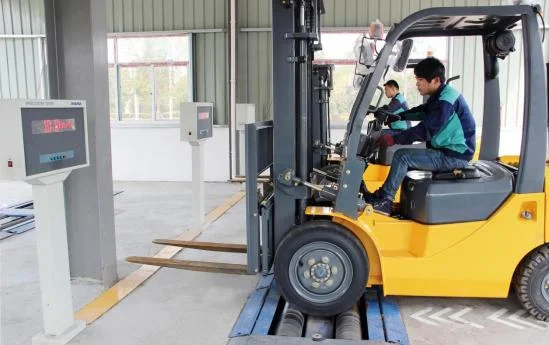

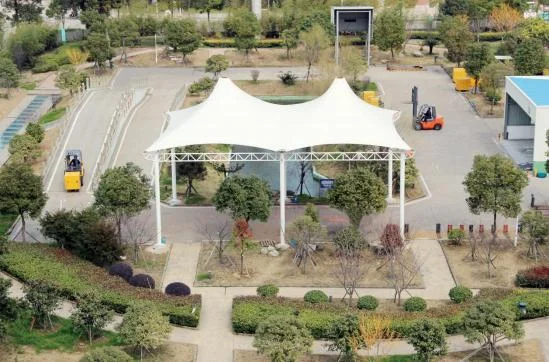

1.Forklift Test site:

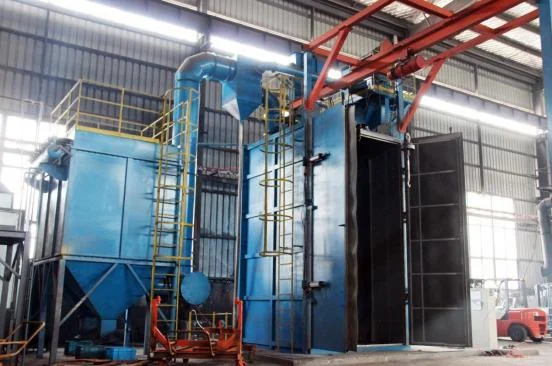

2. Ball Blasting line

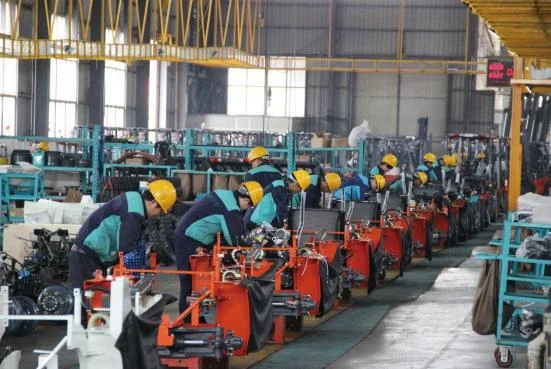

 3. Assembly Workshop

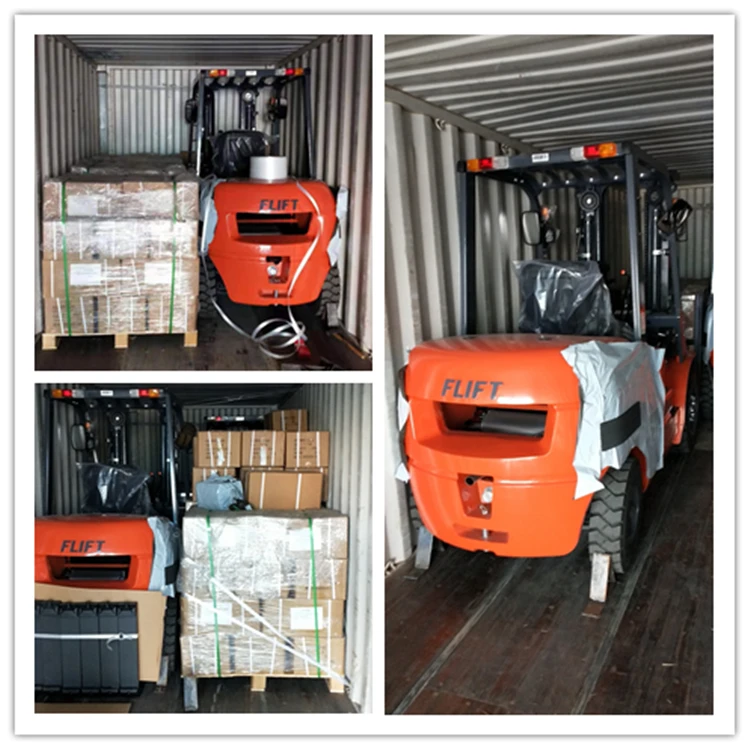

Packaging & Shipping

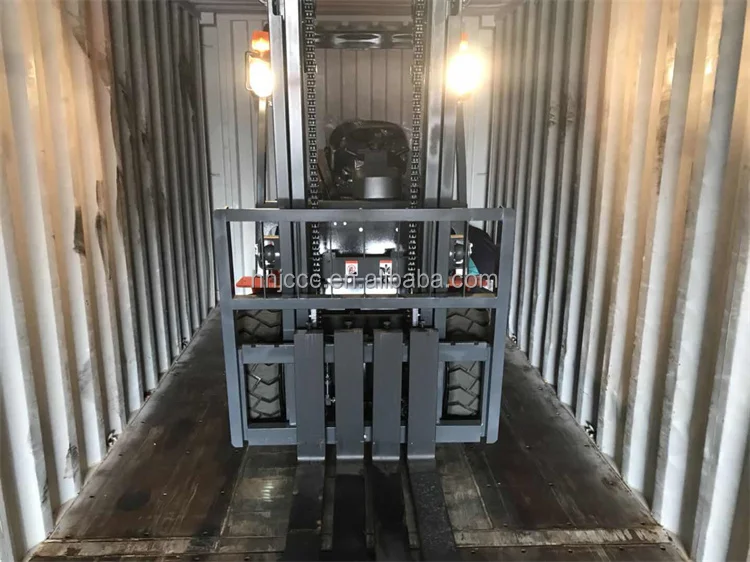

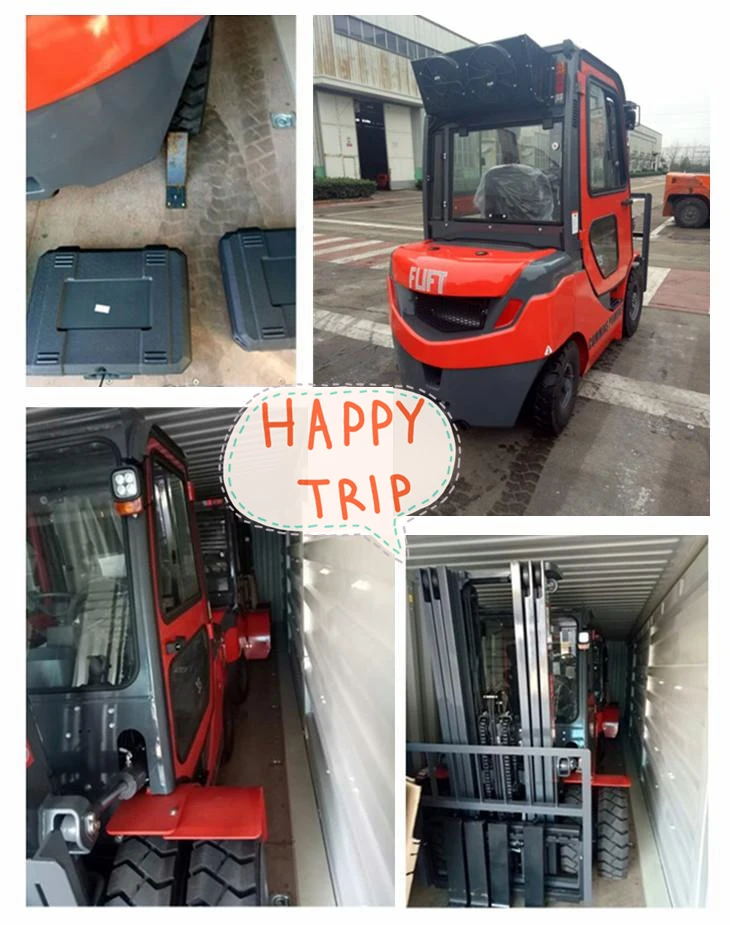

Sea Worthy packing, wheels fixed on the container by triangle bracket withstand rough handling in the transit of the goods.111.jpg




Our main port of loading: (2 hours from our factory to) Ningbo,Shanghai.

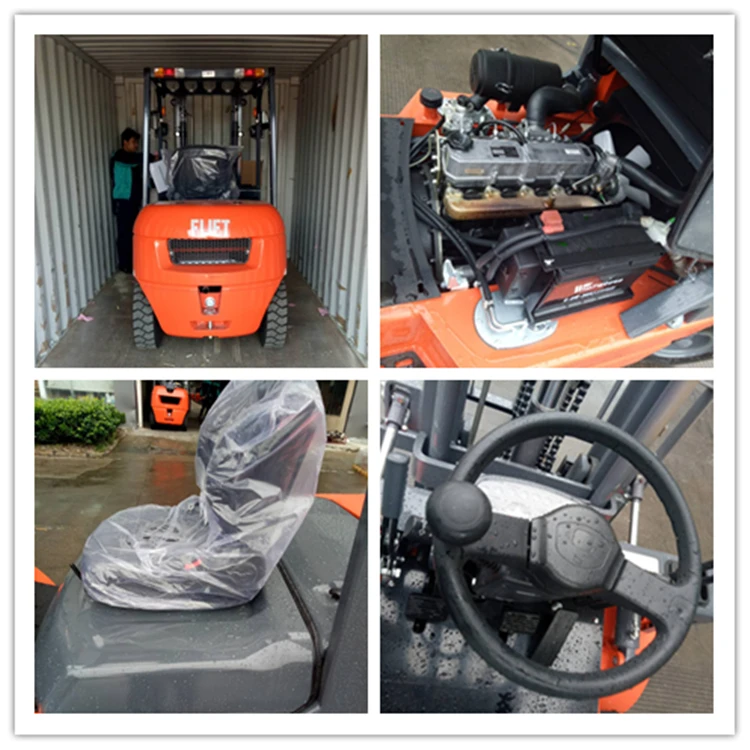

Other Chinese ports acceptable:Tianjin,Qingdao,Xiamen,Guangzhou,Shenzhen,Lianyungang,Qingdao.tcf30.jpg





Our Services


 Pre-Sales Service
* Inquiry and consulting support.

* Photos&Videos for your order before shipment.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Whole life-time supply for spareparts.

The following items are optional:
Tires: Pneumatic and Solid tire
Color: Yellow,red,orange, green, blue or customized.
Controller: SME/ZAPI/CURTIS
Mast: Standard wide-view 2 stage mast, wide-view 2-stage full free mast, wide-view 3-stage full free mast.
Motor: AC/DC

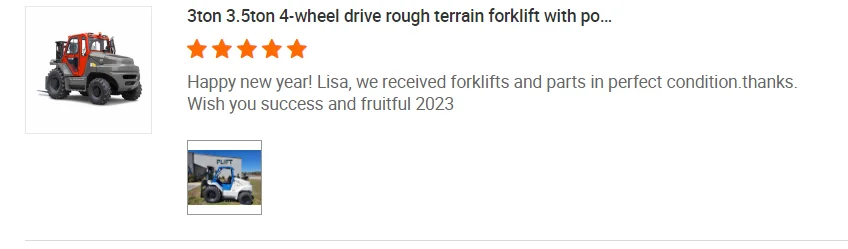

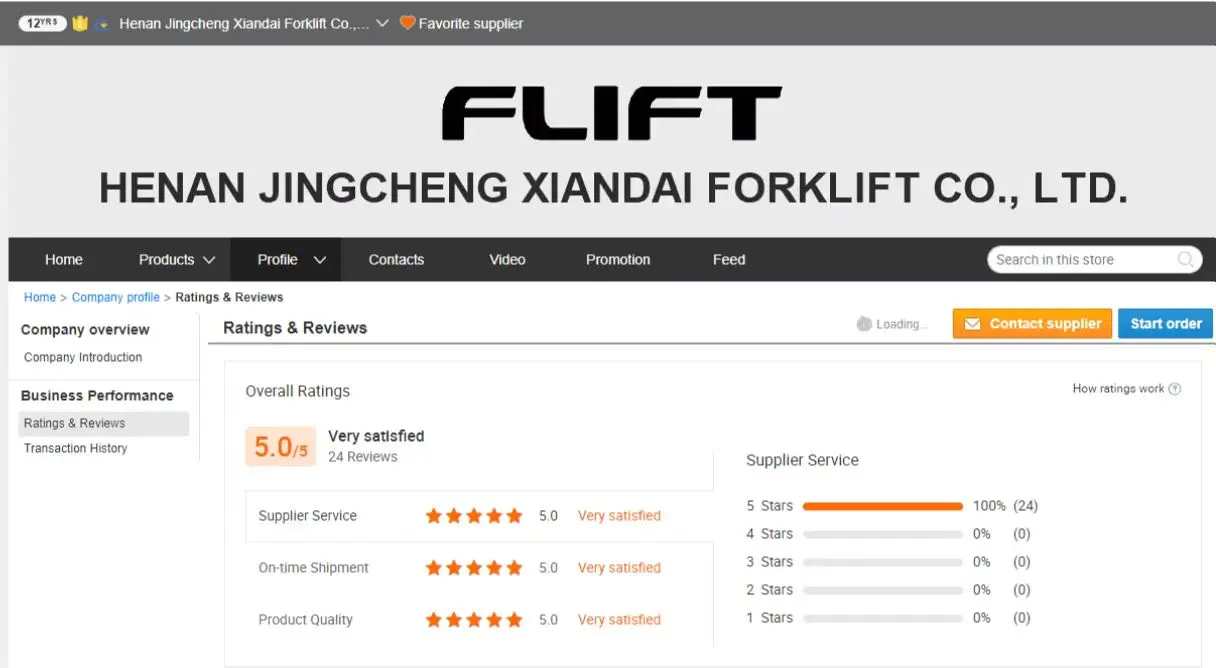

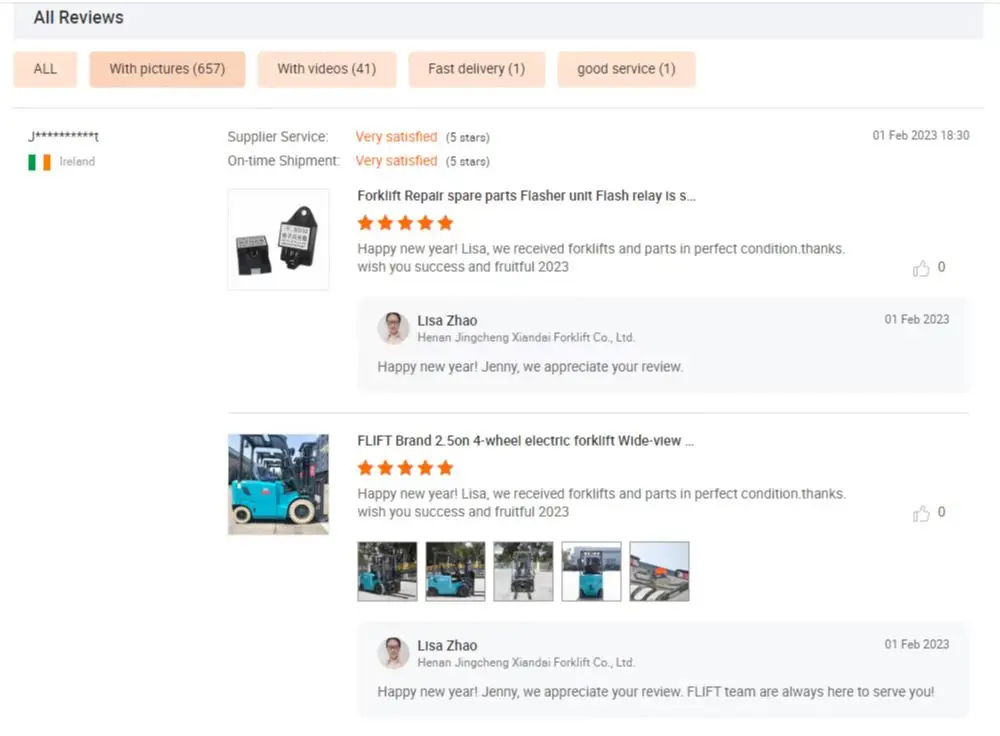

Customer feedback












FAQ


1.What's the Certificate do you have?


All of our products with CE certificate.  Some of our products meets the EPA requirements.


2.How long is the warranty of your products?


Normally 1 year or 1500 working hours whichever occurs first. Details to see the FLIFT warranty policy for each model.

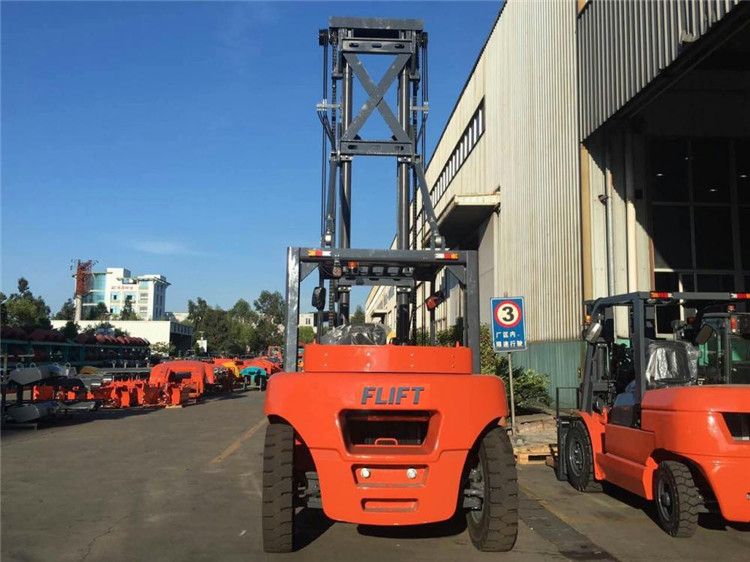

CE Approved Chinese Factory Direct Supplier  3 Ton Diesel Forklift Truck Price


3. Can you produce the products labeled with the client's brand?


With the authorization of the brand, we can OEM for our clients.


4. What's the payment terms do you accept?


Normally 30% T/T in advance as deposit, balance paid before shipment.


100% L/C at sight issued by world famous bank with good faith is also available.


5.Delivery time:


Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 45 days.


6. How can you ensure the quality of the products ?


Don’t worry,we joined the trade assurance. If the products have quality problem when you received the goods, Alibaba can return you full payments.
