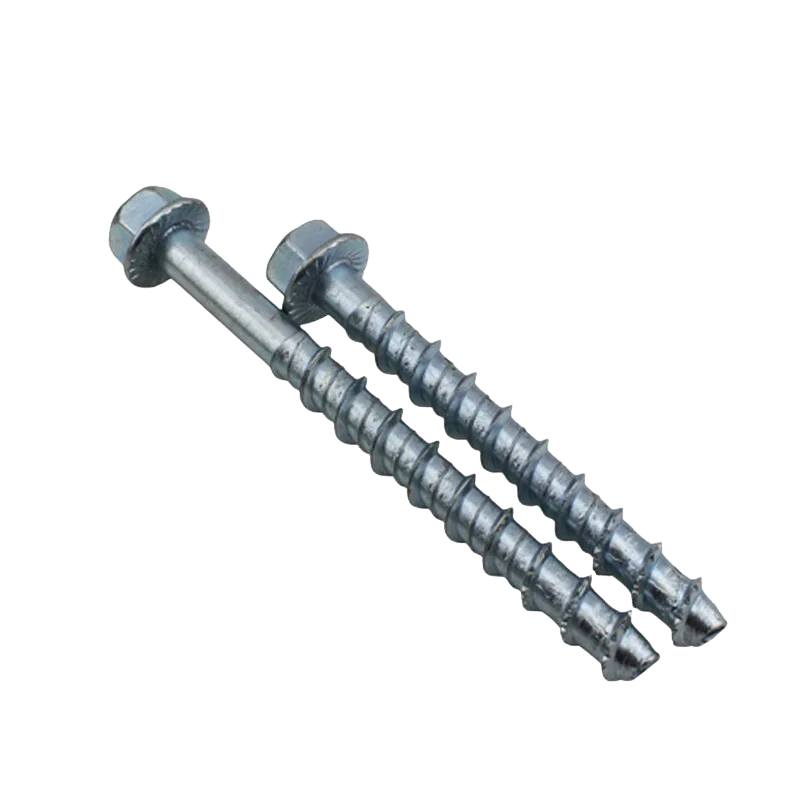

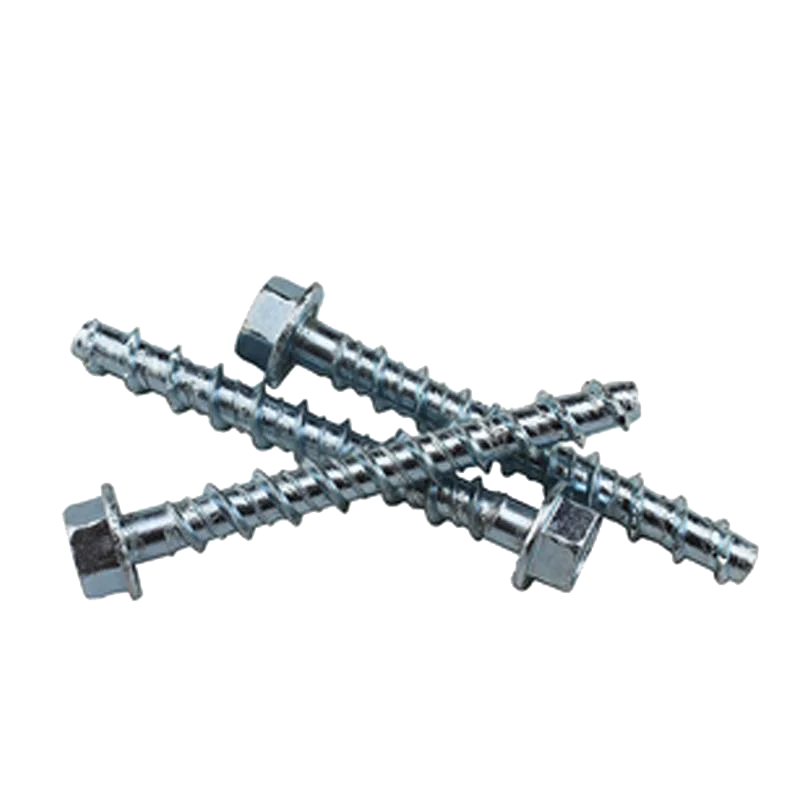

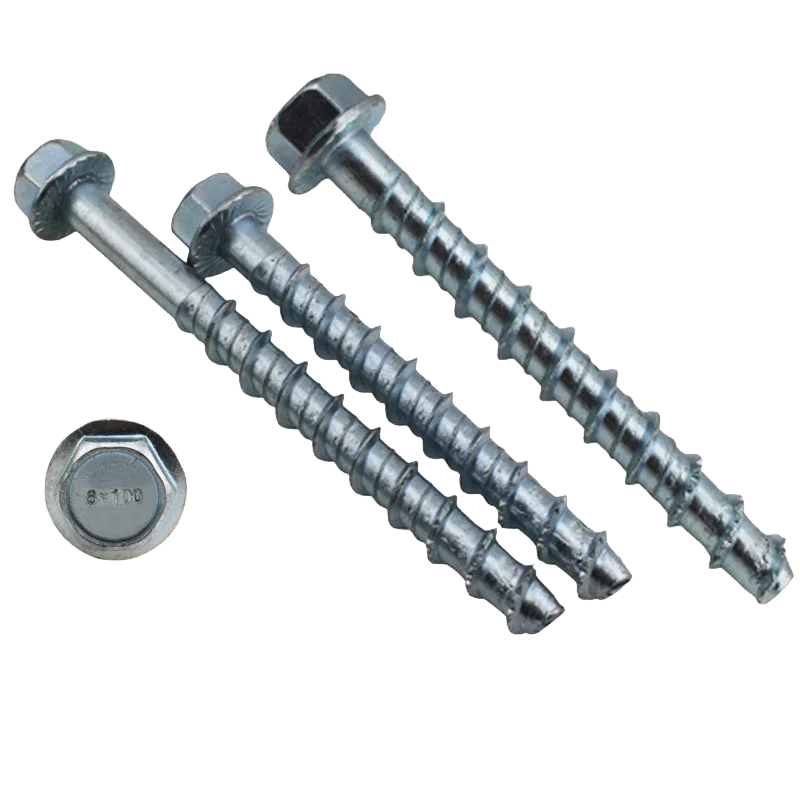

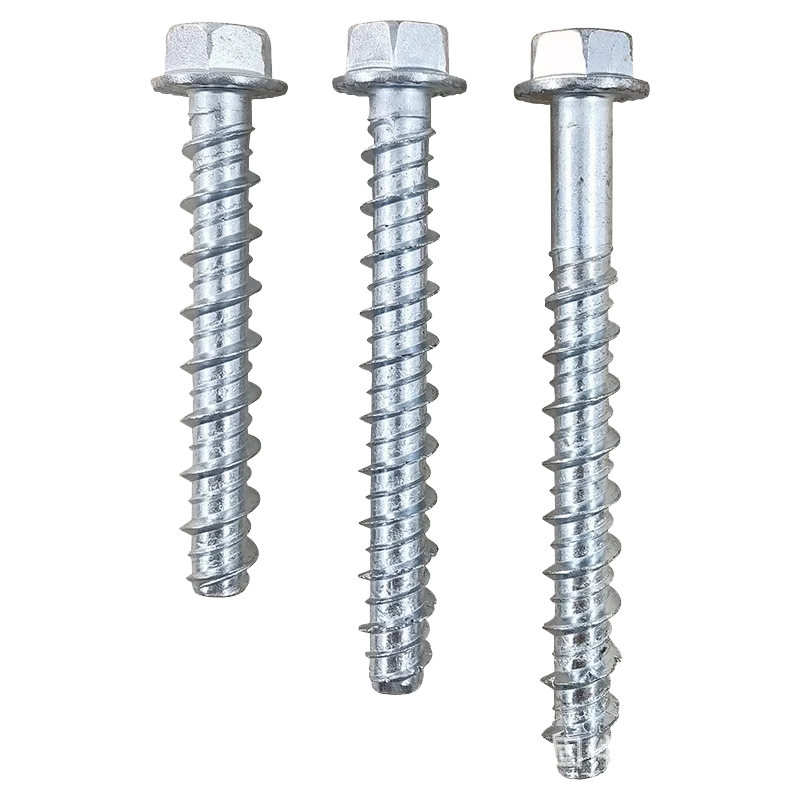

Concrete Anchor Bolts Screw for concrete with competitive price China fastener manufacturer Anchor bolts
- Category: >>>
- Supplier: Shanghai Daring Architecture Technology Co. Ltd.
Share on (1600829078017):
Product Overview
Description
Product type | Drill hole diameter | Borehole depth | Maximum anchorage thickness at standard burial depth | Mounting torque |
M8*80 | 8 | 80 | 10 | ≤20 |
M10*100 | 10 | 100 | 15 | ≤40 |
M12*120 | 12 | 120 | 20 | ≤60 |
M14*140 | 14 | 140 | 25 | ≤80 |
Products

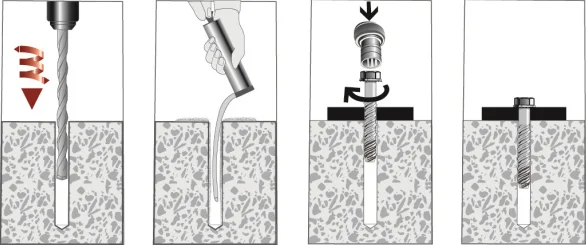

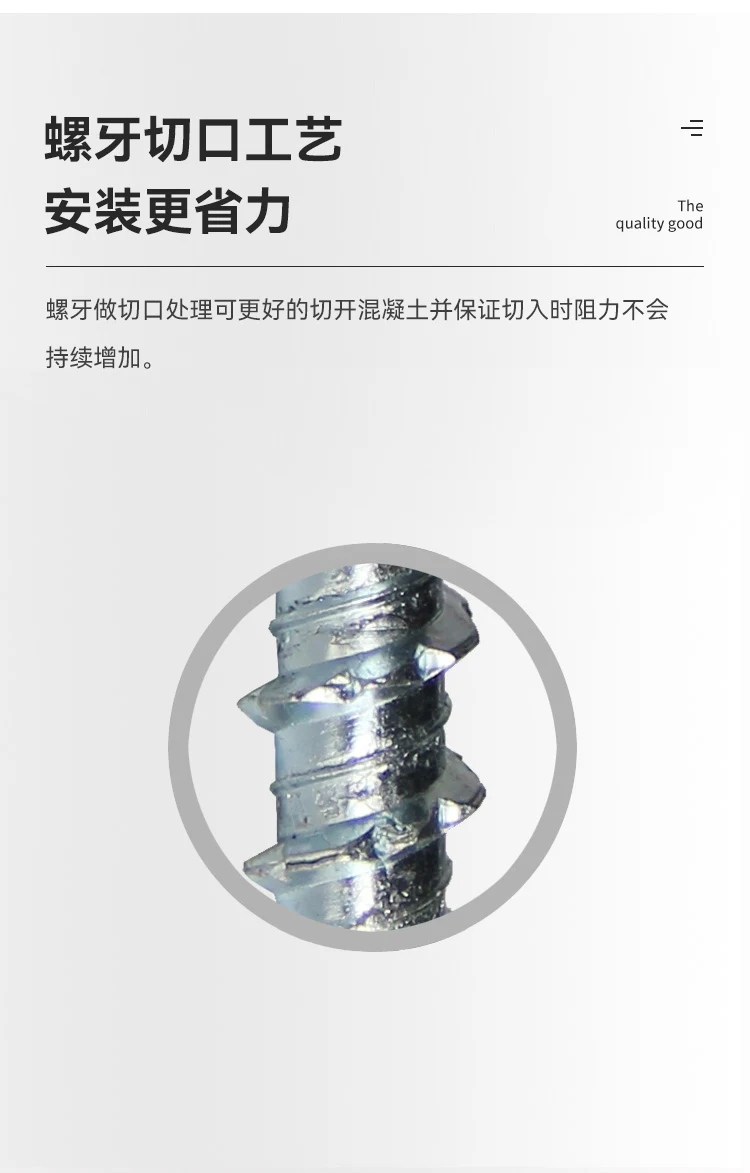

The anchor rod, spacer and hexagonal head of the anchor bolt are unified and the threads of the anchor bolt cut into the base material when the anchor bolt is screwed into the installation hole.
Surface treatment available:
1. Electro-galvanised (average zinc layer thickness >5u m), for use in common environments;
2、Dacromet "can pass the salt spray test over 120h", used in the environment with high requirements for corrosion protection.
Surface treatment available:
1. Electro-galvanised (average zinc layer thickness >5u m), for use in common environments;
2、Dacromet "can pass the salt spray test over 120h", used in the environment with high requirements for corrosion protection.
