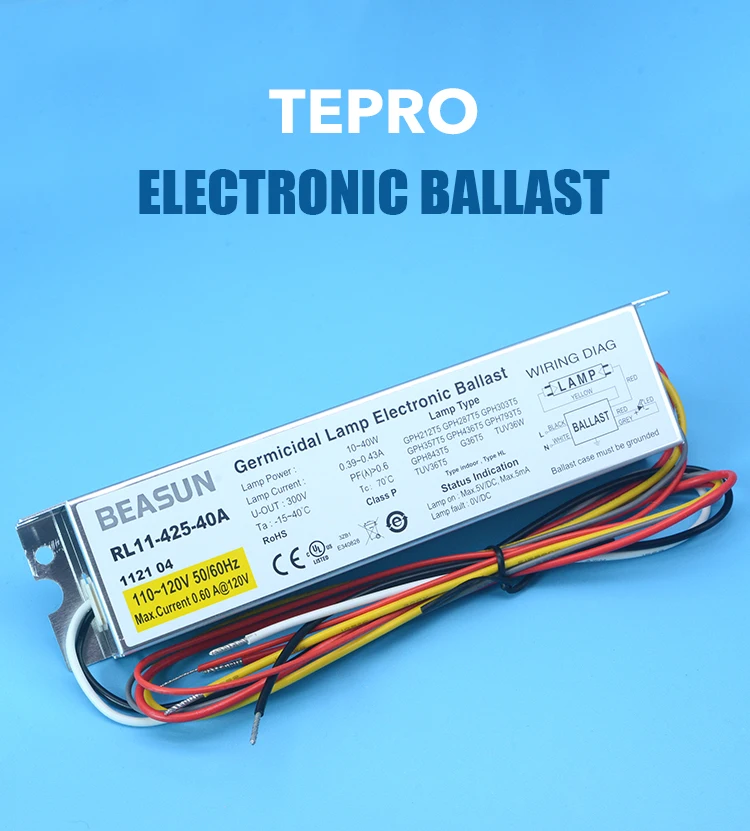

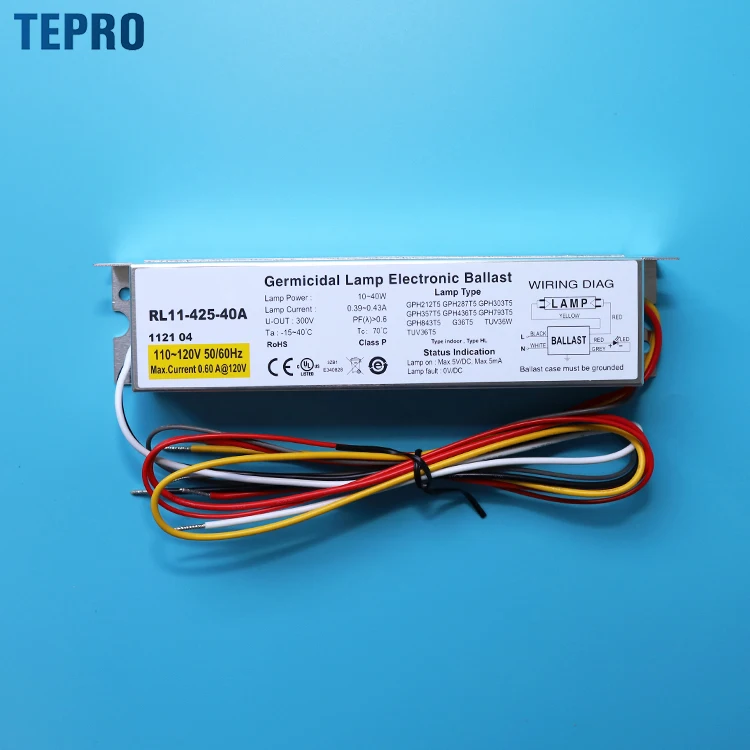

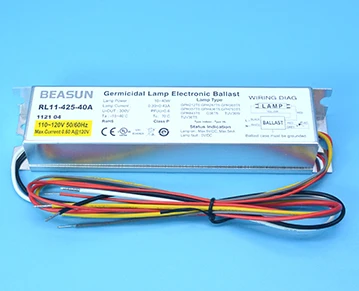

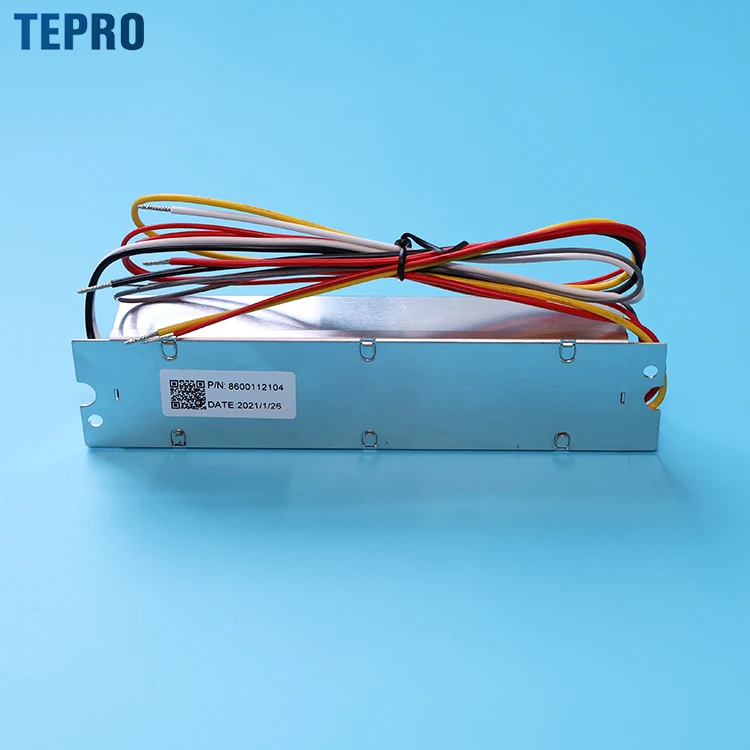

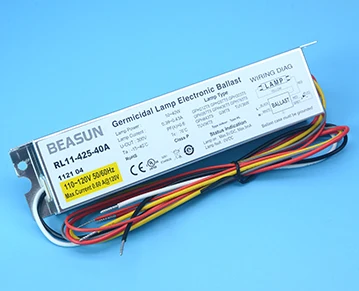

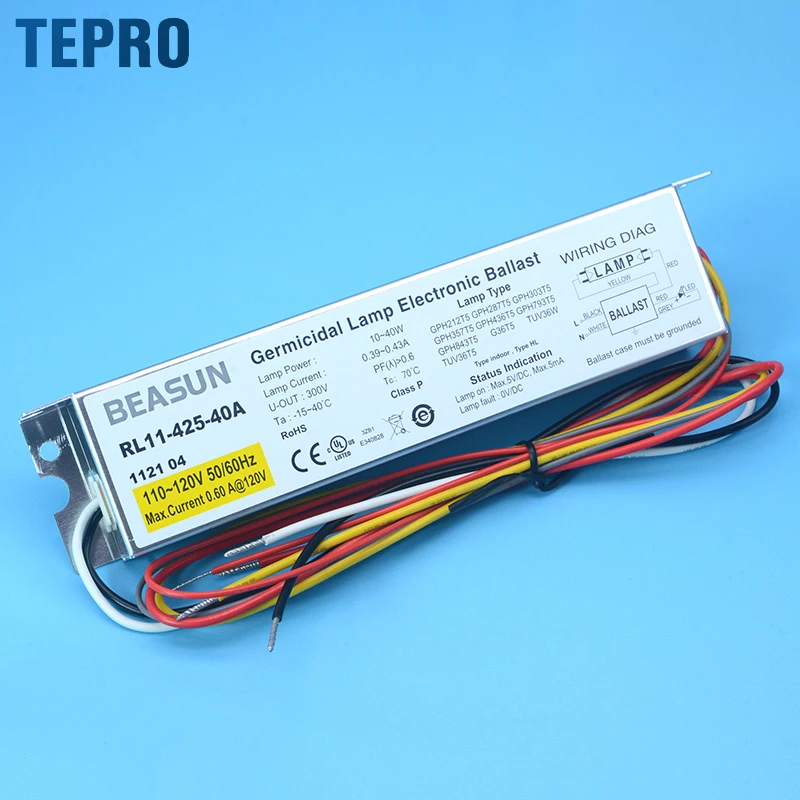

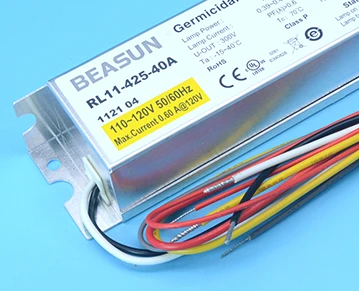

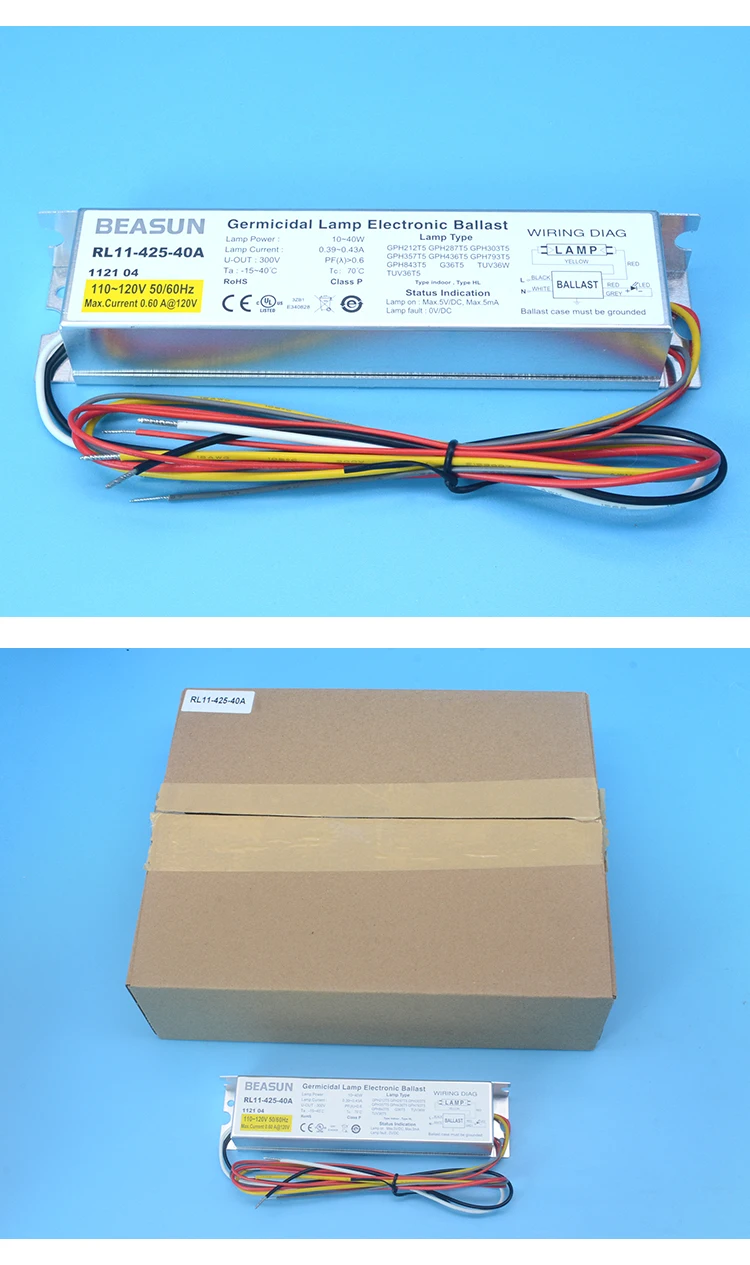

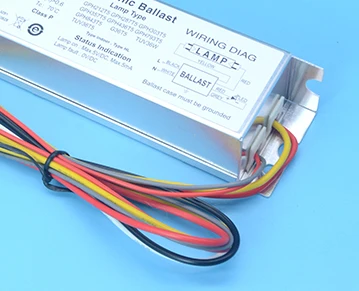

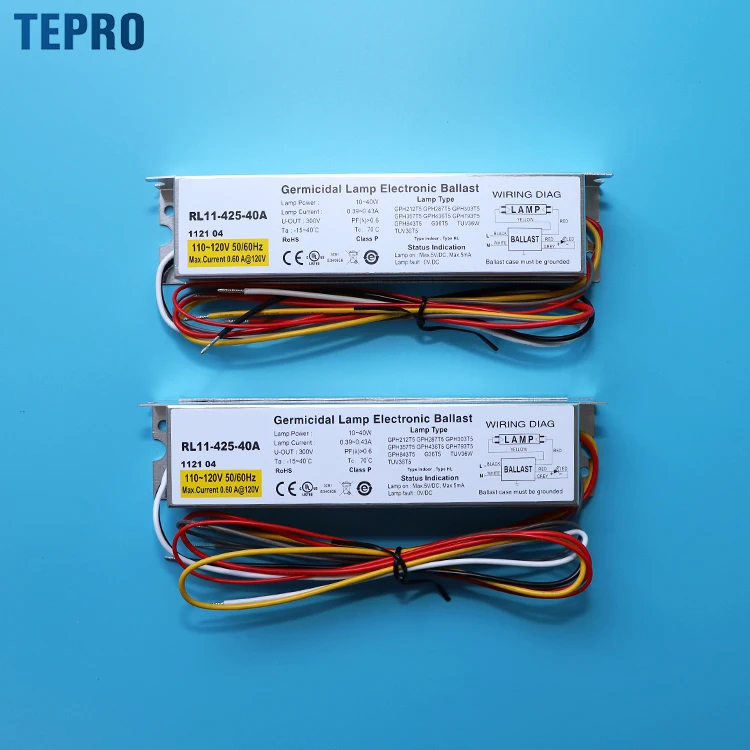

RL11 425 40A Preheat start 10w 40w uvc tube t5 t8 digital ballast dc 110v electronic ballast 20w for uv germicidal lamps
- Category: >>>
- Supplier: Foshan Tengnuo Technology Co. Ltd.
Share on (1600829093466):
Product Overview
Description
Type | Size | Input Voltage | Lamp Power | Lamp Specification |
RW12-180-10 | 81.5*42*23.5mm | 220-240V±10% | 4-8W | CUH-5W CUH-7W CUH-13W UVC-4WT5 UVC-6WT5 UVC-8WT5 |
RW12-180-10A | 81.5*42*23.5mm | 110-120V±10% | 4-8W | CUH-9W CUH-11W CUH-13W UVC-4WT5 UVC-6WT5 UVC-8WT5 |
RW12-425-18 | 81.5*42*23.5mm | 220-240V±10% | 14-17W | CUH-18W G10T5L/17W GPH287T5L/14W GPH303T5L/15W GPH357T5L/17W |
RW12-425-18A | 81.5*42*23.5mm | 110-120V±10% | 14-17W | CUH-18W G10T5L/17W GPH287T5L/14W GPH303T5L/15W GPH357T5L/17W |
RL11-350-30 | 165*38*26mm | 220-240V±10% | 15-30W | CUH-24W UVC-20WT5 UVC-30WT5 |
RL11-350-30A | 165*38*26mm | 110-120V±10% | 10-40W | CUH-24W UVC-20WT5 UVC-30WT5 |
RL11-800-35 | 165*38*26mm | 220-240V±10% | 20-35W | CUH-35W GPH212T56/HO/48W GPH287T5L/HO/27W GPH357T5L/HO/32W |
RL11-800-35A | 165*38*26mm | 110-120V±10% | 20-35W | CUH-35W GPH212T56/HO/48W GPH287T5L/HO/27W GPH357T5L/HO/32W |
RL11-425-40 | 165*38*26mm | 220-240V±10% | 10-40W | CUH-36W UVC-36WT5 UVC-40WT5 G36T5L/40W GPH436T5L/21W GPH550T5L/28W GPH793T5L/37W GPH843T5L/40W |
RL11-425-40A | 165*38*26mm | 110-120V±10% | 10-40W | CUH-36W UVC-36WT5 UVC-40WT5 G36T5L/40W GPH436T5L/21W GPH550T5L/28W GPH793T5L/37W GPH843T5L/40W |
RL11-530-55 | 165*38*26mm | 220-240V±10% | 25-55W | CUH-55W UVC-25WT5 |
RL11-530-55A | 165*38*26mm | 110-120V±10% | 25-55W | CUH-55W UVC-25WT5 |
RL1-800-100 | 215*44*26mm | 220-240V±10% | 40-100W | CUH-60W CUH-95W GU80W GU100W GPH436T5L/HP/48W GPH793T5L/HO/72W GPH846T5L/HO/80W GPH893T5L/HO/90W |
RL1-800-75A | 215*44*26mm | 110-120V±10% | 40-75W | CUH-60W GU80W GU100W GPH436T5L/HP/48W GPH793T5L/HO/72W GPH846T5L/HO/80W GPH893T5L/HO/90W |
RH2-800-2/75U | 200*66*33mm | 110-277V±10% | 2*35~75W 1*100~155W | CUH-95W GU120W GU150W GU190W GPH1148T5L/HO/120W GPH1554T5L/HO/150W |
RW12-350-15 | 81.5*42*23.5mm | 220-240V±10% | 15-24W | UVC-11WT5 UVC-16WT5 UVC-10WT5 UVC-15WT5 |
RW12-350-15A | 81.5*42*23.5mm | 110-120V±10% | 15-24W | UVC-11WT5 UVC-16WT5 UVC-10WT5 UVC-15WT5 |
RL1-425-90 | 215*44*26mm | 220-240V±10% | 40-79W | GPH843-1630T5 G48T5 G64T5 G67T5 G48T5L/55W G64T5L/75W G67T5L/79W GPH1148T5L/55W GPH1554T5L/75W |
RH1-425-75U | 215*44*30mm | 110-277V±10% | 55-80W | TUV64T5 G48T5L/55W G64T5L/75 G67T5L/79W GPH1148T5L/55W GPH1554T5L/75W |
PH7-1200-105U | 190*60*45mm | 110V-240V | 105W | GPHA357T5L/42W GPHA843T5L/105W |
PH8-1200-190 | 260*70*45mm | 110V-240V | 190W | GPHA1000T5L/127W GPHA1554T5L/190W |
PH7-1800-57U | 190*60*45mm | 110V-240V | 57W | GPHA357T5L/57W |
PH8-1800-150 | 260*70*45mm | 110V-240V | 150W | GPHA843T6L/130W GPHA1000T6L/150W |
PH8-2100-200 | 260*70*45mm | 110V-240V | 200W | GPHA357T6L/65W GPHA843T6L/172W GPHA1000T6L/207W |
PH9-2100-320 | 260*103*50mm | 230V | 320W | GPHA1554T6L/240W GPHA1554T6L/320W |
RW12-425-10 | 81.5*42*23.5mm | 220-240V±10% | 8-14W | GPH118T5L/6W GPH150T5L/8W GPH212T5L/10W |
RW12-425-10A | 81.5*42*23.5mm | 110-120V±10% | 8-14W | GPH118T5L/6W GPH150T5L/8W GPH212T5L/10W |
PH2-800-2/75 | 204*69*36mm | 220V | 150W | GU120W GU150W GU190W GPH1148T5L/HO/120W GPH1554T5L/HO/150W |
Details Images
PART.1
------------------------------------------
The ballast have the preheatstart and instant start，Preheat start,good for prolong the lamp's life.
------------------------------------------
1.The ballast have waterproof (IP65) and non-waterproof series
2.We can increase the self-regulation function of UV output control.
---------------------------------------
Quick coupling, Firm,unobstructed connection，Strong impetus make the UV output more stronger.
------------------------------------------
1. Supply different style plugs
(EURO,AUS,USA,CN)
2. UL/CUL/CE certification of the wire
(EURO,AUS,USA,CN)
2. UL/CUL/CE certification of the wire
3.Offered with warning function by special voice and light.
