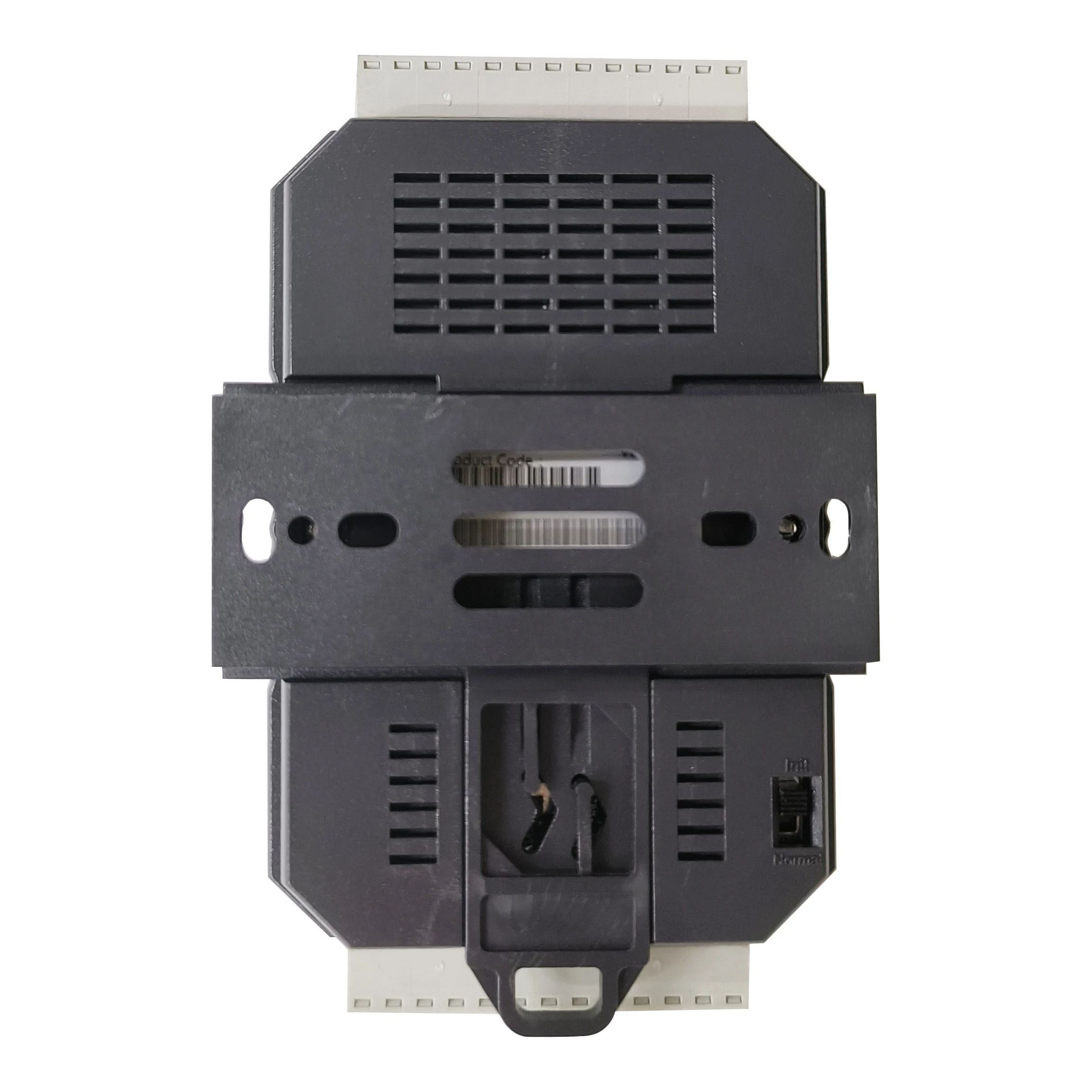

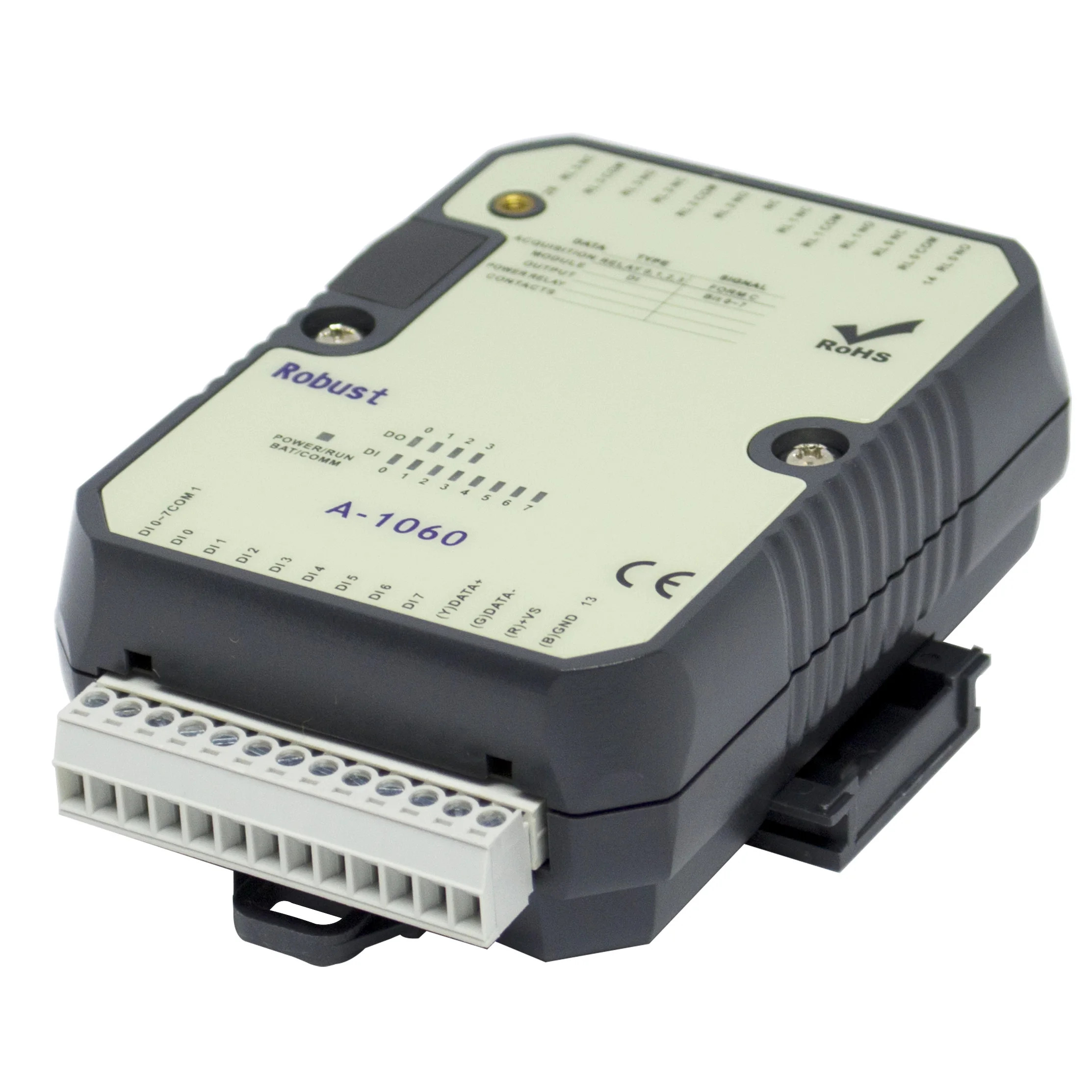

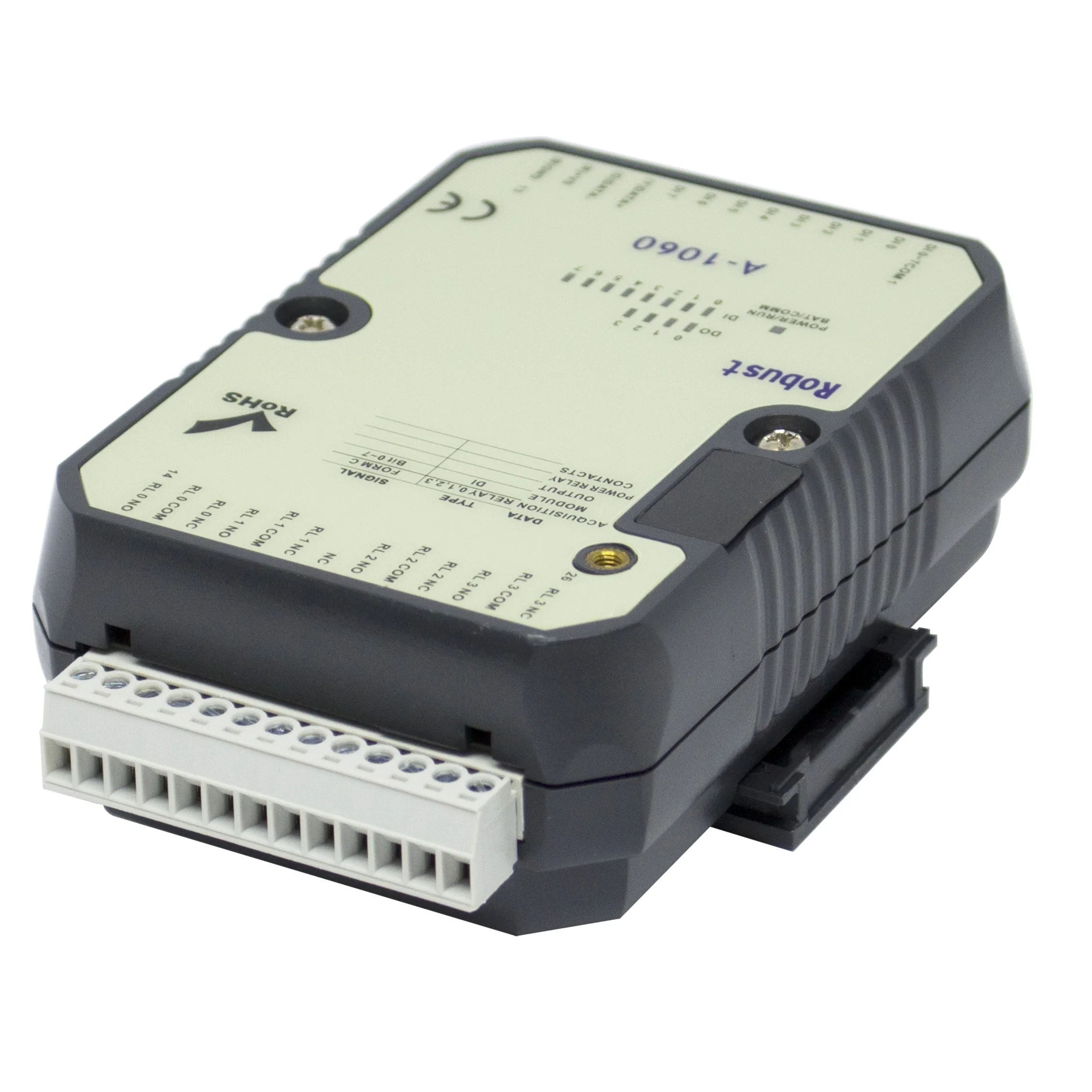

8DI 4DO power relay Digital I/O Module (A 1060)
8DI 4DO power relay Digital I/O Module (A-1060)
8DI 4DO power relay Digital I/O Module (A-1060)
8DI 4DO power relay Digital I/O Module (A-1060)
8DI 4DO power relay Digital I/O Module (A-1060)

8DI 4DO power relay Digital I/O Module (A 1060)

Share on (1600829130348):


Price:$43.60 - $44.90

Quantity:


Product Overview

Description



Product Description



1) 8DI, 4DO(Relay) NPN/PNP(Isolation input)
2) Support RS-485 Modbus RTU / ASCII
3) LED Indicate state of DI/DO
4) Digital input Isolation voltage: 5000 VDC
5) Dual watchdog timer
6) Surge , EFT and ESD protection
7) Wide operation temperature : -20 ~ +75 °C
8) Free PC configuration software "ATC Utility"



Specifications


Technical Specifications
Inputs
8DI(Isolated Digital)
Outputs
4DO(Relay)
Interface Type
RS-485
Support Protocols
ModBus RTU / ModBus ASCII
Data Rate
1200bps ~ 115200bps
Data Bit
8 bits
Parity
Odd, Even, None
Stop Bits
1,2 bits
Isolation Voltage
5000 VDC
Intput Rating
Logic Level 0
+1 VDC (Max)
Logic Level 1
+3.5~30 VDC
Input Type
PNP
Software
Configure Options
 Utility
OS support
Windows XP/2000/2003/Vista/7
LED Indicators
POWER/RUN
BAT/COMM
Orange/Orange/Flash
Input/Output
Red
Power Supply
10~30VDC
Power Consumption
Nearly 24VDC 1.66W
Physical Characteristics
Installation
DIN-Rail Mounting
Housing
Plastic ABS
Weight
0.2Kg
Dimensions
118 × 76 × 40.7 mm
Operating Temperature
-20 ~ 75°C
Storage Temperature
40 ~ 85°C
Ambient Relative Humidity
5% to 95%(non-condensing)
Standards and Certifications
RoHS, CE

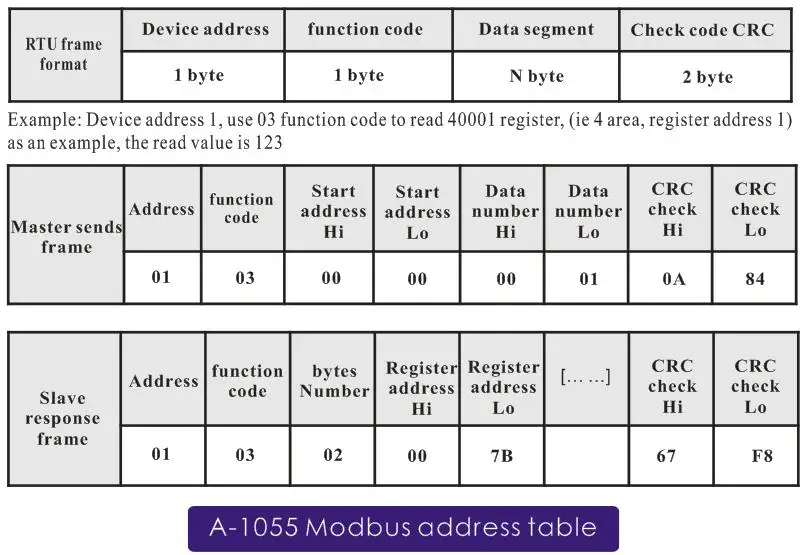

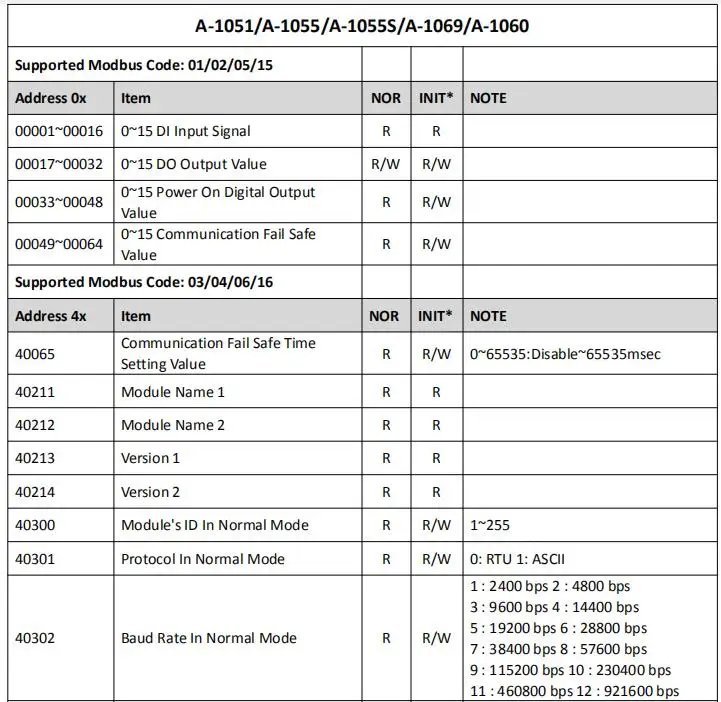

Protocol

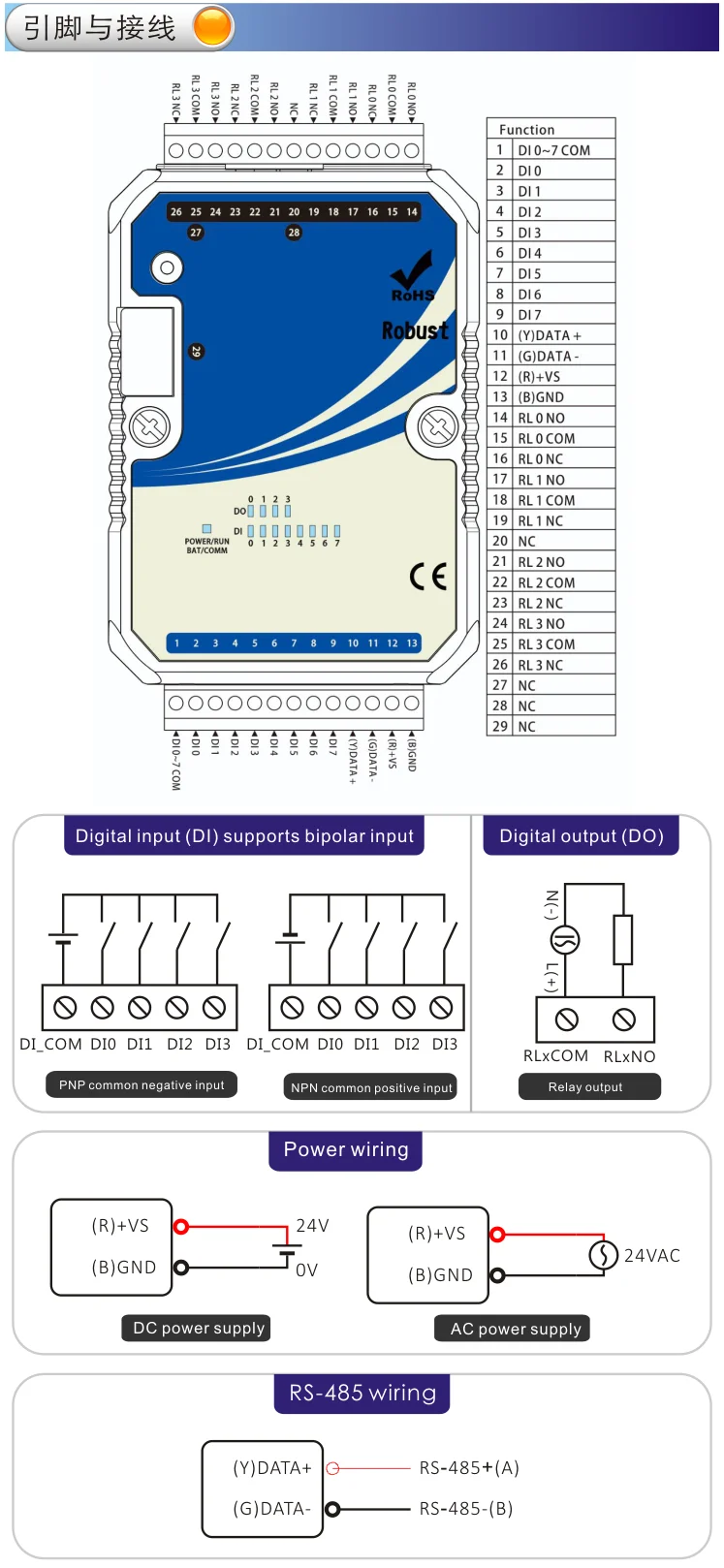

Pins and wiring

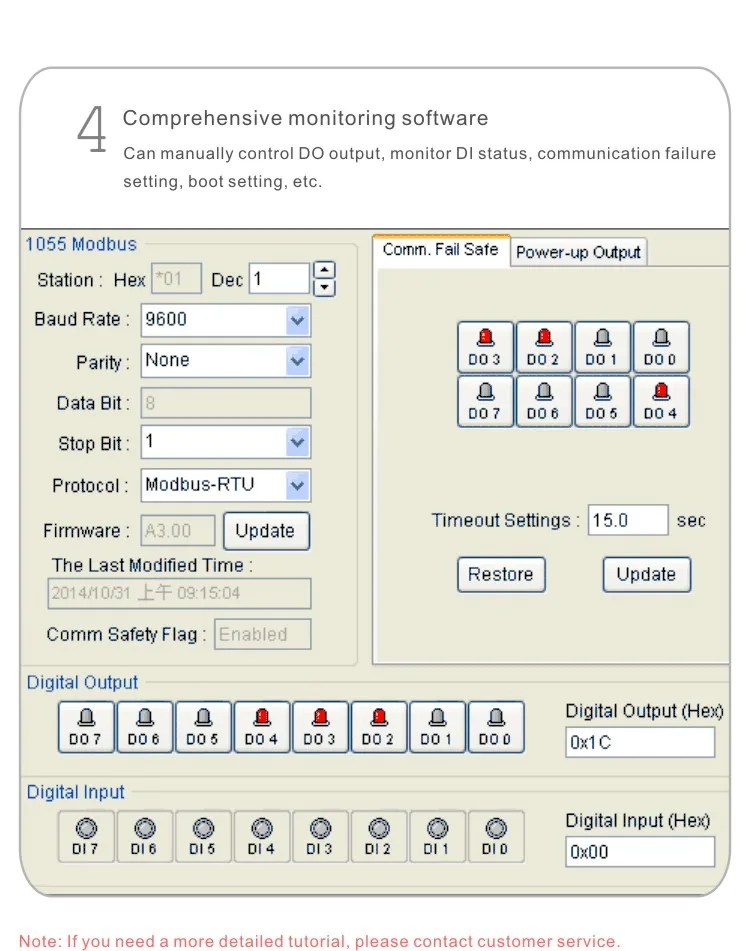

Software download








Details Images

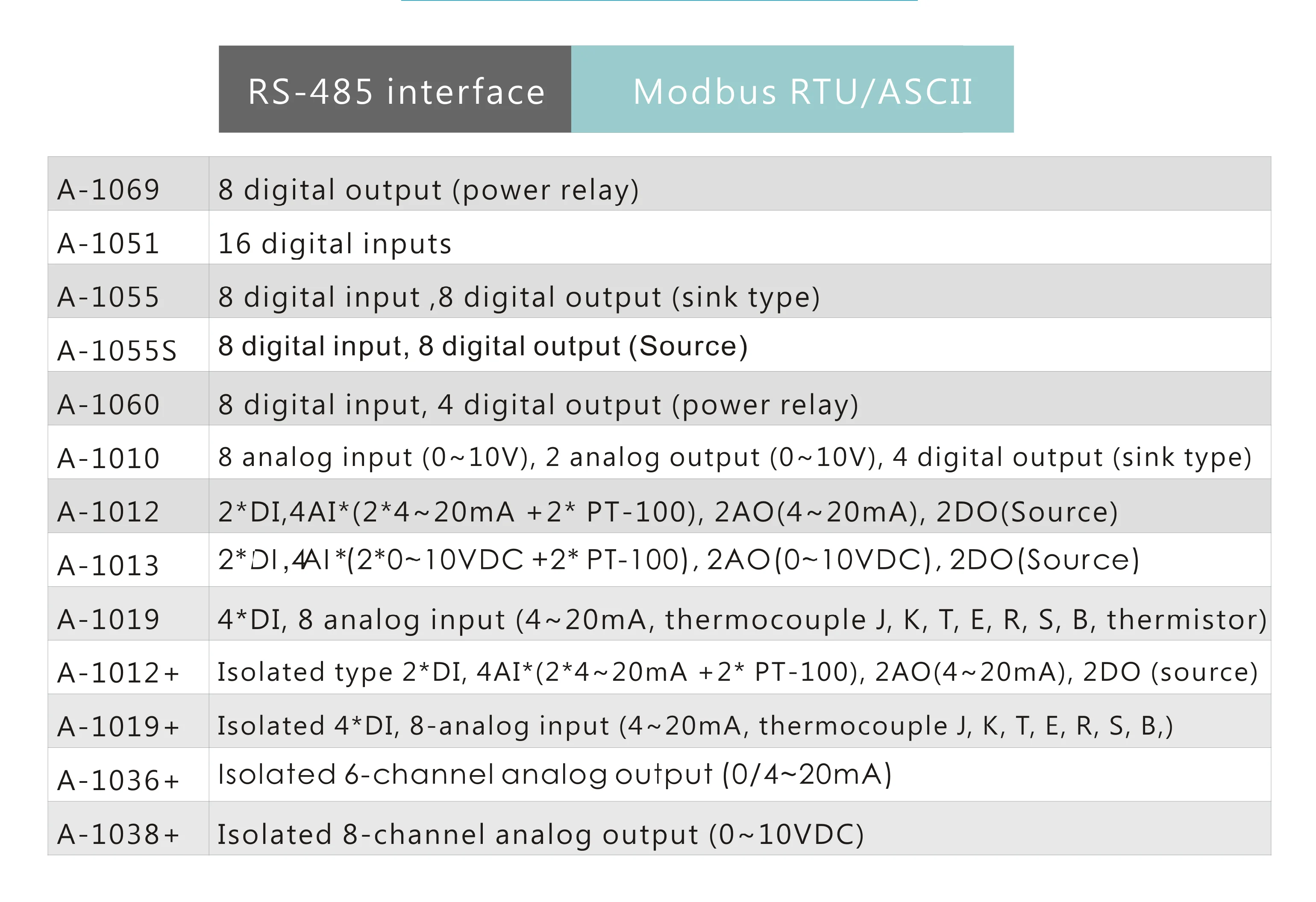

Product Category

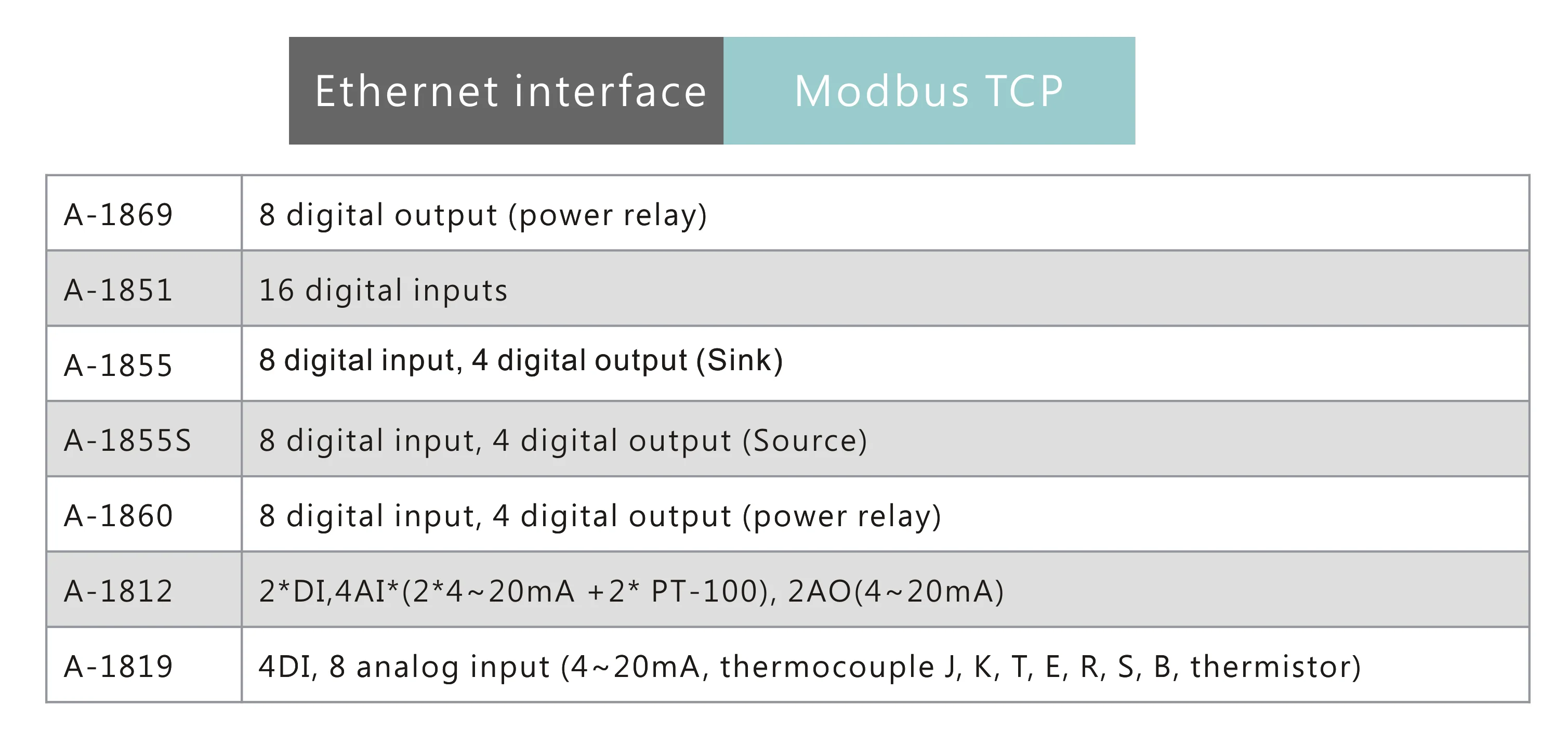

May you have interesting Ethernet I/O module






FAQ


1. who are we?
We are based in Guangdong, China, start from 2003,sell to Western Europe(25.00%),Southeast Asia(23.00%),North America(15.00%),Eastern Europe(10.00%),South America(7.00%),Mid East(5.00%),Oceania(3.00%),Africa(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Remote I/O module,Mini PLC,Serial server,Wireless data Module,USB Cable

4. why should you buy from us not from other suppliers?
ATC is one design and manufacture combine together company.It handing the industrial I/O module ,PLC,serial server and others application for industrial field
more than 15 years.We can offer one-stop serve for industrial.

5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
