YIDU 12~60V 400~1000W PTC ceramic air heater Automatic Thermostat Heater With Stand Corrugated Strip for air condition
- Category: >>>
- Supplier: Shanghai Yidu Electronic Co. Ltd.
Share on (1600829139379):
Product Overview
Description
Factory strength display
In 2002, a large-scale production base was established in Langxi, Anhui.
Our company is committed to the development and production of PTC products for more than 20 years, integrating production and processing, distribution and wholesale, terminal sales.
Main application areas of the product: subway gates, ticket machine constant temperature heating, car auxiliary or heating, equipment and equipment constant temperature heating, household appliances, kitchen and toilet heating liquid heating, train cabin air heating, heating plates for various applications.
Our company is committed to the development and production of PTC products for more than 20 years, integrating production and processing, distribution and wholesale, terminal sales.
Main application areas of the product: subway gates, ticket machine constant temperature heating, car auxiliary or heating, equipment and equipment constant temperature heating, household appliances, kitchen and toilet heating liquid heating, train cabin air heating, heating plates for various applications.
Provide one-stop service, with a strong R&D team and sophisticated staff, who can tailor PTC products that you specifically need.
Exports to more than 60 countries, including the United States, Japan, South Korea, Canada, Russia, Burkina Faso, the Netherlands, France, Germany, Denmark, etc.
Product Description

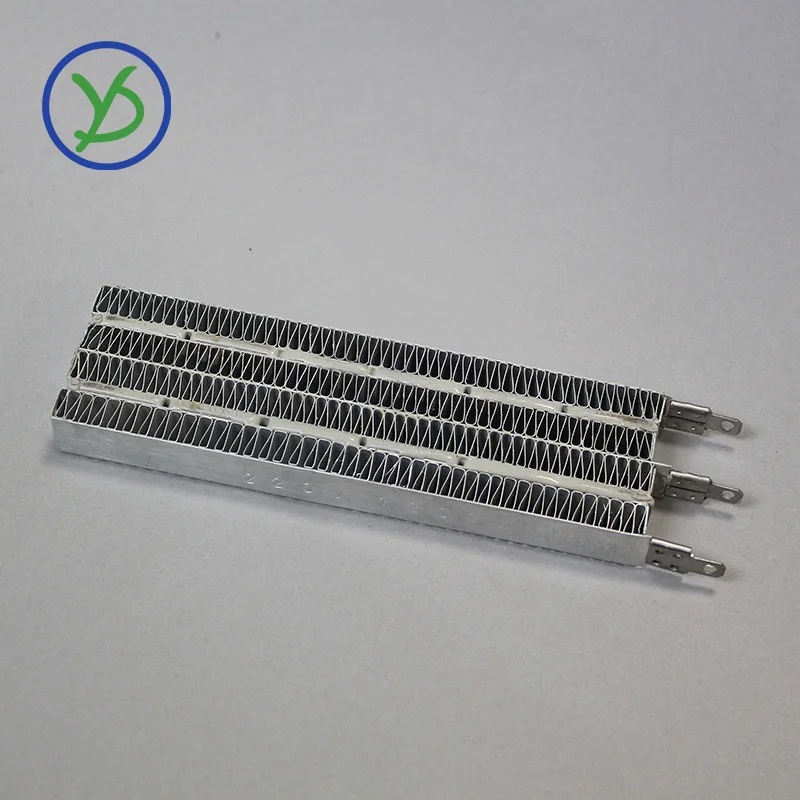

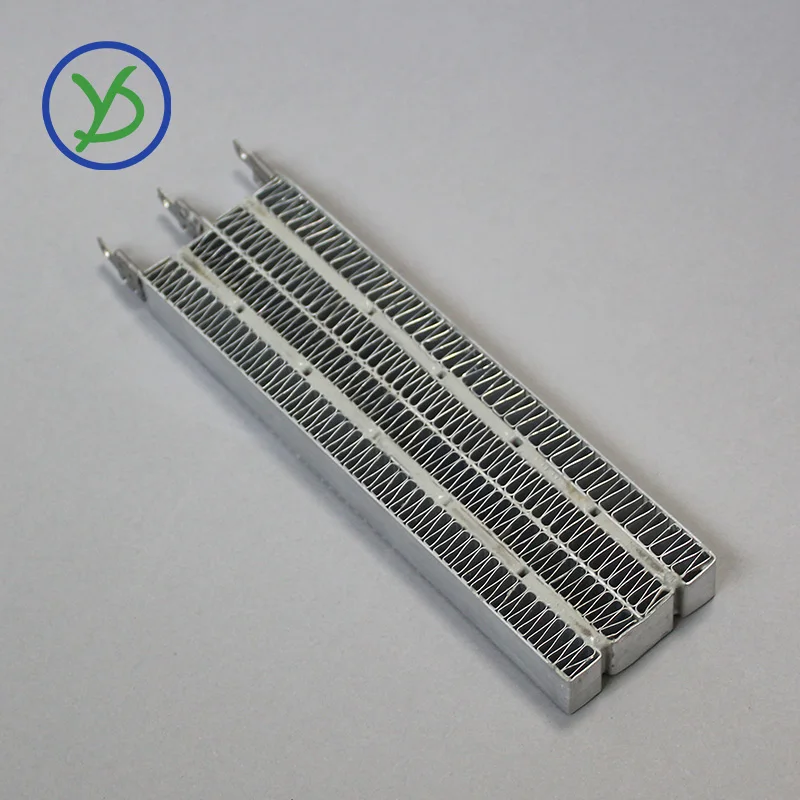

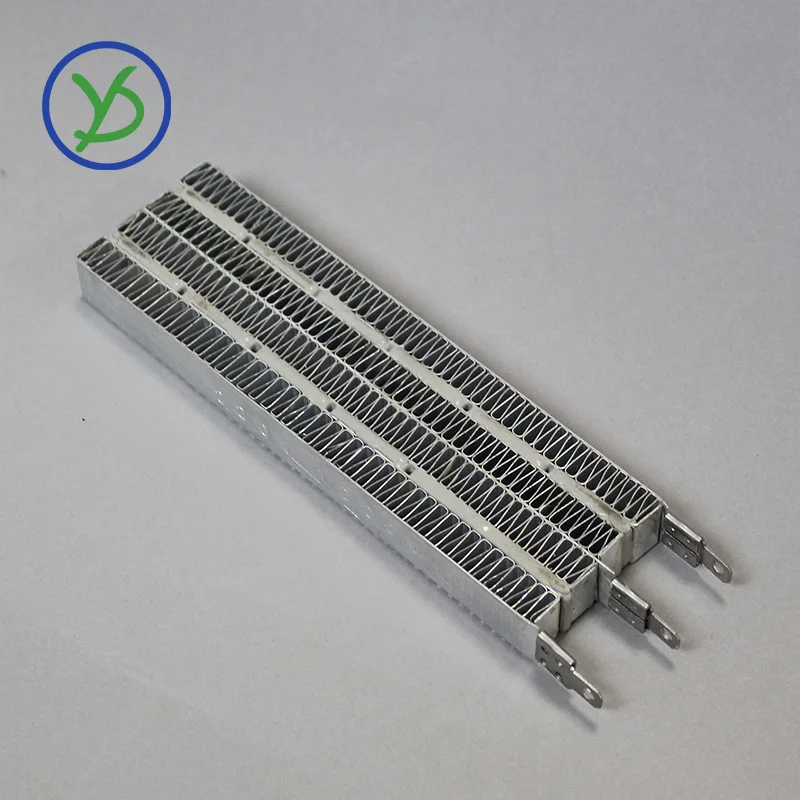

PTC Ceramics Thermistor/PTC Air Heater/PTC Heating Element
1. Rated Voltage(Optional): 220V AC/DC(the power line does not distinguish between positive and negative)
2. Rated Power(Optional): 1200W (R=24℃,5~7m/s wind flow velocity)

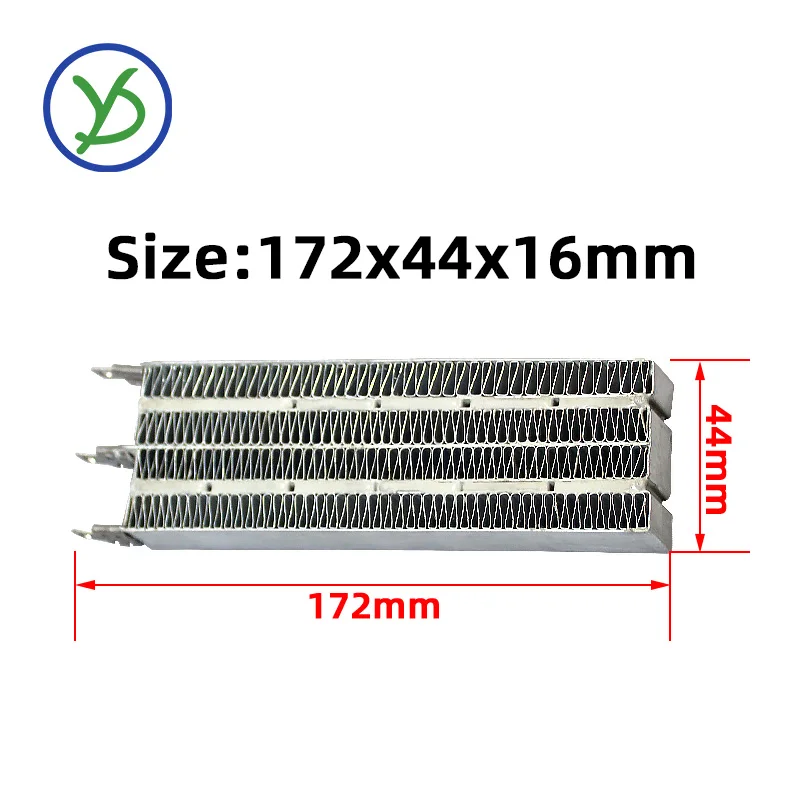

3. Size: 172*44*15mm
Product Name | PTC Air Heater |
Heat Material | PTC Thermistor |
Heat Methods | Heat Radiation by Air Flow |
Surface Insulate | No |
Application | Air Conditioning Units / Electric Heater /Car / Equipment/ General Electric Appliance/ Air Curtain Machine / Humidifier |
Products Show
Products Dimension
Instruction manual:
1, The power line does not distinguish between positive and negative, you can freely link power 12-220V(According to the selected voltage).
2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.
3, Can be placed under a wet environment, but can not be placed in water.
4, For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
5, Both ends of the product wearing bracket (PA66 high temperature nylon)
6. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 40-50 degrees Celsius.
7, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!
8, Life: about: 3--5 years.
Packing & Delivery
Packing Details : Packing, 50pcs/carton
Delivery Details : 1-5 days after order
Application
Hot Selling
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional PTC factory.
Q: Can you customize different requirements products?
A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.
If you have another question, please send us your RFQ.
