Product Overview
Description

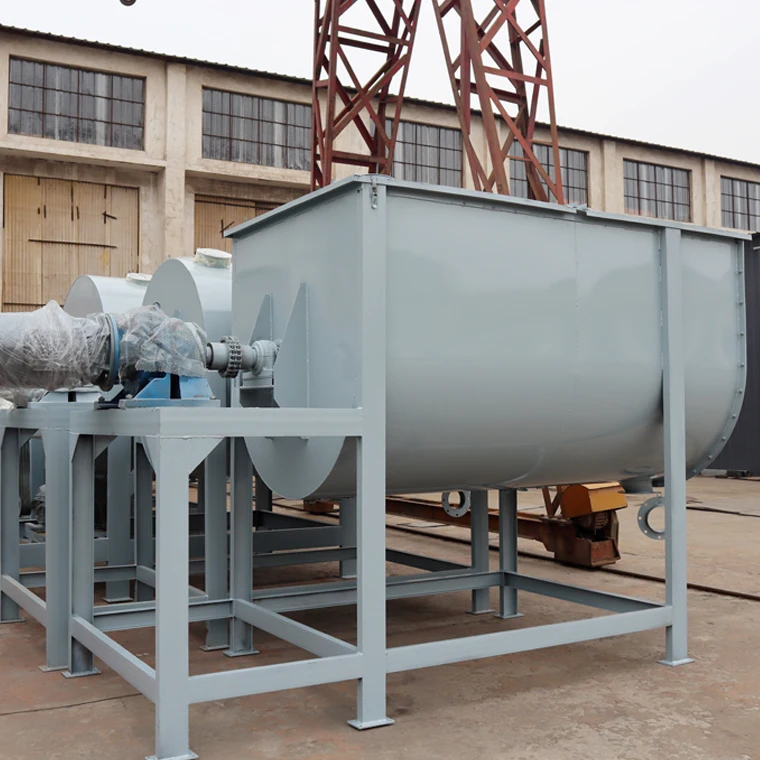

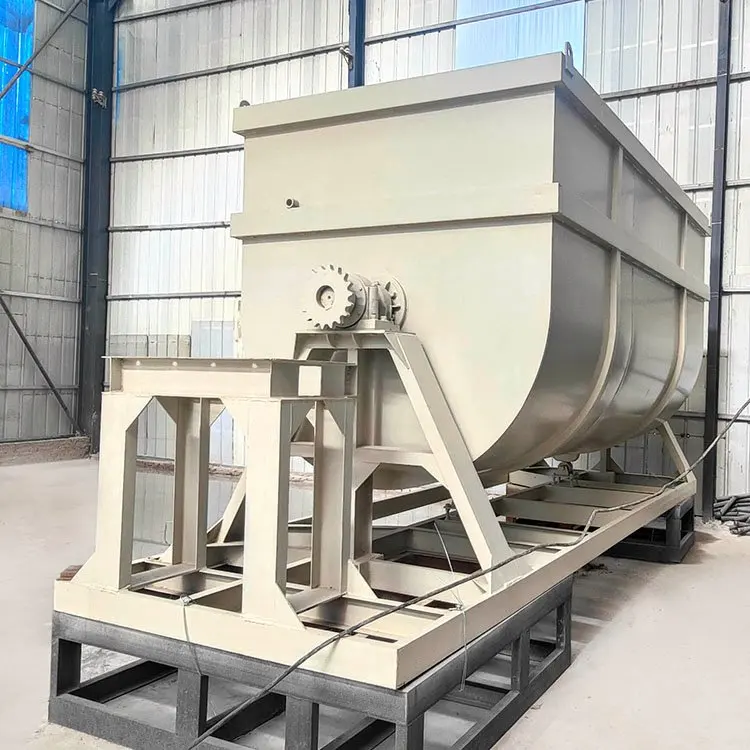

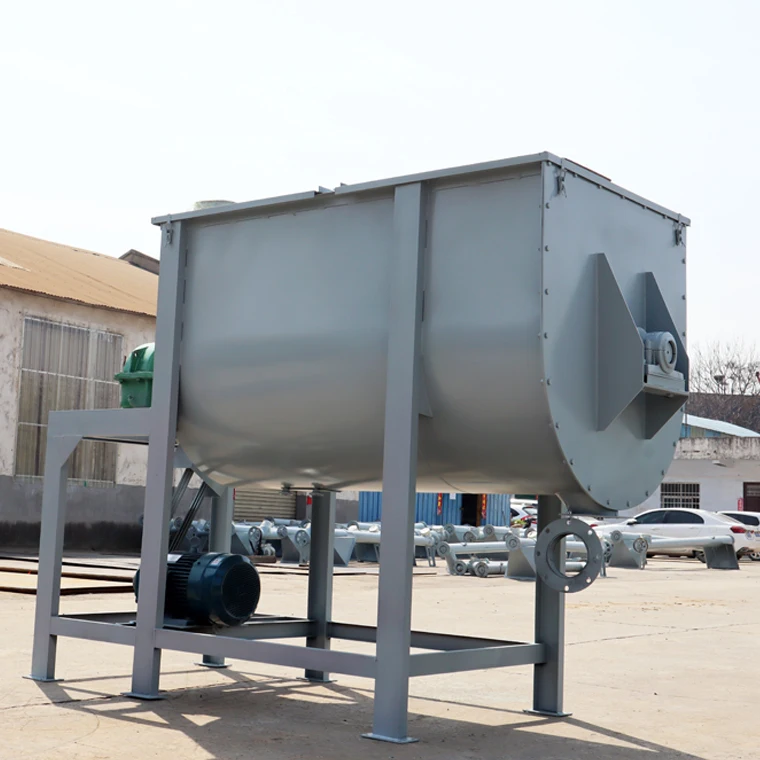

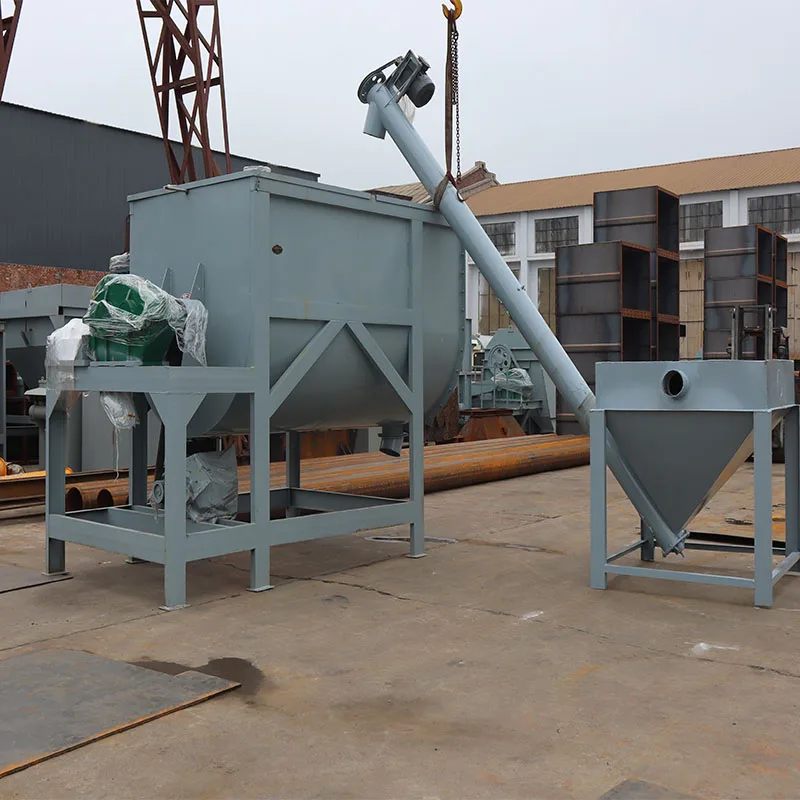

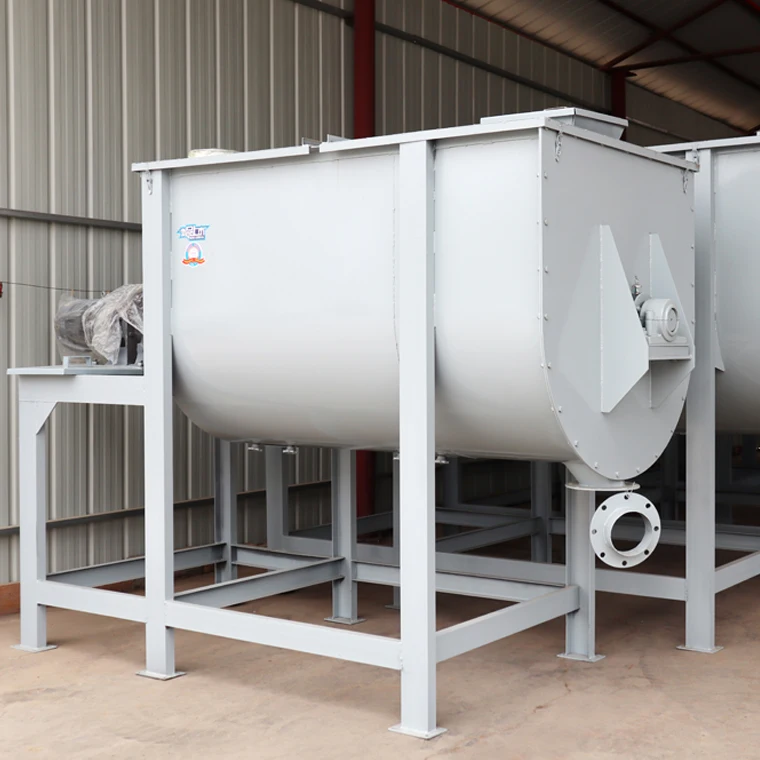

Dry Powder Mortar Mixer
Dry powder mixing machine is arranged on the main shaft of the mixer. The internal screw conveys the material to the outside, and the external screw gathers the material to the inside. Under the convective motion of the material in the double helix belt, a low dynamic and efficient mixing environment is formed. The inner and outer diameter screw installed on the mixing shaft drives the materials in the barrel, so that the agitator can turn the materials in the barrel at the maximum range. When the mixing device works, the inner screw drives the materials close to the shaft center to rotate, the axial direction is pushed from the inside to both sides, and the outer screw drives the materials close to the barrel wall to rotate axially, and the axial direction is pushed from both sides to the inside. The mixed materials can be evenly mixed in a short time.
Product Function
When the mixing device works, the inner screw drives the materials close to the shaft center to rotate, the axial direction is pushed from the inside to both sides, and the outer screw drives the materials close to the barrel wall to rotate axially, and the axial direction is pushed from both sides to the inside. The mixed materials can be evenly mixed in a short time.
What Is Dry Mortar Mixing Plant?
Dry mix mortar plant can also be called dry mix mortar production line, dry mortar mixing plant, dry mix mortar machine, etc. It is a production line that can mass-produce dry mix mortar, consisting of a feeding system, mixing system, weighing system, packaging system, conveying system, etc. It is multifunctional equipment that can also mass produce decorative mortar and masonry mortar such as putty powder, tile adhesive, etc.
So what is a dry mix mortar? The dry mortar is a mix of cement, sand and water. It’s used for many purposes in the construction industry like walling, flooring and ceiling, plastering etc. This mortar can be applied on masonry surfaces to make walls and floors. The dry mortar is also used to make concrete blocks or bricks in order to build houses or other structures.
So what is a dry mix mortar? The dry mortar is a mix of cement, sand and water. It’s used for many purposes in the construction industry like walling, flooring and ceiling, plastering etc. This mortar can be applied on masonry surfaces to make walls and floors. The dry mortar is also used to make concrete blocks or bricks in order to build houses or other structures.
Dry Mortar Mixing Plant
* We support a variety of different models, semi-automatic types, the semi-automatic type output from 1t/h to 10t/h.
* Fully automatic models, daily output of 20 tons, 30 tons, 40 tons, 50 tons, 70 tons, 100 tons, and more than 100 tons.
Semi-Automatic Small Dry Mix Mortar Production Line
* It’s semi-automatic type, you have to feed the materials by human labor. It doesn’t has sand drying system, weighing system, finished product bin, but has a packing machine.
* Small investment, suitable for individuals with small investment
* Small area coverage, less than 3.5m in height, ordinary houses can be used as workshop
* Easy to operate, 2-3 people can produce
* High output, 1-2 tons for single batch, 3-9 ton per hour for daily production
* Small investment, suitable for individuals with small investment
* Small area coverage, less than 3.5m in height, ordinary houses can be used as workshop
* Easy to operate, 2-3 people can produce
* High output, 1-2 tons for single batch, 3-9 ton per hour for daily production
10-30T/H Dry Mixed Mortar Production Line
It’s semi-automatic or full automatic, doesn’t has sand drying system, but has a packing machine, weighing system, cement silos can be added according to customers demand.
* This building construction dry mortar production plant adopts the upper and lower two-level frame structure, equipped with biaxial gravityless mixer, finished product storage bin, packaging machine and pulse dust collector.
* The equipment covers an area of about 80m3, and the height is 6.5m. It’s suitable for customers whose plant height is limited.
* This building construction dry mortar production plant adopts the upper and lower two-level frame structure, equipped with biaxial gravityless mixer, finished product storage bin, packaging machine and pulse dust collector.
* The equipment covers an area of about 80m3, and the height is 6.5m. It’s suitable for customers whose plant height is limited.
More than 30T/H Dry Mix Mortar Plant Manufacturer
* Adopt double shaft gravityless dry mortar mixer machine, dust will never enter the bearing, and the practical life is long.
* If your sand moisture content is more than 5%, you can also configure a sand drying line.
* Adopting cloth bag dust collector, collecting dust efficiently, environmental protection.
* PLC controls this assembly line, fully automated operation, you can also choose automatic palletizer, save labor costs, improve production efficiency.
* If your sand moisture content is more than 5%, you can also configure a sand drying line.
* Adopting cloth bag dust collector, collecting dust efficiently, environmental protection.
* PLC controls this assembly line, fully automated operation, you can also choose automatic palletizer, save labor costs, improve production efficiency.
How does a dry mix plant work?
The dry mortar mixing plant before formal work, to empty machine operation, and the conveyor, reducer, weighing system, bucket elevator, mixing machine, finished bin reducer, air compressor, etc. refueling. Ensure adequate lubrication capacity of the equipment.
Power on all devices and debug them one by one. Make preparations for production. When the elevator, air compressor, and dust collector are opened, the batching scale is opened to lift the prepared materials from the hopper to the pre-mixed hopper.
Start the dry mortar mixer, mixing for 3-5 minutes, then start the motor of the finished bin, open the valve of the mixer, and put the material into the finished bin for packaging.
Power on all devices and debug them one by one. Make preparations for production. When the elevator, air compressor, and dust collector are opened, the batching scale is opened to lift the prepared materials from the hopper to the pre-mixed hopper.
Start the dry mortar mixer, mixing for 3-5 minutes, then start the motor of the finished bin, open the valve of the mixer, and put the material into the finished bin for packaging.
Advantages of dry mix mortar plant
1. Excellent mixing performance with high efficiency and high productivity
2. Environment protection by dust collection system and anti-noise design
3. Easy to operation
4. Convenient structures for disassembly
5. Super property and low production cost;
6. Less space demand;
7. Full -automatic electric operation with PLC/PC control;
8. Electrical weighing system
2. Environment protection by dust collection system and anti-noise design
3. Easy to operation
4. Convenient structures for disassembly
5. Super property and low production cost;
6. Less space demand;
7. Full -automatic electric operation with PLC/PC control;
8. Electrical weighing system
The Component of Dry Mortar Mixing Plant
storage silo
conveying system
weighing and batching system
mixing system
drying system
valve bag filling machine
Raw material storage system of dry mortar mixing plant:
Storage silo
Storage silo
A storage silo is used to store large raw materials, such as cement, fly ash, sand.
There is often use 50 tons or 100 tons cement silo as raw material storage, generally using cement, fly ash, sand as raw material silo. Cement, fly ash using tank truck feeding, sand using bucket elevator conveying to the silo.
For additive materials, it is added manually or automatically to the mixer depending on the amount of additive.
Conveying system:
Whether the screw conveyor or bucket elevator has computer program control, can timely feed timely shutdown.
Sand drying plant system:
With sand dryer will damp sand drying, the drying system imported German “mosaic structure”, three-cylinder sleeve design, save fuel & electricity more.
The sand drying plant is used for the larger dry mortar mixing plant, if you don’t use a lot of sand, we recommend you buy finished sand.
Batching device for dry mortar mixing plant:
Weighing and measuring by the control system according to your set formula automatic feeding and weighing, automatic loading and unloading.
It can automatically measure different raw materials according to the formula, reduce labor intensity and environmental pollution, but also ensure the quality of dry mortar products.
Mixing system of dry mortar mixing plant:
The dry mortar mixer adopts a double-axis gravity-free mixing machine, large capacity bin, short mixing time, high capacity, high uniformity.
It will be mix again in the finished bin, at the same time, to make the material smoothly into the packaging system.
Packaging system of dry mortar mixing plant:
There are two ways of bulk discharging and bagging discharging. The bulk discharging is generally more efficient and delivers directly to the construction site.
The bagging discharging is generally used by dry mortar manufacturers. There are two kinds of bags: open pocket and valve pocket.
There is often use 50 tons or 100 tons cement silo as raw material storage, generally using cement, fly ash, sand as raw material silo. Cement, fly ash using tank truck feeding, sand using bucket elevator conveying to the silo.
For additive materials, it is added manually or automatically to the mixer depending on the amount of additive.
Conveying system:
Whether the screw conveyor or bucket elevator has computer program control, can timely feed timely shutdown.
Sand drying plant system:
With sand dryer will damp sand drying, the drying system imported German “mosaic structure”, three-cylinder sleeve design, save fuel & electricity more.
The sand drying plant is used for the larger dry mortar mixing plant, if you don’t use a lot of sand, we recommend you buy finished sand.
Batching device for dry mortar mixing plant:
Weighing and measuring by the control system according to your set formula automatic feeding and weighing, automatic loading and unloading.
It can automatically measure different raw materials according to the formula, reduce labor intensity and environmental pollution, but also ensure the quality of dry mortar products.
Mixing system of dry mortar mixing plant:
The dry mortar mixer adopts a double-axis gravity-free mixing machine, large capacity bin, short mixing time, high capacity, high uniformity.
It will be mix again in the finished bin, at the same time, to make the material smoothly into the packaging system.
Packaging system of dry mortar mixing plant:
There are two ways of bulk discharging and bagging discharging. The bulk discharging is generally more efficient and delivers directly to the construction site.
The bagging discharging is generally used by dry mortar manufacturers. There are two kinds of bags: open pocket and valve pocket.
What's Dry Mortar?
Dry Mix Mortar is a kind of construction material. It is mainly composed of cement, sand and some other chemical additives. These ingredients are precisely weighed and evenly mixed in a set of machine – dry-mixed mortar production line. The finished mixture is usually packed in bags or in bulk amounts. Dry mixed mortar can be put into use on construction sites by just adding water or other ingredients and mixing them together.
Application of Dry Mortar Production Line
1. Masonry mortar for bricks, stones and other blocks.
This mortar bonding is strong. Masonry mortar has strong plasticity and low shrinkage, which can ensure the stability of the mortar to the greatest extent.
2. Plastering mortar applied on the surface of buildings or building components.
Strong ability to withstand external action. It has sufficient resistance to water flushing. If you want to use plastering in the bathroom or other damp rooms, it is a very good choice. Reduce the number of plastering layers and improve work efficiency. The plastering mortar is easy to smooth, and the surface is smooth and even.
The fluidity of the plastering mortar is good, your construction becomes easier. The water retention of plastering mortar is very good, even after you use it for a long time, it is not easy to crack.
3. Tile adhesives are mainly used to paste decorative materials such as tiles or floor tiles.
The bonding ability of the tile adhesive is very strong, which can effectively reduce delamination, peeling, avoid hollowing, cracking, etc. Protect the environment without toxic additives.
4. Thermal insulation mortar is a common building material.
This mortar bonding is strong. Masonry mortar has strong plasticity and low shrinkage, which can ensure the stability of the mortar to the greatest extent.
2. Plastering mortar applied on the surface of buildings or building components.
Strong ability to withstand external action. It has sufficient resistance to water flushing. If you want to use plastering in the bathroom or other damp rooms, it is a very good choice. Reduce the number of plastering layers and improve work efficiency. The plastering mortar is easy to smooth, and the surface is smooth and even.
The fluidity of the plastering mortar is good, your construction becomes easier. The water retention of plastering mortar is very good, even after you use it for a long time, it is not easy to crack.
3. Tile adhesives are mainly used to paste decorative materials such as tiles or floor tiles.
The bonding ability of the tile adhesive is very strong, which can effectively reduce delamination, peeling, avoid hollowing, cracking, etc. Protect the environment without toxic additives.
4. Thermal insulation mortar is a common building material.
It can be used on the surface of buildings to form a thermal insulation layer and play a certain role in thermal insulation. It can be used after adding water, easy and quick. Thermal insulation mortar has stable performance, low shrinkage, and can effectively prevent mortar cracking. It is no problem if the construction is on a wet base. The thermal insulation effect of the thermal insulation mortar is very good, and it is very environmentally friendly.
5. Tile grout is used to grouting walls or floors between tiles.
Good adhesion to the edge of the tile. Low shrinkage rate, reduce crack formation. Low water absorption and strong resistance to penetration. It has excellent constructability.
6. Decorative mortar is a kind of mortar that can directly decorate buildings without smooth base or other decorative treatment, and can replace paint or tiles. The colors of decorative mortar are natural and various.
Lower cost and high cost performance. Convenient construction and easy operation. Material safety and environmental protection. Strong adhesion, low water absorption and good air permeability.
7. Self-leveling mortar is used for leveling the base of various floor materials.
No segregation, the mortar has good fluidity and can be leveled automatically within a certain thickness. The self-leveling time is short, and it can dry in a short time. According to your requirements, the formulation can be adjusted to change the bearing capacity of the mortar. Strong adhesion, not easy to layer, not easy to empty.
Low shrinkage, environmentally friendly materials.
8. Wall putty mortar used for building coating base leveling.
Save paint usage and reduce project cost. Has strong adhesion and flexibility. Aging resistance, impermeability and moisture resistance. Environmental protection, non-toxic and safe. Good crack resistance and breathability
Advantages of internal wall plaster putty:
Strong adhesion. Good surface decoration. Fireproof. Insulation. Save time. Easy construction with breathing function
9. Gypsum joint mortar used for joints of thin plate keel systems such as paper surface gypsum board and cement fiber board.
Non-toxic five flavors, belonging to green building materials. No cracking, high strength. Fine and smooth texture, easy to polish. It has good crack resistance, easy to stir, easy to operate, fast drying speed, good bonding effect.
5. Tile grout is used to grouting walls or floors between tiles.
Good adhesion to the edge of the tile. Low shrinkage rate, reduce crack formation. Low water absorption and strong resistance to penetration. It has excellent constructability.
6. Decorative mortar is a kind of mortar that can directly decorate buildings without smooth base or other decorative treatment, and can replace paint or tiles. The colors of decorative mortar are natural and various.
Lower cost and high cost performance. Convenient construction and easy operation. Material safety and environmental protection. Strong adhesion, low water absorption and good air permeability.
7. Self-leveling mortar is used for leveling the base of various floor materials.
No segregation, the mortar has good fluidity and can be leveled automatically within a certain thickness. The self-leveling time is short, and it can dry in a short time. According to your requirements, the formulation can be adjusted to change the bearing capacity of the mortar. Strong adhesion, not easy to layer, not easy to empty.
Low shrinkage, environmentally friendly materials.
8. Wall putty mortar used for building coating base leveling.
Save paint usage and reduce project cost. Has strong adhesion and flexibility. Aging resistance, impermeability and moisture resistance. Environmental protection, non-toxic and safe. Good crack resistance and breathability
Advantages of internal wall plaster putty:
Strong adhesion. Good surface decoration. Fireproof. Insulation. Save time. Easy construction with breathing function
9. Gypsum joint mortar used for joints of thin plate keel systems such as paper surface gypsum board and cement fiber board.
Non-toxic five flavors, belonging to green building materials. No cracking, high strength. Fine and smooth texture, easy to polish. It has good crack resistance, easy to stir, easy to operate, fast drying speed, good bonding effect.
