Product Overview
Description
Manufacturer Hot Sales Fiberglass tube Uncoated Silicone Rubber Fiberglass Braided Sleeve Sleeves
STRUCTURE

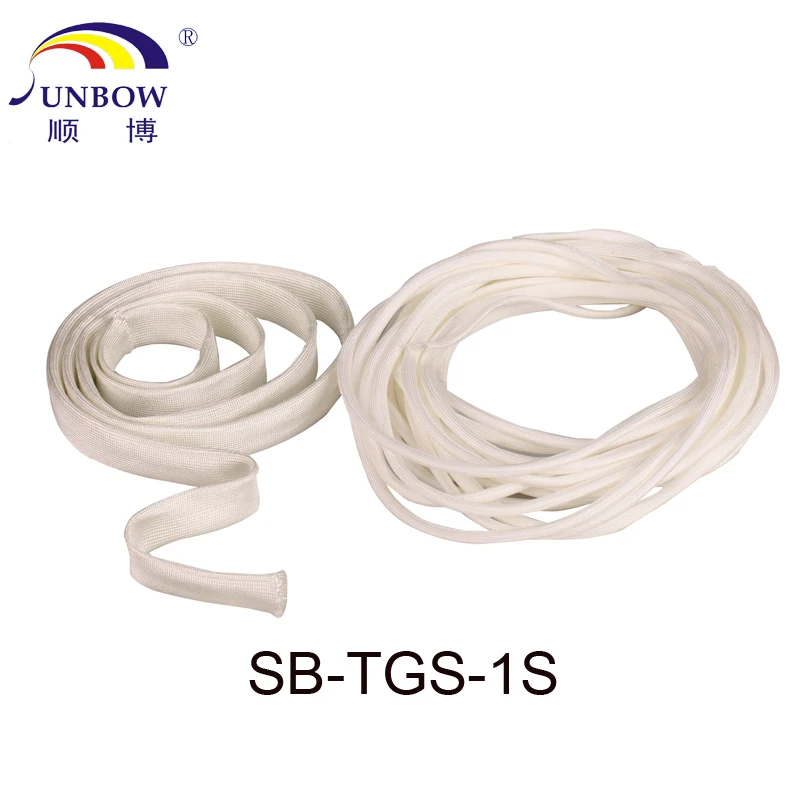

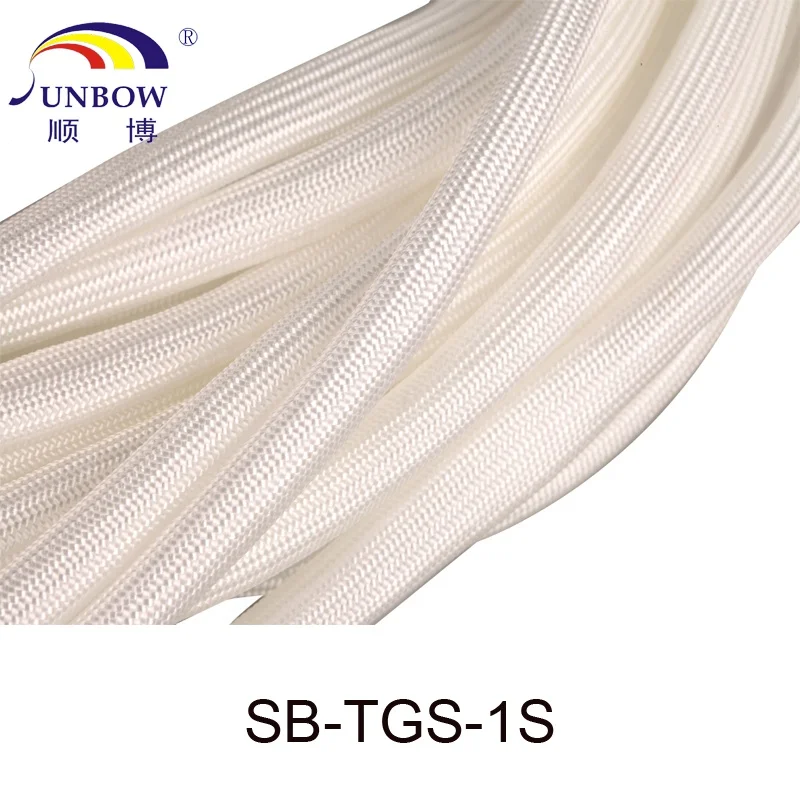

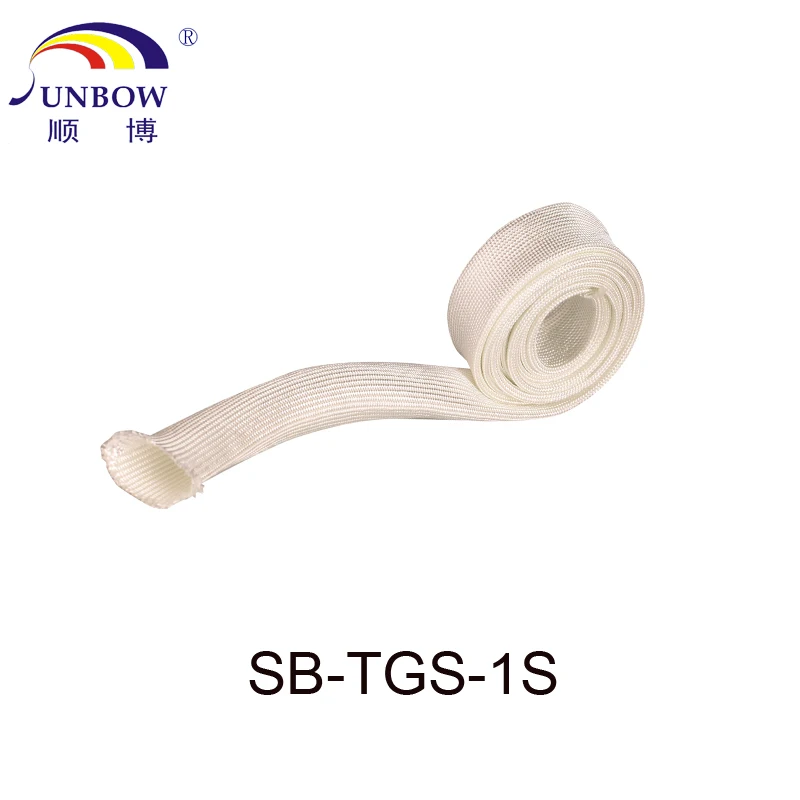

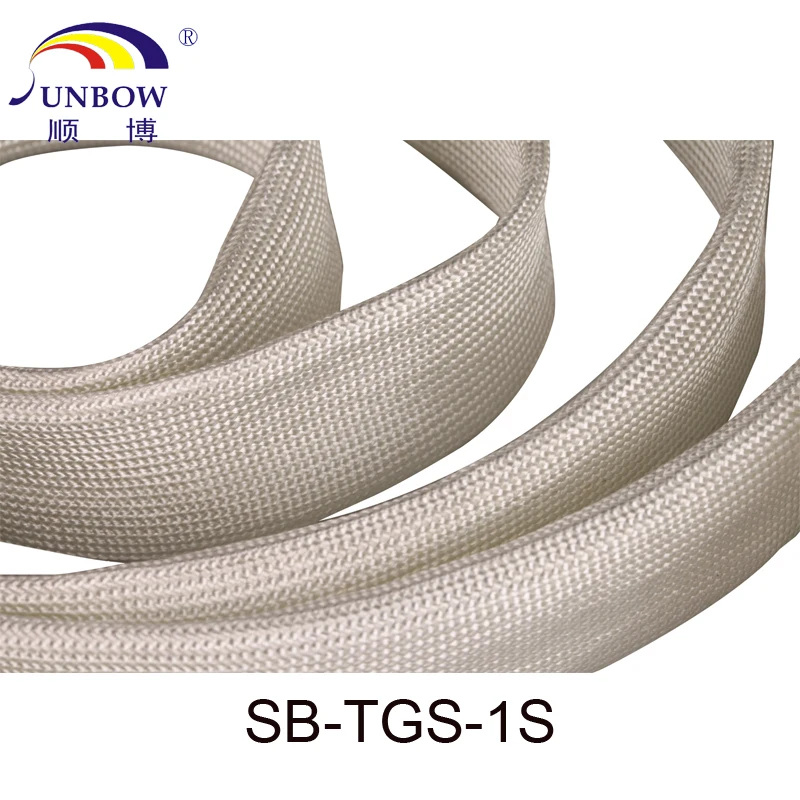

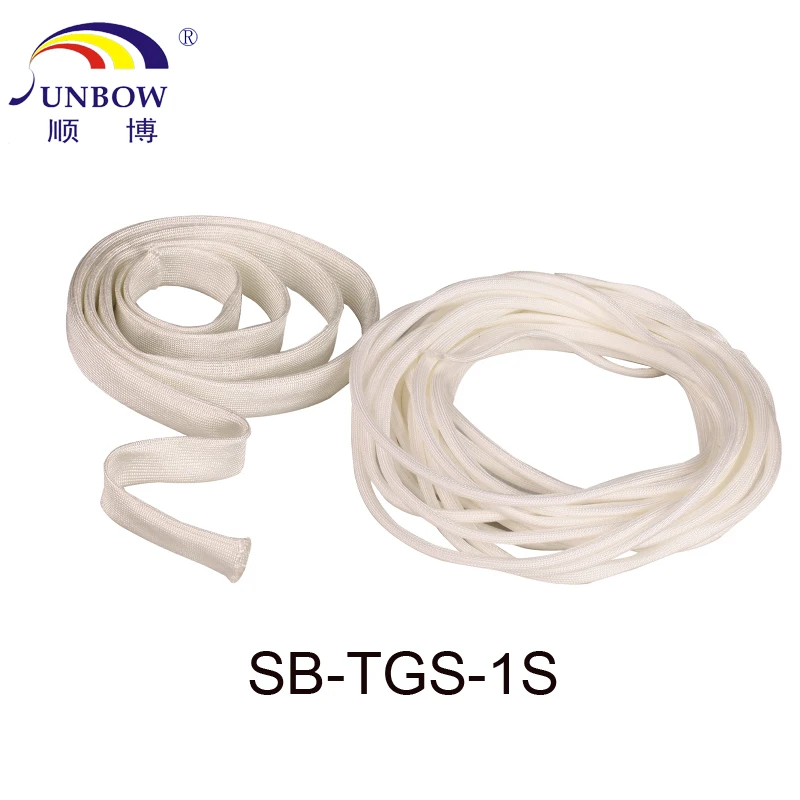

The material content of the SB-TGS-1S are composed of woven Non-Alkali Fiberglass
USAGE
These sleevings with its good dielectric strength, flexibility and flame retarding properties make these sleevings high performance qualities. It can be widely used in un-insulated or partially insulated conductors, bus bars, component leads, or assemblies of electrical components etc.
SPECIFICATION
ITEM | PERFORMANCE | NOTE | |
THERMAL ENDURANCE
| NO INDICATION OF CRACK | OK | 6 HRS* 400±5°C 245±5°C 6HRS AGING |
FIRE RESISTANCE | VW-1 | OK | UL 1441 |
DIMENSION
INSIDE DIAMETER | WALL THICKNESS (mm) | STANDARD PACKAGE m/roll | |
NOMINAL(mm) | TOLERANCE(mm) | ||
φ0.5 | +0.2, -0.1 | ≥0.25mm | 200 |
φ1.0 | +0.2, -0.1 | ≥0.25mm | 200 |
φ1.5 | +0.2, -0.1 | ≥0.25mm | 200 |
φ2.0 | +0.2, -0.1 | ≥0.25mm | 200 |
φ2.5 | +0.3, -0.1. | ≥0.30mm | 200 |
φ3.0 | +0.3, -0.1. | ≥0.30mm | 200 |
φ4.0 | +0.3, -0.1 | ≥0.30mm | 200 |
φ4.5 | +0.3, -0.1 | ≥0.35mm | 100 |
φ5.0 | +0.3, -0.1 | ≥0.35mm | 100 |
φ6.0 | +0.3, -0.1 | ≥0.35mm | 100 |
φ7.0 | +0.3, -0.1 | ≥0.40mm | 100 |
φ8.0 | +0.3, -0.1 | ≥0.40mm | 100 |
φ9.0 | +0.3, -0.1 | ≥0.45mm | 100 |
φ10.0 | +0.3, -0..1 | ≥0.45mm | 100 |
φ12.0 | +1.0, -1.0 | ≥0.45mm | 50 |
φ14.0 | +1.0, -1.0 | ≥0.45mm | 50 |
φ16.0 | +1.0, -1.0 | ≥0.45mm | 50 |
φ18.0 | +1.0, -1.0 | ≥0.45mm | 50 |
φ20.0 | +1.0, -1.0 | ≥0.50mm | 25 |
φ25.0 | +1.0, -1.0 | ≥0.50mm | 25 |
φ30.0 | +1.0, -1.0 | ≥0.50mm | 25 |
