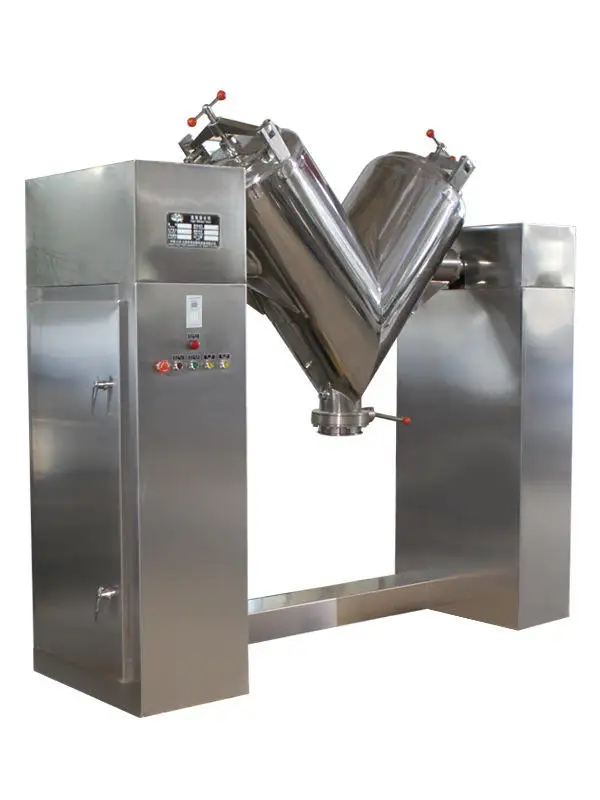

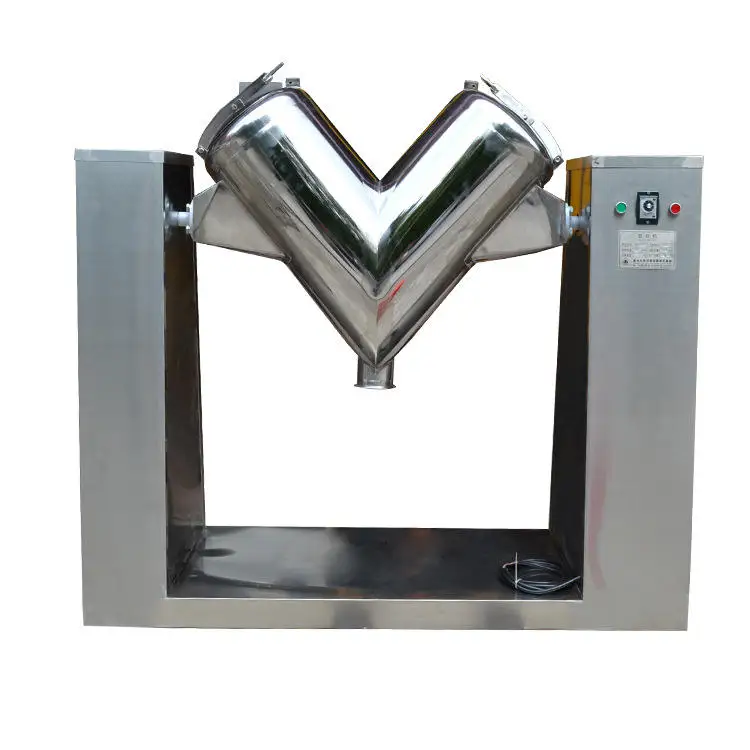

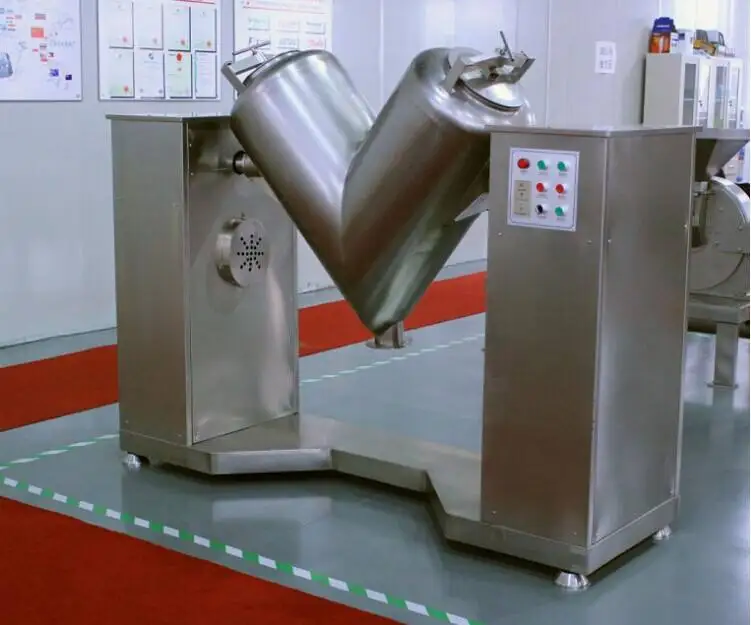

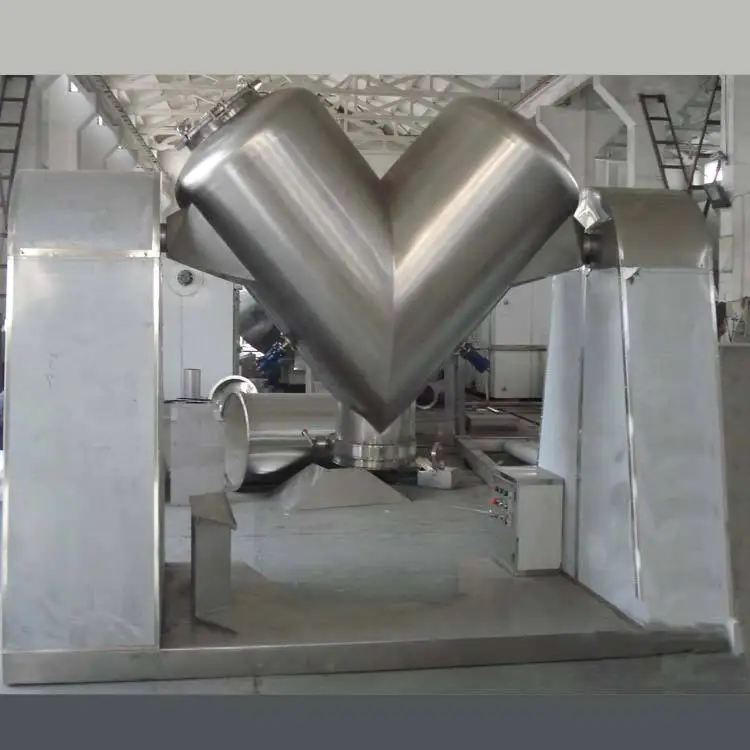

Popular promotional High performance v type dry seasoning mixer for powder
- Category: >>>
- Supplier: Trenfull Industrial (Shanghai) Co. Ltd.
Share on (1600829156642):
Product Overview
Description
Product Description

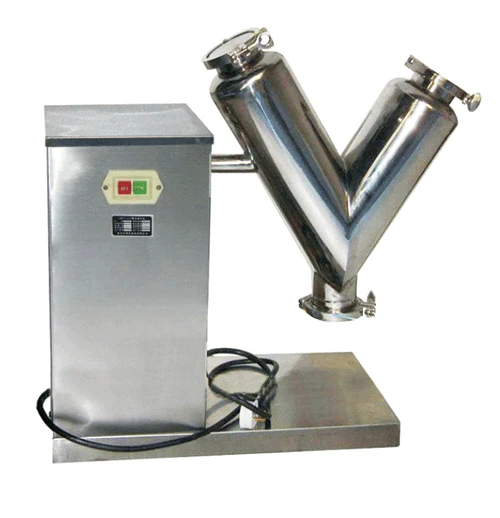

V Type Milk Coffee Powder Mixer chemical dry powder blender blending mixer mixing machine

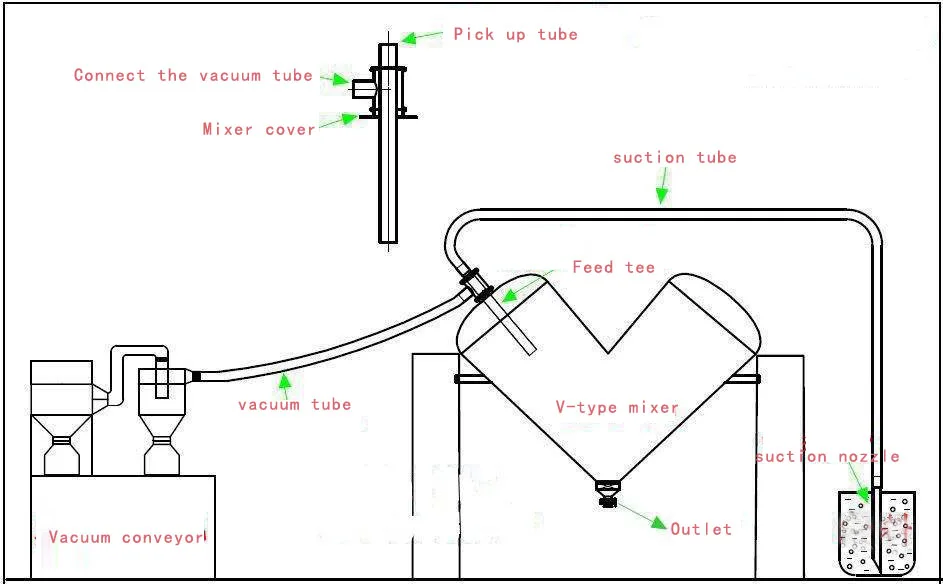

Working principle
This series of machine are newly design, high efficient and high accuracy mixer. It is widely used for dry material grains in the field of medical, chemical, food, metallurgical and other industry.
V-type mixer is a common powder and granular material mixer in the world. The utility model has the advantages of simple structure, easy operation, convenient maintenance and cleaning, fast speed and good mixing effect.
V-type mixer is a common powder and granular material mixer in the world. The utility model has the advantages of simple structure, easy operation, convenient maintenance and cleaning, fast speed and good mixing effect.
Product advantages
● High mixing uniformity.
Due to the unequal length of the two cylinders, the material flow time in the cylinder is different, so it has a very high mixing efficiency and excellent mixing uniformity.
● No residue, no cross-contamination.
There is no dead angle between the inside of the cylinder and the contact part of the material, the mixing process is mild, no segregation is generated, the discharge is thorough, there is no residue, and no cross-contamination will occur.
● The cylinder is made of stainless steel, corrosion resistance and long life. Simple operation and easy maintenance.
Due to the unequal length of the two cylinders, the material flow time in the cylinder is different, so it has a very high mixing efficiency and excellent mixing uniformity.
● No residue, no cross-contamination.
There is no dead angle between the inside of the cylinder and the contact part of the material, the mixing process is mild, no segregation is generated, the discharge is thorough, there is no residue, and no cross-contamination will occur.
● The cylinder is made of stainless steel, corrosion resistance and long life. Simple operation and easy maintenance.
★ 1 year warranty with free replacement parts.
During the warranty period, we will provide replacement parts for any quality problems (except for improper operation and wearing parts). In addition, we will also provide free online video technical support
when necessary. In case on-site technical service is required, fees will be charged based on actual expenditures, including round-trip air tickets, visa application, accommodation and labor coast of the technicians.
when necessary. In case on-site technical service is required, fees will be charged based on actual expenditures, including round-trip air tickets, visa application, accommodation and labor coast of the technicians.

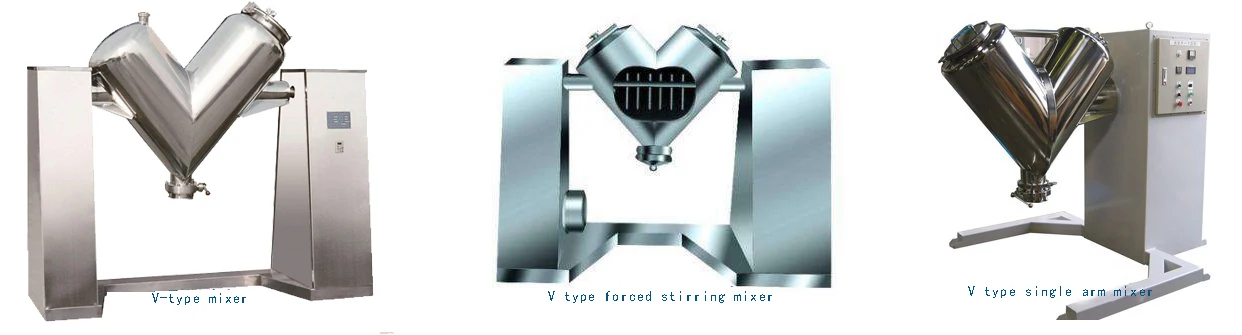

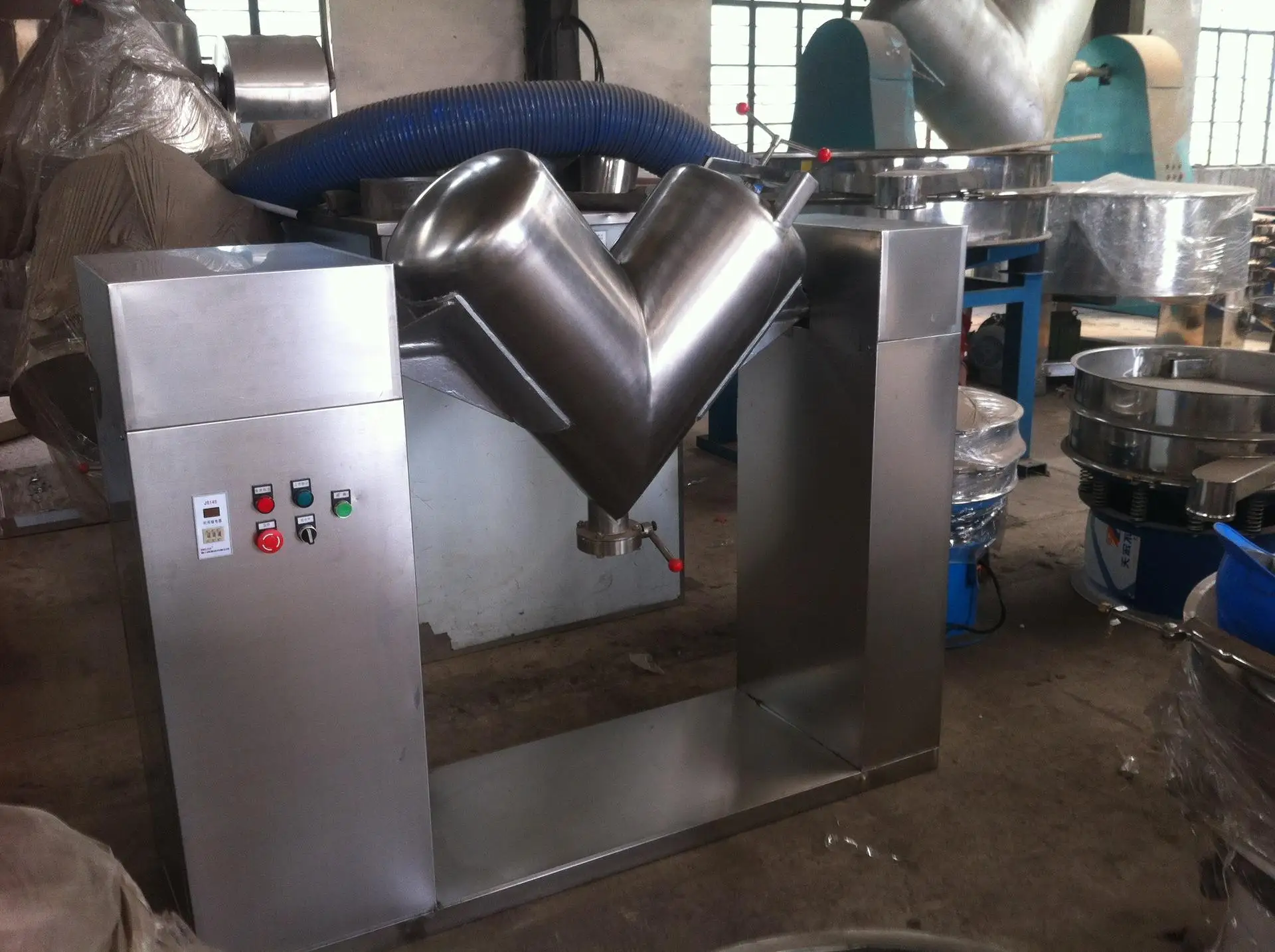

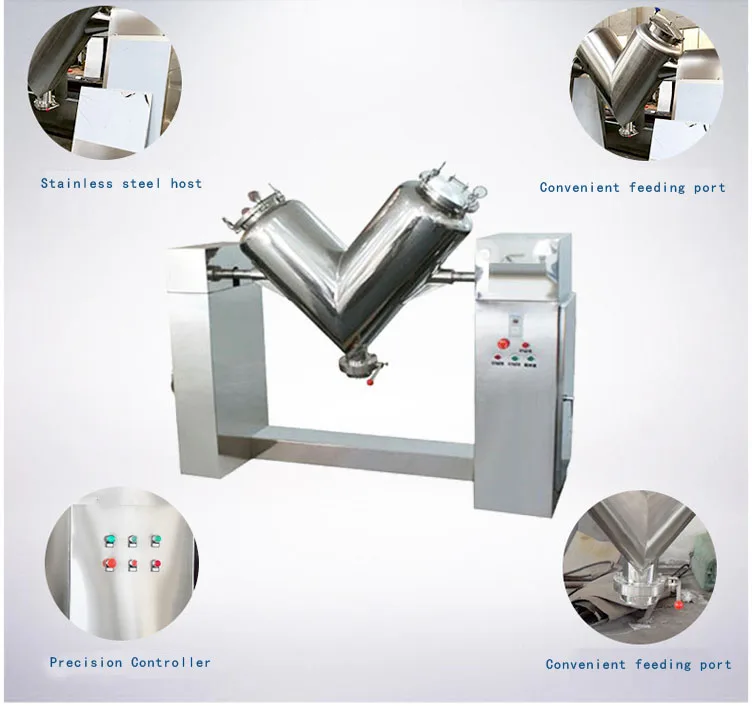

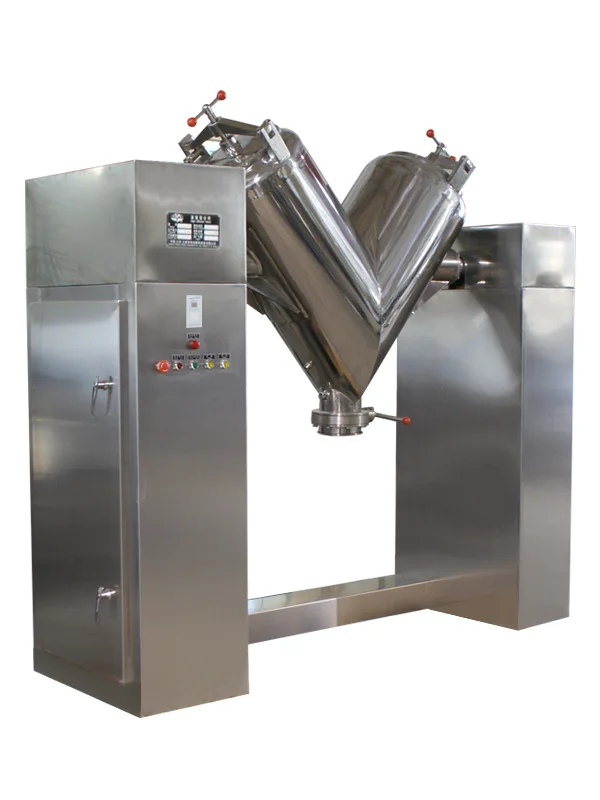

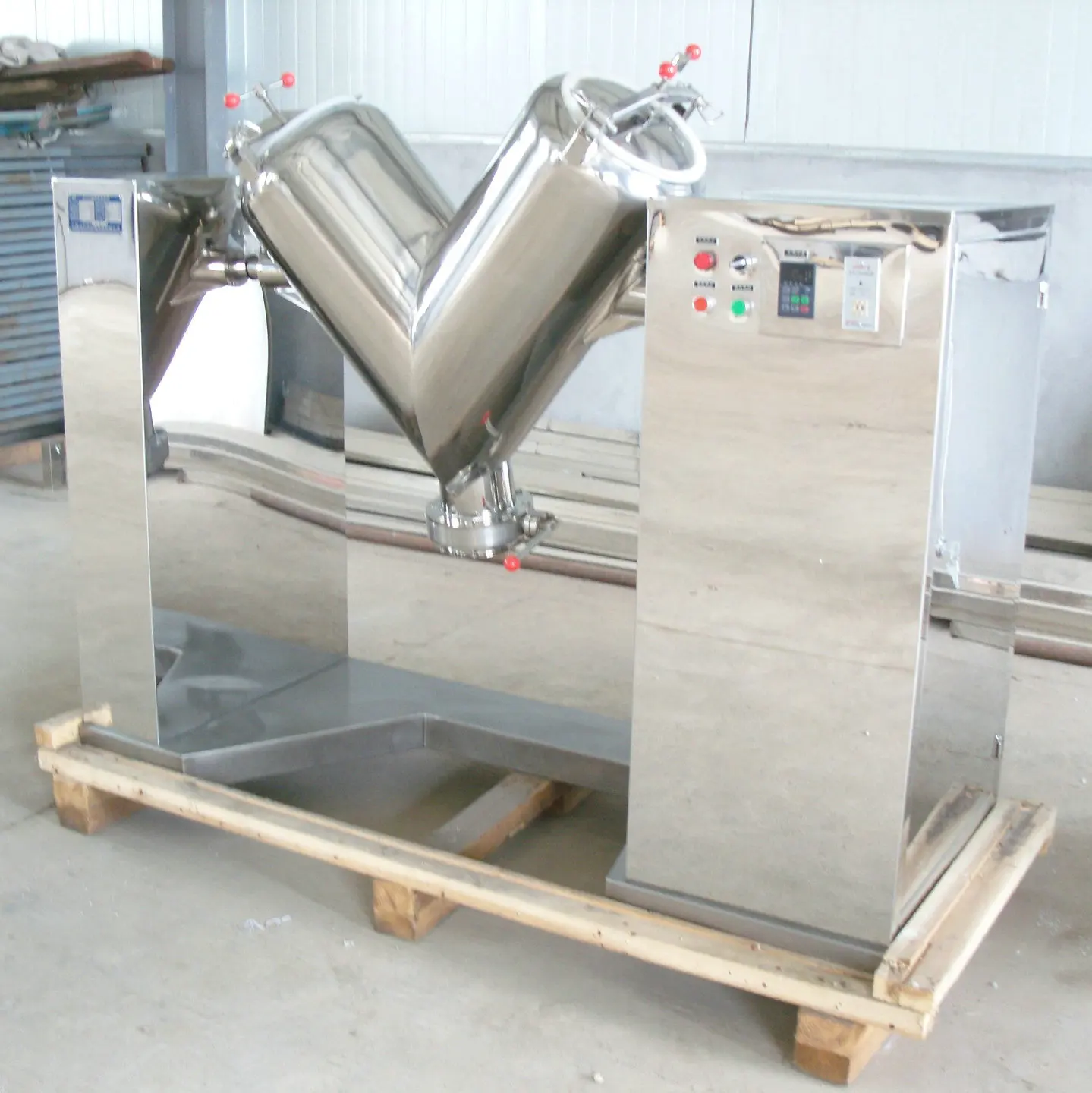

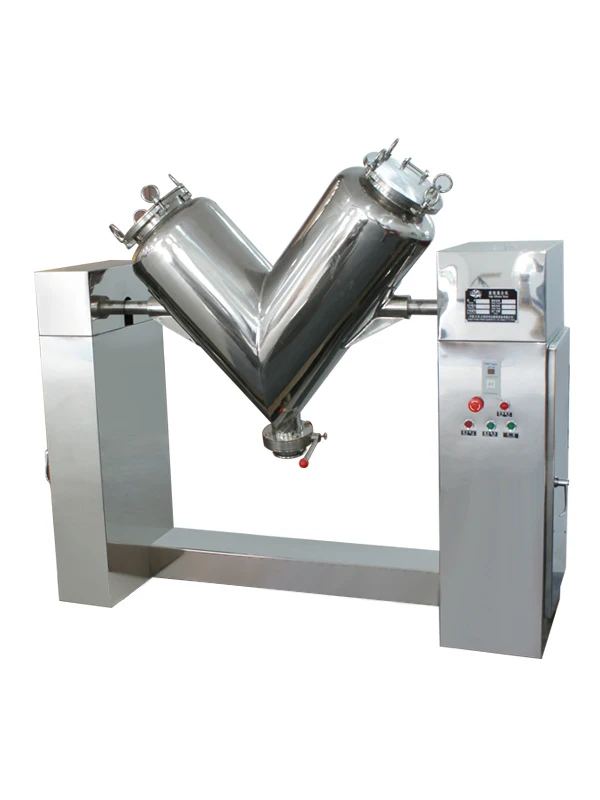

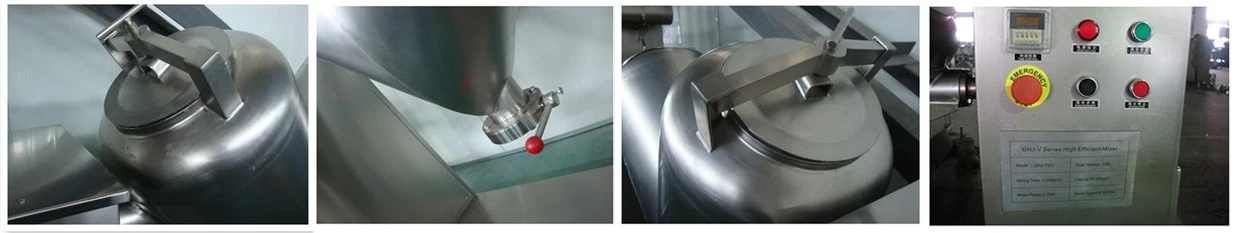

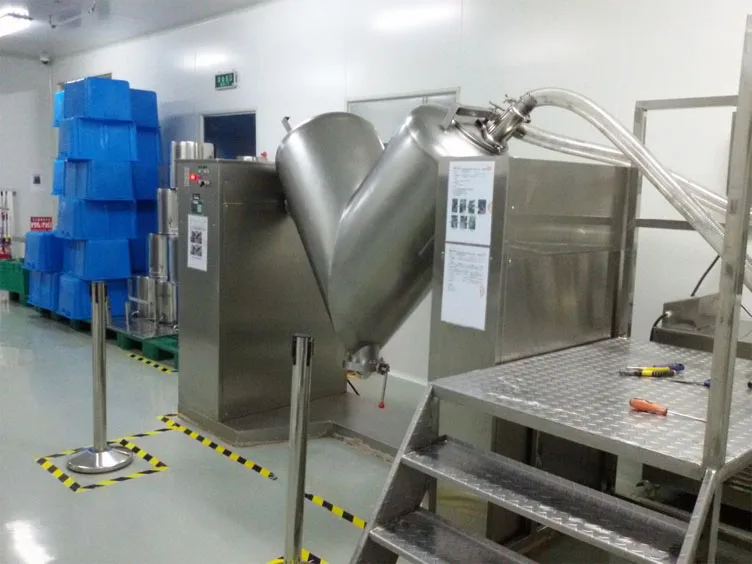

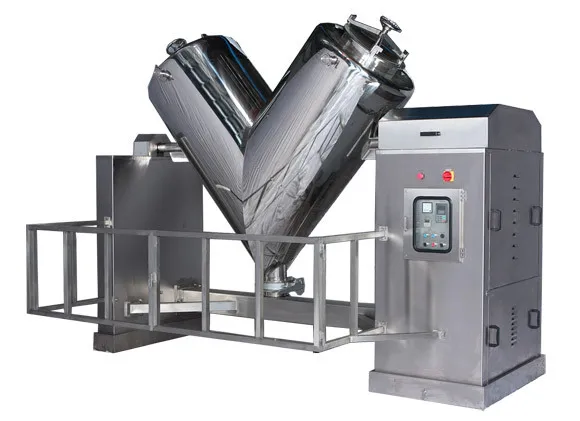

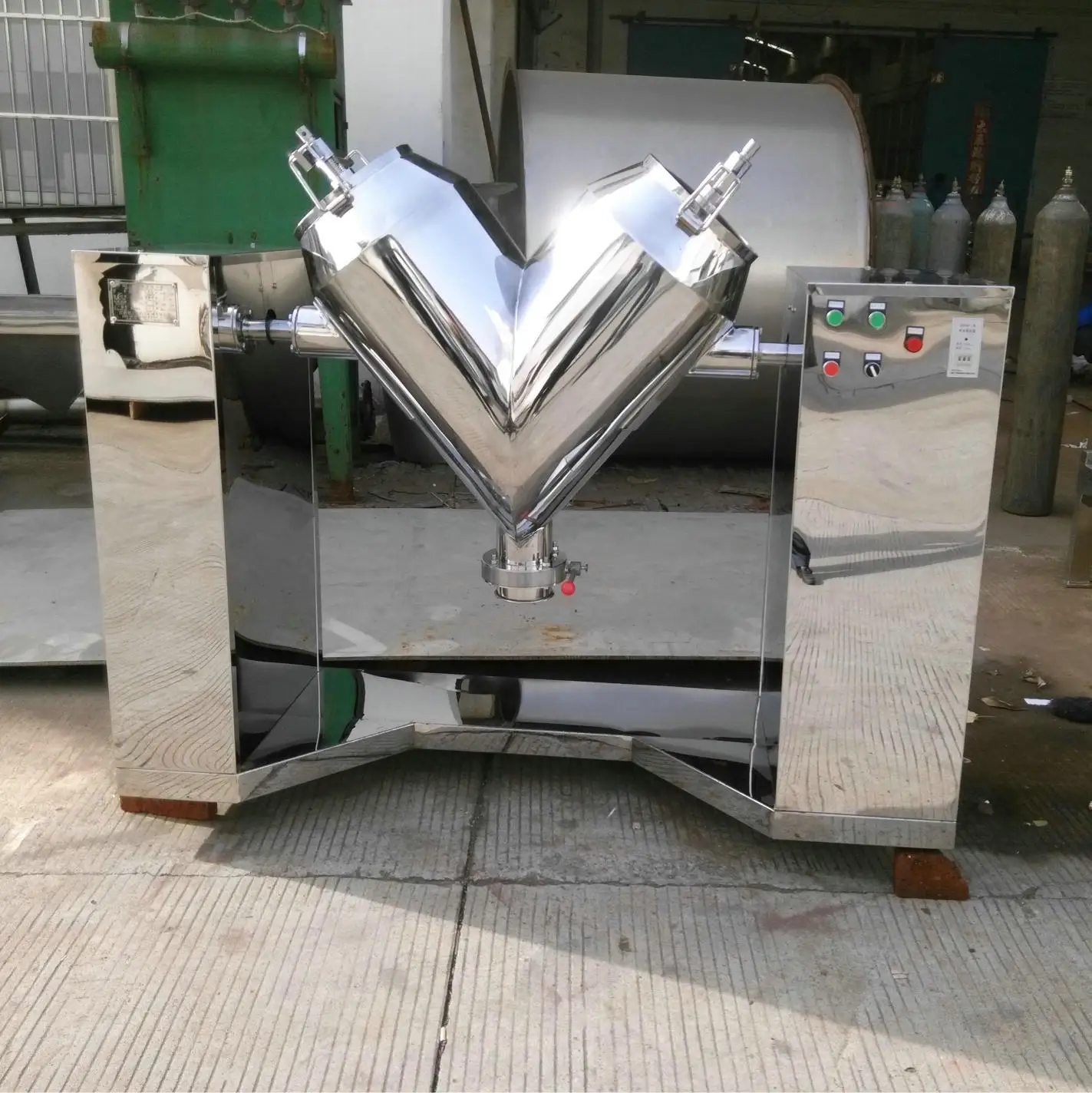

Product show

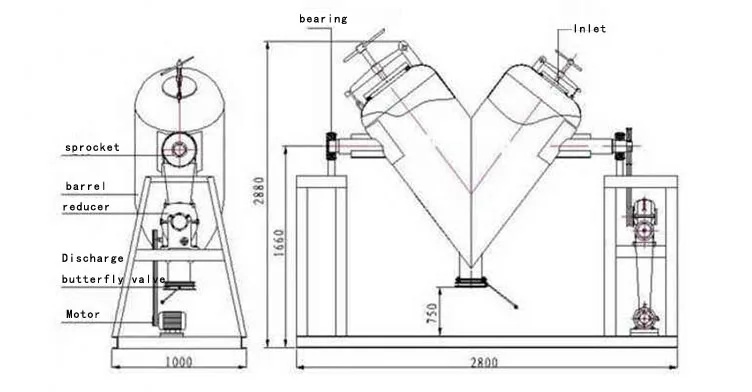

Technical Parameters
Model | Full volume | Loading factor | Motor power | Cylinder speed | Maximum capacity | Overall dimension |
CF-VMX-50 | 50L | 0.4 | 0.37kW | 15r/min | 20 | 1280*400*1150 |
CF-VMX-100 | 100L | 0.4 | 0.55kW | 15r/min | 40 | 1570*450*1300 |
CF-VMX-200 | 200L | 0.4 | 1.1kW | 15r/min | 80 | 1750*500*1550 |
CF-VMX-300 | 300L | 0.4 | 1.1kW | 13r/min | 120 | 2000*600*1750 |
CF-VMX-500 | 500L | 0.4 | 2.2kW | 13r/min | 200 | 2250*700*2500 |
CF-VMX-1000 | 1000L | 0.4 | 2.2kW | 9r/min | 400 | 2700*1000*2500 |
CF-VMX-2000 | 2000L | 0.4 | 4kW | 9r/min | 800 | 3200*1200*3100 |
CF-VMX-2500 | 2500L | 0.4 | 5.5kW | 9r/min | 1000 | 3950*1500*3550 |
CF-VMX-3000 | 3000L | 0.4 | 7.5kW | 9r/min | 1200 | 4100*1500*3600 |

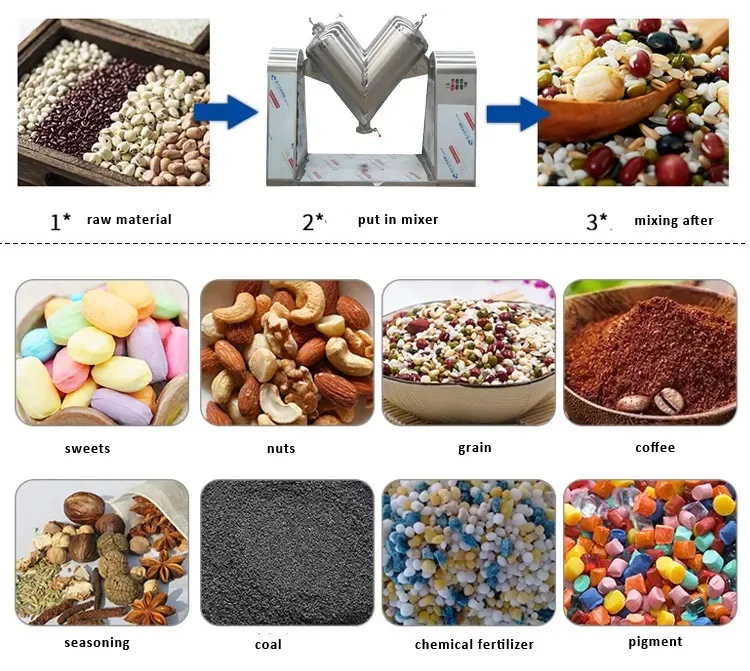

Application industry :
Iron powder, copper powder, magnesium powder and other chemical powders, fishing feed, poultry feed, wildlife feed, bird feed, condiments, additives,vitamins, various sugar products, etc., all kinds of powdered or granular ore.

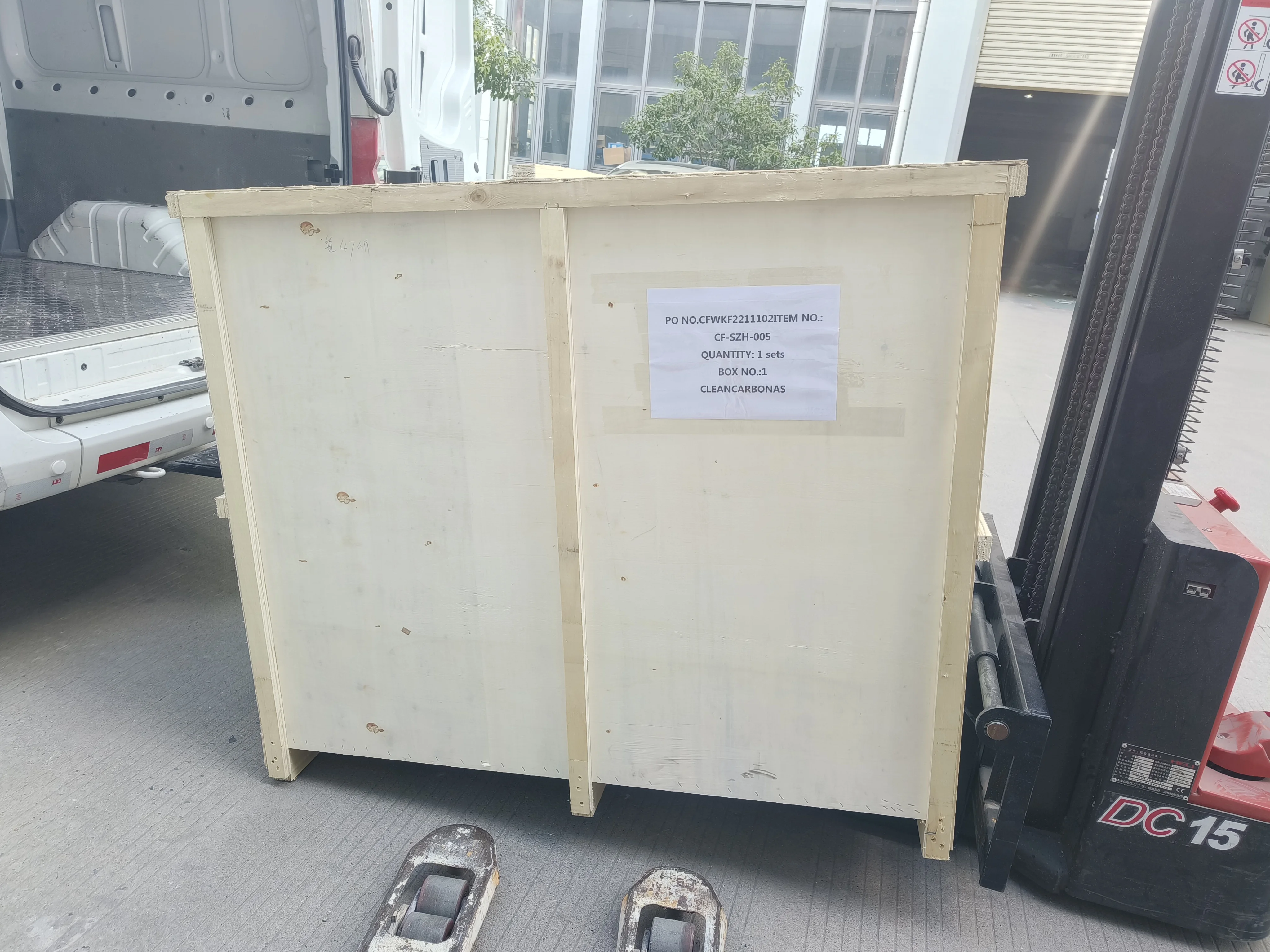

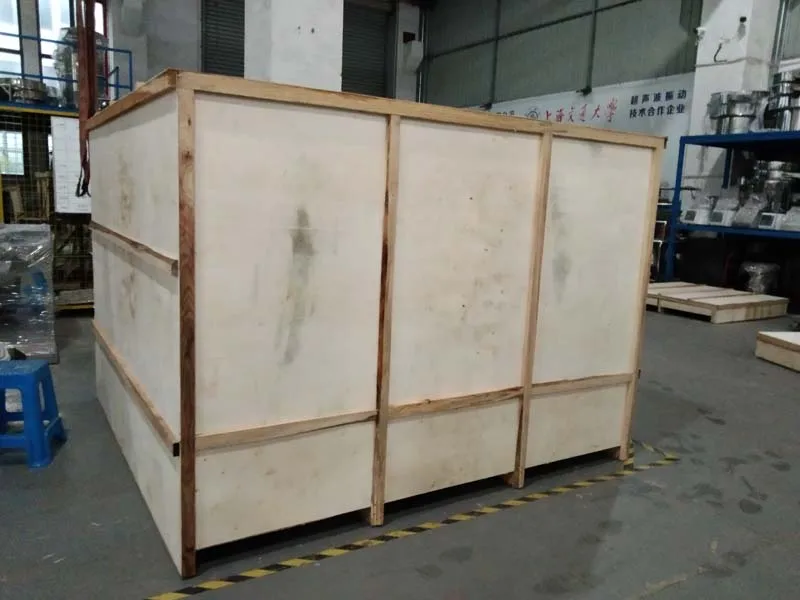

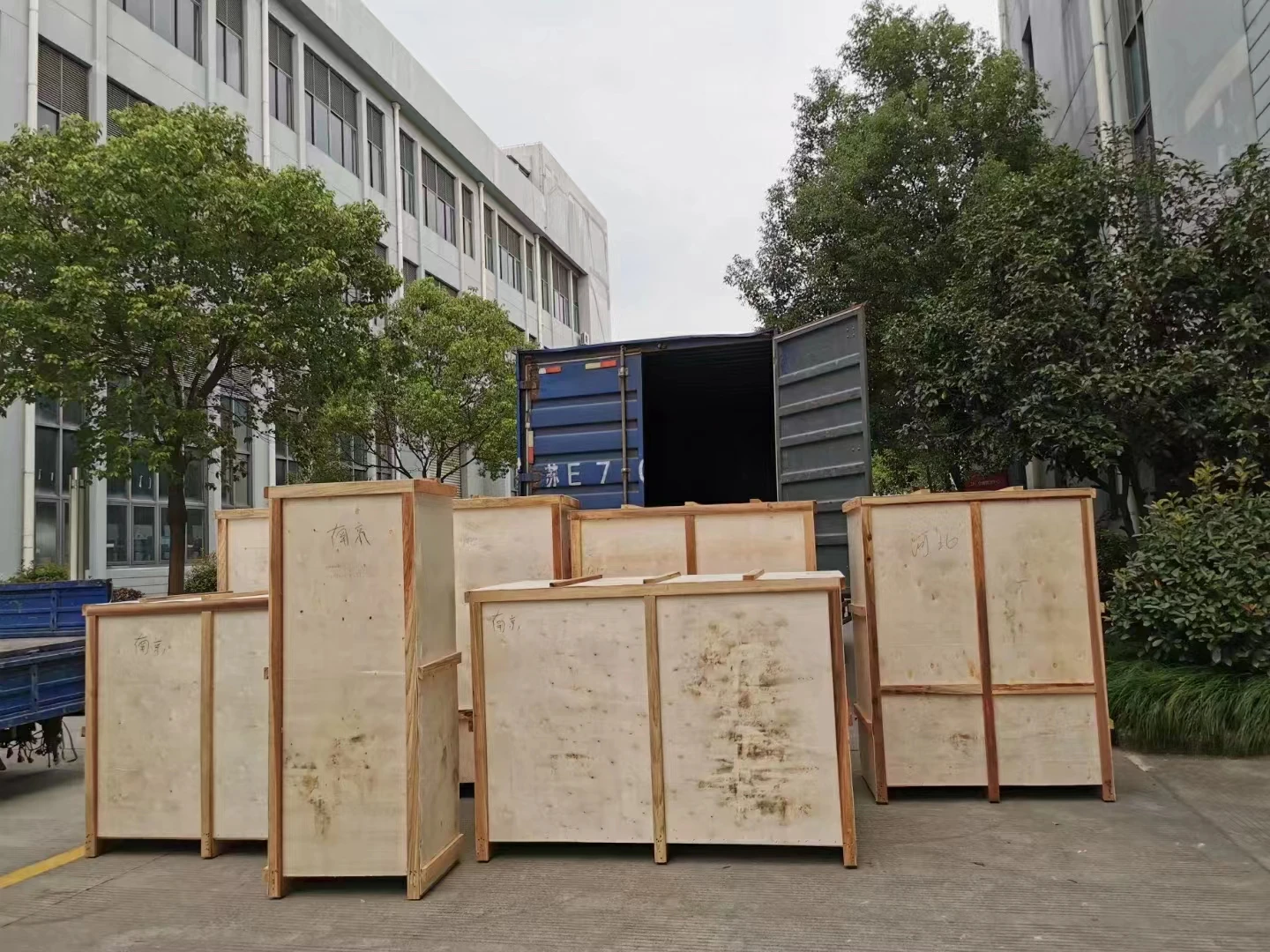

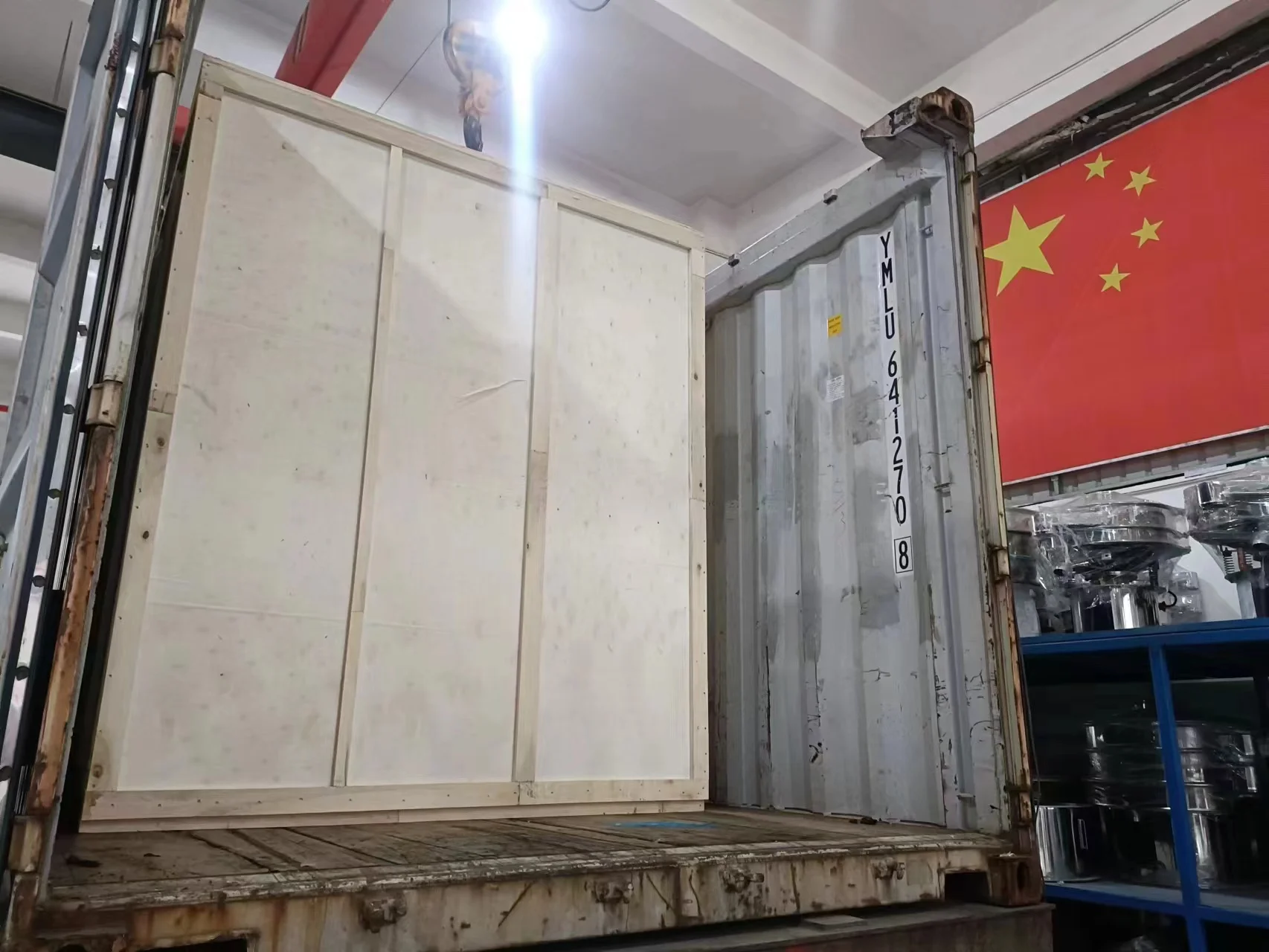

Packing & Delivery
1. The inner packaging:stretch film; outer packaging:standard export fumigation-free wooden box. Or
2. According to customer requirements.
2. According to customer requirements.
Company Profile
Trenfull is an enterprise specializing in powder screening equipment, vacuum conveyor equipment, mixing equipment, and automation overall solutions. With reliable quality and advanced technology, our products enjoys good reputation among domestic and foreign customers.
Our products include: ultrasonic system equipment, three-dimensional rotary vibrating screen, linear screen, swing screen,
straight screen, 450 filter screen, test screen, etc.; vacuum conveying equipment: electric vacuum feeding machine, pneumatic vacuum feeding Mixing equipment: double-cone mixer, V-type mixer, three-dimensional mixer, horizontal ribbon mixer, single-cone twin-screw mixer, etc.
Our products include: ultrasonic system equipment, three-dimensional rotary vibrating screen, linear screen, swing screen,
straight screen, 450 filter screen, test screen, etc.; vacuum conveying equipment: electric vacuum feeding machine, pneumatic vacuum feeding Mixing equipment: double-cone mixer, V-type mixer, three-dimensional mixer, horizontal ribbon mixer, single-cone twin-screw mixer, etc.
Recommend Products
FAQ
Q1: What’s your production lead time?
A1: Usually our production lead time is 30 days. Depending on the your order quantity and our production schedule, the time can be shorter or longer.
Q2: Can you do OEM for me?
A2: We accept OEM orders. Send us your logo and requirement, then we will arranged the production for you.
Q3: What's your payment terms ?
A3: T/T and LC at sight are both acceptable for us. 50% advance payment, and balance paid before shipment.
Q4: What’s your MOQ?
A4: We don’t have requirement of MOQ for the order. But for order of bigger quantity, we can provide more discount.
Q5: What packages do you use for the machine?
A5: Usually we use plywood boxes for packing, which requires no fumigation for exportation. If you have any special requirement for the package, please advise us when placing the order.
Q6: What warranty do you provide for the machine?
A6: The warranty period is one year, and we will be responsible for repair and replacement of any quality problems during the warranty period (except for improper operation and wearing parts); And for those problems beyond the warranty period, we will provide lifelong tracking service and wearing parts with preferential prices.
A1: Usually our production lead time is 30 days. Depending on the your order quantity and our production schedule, the time can be shorter or longer.
Q2: Can you do OEM for me?
A2: We accept OEM orders. Send us your logo and requirement, then we will arranged the production for you.
Q3: What's your payment terms ?
A3: T/T and LC at sight are both acceptable for us. 50% advance payment, and balance paid before shipment.
Q4: What’s your MOQ?
A4: We don’t have requirement of MOQ for the order. But for order of bigger quantity, we can provide more discount.
Q5: What packages do you use for the machine?
A5: Usually we use plywood boxes for packing, which requires no fumigation for exportation. If you have any special requirement for the package, please advise us when placing the order.
Q6: What warranty do you provide for the machine?
A6: The warranty period is one year, and we will be responsible for repair and replacement of any quality problems during the warranty period (except for improper operation and wearing parts); And for those problems beyond the warranty period, we will provide lifelong tracking service and wearing parts with preferential prices.
