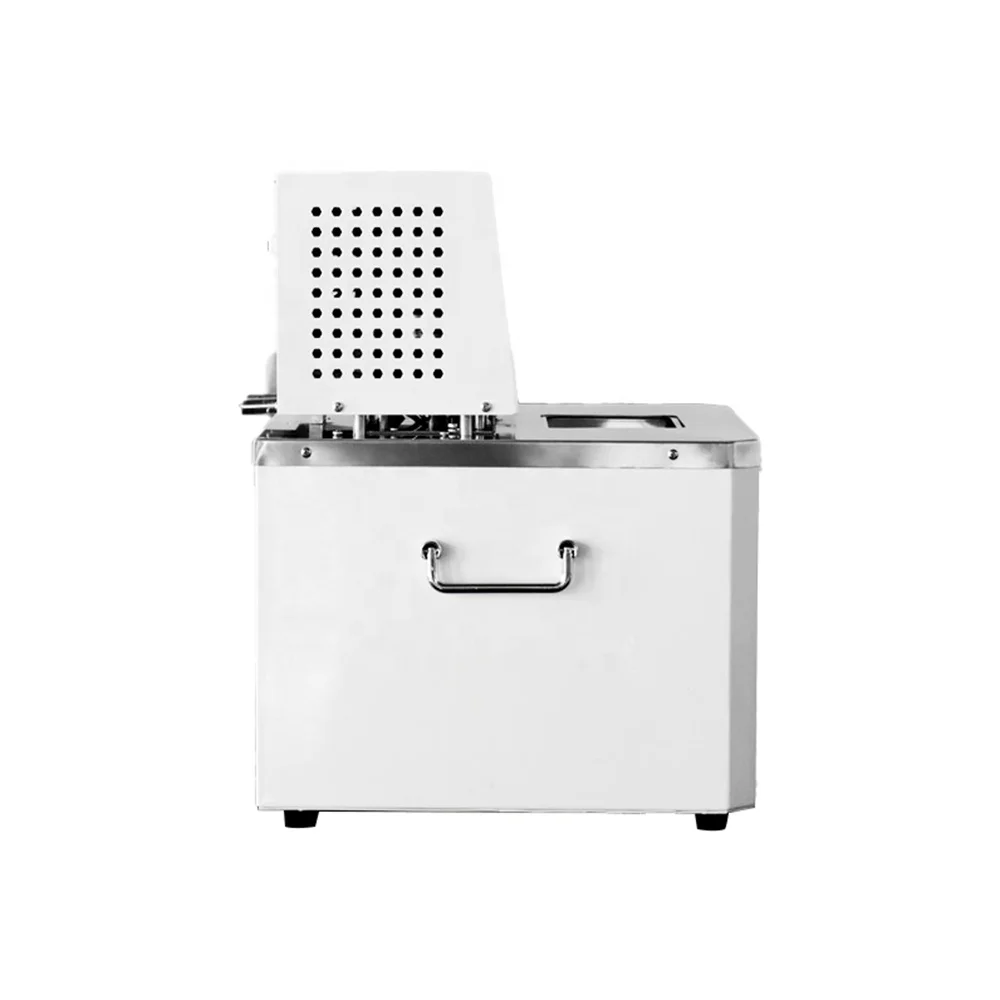

High Temperature Thermostatic Circulation Oil Bath/Constant Temperature Liquid Circulating Bath
- Category: >>>
- Supplier: Jiangsu Tenlin Instrument Co. Ltd.
Share on (1600829158541):
Product Overview
Description
GX series laboratory thermostatic heating circulating oil bath is a high-temperature heating source for jacketed reactors, chemical pilot reactions, high-temperature distillation, semiconductor industry, etc.\t\t\t\t
Advantages
Specification
● Water and oil dual-use: the highest temperature can reach 300℃.

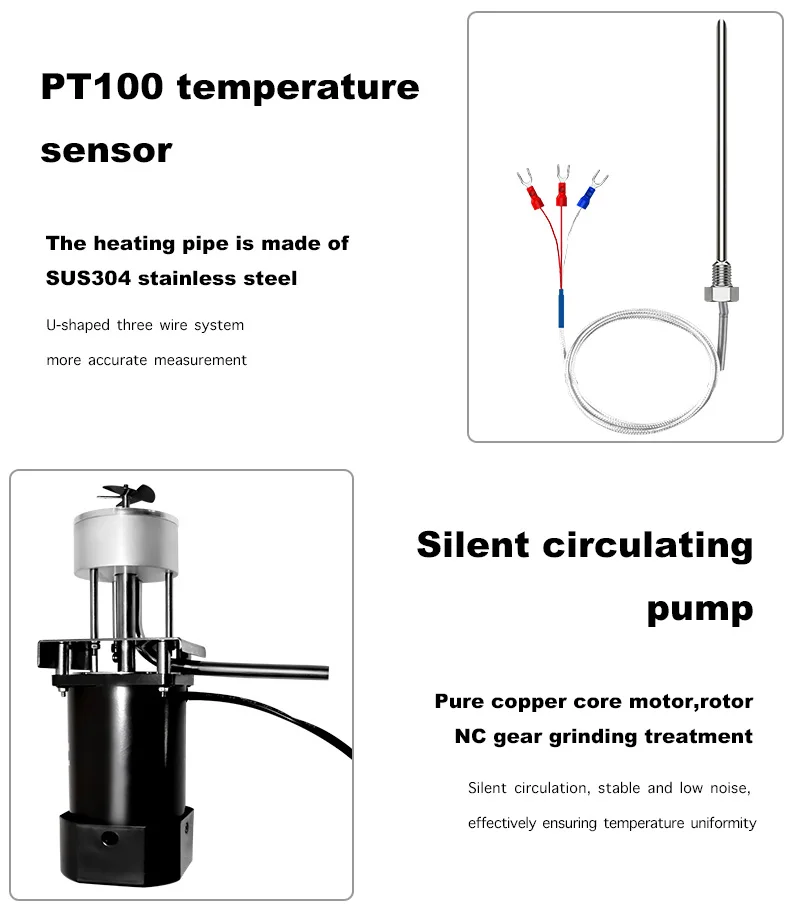

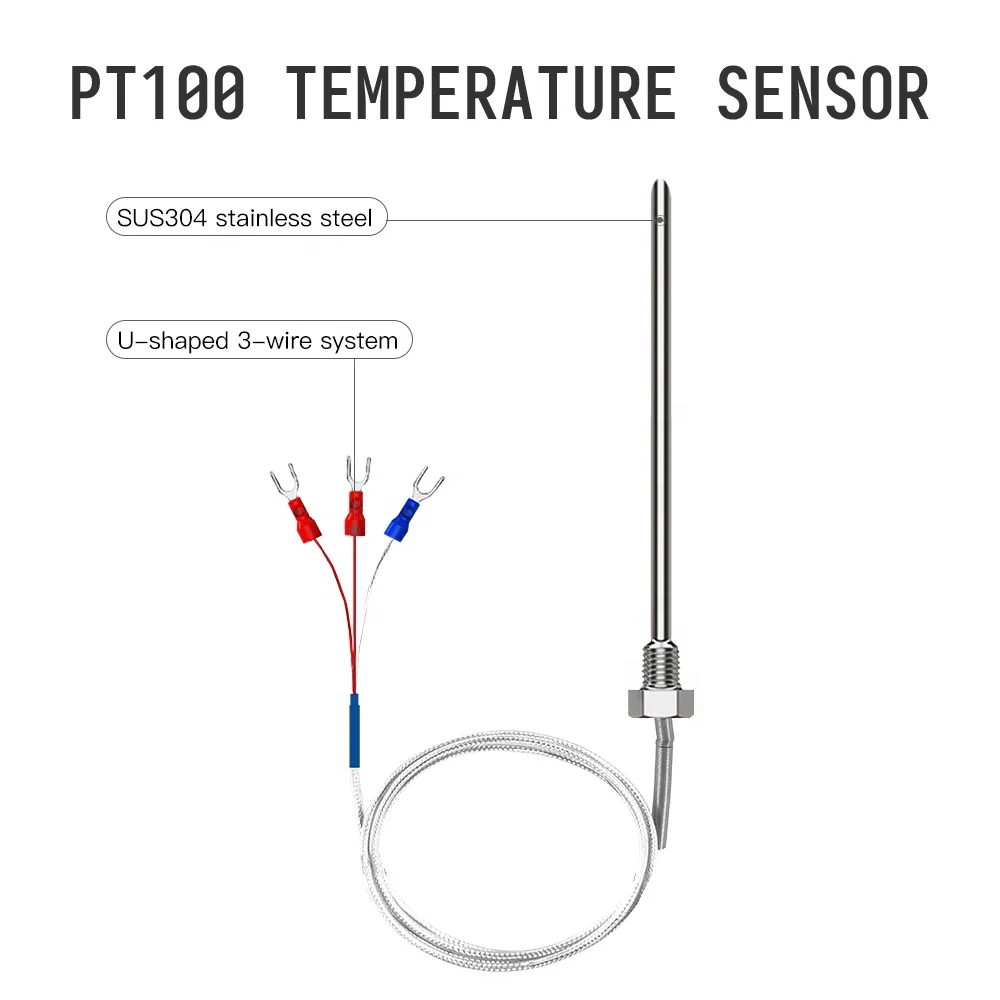

● The latest self-developed temperature control technology, equipped with high standard PT100 and fully imported electronic components.
● Software system can correct the error between the displayed temperature and the actual temperature, so that the displayed temperature value is accurate.
● Standard large screen LCD display, many data at a glance, temperature display resolution up to 0.01℃.
● With over-temperature protection, over-temperature alarm, over-temperature alarm temperature can be set, and the load can be cut off automatically when the temperature is over.
● Timing function, the total working time of the equipment can be set and the load can be cut off automatically when the time comes.
● Intelligent software with strong temperature stability, PID can automatically adjust the best parameters according to different media, and special users can also manually readjust the parameters.
● Digital locking of the control system with the software can avoid misoperation by unrelated personnel and ensure the correct data of the experiment process.

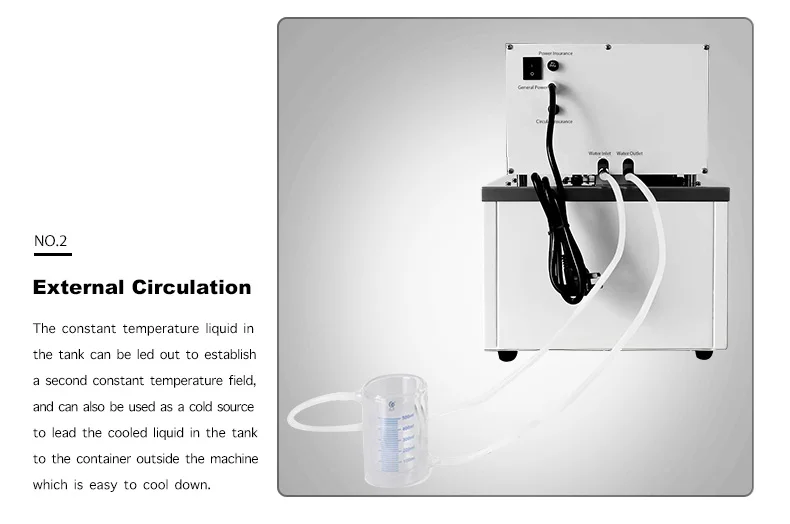

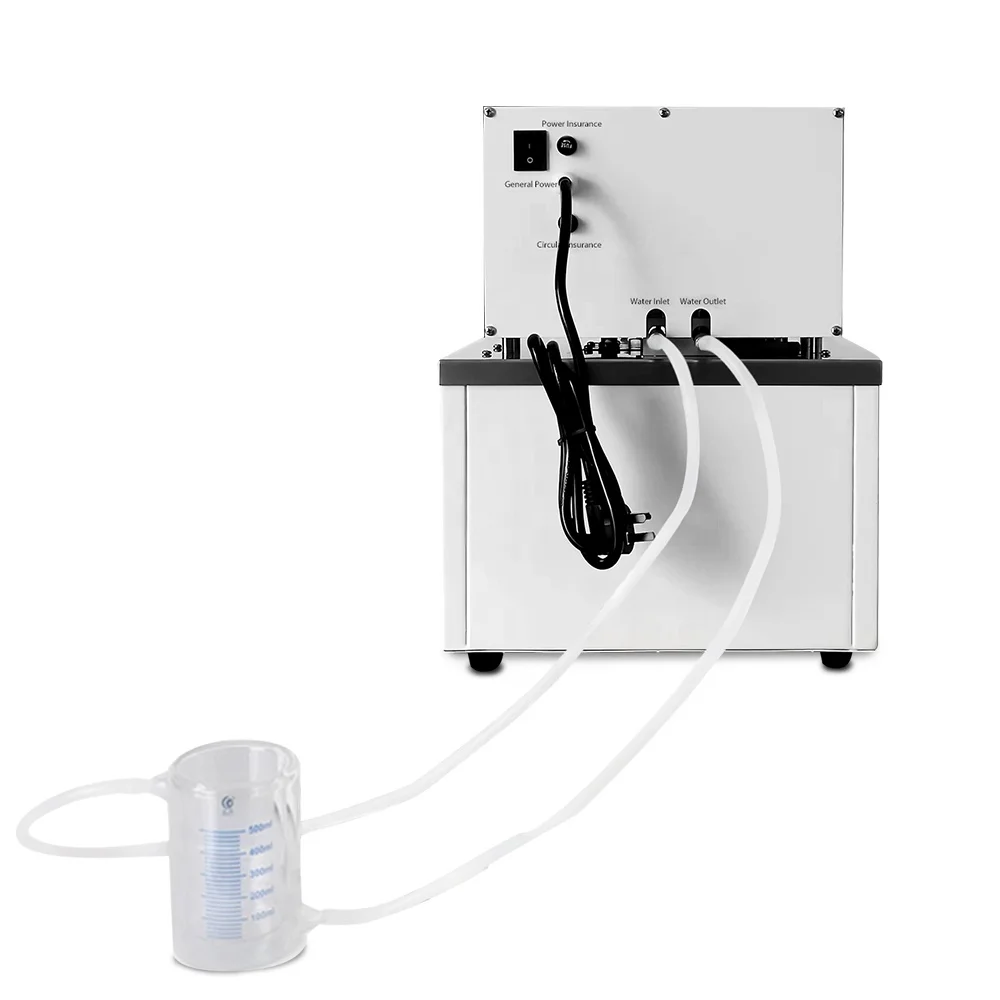

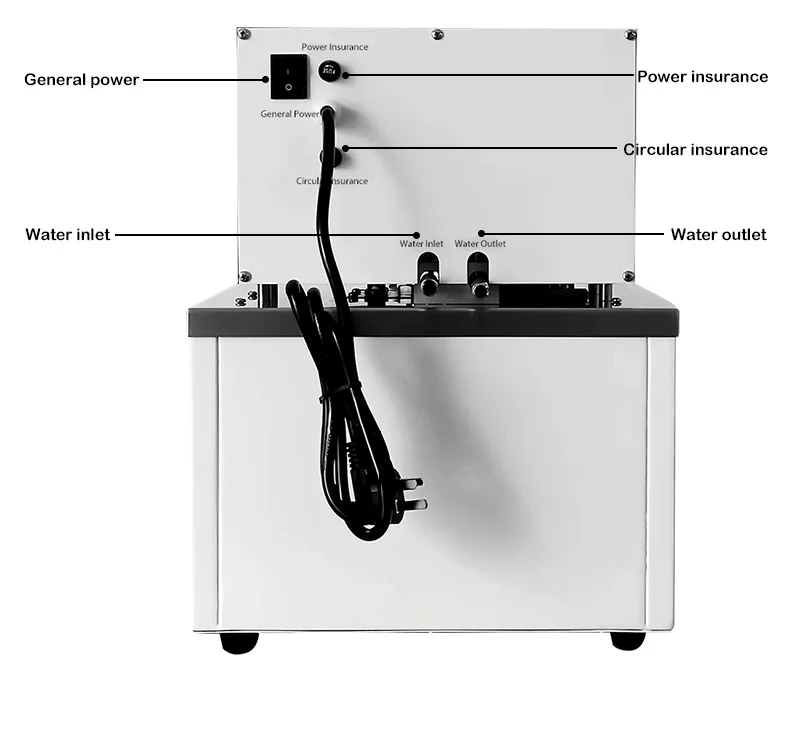

● The external circulation function is equipped as standard, and the external circulation inlet and outlet are 12mm round tubes to meet different needs of users in many scenes.
● Support non-standard customization.
● The latest self-developed temperature control technology, equipped with high standard PT100 and fully imported electronic components.
● Software system can correct the error between the displayed temperature and the actual temperature, so that the displayed temperature value is accurate.
● Standard large screen LCD display, many data at a glance, temperature display resolution up to 0.01℃.
● With over-temperature protection, over-temperature alarm, over-temperature alarm temperature can be set, and the load can be cut off automatically when the temperature is over.
● Timing function, the total working time of the equipment can be set and the load can be cut off automatically when the time comes.
● Intelligent software with strong temperature stability, PID can automatically adjust the best parameters according to different media, and special users can also manually readjust the parameters.
● Digital locking of the control system with the software can avoid misoperation by unrelated personnel and ensure the correct data of the experiment process.
● The external circulation function is equipped as standard, and the external circulation inlet and outlet are 12mm round tubes to meet different needs of users in many scenes.
● Support non-standard customization.
Product Parameters:
Model | Temperature range (℃) | Resolution (℃) | Volatility (±℃) | Tank volume (L) | Pump flow (L/min) | Power (kw) | Dimensions (mm) |

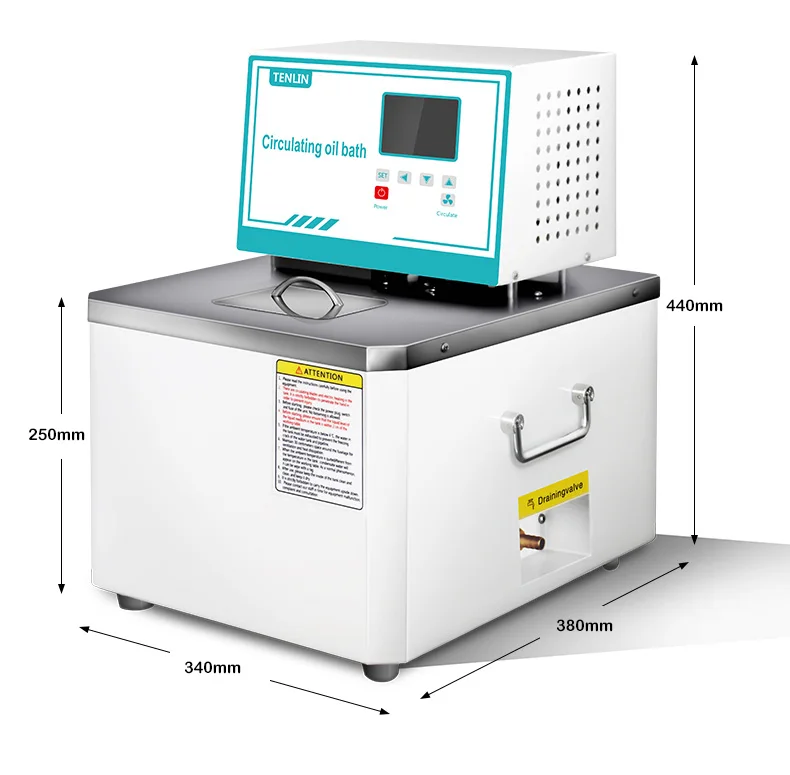

GX-2005 | RT-300 | 0.01 | 0.1 | 5 | 13 | 1.6 | 340*380*440 |
GX-2010 | RT-300 | 0.01 | 0.1 | 10 | 13 | 2.0 | 340*380*490 |
GX-2015 | RT-300 | 0.01 | 0.1 | 15 | 13 | 3.2 | 340*380*490 |
GX-2020 | RT-300 | 0.01 | 0.1 | 15 | 13 | 3.7 | 340*380*490 |
GX-2030 | RT-300 | 0.01 | 0.1 | 15 | 13 | 4.0 | 340*380*490 |
GX-2050 | RT-300 | 0.01 | 0.1 | 20 | 13 | 4.6 | 340*380*620 |
GX-20100 | RT-300 | 0.01 | 0.1 | 50 | 13 | 6.7 | contact for more! |
Better communication if you can send me some details in advance:
1, Will you do the experiment inside the sink or outside the sink(bath)?
2, Your temperature range? and what temperatures are often used in experiments?
Product Description
More detailed images：

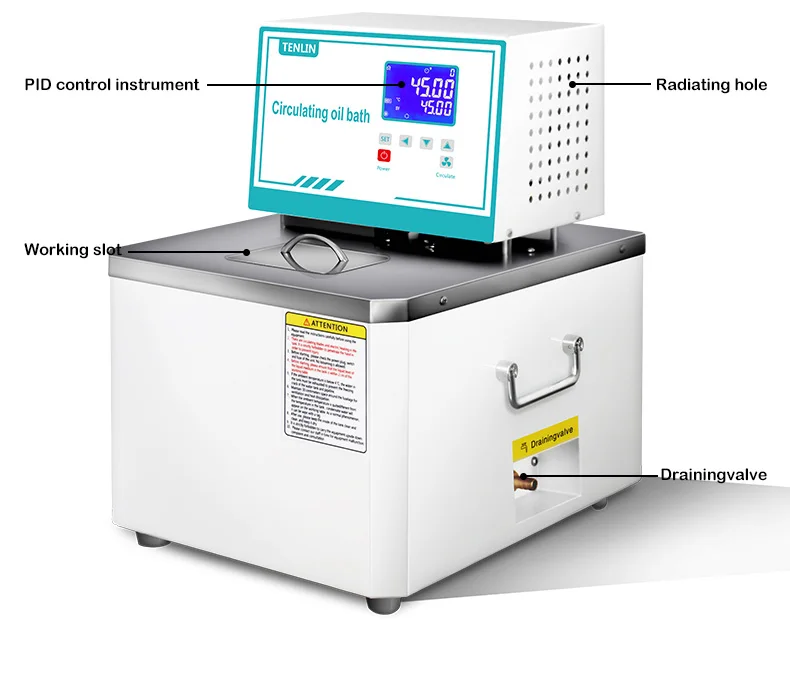

INTELLIGENT CONTROL: High-end LCD control instrument, easy to operate, strong temperature stability, PID can be automatically searched or adjusted manually. Accurate temperature correction function can reach 0.01 ℃.
Intelligent PID control system:
PID can automatically adjust the optimal parameters according to different media special users can also manually readjust the parameters.

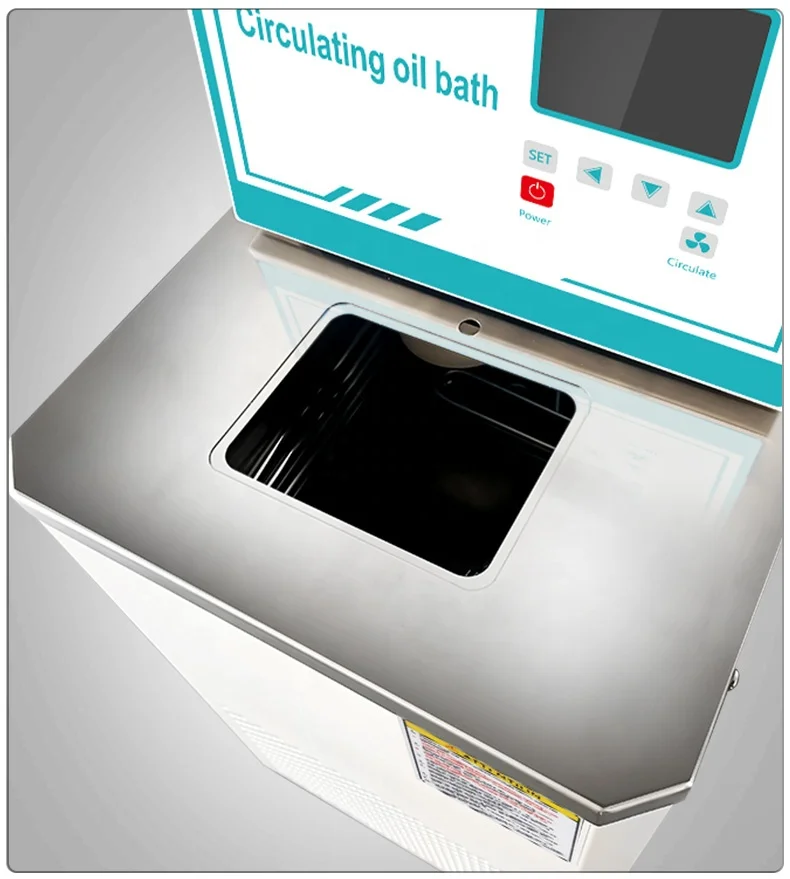

304 Stainless steel table top tank:
The table and tank body are made of 304 stainless steel, which is more stable in corrosion resistance and easy cleaning.
The table and tank body are made of 304 stainless steel, which is more stable in corrosion resistance and easy cleaning.

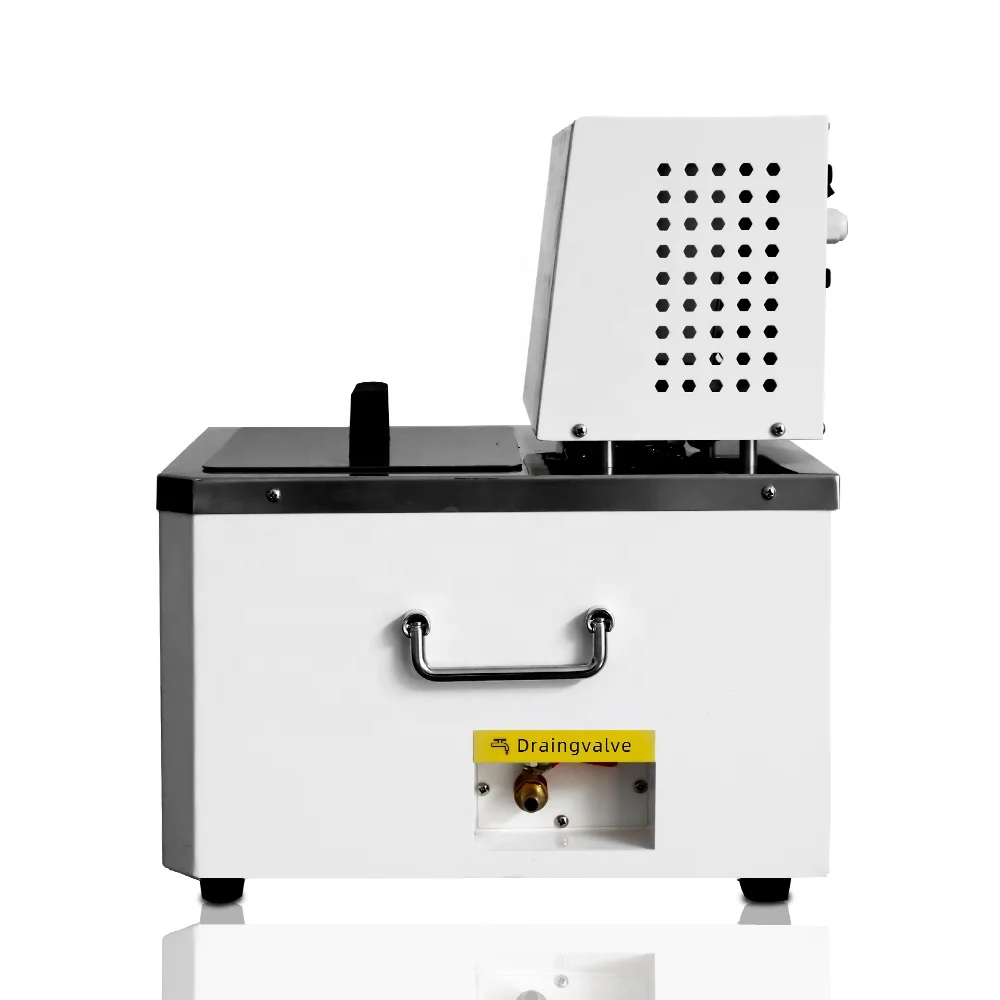

Invisible drain valve:
The appearance is clean and tidy, and the drainage is more convenient.
Aluminium silicate fiber cotton:
Flame retardant and high temperature resistant. Effectively maintain the temperature in the cabin.
Thickened carton packaging:
Thickened multi-layer corrugated box. Ensure product transportation safety.
Recommend Products
Packing & Delivery

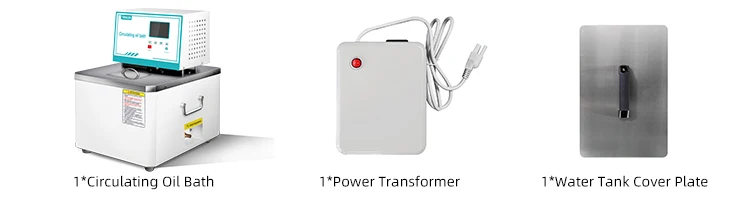

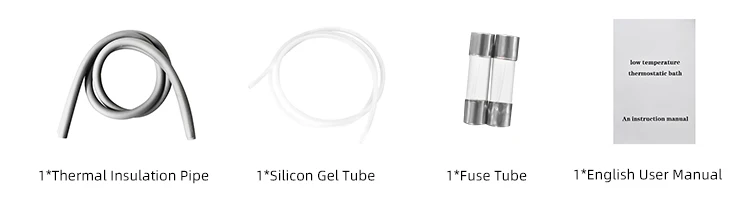

Package Content:

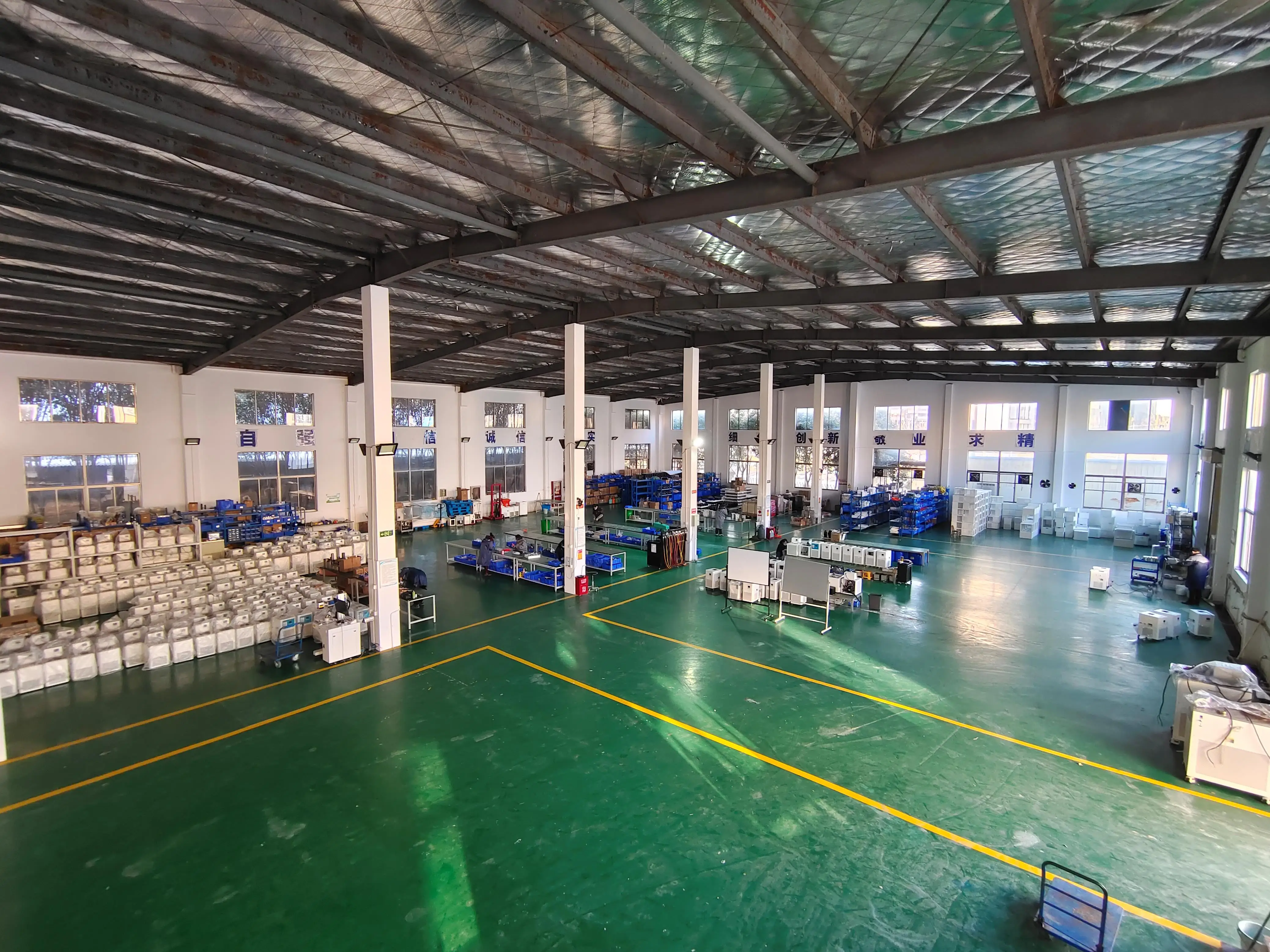

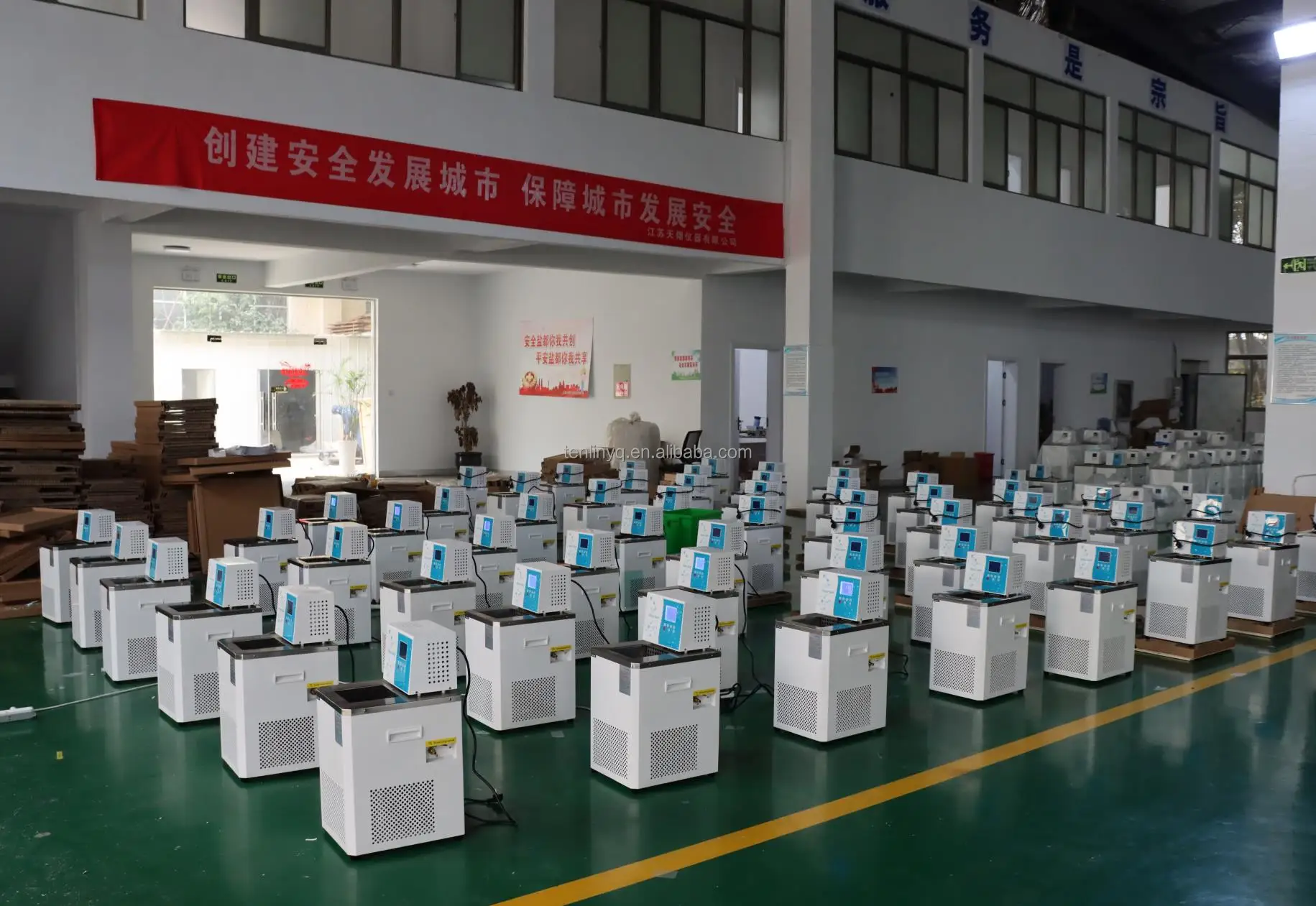

Company Profile
Jiangsu Tenlin Instrument CO., LTD. integrates Research and Development, production, and sales of laboratory equipment since 2015. Our company is committed to providing customers with technically exquisite and reliable quality laboratory instruments to meet their needs. We have a professional R&D team, a perfect management system and excellent after-sales service.
Each product is professionally tested and debugged and maintained, and only sent to customers when everything meets the performance standards. The company has strong technical force and brings together talents from various fields such as electronics, refrigeration, design and manufacturing. At present, we have high and low temperature thermostat series, photochemical reactor, spray dryer, vacuum freeze dryer, constant temperature shaker, microbial homogenizer, ultrasonic cell pulverizer series, sterile homogenizer, oscillator series, incubator series and other laboratory instruments and equipment.
We believe that Tenlin will be your first choice.
Each product is professionally tested and debugged and maintained, and only sent to customers when everything meets the performance standards. The company has strong technical force and brings together talents from various fields such as electronics, refrigeration, design and manufacturing. At present, we have high and low temperature thermostat series, photochemical reactor, spray dryer, vacuum freeze dryer, constant temperature shaker, microbial homogenizer, ultrasonic cell pulverizer series, sterile homogenizer, oscillator series, incubator series and other laboratory instruments and equipment.
We believe that Tenlin will be your first choice.
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer with 8 years of experience in R&D and production of refrigerated circulating bath.
Q: How long is your delivery time?
A: Generally 3 working days after receipt of payment if goods are in stock, otherwise 8-15 working days depending on order quantity.
Q: What is your principle for the samples?
A: We do not provide free sample.
Q: What is your terms of payment ?
A: Payment<=15000USD, 100% T/T in advance. Payment>=15000USD, 30% T/T in advance, balance before shippment.
Q: Do you provide after-sales service?
A: We could provide Online instruction; Real-time support by call or voice-chat. During warranty time, we can send product accessories when you need for free. Technical guidance is free and ready forever.
Q: Does your factory accept customization?
A: Products can be customized according to your specific requirements.
Q: Who We Are?
A: Tenlin instrument is an enterprise that integrates the R&D, production, and sales of laboratory equipment.
At present, we have high and low temperature thermostat refrigerated circulator series, photochemical reactor, spray dryer, vacuum freeze dryer, constant temperature shaker, microbial homogenizer, ultrasonic cell pulverizer series, sterile homogenizer, oscillator series, incubator series and other laboratory instruments and equipment.
