37 кВт 50 л.с. ленточный безмасляный винтовой воздушный компрессор для покраски Дубай
- Category: Industrial Compressors & Parts >>>
- Supplier: Energy Industrial (Shanghai) Co. Ltd.
Share on (1600829170422):
Product Overview
Description

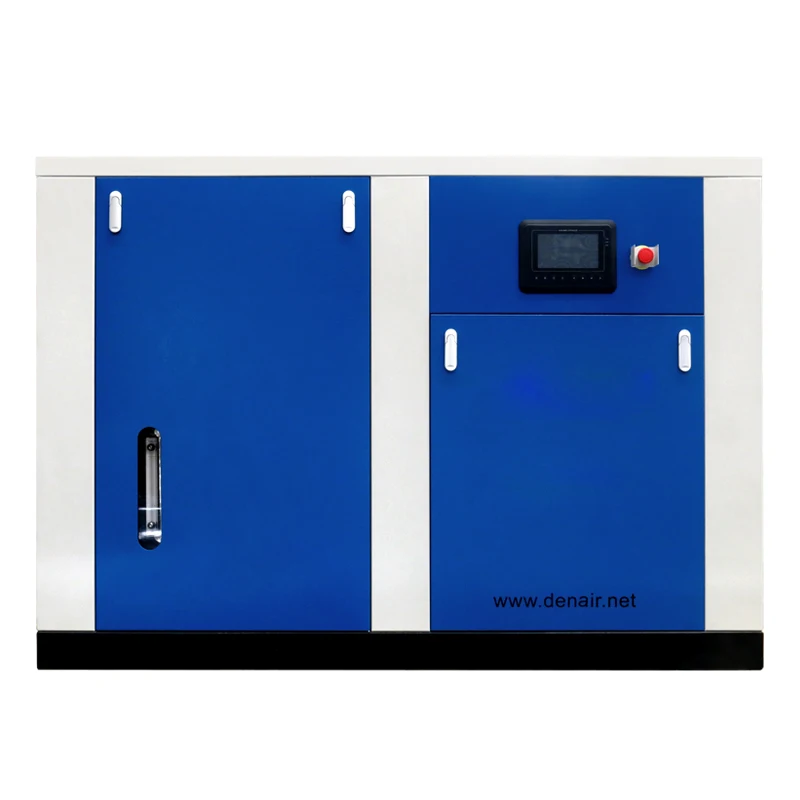

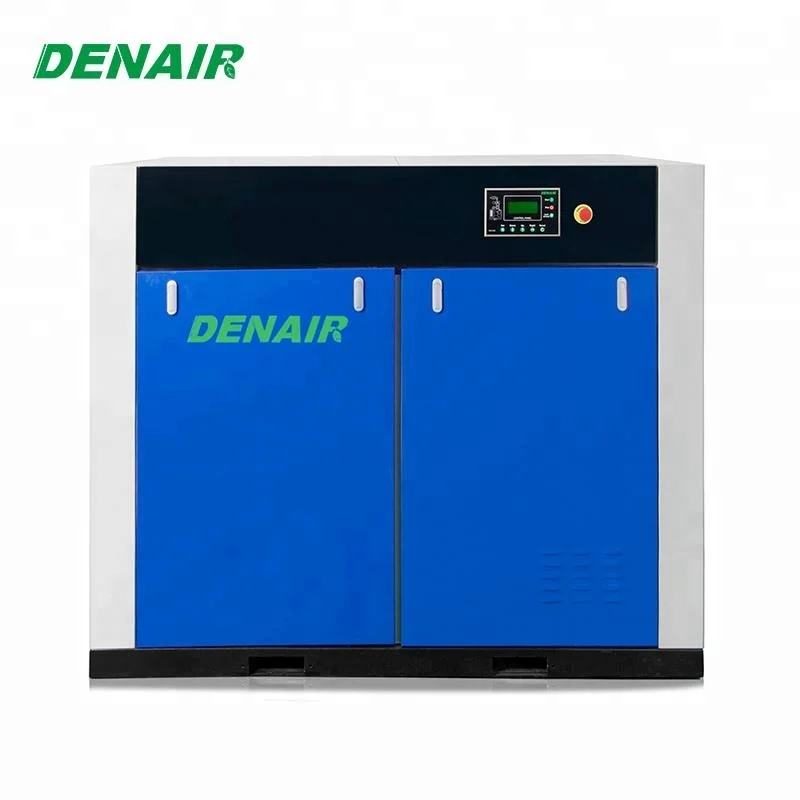

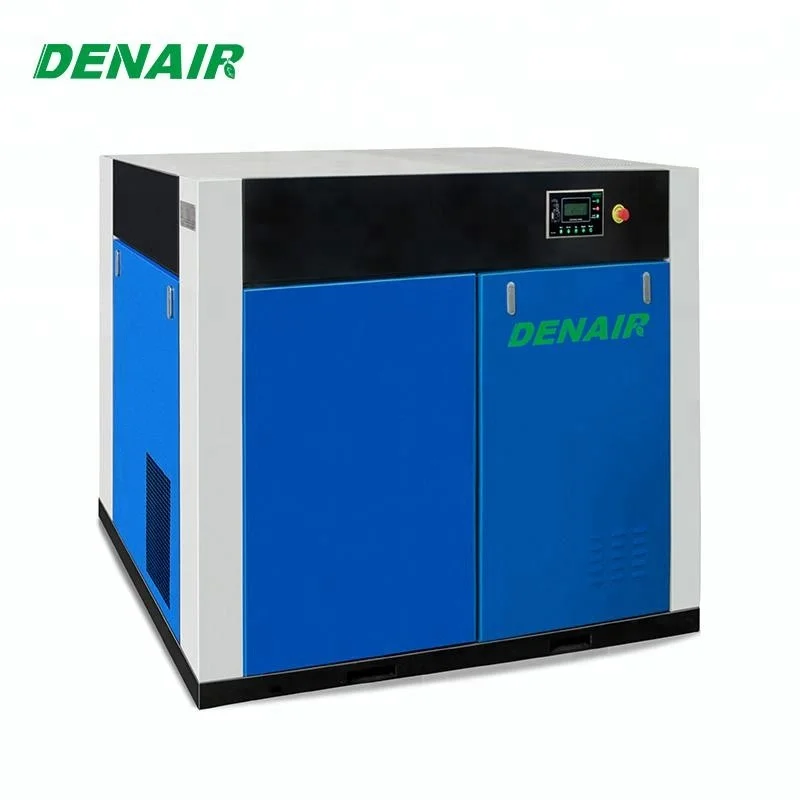

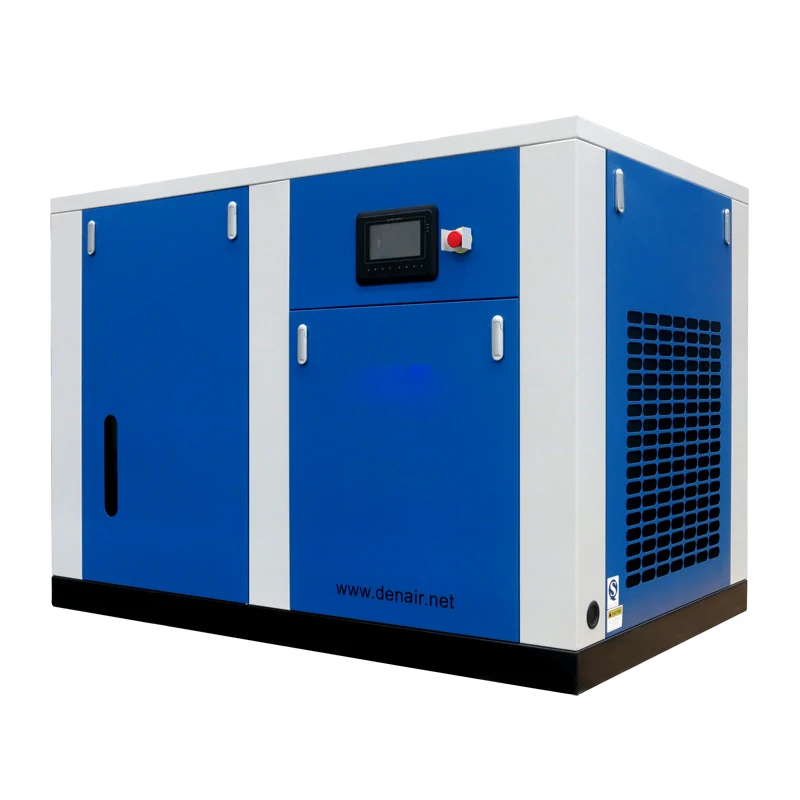

37kw 50hp belt driven oil free screw air compressor for painting dubai
Product Description
Technical Parameters
| Model | Maximum working pressure | Capacity FAD* | Installed motor power | Dimensions(mm) | Weight | |||||
| bar(e) | psig | m³/min | cfm | kW | hp | L | W | H | kg | |
| DWW-55 | 7 | 102 | 7.91 | 279 | 55 | 75 | 2100 | 1500 | 1790 | 2700 |
| 8 | 116 | 7.89 | 279 | 55 | 75 | 2100 | 1500 | 1790 | 2700 | |
| 10 | 145 | 6.91 | 244 | 55 | 75 | 2100 | 1500 | 1790 | 2700 | |
| DWW-90 | 7 | 102 | 13.35 | 471 | 90 | 120 | 2300 | 1600 | 1790 | 2950 |
| 8 | 116 | 13.34 | 471 | 90 | 120 | 2300 | 1600 | 1790 | 2950 | |
| 10 | 145 | 12.26 | 433 | 90 | 120 | 2300 | 1600 | 1790 | 2950 | |
| DWW-110 | 7 | 102 | TBD | TBD | 110 | 150 | 2800 | 1800 | 1860 | 3200 |
| 8 | 116 | TBD | TBD | 110 | 150 | 2800 | 1800 | 1860 | 3200 | |
| 10 | 145 | 15.27 | 539 | 110 | 150 | 2800 | 1800 | 1860 | 3200 | |
| DWW-132W | 7 | 102 | 20.09 | 709 | 132 | 175 | 2800 | 1800 | 1860 | 3300 |
| 8 | 116 | 20.06 | 708 | 132 | 175 | 2800 | 1800 | 1860 | 3300 | |
| 10 | 145 | 20.01 | 707 | 132 | 175 | 2800 | 1800 | 1860 | 3300 | |
| DWW-160W | 7 | 102 | 24.99 | 882 | 160 | 215 | 2800 | 1800 | 1860 | 3400 |
| 8 | 116 | 24.93 | 880 | 160 | 215 | 2800 | 1800 | 1860 | 3400 | |
| 10 | 145 | 22.74 | 803 | 160 | 215 | 2800 | 1800 | 1860 | 3400 | |
| DWW-200W | 7 | 102 | 30.55 | 1079 | 200 | 270 | 3100 | 2150 | 2200 | 4400 |
| 8 | 116 | 30.52 | 1078 | 200 | 270 | 3100 | 2150 | 2200 | 4400 | |
| 10 | 145 | 28.27 | 998 | 200 | 270 | 3100 | 2150 | 2200 | 4400 | |
| DWW-250W | 7 | 102 | 40.74 | 1438 | 250 | 350 | 3100 | 2150 | 2200 | 4700 |
| 8 | 116 | 40.69 | 1437 | 250 | 350 | 3100 | 2150 | 2200 | 4700 | |
| 10 | 145 | 36.72 | 1297 | 250 | 350 | 3100 | 2150 | 2200 | 4700 | |
| DWW-355W | 7 | 102 | TBD | TBD | 355 | 475 | 3400 | 2400 | 2200 | 5300 |
| 8 | 116 | TBD | TBD | 355 | 475 | 3400 | 2400 | 2200 | 5300 | |
| 10 | 145 | TBD | TBD | 355 | 475 | 3400 | 2400 | 2200 | 5300 | |
| *)FAD in accordance with ISO 1217 : 2009, Annex C: Absolute intake pressure 1 bar (a), cooling and air intake temperature 20 °C **) Noise level as per ISO 2151 and the basic standard ISO 9614-2, operation at maximum operating pressure and maximum speed; | ||||||||||
(Specifications are subject to change without prior notice)
More models, pls chat with us online
Certificates
Packing & shipping
Project Case
1.24/7 after sales service support in different languages.
2.Follow up the feedback of products in 2 months interval by email or call.
3.Guidance of installation and commissioning on site can be provided by factory-trained technicians or local Authorized Service Center.
4.Technical training for customers in DENAIR air compressor factory or working site.
5.Plenty of original spare parts with proven quality are all available from our central stocks in Shanghai and all distributors’depots.
6.All kinds of technical documents in different languages.
About Us
DENAIR Factory & Product Lines

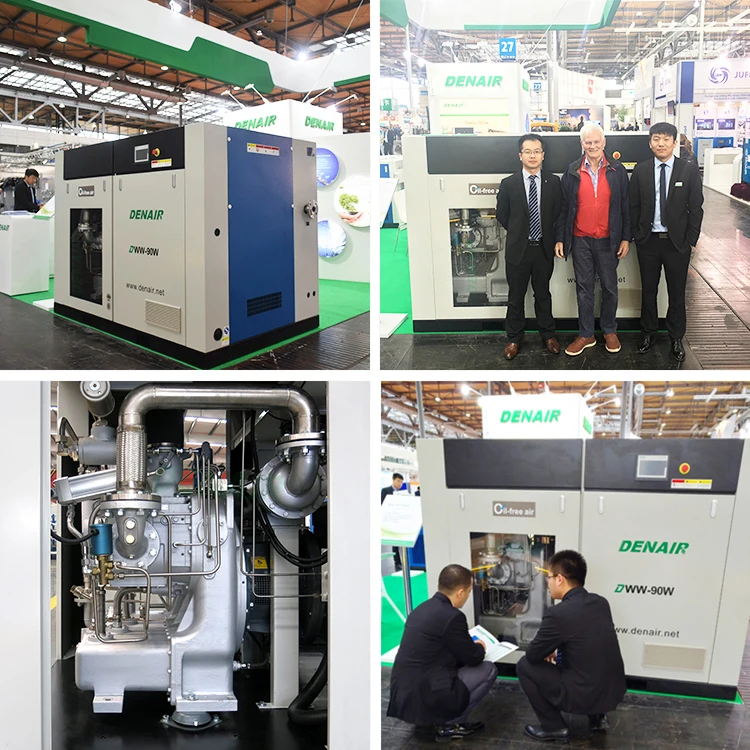

DENAIR - Germany Hannover Messe 2017
