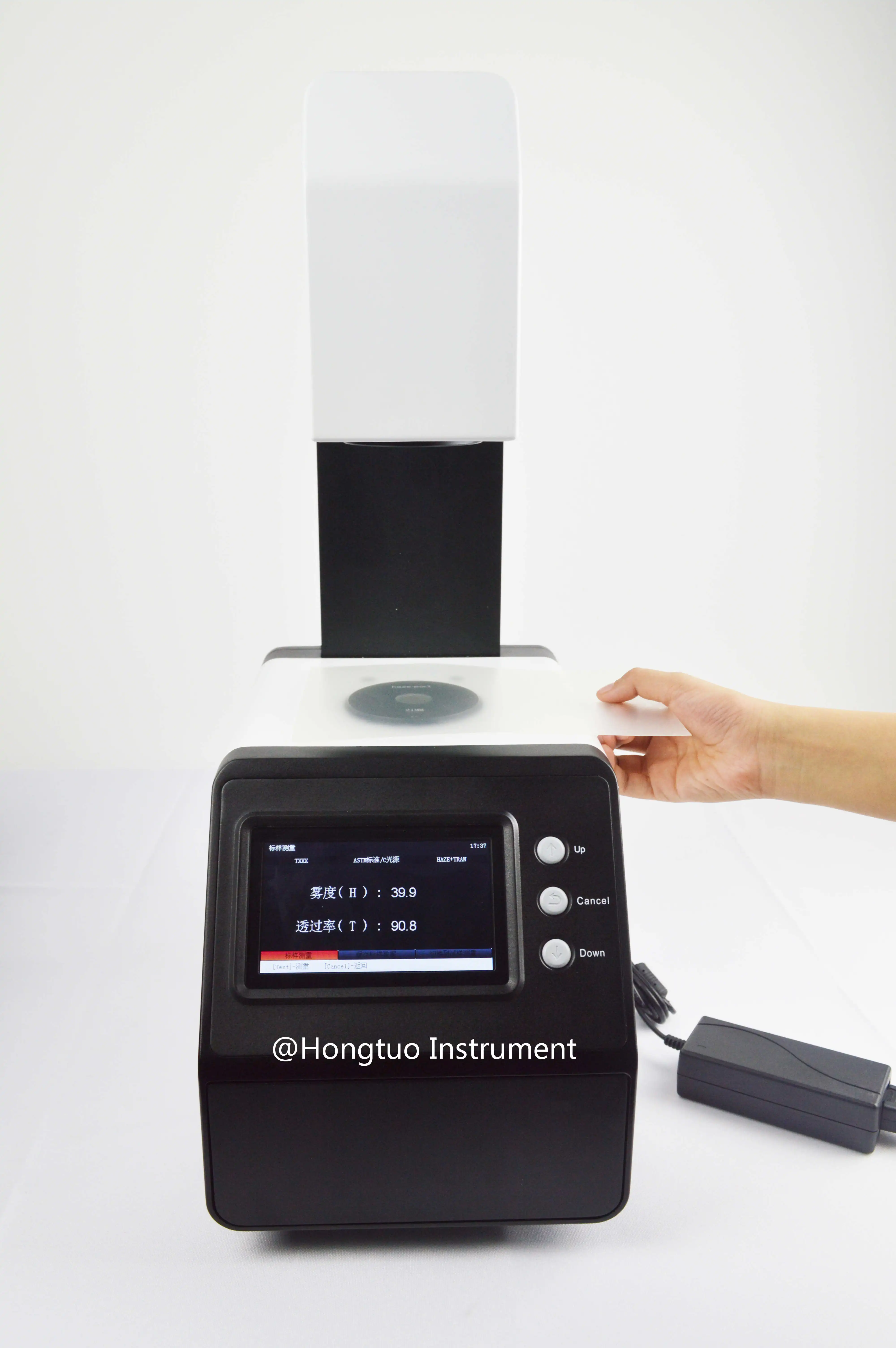

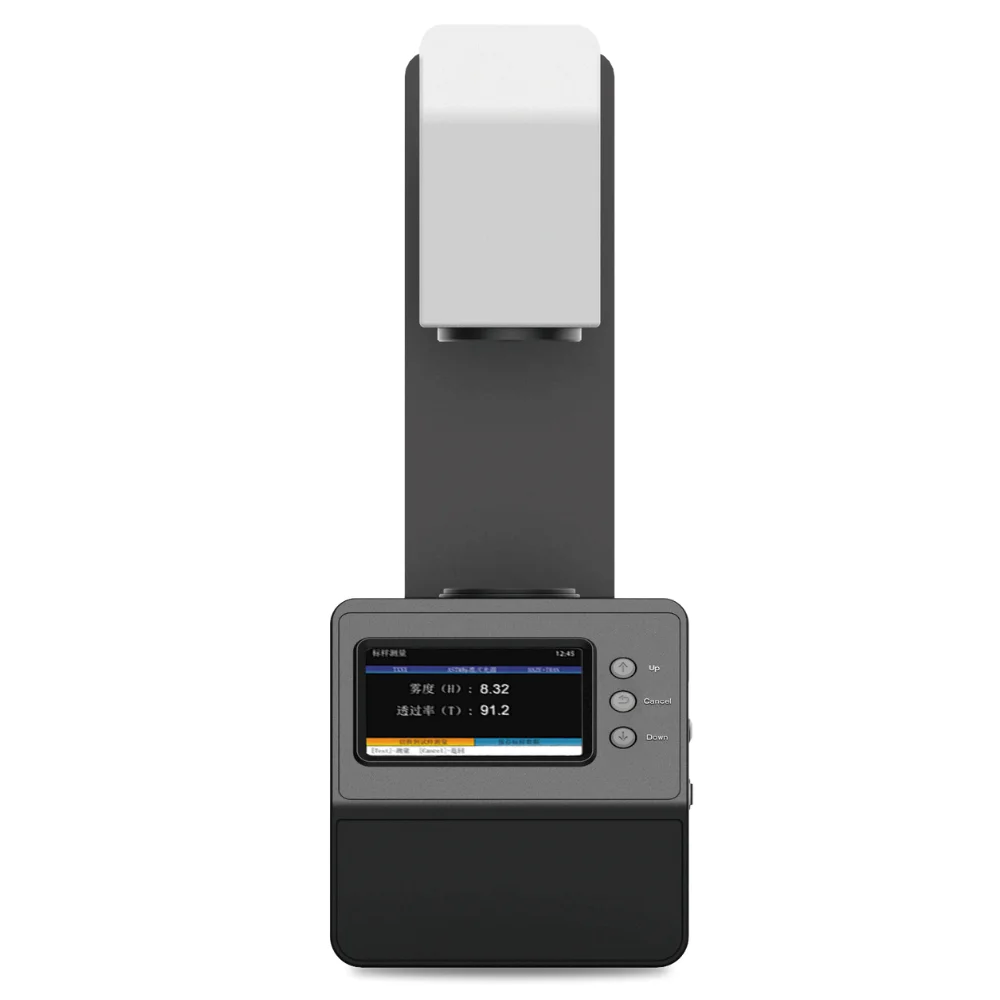

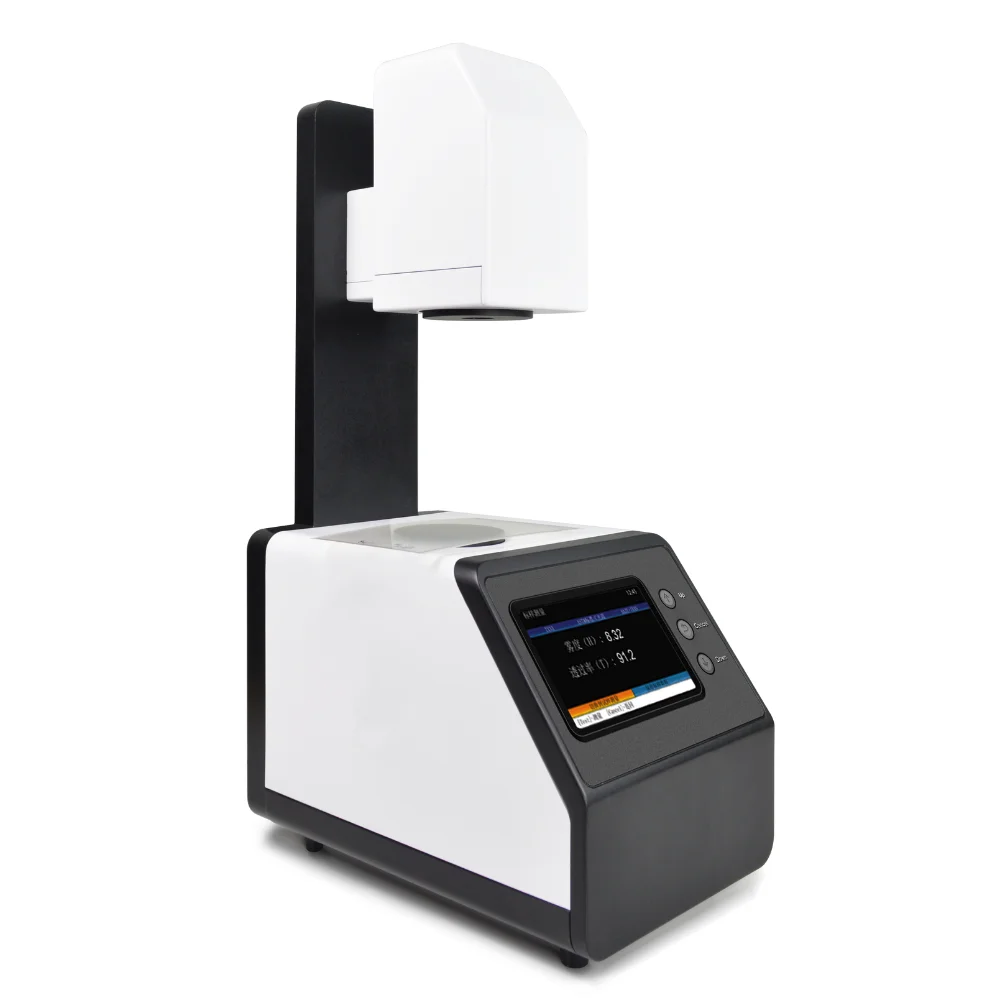

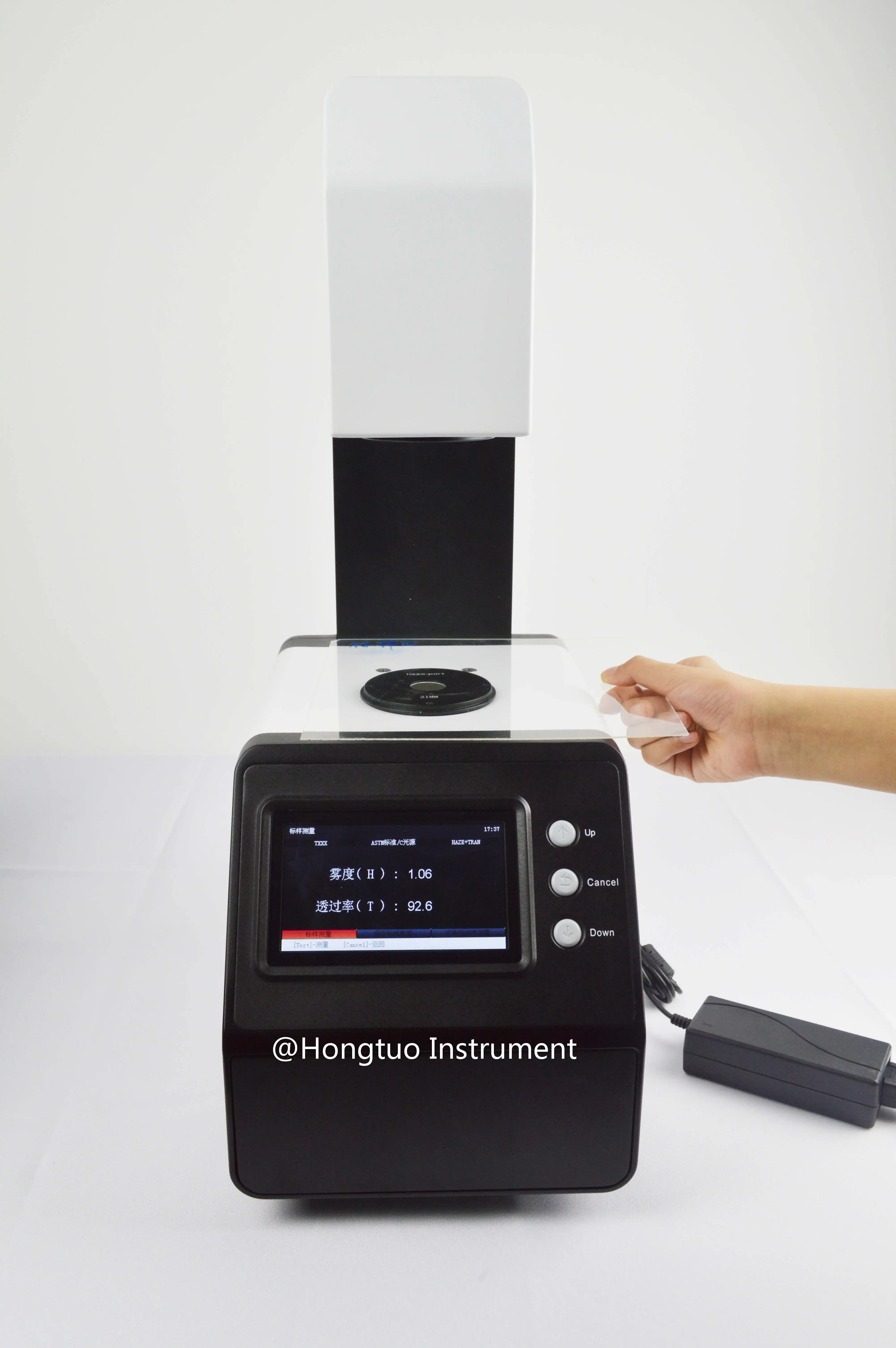

Digital Haze Meter Plastic Film Light Haze Transparency Transmittance Tester Price DH TH 09
- Category: >>>
- Supplier: Guangdong Hongtuo Instrument Technology Co. Ltd.
Share on (1600829171055):
Product Overview
Description
Digital Haze Meter Plastic Film Light Haze Transparency Transmittance Tester Price DH-TH-09
Introduction
ASTM D1003/D1044 standard for haze and light transmittance measurement. Open measurement area and samples can be tested vertically and horizontally.
Application: glass, plastic , film, display screen, packaging and other industries.
Mobile Device Cover
Phone Film
Plastic Film
Glasses
Features
1). It conforms to international standards GB/T 2410, ASTM D1003/D1044 and with a calibration certification from a third party laboratory.
2). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 1.5 seconds.
3). Two kinds of illuminants A,C for haze and total transmittance measurement.
4). 21mm test aperture.
5). Open measurement area, no limit on sample size.
6). It can realize both horizontal and vertical measurement to measure different kinds of materials such as sheets, film, liquid, etc.
7). It adopts LED light source whose lifetime can reach 10 years.
2). No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 1.5 seconds.
3). Two kinds of illuminants A,C for haze and total transmittance measurement.
4). 21mm test aperture.
5). Open measurement area, no limit on sample size.
6). It can realize both horizontal and vertical measurement to measure different kinds of materials such as sheets, film, liquid, etc.
7). It adopts LED light source whose lifetime can reach 10 years.
Specification
Model | Basic Edition Haze Meter |
Character | ASTM D1003/D1044 standard for haze and light transmittance measurement. Open measurement area and samples can be tested vertically and horizontally. Application: glass, plastic , film, display screen, packaging and other industries. |
Illuminants | A,C |
Standards | ASTM D1003/D1044, ISO13468/ISO14782, GB/T 2410,JJF 1303-2011, CIE 15.2, GB/T 3978, ASTM E308, JIS K7105, JIS K7361, JIS K 7136 |
Test Parameter | ASTM (HAZE),Transmittance（T） |
Test Aperture | 21mm |
Instrument Screen | 5 inches color LCD screen |
Haze Repeatability | Φ21mm aperture, Standard Deviation: within 0.1(when a haze standard with value 40 is measured 30 times at 5-second interval after calibration) |
Transmittance Repeatability | ≤0.1 unit |
Geometry | Transmittance 0/D (0 degree illumination, diffused receiving) |
Integrating Sphere Size | Φ154mm |
Light Source | 400~700nm full spectrum LED light source |
Test Range | 0-100% |
Haze Resolution | 0.01 unit |
Transmittance Resolution | 0.01 unit |
Sample Size | Open space, no size limit |
Data Storage | 10,000 pcs of samples |
Interface | USB |
Power Supply | DC12V (110-240V) |
Working Temperature | +10 – 40 °C (+50 – 104 °F) |
Storage Temperature | 0 – 50 °C (+32 – 122 °F) |
Instrument Size | L x W x H: 310mmX215mmX540mm |
Details Images
Product Packaging
Company Profile
We, Dongguan Hongtuo Instrument Co., Ltd, a China based company, are pleased to introduce ourselves as a notable testing equipments and machines manufacturer.Our company was established in the year 2000 with two primarily motto, which includes complete client satisfaction and to reach top-most position in the international market. The exceptional quality of our products like Gold Tester,Gold Testing Machine,Density Meter,Universal Tensile Testing Machine,Climatic Chamber,Melt Flow Index Tester,Charpy Impact Testing Machine,Tap Density Tester,Abrasion Tester,Ultrasonic Flaw Detector,Surface Roughness Tester and other Laboratory Testing Equipment, etc. is our company's USP.
Certifications
FAQ
1.Quality Insurance
We guarantee this instrument for 1 year and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster
2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646
3.Are we manufacturer made copy product or original product?
We are the original manufacturer.
4.Why choose us?
We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.
5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.
6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
We guarantee this instrument for 1 year and life-long maintenance.
We will be responsible for fixing or replacing the instrument if quality issue was arisen,the service is excluding if the machine is breakdown caused by following reasons:
(1) Wrong operation;
(2) Fixed or refitted personally;
(3) The machine itself is not the reason caused breakdown;
(4)Applying the machine under the serious conditions.such as high
temperature,moist, corrosive gas,or vibration.
(5)Move or transportation as soon as installed.
(6)Consumables and easy-loss components.
(7)Natural disaster
2.After-sales Service
a.If errors occur,please refer to the troubleshooting tips of the instruction manual.
b.Please contact with our after-sales service department or distributor in time if can’t clear fault.
c.DahoMeter after-sales hot line 400 830 0646
3.Are we manufacturer made copy product or original product?
We are the original manufacturer.
4.Why choose us?
We deep understood what's you need is not only product,but also all-around service support,especially for technical instruction and after-sales service.
a.We have been specialized in this field since 2002.
b.Professional researching and technology team.
c.Customer service team.
5.Can you offer quality certification?
Yes.We can offer quality certification issued by our quality control department with free of charge.or issued by third-party international inspection organizations with extra charge.
6.Can you do the calibration and testing before handover the goods?
Yes.We do testing and calibration for every product before delivery.
