Waste Separator Wide usage Waste Materials Electrostatic Sorting Machine Electrostatic Separator
- Category: >>>
- Supplier: Zhengzhou Yatai Energy Environmental Protection Technology Co. Ltd.
Share on (1600829175441):
Product Overview
Description
Product Description

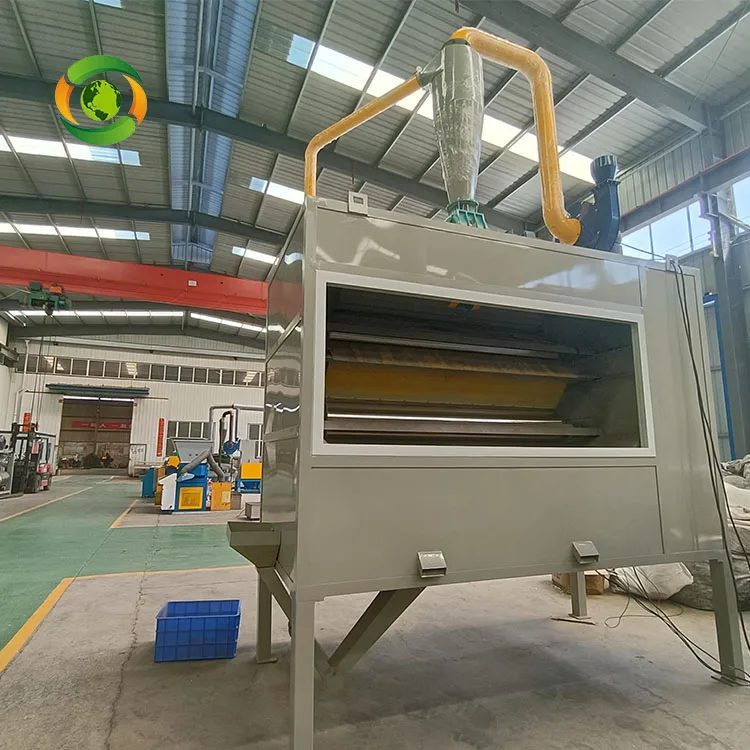

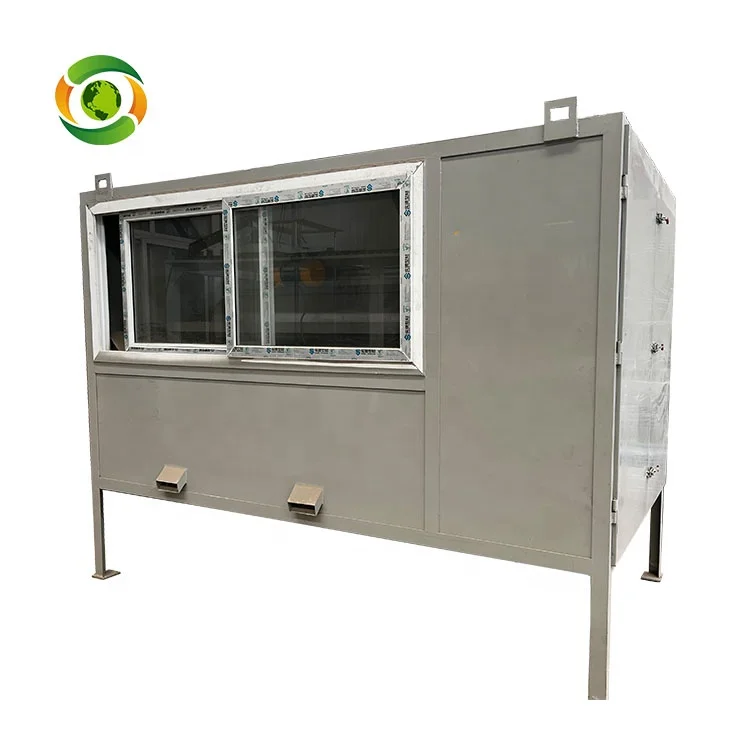

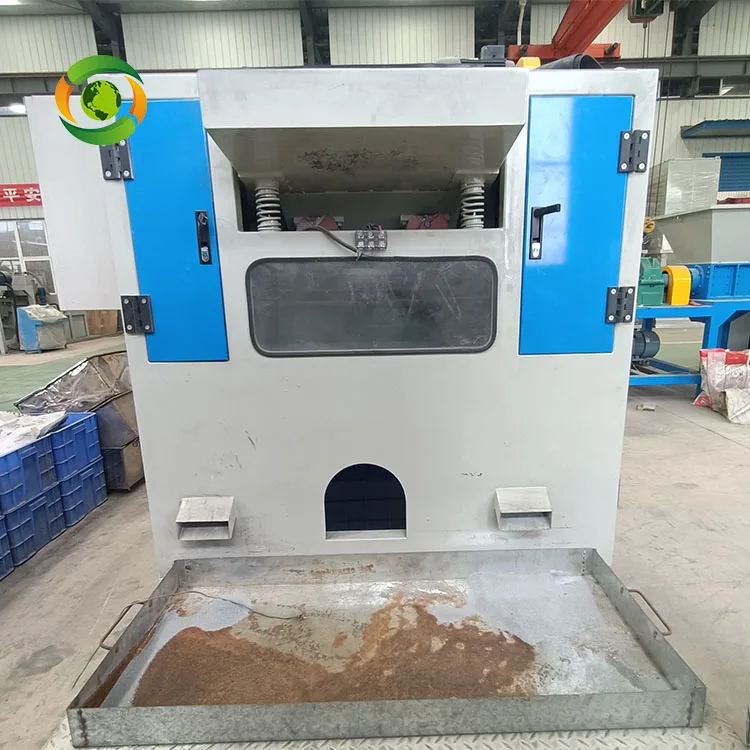

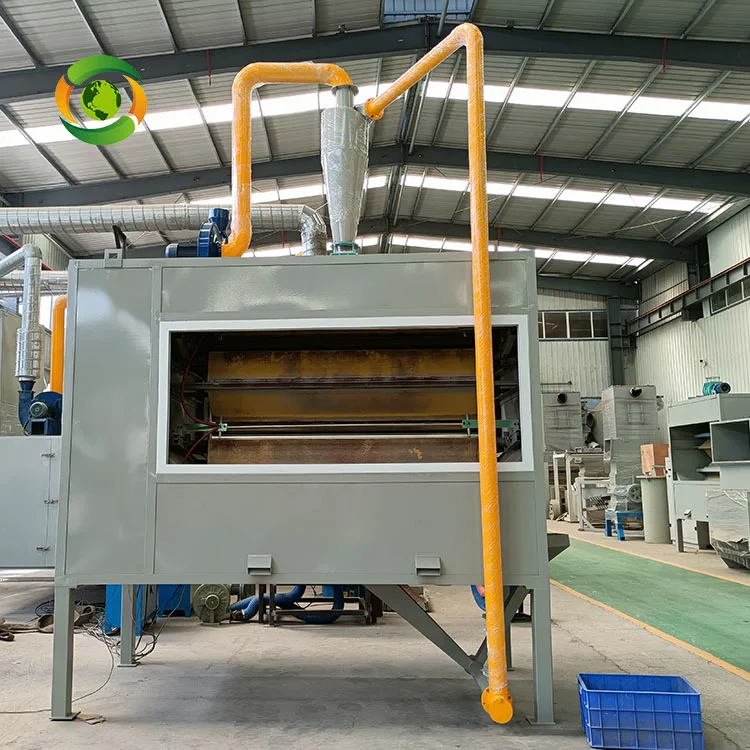

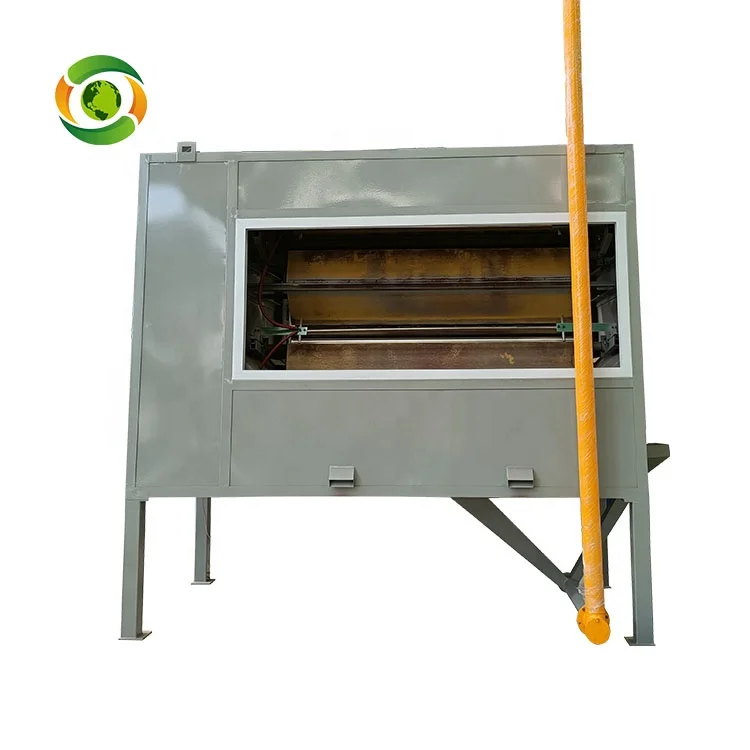

Electrostatic separator is used for separation of metal and nonmetal,Adopts high voltage electrostatic processing principle,separating the metal and non-metal materials according to their different conductivity. This machine can be used for all kinds of metal,plastic and other non-metal material separation,such as the waste printed circuit boards,cable, aluminum,plastic and other scrap materials.
Specification
item | value |
Applicable Industries | Environmental Protection, Recycling Business |
Showroom Location | Pakistan, India, Thailand |
Place of Origin | China |
Henan | |
Brand Name | Zhengzhou Yatai |
Model Number | YT-JDF-2000 |
Warranty | 1 Year |
Power | 13 |
Material | carbon steel |
Production Capacity | 300-500kg/h |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Marketing Type | Hot Product 2023 |
Warranty of core components | 1 Year |
Core Components | Motor, PLC |
Weight (KG) | 2300kg |
Product name | Electrostatic Separator |
Type | Separating Machine |
Application | Sorting Metal And Non-metal |
Keywords | Waste Recycling Plant Sorting |
Model | YT-JDF-2000 |
Capacity | 300-500KG/H |
Advantage | High Separator Rate 99% |
Size | Customized Size |
Voltage | 220V/380V/415V/440V/customized |
MOQ | 1 Set |
Work Flow
The electrostatic separator is discharged to the grounded rotating roller by the high-voltage static electricity generated by the high-voltage generator inside the equipment. The materials to be sorted are evenly lowered onto the rotating drum through a special feeding device. After the conductor material receives electricity, the electricity is put into the ground through the grounded rotating drum. Due to the inertia of the rotating drum, the conductor material is thrown into the conductor receiving hopper. After the non-conductor receives electricity, due to its poor electrical conductivity, it is adsorbed on the surface of the rotating roller, and as the roller turns to the back, it is swept by the brush and falls into the conductor receiving hopper.Some of the conductor and non-conductor materials fall into the middle bin hopper due to different reasons such as the drum speed, the adjustment distance of the equipment baffle, the size of the material particles and the amount of electricity received, and then enter the feeding machine and enter the unloading device for sorting.
Our Advantages
1. The electrostatic separator feeding device is a key technology for the purity of the separation material. According to the
different materials, a unique feeding method is adopted, or a separate frequency conversion speed control is used to control the feeding, so that the materials can enter the corona electric field uniformly, and the sorting effect of the materials can be realized.
2. The double-roller electric separator can realize the metal selection on the second roller to improve the purity of the metal.
3. Save time and labor, and increase production capacity.
4. The automatic discharge function provides reliable safety guarantee for the operation of the operator.
5. The specially designed dust blowing device keeps the equipment always maintaining a good sorting effect.
6. The electrostatic sorting machine uses a stable high-voltage electrostatic power supply. The specially designed automatic voltage regulating device makes the high voltage power supply stable.
7. Easy to operate and use. The speed adjustment and feeding adjustment are all controlled by frequency conversion, and the national standard motor is matched. Easy to operate and easy to maintain.
different materials, a unique feeding method is adopted, or a separate frequency conversion speed control is used to control the feeding, so that the materials can enter the corona electric field uniformly, and the sorting effect of the materials can be realized.
2. The double-roller electric separator can realize the metal selection on the second roller to improve the purity of the metal.
3. Save time and labor, and increase production capacity.
4. The automatic discharge function provides reliable safety guarantee for the operation of the operator.
5. The specially designed dust blowing device keeps the equipment always maintaining a good sorting effect.
6. The electrostatic sorting machine uses a stable high-voltage electrostatic power supply. The specially designed automatic voltage regulating device makes the high voltage power supply stable.
7. Easy to operate and use. The speed adjustment and feeding adjustment are all controlled by frequency conversion, and the national standard motor is matched. Easy to operate and easy to maintain.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Service is what we know. Providing innovative recycling technology products and solutions is what we strive for. Backed by over 20 years of experience of R&D, manufacturing, marketing and distributing premium E-waste dismantling, crushing and sorting, cable wire recycling,comprehensive extraction of precious metals, waste aluminum and plastic sorting, waste tire recycling, waste lithium-ion battery recycling and other new environmental protection equipment worldwide, we're committed to providing a range of high quality, innovative, cost-effective products and solutions.
As a leading manufacturer, we design and customize various solutions for many foreign trade enterprises and do OEM for them. With more than 10 years of experience in OEM for foreign trade enterprises, cost-effective and high-reliability products supplied by us are exported to more than 30 countries and regions, which enjoys good reputation.

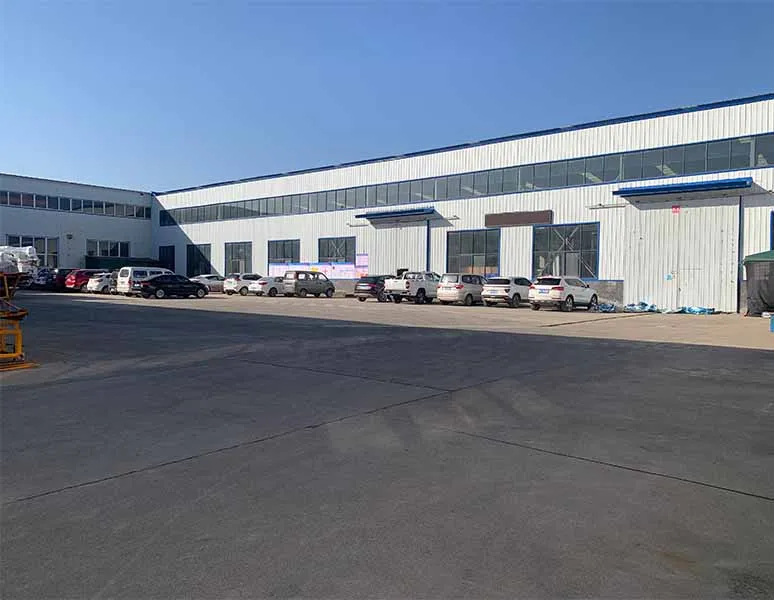

Possessing sophisticated production lines and inspection equipment, providing diverse lines of e waste recycling and metal refining equipment backed by expert R&D technical support, we develop closer customer relationships and taking on a larger role in the total supply and manufacturing chain. We offer a complete set of environment protection equipment with a range of products for one-stop shopping. Decades of product optimization have turned Renewable products into a highly perfected and cost-effective solution. Our ISO 9001 certification registered production facilities are emblematic of renewable ongoing commitment to quality and sustainability in the manufacture of these products.
As an experienced supplier, we now offer everything from large, medium and small production lines like waste circuit board recycling line, aluminum plastic separation and recycling line, waste cable & wire recycling line, precious metal sorting and refining production line, waste radiator recycling line, waste tire recycling line, waste lithium battery recycling line, waste photovoltaic panel recycling line to single devices like PCB dismantling machine, double shaft shredder, single shaft shredder, hammer mill crusher, knife crusher, airflow separator, electrostatic separator, pulse dust collector in the world. Our products meet and exceed the challenges of thousands of applications, and continue to be innovated. We stand for the maxims of uncompromising quality, outstanding customer service and operational dependability. We implement custom solutions with the highest flexibility and precision. Our dedicated employees, the true mechanical experts, make us successful globally.
As a leading manufacturer, we design and customize various solutions for many foreign trade enterprises and do OEM for them. With more than 10 years of experience in OEM for foreign trade enterprises, cost-effective and high-reliability products supplied by us are exported to more than 30 countries and regions, which enjoys good reputation.
Possessing sophisticated production lines and inspection equipment, providing diverse lines of e waste recycling and metal refining equipment backed by expert R&D technical support, we develop closer customer relationships and taking on a larger role in the total supply and manufacturing chain. We offer a complete set of environment protection equipment with a range of products for one-stop shopping. Decades of product optimization have turned Renewable products into a highly perfected and cost-effective solution. Our ISO 9001 certification registered production facilities are emblematic of renewable ongoing commitment to quality and sustainability in the manufacture of these products.
As an experienced supplier, we now offer everything from large, medium and small production lines like waste circuit board recycling line, aluminum plastic separation and recycling line, waste cable & wire recycling line, precious metal sorting and refining production line, waste radiator recycling line, waste tire recycling line, waste lithium battery recycling line, waste photovoltaic panel recycling line to single devices like PCB dismantling machine, double shaft shredder, single shaft shredder, hammer mill crusher, knife crusher, airflow separator, electrostatic separator, pulse dust collector in the world. Our products meet and exceed the challenges of thousands of applications, and continue to be innovated. We stand for the maxims of uncompromising quality, outstanding customer service and operational dependability. We implement custom solutions with the highest flexibility and precision. Our dedicated employees, the true mechanical experts, make us successful globally.
FAQ
1. who are we?
We are based in Henan, China, start from 2014,sell to Domestic Market(53.00%),Southeast Asia(15.00%),South Asia(6.00%),South America(6.00%),North America(4.00%),Eastern Asia(4.00%),Mid East(4.00%),Oceania(2.00%),Central
America(2.00%),Africa(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Copper Cable Wire Recycling Machine, Scrap PCB Recycling Machine, Aluminum Plastic Recycling Machine, Solar PV Panel Recycling Machine, Lithium-Ion Battery Recycling Machine
4. why should you buy from us not from other suppliers?
China's leading supplier in recycling technology industry with top reputation and larger market share. Providing customers with the quickest quotes, best quality products, competitive prices and fastest possible deliveries.
We are based in Henan, China, start from 2014,sell to Domestic Market(53.00%),Southeast Asia(15.00%),South Asia(6.00%),South America(6.00%),North America(4.00%),Eastern Asia(4.00%),Mid East(4.00%),Oceania(2.00%),Central
America(2.00%),Africa(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
Copper Cable Wire Recycling Machine, Scrap PCB Recycling Machine, Aluminum Plastic Recycling Machine, Solar PV Panel Recycling Machine, Lithium-Ion Battery Recycling Machine
4. why should you buy from us not from other suppliers?
China's leading supplier in recycling technology industry with top reputation and larger market share. Providing customers with the quickest quotes, best quality products, competitive prices and fastest possible deliveries.
