Explosion proof Mining Lamp UFO Explosion proof Lamp Round Explosion proof Lamp Engineering Factory special forDrilling Platform
- Category: >>>
- Supplier: Shenzhen CESP Co. Ltd.
Share on (1600829182332):
Product Overview
Description
Product Description
WIDE APPLICATIONS
The CES-LN-02P series is widely used in the hazardous locations, such as gas station, factory workshop, petro-chemical plant and so on.
It is the most popular product in our company, this product is a high sales volume of our company every year. As picture showed is LN-02P Linear light for LNG plant in Singapore, it is also used in an China National Offshore Oil Corporation Lighting Engineering Project - CNOOC. The image below is a physical images of all kinds of projects.
It is the most popular product in our company, this product is a high sales volume of our company every year. As picture showed is LN-02P Linear light for LNG plant in Singapore, it is also used in an China National Offshore Oil Corporation Lighting Engineering Project - CNOOC. The image below is a physical images of all kinds of projects.
CES-EX-LN-02P Linear Light replace to the ex-proof fluorescent light in Singapore
Control Room - United States
CES-EX-LN-02P Ex-Proof Linear Light
CES-EX-LN-02P Ex-Proof Linear Light
Italy - these luminaries are installed in explosion-proof boxes
CES-EX-LN-02P
CNOOC - China National Offshore Oil Corporation Lighting Engineering Project.
Indonesia
- Explosion Proof LED Flood Light
- Explosion Proof LED Flood Light
Netherlands - Seaside Oil Refinery
CESP LED Explosion proof Lights
for Powder Magazine in Chile
for Powder Magazine in Chile
Natural Gas Hanling Facility in Malaysia- 120W Led EX-proof Light Project
Australian Gas Station Lighting - CES-J100
CES-J series is used for Oil depot lighting
Product Description
Overview
Ex System | Zone System | |||
Application Areas | Zone 1/ Zone 21/ Zone 2/ Zone 22 | |||
Certificate No. | IECEx: IECEx SEV 19.0040 X ATEX: SEV 19 ATEX 0334 X | |||
Ex Mark | IECEx: • Ex db op is IIC T4…T5…T6 Gb; • Ex tb op is IIIC T103 ° C…T98 ° C …T93 ° C Db; • IP66; ATEX: • II 2G Ex db op is IIC T4…T5…T6 Gb; • II 2D Ex tb op is IIIC T103 ° C…T98 ° C …T93 ° C Db; • IP66; | |||
Ambient temperature | -40 ° C ~ 45/50/55 ° C | |||
Shape/ Weight | Round, Φ460 x 243(287)mm, N.W: 14.3KG |
Features
Housing Material | Aluminum alloy (ADC12) + spray painting |
Lens | Tempered glass 10mm （withstand 7J impact ） |
Connecting terminal | Bolt compression type (Ex d chamber) |
Line Changing | Can change the line by technician |
Cable entry | Standard： M25 X1.5 （European standards ）； Optional: 3/4’’-14NPT or M26 X1.5 ； |
Cable | Three-core rubber cable, IEC (CE) certification (standard with 0.5m wire) |
Cable Gland | Cable Gland (ATEX certificate: Presafe 17 ATEX 10979 X) |
U bracket | Spray painting |
Emergency | It can only be equipped with external emergency power box (Request our R&D department to provide solutions ) |
Name plate | with stainless steel bolts |
Default amounting | U-bracket |
Technology Parameters
Input Voltage | AC100V-277V |
Power | 100W/120W/150W/185W/200W |
Reflector | optional |
LED Quantity | 252Pcs 3030 - without Reflector 300Pcs 3030 - Reflector（upgrade version） |
Beam Angle | 120 ° - without Reflector (Measured value： 113 °) 110 ° - Reflector (Measured value： 109 ° ) |
Light Efficacy | Without Reflector: 118 -136 lm/W (Measured value) Reflector : 130-142 lm/W (Measured value) * The lower the power, the higher the light efficacy |
CRI | 70 |
CCT | CCT 3000K-6500K |
LED Driver | Meanwell HLG Series, Meanwell XLG-240 for CES-EX-GB200 |
Default amounting | Grey, ( Yellow optional) |
T-Class(Gas) | ||||||||
Model | Power | -40℃ ~ 45℃ | -40℃ ~ 50℃ | -40℃ ~ 55℃ | ||||
CES-EX-GB-100 | 100 | T6 | T6 | T5 | ||||
CES-EX-GB-120 | 120 | T6 | T6 | T5 | ||||
CES-EX-GB-150 | 150 | T6 | T5 | T5 | ||||
CES-EX-GB-185 | 185 | T5 | T5 | T5 | ||||
CES-EX-GB-200 | 200 | T5 | T5 | T4 | ||||
T-Class(Dust) | ||||||
Model | -40℃ ~ 45℃ | -40℃ ~ 50℃ | -40℃ ~ 55℃ | |||
CES-EX-GB Series | T93℃ | T98℃ | T103℃ | |||

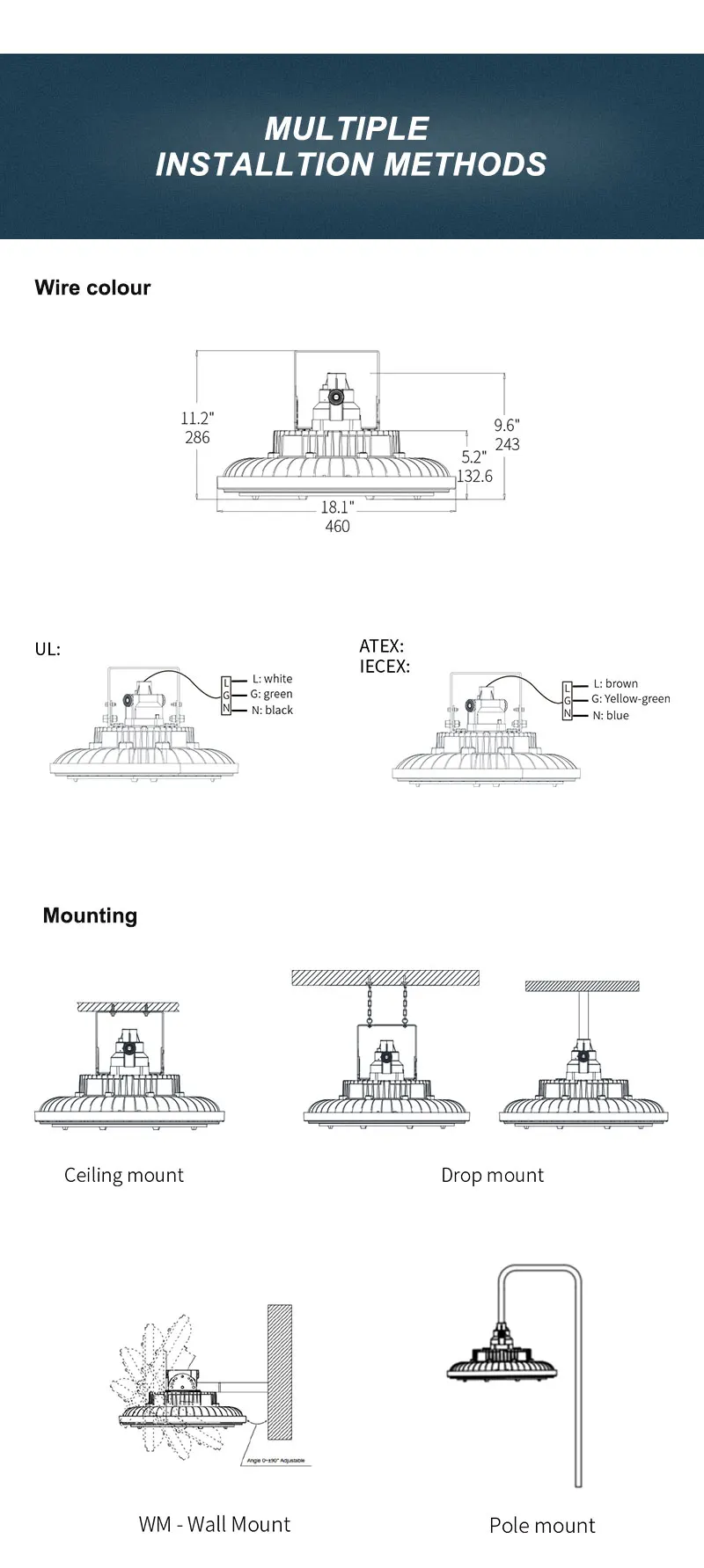

Installation Instructions
