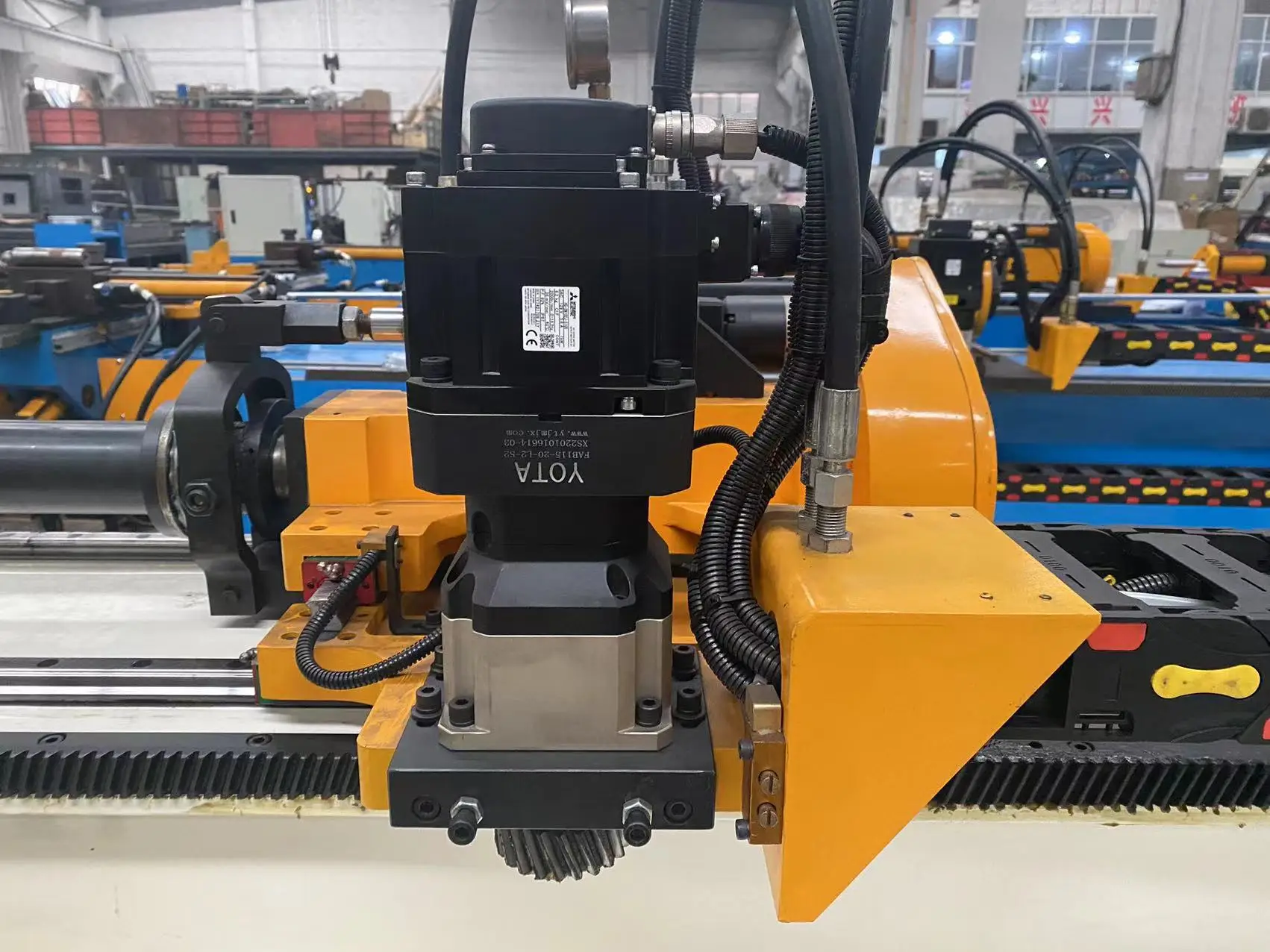

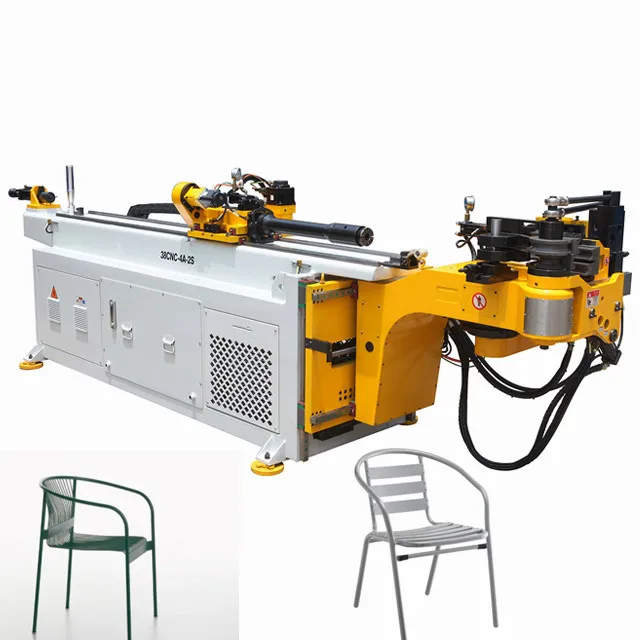

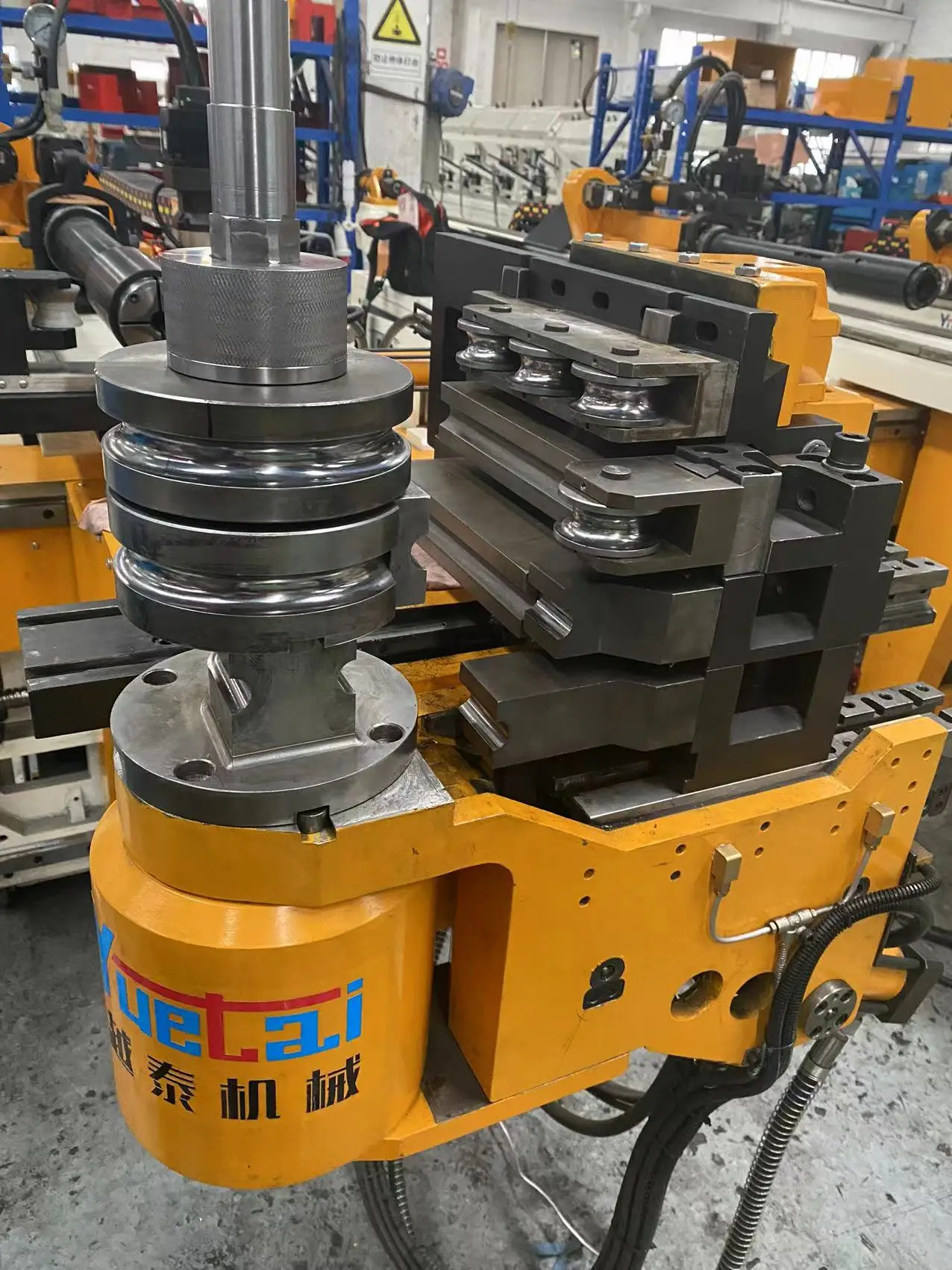

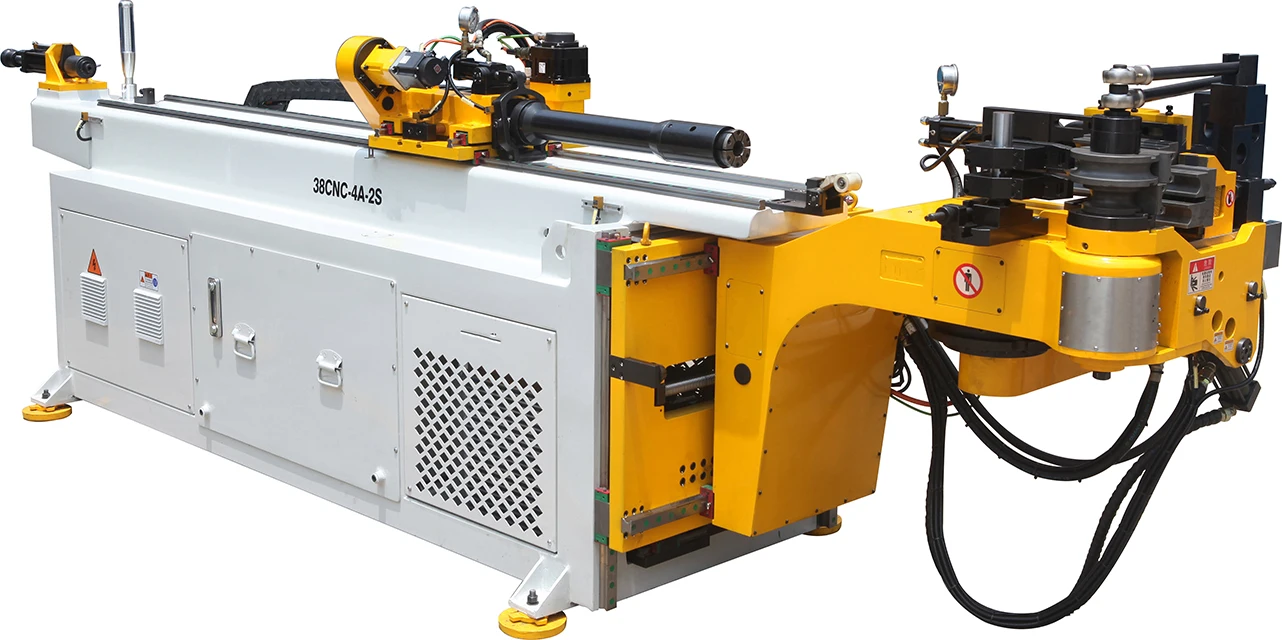

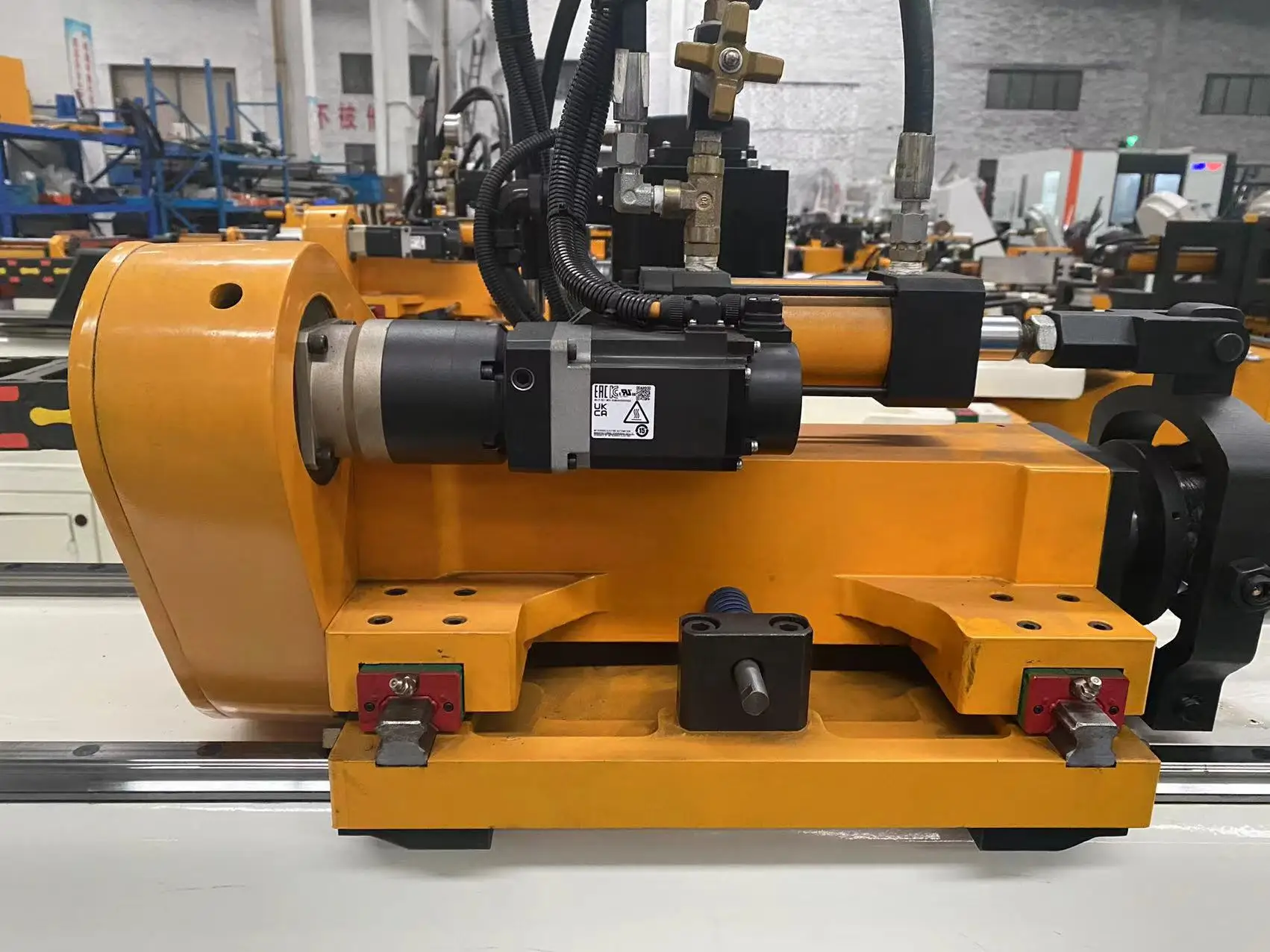

38 50 CNC Automated Steel Aluminum Copper Pipe and Tube Bending Machine for Furniture Exhaust Yacht
- Category: >>>
- Supplier: Zhangjiagang Yuetai Machinery Science Technology Co. Ltd.
Share on (1600829188104):
Product Overview
Description
Model | YT-50CNC-2/3A-1S | YT-75CNC-2/3A-1S | YT-89CNC-2/3A-1S |
CNC/Full Automatic 2/3A | hydraulic/electric bending 1s:1stack | hydraulic/electric bending 1s:1stack | hydraulic/electric bending 1s:1stack |
Max Bending Capacity | 50.5(2.5'')*4mm | 72(2.5'')*4mm | 89(2.5'')*4mm |
Bending Degree | 0-190° | 0-190° | 0-190° |
Bending Radius | 30-300mm(for machine) | 30-300mm(for machine) | 30-300mm(for machine) |
Min Bending Radius | R≥1.4D（for pipe） | R≥1.4D（for pipe） | R≥1.4D（for pipe） |
Mandrel Length | 3800mm(can be customized) | 3800mm(can be customized) | 3800mm(can be customized) |
Max.Bending Speed | 80°/s | 80°/s | 80°/s |
Max.Rotating Speed | 180°/s | 180°/s | 180°/s |
Max.Feeding Speed | 800mm/s | 800mm/s | 800mm/s |
Bending Accuracy | ±0.1°/±0.05° | ±0.1°/±0.05° | ±0.1°/±0.05° |
Rotating Accuracy | ±0.05° | ±0.05° | ±0.05° |
Feeding Accuracy | ±0.05mm | ±0.05mm | ±0.05 |
