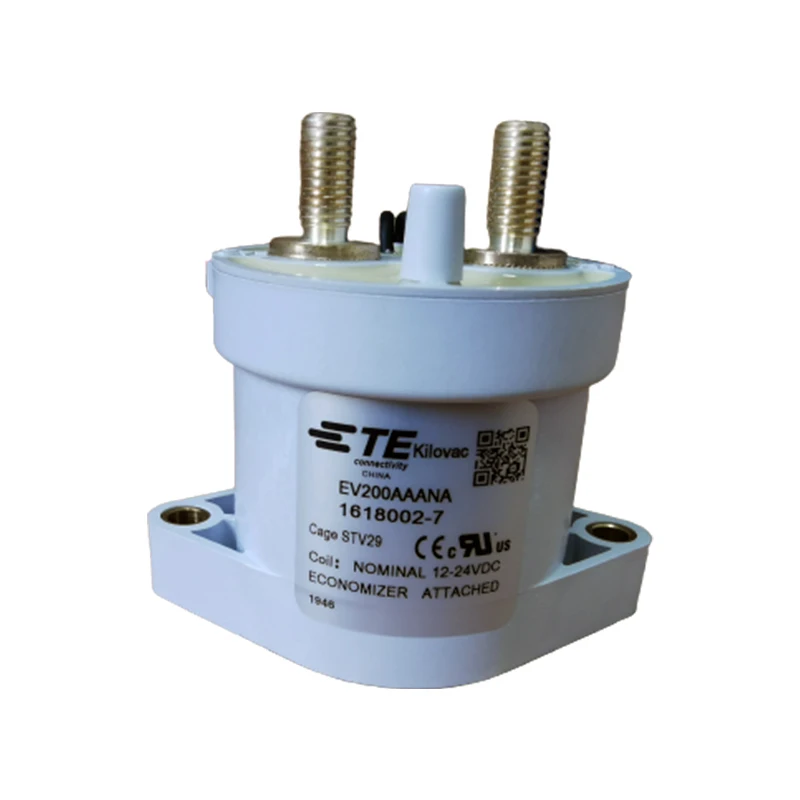

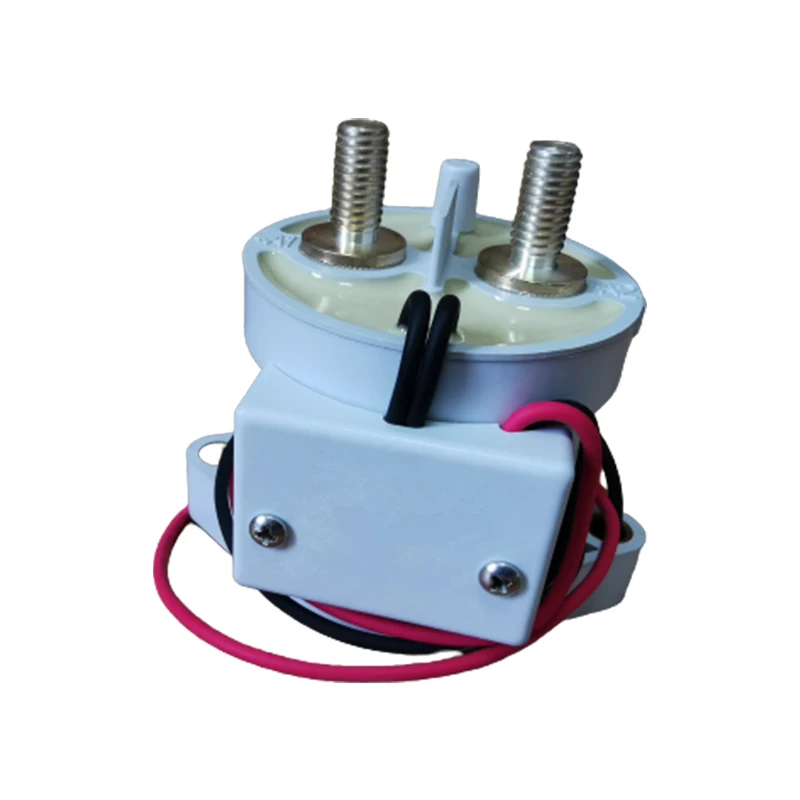

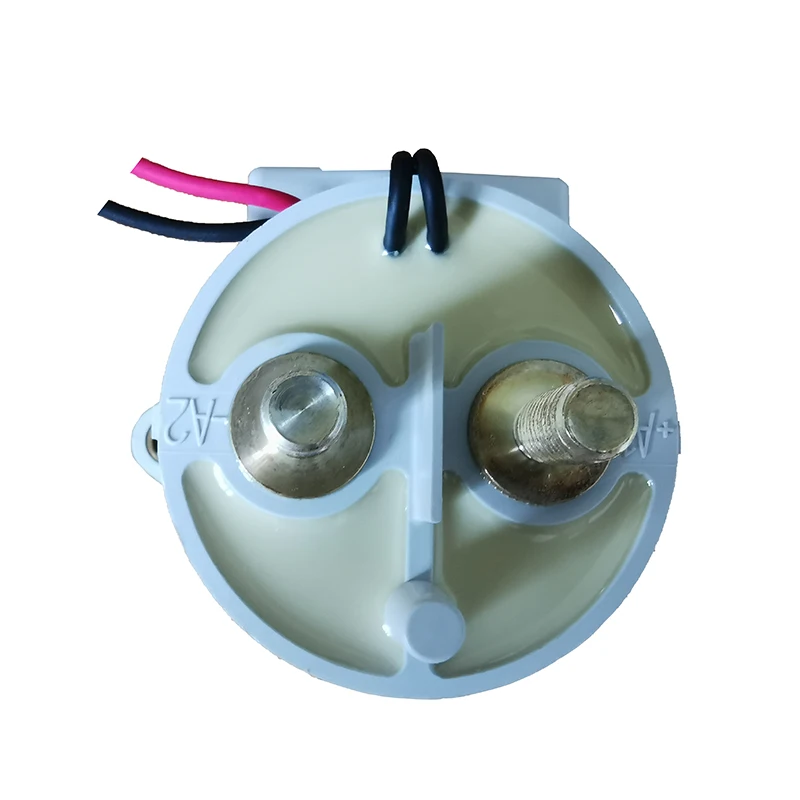

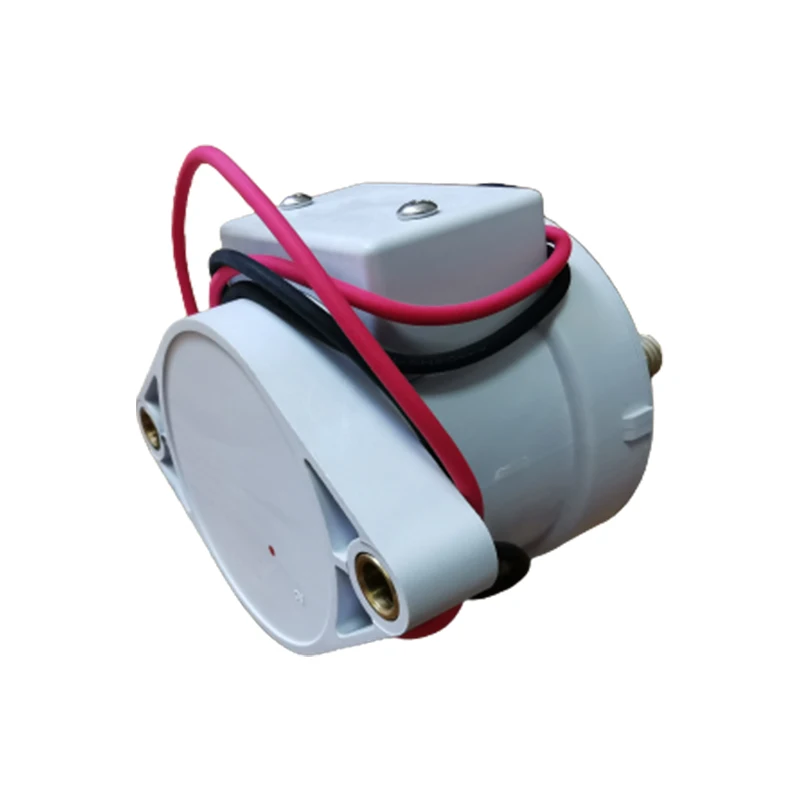

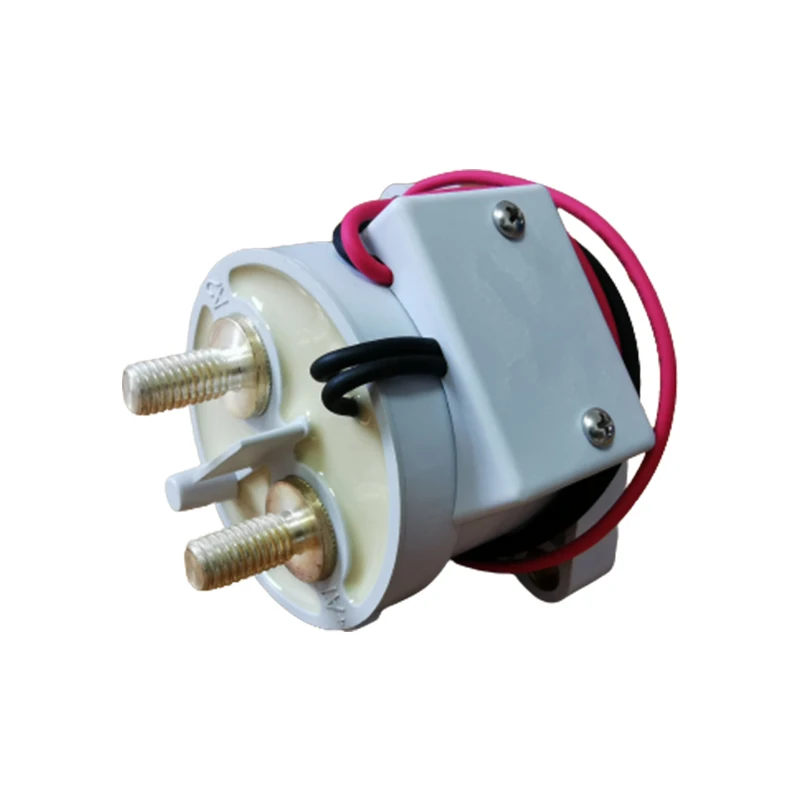

Product Overview

Description

This product complies with EU RoHS (2011/65/EU) directive and EU ELV directive 2000/53/EC.

Main applications

electric vehicle / ship / industrial control equipment / high power test equipment / mining machinery / electrical equipment / environmental control / light electric vehicles, electric vehicles, electric commercial vehicles, electric off-road vehicles, electric buses, etc.

Product type characteristics

RF level : No

Product Type : Relay

Relay type : high voltage

Structural characteristics

Energy Saver : External

Power switch : Yes

Electrical characteristics

High voltage relay voltage (maximum) (VDC): 900

High voltage relay coil voltage rating (VDC): 9 – 36

High voltage relay coil resistance (Ω): 3.14

High voltage relay terminal switching voltage (maximum)  : 900

Contact characteristics

Arrangement of high voltage relay terminals : 1 Form X, SPST-NO

Auxiliary Contacts : Without

High voltage relay contact rated current (A): 500

Terminal base material : Copper

Termination characteristics

High voltage connection (coil) : floating lead

High voltage connection (power supply) : Screw terminal

Termination type : stud terminal

Mechanical accessories

High voltage relay installation type : bottom

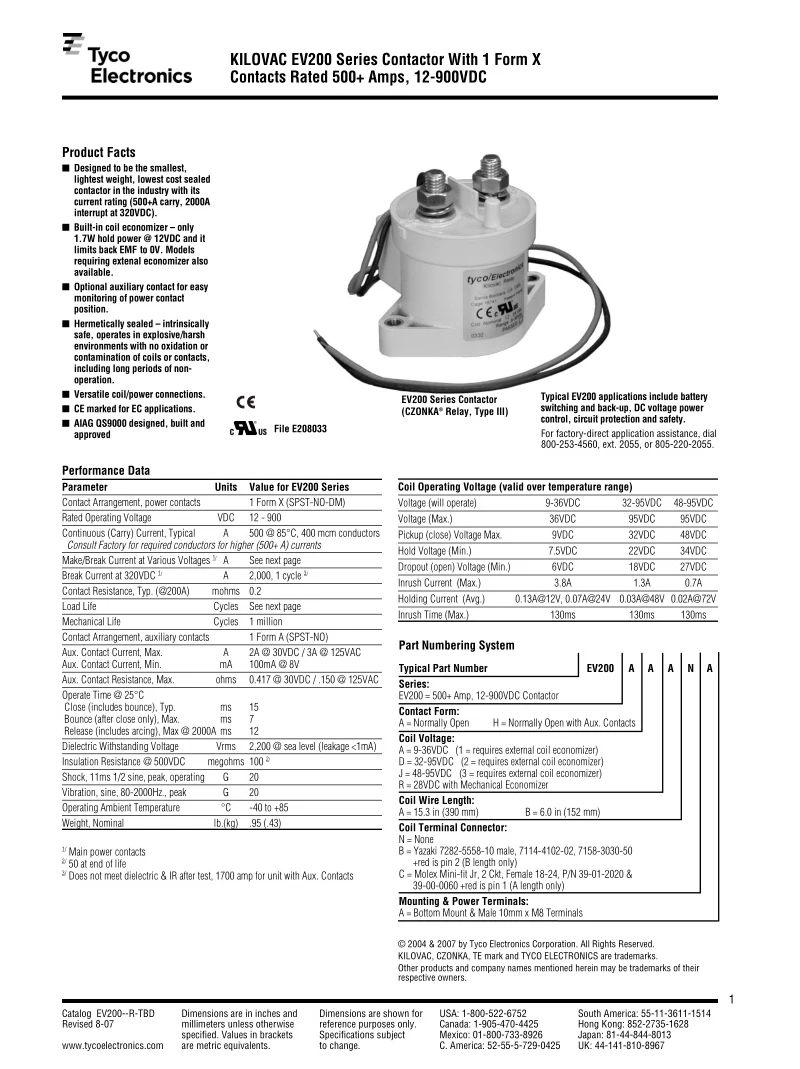

Product manual
