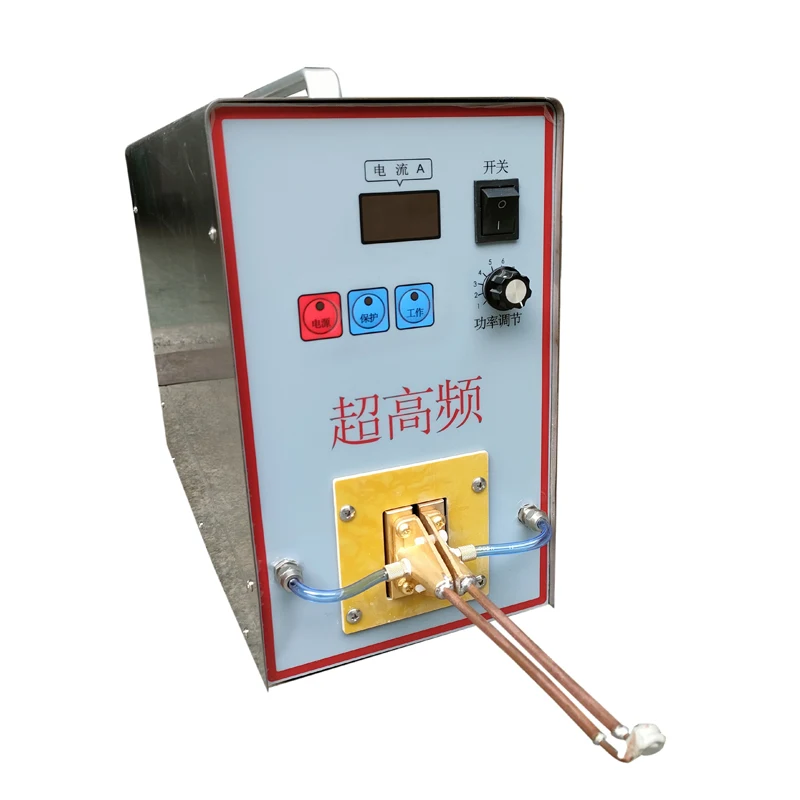

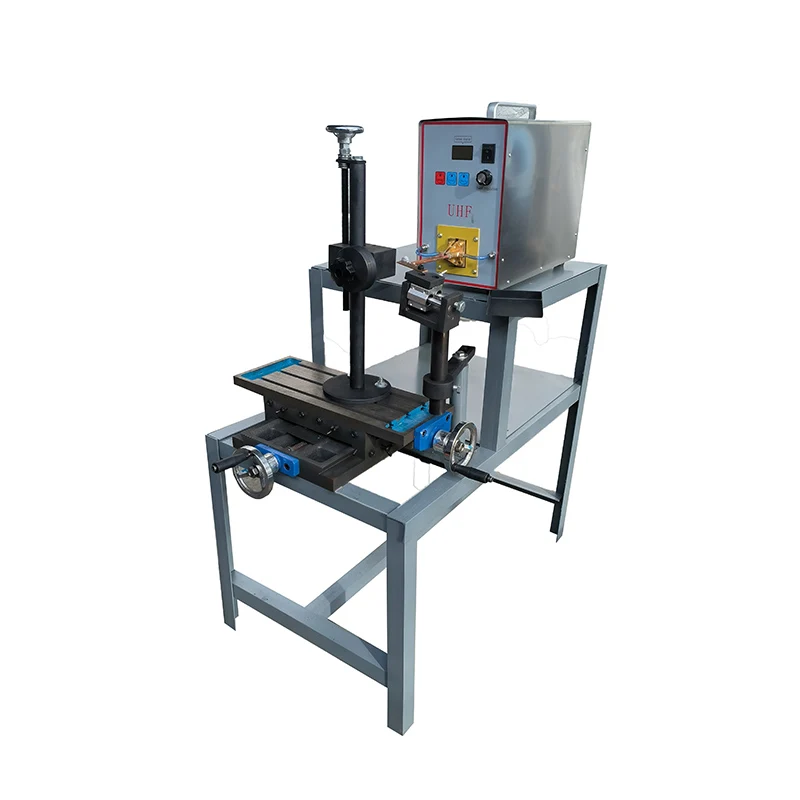

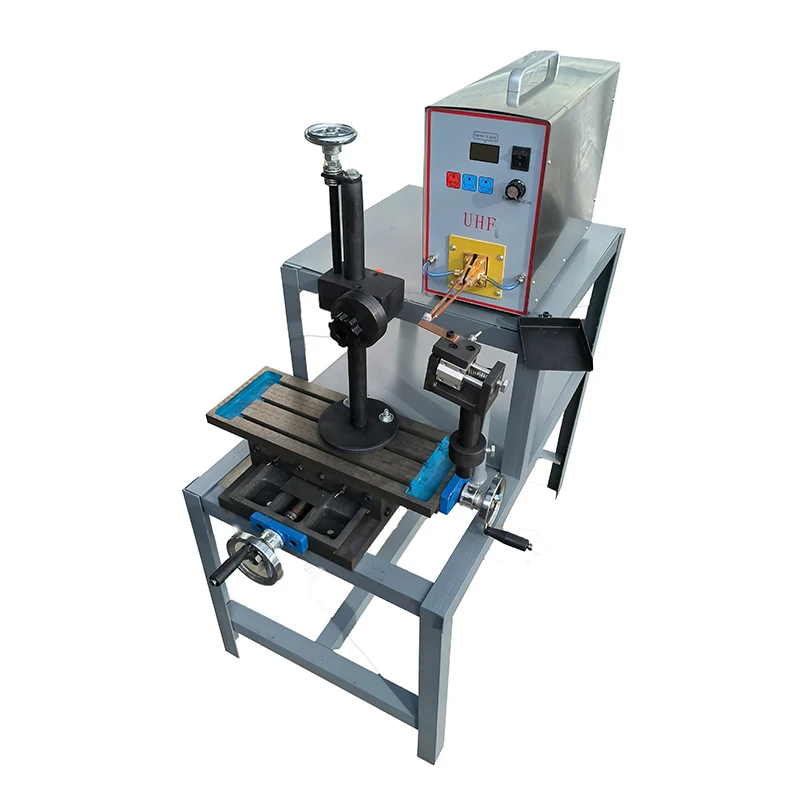

Manual brazing machine for wood saw blade high frequency welding carbide tips induction heating equipment
- Category: >>>
- Supplier: Danyang City Spo Tools Co. ltd.
Share on (1600829236087):
Product Overview
Description
Product Description
Description and Features
It used to brazing and repair T.C.T saw blade tips.
1、The induction coil place with a magnetic rod,gathers the electromagnetic field.
2、Ultra-high frequency, fast tooth welding, 1-5s per tooth.
3、Good repair performance, bad teeth can be repaired and welded at will.
4、The heating is fast and uniform, which can effectively prevent the embrittlement and cracking caused by local overheating of the saw teeth.
Specification
规格/型号 | TYPE | Model | ||

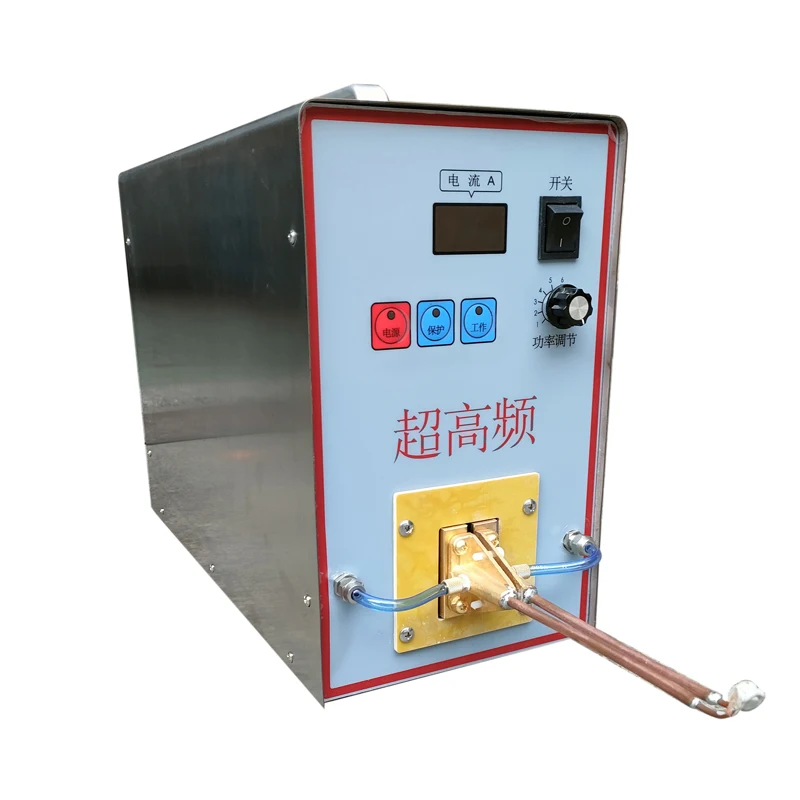

焊机 | High Frequency Brazing Machine | MCN-M05 | MCN-M06 | |
焊架 | Welding Frame | MCN-HJ800 | MCN-HJ800 | |
焊架工作范围 | Welding Frame Working Range | 110-800mm | 110-800mm | |
电压/功率 | Power | AC 220V | AC 220V | |
输入电流 | Rated Input Current | 25A | 27A | |
输入频率 | Incoming Frequency | 50/60HZ | 50/60HZ | |
输出频率 | Output Frequency | 600-750khz | 650-850khz | |
最大功率 | Maximum Power | 5KW | 6KW | |
焊接最大刀头长度 | Maximum Length of Tips | 10mm | 15mm | |
焊接最大刀头宽度 | Maximum Width of Tips | 4.5mm | 7mm | |
焊接最大刀头厚度 | Maximum Thickness of Tips | 5mm | 7mm | |
焊接速度 | Welding Speed | 1-2S/Teeth | 1-2S/Teeth | |
基体厚度 | Blank Thickness | 3.2mm | 6mm | |
水管直径 | Water Pipe Diameter | 8mm | 8&6mm | |
工作模式 | Operating Mode | intermittent heating | intermittent heating | |
焊机&焊架尺寸 | Machine & Frame CBM（cm) | 93x58x97 | 93x58x97 | |
焊机&焊架重量 | Machine & Frame Weight(kg) | 100 | 100 | |
产品尺寸 | CBM（cm) | 58x28x60 | machine head:19x11x95 machine:41x39x16 | |
产品重量 | Weight(kg) | 14 | 15 | |

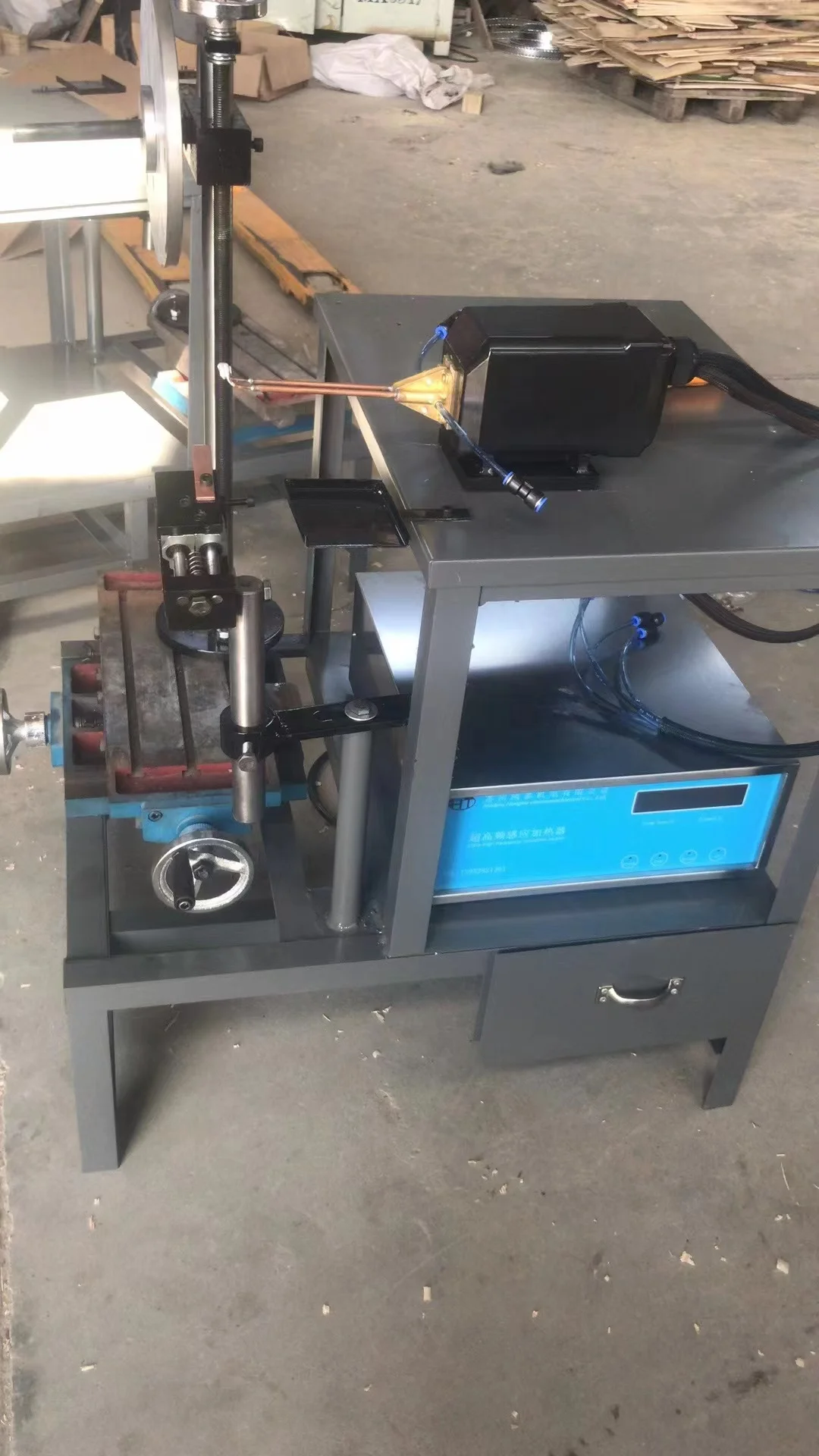

Welding frame,working range 110-800mm
