Food Grade Sanitary Chemical beverage medical Industrial Mini Type Pneumatic Stainless Steel Diaphragm Valve
- Category: >>>
- Supplier: Quzhou Kinggo Machinery Co. Ltd.
Share on (1600829242434):
Product Overview
Description
Specifications
Product Name: | Food Grade Sanitary Chemical beverage medical Industrial Mini Type Pneumatic Stainless Steel Diaphragm Valve |
Material: | AISI316L |
Size: | 1/4"-3/4"&DN6-DN15 |
Polished | Mirror polished,acid pickling, electric polished |
Connection Mode: | Welded,Clamp,Threaded,flange |
Body: | Out from full machined, high polished. Ra less than 0.6um. Electric polished andting |
Gasket/Seal: | EPDM,PTFE,EPDM+PTFE |
Working Principal: | Manual operation or pneumatic actuator |
Pressure: | Low pressure , 0bar -1.0Mpa(10bar) |
Thickness: | 1.2mm--2mm |
Standard: | SMS,DIN,3A,ISO,IDF |
Processing: | CNC machined by forged |
Application scope: | Dairy, food, beer, beverage, pharmacy, cosmetic, water etc |

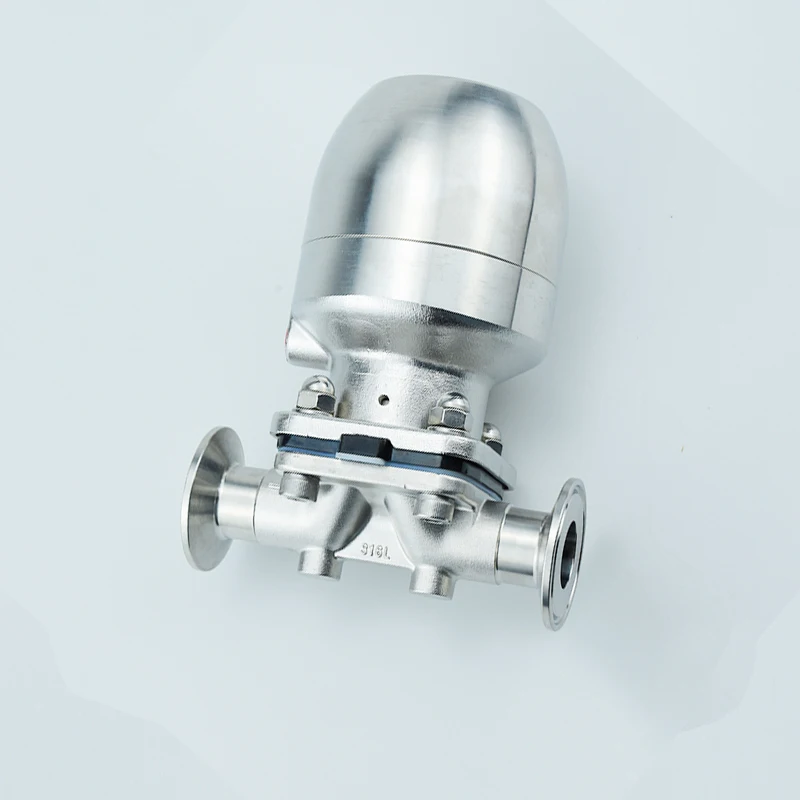

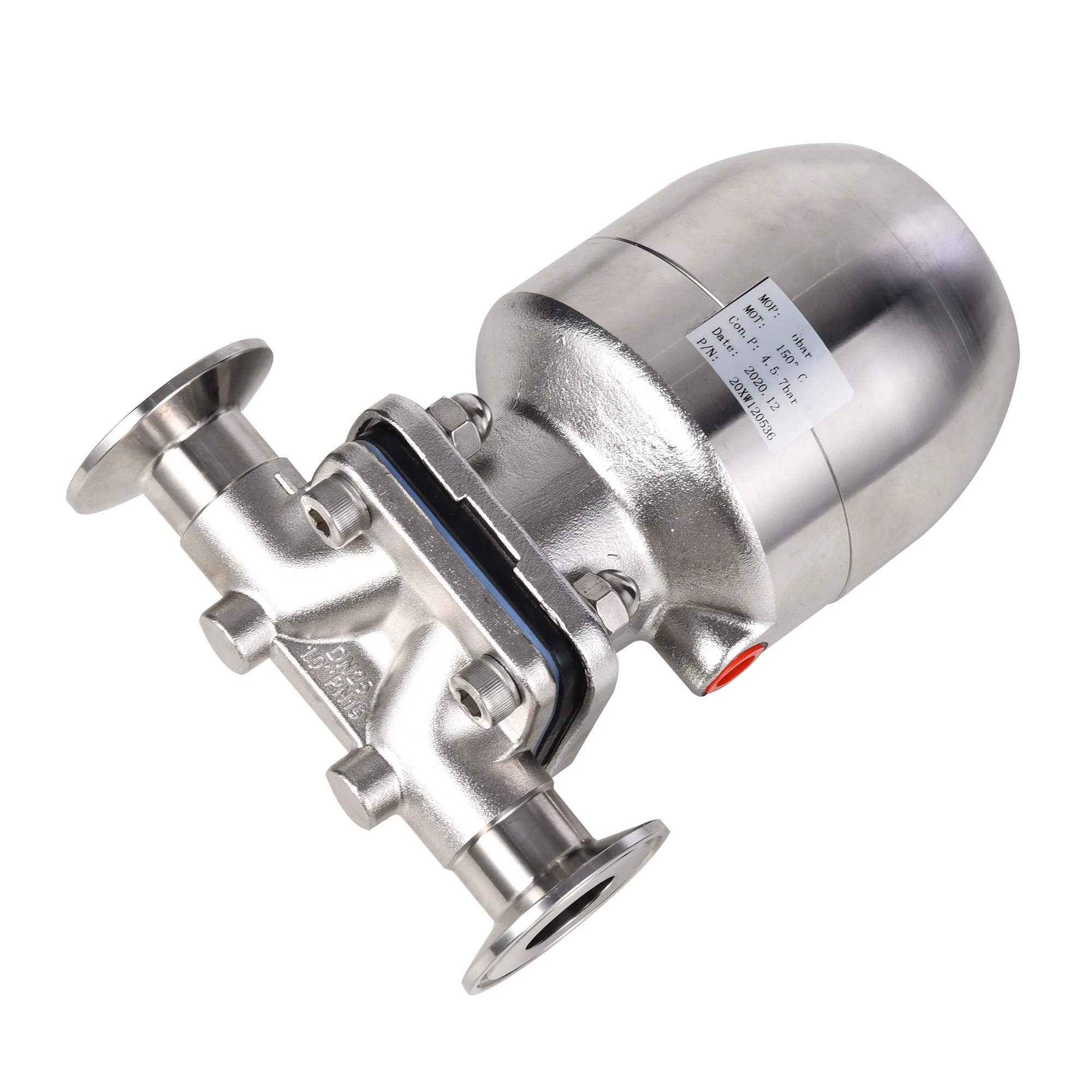

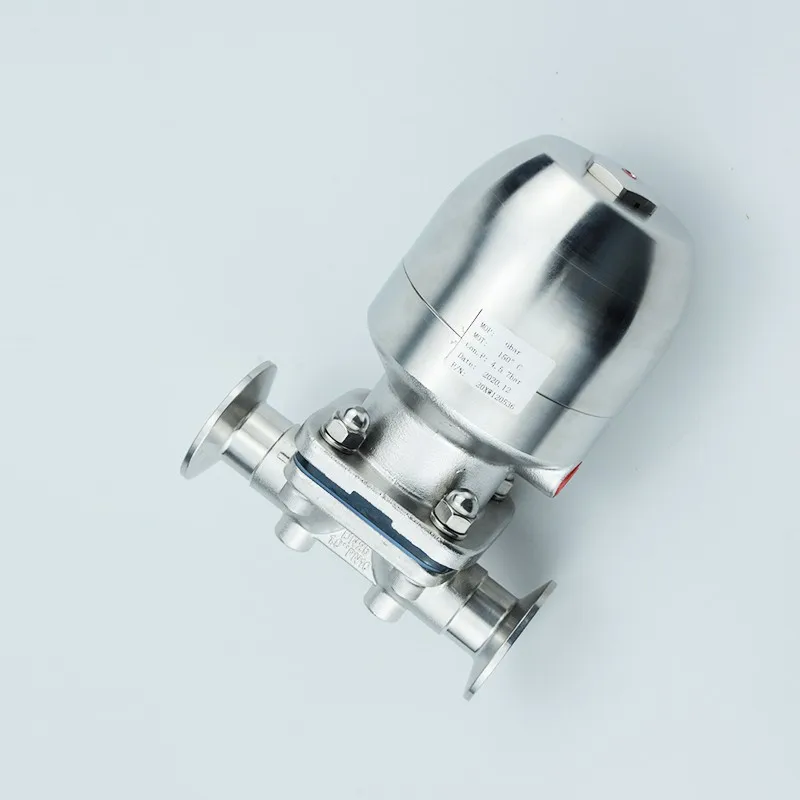

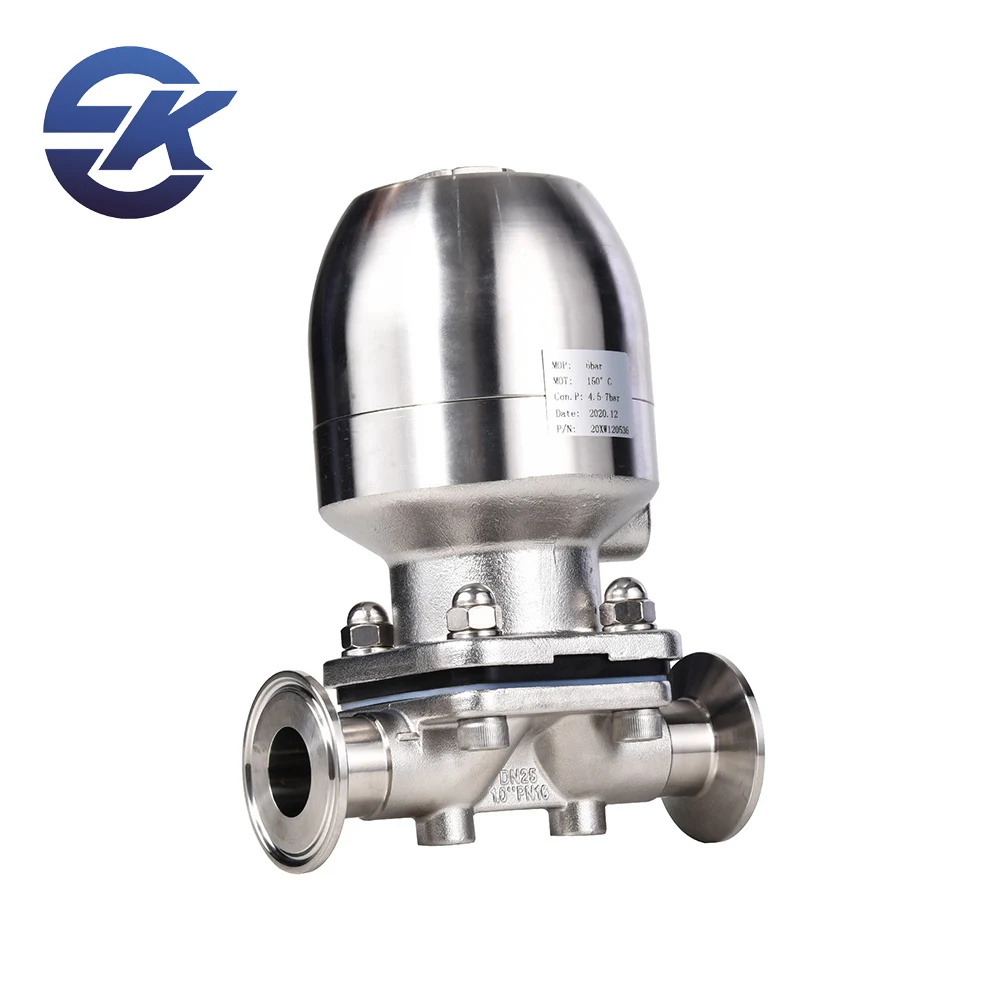

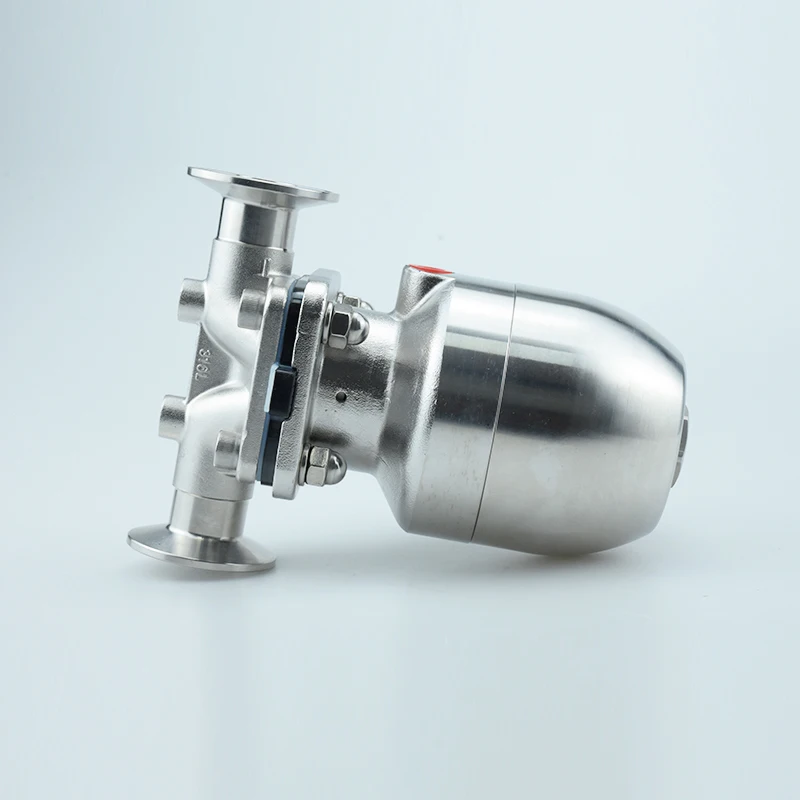

Product shows

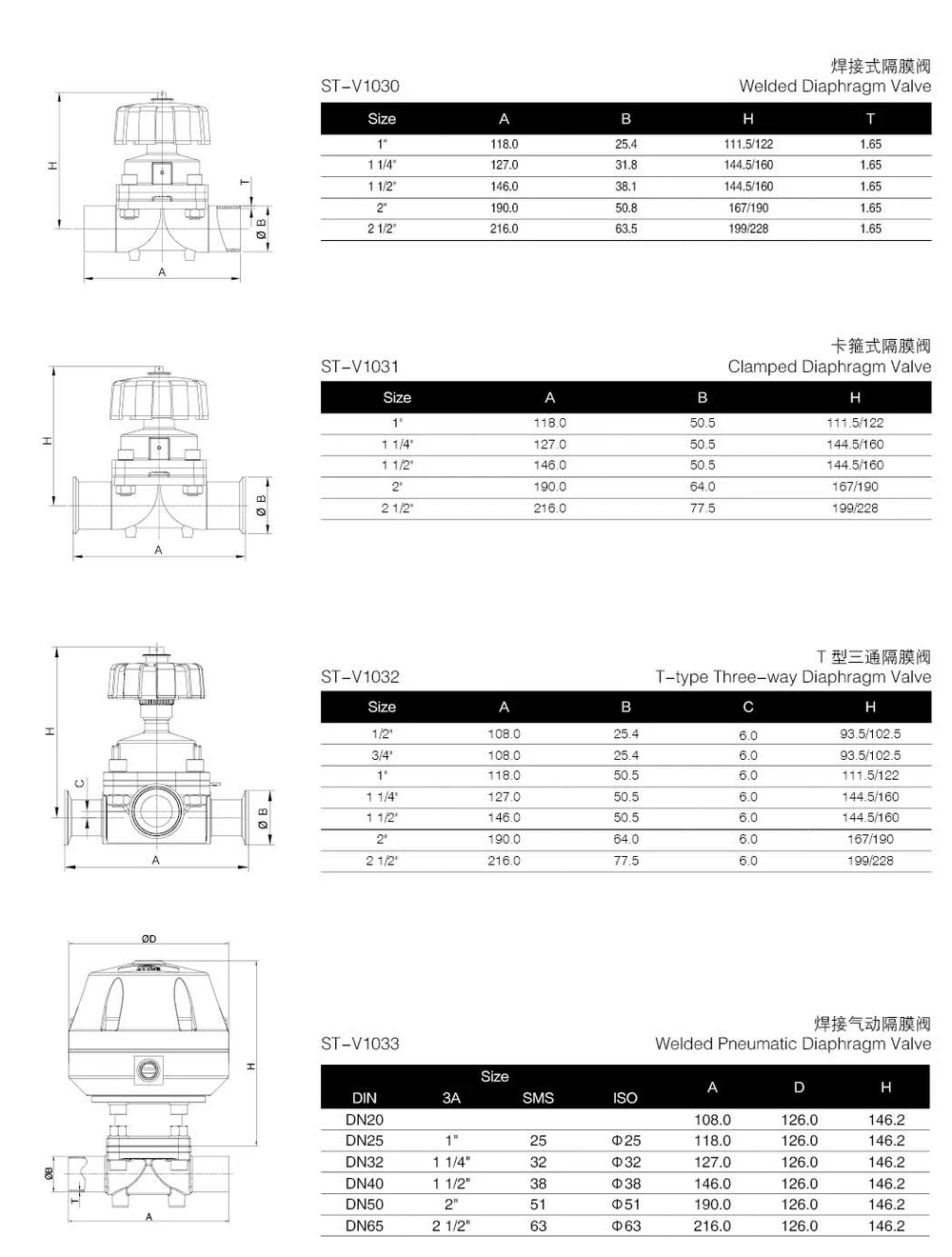

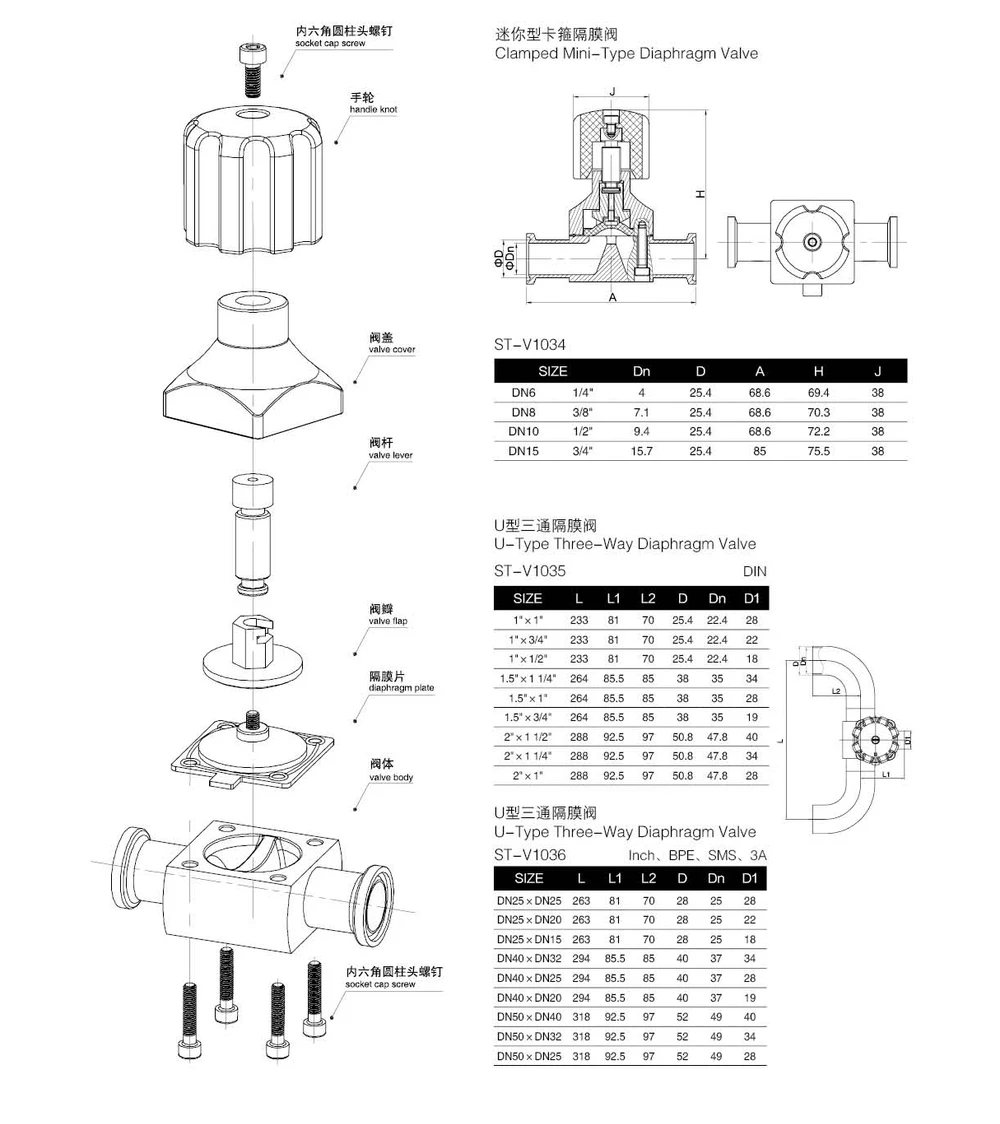

Drawing
Manual valve packaging
Company Information
FAQ
1,How about the surface finishing ?
KingGo valves and pipe fittings have CNC machine finished,matt and mirror polished,it will be
confirmed by customer’s requirement.
2,If free sample available before place order ?
Yes,we are glad to send you free sample to check quality,the shipment freight will be collected by customers.
3,Is there any MOQ provide ?
Our standard products MOQ will be ok to be 10pcs each size,for special custom by customer it will be check detail.
4,Our business payment terms ?
We will accept: T/T,L/C,Paypal,Alipay,West Union and so on.
5,Our standard export packing ?
For small order: plastic package each pc to carton and then into weaving bag.
Large order: plactic package into cartons,then cartons into plywood case.
6,Shipment way choose ?
Small orders will be choose by express,by airline.
Large orders will be choose by sea.
It will according to customer’s request.
.
