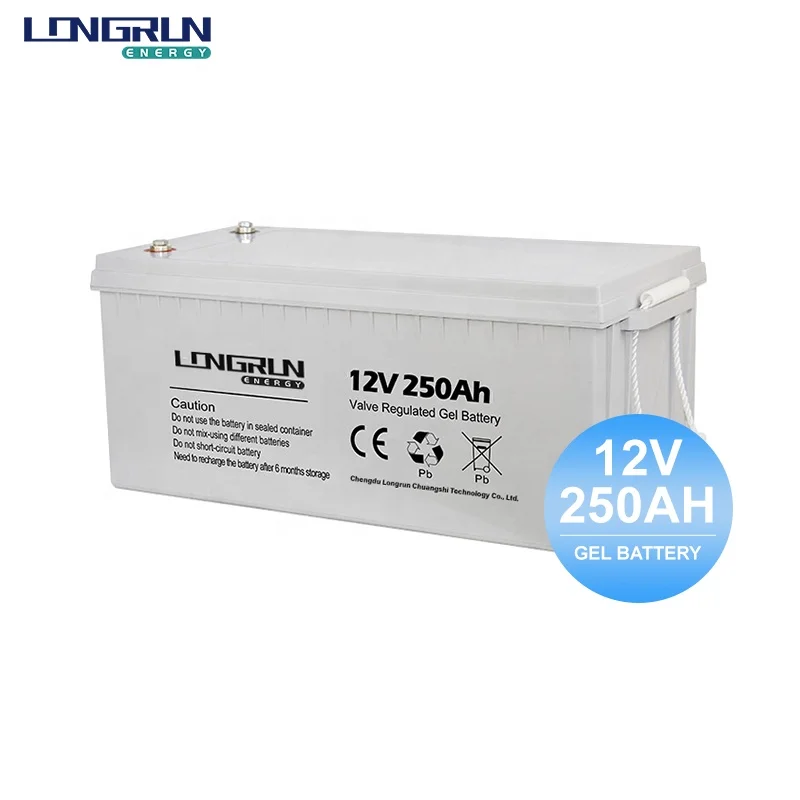

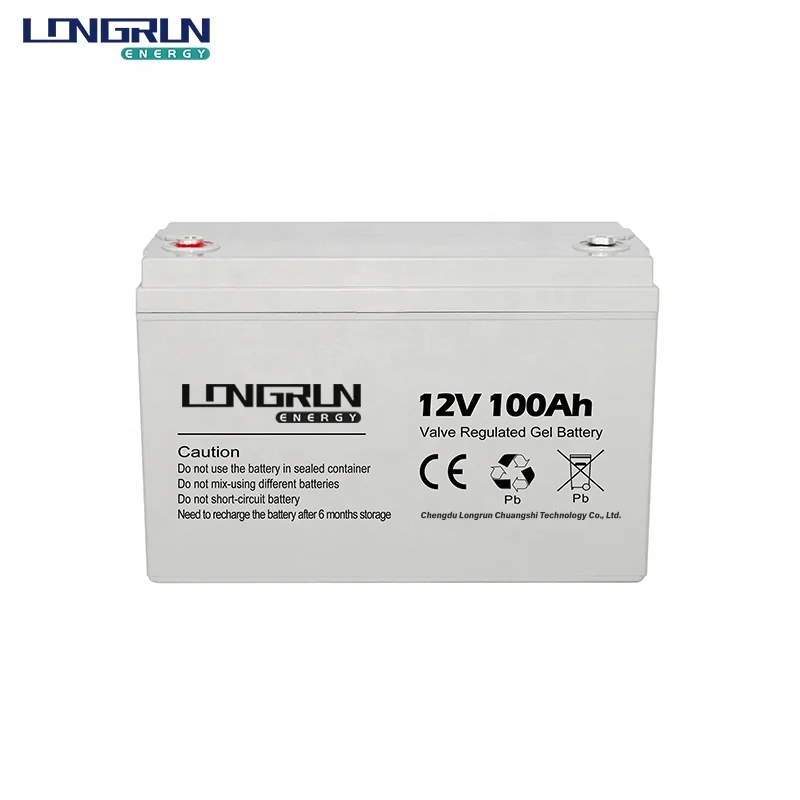

Deep Cycle Solar Gel Battery 12V 100ah 200ah 250ah 24ah Rechargeable Gel Lead Acid Battery Solar Storage Power System Battery
- Category: >>>
- Supplier: Chengdu Longrun Chuangshi Technology Co. Ltd.
Share on (1600829253356):
Product Overview
Description

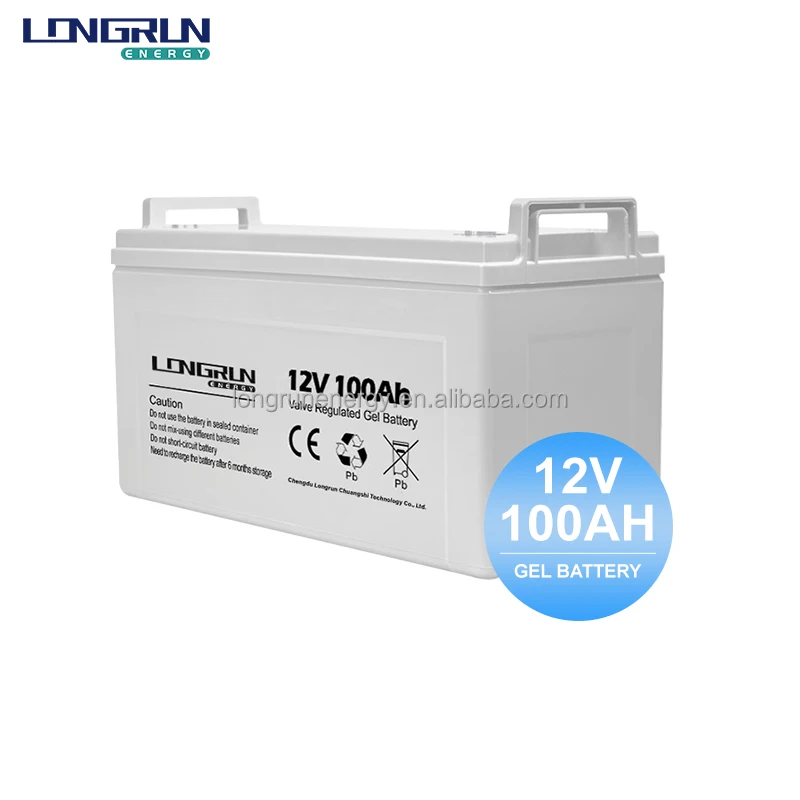

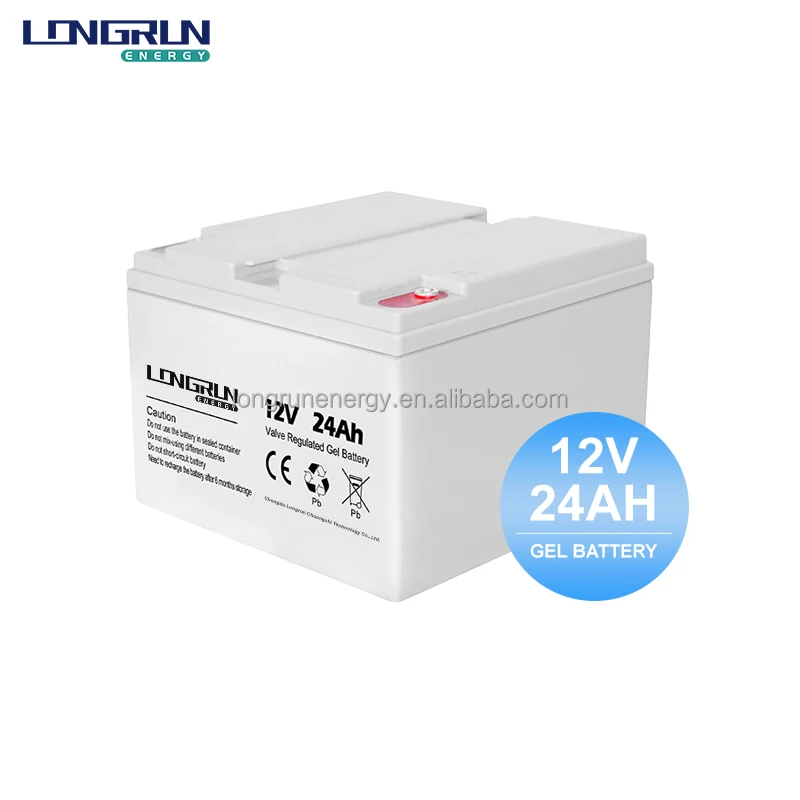

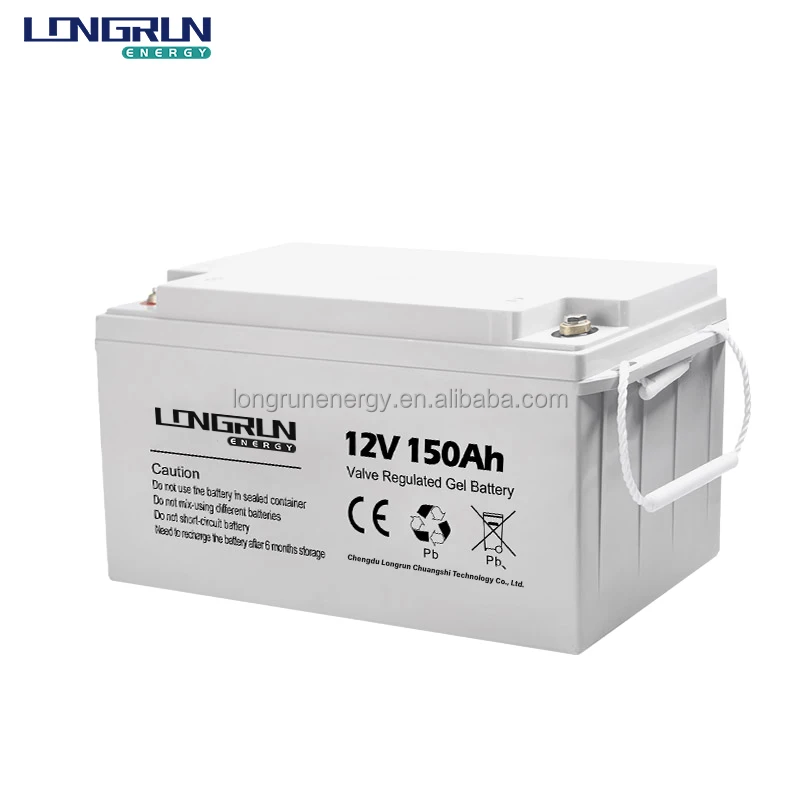

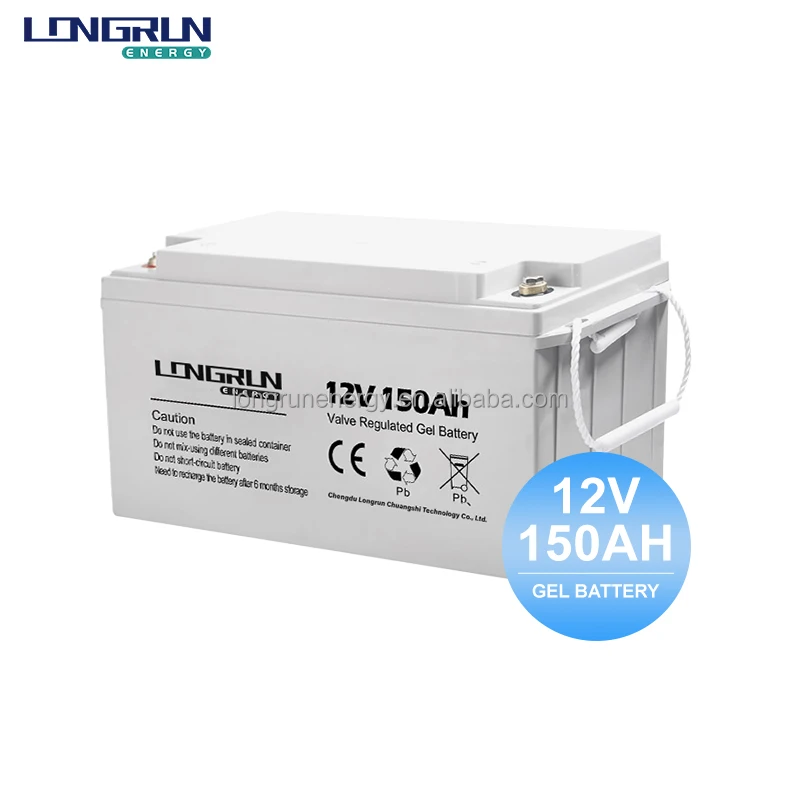

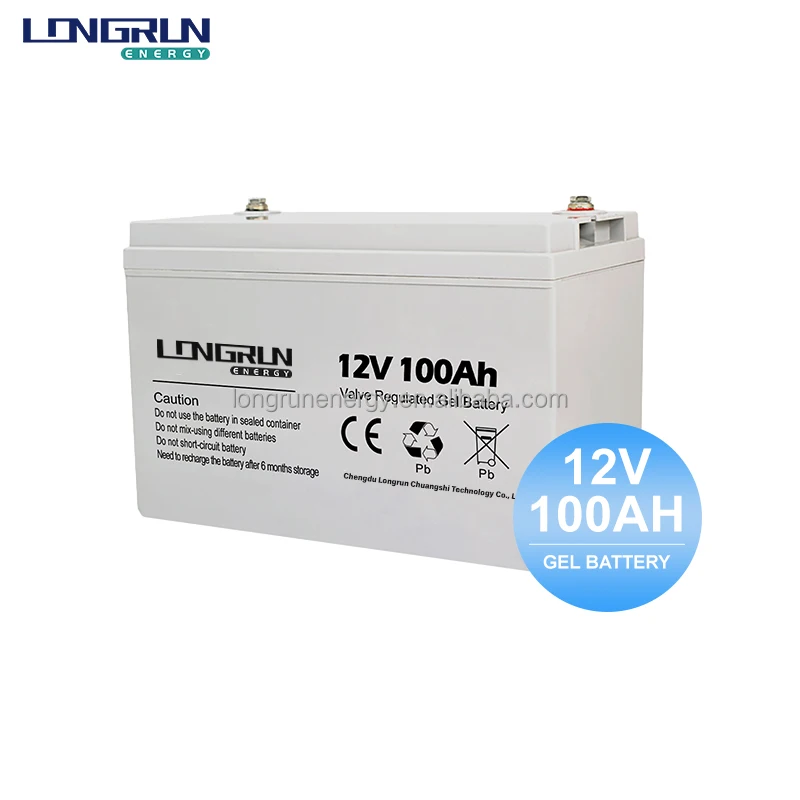

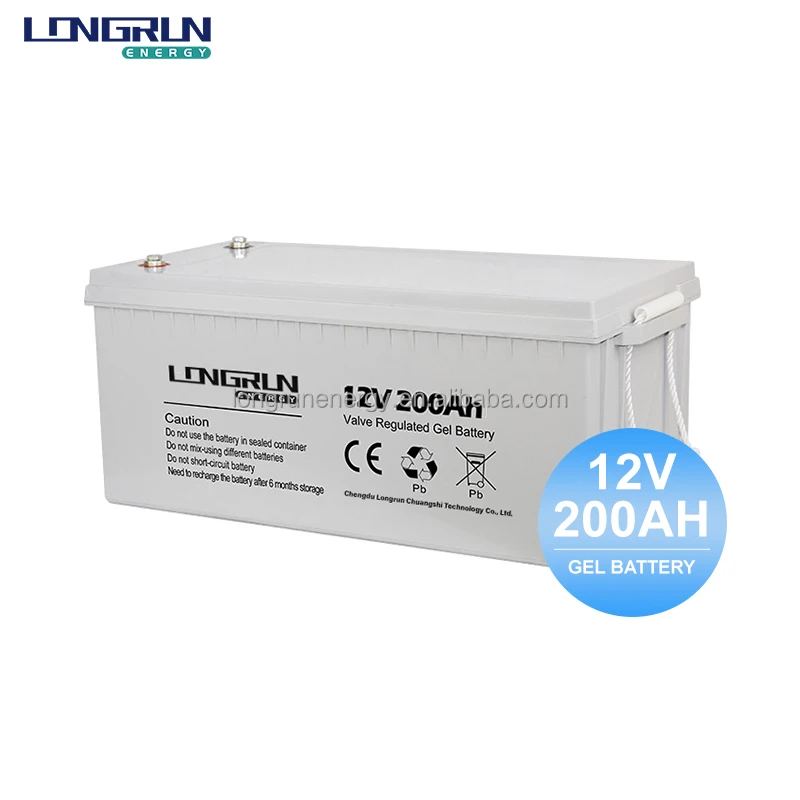

Deep Cycle Solar Gel Battery 12V 100ah 200ah 250ah 24ah Rechargeable Gel Lead Acid Battery
Product Paramenters
Technology Data | ||||||||||||||
Rated Voltage | Capacity (10hr, 1.8v/cell) | Weight | Max Discharge Current | Max Charging Current | Self-discharge (25℃) | Recommended using temperature | Cover material | |||||||
12V | 200AH | 55.5kg | 30110A (3min) | ≤0.25C10 | ≤3%/month | 15℃~25℃ | ABS | |||||||
Using Temperature | Charging Voltage | Charging Mode (25℃) | Cycle Life | Capacity Affected by Temperature |
Discharge: -45℃~50℃ | Floating charge: | Float Charge: 2.275±0.025V/cell | 100%DOD 575 times | 105% @ 40℃ |
Charge: -20℃~25℃ | 13.5V-13.8V | Temperature Parameters: ±3mV/Cell℃ | 50%DOD 1422 times | 90% @ 0℃ |
Storage: -30℃~40℃ | Equalizing Charge: | Cycle Charger: 2.45±0.05V/Cell | 30%DOD 2218 times | 70% @ -20℃ |
14.1V-14.4V | Temperature Compensation Coefficient ±5m/VCell℃ |
Different discharge time at different terminal voltage, discharge time (Amps, 25) | ||||||||||||||||||
Termination Voltage (V/Cell) | 1H | 3H | 5H | 10H | 20H | 50H | 100H | 120H | 240H | |||||||||
1.7 | 106.20 | 48.28 | 32.27 | 20.81 | 10.75 | 4.52 | 2.45 | 2.17 | 1.15 | |||||||||
1.75 | 104.08 | 47.79 | 23.77 | 20.52 | 10.50 | 4.35 | 2.29 | 2.03 | 1.07 | |||||||||
1.8 | 102.00 | 47.33 | 23.40 | 20.00 | 10.25 | 4.20 | 2.20 | 1.89 | 1.01 | |||||||||
1.85 | 97.92 | 47.07 | 22.95 | 19.17 | 9.75 | 4.03 | 2.05 | 1.77 | 0.92 | |||||||||
1.9 | 94.01 | 46.65 | 22.61 | 18.77 | 9.58 | 3.91 | 1.99 | 1.69 | 0.87 | |||||||||
1.95 | 89.88 | 45.72 | 22.14 | 17.73 | 8.92 | 3.63 | 1.88 | 1.61 | 0.83 | |||||||||
Constant current discharge coefficient(25℃，A) | ||||||||||||||||||
Features:
Maintenance free and easy to use, Contemporary advanced technology research and development of new high-performance batteries,Itcan be widely used in solar energy , wind energy, telecommunication systems, off-grid systems, UPS and other fields. The designed life for the battery could be eight years up for float use.

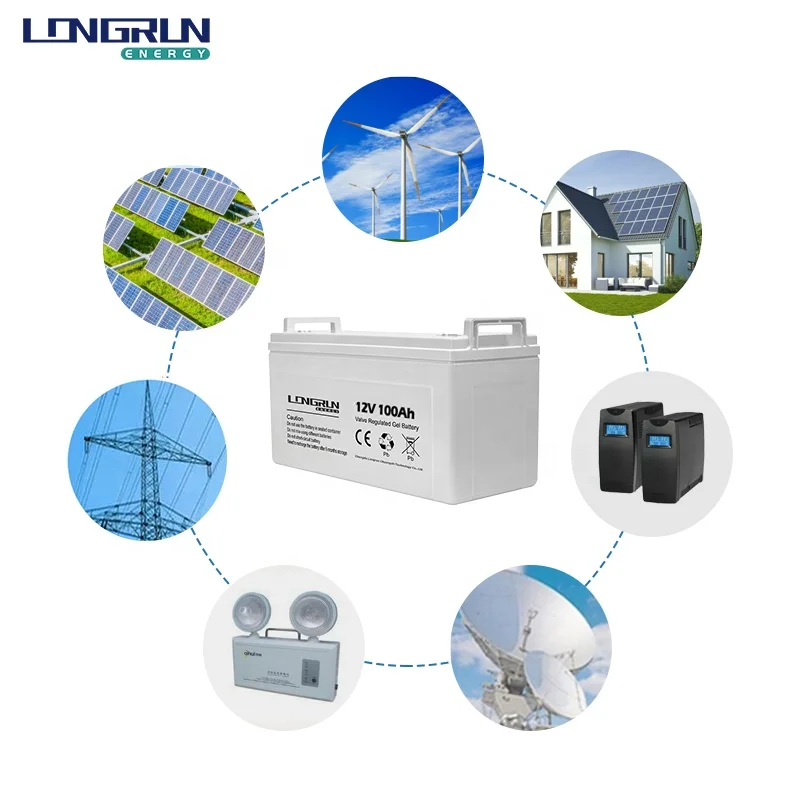

Applications:
*EPS and UPS battery backup.
*Solar and wind energy storage system.
*Telecommunication Equipment.
*Power plant and transmission system.
*Signal system, emergency lighting system, security system, home energy storage system.
Maintenance free and easy to use, Contemporary advanced technology research and development of new high-performance batteries,Itcan be widely used in solar energy , wind energy, telecommunication systems, off-grid systems, UPS and other fields. The designed life for the battery could be eight years up for float use.
Applications:
*EPS and UPS battery backup.
*Solar and wind energy storage system.
*Telecommunication Equipment.
*Power plant and transmission system.
*Signal system, emergency lighting system, security system, home energy storage system.

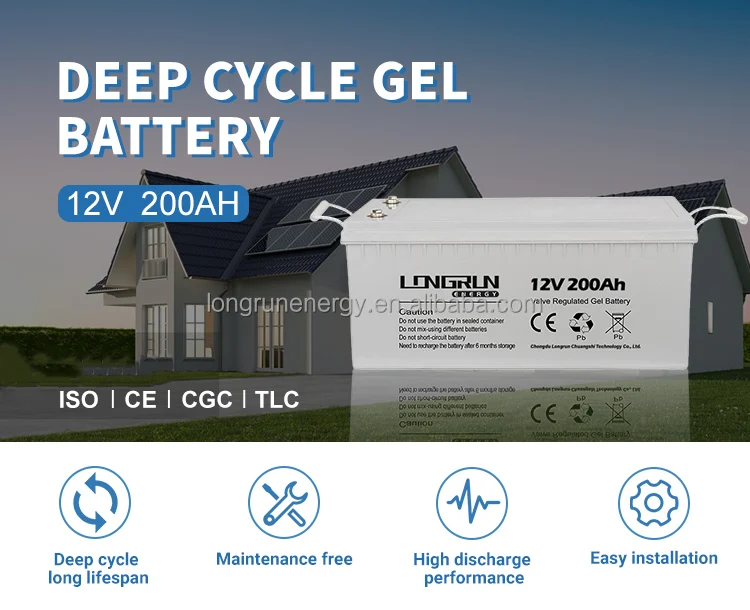

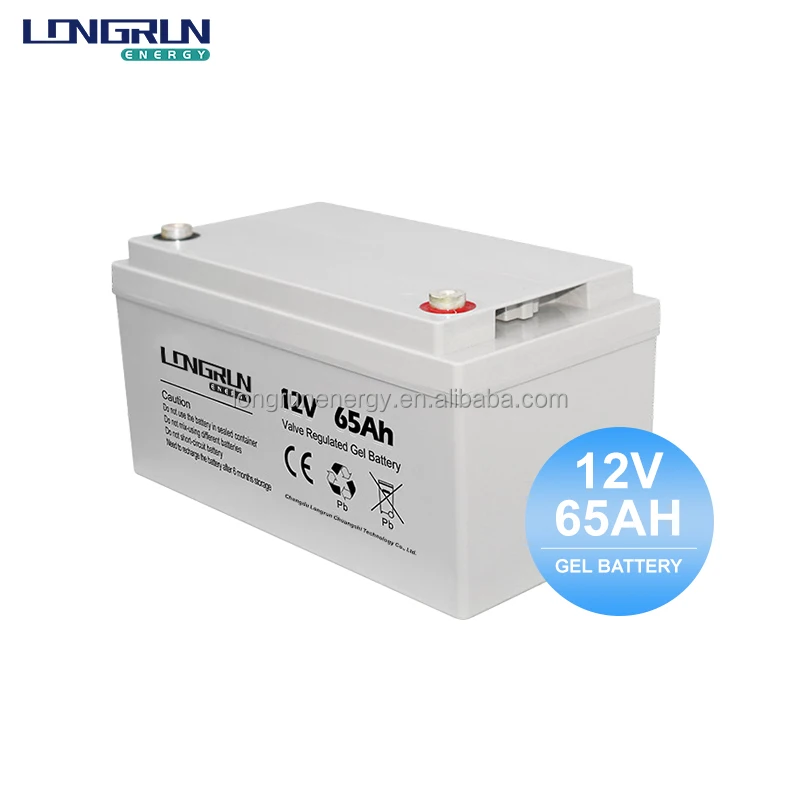

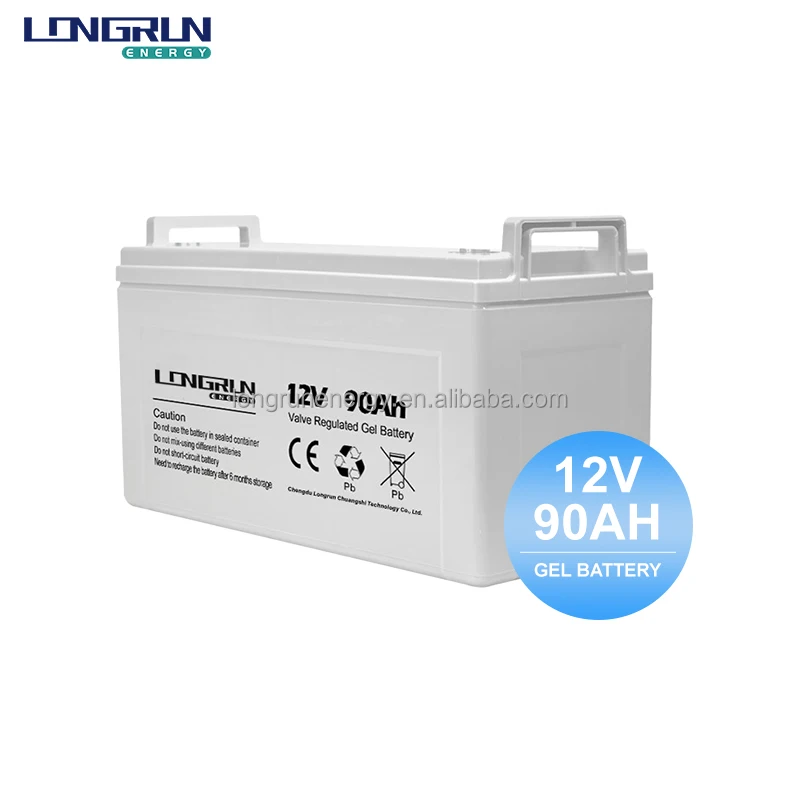

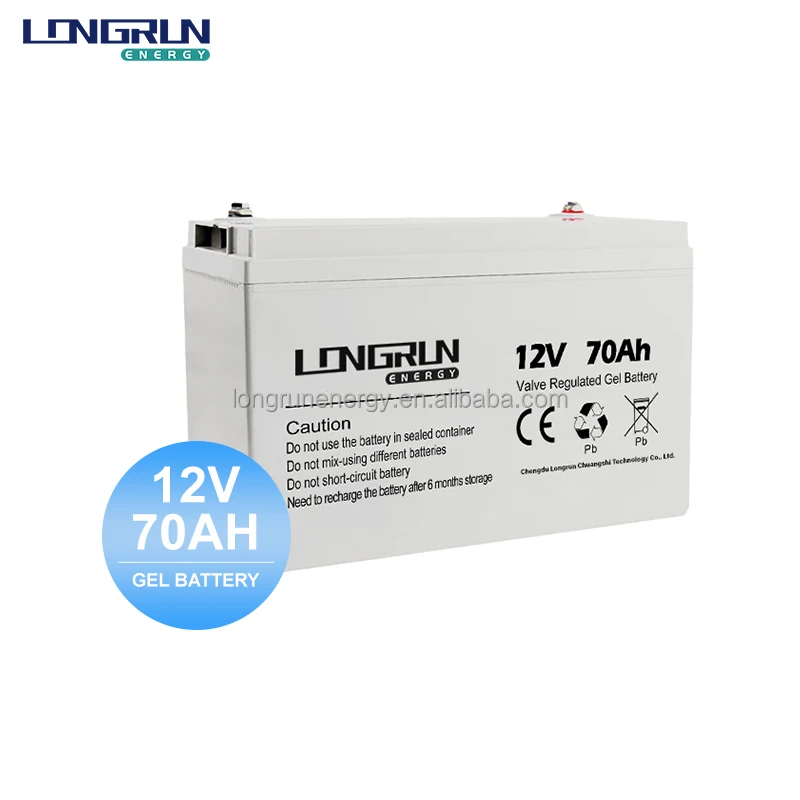

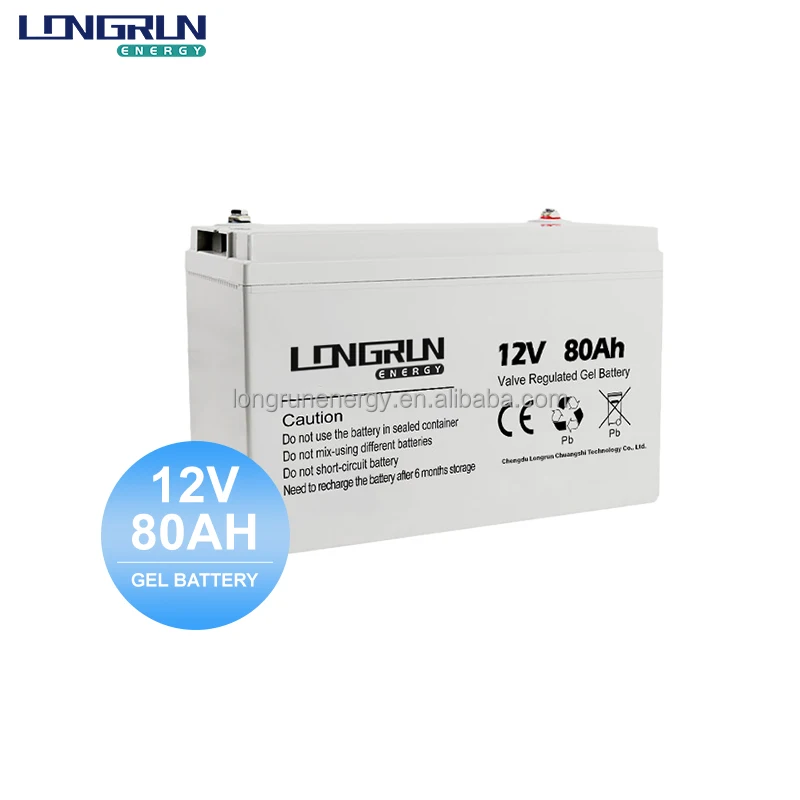

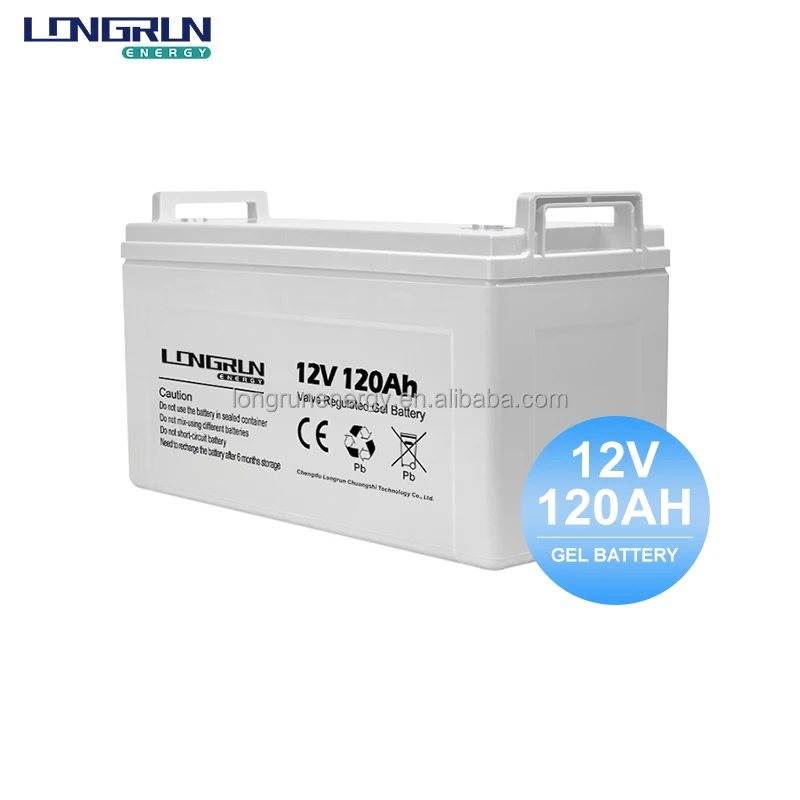

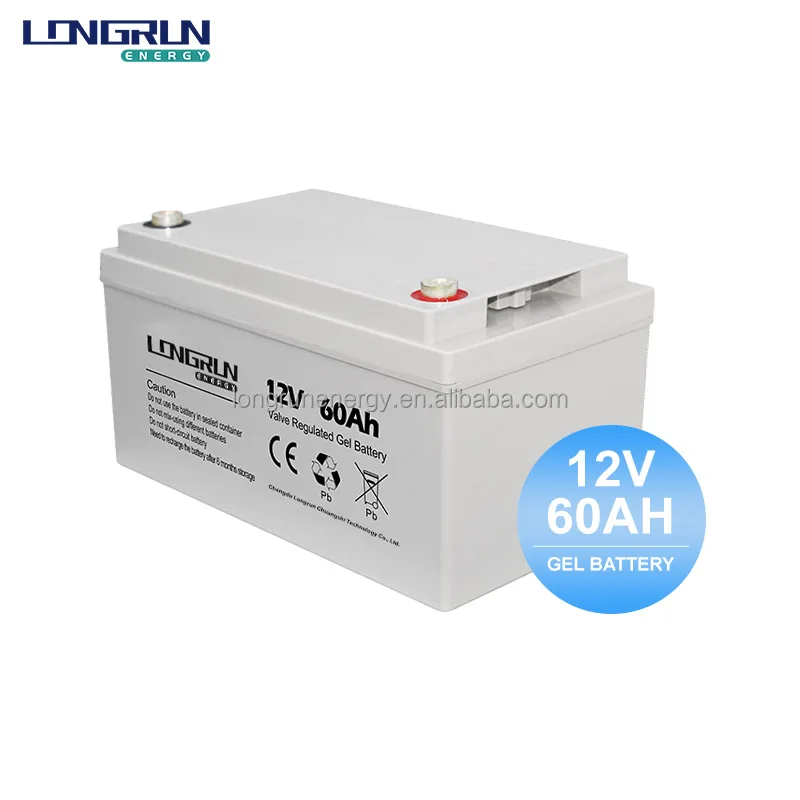

Products Description

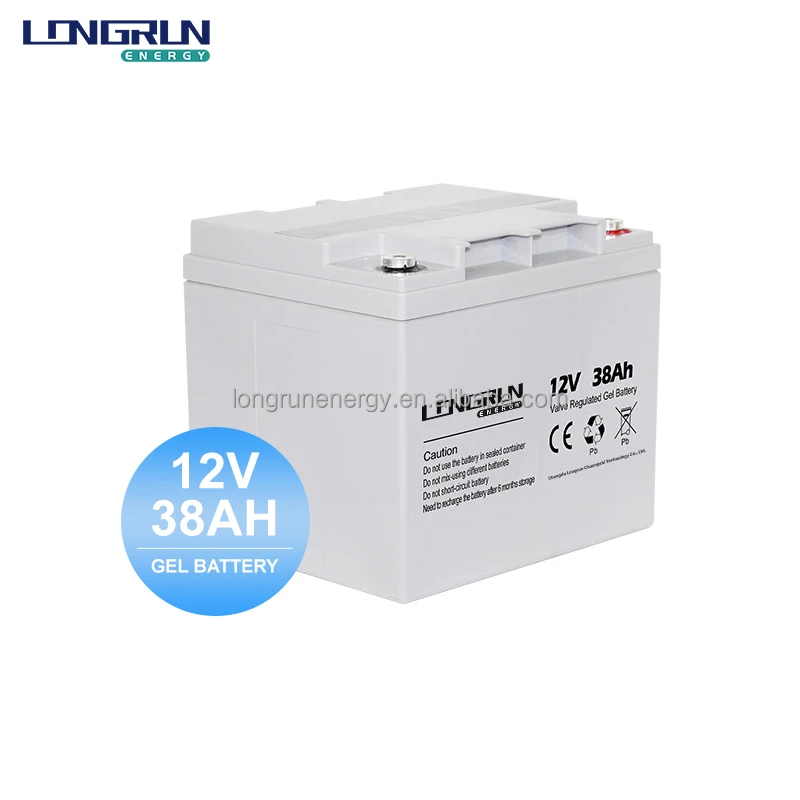

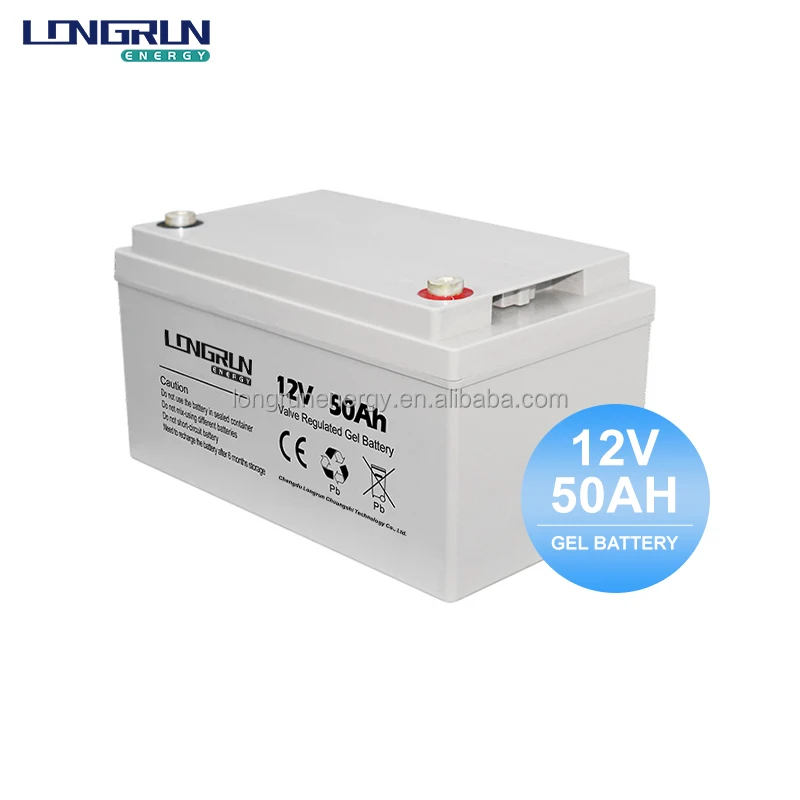

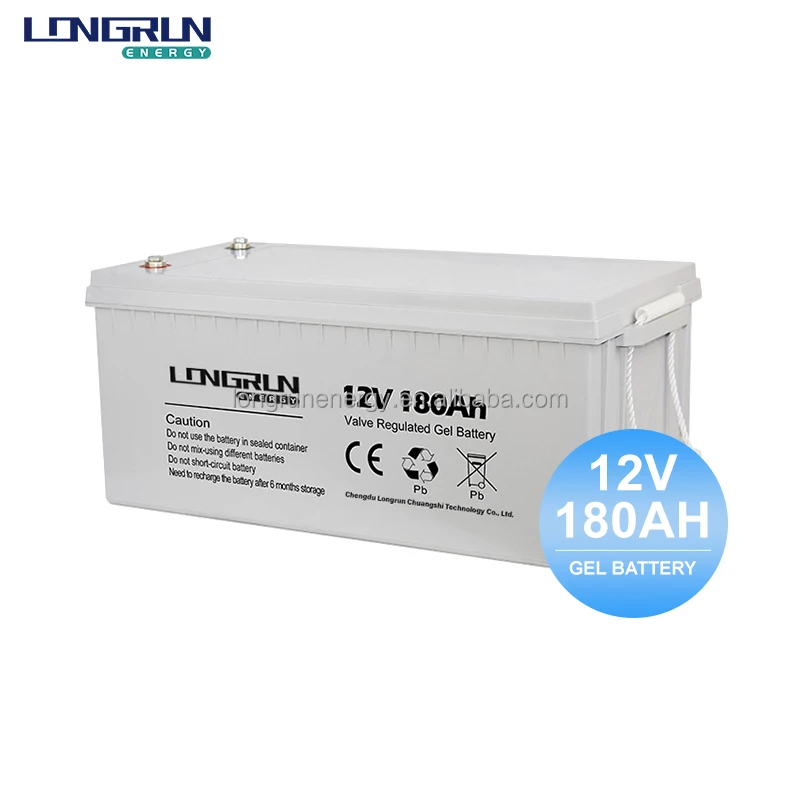

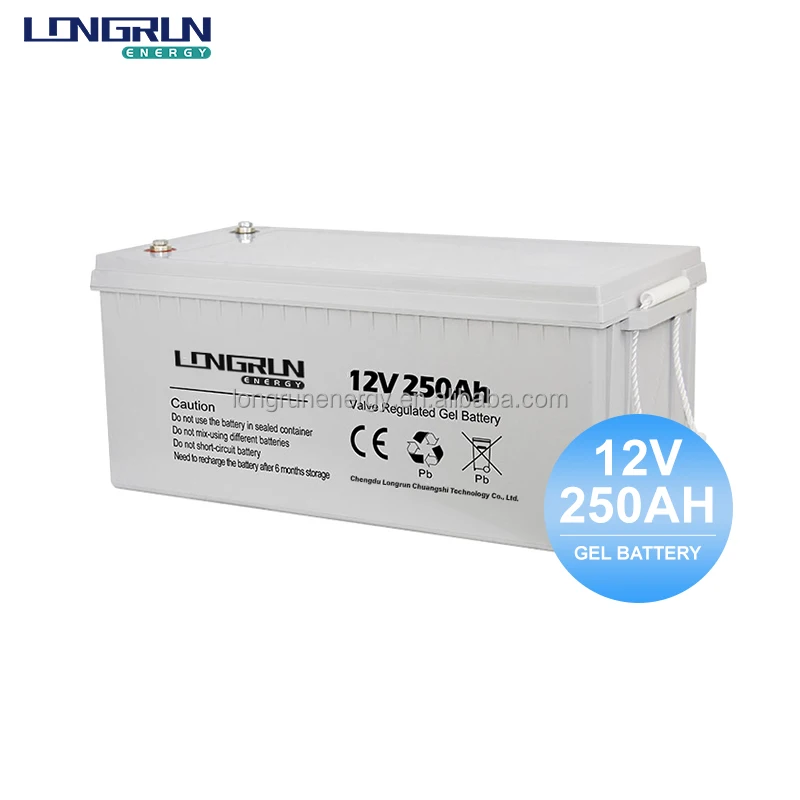

More products, please click on
the corresponding image link below
Packaging & Delivery

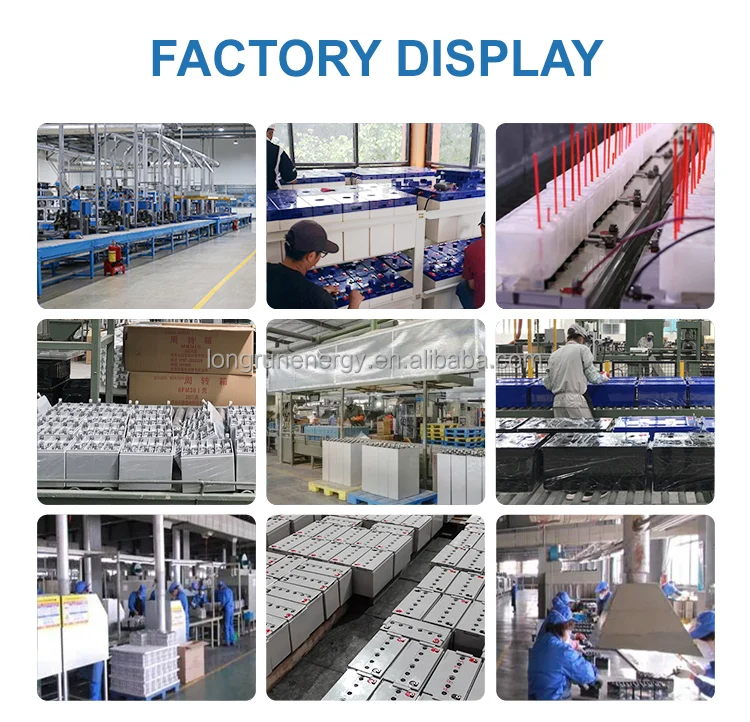

Company & Factory
Certifications
FAQ
Q1: How's the lead time and services?
a. Samples: Fast dispatch in 2 days from our factory after payment.
b. Mass order: Usually fast dispatch in 15 days from our factory after payment, will be depends on your order quantity.
c. 8hrs response & 48hrs solution.
Q2: What's the payment term?
TT, L/C, West Union, Paypal etc.
Q3: Do you accept ODM/OEM orders?
Yes, we can accept OEM/ODM, you can change the logo and function as you want.
Q4: How's your quality control system?
100% PCM test by IQC. 100% Capacity test by OQC.
Q5: What is your warranty?
Growatt & TBB inverter: 2 years.
Deye inverter & nRuiT battery: 5 years.
It depends on what product you buy.
Q6: Why choose us?
a. Company Members: At present, the company has 118 technicians, sales personnel and management personnel in total. We also cooperate with the research team of universities, with 14 members.
b. Company Equipment: We have a variety of professional equipment, including cell detection equipment, battery matc-
hing equipment, lithium battery spot welder, fifinished product integrator.
c. Corporate Performance: With the increasing global demand for energy storage batteries, our company's performance has also experienced three consecutive years of growth. From 2019 to 2022, the company's annual growth value of performance was 26%, 44%, 82%.
d. Operating Market: Our company's main market is in Europe, Germany and France have the largest demand for our products, and the United States also has a large demand for our products. In the past two years, we have been devel-
oping the Southeast Asian market and want to sellour products to all parts of the world.
Q7: How do I know whether you've shipped my order or not?
Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the pack-
a. Samples: Fast dispatch in 2 days from our factory after payment.
b. Mass order: Usually fast dispatch in 15 days from our factory after payment, will be depends on your order quantity.
c. 8hrs response & 48hrs solution.
Q2: What's the payment term?
TT, L/C, West Union, Paypal etc.
Q3: Do you accept ODM/OEM orders?
Yes, we can accept OEM/ODM, you can change the logo and function as you want.
Q4: How's your quality control system?
100% PCM test by IQC. 100% Capacity test by OQC.
Q5: What is your warranty?
Growatt & TBB inverter: 2 years.
Deye inverter & nRuiT battery: 5 years.
It depends on what product you buy.
Q6: Why choose us?
a. Company Members: At present, the company has 118 technicians, sales personnel and management personnel in total. We also cooperate with the research team of universities, with 14 members.
b. Company Equipment: We have a variety of professional equipment, including cell detection equipment, battery matc-
hing equipment, lithium battery spot welder, fifinished product integrator.
c. Corporate Performance: With the increasing global demand for energy storage batteries, our company's performance has also experienced three consecutive years of growth. From 2019 to 2022, the company's annual growth value of performance was 26%, 44%, 82%.
d. Operating Market: Our company's main market is in Europe, Germany and France have the largest demand for our products, and the United States also has a large demand for our products. In the past two years, we have been devel-
oping the Southeast Asian market and want to sellour products to all parts of the world.
Q7: How do I know whether you've shipped my order or not?
Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the pack-
ing status, photo you the done order and let you know the forwarder picked it up.
