Best price steel reinforcement wire mesh welding machine/mquina para hacer malla

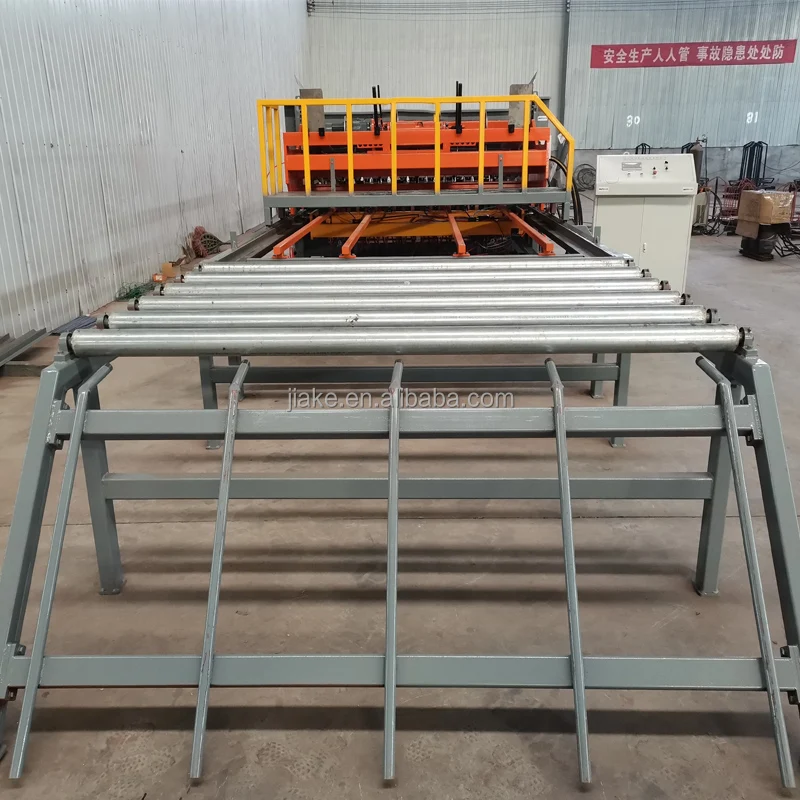

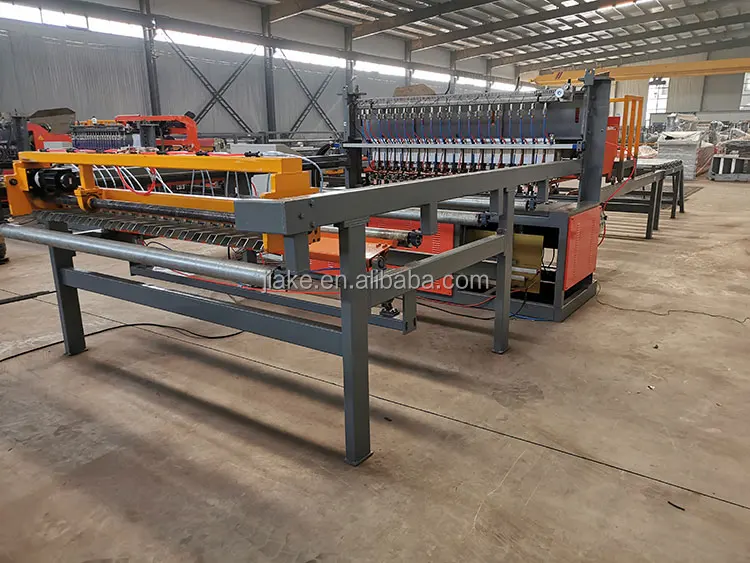

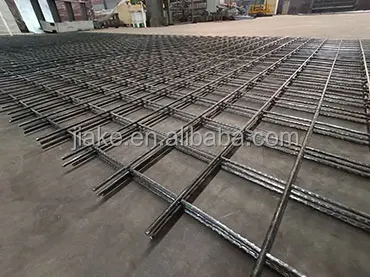

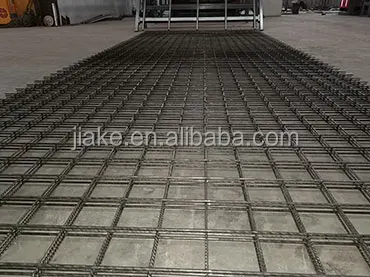

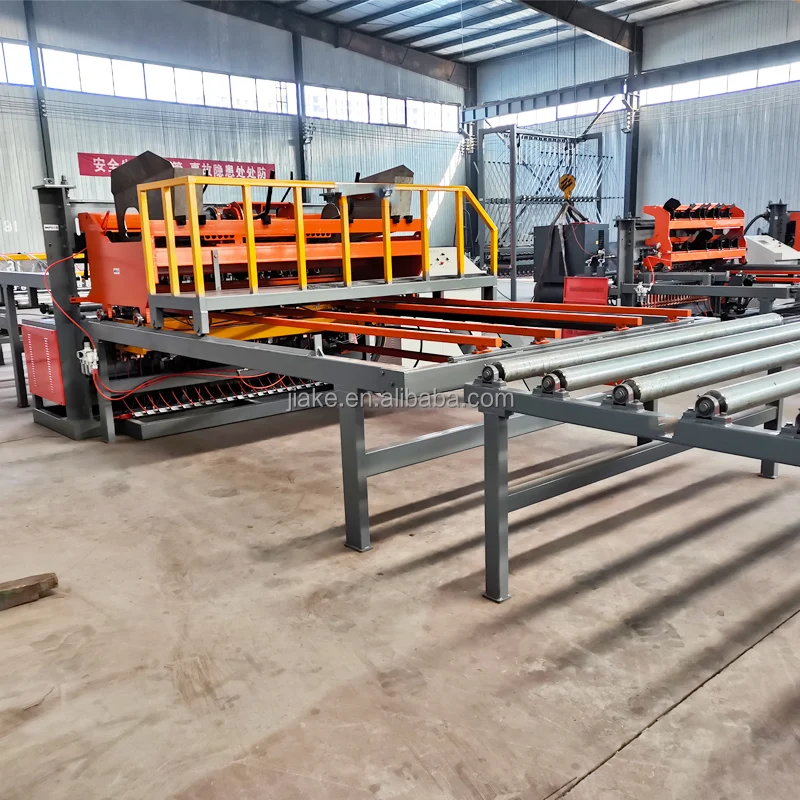

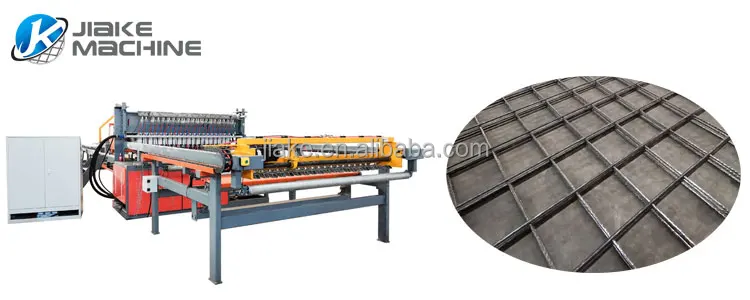

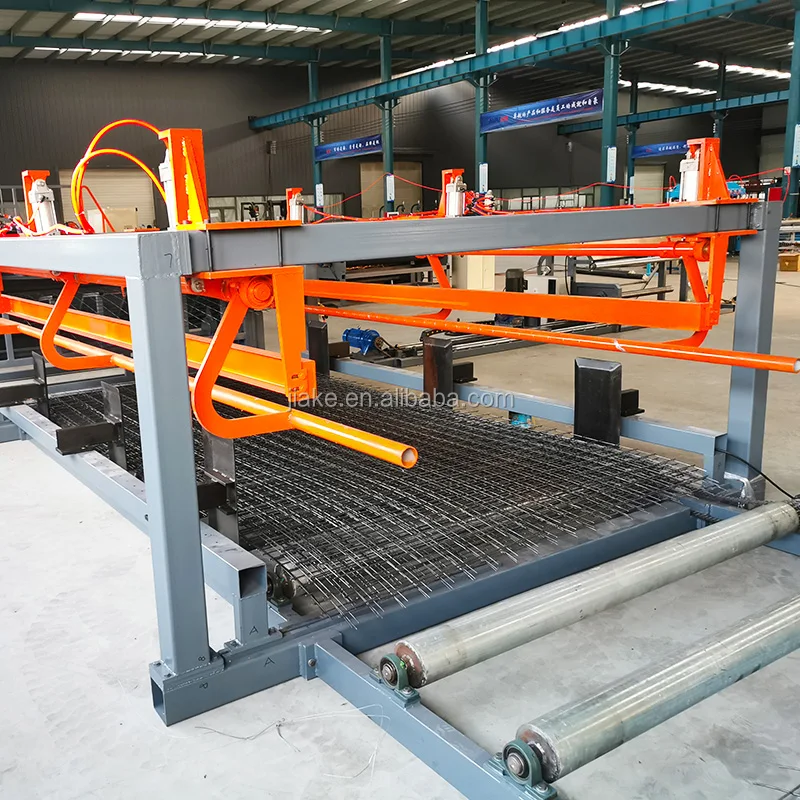

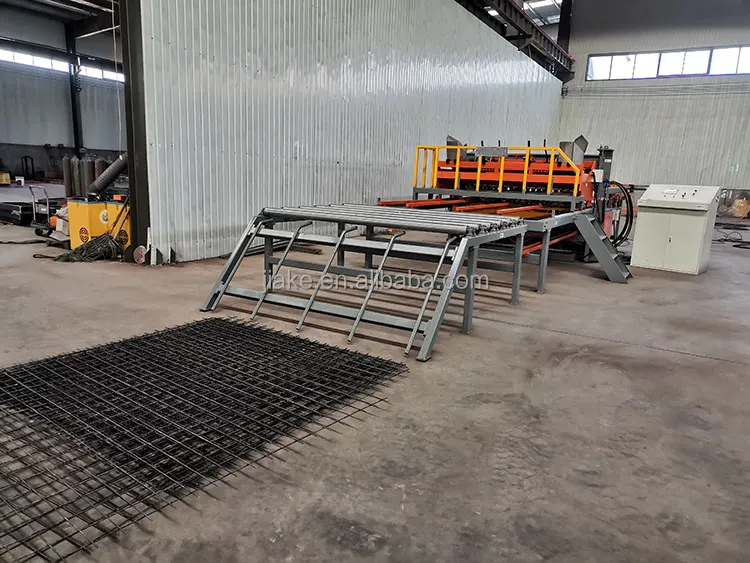

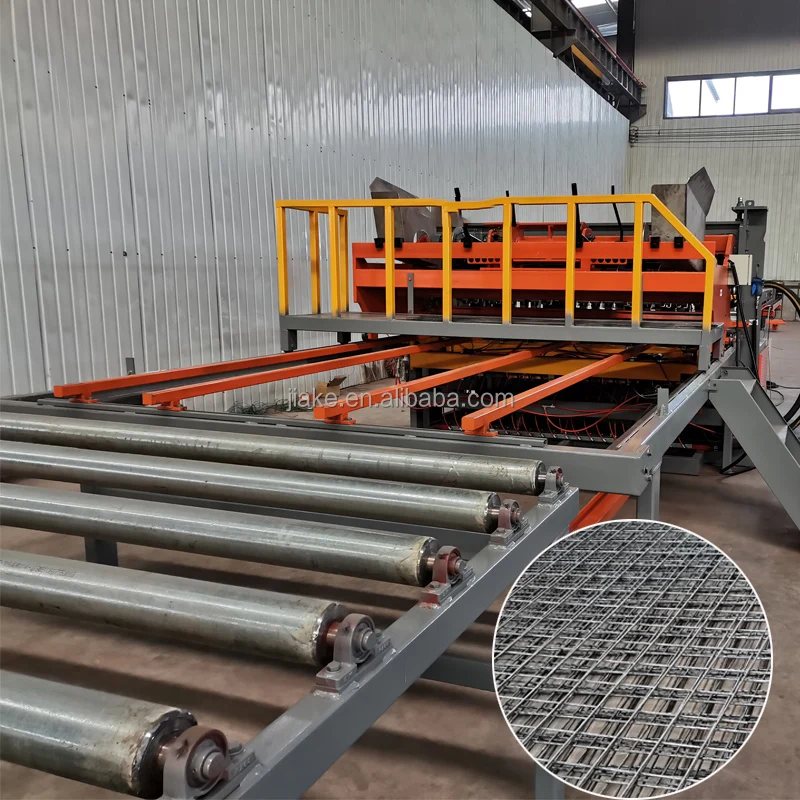

3-8mm Automatic wire mesh welding machine is used to make welded rebar mesh for building concrete reinforcement. 3-8mm Automatic welded wire mesh machine can feed cross wire from pre-cut wire and line wires from coil automatically. This 3-8mm Automatic mesh welding machine adopts a line wire accumulator and large hopper to feed steel wire, keep production continuously and save much labor.

Model	DP-FP-2500AA
Wire diameter	3-8mm

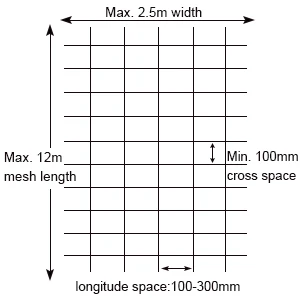

Hole size	100*100-300*300mm
Mesh width	Max. 2500mm
Mesh Length	Max. 12m
Welding speed	Max.100 times/min

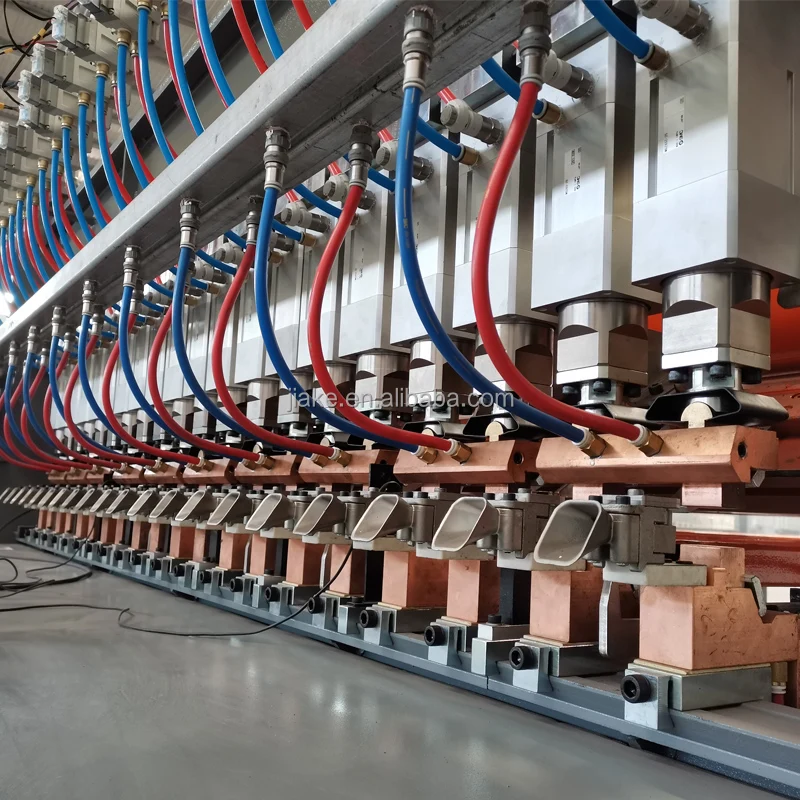

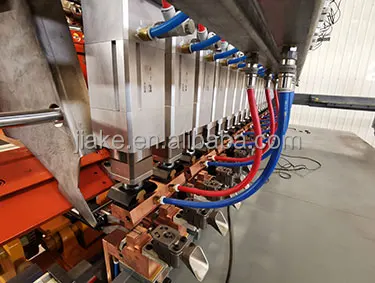

Welding electrodes	24pcs
Welding transformer	150kva*6pcs
longitude wire feeding	Pre-straighten & Pre-cut
Crosswire feeding	Pre-straighten & Pre-cut
Motor	7.5kw
Factory transformer	Min. 200-315kva
Overall size	12.13*6*2.1m
Weight	7T
Raw material	Low carbon wire, black wire, galvanized wire,

NOTE: Our engineer can design a special specification machine according to your wire diameter, mesh hole size, and mesh width.

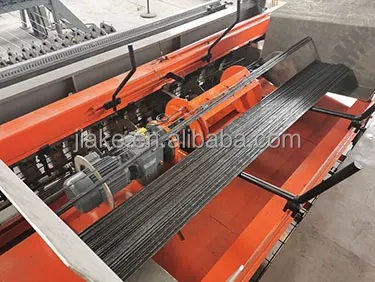

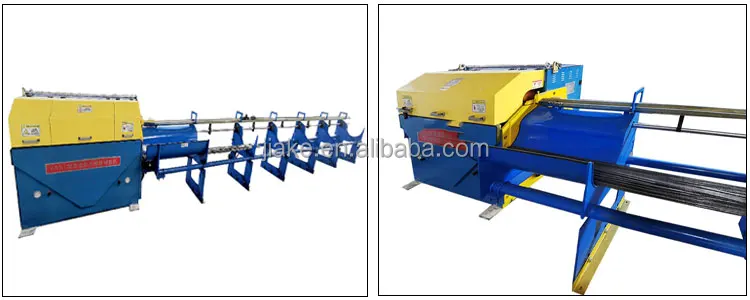

Wire straightening and cutting machine GT3-8

Wire straightening and cutting machine is to make pre-straighten and pre-cut cross wire use. So, the finished welded panel can be very flat and meet market demand.

Technical Parameter of GT3-8

Machine Characteristics of GT3-8

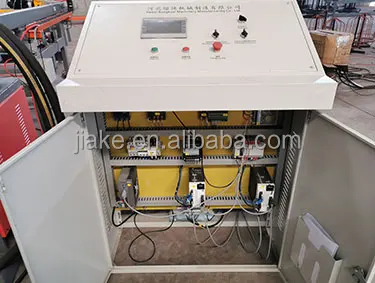

1.It adopts Siemens brand PLC+ Weinview touch screen, easy to operate.

2.The wire cutting adopt servo motor control, high speed, high accuracy.

3.The wire diameter and cutting length can be adjusted as you wish.

4.Material: cold-rolled wire rod/ribbed wire 3-8mm; hot-rolled wire rod 5-8mm; Hot rolled ribbed wire 5-6mm

Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.

Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology to develop the department and testing department.

Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.

Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.

Q: Can you export and supply the customs clearance documents we need?
A: We have much experience with exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
