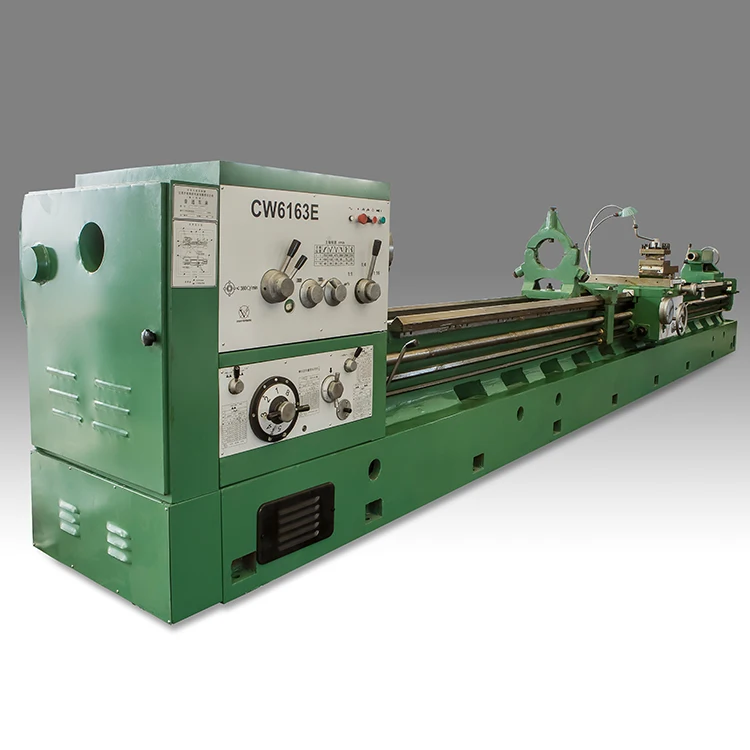

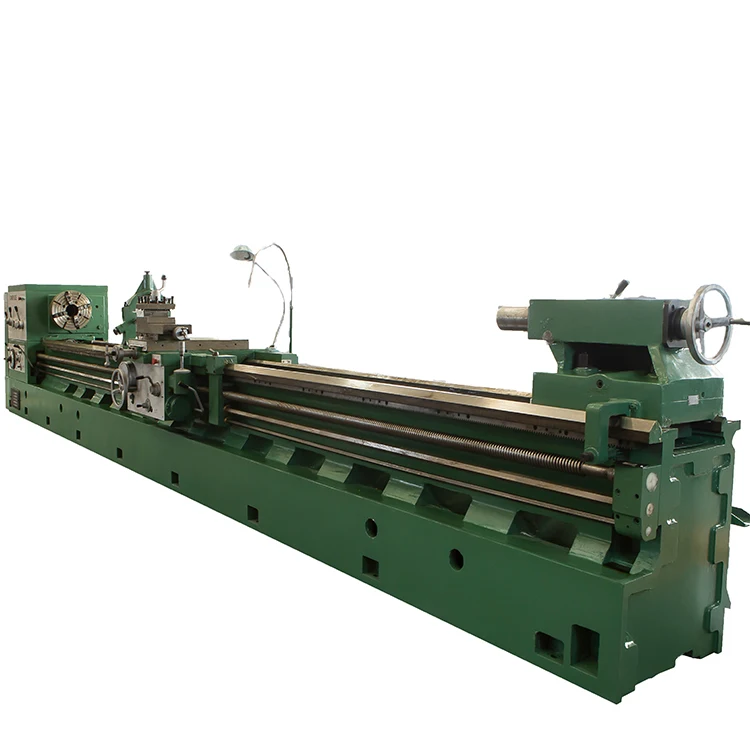

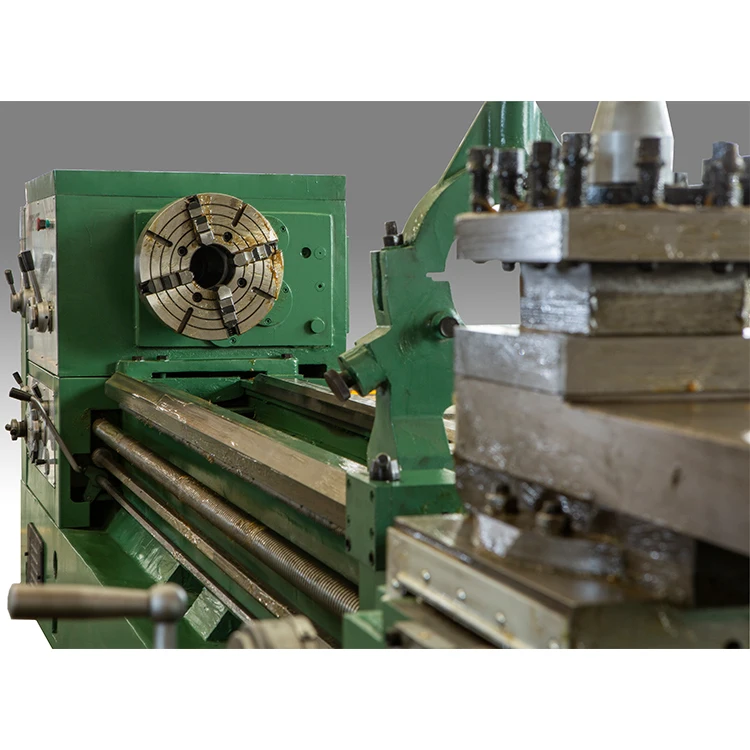

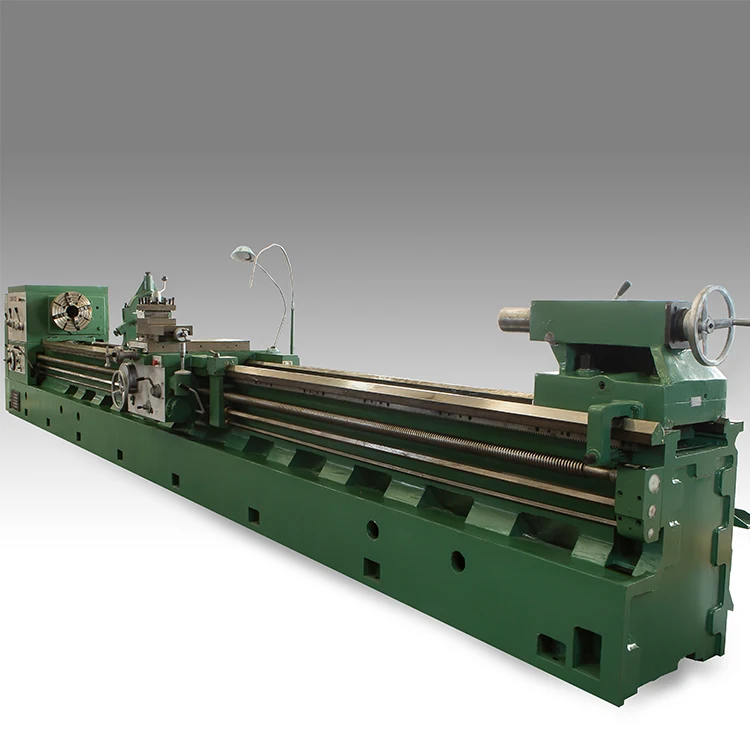

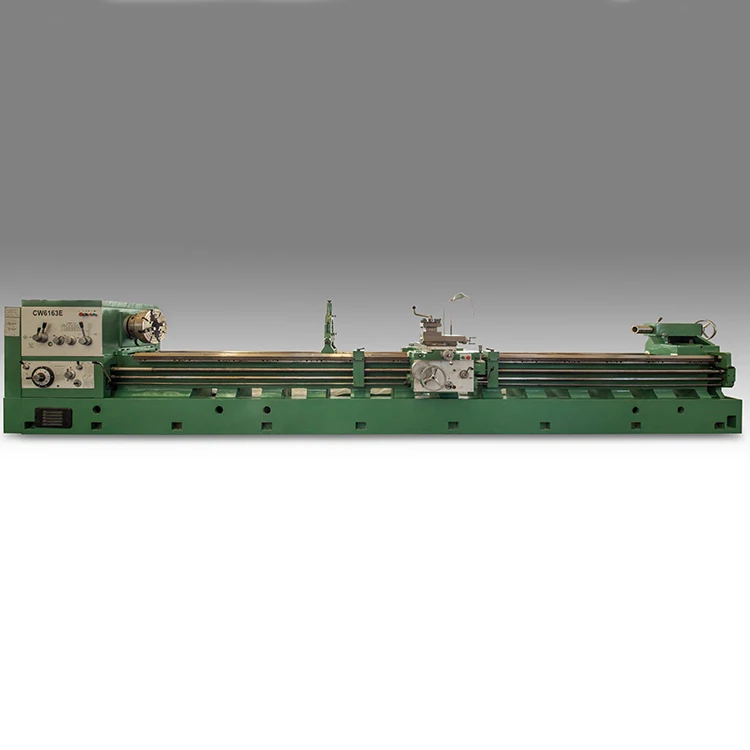

Universal Metal Turning Machine Lathe CW6280E Manual Heavy Duty Lathe Machine Manufacture Price Metal Lathe Horizontal Manual
- Category: >>>
- Supplier: ChinaSourcing E&T Co. Ltd.
Share on (1600829260042):
Product Overview
Description
Product Description
Specification
MODEL | CW6280E | |||||
CAPACITIES | ||||||
Max.swing over bed | 800mm | |||||
Max.swing over cross slide | 485mm | |||||
Center distance | 1000/1500/2000/3000/4000/5000/6000/8000/10000mm | |||||
Max.swing over gap | 1000mm | |||||
Valid length of gap | 300m | |||||
Bed width | 550mm | |||||
Max weight of workpiece | 3T | |||||
HEAD-STOCK | ||||||
Spindle hole | 105mm or 130mm (optional) | |||||
Spindle nose | D-11 | |||||
Spindle taper | 1:20 | |||||
Spindle speeds(Number) | 14-750RPM(18 STEPS) | |||||
GEAR BOX-THREADS & FEEDS | ||||||
Metric threads range(kinds) | 1-240mm(54 kinds) | |||||
Inch threads rangs(Kinds) | 28-1 inch(36 kinds) | |||||
Moudle threads range(kinds) | 0.5-60 DP(27 kinds) | |||||
Diametral threads range(kinds) | 30-1 t.p.i.(27 kinds) | |||||
Longtudinal feeds range(kinds) | 0.048-24.3mm/r (72 kinds) | |||||
Cross feed range(kinds) | 0.024-12.15mm/r (72 kinds) | |||||
Rapid feed:Long./Cross | 4/2m/min | |||||
Leadscrew size:Diameter/Pitch | T48mm/12mm or T55mm/12mm (more than 5m lathe selection) | |||||
CARRIAGE | ||||||
Cross slide travel | 420mm | |||||
Compound rest travel | 200mm | |||||
Size of tool shank | 32*32mm | |||||
TAILSTOCK | ||||||
Spindle diameter | 100mm | |||||
Spindle taper | MORSE #6 | |||||
Spindle travel | 240mm | |||||
MOTOR | ||||||
Main drive motor | 11kw | |||||
Coolant pump motor | 0.09kw | |||||
Rapid feed motor | 1.1kw | |||||
KGNIT | ||||||
Genter distance:(1500mm) | 4500kg | |||||
WEIGHT FLOOR SPACE(L*W*H) | ||||||
Genter distance: （1500mm） | 3452*1326*1390 | |||||
