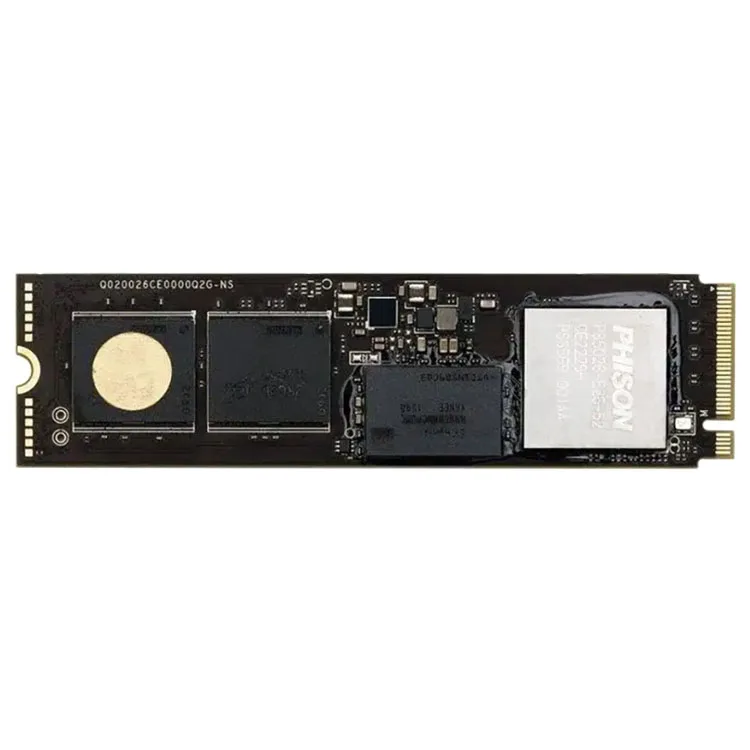

Phison e26 PS5026 E26 PCIe Gen 5 Internal SSD Nvme M2 2280 R/W 12000/10000MB/s 1000GB 2000GB 4000GB Gen5 SSD for Gaming PCs
- Category: >>>
- Supplier: Shenzhen Indasina Technology Co. Ltd.
Share on (1600829274540):
Product Overview
Description
PHISON SSD Factory
Many Brand SSD Powered By Phison
Why choose us:
1.Many Brand SSD choose Phison to be thier Partner,like Kings-ton,Sab-rent, Silicon Power,Pat-riot,Sea-gate,In-land and so on.
2. Phison Factory Provide great quality SSD with competitive price.
3. Professional team to serve customers 24 hours a day.
4. Support OEM/ODM orders.
SEA'GATE & PHISON Collaboration Case
Specification

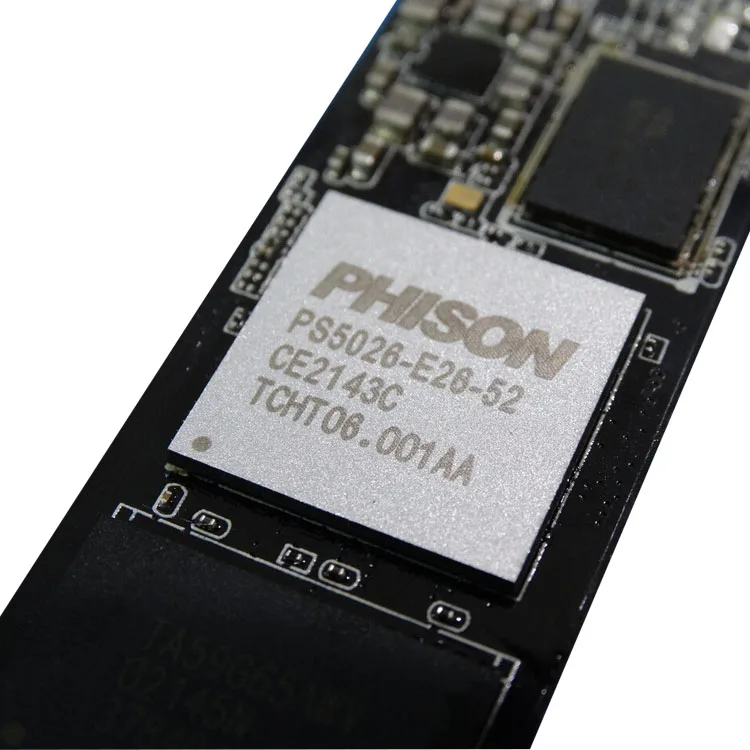

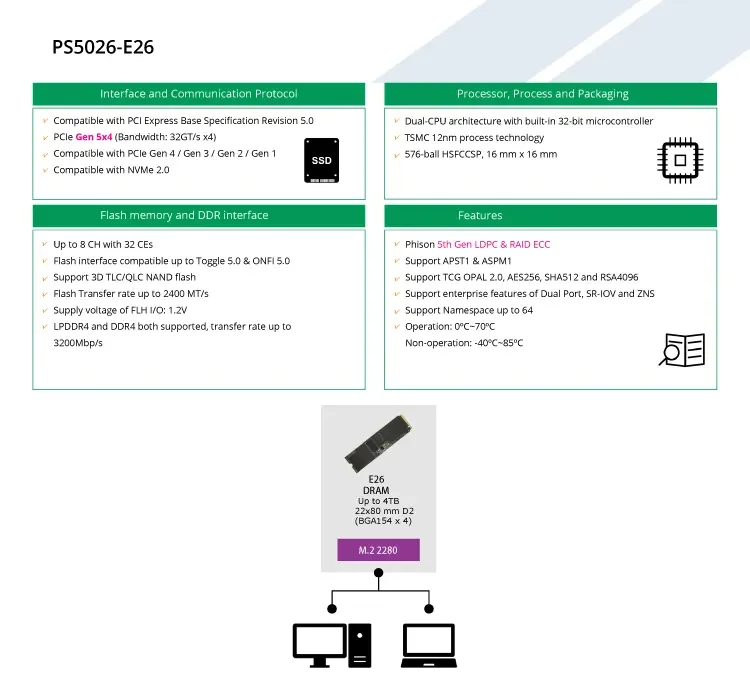

Controller PS5026-E26 | PS5018-E18 | |
Features | Specifications | |
Host Interface | - PCIe 5.0x4 (Bandwidth: 32GT/s x4) - Backward Compatible with Existing PCIe Generation Transfer Rates - Compliance with PCIExpress Base Specification Revision 5.0 - Compliance with NVMe 2.0 | |
Processor | - Dual-CPU architecture with built-in Arm Cortex-R5 - TSMC 12nm process technology | |
Flash Controller | - Up to 8 Channels with 32 Chips Enable (CE) - Flash transfer rate up to 2,400MT/s - Support 3D TLC and QLC NAND flash memory - Compliance with Toggle 5.0 and ONFi 5.0 - Flash I/O operating voltage supply 1.2V | |
DRAM Controller | - LPDDR4 and DDR4 both supported, transfer rate up to 3200Mbp/s | |
Data Reliability | - Phison 5th generation LDPC ECC & RAID ECC - SmartECC (RAID ECC) - End-To-End Data Path Protection | |
Security | - AES 256 - SHA 512 - RSA 4096 - TCG Opal | |
Performance | ‧Sequential Read up to 14000MB/s ‧Sequential Write up to 118000MB/s ‧4K Random Read up to 1500K IOPS ‧4K Random Write up to 2000K IOPS | |
Power Management | - ASPM + APST Supported | |
Temperature Range | ‧Operating range: 0~70°C ‧Storage range: -40~85°C ‧Operating junction temperature: -40~125°C | |
Package | - 576-ball FCCSP, 16 mm x 16 mm | |
Peripheral | ‧Built-in internal thermal sensor ‧GPIO pins ‧Built-in UART function ‧I3C and SPI for external ROM | |
Solutions PS5026-E26 | ||||||||||||
Capacity | 1000GB | 2000GB | 2000GB | 4000GB | 2048GB | 960/1024GB | ||||||
Interface | PCIe Gen5.0x4 NVMe 2.0 | |||||||||||
Form Factor | M2 2280 - D2 | M2 2280 - D2 | M2 2280 - D2 | |||||||||
NAND Flash | 3D TLC | |||||||||||
Performance (UP to) | ||||||||||||

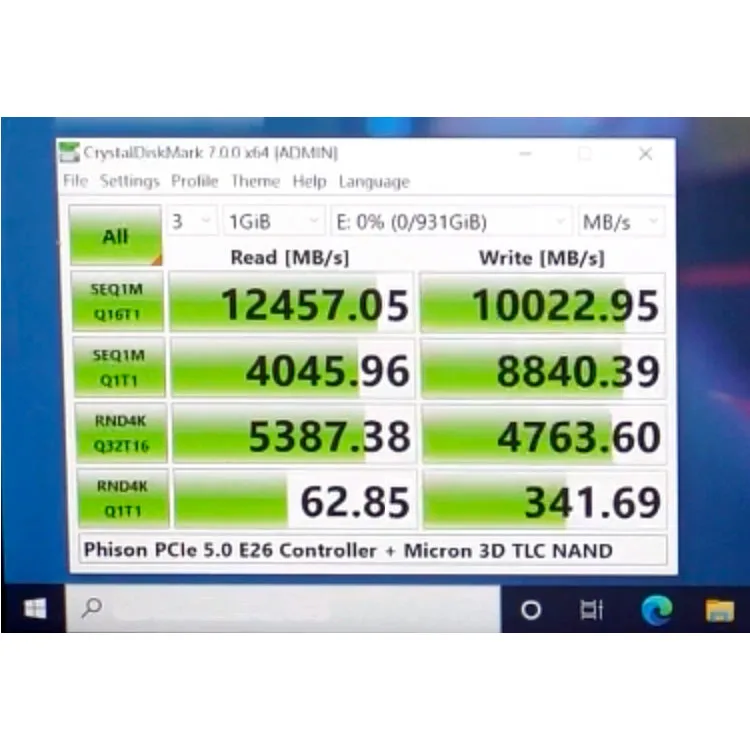

Sequential Read | 10000 MB/S | 12000 MB/S | 5000 MB/S | 12000 MB/S | 2500 MB/S | 550MB/S | ||||||
Sequential Write | 8500 MB/S | 10000 MB/S | 4400 MB/S | 10000 MB/S | 2100 MB/S | 500MB/S | ||||||
4K Random Read | 1300K IOPS | 1400K IOPS | 750K IOP（*a） 600K IOP（*b） | 1400K IOPS | 295K IOPS | 90K IOPS | ||||||
4K Random Write | 1500K IOPS | 1500K IOPS | 750K IOPS (*a) 600K IOPS (*b) | 1500K IOPS | 430K IOPS | 85K IOPS | ||||||
Power | ||||||||||||
Supply Voltage | M.2 3.3V ±5% | |||||||||||
Active(Average) | TBD | TBD | Read: 6.7W Write: 6.6W | TBD | 3.75 W | 2100 mW | ||||||
Idle | TBD | 320 mW | 320 mW | 335 mW | ||||||||
Low Power PS4（L 1.2） | TBD | TBD | 2 mW | TBD | 2 mW | |||||||
Environmental | ||||||||||||
Operating | 0°C-70°C | |||||||||||
Non-Operating | -40°C-85°C | |||||||||||
Certification | -RoHS -WHQL | |||||||||||
Reliablility & Warranty | ||||||||||||
TBW | 700 | 1400 | 3000 | |||||||||
Warranty | 5 years | |||||||||||
MTBF | 1.6 Million hours | |||||||||||
UBER | < 1 sector per 1016 bits read | |||||||||||
Advanced Features | ||||||||||||
- End-to-End Data Protection - TCG OPAL 2.0 and Crypto Erase - GPIO Pins, Built-in UART function and SMBus feature support | ·Pyrite Support ·End-to-End Data Protection ·Thermal Monitoring | |||||||||||
Product Description
Features
Application
Company Introduction
Indasina Technology Co., Ltd., a group corporation composed of factories, is committed to a variety of electronic products and solutions with strong R&D Team and technology back up. Located in Shenzhen, we are China leading supplier of consumer electronic products, mainly focus on SSD ,USB flash drives,memory cards,EMMC and IC chips. Our skilled R&D Team constantly help our customers achieveing economic optimization for various electrical appliances.By owning manufacturing and assembly facilities, we control every aspect of production process and quality. That is why we can provide our customers with unprecedented quality, reliability and all-round support. Choose us, you will gain the benefit of unparalleled technical expertise at competitive prices and the most progressive solutions.
Exhibition
Payment&Delivery
FAQ
Q:How could I buy the products I need if there is no price in the website?
A:Please send required product details to us, and then we will provide reasonable quotations to you within 24 hours.
A: 1-year warranty since delivered out.
Q: What's the MOQ?
A: 1 pc.
Q:Can I get a lower price if I order large quantities ?
A:Yes. Cheaper prices with more bigger orders.
Q:How about the OEM/ODM service ?
A: We provide all kinds of OEM/ODM service,eg:Logo printing on housing,Customized package,Software Customization.
Q: How long is the delivery time?
A: Sample order about 3-5 working days, bulk order about 7-15 working days.
Normally, we ship goods by sea,air and express.
. By sea to your nearest sea port for 10~15 days
. By air to your nearest air port for 5~10 days
. By express(UPS,DHL.FEDEX,TNT...) to your door for 3~6 days
Q: What methods of payment accepted?
A: 1. We can accept T/T, L/C, Western Union, Escrow and Paypal before production.
2. If you have any doubt about payment, please contact us freely.
Q:How about the OEM/ODM service ?
A: We provide all kinds of OEM/ODM service,eg:Logo printing on housing,Customized package,Software Customization.
Q: How long is the delivery time?
A: Sample order about 3-5 working days, bulk order about 7-15 working days.
Normally, we ship goods by sea,air and express.
. By sea to your nearest sea port for 10~15 days
. By air to your nearest air port for 5~10 days
. By express(UPS,DHL.FEDEX,TNT...) to your door for 3~6 days
Q: What methods of payment accepted?
A: 1. We can accept T/T, L/C, Western Union, Escrow and Paypal before production.
2. If you have any doubt about payment, please contact us freely.
