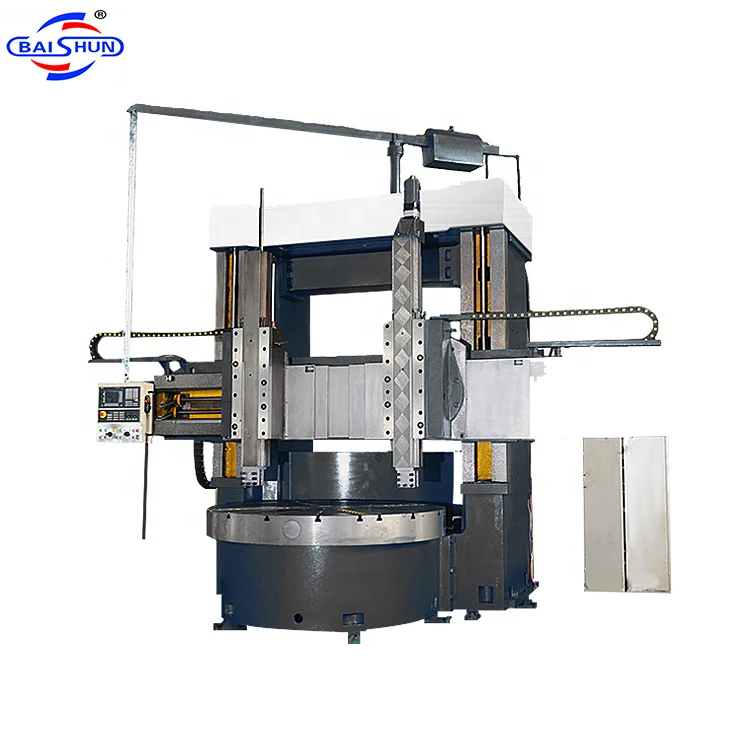

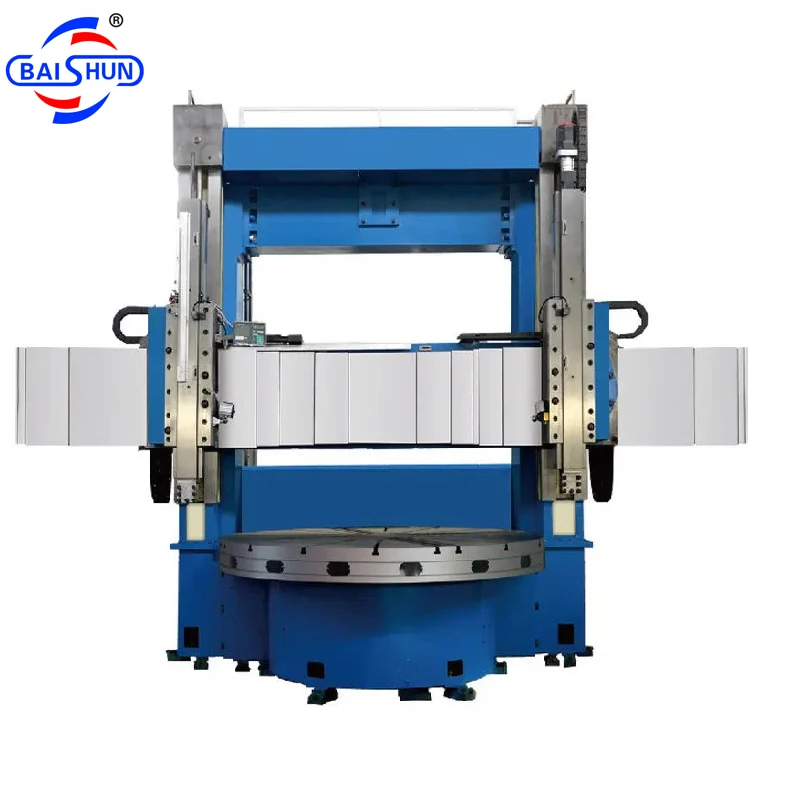

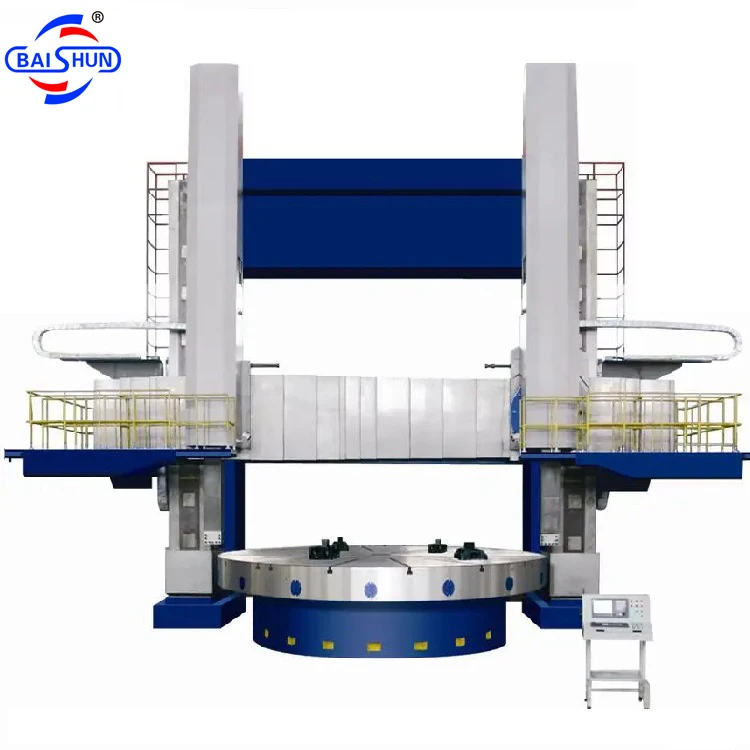

Metal Machining tool equipment China Vertical Torno Lathe
- Category: >>>
- Supplier: Henan Baishun Machinery Equipment Co. Ltd.
Share on (1600829281082):
Product Overview
Description
Product Description

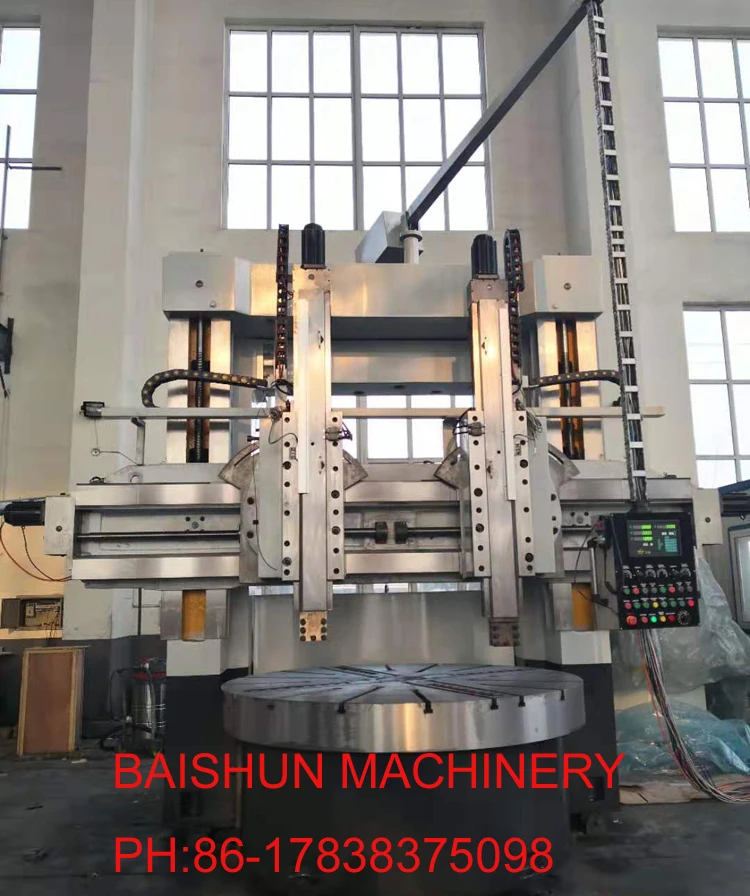

The CNC vertical lathe, also known as a vertical turning center, is a machine tool used for turning and cutting metal components with high precision and efficiency.
CNC vertical lathe has a vertical spindle that holds and rotates the workpiece. They are widely used in the manufacturing industry for producing large and heavy components, such as gears, turbines, and aerospace parts. They are particularly useful for turning components with a high aspect ratio.
Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.
Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.
Machine Parameter

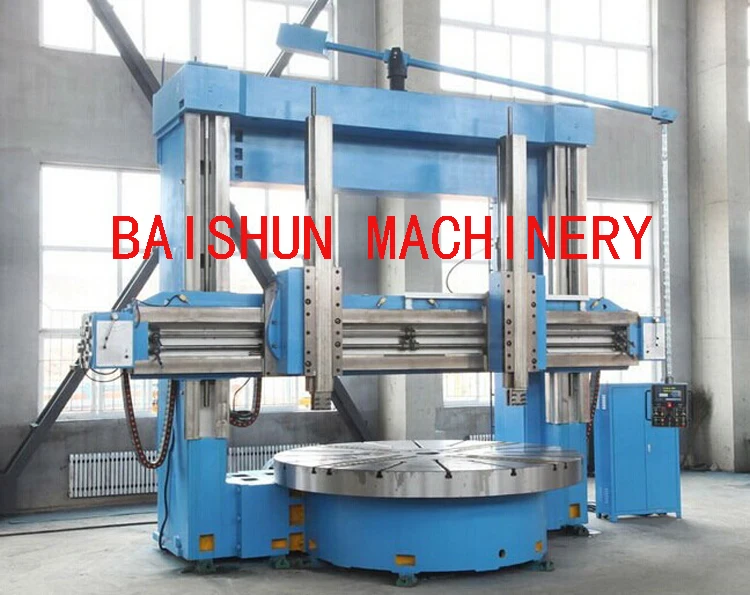

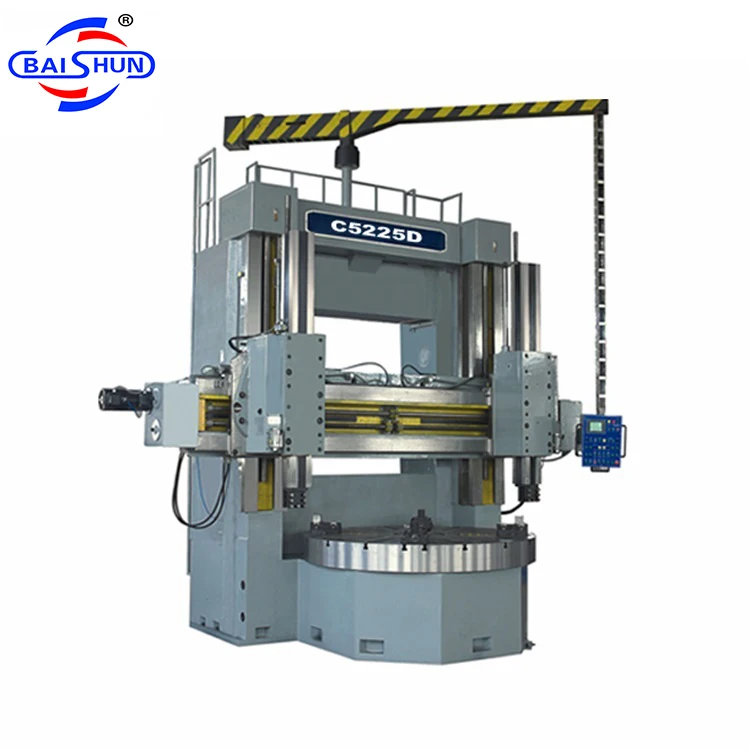

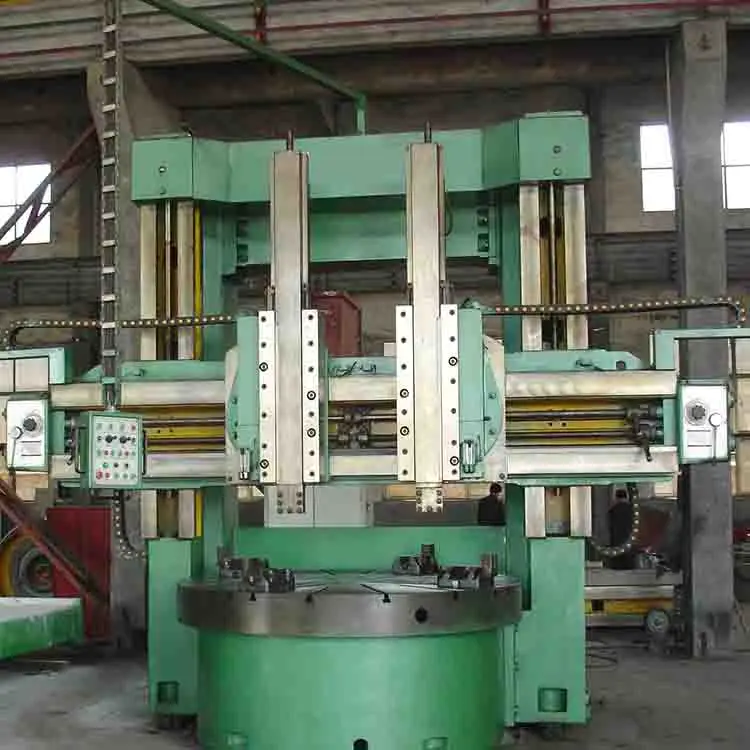

| Model | C5225 | C5232 | C5235 | C5240 | C5250 | C5260 |
Work table diameter | 2250 mm | 2830mm | 2830mm | 3150mm | 4500mm | 5200mm |
Max. turning diameter | 2500mm | 3200mm | 3200mm | 4000mm | 5000mm | 6000mm |
Max. height of work piece(mm) | 1600-2800 | 1600-3000 | 1600-3000 | 1600-3200 | 2500-4200 | 2500-4500 |
Max. weight of work piece | 10/20 | 10/20/32 | 10/20/32 | 10/20/32 | 32/50 | 32/50 |
Max. torque of worktable | 63000 N•m | 63000 N•m | 63000 N•m | 63000 N•m | 105000N•m | 105000N•m |
Rest feeding range | 0.25-90 mm/min | 0.25-90 mm/min | 0.25-90 mm/min | 0.25-90 mm/min | 0.1-1000 | 0.1-000 mm/min |
Beam travel | 1250mm | 1250mm | 1250mm | 1250mm | 2150mm | 2150mm |
Horizontal Travel of tool rest | 1400mm | 1750mm | 1900mm | 2150mm | 2700mm | 3300mm |
Vertical Travel of tool rest | 1000/1250/ 1400/1600 | 1000/1250/ 1400/1600 | 1000/1250/ 1400/1600 | 1000/1250/ 1400/1600 | 1400/1600 | 1400/1600 |
Beam moving speed(mm/min) | 350 | 350 | 350 | 350 | 380 | 380 |
Max. Swing angle of tool post | ±30° | ±30° | ±30° | ±30° | ±30° | ±30° |
Turret dimension(WxHmm) | 40x50 | 40x50 | 40x50 | 40x50 | 60x65 | 60x65 |
Main motor power | 55kw | 55kw | 55kw | 55/75kw | 75kw | 75kw |
Machine Weight(around) | 33-38T | 36-50T | 38-62T | 43-65T | 92-105T | 150-200T |
Related Products
Company Introduction
Henan Baishun Machinery Equipment Co.,Ltd is a professional manufacturer, which especially work for Slotting machine,Vertical lathe machine, CNC Vertical lathe machine, CNC Horizontal lathe machine, Roll lathe machine, Gear hobbing machine, Pole erection machine, Shredder machine,etc. With 14 years experience for lathe machines, we have export our products to Peru, Brazil, Chile, Mexico, Italy, Indonesia, Sri Lanka, Russia, and Uzbekistan.ect.
Our company attaches great importance to international technical exchanges and cooperation, has introduced advanced technology and craft from United States, Germany, Australia and other countries, establishes the international advanced production lines and first-class modern testing base. Welcome all friends visiting and communicating and cooperating.
Packing&delivery
Our Services
Our Services
We can provides 7x24-hour online pre-sale service, engineer follow-up order service, and logistics delivery operation service, And also we can provide installation services. In addition, with more than 10 years experience of various markets, we can help customers successfully complete a series of services from purchasing to goods Customs clearance, thereby saving times and also reducing customers’ costs in all aspects.
Our advantage:
1: With CE, ISO certification.
2: Full production tracking.
3: Professional engineers can guarantee the highest quality.
4: More suppliers as alternatives, guarantee your lowest and competitive price.
5: Sales fstaff with more than 10 years experience, will answer your pre-sales and after-sales questions.
6: OEM production is available, to meet customer needs
7. Low MOQ (1 unit) is available.
8. 24 hours technical support.
