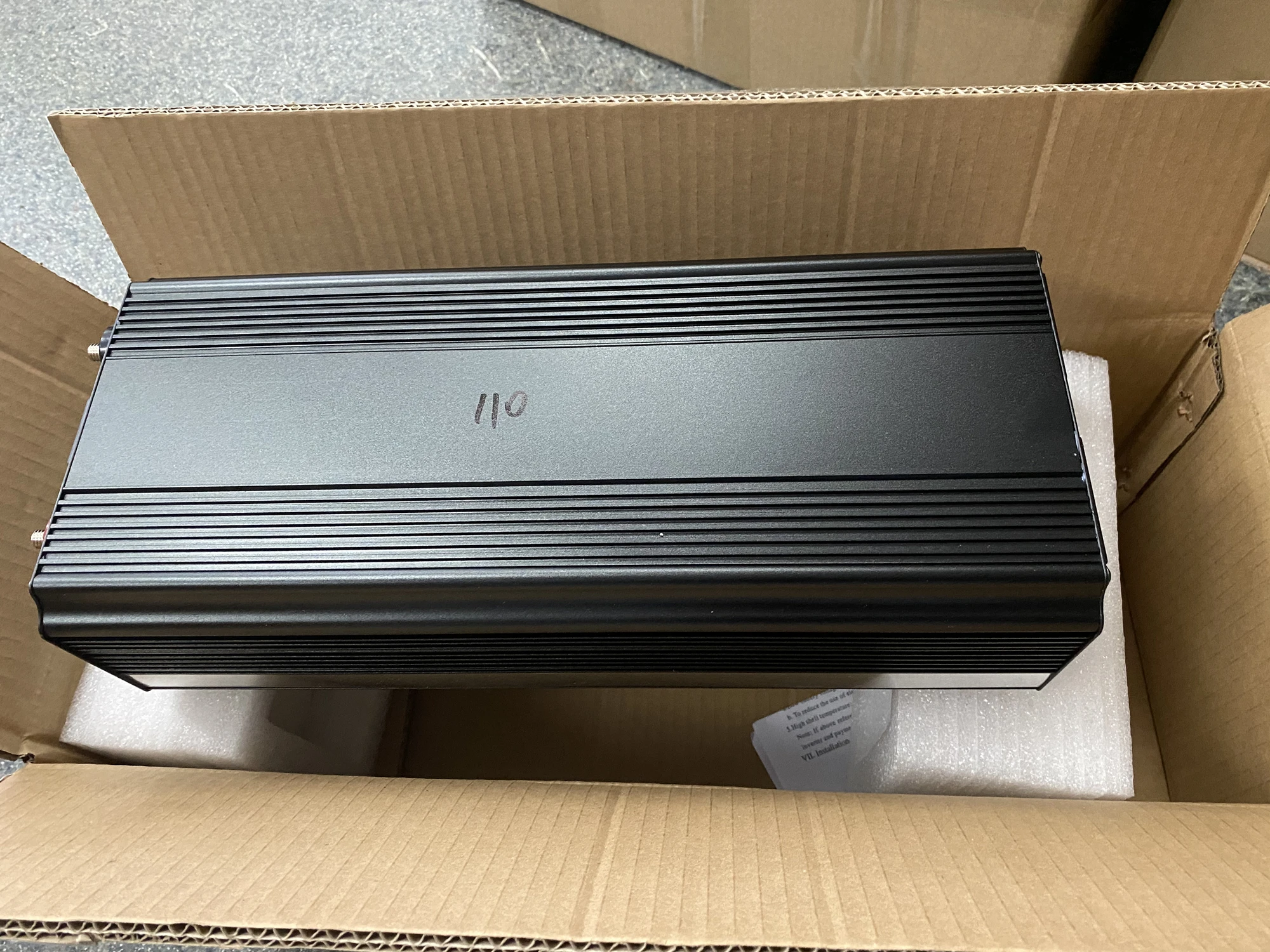

Good Price 1500W 12V 24V DC/AC 110V 220V Modified Sine Wave 3000W Power Inverter with UPS Function & Battery Charger
- Category: >>>
- Supplier: Guangzhou Liaoyuan Electronic Co. Ltd.
Share on (1600829295157):
Product Overview
Description
Product Description

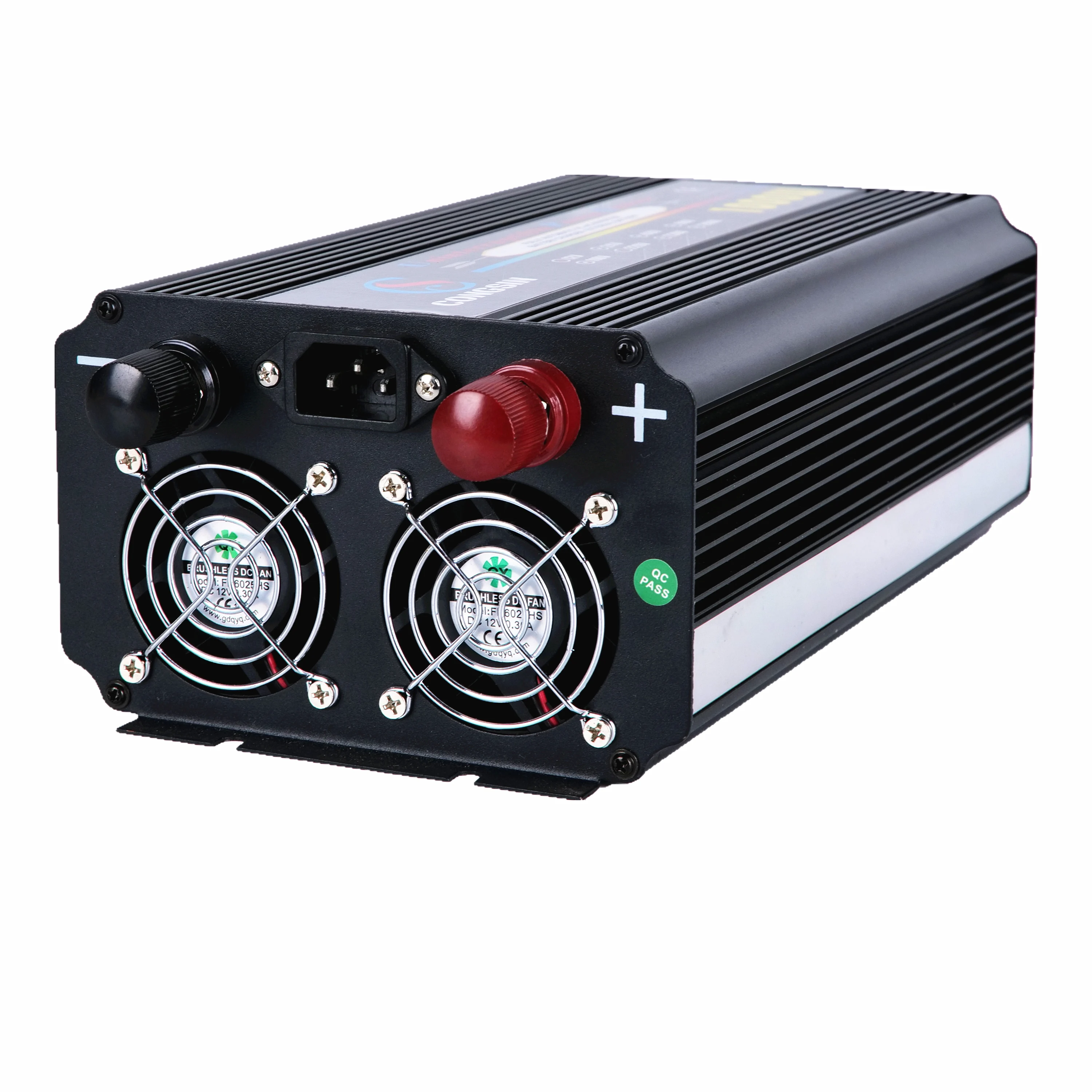

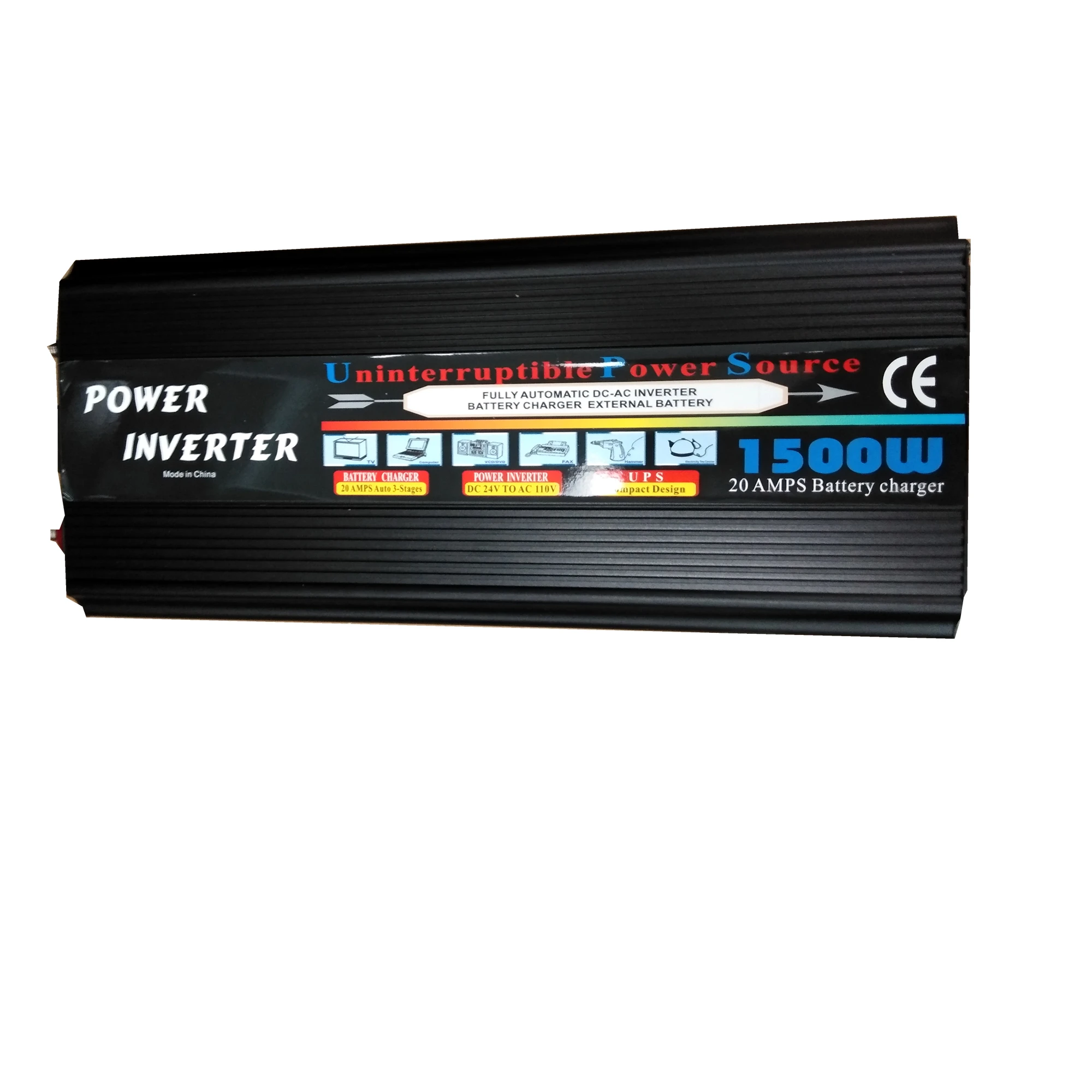

DC to AC Modified Sine Wave Power Inverter 1500W with UPS Function and Battery Charger
* Max continuous power | 1500W |
* Peak Load Power Rate | 3000W |
* NO load current draw | <0.3A |
* Input DC voltage Range | DC9.7V-15.5V |
* Output Voltage Range | AC220+/-5% |
* Output Frequency Range | 50+/- 3Hz |
* Max Outer Temperature | < 65°C |
* Max Power Efficiency | > 90% |
* High Voltage Cut Off Level | 14.5V-15.5V |
* Low Voltage Alarm Level | DC 10.4-11.V |
* Low Voltage Cut Off Level | DC 9.7V-DC10.3V |
* Overload and Short-circuit Protection | Yes |
* Input Voltage | DC12V |
* Output waveform | Modified Sine Wave |
* Cooling | Cooling Fan |
* Product Size | 260*160*100MM |
* Packing size(10pcs/ctn) | 70*36*46.5CM |
* G.W | 2.85KG |

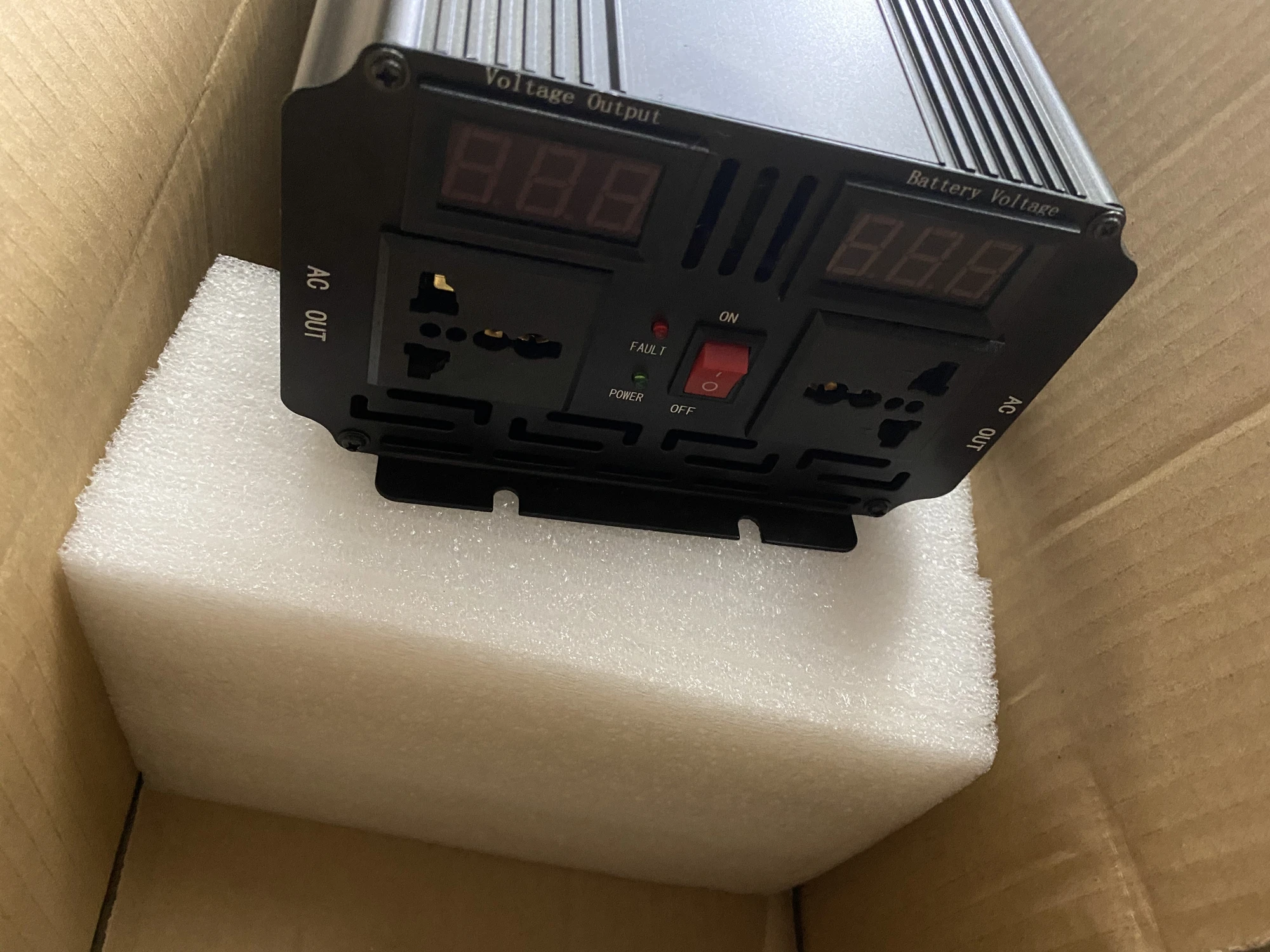

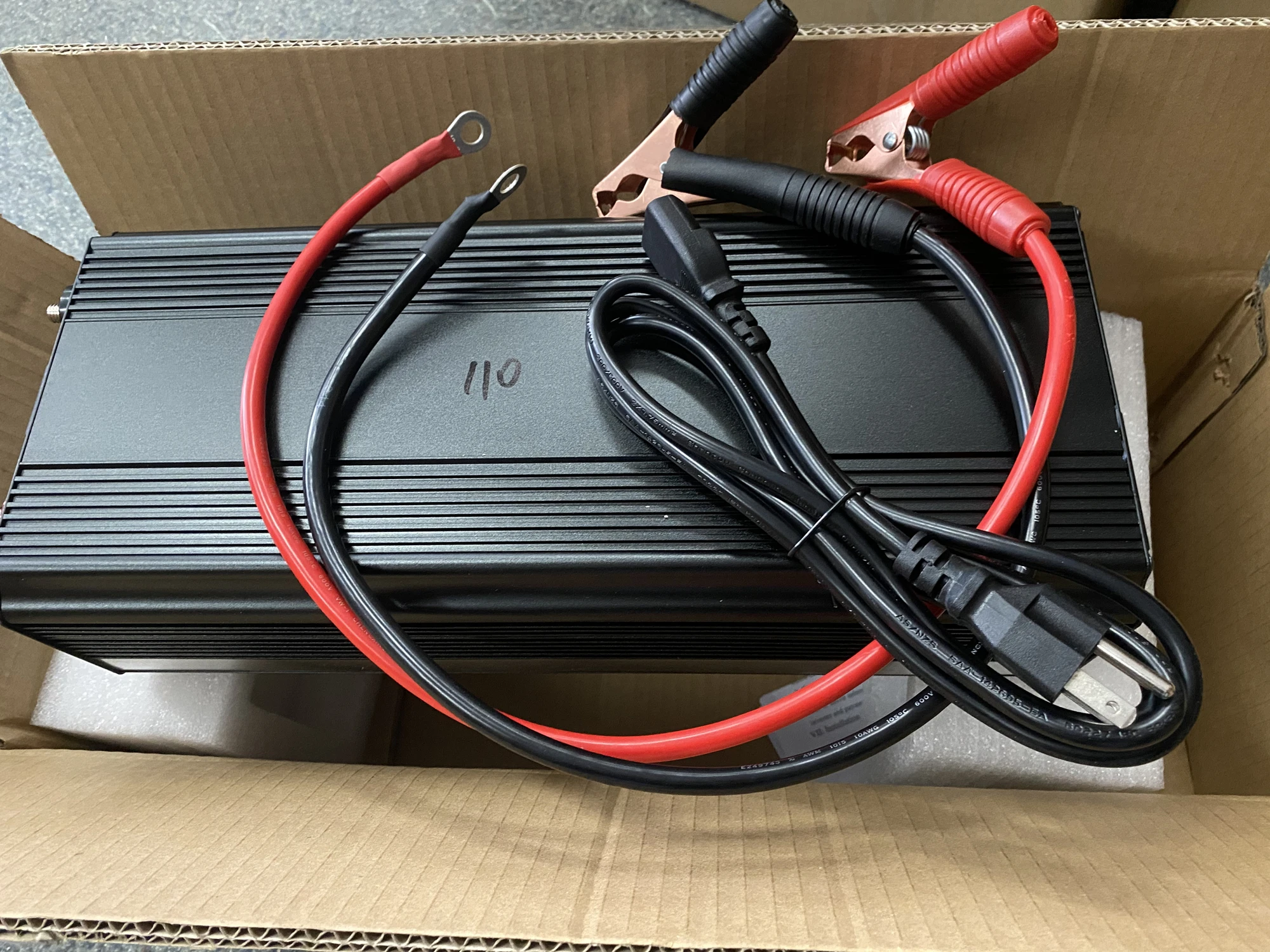

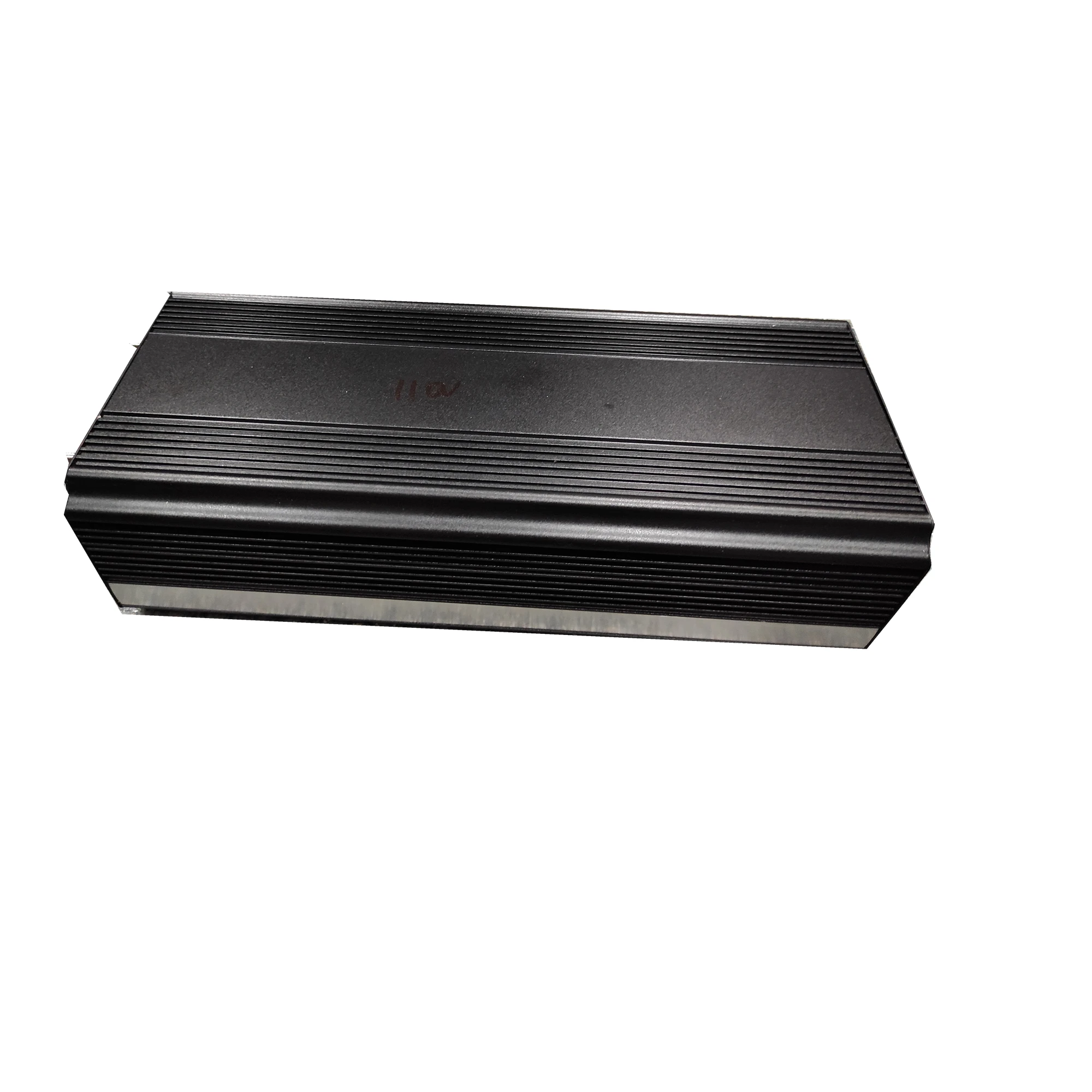

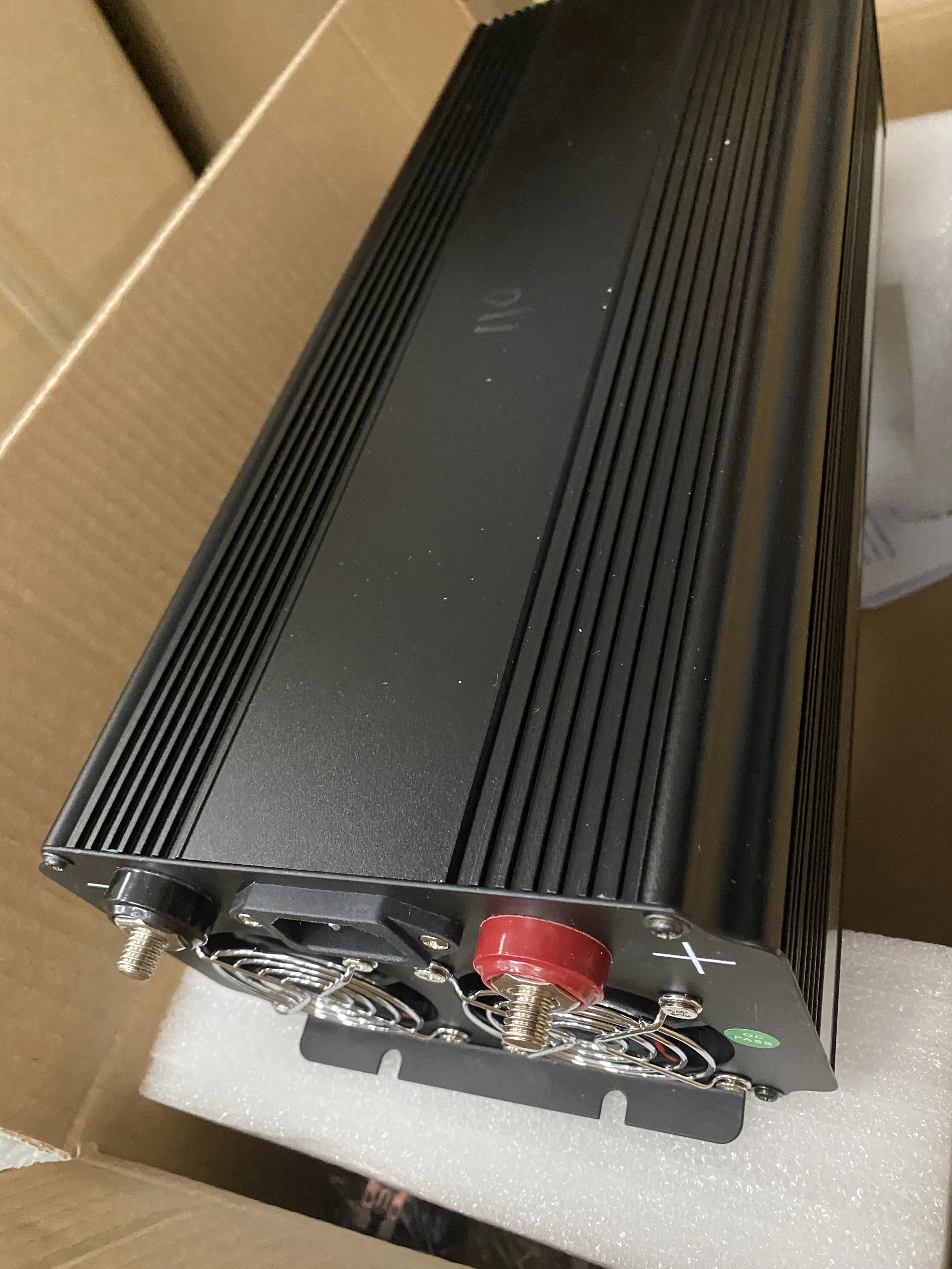

Detailed Images
1. Manufactured with imported components and advanced circuit design, the conversion efficiency of the inverter is as high as 90%. Strict production quality management system and modern flow production ensure product quality.
2. The product specifications are complete. According to different standards at home and abroad, the products are divided into several series of products such as the United States, the United Kingdom, France and Japan, and can also be designed according to customer needs.
3. The internal protection circuit prevents the influence of electrical pulses or voltage fluctuations, and can withstand the safe start of electrical appliances with high impact power such as compressors and TV monitors. The power switch can completely cut off the internal circuit, and can protect the battery from damage after breaking.
4. Self-protection design, when the voltage is lower than 10V, it will automatically shut down, ensuring that the battery has enough power to start the vehicle.
5. It will automatically shut down when it is overheated or overloaded; it will automatically start after returning to normal.
6. There is no noise during work, and it can run for many years without maintenance in normal use.
7. Various input and output modes: 12V input, 24V input, cigarette lighter input, battery direct input; 220V AC output, 110V AC
output, etc., can fully meet the needs of domestic and foreign users for AC power.
8. The product adopts aluminum alloy shell, high-pressure plasma titanium plating surface technology, high hardness, stable chemical composition, anti-oxidation and beautiful appearance.
output, etc., can fully meet the needs of domestic and foreign users for AC power.
8. The product adopts aluminum alloy shell, high-pressure plasma titanium plating surface technology, high hardness, stable chemical composition, anti-oxidation and beautiful appearance.
Related Products

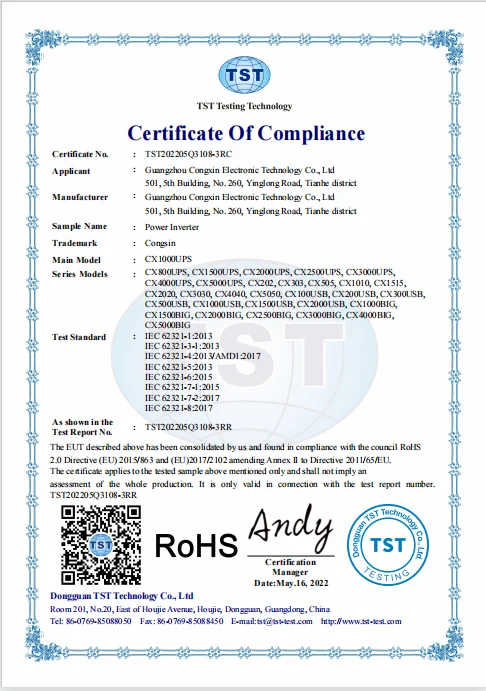

Certificate

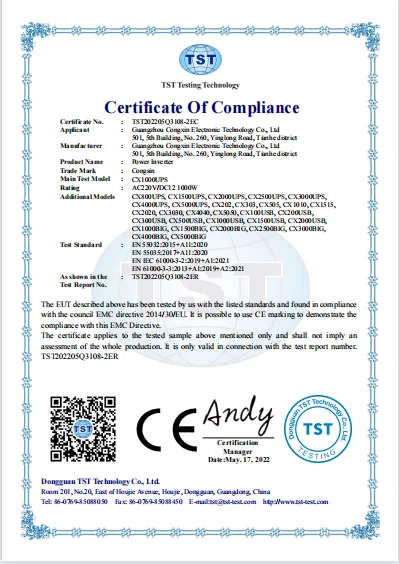

CE Certification
RoHS Certification

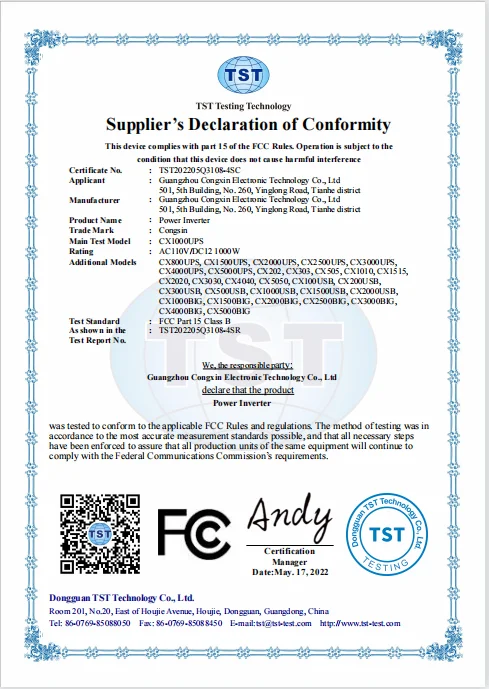

FCC Certification

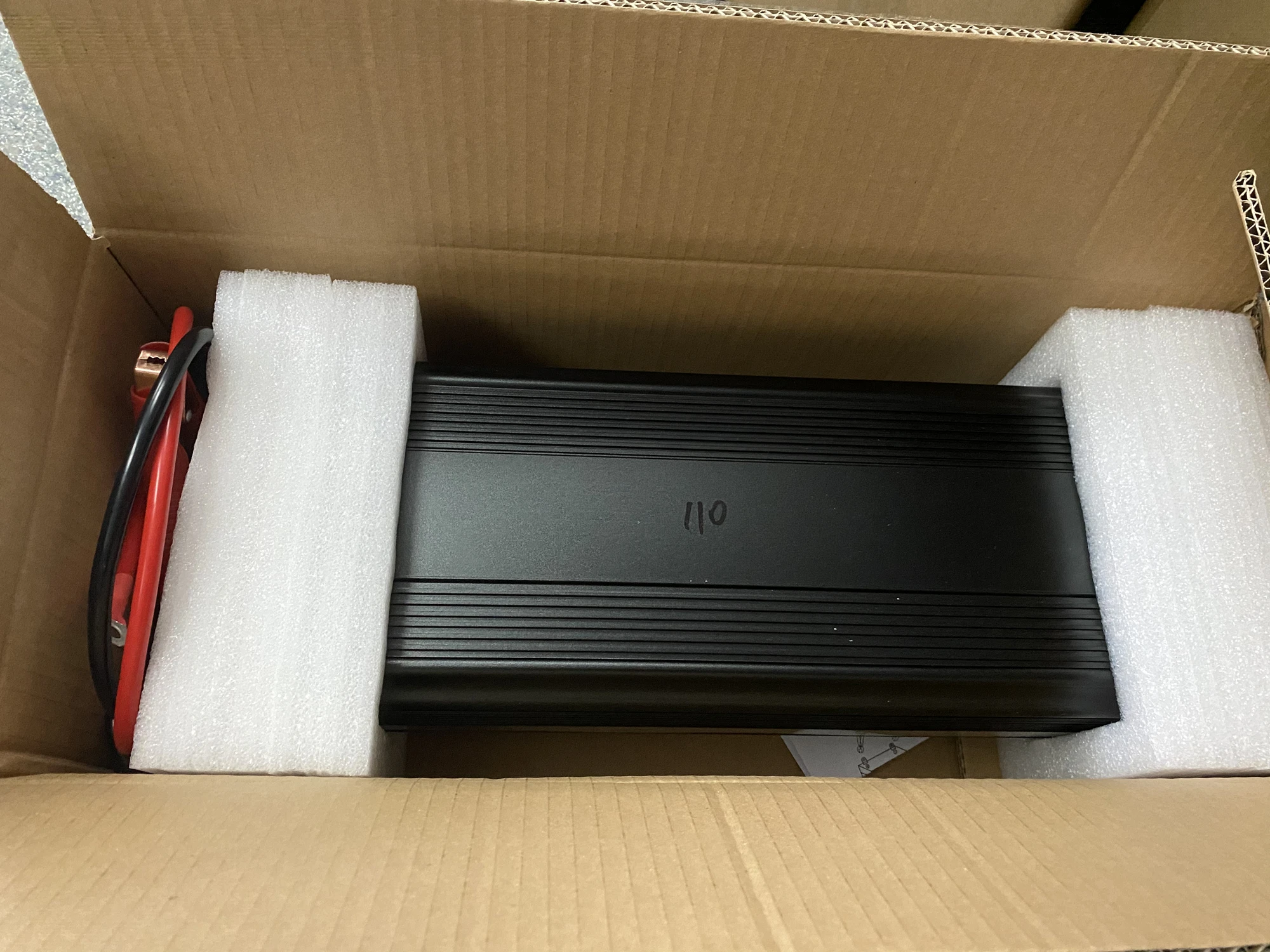

Packing&Shipping

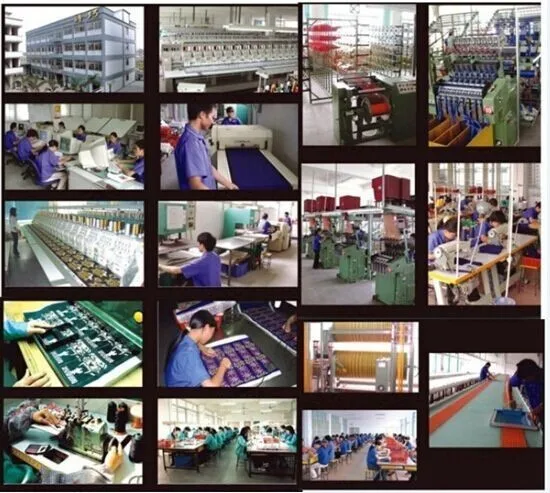

Company Introduction
Guangzhou Liaoyuan Electronic Co., Ltd. is one professional power inverter and other relative products manufacturer in Guangzhou, China. Our factory is located in Tianhe District, Guangzhou. We product the Power Inverter, Solar Charge Controller, Battery Charger and Car Jump Starter. All these power inverter are widely used for Solar System, Car Power Supply and Outdoor Power Supply. Such as: automatic irrigation in garden, vanlife and rode trip. Clean energy and save money. All our products are 100% fully load burn-in testing to make sure the quality.
These power inverter have the short circuit protection, over-load protection, low voltage protection, over voltage protection and over temperature protection. We have professional engineer support, high efficiency sales team and competitive price superiority, and attract customers from all over the world, we export to over 40 countries, including Europe, Poland, Serbia, Turkey, Russia, USA, Mexico, Brazil, India, Thailand, Middle East and South Africa.

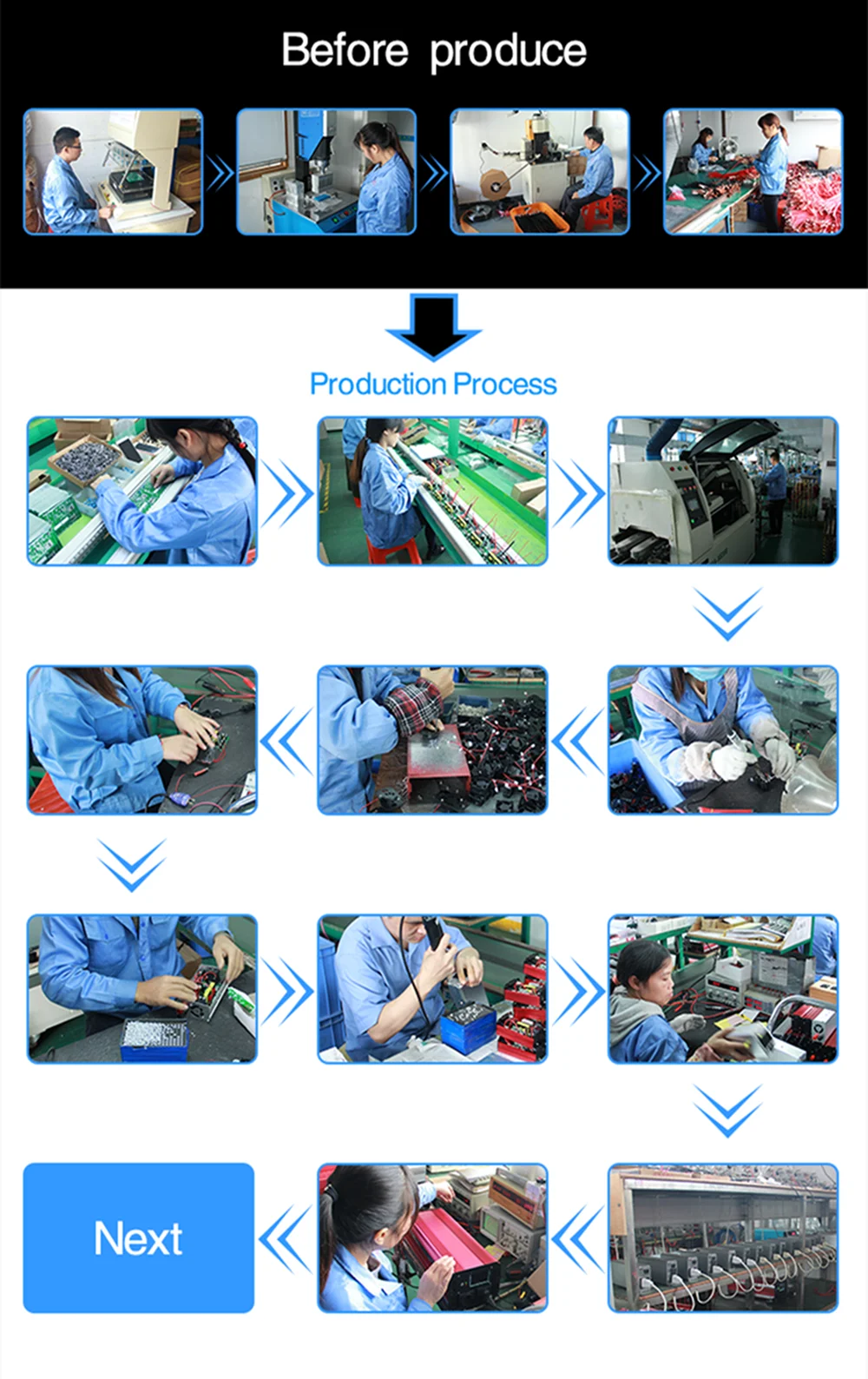

We also have achieved great progress, we are equipped with the Automatic Wave soldering machines and multi-function testing machines.Our R&D department provide the strong technical support and enable us to receive some OEM, ODM projects.
We are reliable supplier of the power inverter with 1 years warranty. We are looking forward to get more cooperation.
Our Services & Strength
Customers service:
Please contact us through email to me, we will assist you in any way possible and aim to answer all emails within 24-48 hours.
OEM Services
1. Logo Please offer us your own high resolution logo in JPG format, there should be two colors at most in the logo and there should be no gradient effect in the logo.
2. Label Please offer us your own model numbers.
3. Manual Please offer us the finished manual file that can be printed directly.
4. Packing Box We will offer you the dimension and the design file. Please design your own style based on this file then send it back to us.We will print some samples for your checking.
After-sale service
1. All products have been checked and packaged in good condition before dispatch.
2. Warranty :one years,
3. In case the item is defective, please inform us within 30 days of receipt, we will replace a new one,but you need to in
charge for the freight.No Refunds are offered.
Payment Terms
1. T/T, Western Union, Money Gram.
2. We will arrange the products and shipment within 3-7 working days after receive the payment.
Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Big orders will be delivered from our factory within 15-25 working days at most.
Please contact us through email to me, we will assist you in any way possible and aim to answer all emails within 24-48 hours.
OEM Services
1. Logo Please offer us your own high resolution logo in JPG format, there should be two colors at most in the logo and there should be no gradient effect in the logo.
2. Label Please offer us your own model numbers.
3. Manual Please offer us the finished manual file that can be printed directly.
4. Packing Box We will offer you the dimension and the design file. Please design your own style based on this file then send it back to us.We will print some samples for your checking.
After-sale service
1. All products have been checked and packaged in good condition before dispatch.
2. Warranty :one years,
3. In case the item is defective, please inform us within 30 days of receipt, we will replace a new one,but you need to in
charge for the freight.No Refunds are offered.
Payment Terms
1. T/T, Western Union, Money Gram.
2. We will arrange the products and shipment within 3-7 working days after receive the payment.
Lead Time
1. Sample orders will be delivered from our factory within 7 working days.
2. General orders will be delivered from our factory within 7-15 working days.
3. Big orders will be delivered from our factory within 15-25 working days at most.
FAQ
Q1. What is inverter?
A: Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac.
Q2. How many kinds of output wave form for inverters?
A: Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high quality AC and carry various loads, while it requires high tech and high cost. Modified sine wave inverter load poorly not carrying inductive load, but the price is moderate.
Q3. How do we equip an appropriate inverter for battery?
A: Take a battery with 12V/50AH as an example. Power equal current plus voltage then we know the power of battery is 600W.
12V*50A=600W. So we can choose a 600W power inverter according this theoretical value.
Q4. How long can I operate my inverter?
A: The runtime (i.e., amount of time that the inverter will power connected electronics) depends on the amount of battery power available and the load that it is supporting.
In general, as you increase the load (e.g., plug in more equipment) your runtime will decrease. However, you can attach more batteries to extend the runtime. There is no limit to the number of batteries that can be connected.
Q5. What's the difference between an inverter and inverter/charger?
A: An inverter simply converts DC (battery) power into AC power and then passes it along to connected equipment.
An inverter/charger does the same thing, except that it is connected to an AC power source to continuously charge the attached batteries when AC utility power is available. In the case of a power outage, the inverter will automatically switch to battery power to provide power to connected equipment.
A: Inverter is an electronic equipment that turn 12v/24v/48v dc into 110v/220v ac.
Q2. How many kinds of output wave form for inverters?
A: Two kinds. Pure sine wave and modified sine wave. Pure sine wave inverter could provide high quality AC and carry various loads, while it requires high tech and high cost. Modified sine wave inverter load poorly not carrying inductive load, but the price is moderate.
Q3. How do we equip an appropriate inverter for battery?
A: Take a battery with 12V/50AH as an example. Power equal current plus voltage then we know the power of battery is 600W.
12V*50A=600W. So we can choose a 600W power inverter according this theoretical value.
Q4. How long can I operate my inverter?
A: The runtime (i.e., amount of time that the inverter will power connected electronics) depends on the amount of battery power available and the load that it is supporting.
In general, as you increase the load (e.g., plug in more equipment) your runtime will decrease. However, you can attach more batteries to extend the runtime. There is no limit to the number of batteries that can be connected.
Q5. What's the difference between an inverter and inverter/charger?
A: An inverter simply converts DC (battery) power into AC power and then passes it along to connected equipment.
An inverter/charger does the same thing, except that it is connected to an AC power source to continuously charge the attached batteries when AC utility power is available. In the case of a power outage, the inverter will automatically switch to battery power to provide power to connected equipment.
