Proton Magnetometer Underground Exploration Metal Mine Detector

Product Overview

Description

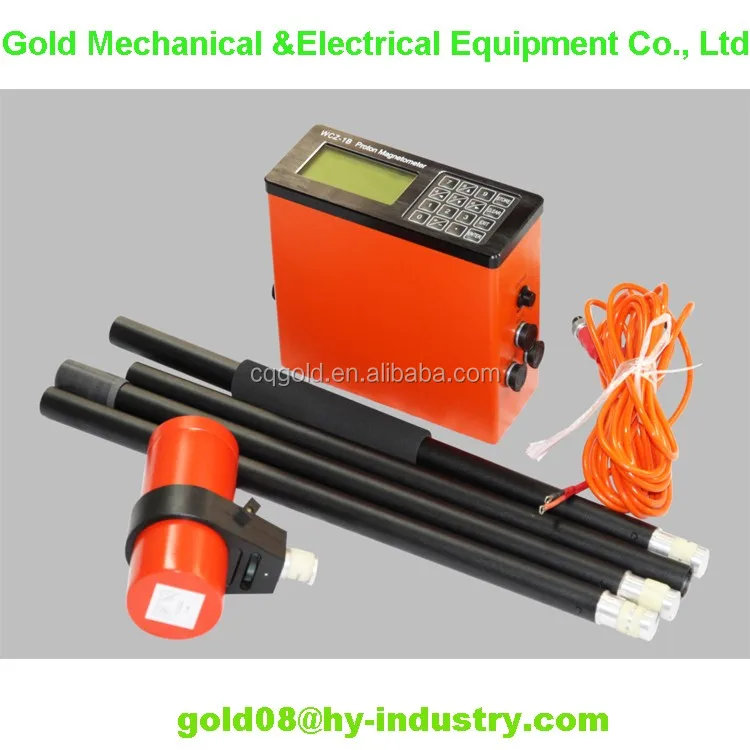

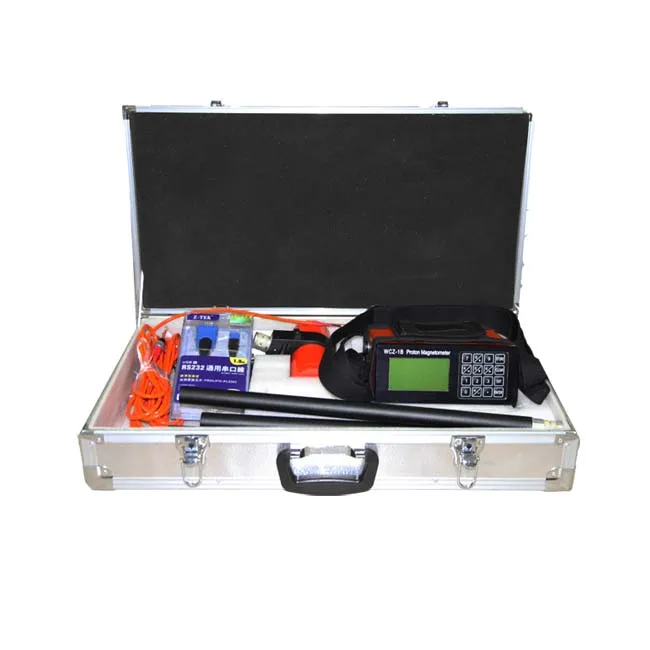

Proton Magnetometer Underground Exploration Metal Mine Detector



 WCZ proton magnetometer is developed especially for home practical instance by referring abroad technique. It

can measure magnetic in precision of 1nT. The resolving power can reach 0.1nT. These are in accord with the requirement of former Ministry of Geologic and Mineral, China. Its large memory, high resolution, agility make it a portable, mobile, base station fitted magnetometer. By changing the structure of the sonde, it can make the horizontal gradient measurement and the vertical gradient measurement at a resolution of 0.1nT.





 Main Applications of Proton Magnetometer Underground Exploration Metal Mine Detector



1. Mineral prospecting, such as iron ore, lead-zinc mine,copper mine.



2. Cooperative mine prospecting, study the ore body's burial depth, dipping and continuity, study the ore body's  shape,size,estimate mineral bed's scale.



3. Prospecting for gas or oil, research geoligic structure relevant to gas or oil.



4. Geologic survey, geologic mapping.



5. Ground diurnal variation for aero-magnetic and marine magnetic survey.



6. Faults orientation.



7. Archaeology



8. Hydrology.



9. Engineering prospecting,e.g, pipeline finding.



10. Earthquake monitoring, volcano monitoring and other environmental  disaster.



11. Small ferromagnetic objects' finding.





Technical specifications:



Model & Name:	WCZ Proton Magnetometer
Measurement Range:	2000nT~100000nT
Measurement Precision:	1nT
Allowed Gradient:	5000Nt/m
Data Stored:	100,000 out-power protection
LCD Screen:	240*128
Keyboard:	22keys
Interface:	RS-232C standard serial port
Power:	Outside rechargeable batteries,12V/2.3Ah, also power outside
Bulk of Mainframe:	230mm*155mm*65mm
Weight of Mainframe:	2.5kg(include batteries)
Bulk of Sonde:	Φ75mm*155mm
Weight of Sonde:	0.8kg
Operating Temperature:	-10°C~+50°C
