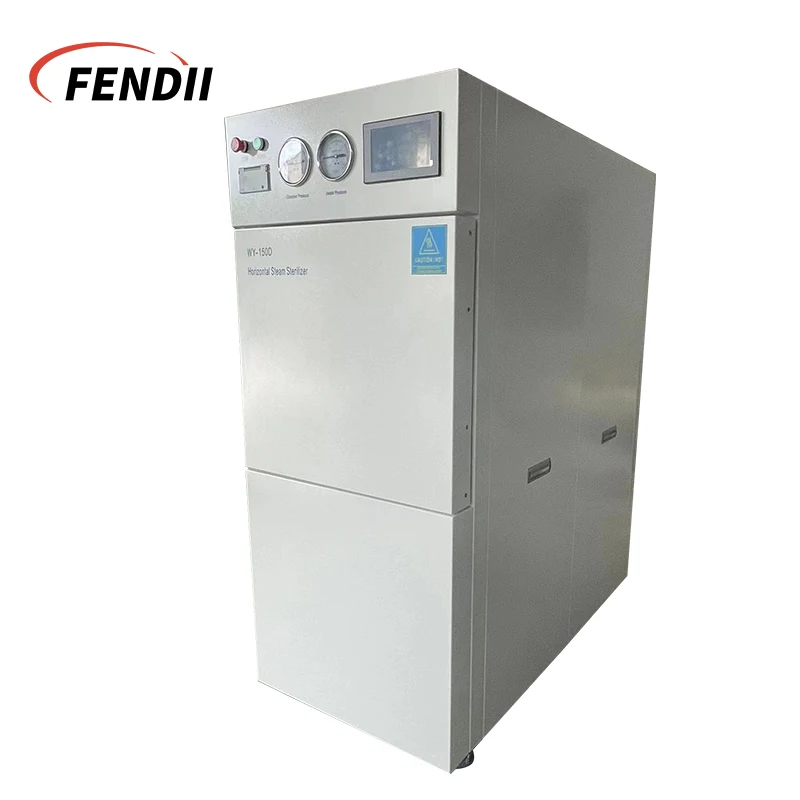

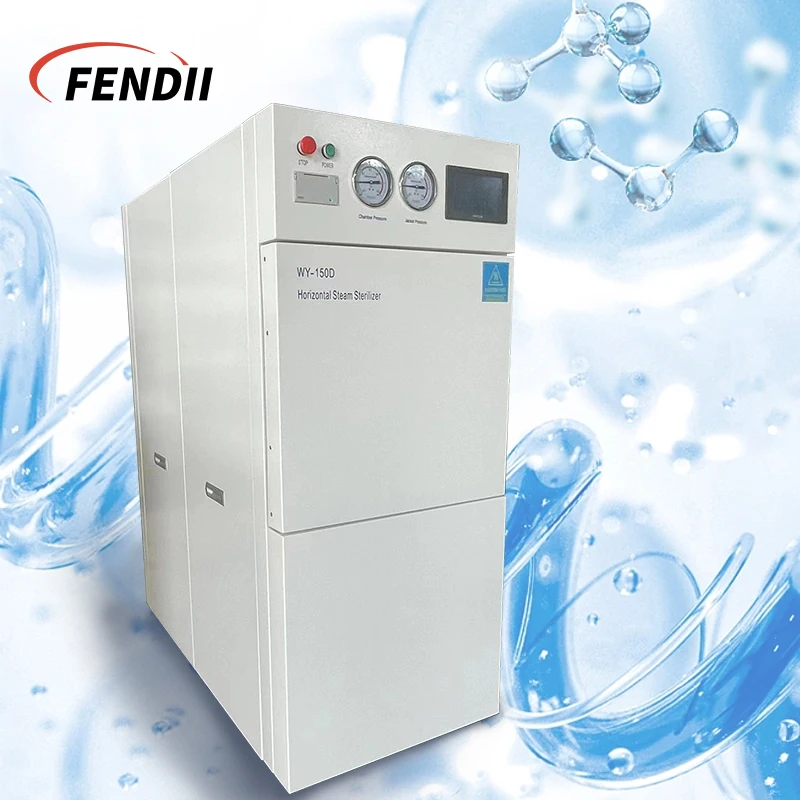

High pressure Sterilization Autoclave For Sale 100l 150l 200l 300l Horizontal Pressure Steam Sterilizer
- Category: >>>
- Supplier: Henan Fendi Technology Co. Ltd.
Share on (1600829321675):
Product Overview
Description
Product Description
Application Scenario
Product Parameters
Model&Parameter(Without Pulse Vacuum)
Model | Overall Dimensions | Chamber Size | Steam Consumption | Water Consumption | Power | Net Weight (KG) |
LPWY-100D | 1160x650x1680 | Ø420x750 | ≤10KG | ≤30KG | ≤2+9 | 350 |
LPWY-150D | 1290×690×1680 | Ø472×880 | ≤12KG | ≤190KG | ≤2+12 | 350 |
LPWY-200D | 1560×690×1680 | Ø472×1150 | ≤13KG | ≤190KG | ≤2+12 | 370 |
LPWY-300D | 1430×850×1760 | Ø620×995 | ≤18KG | ≤200KG | ≤2+15 | 450 |
LPWY-400D | 1755×850×1760 | Ø620×1320 | ≤22KG | ≤200KG | ≤2+15 | 510 |
Model&Parameter(With Pulse Vacuum)
Model | Overall Dimensions | Chamber Size | Steam Consumption | Water Consumption | Power (KW) | Net weight |
LPWY-100D(S)(M) | 1160x650x1680 | Ø420x750 | ≤11KG | ≤190KG | ≤2+12 | 410/450KG |
LPWY-150D(S)(M) | 1290x690x1680 | Ø472x880 | ≤13KG | ≤190KG | ≤2+15 | 450/500KG |
LPWY-200D(S)(M) | 1560x690x1680 | Ø472x1150 | ≤15KG | ≤190KG | ≤2+15 | 500/540KG |
LPWY-300D(S)(M) | 1430x850x1760 | Ø620x995 | ≤20KG | ≤200KG | ≤2+18 | 560/640KG |
LPWY-400D(S)(M) | 1755x850x1760 | Ø620x1320 | ≤25KG | ≤200KG | ≤2+18 | 700/750KG |
Note:
1. For examples≤2+18, the first 2 is the power of the system, and the18 is the power of the built-in steam generator. But the steam generator is optional.

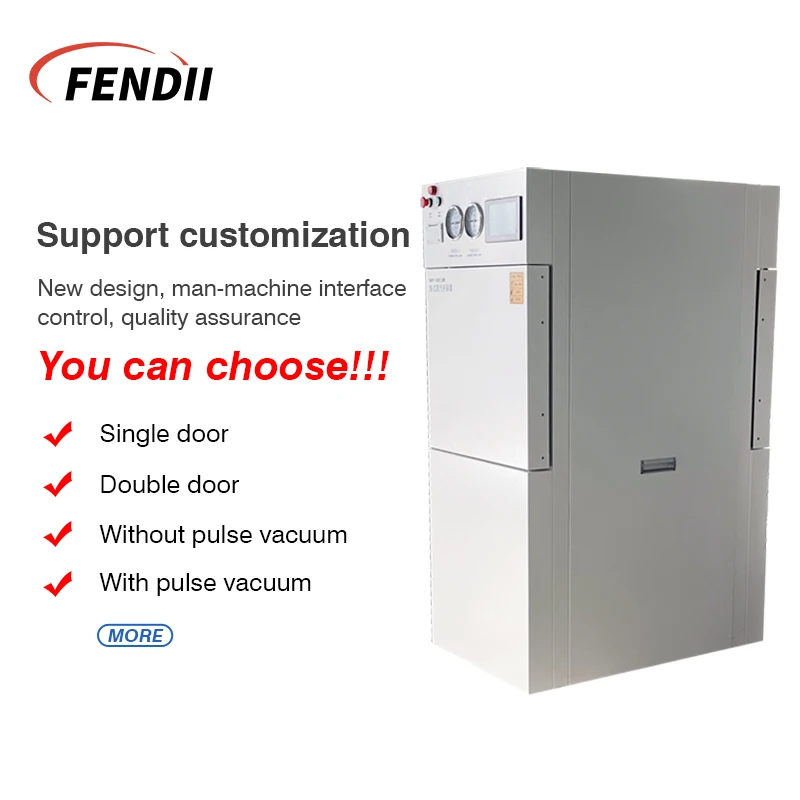

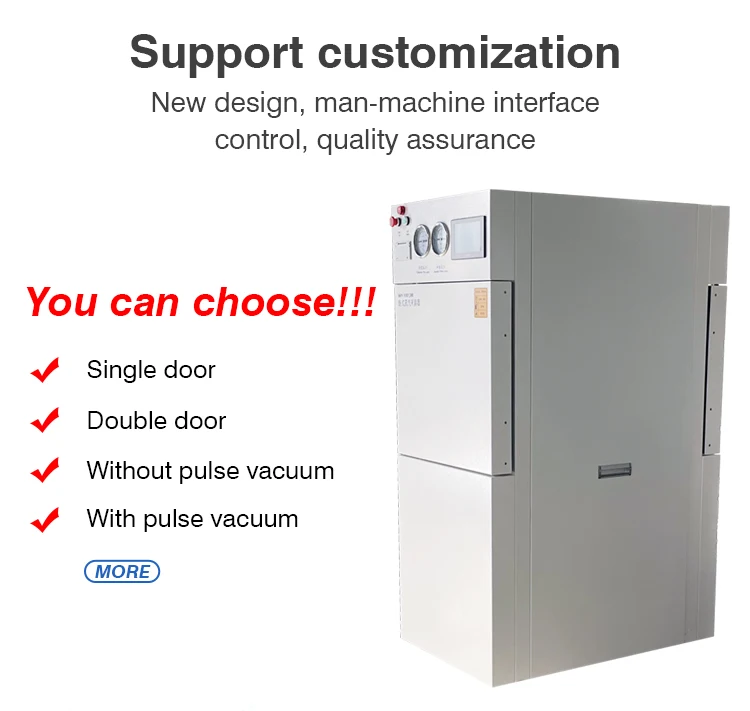

2. Model "D” means single door, "S" means double, "M" means pulsation vacuum.
We also offer other models, welcome to consult us.

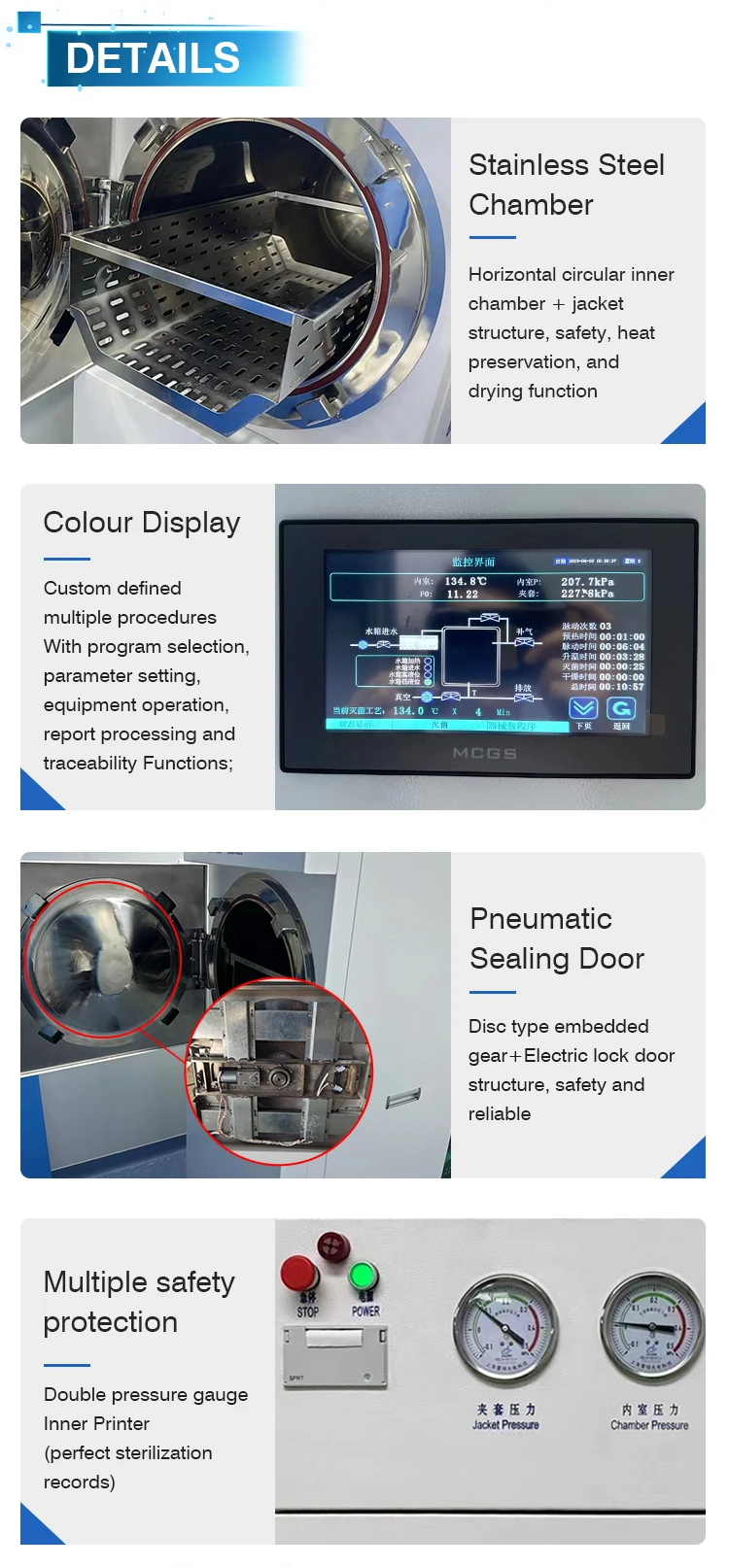

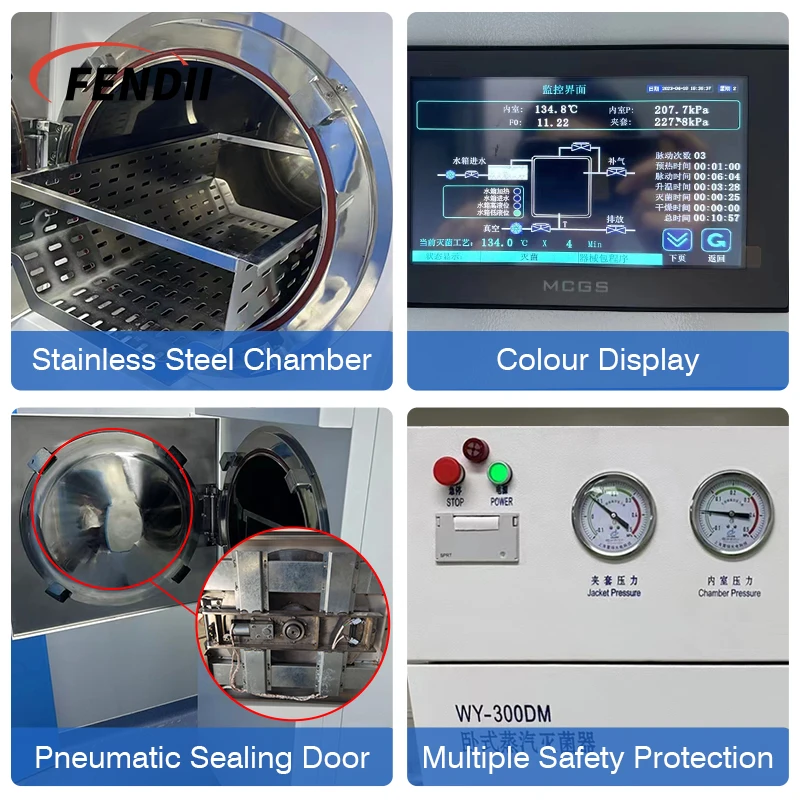

Product Details

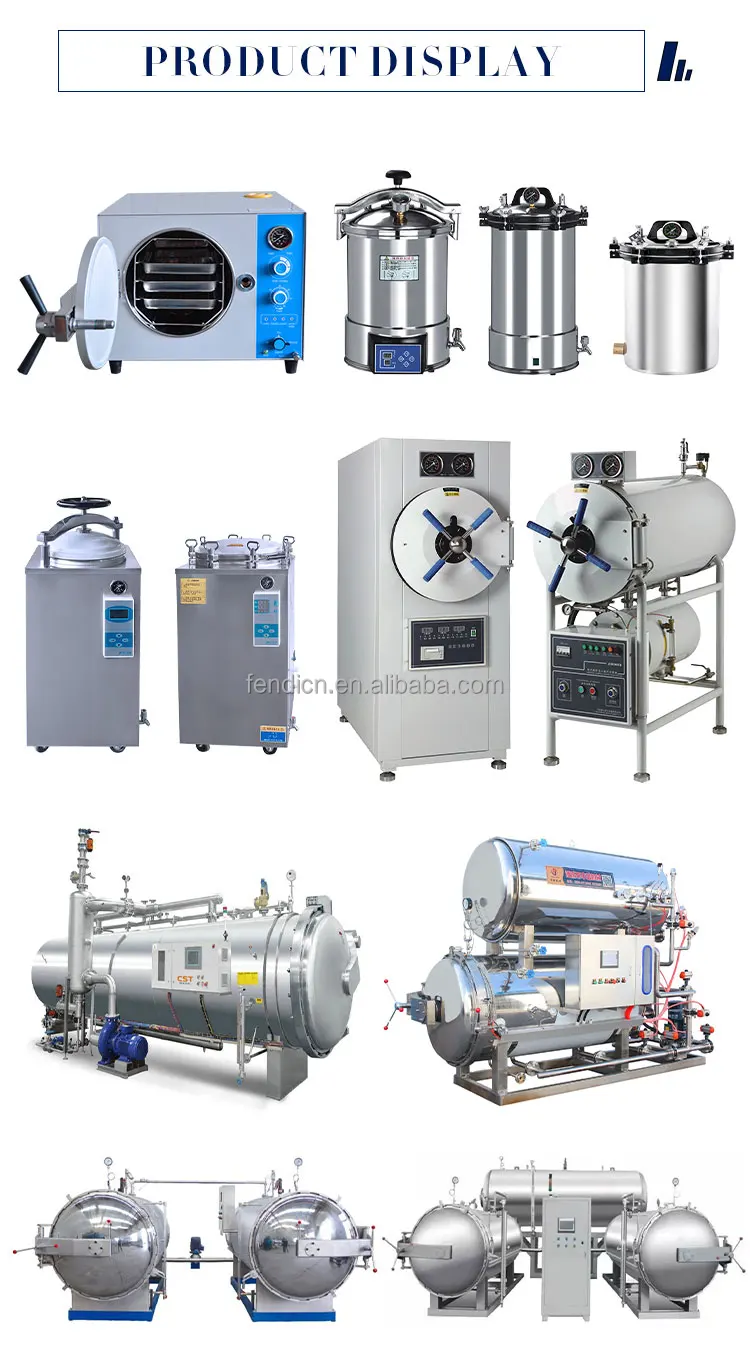

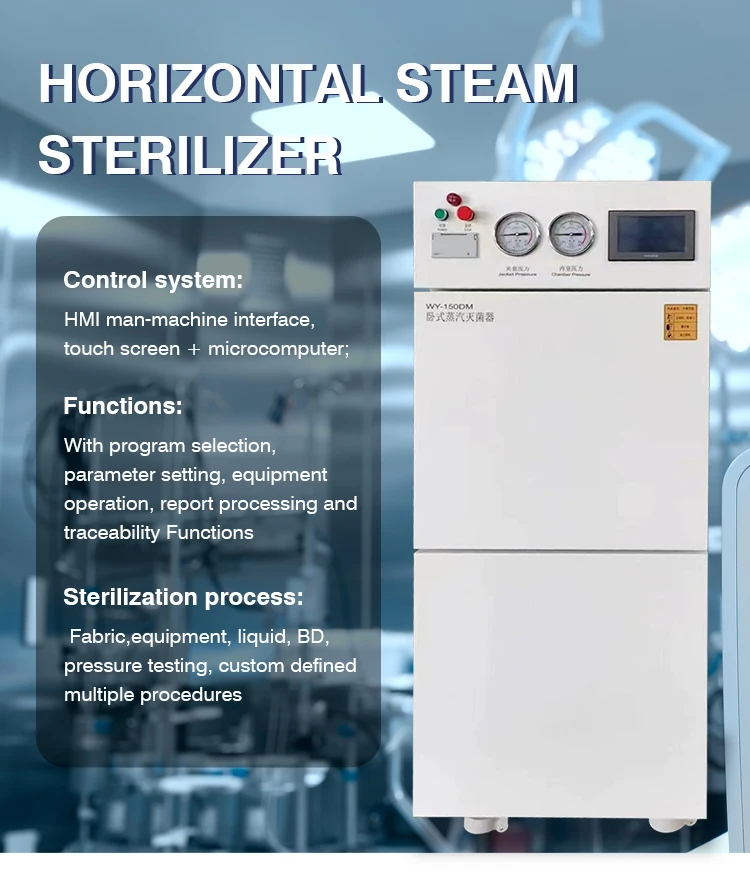

Product Display
