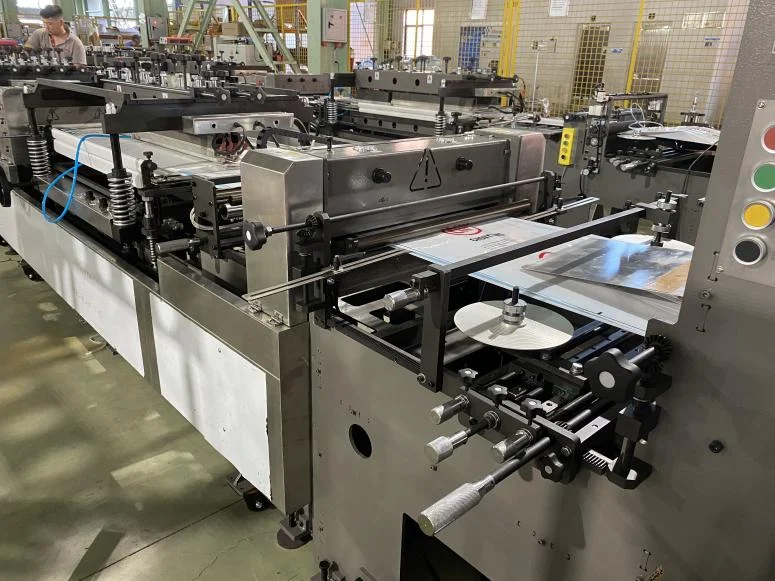

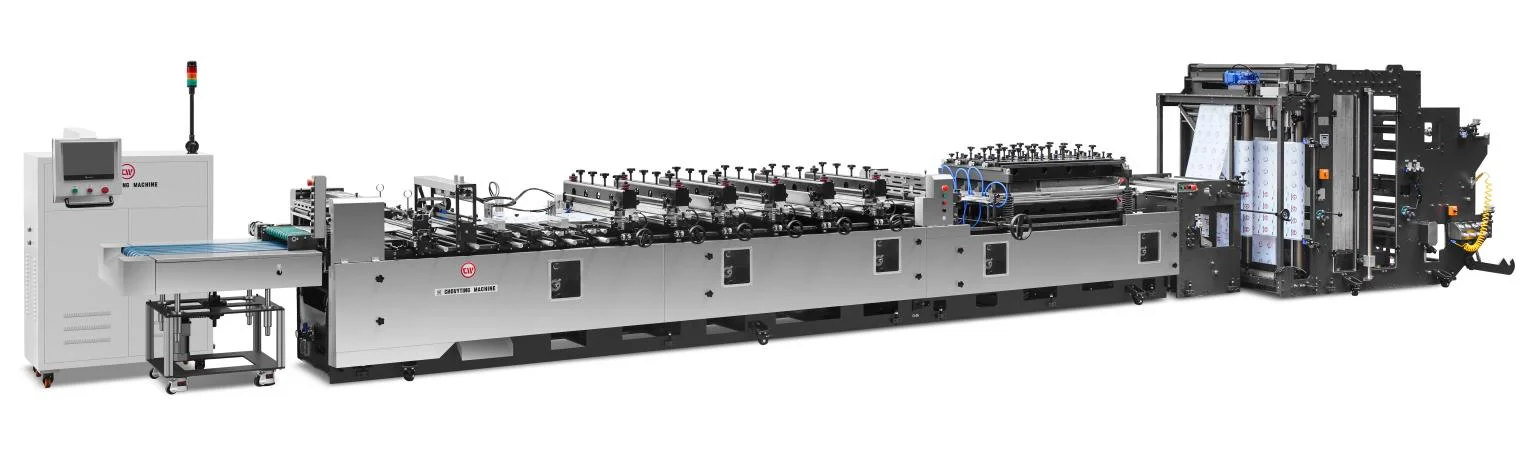

Fully Automatic Zipper 3 Side Sealing Stand up Bag Making Machine
- Category: >>>
- Supplier: Zhejiang Chovyting Machinery Co. Ltd.
Share on (1600829326478):
Product Overview
Description
Products Description
Standard device
Doypack bag (single sheet film with bottom fold)
One set easy puncher
One set hole punch with (6,8,10mm diameter hole mould)
With one set waste film rewinding
With ultrasonic and heating sealing bar for zipper
One set easy puncher
One set hole punch with (6,8,10mm diameter hole mould)
With one set waste film rewinding
With ultrasonic and heating sealing bar for zipper
Optional Device
Double Cutting system
Double stand up and zipper device
Double unwinder with auto EPC and auto tension

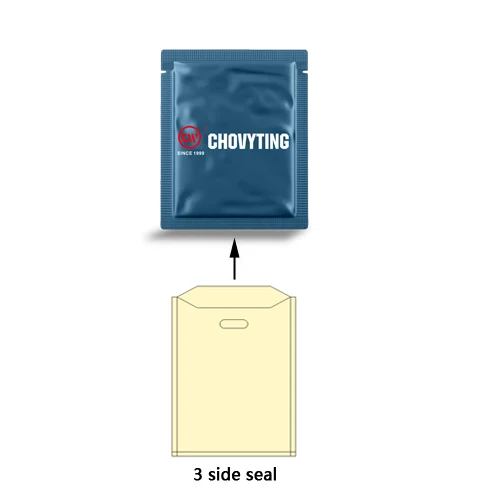

3 sides seal bag | New Model | ||
3 side seal bag | 600HC+FD | ||
Bag width range（Machine width direction） | :100-580mm | ||
Bag length range（Machine length direction） | :50-420mm（seal two times） | ||
Use of skip unit (6 times) enable to up max.2520mm bag length | |||
Max. Number of shots: | :170 shots/min | ||
Width of Bottom Sealing: | :5mm-80mm | ||
Width of Vertical Sealing | :5mm-60mm | ||

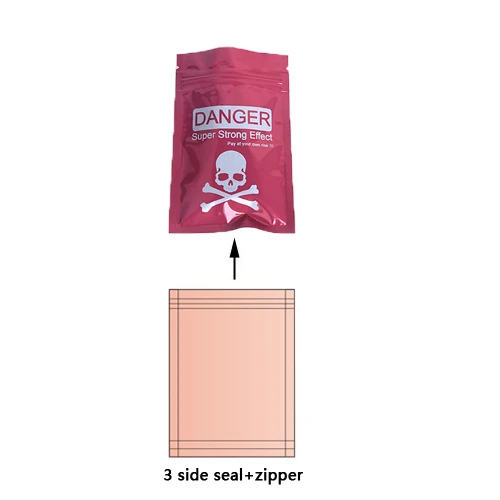

3 sides seal bag with zipper | 3 Side seal with zipper bag | 600HC+FD | |
Bag width range： | 100-580mm | ||
Bag length range（Machine length direction） | :50-420mm（seal two times） | ||
Use of skip unit (6 times) enable to up max.2520mm bag length | |||
Max. Number of shots: | :120 shots/min | ||
Width of Bottom Sealing: | :5mm-80mm | ||
Width of Vertical Sealing | :5mm-60mm | ||

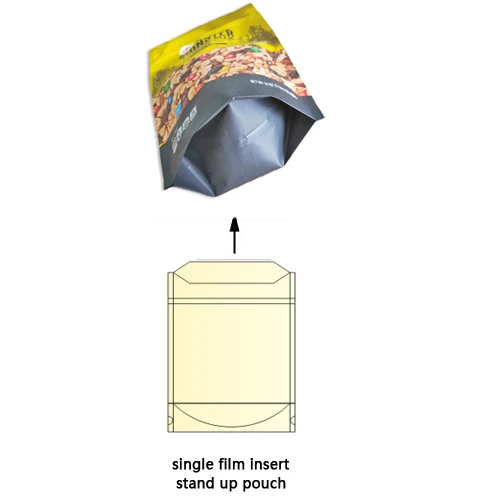

Doypack bag | single film insert stand up pouch | 600HC+FD | |
Bag width range | :80-260mm（seal three times） | ||
Bag length range | 80-500mm | ||
Gusset depth | :35-60mm | ||
Gusset punching hole | :φ16mm | ||
Max. Number of shots: | :120shot/min | ||
Max. Film speed | :35m/min | ||

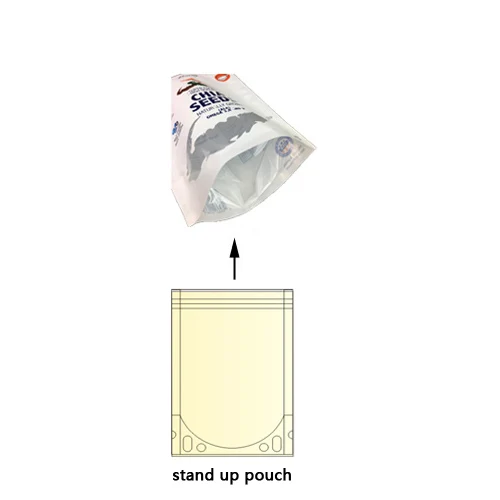

Stand up bag | Third film insert stand up bag | 600HC+FD | |
Bag width range（Machine width direction） | 70mm-260mm(seal three times) | ||
Bag length range（Machine length direction） | 100-580mm | ||
Max. Number of shots: | 120shots | ||
Third insert film width | :70-150mm | ||
Gusset depth | :35-70mm | ||
Gusset punching hole | :φ16mm | ||
Sample Bag
Details Images

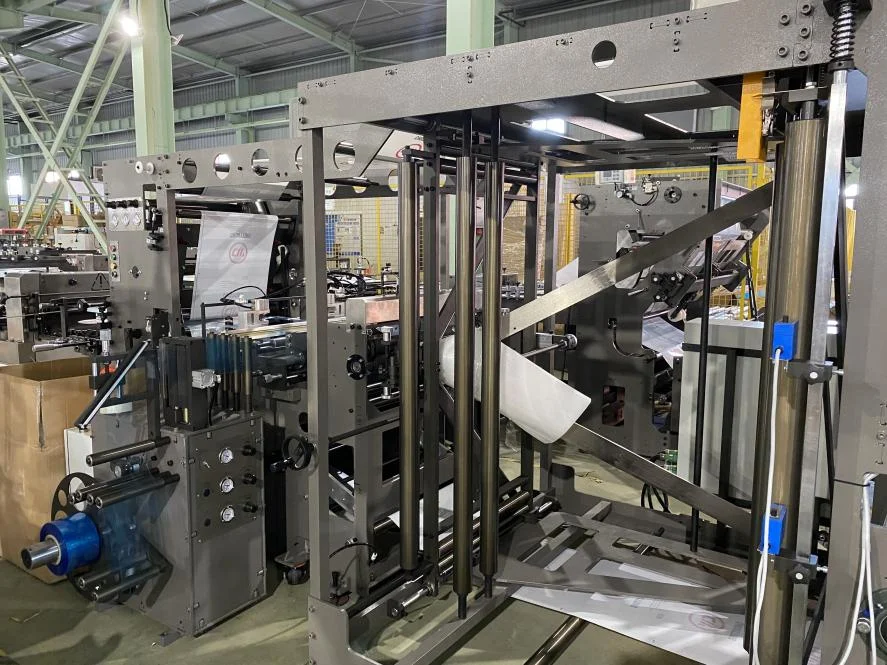

Double unwinding without transverse deviation correction (with pneumatic feeding)
Triangle folding device for doypack bag
Third film insert Stand Up Pouch Diagram
Single film with insert device for bottom fold

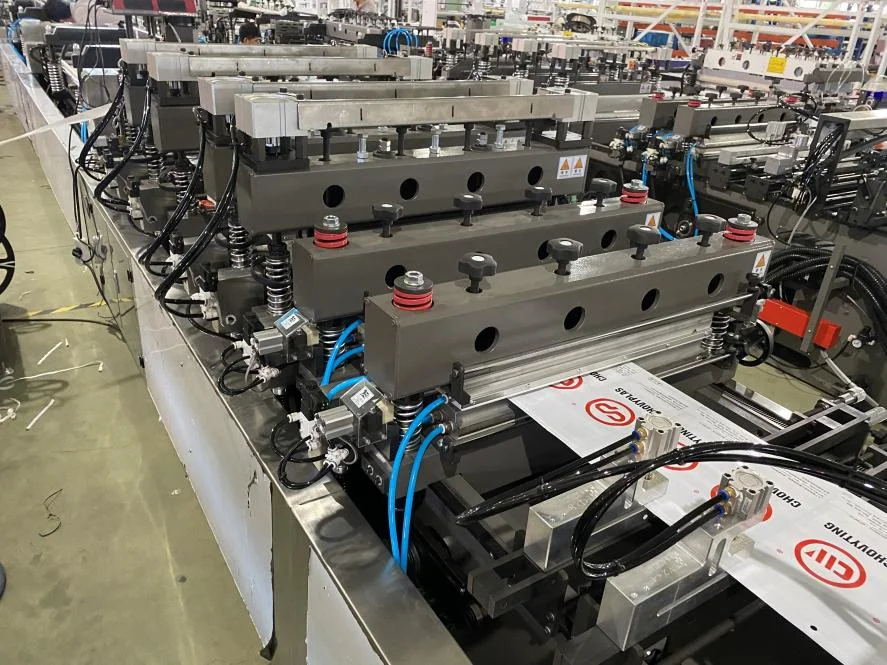

Vertical sealing part (vertical sealing 4 groups, used for sealing three side sealing, standing bag bottom sealing, etc.)

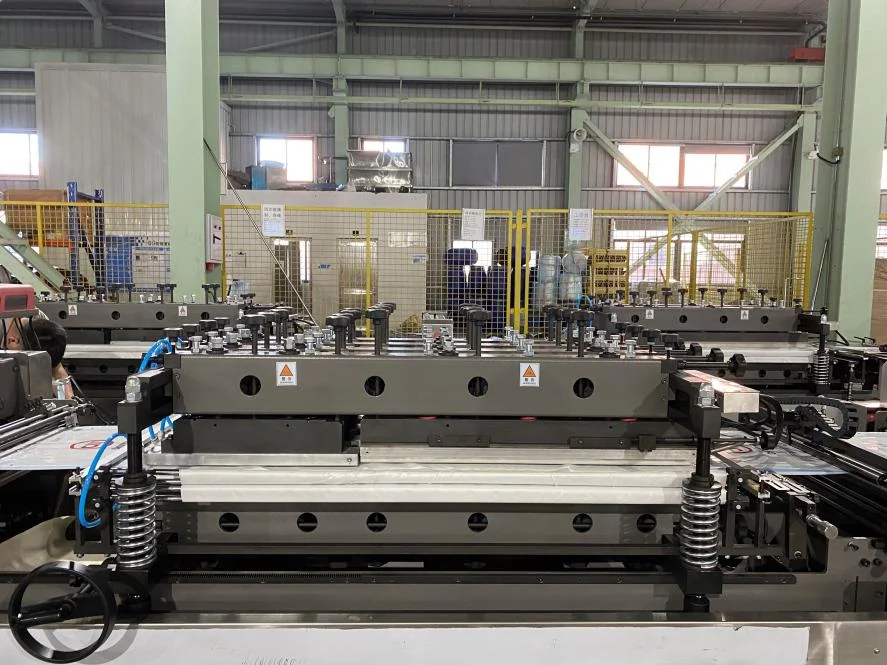

Horizontal sealing part: (3 groups, cast iron type)
Main Part
Certificate
Packing
About Us
CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery. it has adopted modern management methods such as 6S site management, PMC production management and international standard QC management, and adopted 3D mechanical design and IEC standard electrical 3D design to standardize production operations, so that to receive a higher rating from customer after use.
CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.
CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.
