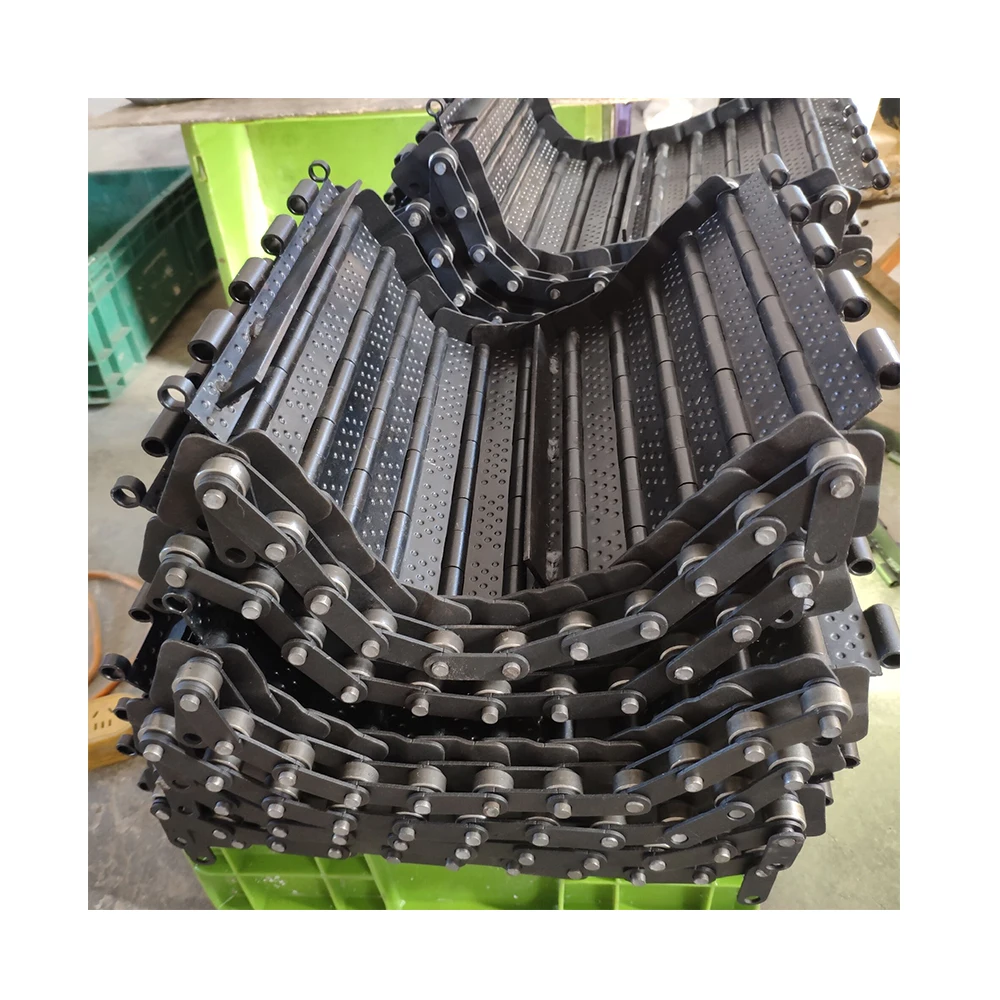

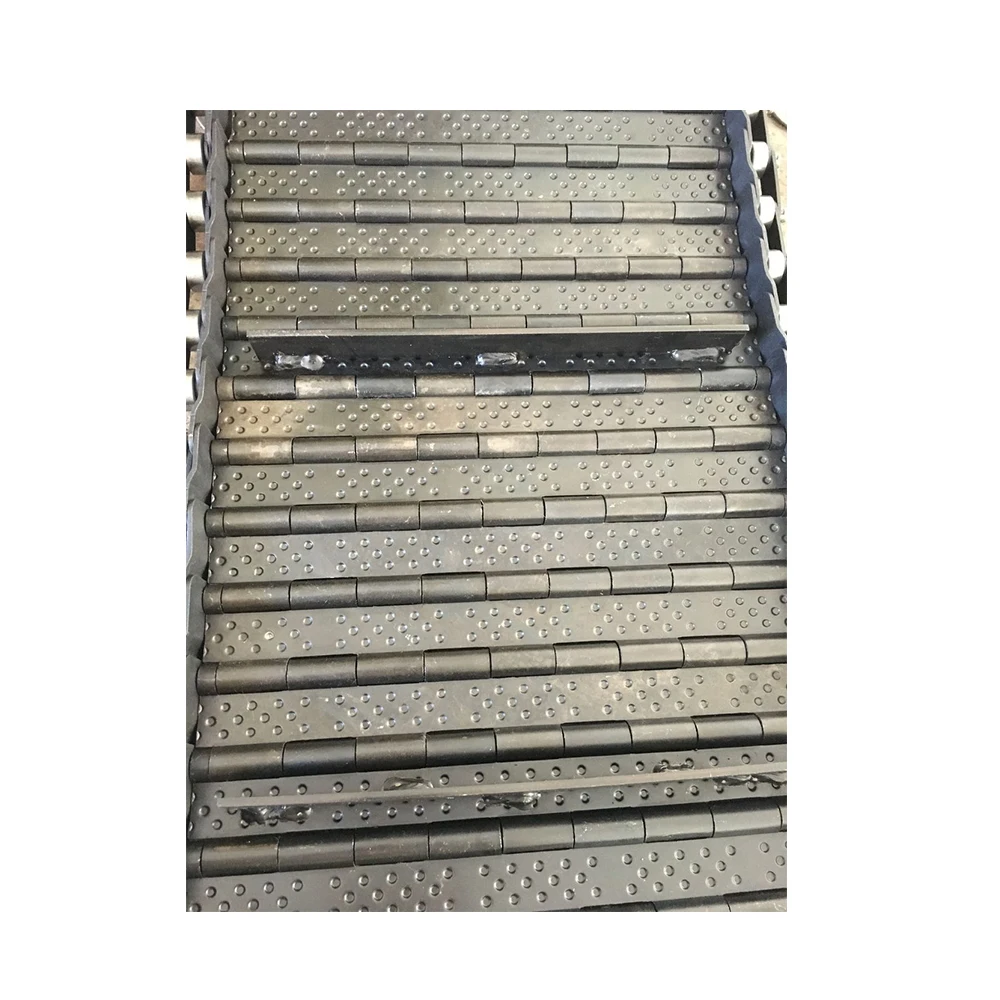

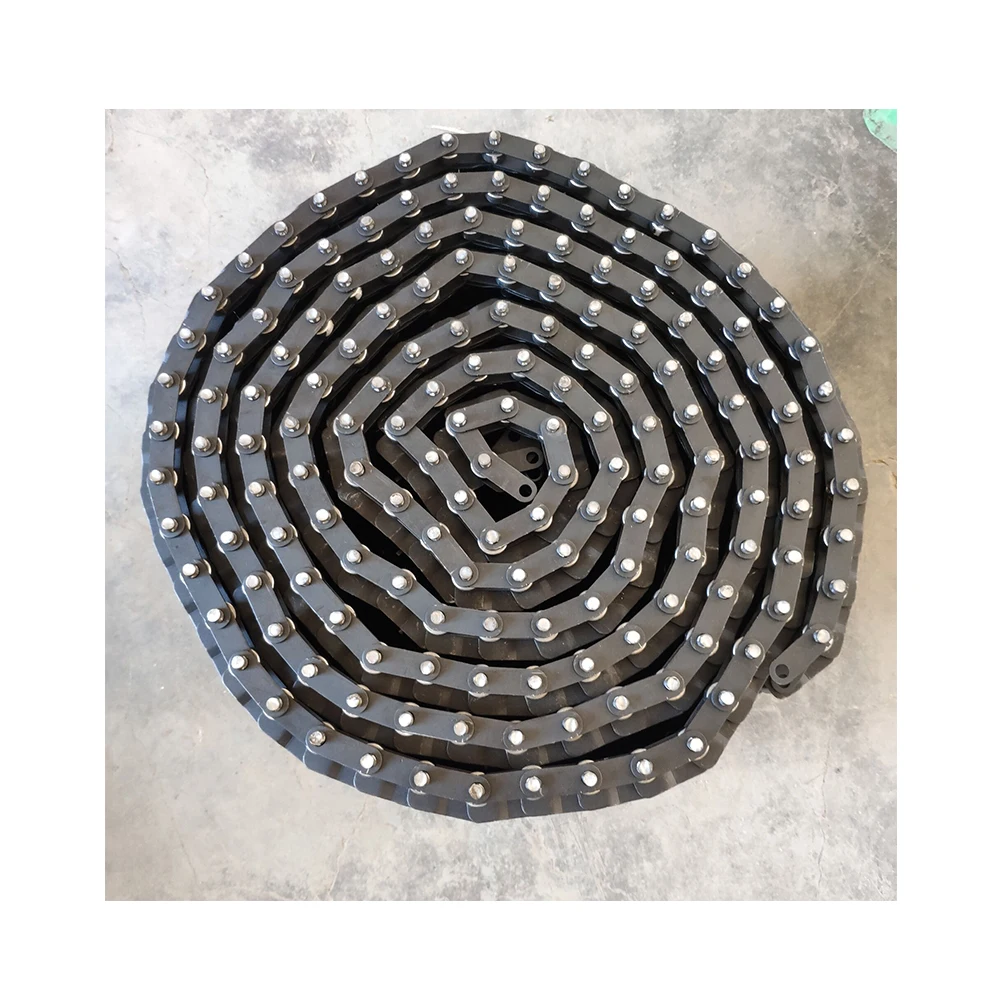

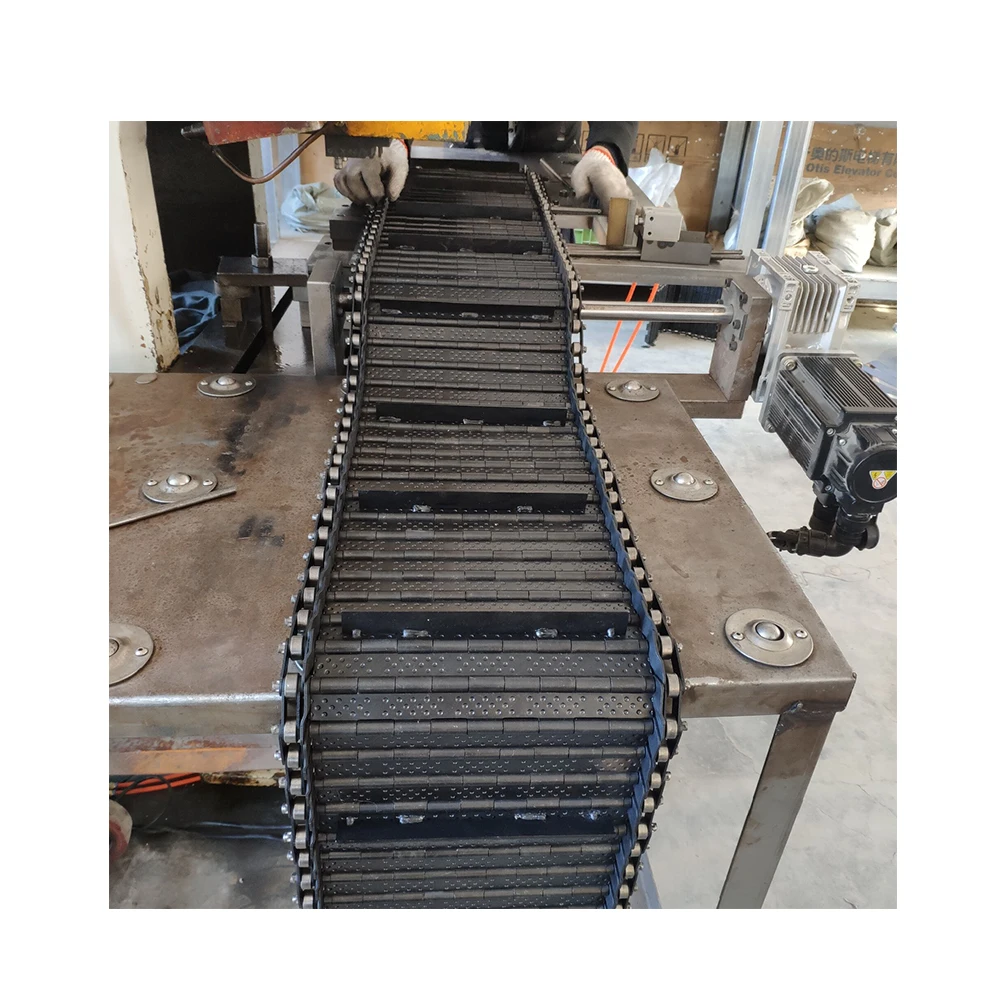

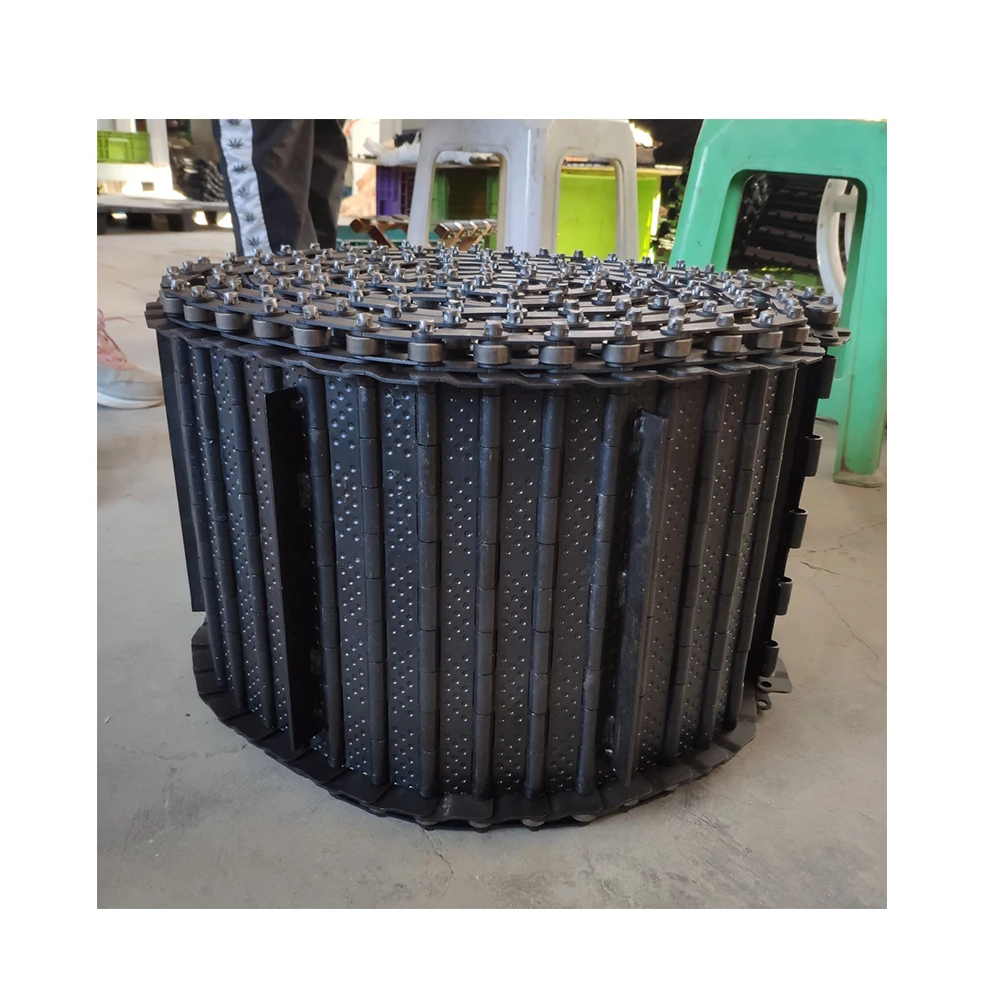

Hinged Belt Chip Conveyor Hinged Conveyor Chain Belt
- Category: >>>
- Supplier: Cangzhou Jinao Trading Co. Ltd.
Share on (1600829334164):
Product Overview
Description
Product Description
Chip Conveyor Belt
Widely used in various types of machining centers and flexible production lines and other highly automated machine tools, can be used as stamping, cold pier machine tool small parts conveyor.
It is also the main chip removal function component of the combined machine coolant processing system. It plays the role of improving the operating environment, reducing labor intensity, and increasing the degree of automation of the whole machine.
Pitch Specifications
31.75mm pitch steel conveyor belt (chip conveyor chain plate) single row ultimate tensile load 22KN, suitable for small machinery or short distance transportation.
The single-row ultimate tensile load of 32KN (38.1mm) chip conveyor chain (steel conveyor belt) is suitable for short-distance transportation.
50.8mm pitch steel conveyor belt single row ultimate tensile load 58KN, high mechanical strength, suitable for large and medium-sized machinery and long-distance transmission.
101.6mm pitch steel conveyor belt single row ultimate tensile load 226.8KN, high mechanical strength, suitable for large and medium-sized machinery and long-distance transmission.
Size Information
Number | Chain pitch | Chain width | Scrap length | Scrap height | Chain center distance | Inner section width | Baffle height | Roller diameter | Through shaft diameter |
1 | 31.75 | 100.150.200.250.300.350.400 | Width-50 | 30 | Width+18 | 9.45 | 19 | 19.05 | 5 |
2 | 38.1 | 100.150.200.250.300.350.400.450.500 | Width+23 | 12.57 | 20 | 22.23 | 8 | ||
3 | 50.8 | 150.200.250.300.350.400.450.500.550.600 | Width+29 | 15.75 | 25 | 28.58 | 10 | ||
4 | 63.5 | 200.250.300.350.400.450.500.550.600.700.800 | Width+35 | 18.90 | 35 | 39.67 | 12 | ||
5 | 100 | 200.250.300.350.400.450.500.550.600.700.800.900.1000 | Width+50 | 31.75 | 50 | 57.15 | 14 |
