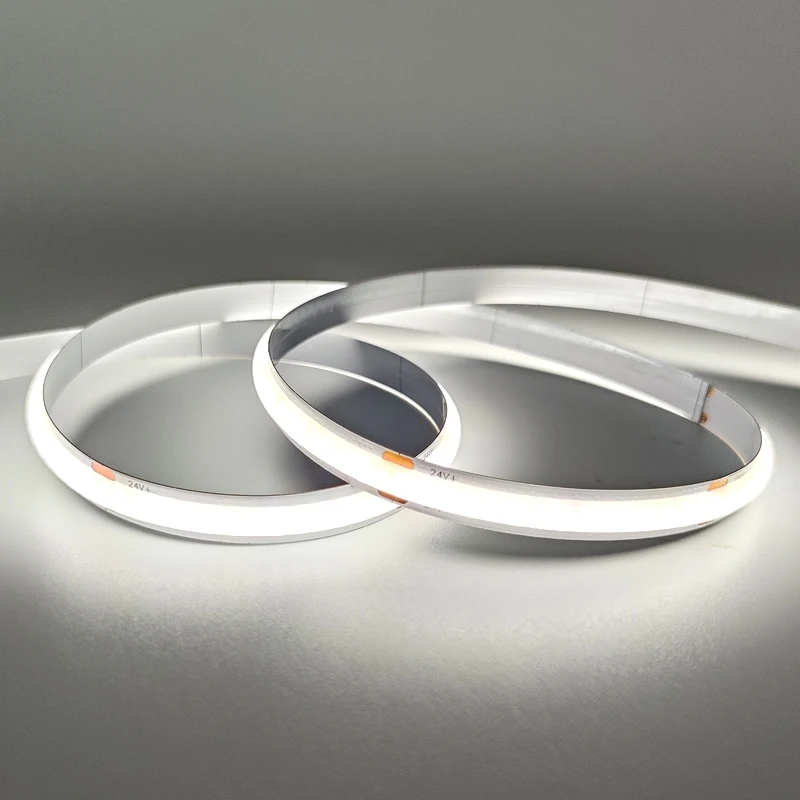

New Generation COB LED Strip

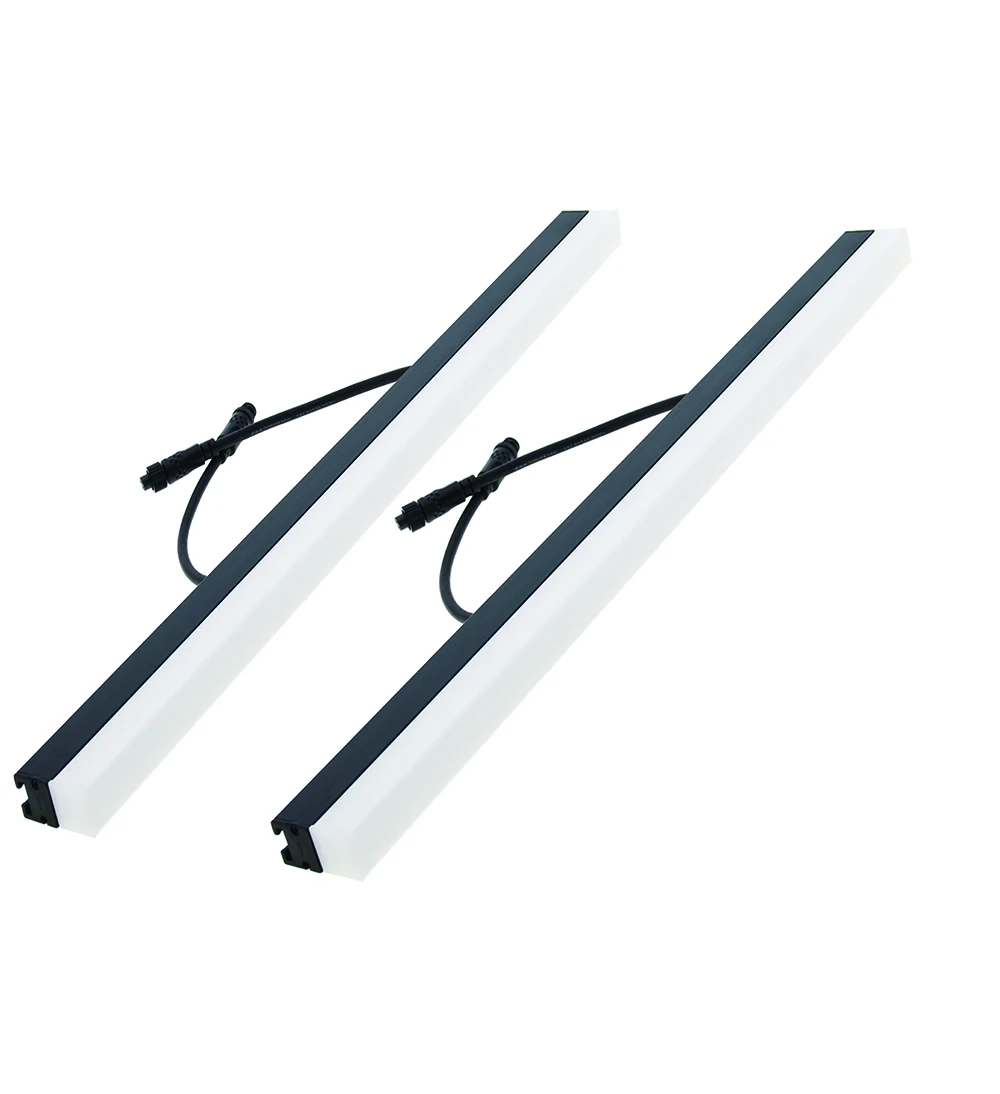

LED Pixel Bar
Neon LED Strip
Product Description

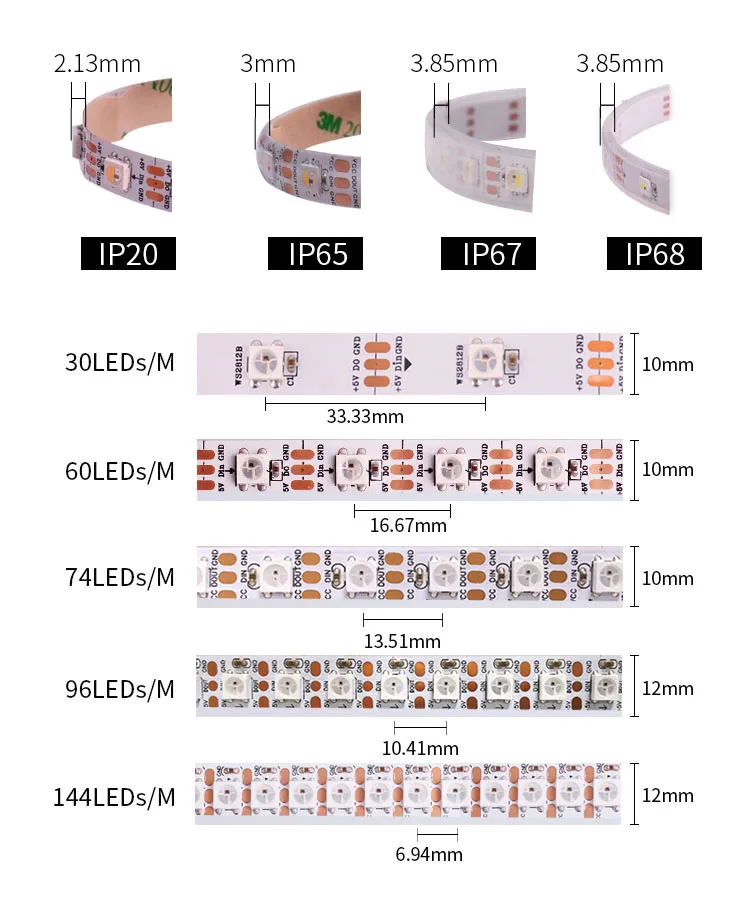

Parameters: | ||||||||||||||||

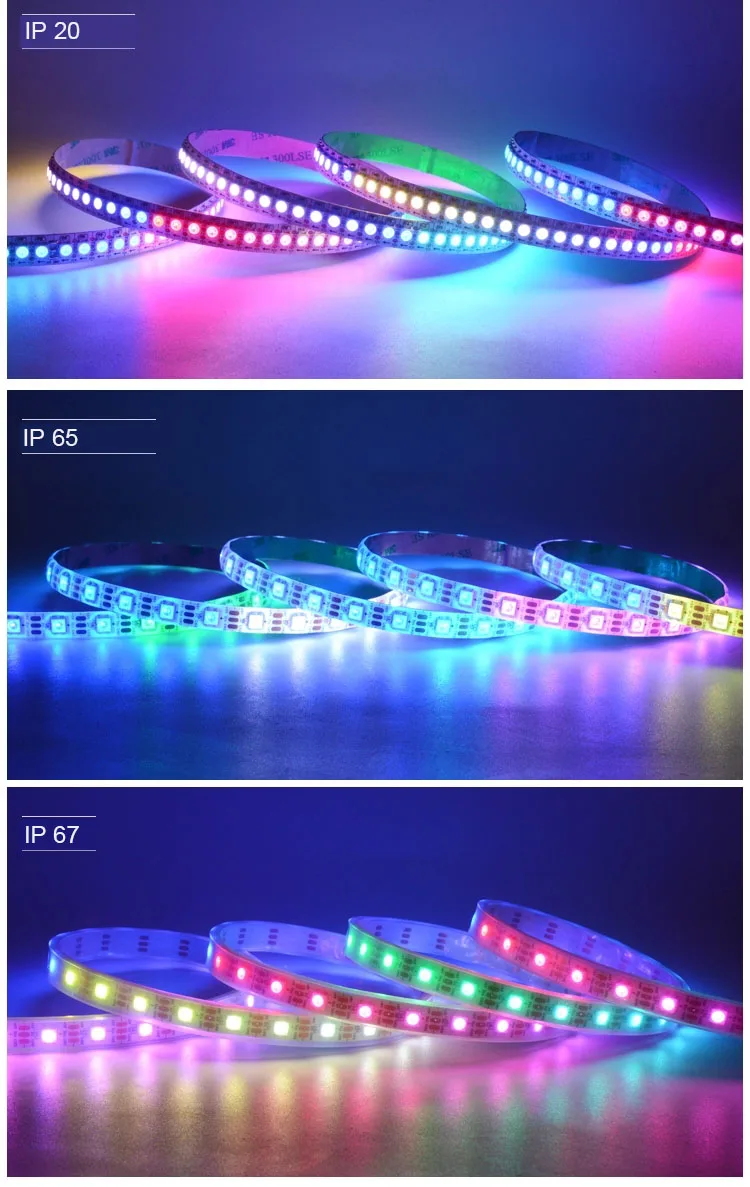

ITEM.OPERATING VOLTAGE | ITEM.OPERATING VOLTAGE | LED TYPE COLOR | LED QTY | MAX POWER | GRAY GRADE | PIXELS | IP | MIN. CUT / MM | ||||||||
30 LEDs / m 5V | A2821 | 5050 SMD RGB | 30 | 30 | 9W/M | 256 | IP20 | 33.33mm | ||||||||
60 LEDs / m 5V | A2818 | 5050 SMD RGB | 60 | 60 | 18W/M | 256 | IP20 | 16.67mm | ||||||||
72 LEDs / m 5V | A2815 | 5050 SMD RGB | 72 | 72 | 21.6W/M | 256 | IP20 | 13.5mm | ||||||||

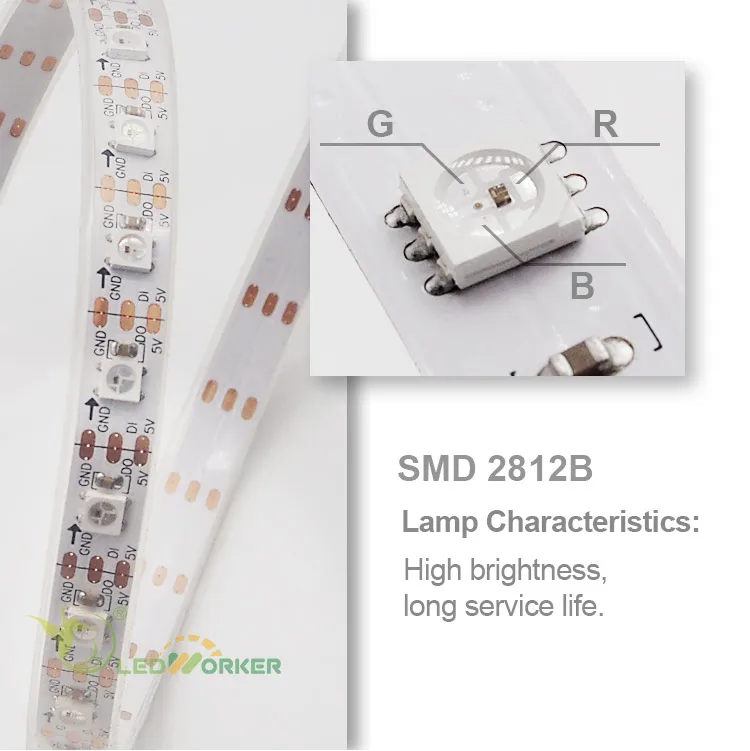

144 LEDs / m 5V | A2812 | 5050 SMD RGB | 144 | 144 | 42W/M | 256 | IP20 | 6.9mm | ||||||||
Notice:
Please use DC5V only;

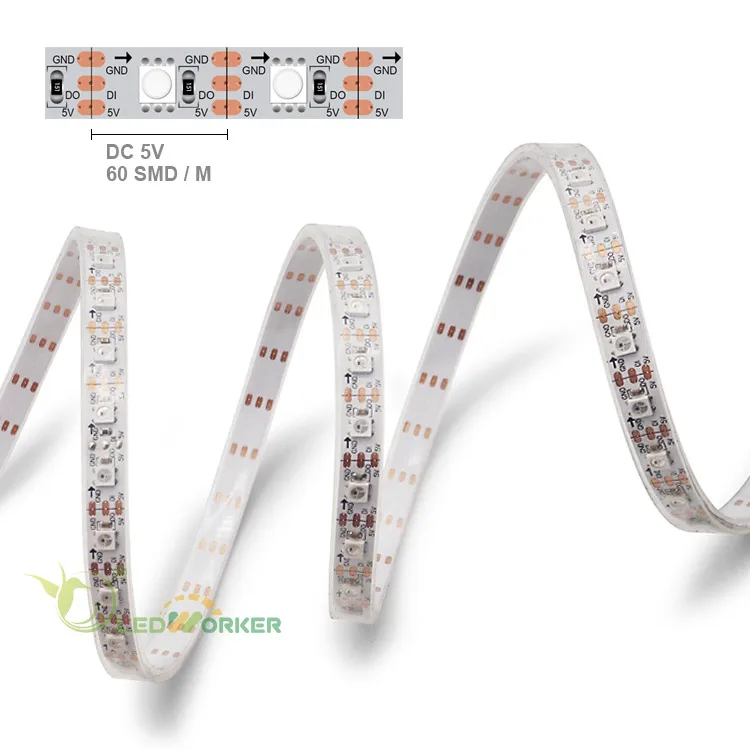

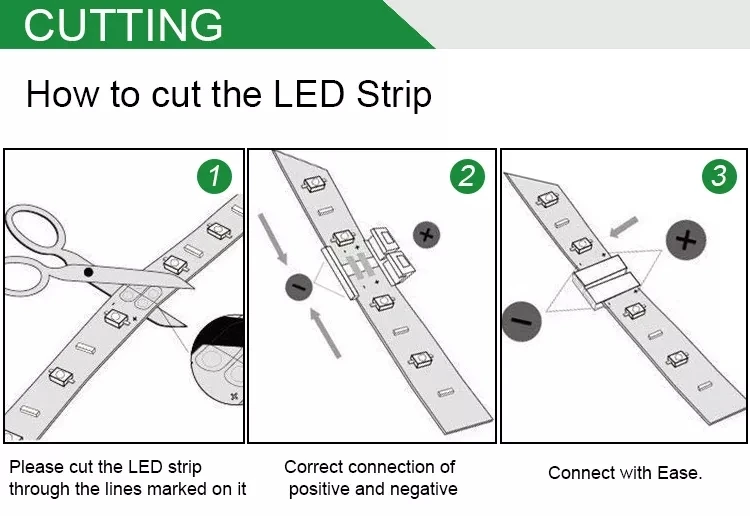

There are direction arrows on the PCB, arrow direction for connecting next reel strip;
GND not only for power wire, also as signal wire, need connect to both power and controller;
The Max distance between strips is 5m-10m, need use amplifier when more than 10m;
Every 5m strip need re-connect to power supplier, avoiding voltage drop;
Keep the surface of installation place clear and smooth, avoiding the strip fall off.
DO NOT press the LED;
DO NOT attempt to make sharp bend with the strip;
DO NOT install where water or high humidity may be present without further protection;
Away from strong acid or strong alkali.

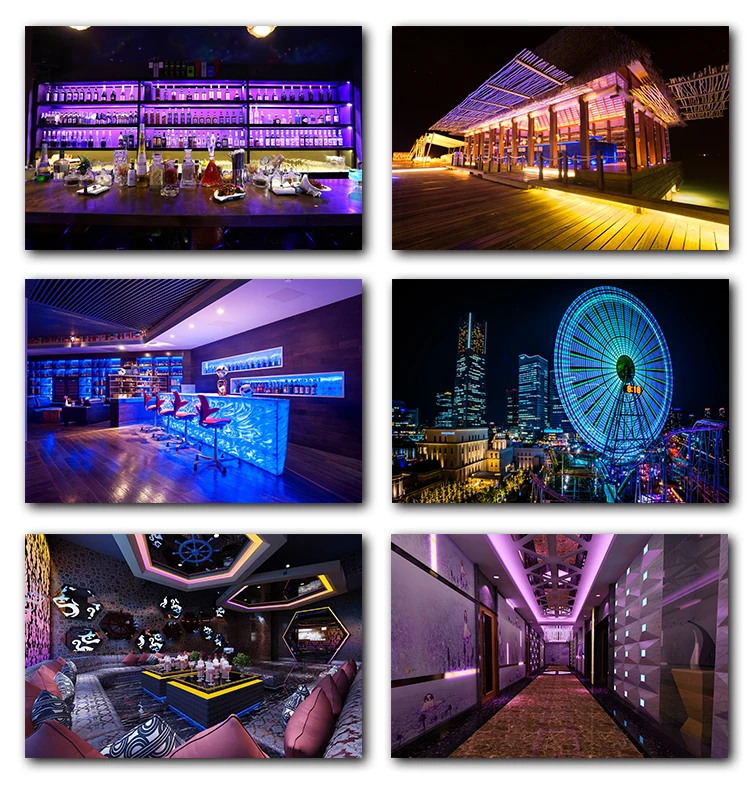

Application
