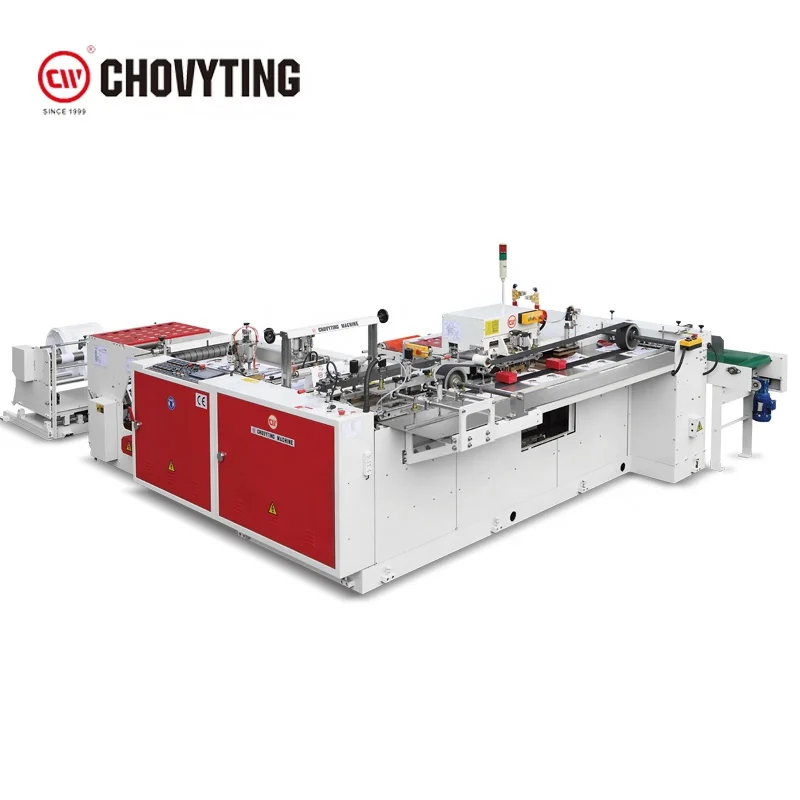

CW 500ZD LDPE Bottom Sealing Loop handle shopping Bag forming Machine for carry plastic bag
- Category: >>>
- Supplier: Zhejiang Chovyting Machinery Co. Ltd.
Share on (1600829347295):
Product Overview
Description
Product Description
CW-500ZD Bottom Sealing Loop handle Bag Making Machine bag forming machine in Vietnam
Brief introduction:
CW-500ZD fully automatic bottom seal soft loop handle bag making machine, is using for making HDPE/LDPE clothes bag, shoe bag,advertisement bag etc. It is our new product which is coupled with machinery, light, electronic and pneumatic.
This machine is fully automatic from bag making to soft loop seal, represent the high level of the chinese bag making machine market.
This machine with new design, reasonable structure, the most useful, bag making is controlled at the inner side of the machine, confirm the safe operation. CW-500ZD adopt PLC control, easy operation, convenient adjustment. Meanwhile.
CW-500ZD fully automatic bottom seal soft loop handle bag making machine, is using for making HDPE/LDPE clothes bag, shoe bag,advertisement bag etc. It is our new product which is coupled with machinery, light, electronic and pneumatic.
This machine is fully automatic from bag making to soft loop seal, represent the high level of the chinese bag making machine market.
This machine with new design, reasonable structure, the most useful, bag making is controlled at the inner side of the machine, confirm the safe operation. CW-500ZD adopt PLC control, easy operation, convenient adjustment. Meanwhile.
CW-500ZD have many advantages, such as high precision sealing orientation, steady feeding, automatic counter, alarm, and if you want to make punch handle bag you can plus the puncher.
Feature:
1 V-type sealing for both sides of bag, which makes the bag look good
2 Soft handle turning driving is based on the design of mechanic principal
3 The auto conveyor table will deliver the finished bags while it is counted
4 EPC automatic control for unwinding
Optional devices:
1 Tube film double side gusset unit
2 Punching unit for handle
Feature:
1 V-type sealing for both sides of bag, which makes the bag look good
2 Soft handle turning driving is based on the design of mechanic principal
3 The auto conveyor table will deliver the finished bags while it is counted
4 EPC automatic control for unwinding
Optional devices:
1 Tube film double side gusset unit
2 Punching unit for handle

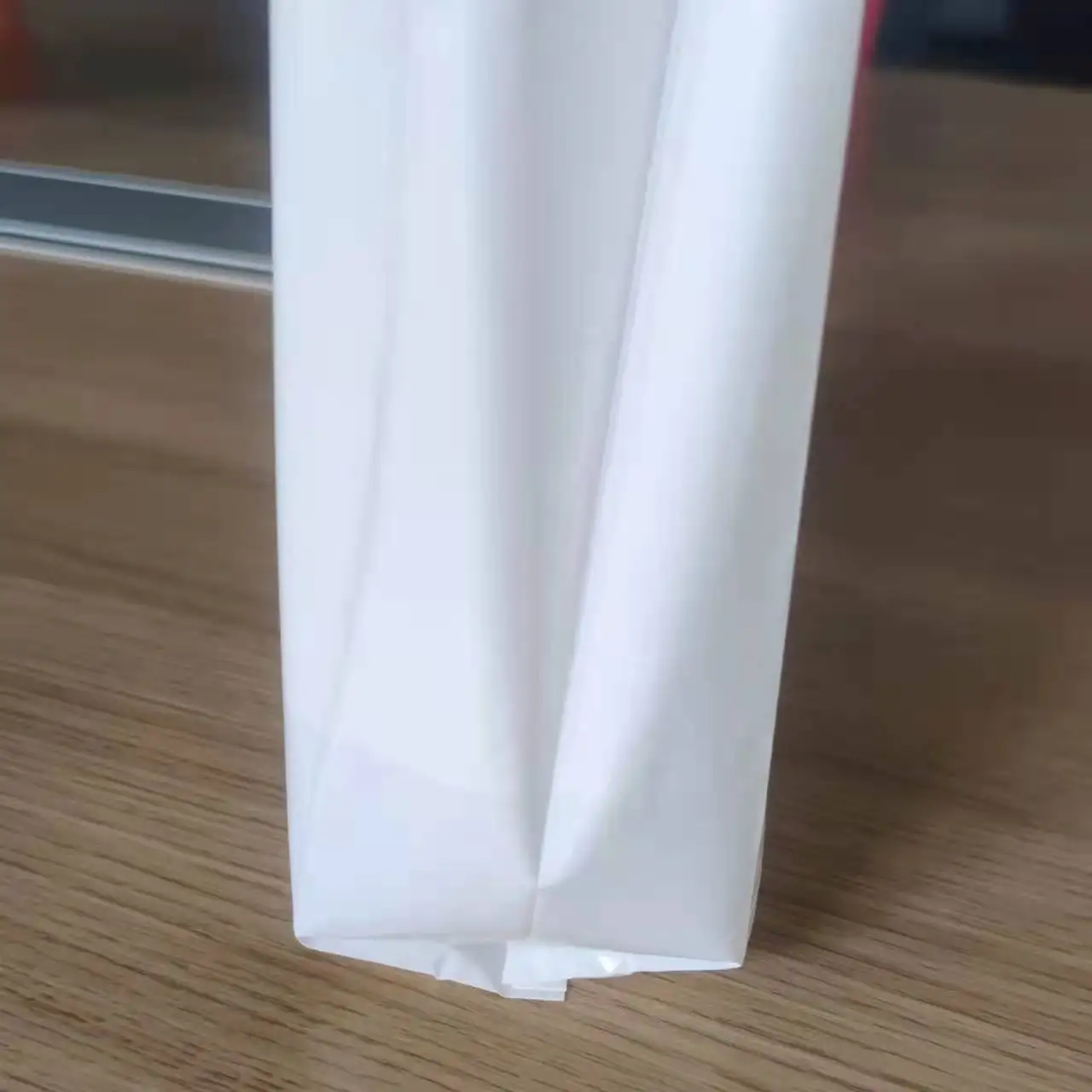

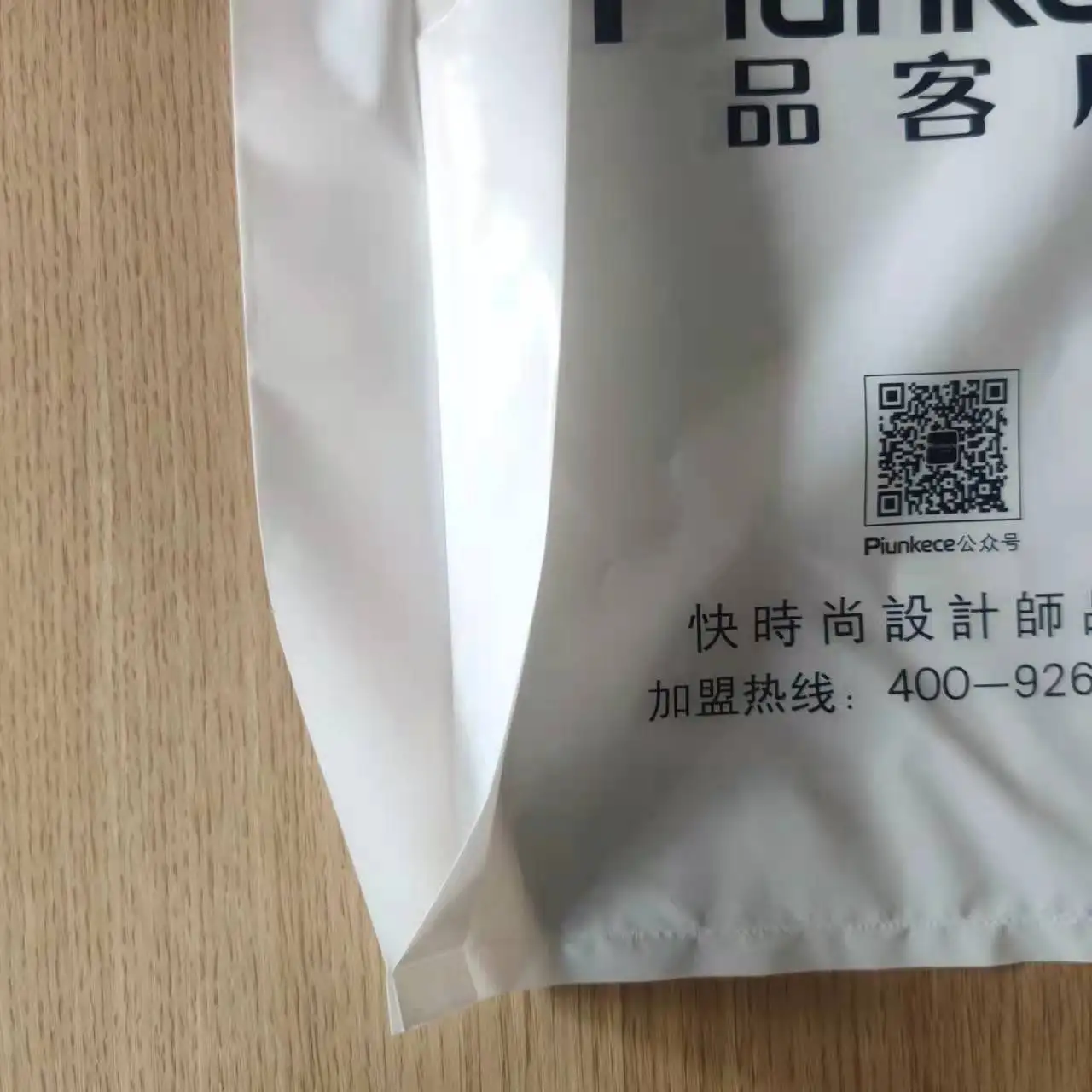

Bag Samples

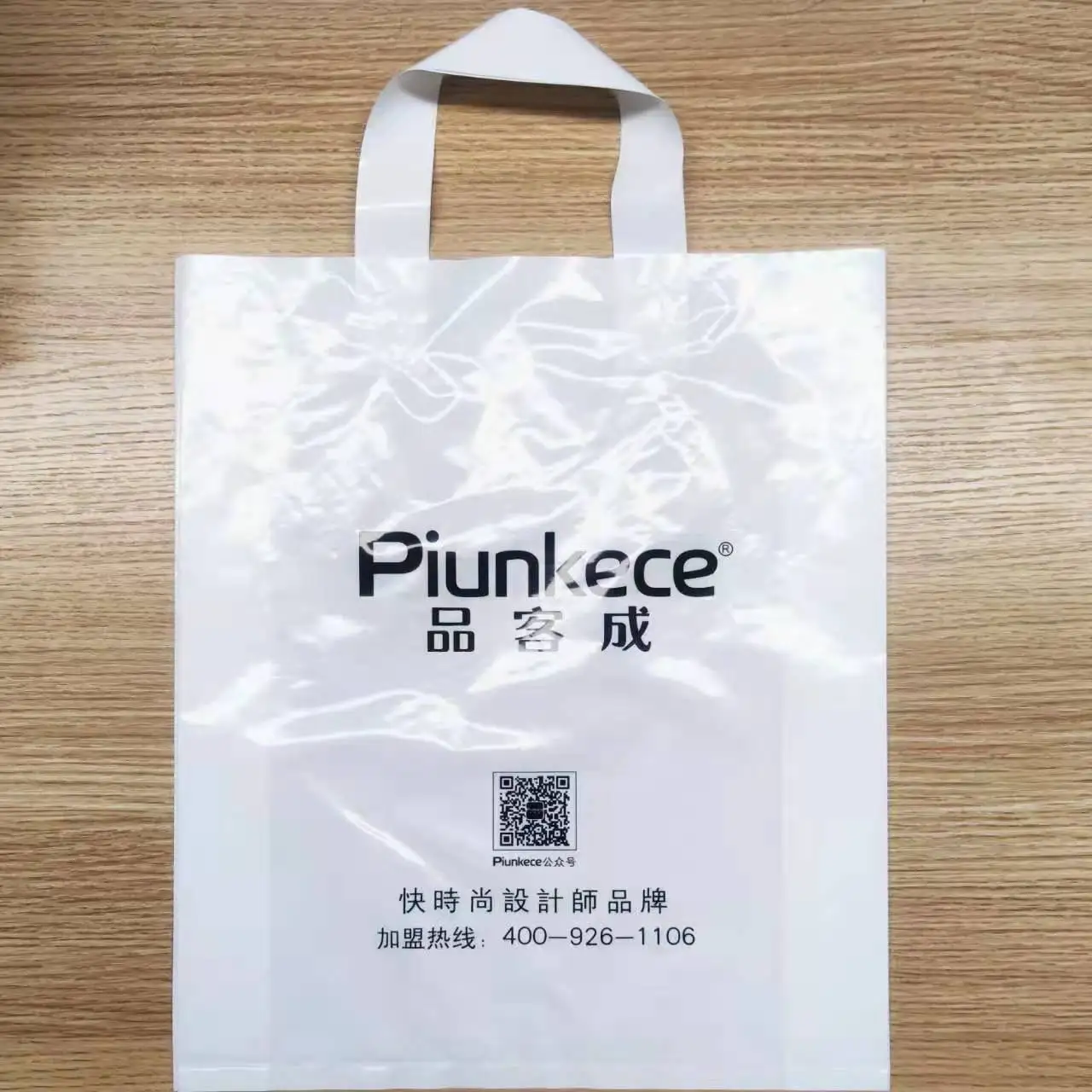

bottom seal loop handle bag with gusset
Manufacturing Technique
Bag making width | 200-480mm |
Bag making Length | 250-600mm |
Bag making speed | 50pcs/min |
Size of the handle film | 0.2x30x360mm |
Total Power | 8.5kw |
Machine weight | 2500KG |
Details Images

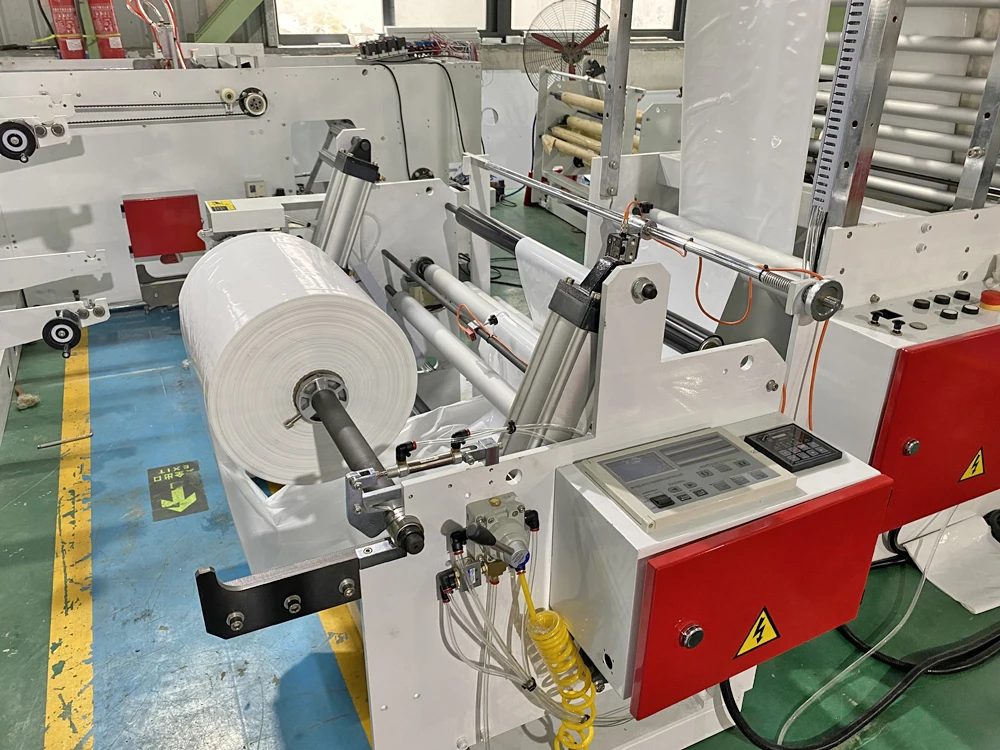

Unwinder
1 Jumbo roll automatic lifting device with air cylinder
2 Plug feeding shaft and air shaft
3 Automatic tension control
4 Single photocell control EPC
2 Plug feeding shaft and air shaft
3 Automatic tension control
4 Single photocell control EPC

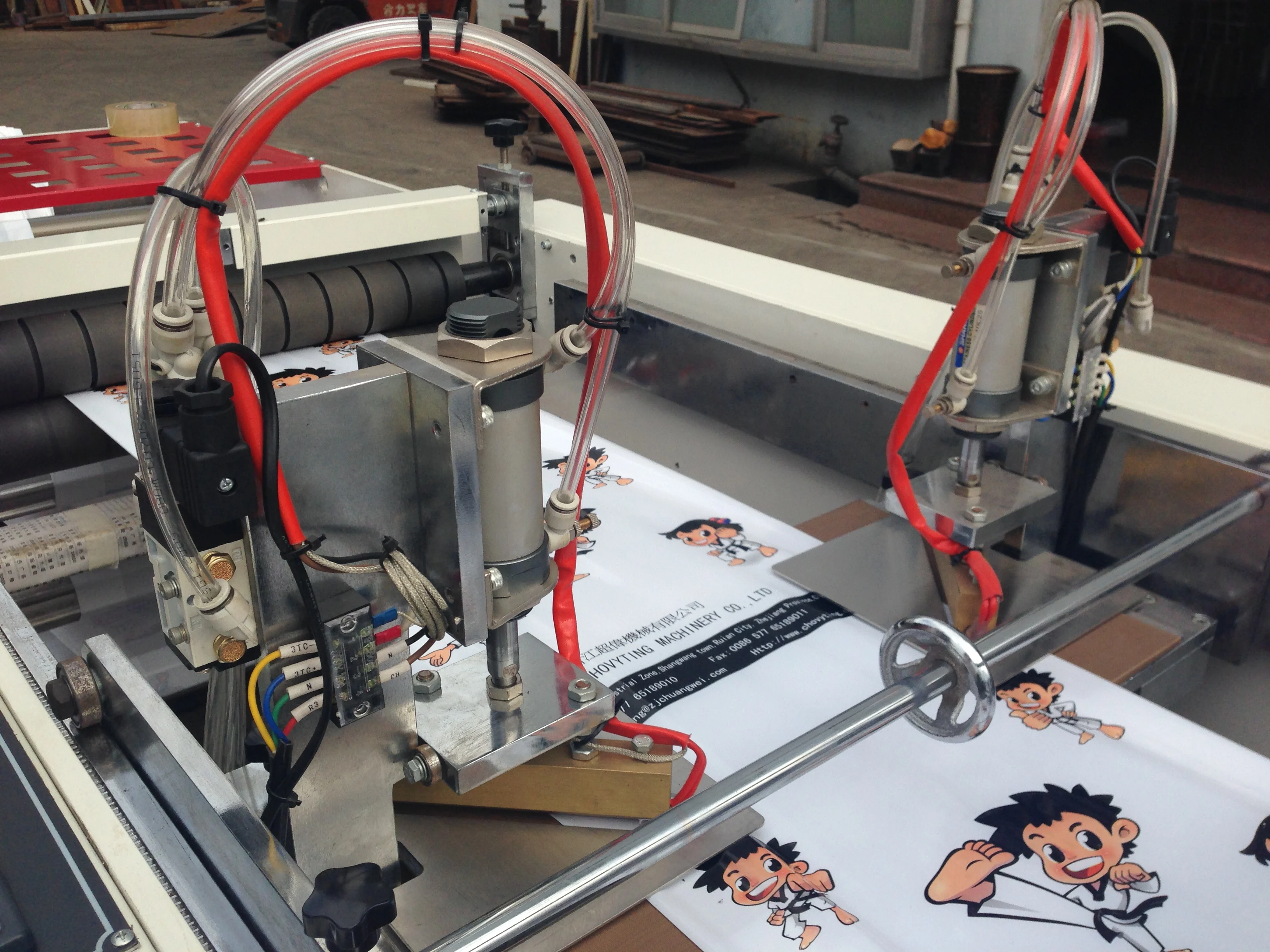

V type sealing device (K sealing device)
1 Pneumatic control up-down V type sealer
2 Multi-position distance adjust
3 High temperature cloth is rewinded fast.
4 Special flower cutter mould sealing
2 Multi-position distance adjust
3 High temperature cloth is rewinded fast.
4 Special flower cutter mould sealing
Photocell sensor device
1 Vertical, horizontal moving independence
2 Zero malfunction photocell use Sick from Germany
3 Rotary-photocell reflected roller
4 Three-side location by photocell, servo motor, PLC
2 Zero malfunction photocell use Sick from Germany
3 Rotary-photocell reflected roller
4 Three-side location by photocell, servo motor, PLC
soft Loop handle sealing applicator
1 Double layer unwinding bracket
3 Special ramp pulling over-turn soft loop handle
4 Semi-motor drives the soft loop handle device forward or backward.
3 Special ramp pulling over-turn soft loop handle
4 Semi-motor drives the soft loop handle device forward or backward.

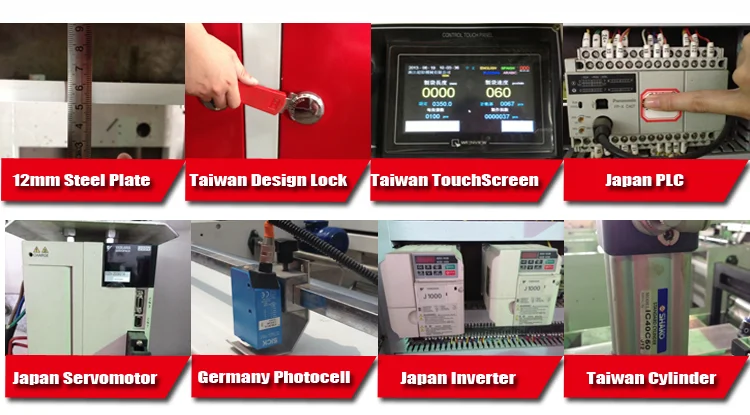

Main Part
Packing & Loading
Certifications

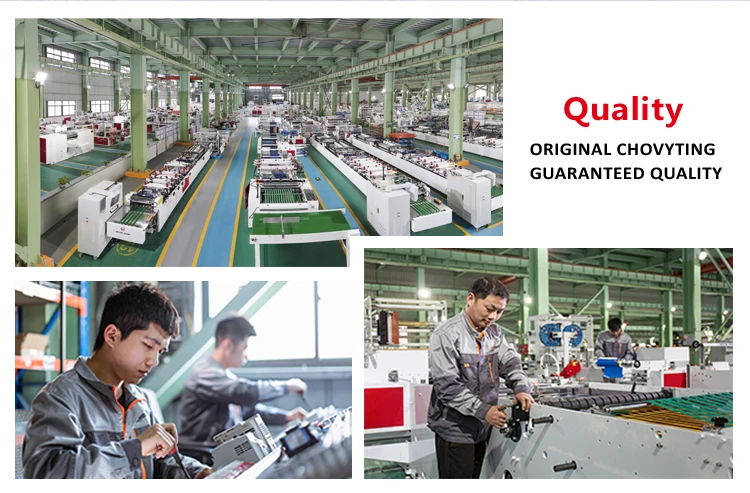

About Us

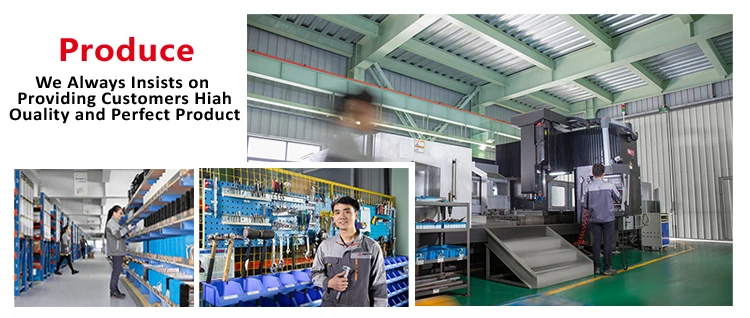

CHOVYTING Machinery is a manufacturer specialized in the design and production of plastic bag machinery. it has adopted modern management methods such as 6S site management, PMC production management and international standard QC management, and adopted 3D mechanical design and IEC standard electrical 3D design to standardize production operations, so that to receive a higher rating from customer after use.
CHOVYTING always insists on providing customers with high quality and perfect products. Therefore, the actual process of each production step is strictly controlled, and the ISO-9000 quality system process is used to track and control and have passed the EU CE safety regulations.
CHOVYTING has more than 120 employees, 8 person for research and development, 9 person for sale, and 10 technical person for after sales that includes 5 person work in overseas all year round.

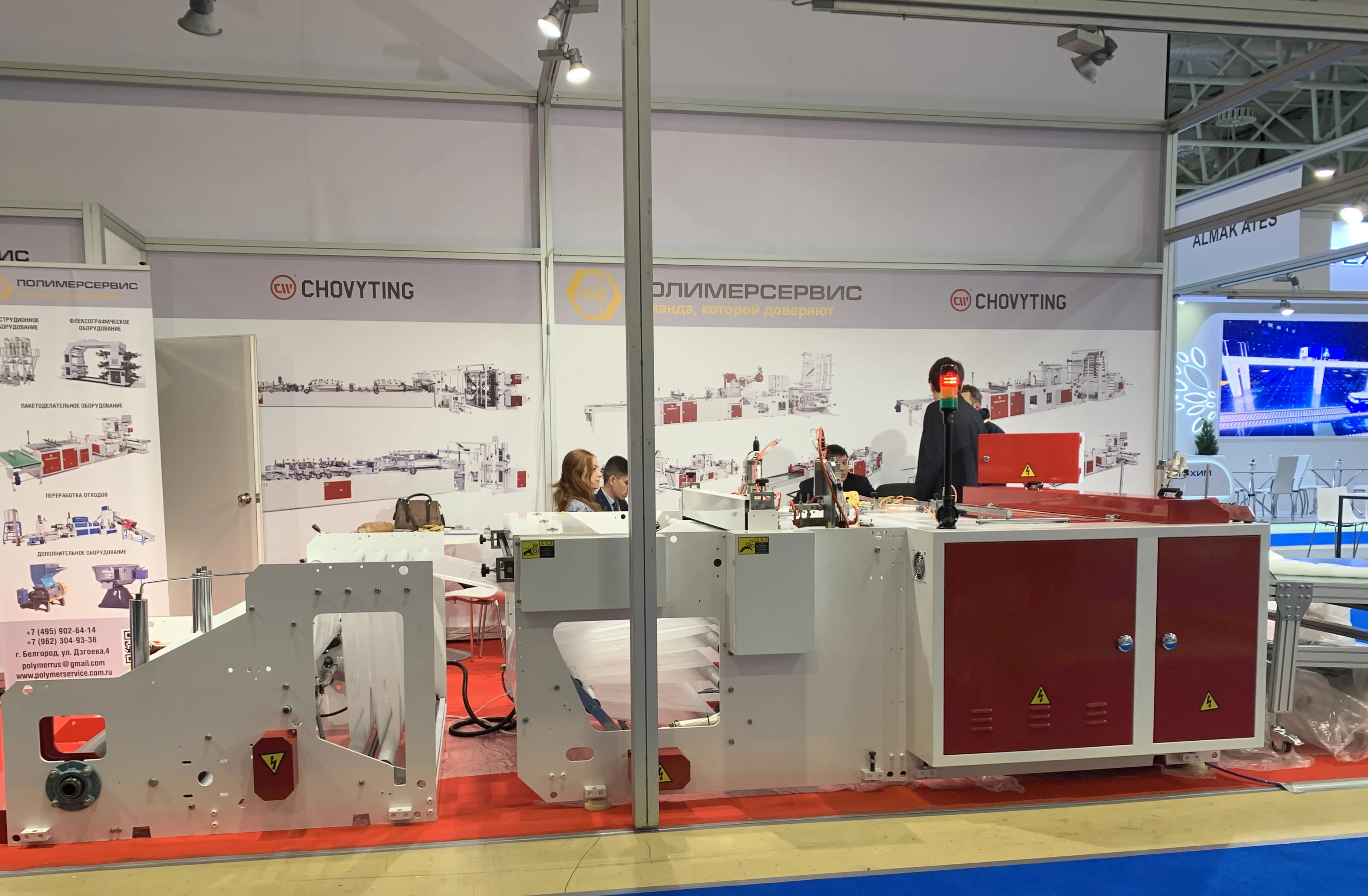

EXHIBITIONS
FAQ
1) Is your company a factory or a trading company?
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What certificate of machine do you have?
CE, ISO 2008, more than 50 pieces Patent of machine
7) What about the development of your company?
Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well.
8) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT,
UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
9) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
10) How many workers of your company?
More than 150 workers.
We are a factory.
2) Where is your factory? How can i visit your company?
Our factory is located in Ruian, Zhejiang Province, China. It takes about 40 minutes from Shanghai to take the plane(5 hours for train). All our clients from home and abroad are warmly welcomed to visit us.
3) What is the suitable material for your machines?
PE, OPP, laminated material ,etc are suitable for our machines
4) What kind of machine do you have ?
We are specializing in manufacturing various of plastic bag making machine, laminated bag making machine, slitter, film blowing machine, etc...
5) How many years of your factory?
Our company is established since 1999.
6) What certificate of machine do you have?
CE, ISO 2008, more than 50 pieces Patent of machine
7) What about the development of your company?
Titled as “National Key and New Products” and Pass identification of the provincial new product, honored as” Patent Model Enterprise” as well.
8) How many exhibition do you take part in?
We start to took part in CHINAPLAS from 2008-2019,BANGLADESH, INSTANBUL, MOROCCO, MEXICO, EGYPT,
UZBEKIKSTAN, DUBAI E,THAILAND, INDIA EXBIHITION, K SHOW etc...
9) How many agent do your company have?
We have agents from Chile, Argentina, South Africa, Egypt, Israel, Lebanon, Syria etc...
10) How many workers of your company?
More than 150 workers.
