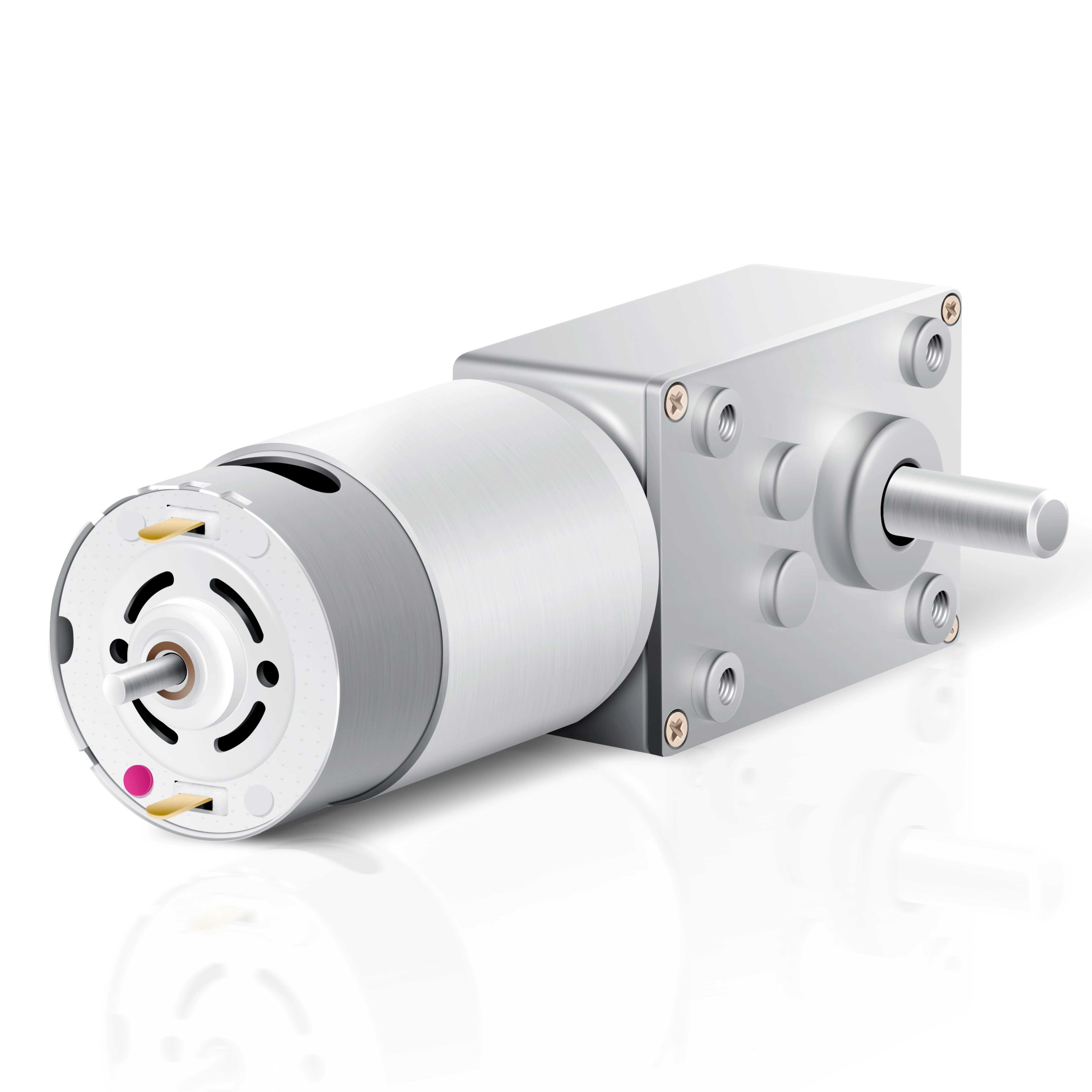

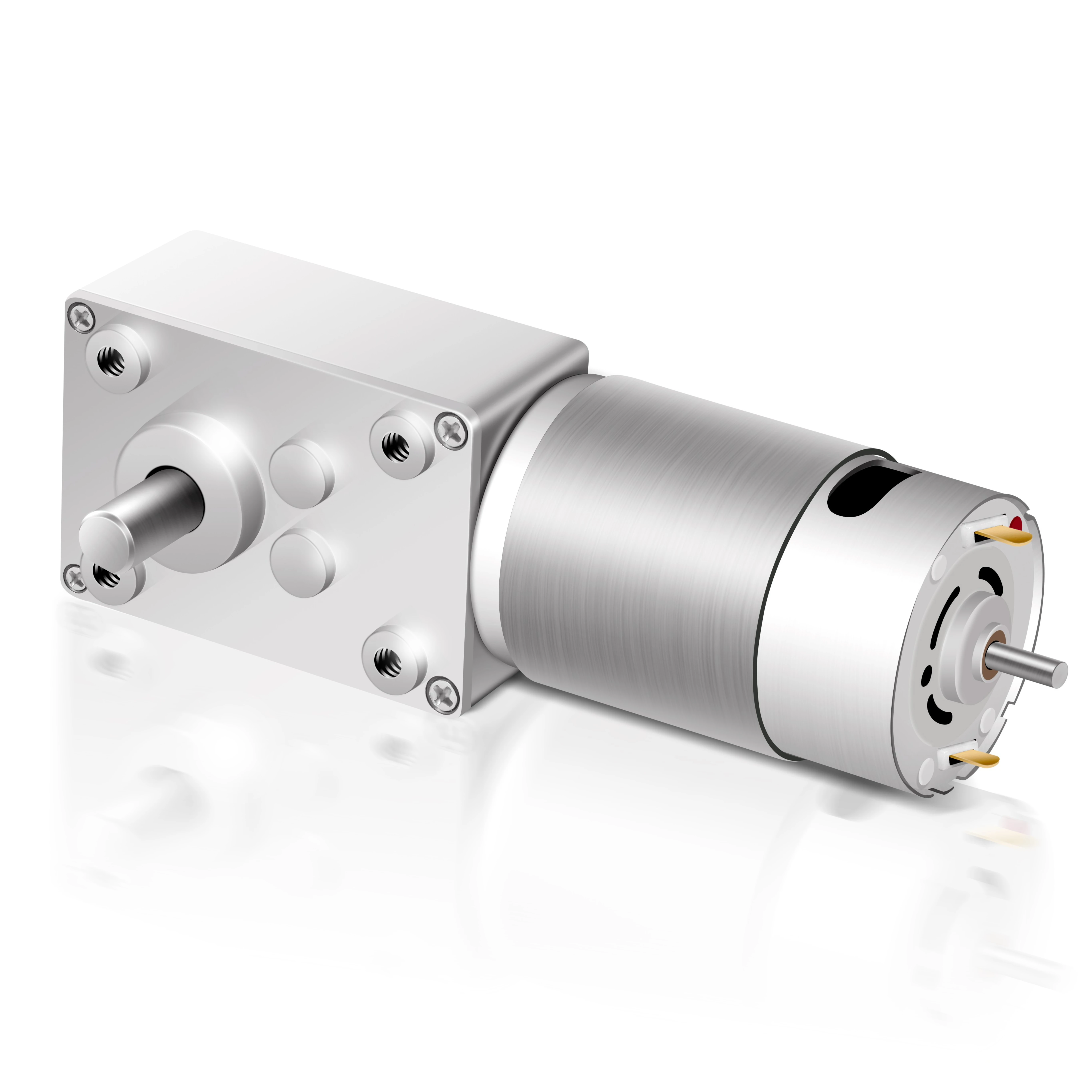

Shunli Custom Hotec Htwog58a1260 Worm Gear Motor Motor Reductor Worm n20 Worm Gear Box 12 Volt Dc Motor
- Category: >>>
- Supplier: Shenzhen Shunli Motor Co. Ltd.
Share on (1600829350389):
Product Overview
Description
Shunli Custom Hotec Htwog58a1260 Worm Gear Motor Motor Reductor Worm n20 Worm Gear Box 12 Volt Dc Motor
Promotion
Product Description
Product Details

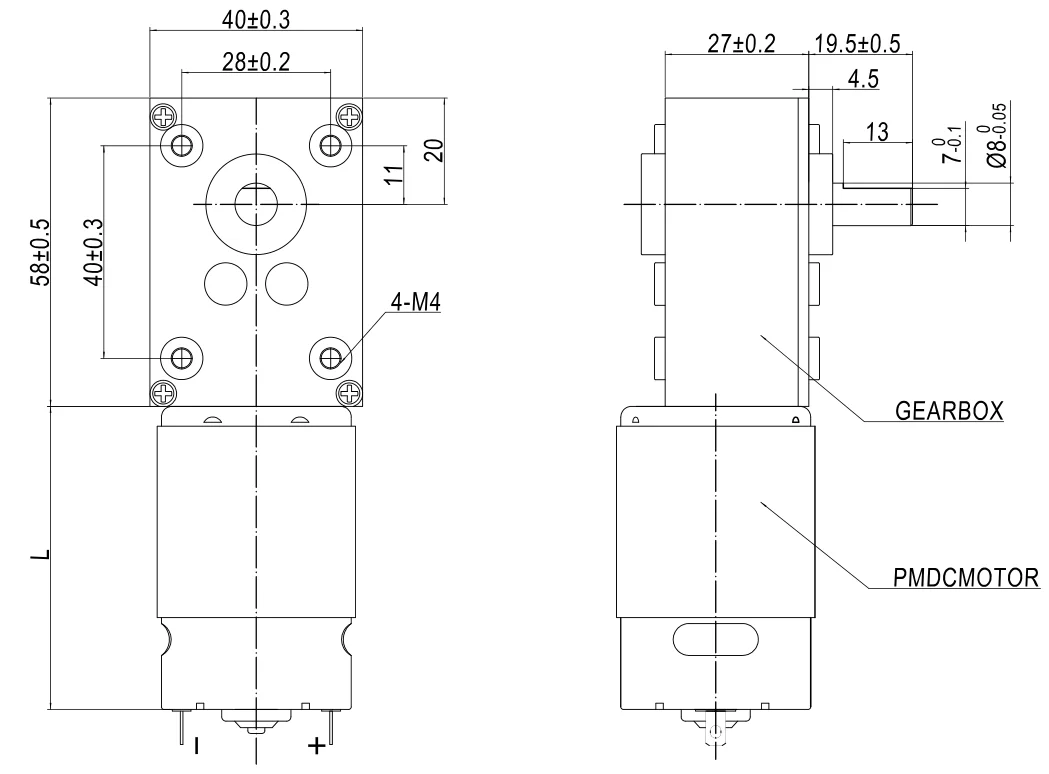

Specification

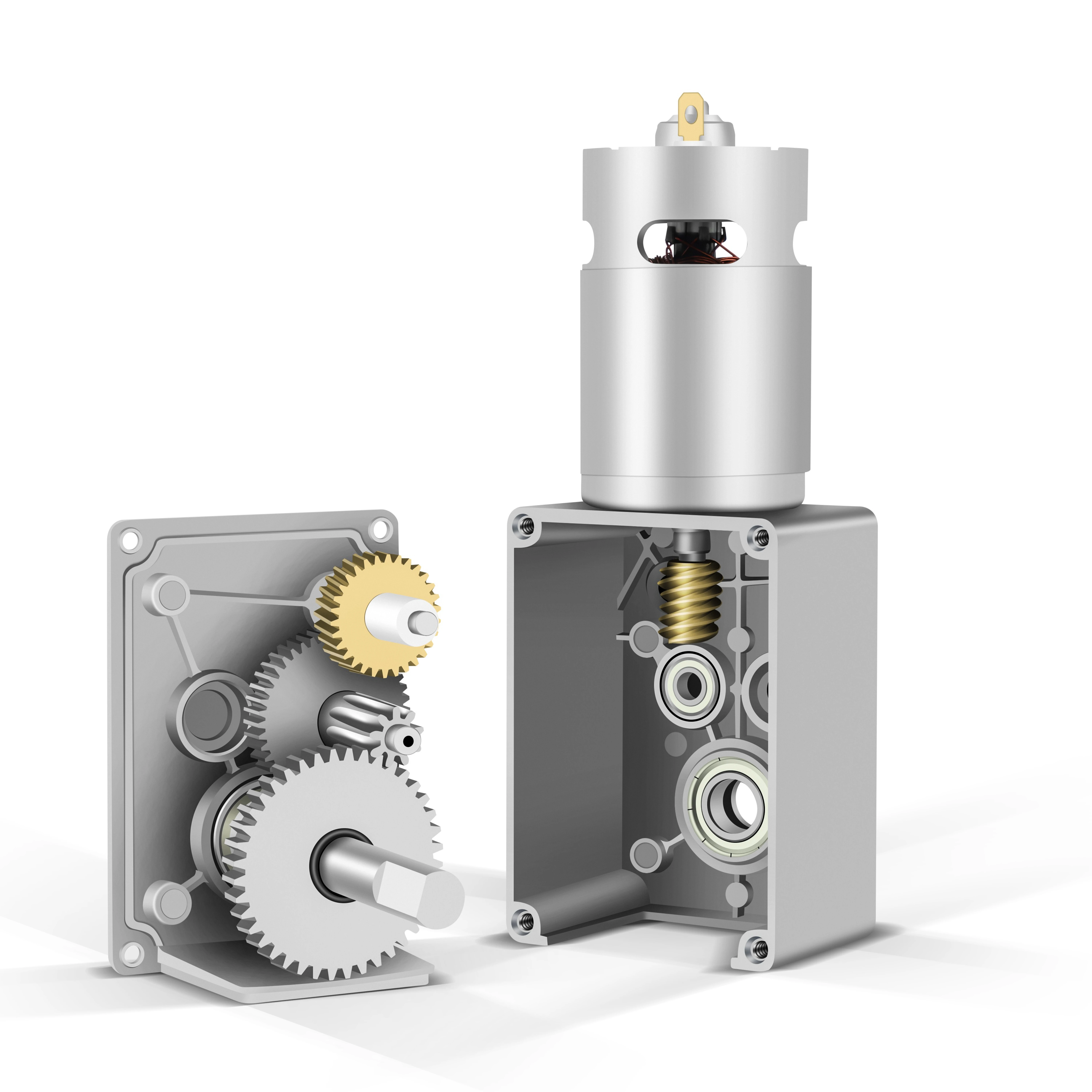

Gearbox Technical Date
| Ratio | 49K / 85K / 100K / 165K / 200K / 290K / 500K / 570K / 620K / 670K | |||||
| Max. Rated Torque | 30~40 Kgf.cm | |||||
| Max. Gear Breaked Torque | 60~80 Kgf.cm | |||||
| Gearbox Efficiency | 10%~40% | |||||
Gearmotor Technical Date
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GM58EM545-100K | 1 : 100 | 24 VDC | 100 | ≤ 500 | 92 | ≤ 100 | 0.65 / 6.5 | ≤ 280 | 2.5 / 25 |

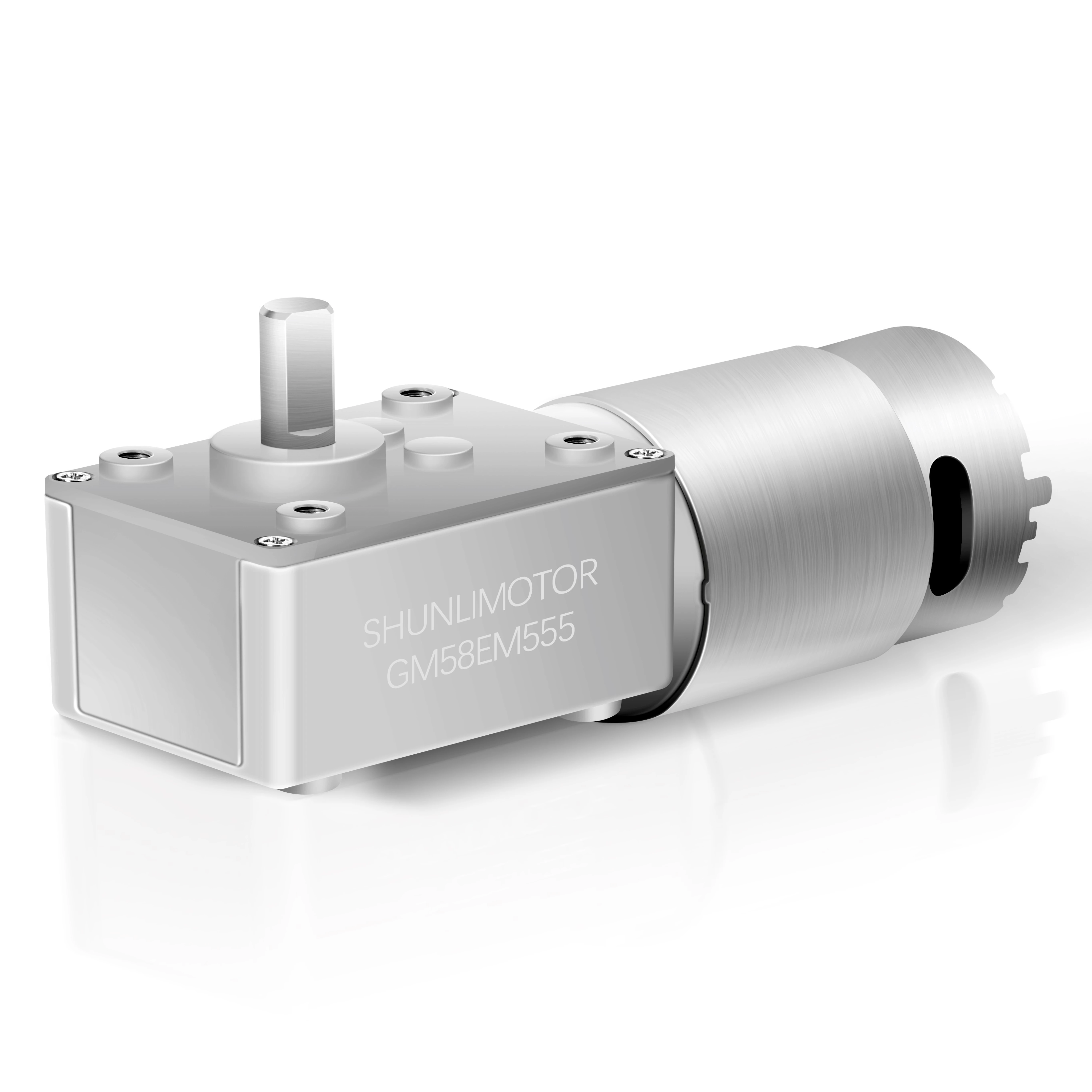

| GM58EM555-49K | 1 : 49 | 24 VDC | 190 | ≤ 120 | 165 | ≤ 1200 | 0.35 / 3.5 | ≤ 7500 | 1.85 / 18.5 |
PMDC MOTOR Technical Date
| PMDC MOTOR Model | Pmdc Motor Length “L”(mm) | Rated Voltage (V) | No-Load | Rated | Stall | |||||
| Speed | Current | Speed | Current | Torque | Current | Torque | ||||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | ||||
| SL-545 | 2410600 | 50 | 24 VDC | 10600 | ≤ 320 | 9300 | ≤ 2100 | 32 / 320 | ≤ 14500 | 250 / 2500 |
| SL-555 | 246000 | 57 | 24 VDC | 6800 | ≤ 150 | 6000 | ≤ 1100 | 28 / 280 | ≤ 8000 | 240 / 2400 |
| SL-575 | 129000 | 65 | 12 VDC | 3500 | ≤ 165 | 3050 | ≤ 1100 | 26.5 / 265 | ≤ 7200 | 210 / 2100 |
Application
