Mini Micro Cnc Handheld Fiber Laser Welder Cost Welding Pulsed Cleaning Cut Machine With Water Cooling System
- Category: >>>
- Supplier: Wuxi Cylion CNC Equipment Co. LTD
Share on (1600829362017):
Product Overview
Description

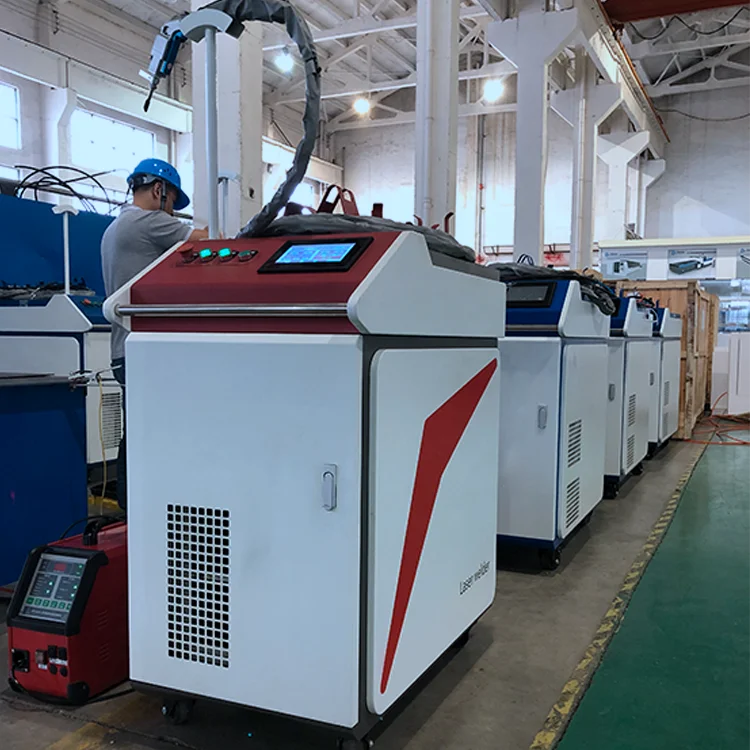

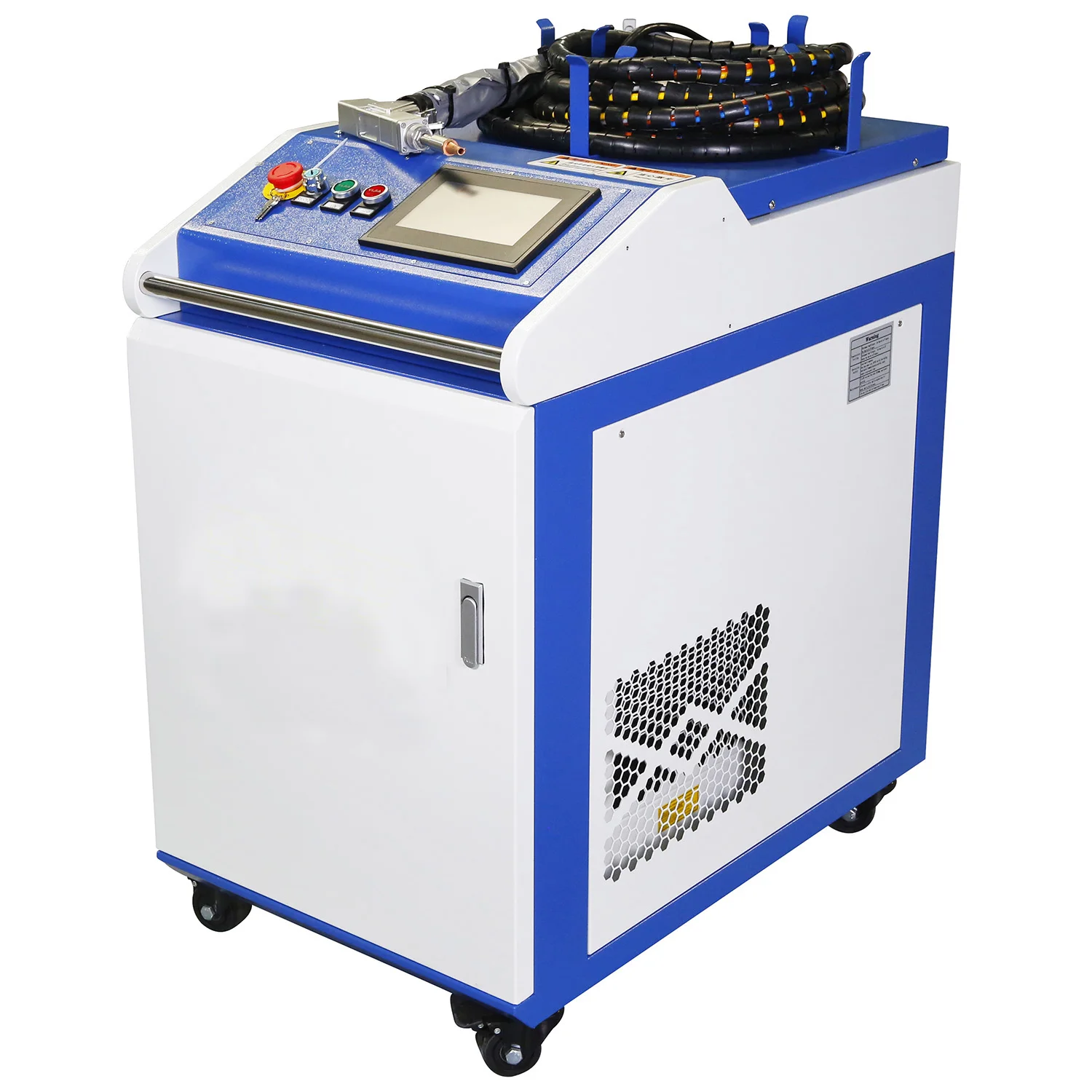

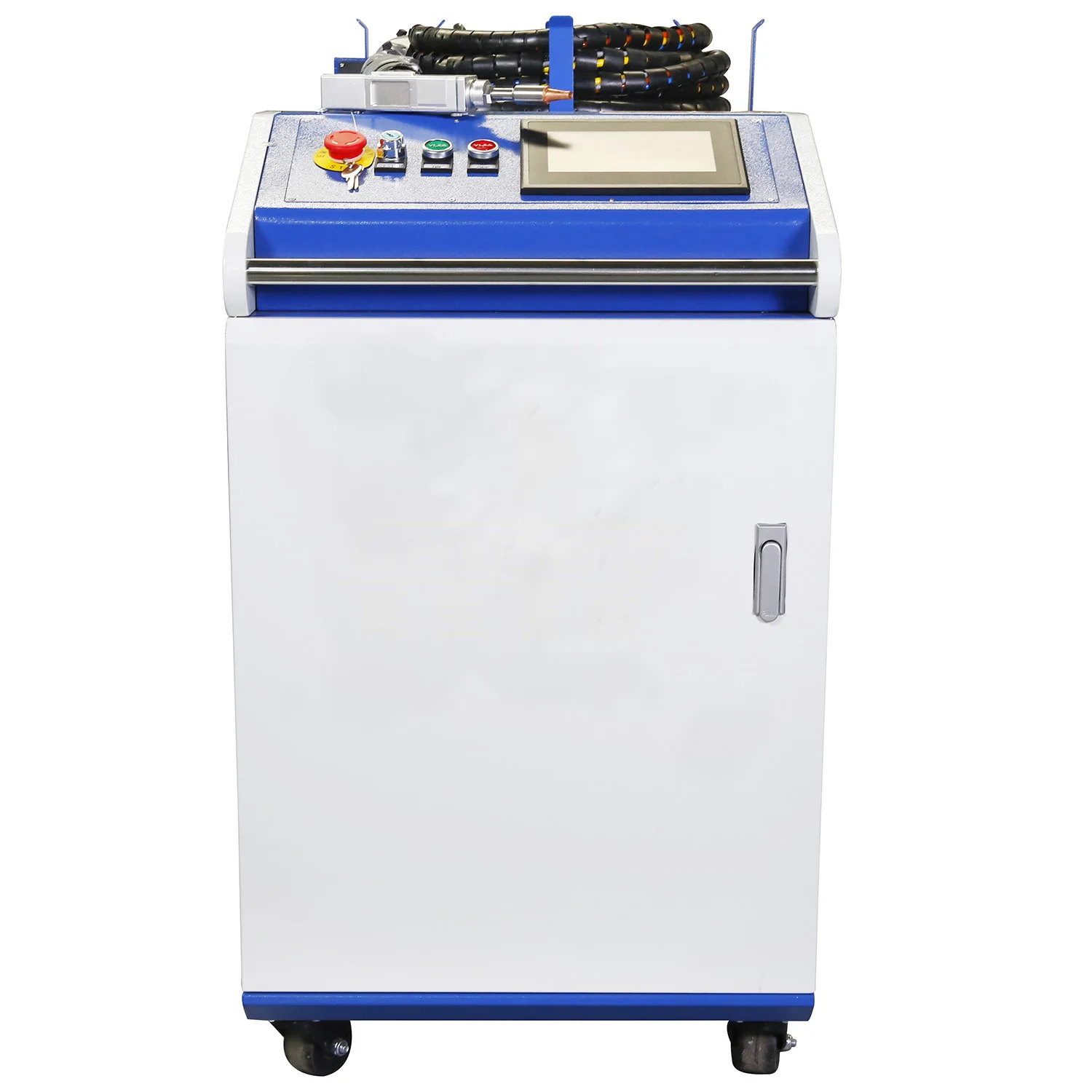

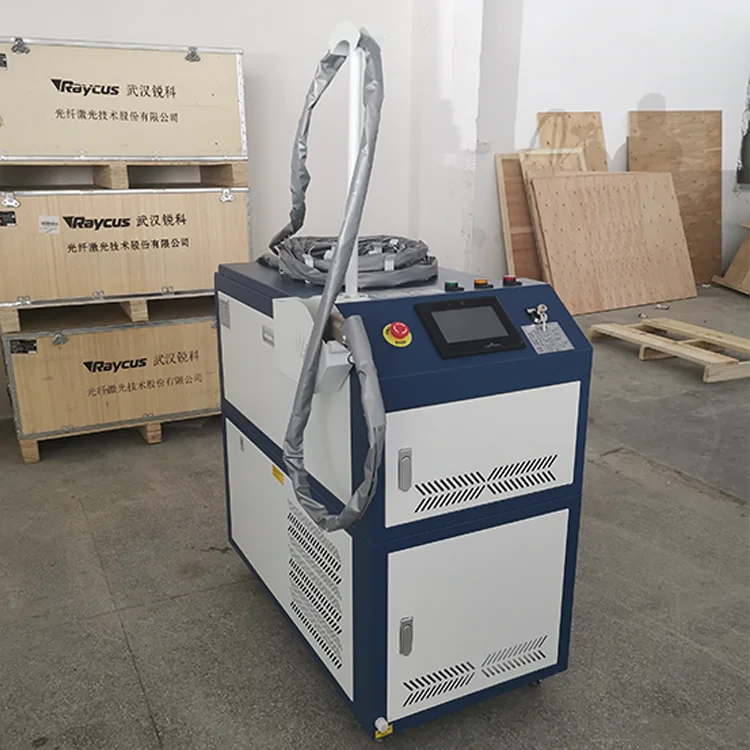

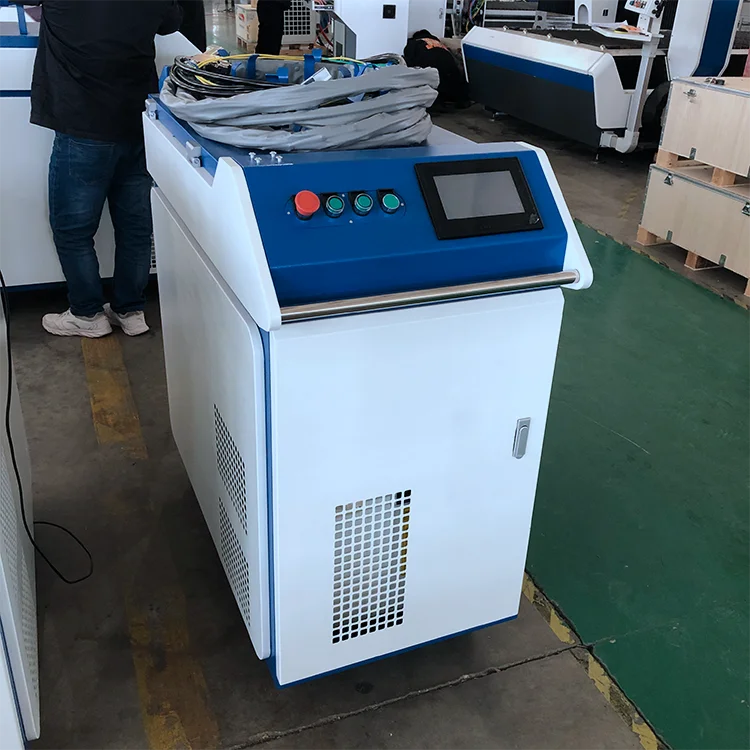

Real shots of the machine
500W 1000W 1500w 2000w 3000W
Chinese laser welding machine
☆Applicable Industries
It can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedures.
☆machine parts
Title goes here.
Laser welding uses a high energy density laser beam as a heat source for efficient precision welding.

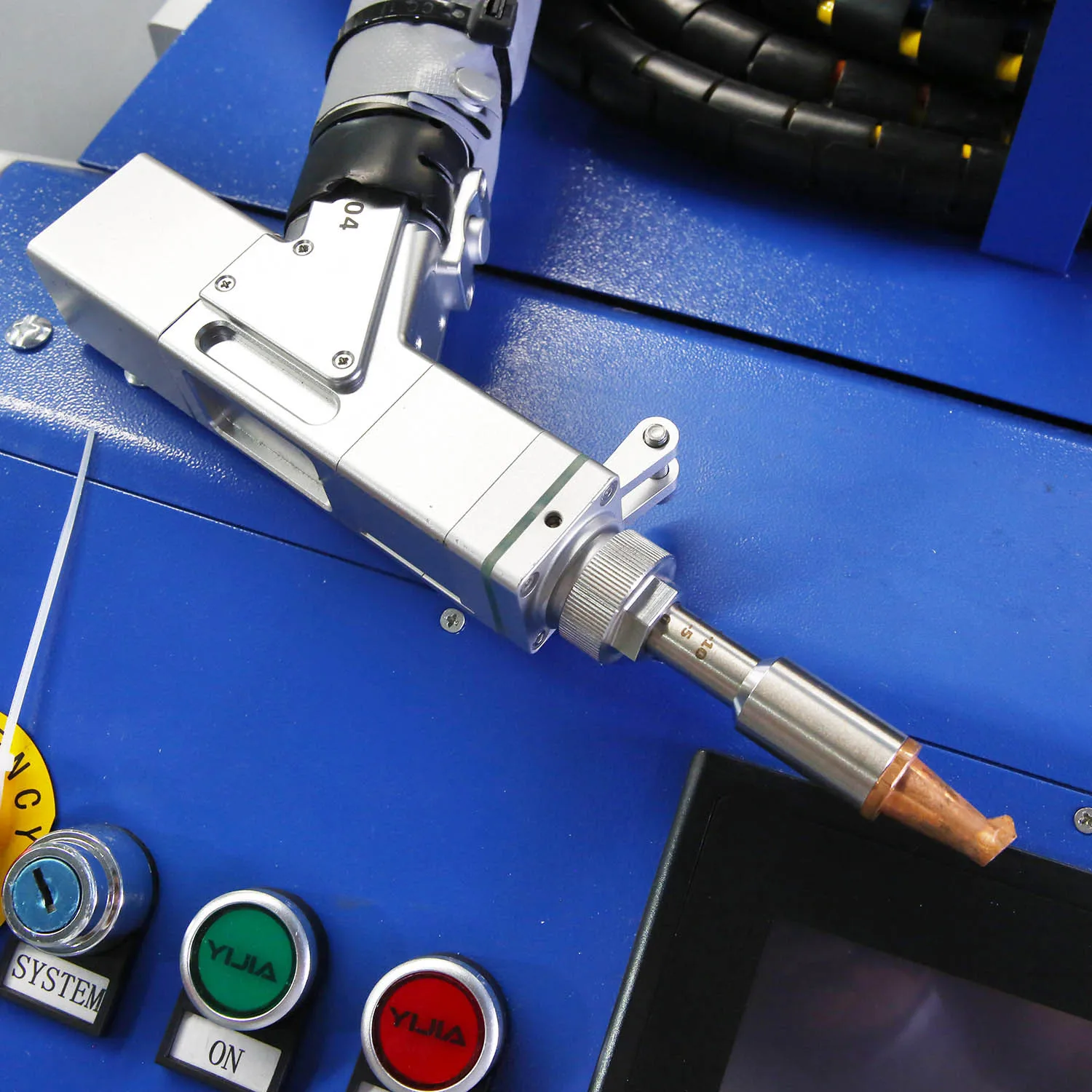

laser welding head
The internal design is dexterous, and the good interactive control system expands the tolerance range of the machined partsnand the weld width, solves the disadvantage of small spot size, and welds are better formed.
Control System
English operation interface, the working status is clear status; the operation panel is concise and easy to understand. With multiple safety alarms, it automatically locks light after removing the workpiece, which is safe.
Laser welding machine nozzle
Wire feeding nozzle:
general use for wire feeding
U-nozzle (short):
for butt welding and fillet welding
U-nozzle (long):
for butt welding and fillet welding
Internal corner nozzle:
used for internal fillet welding
general use for wire feeding
U-nozzle (short):
for butt welding and fillet welding
U-nozzle (long):
for butt welding and fillet welding
Internal corner nozzle:
used for internal fillet welding

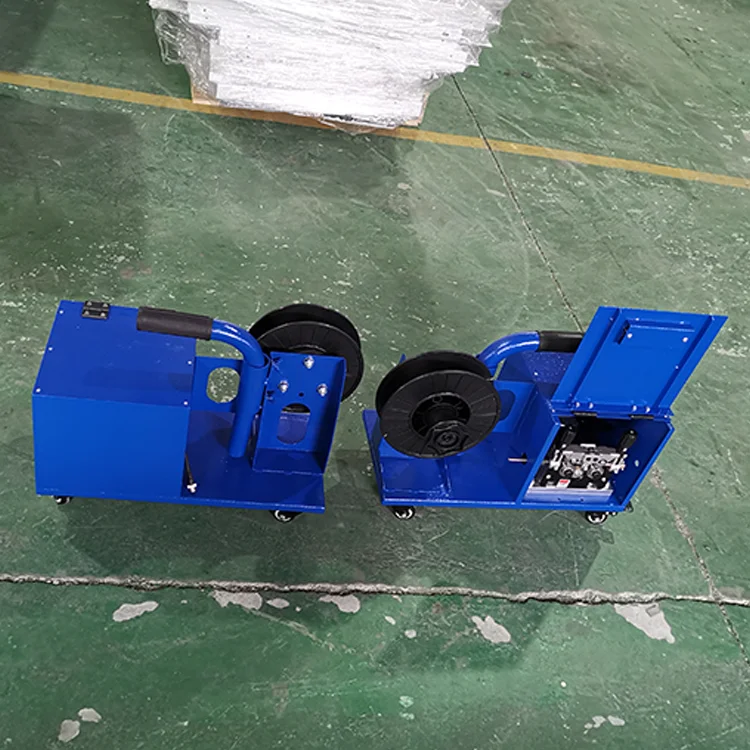

Auto wire feeder (optional)
The system is controlled by microcomputer and driven by stepping reduction motor, with high wire feeding accuracy and good repeatability.
It can transfer steel wire and copper wire with specification of 0.8mm and 1.0mm.
It can transfer steel wire and copper wire with specification of 0.8mm and 1.0mm.
If you are interested in our products, you can leave your email, we will send more specific details to your email
☆Machine parameters
Model | LW-W1000 | LW-W1500 | LW-W2000 |
Laser power source | 1000W | 1500W | 2000W |
Fiber length | 10M/15M | 10M/15M | 10M/15M |
Optical fiber core diameter | 25um | 50um | 50um |
Fiber Wavelength | 1080nm | 1080nm | 1080nm |
Red light signal | 0.5mw | 0.5mw | 0.5mw |
Welding thickness of Iron | 3-5mm | 4-6mm | 5-8mm |
Welding thickness of Aluminum | 1.5-2mm | 2-3mm | 3-4mm |
Voltage/frequency | AC220V 50HZ/1P | AC380V 50HZ/3P | AC380V 50HZ/3P |
The engine Power | 5KW | 7.2KW | 12KW |
Weight | 282KG | 300KG | 350KG |
Size（CM） | 135*145*68 | 135*145*68 | Two packages |
Welding Head | HW | HW | HW |
Output head interface | QBH | QBH | QBH |
Output power range | <2% | <2% | <2% |
Operation mode | CW/Modulate | CW/Modulate | CW/Modulate |
Type of cooling | water-cooling | water-cooling | water-cooling |
Operating temperature | <70℃ | <70℃ | <70℃ |

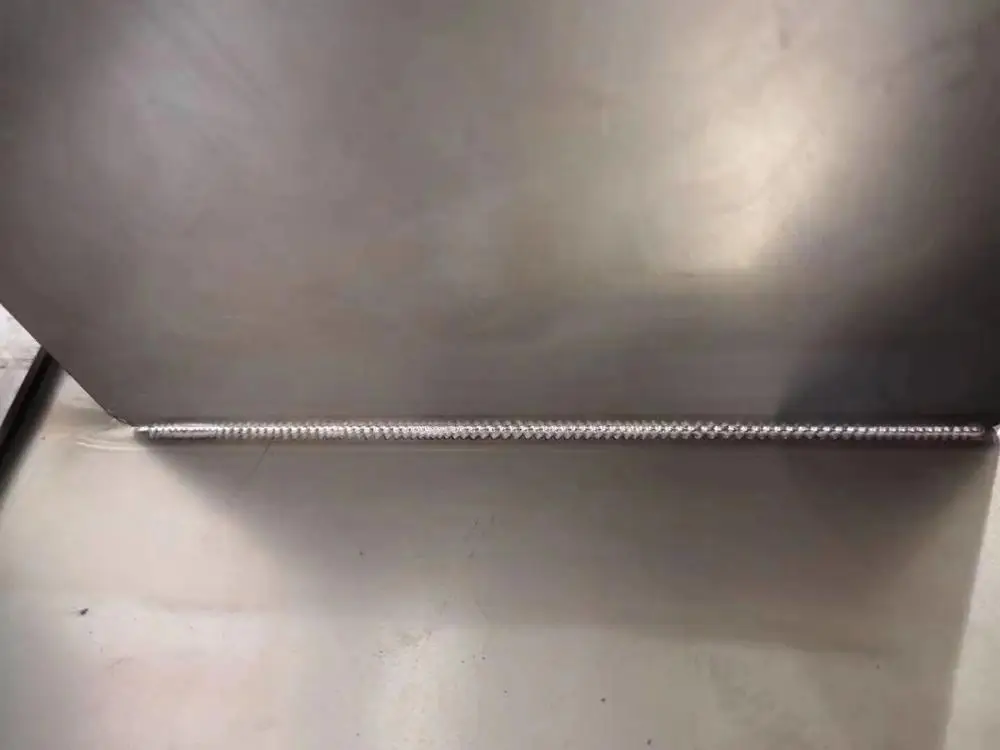

Sample
Product packaging
We have CE, ISO, SGS and other certificates, if you need it, you can contact us and we can send it to you.
Customer praise list
FAQ
Q1: Can you produce the machine faster ?
As we need the machine urgently, High level machine is not simply assemble parts together and deliver it to customer. We don’t dofast production. Long-termmachine stability depends on strict quality control. Inspection and testing work needs enough time ifyou wish to get long-time stable work machine. We mainly rely on old customers recommend our machines to others to expandbusiness. The machines we produced are best advertisement for us.
Q2: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions
andsuggestions.
Q3:How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials
mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?
Q4: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you
haveany questions, we can also arrange for a maintenance person to come to commission and install it.
Q5: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life
longafter-sales service. So any doubts, just let us know, we will give you solutions.
Q6:How can I get some samples?
We are honored to offer you samples.
As we need the machine urgently, High level machine is not simply assemble parts together and deliver it to customer. We don’t dofast production. Long-termmachine stability depends on strict quality control. Inspection and testing work needs enough time ifyou wish to get long-time stable work machine. We mainly rely on old customers recommend our machines to others to expandbusiness. The machines we produced are best advertisement for us.
Q2: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions
andsuggestions.
Q3:How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials
mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?
Q4: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you
haveany questions, we can also arrange for a maintenance person to come to commission and install it.
Q5: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life
longafter-sales service. So any doubts, just let us know, we will give you solutions.
Q6:How can I get some samples?
We are honored to offer you samples.
