EV Charger Fast Car Charger DC For EV 20KW 11KW/16A 22KW/32A 1000 Times Operating Life
- Category: >>>
- Supplier: SunArk Power Co. Ltd.SunArk Ltd.
Share on (1600829371421):
Product Overview
Description
Products Description
Compatible with all branded EV thanks to its attached Type 2 charging gun/interface with OCPP protocol.

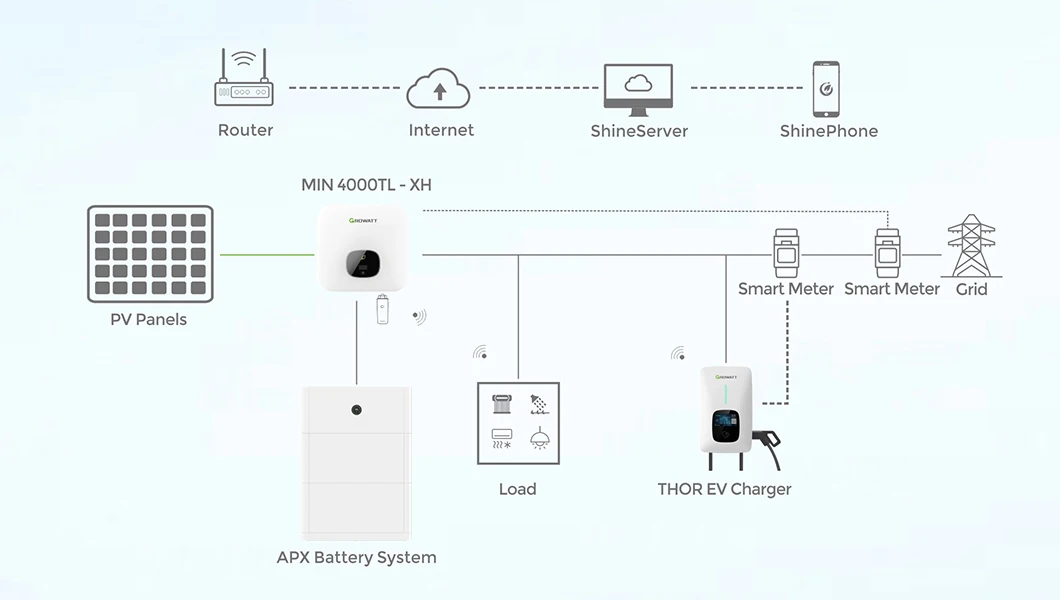

Compatible with different brand of PV systems to charge your car with surplus solar power.
Driven by solar, charge your car with 100% renewable energy, the EV will be charged by the surplus solar power dynamically,
combining PV and EV charger together to maximize the solar self-consumption rate.
combining PV and EV charger together to maximize the solar self-consumption rate.
Flexible communication
Flexible communication with Lan, WIFI or 4G.
With overload, over/under voltage, lightning, over temperature, earth leakage, short circuit, fault current, 6mA DC RCD protection.
Product Paramenters

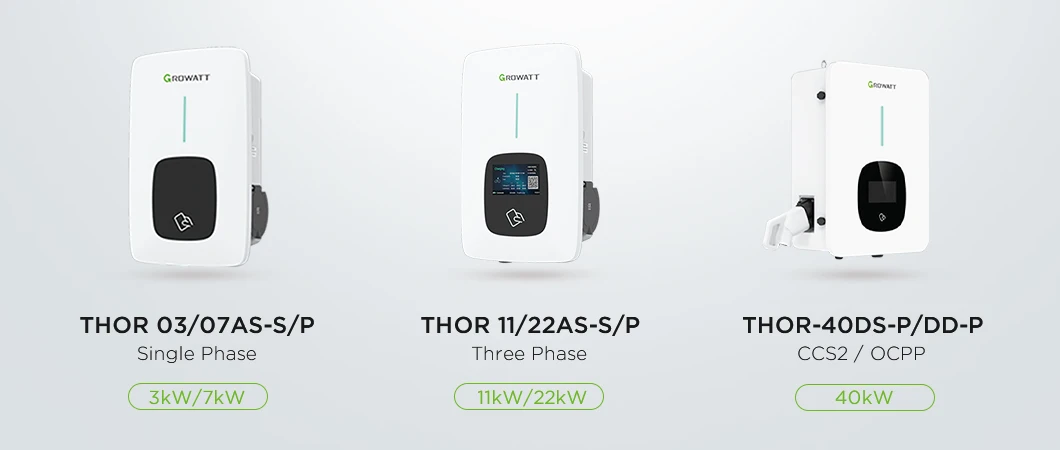

Model | THOR 03AS-S (WIFI/4G) | THOR 07AS-P (WIFI/4G) | THOR 07AS-S (WIFI/4G) | ||
Input voltage | 230V AC | ||||
Input frequency | 50Hz | ||||
Output voltage | 230V AC | ||||
Max. output power | 3.6KW | 7.3KW | 7.3KW | ||
Max. output current | 16A | 32A | 32A | ||
Charging interface type | IEC 62196-2, Type 2 | ||||
Connection | Socket | Plug | Socket | ||
Cable Length | / | 5m | / | ||
Model | THOR 11AS-P (WIFI/4G) | THOR 11AS-S (WIFI/4G) | THOR 22AS-P (WIFI/4G) | THOR 22AS-S (WIFI/4G) | |||
Input voltage | 400V AC | ||||||
Input frequency | 50Hz | ||||||
Output voltage | 400V AC | ||||||
Max. output power | 11KW | 22KW | |||||
Max. output current | 16A | 32A | |||||
Charging interface type | IEC 62196-2, Type 2 | ||||||
Connection | Plug | Socket | Plug | Socket | |||
Cable Length | 5m | / | 5m | / | |||
Model | THOR-40DS-P (WIFI/4G) | THOR-40DD-P (WIFI/4G) | |||||
Input voltage | 260~530V AC | ||||||
Input frequency | 50Hz/60Hz | ||||||
DC plug type | CCS Type 2 | 2*CCS Type 2 | |||||
Output voltage | 150~750V DC | ||||||
Max. output power | 40KW | ||||||
Max. output current | 80A | ||||||
Current accuracy | ≤±1%(at 20%~100% of rated power) | ||||||
Voltage-regulating accuracy | <0.5% | ||||||
Current accuracy | ≤±1%(at 20%~100% of rated power) | ||||||
Current-regulating accuracy | ≤±1% | ||||||
Ripple coefficient | RMS: ≤±0.5%; Peak: ≤±1% | ||||||
Metering accuracy | 0.5% | ||||||
Efficiency | ≥95.2% | ||||||
Cable Length | 5m | ||||||

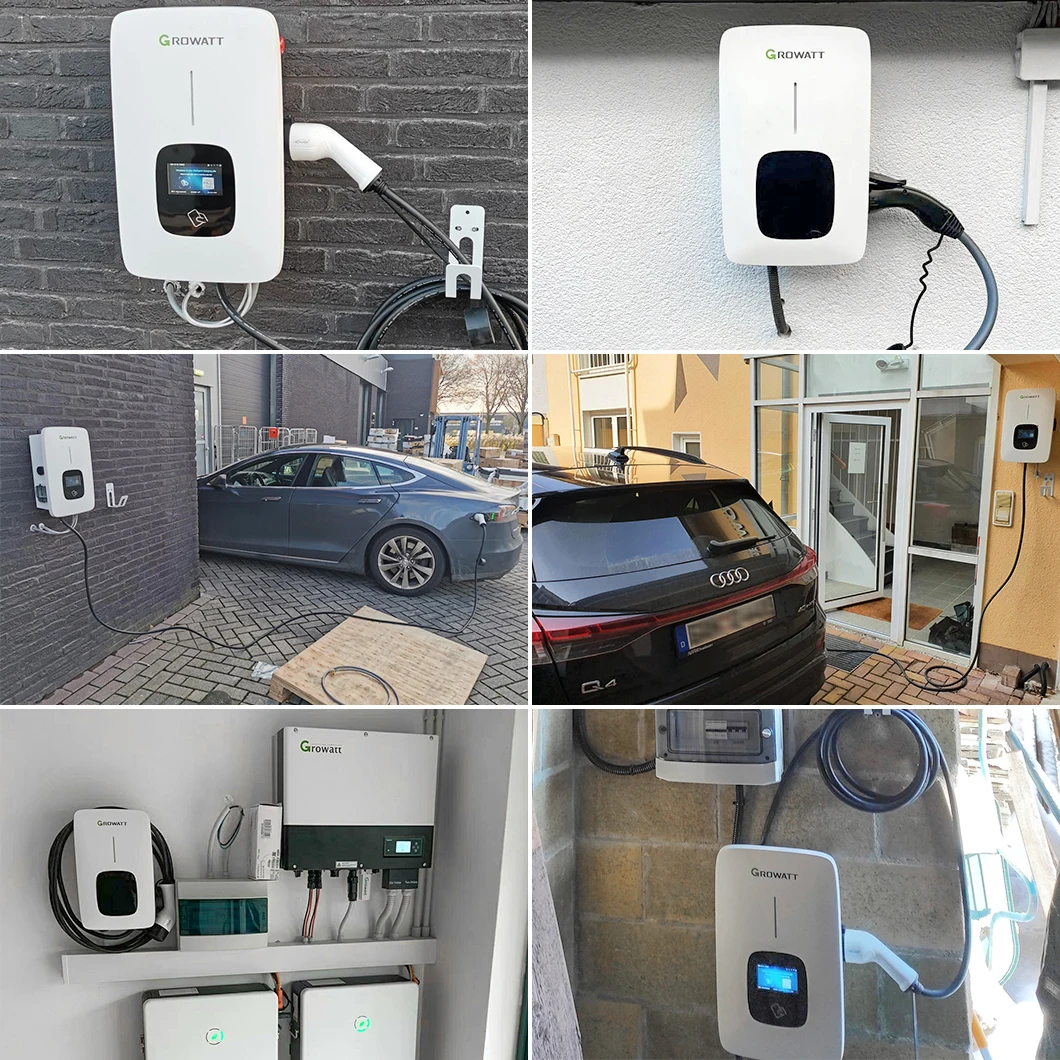

Project Case
