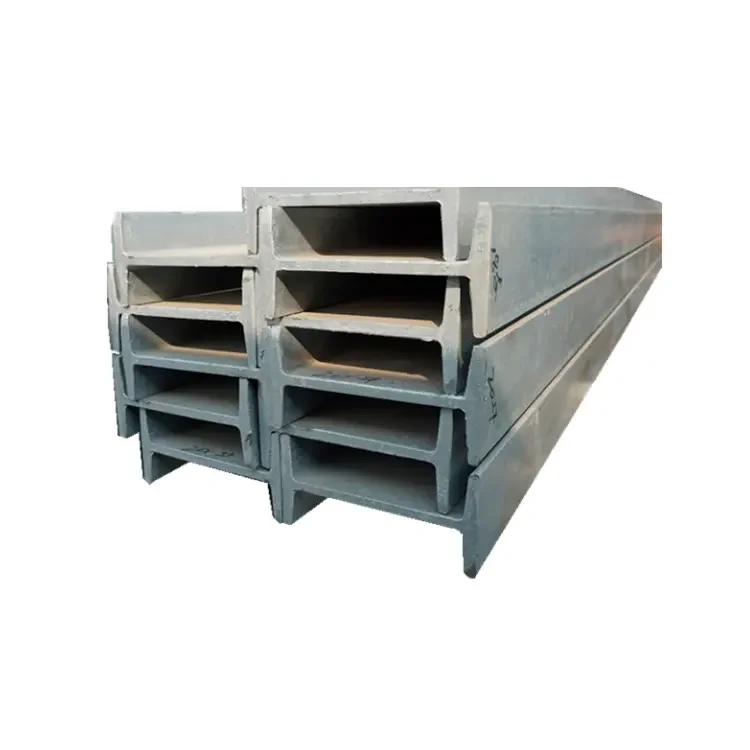

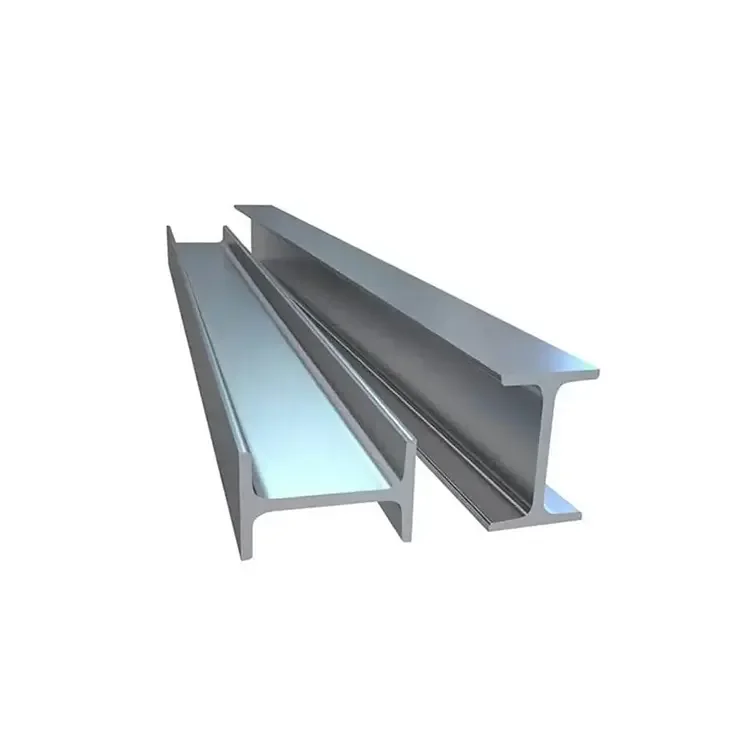

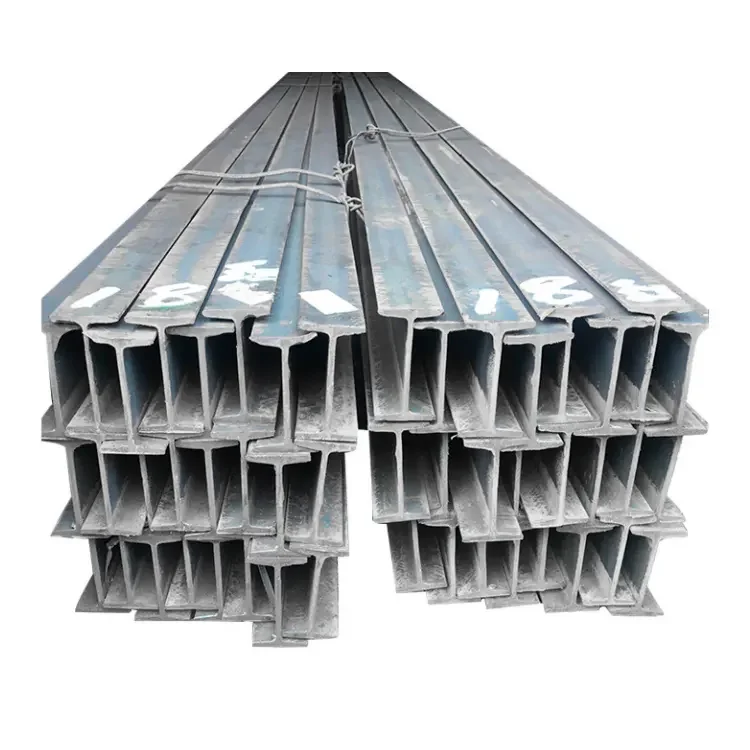

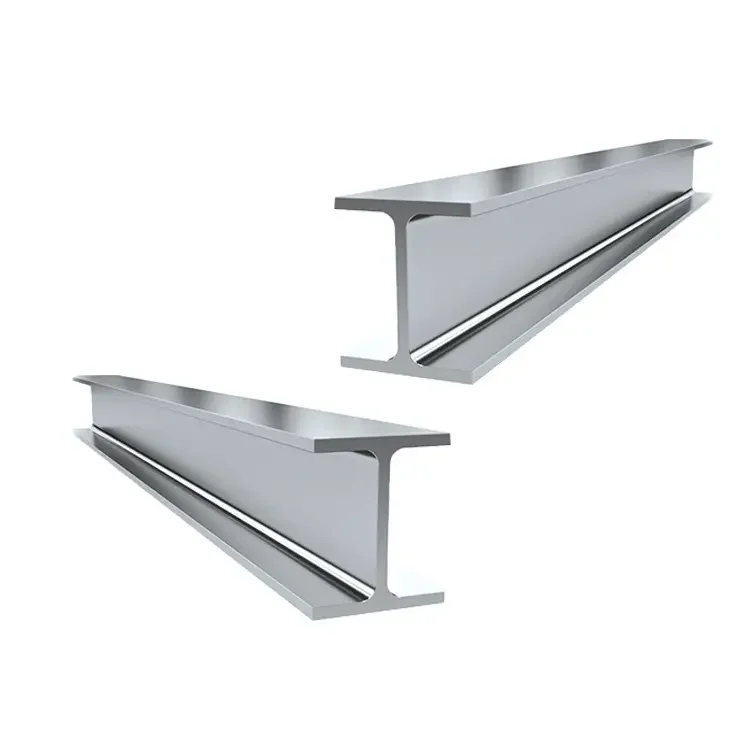

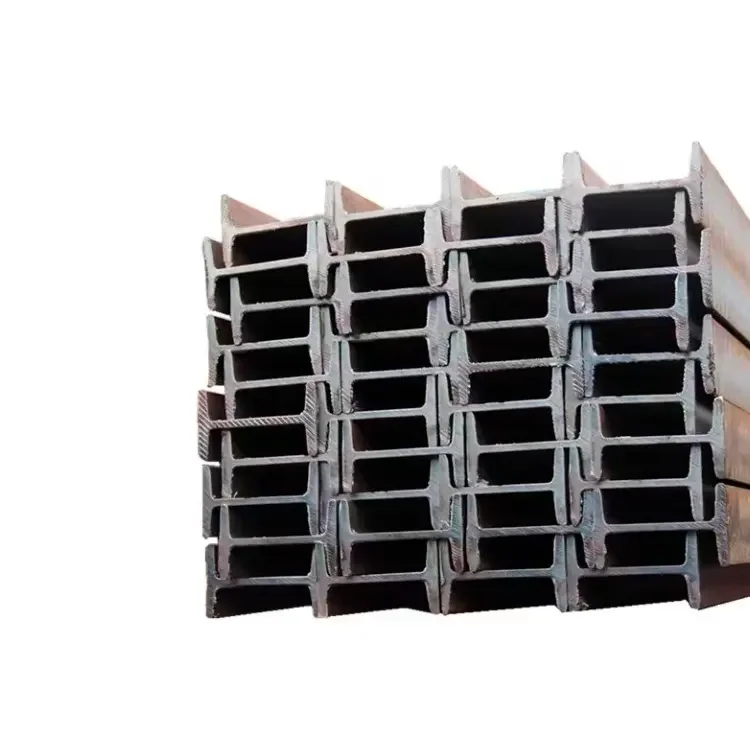

Hot sale Prefabricated Galvanize I Section Steel I Beam Price
- Category: >>>
- Supplier: Shandong Zhongxiang Metal Products Co. Ltd.
Share on (1600829384188):
Product Overview
Description
Products Description
Product name | H Beam |
Place of Origin | China |
Application | Construction |
Length | 6-12m |
Flange Width | 100mm-300mm |
Flange Thickness | 8-28mm |
Width | 100mm~900mm |
Thickness | 4.5mm-17mm |
MOQ | 1 Ton |
Sample | Avaliable |
Technique | Hot Rolled |
Material | Q195-Q420 Series,SS400-SS540 Series,S235JR-S355JR Series,ST Series, A36-A992 Series,Gr50 Series |
Certificate | ISO, SGS ,CE or other third party inspection acceptable. |
Standard | ASTM,JIS,DIN EN10025,GB |
Shape | H shape |
Edge | Mill Edge Slit Edge |
Payment Term | TT/LC |
Size (mm) | Theoretical Weight (kg/m) | Size (mm) | Theoretical Weight (kg/m) | Size (mm) | Theoretical Weight (kg/m) |
100*50*5*7 | 9.3 | 250*125*6*9 | 29 | 446*199*8*12 | 65.1 |
100*100*6*8 | 16.9 | 250*250*9*14 | 71.8 | 450*200*9*14 | 74.9 |
125*60*6*8 | 13.1 | 294*200*8*12 | 55.8 | 482*300*11*15 | 110.8 |
125*125*6.5*9 | 23.6 | 298*149*5.5*8 | 32 | 488*300*11*18 | 124.9 |
148*100*6*9 | 31.1 | 340*250*9*14 | 36.7 | 496*199*9*14 | 77.9 |
150*75*5*7 | 14 | 300*150*6.5*9 | 93 | 500*200*10*16 | 88.1 |
150*150*7*10 | 20.7 | 300*300*10*15 | 78.1 | 582*300*12*17 | 132.8 |
175*90*5*8 | 18 | 346*174*6*9 | 41.2 | 588*300*12*20 | 147 |
175*175*7.5*11 | 40.4 | 350*175*7*11 | 49.4 | 596*199*10*15 | 92.4 |
194*150*6*9 | 29.9 | 350*350*12*19 | 134.9 | 600*200*11*17 | 103.4 |
198*99*4.5*7 | 17.8 | 390*300*10*16 | 104.6 | 700*300*13*24 | 181.8 |
200*100*5.5*8 | 20.9 | 396*199*7*11 | 56.1 | 800*300*14*26 | 206.8 |
200*200*8*12 | 49.9 | 400*200*8*13 | 65.4 | 900*300*16*28 | 240.1 |
244*175*7*11 | 43.6 | 400*400*13*21 | 171.7 | ||
248*124*5*8 | 25.1 | 440*300*11*18 | 120.8 |
There are many product specifications of H beam, and the classification methods are as follows.
(1) According to the flange width of the product, it can be divided into wide flange, middle flange and narrow flange H-beams. Flange width B of wide and middle flange H-beams is greater than or equal to web height H. The flange width B of the narrow flange H-beam is equal to about half of the height H of the web.
(2) According to the use of the product, it is divided into H-type steel beam, H-type steel column, H-type steel pile and H-type steel beam with very thick flange. Sometimes parallel leg channels and parallel flanged T-beams are also included in the H-beam category. Generally, narrow flange H-beam steel is used as beam material and wide flange H-beam is used as column material. Therefore, it is also known as beam H-beam and column H-beam.
(3) According to the production mode, it can be divided into welded H-beam and rolled H-beam.
(4) It is divided into large, medium and small H-beams according to size specifications. Usually the web height H in 700mm above the product is called large, 300 ~ 700mm is called medium, less than 300mm is called trumpet. By the end of 1990, the world's largest H-shaped steel web height was 1200mm, flange width was 530mm.

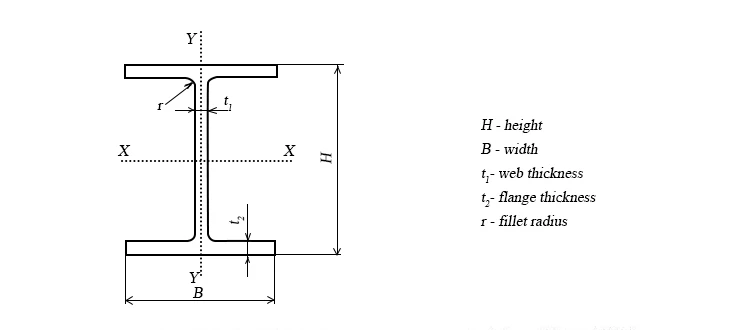

Type | Item | H | B | t1 (mm) | t2 (mm) | Weight(kg/m) |
HEA | 100 | 96 | 100 | 5 | 8 | 16.7 |
HEA | 120 | 114 | 120 | 5 | 8 | 19.9 |
HEA | 140 | 133 | 140 | 5.5 | 8.5 | 24.7 |
HEA | 160 | 152 | 160 | 6 | 9 | 30.4 |
HEA | 180 | 171 | 180 | 6 | 9.5 | 35.5 |
HEA | 200 | 190 | 200 | 6.5 | 10 | 42.3 |
HEA | 220 | 210 | 220 | 7 | 11 | 50.5 |
HEA | 240 | 230 | 240 | 7.5 | 12 | 60.3 |
HEA | 260 | 250 | 260 | 7.5 | 12.5 | 68.2 |
HEA | 280 | 270 | 280 | 8 | 13 | 76.4 |
HEA | 300 | 290 | 300 | 8.5 | 14 | 88.3 |
HEA | 320 | 310 | 300 | 9 | 15.5 | 97.6 |
HEA | 340 | 330 | 300 | 9.5 | 16.5 | 105 |
HEA | 360 | 350 | 300 | 10 | 17.5 | 112 |
HEA | 400 | 390 | 300 | 11 | 19 | 125 |
HEA | 450 | 440 | 300 | 11.5 | 21 | 140 |
HEA | 500 | 490 | 300 | 12 | 23 | 155 |
HEA | 550 | 540 | 300 | 12.5 | 24 | 166 |
HEA | 600 | 590 | 300 | 13 | 25 | 178 |
Type | Iteam | H | B | t1 (mm) | t2 (mm) | Weight(kg/m) |
HEB | 100 | 100 | 100 | 6 | 10 | 20.4 |
HEB | 120 | 120 | 120 | 6.5 | 11 | 26.7 |
HEB | 140 | 140 | 140 | 7 | 12 | 33.7 |
HEB | 160 | 160 | 160 | 8 | 13 | 42.6 |
HEB | 180 | 180 | 180 | 8.5 | 14 | 51.2 |
HEB | 200 | 200 | 200 | 9 | 15 | 61.3 |
HEB | 220 | 220 | 220 | 9.5 | 16 | 71.5 |
HEB | 240 | 240 | 240 | 10 | 17 | 83.2 |
HEB | 260 | 260 | 260 | 10 | 17.5 | 93 |
HEB | 280 | 280 | 280 | 10.5 | 18 | 103 |
HEB | 300 | 300 | 300 | 11 | 19 | 117 |
HEB | 320 | 320 | 300 | 11.5 | 20.5 | 127 |
HEB | 340 | 340 | 300 | 12 | 21.5 | 134 |
HEB | 360 | 360 | 300 | 12.5 | 22.5 | 142 |
HEB | 400 | 400 | 300 | 13.5 | 24 | 155 |
HEB | 450 | 450 | 300 | 14 | 26 | 171 |
HEB | 500 | 500 | 300 | 14.5 | 28 | 187 |
HEB | 550 | 550 | 300 | 15 | 29 | 199 |
HEB | 600 | 600 | 300 | 15.5 | 30 | 212 |

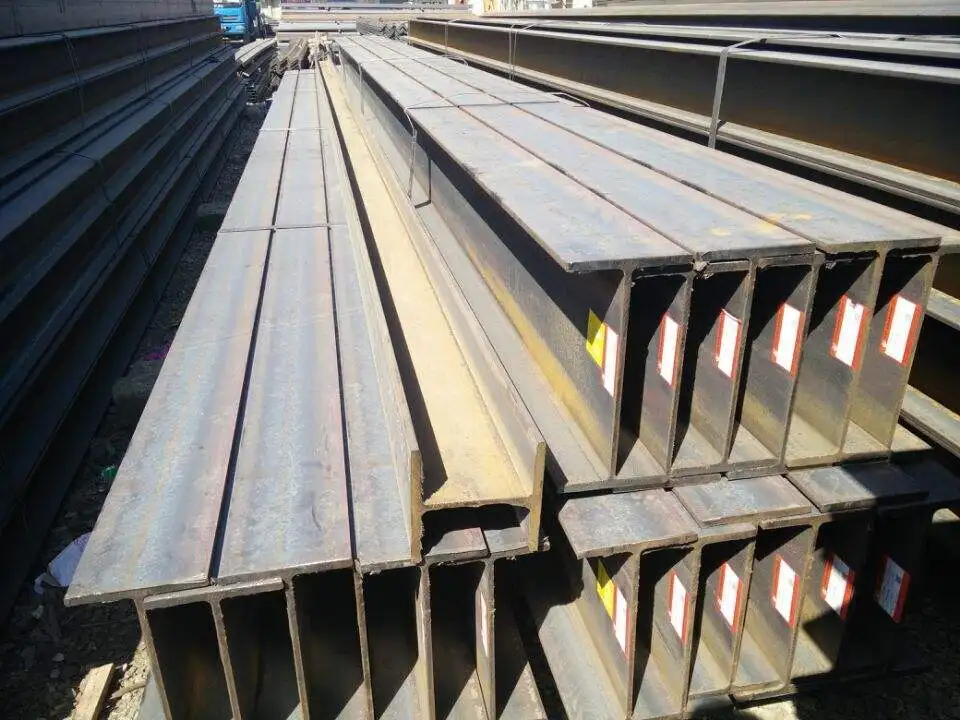

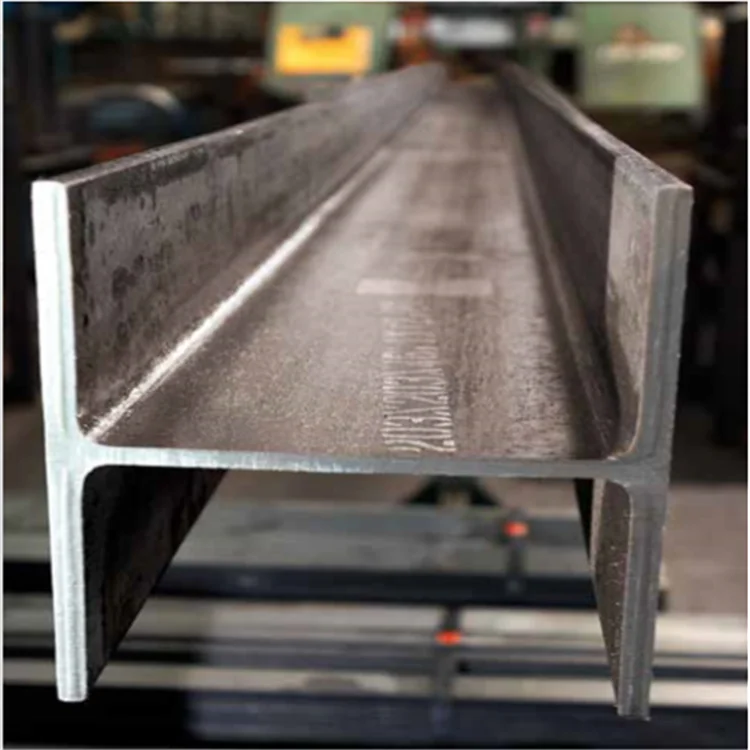

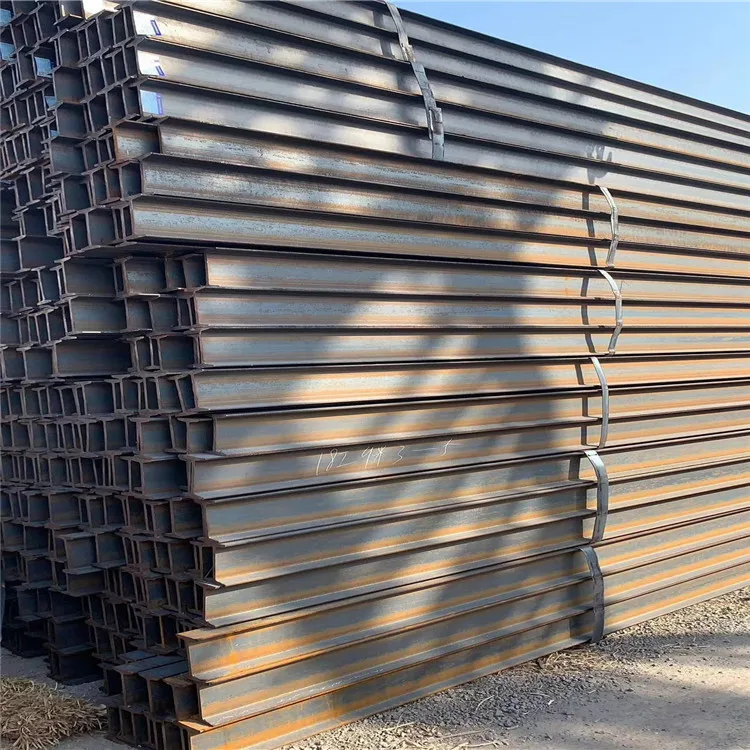

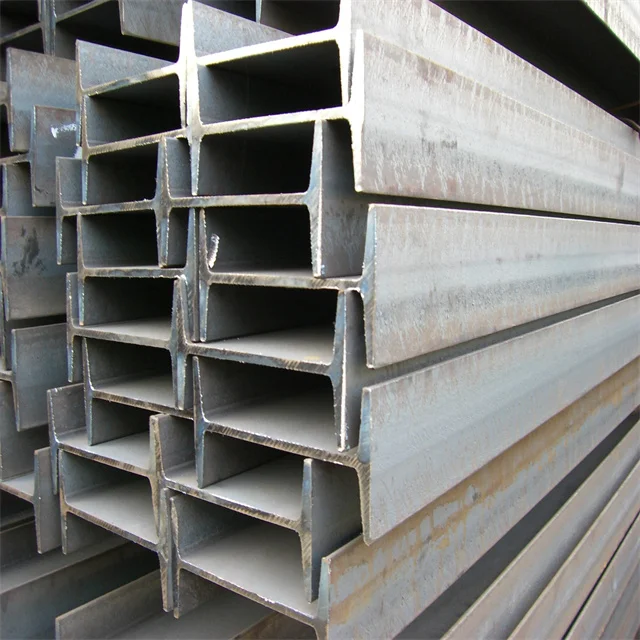

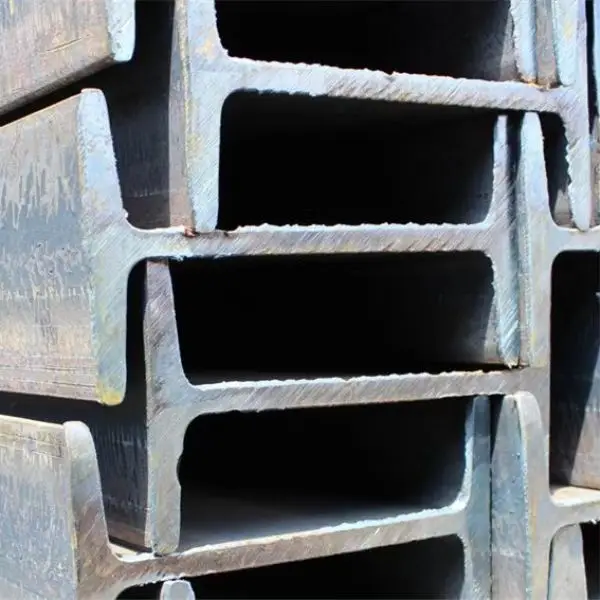

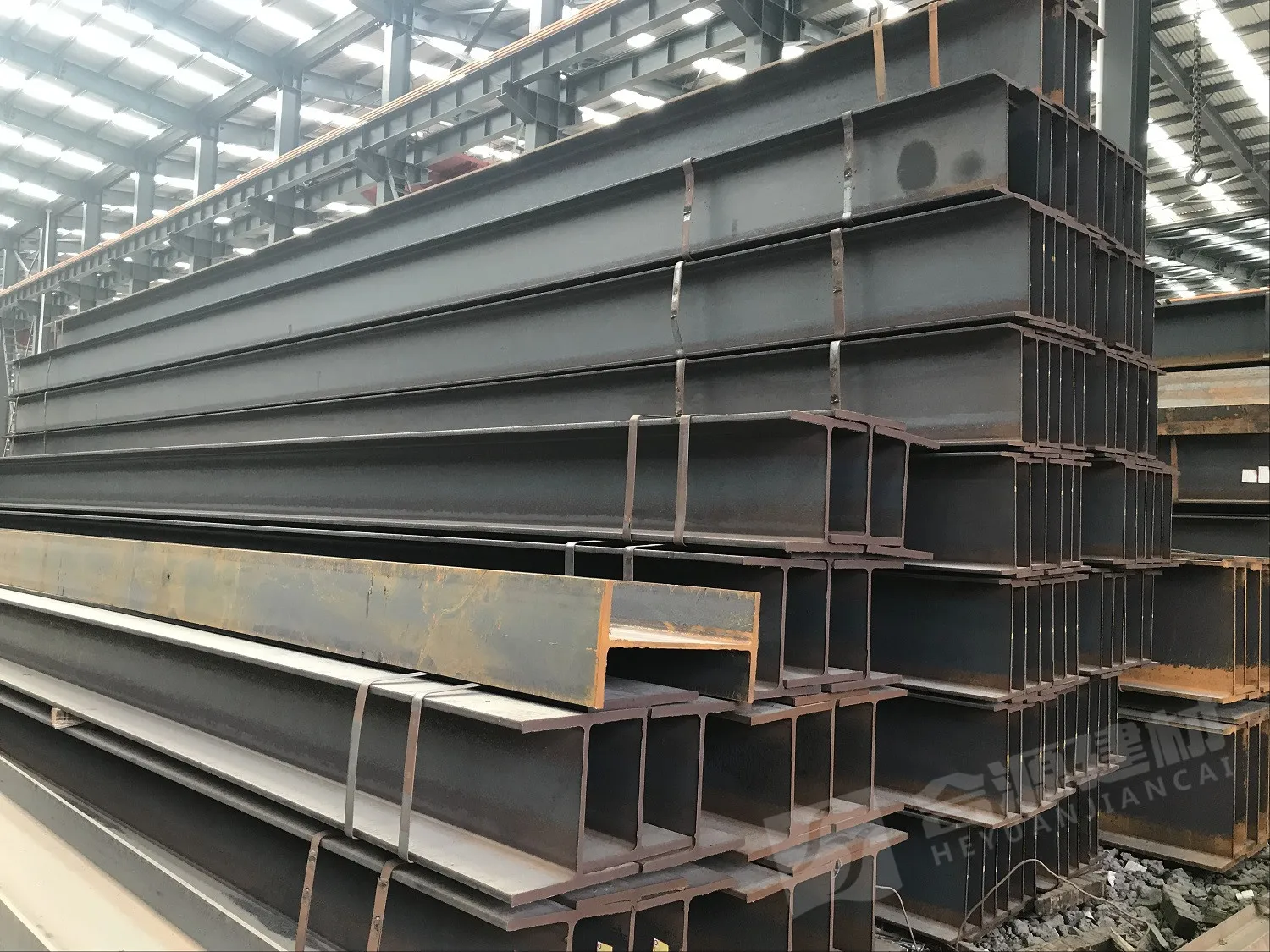

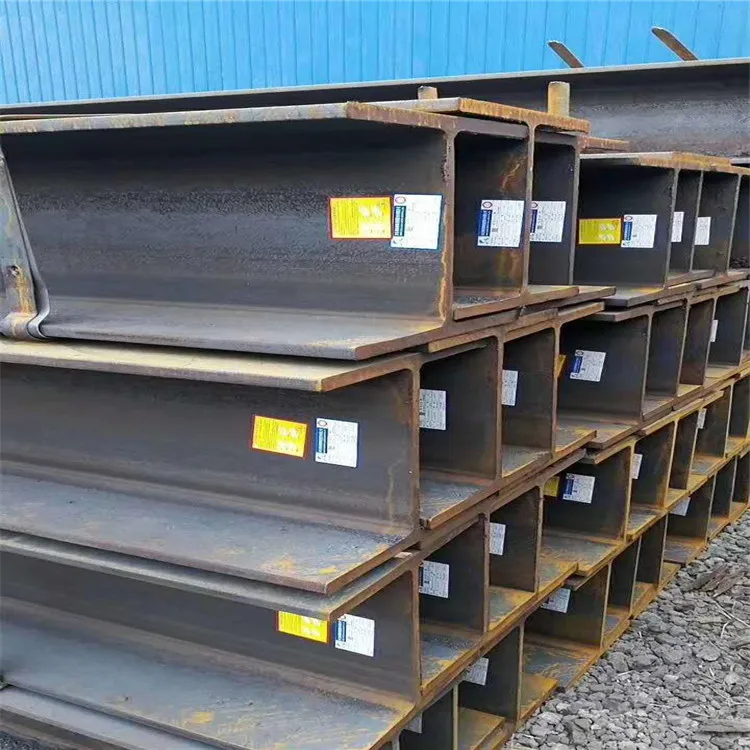

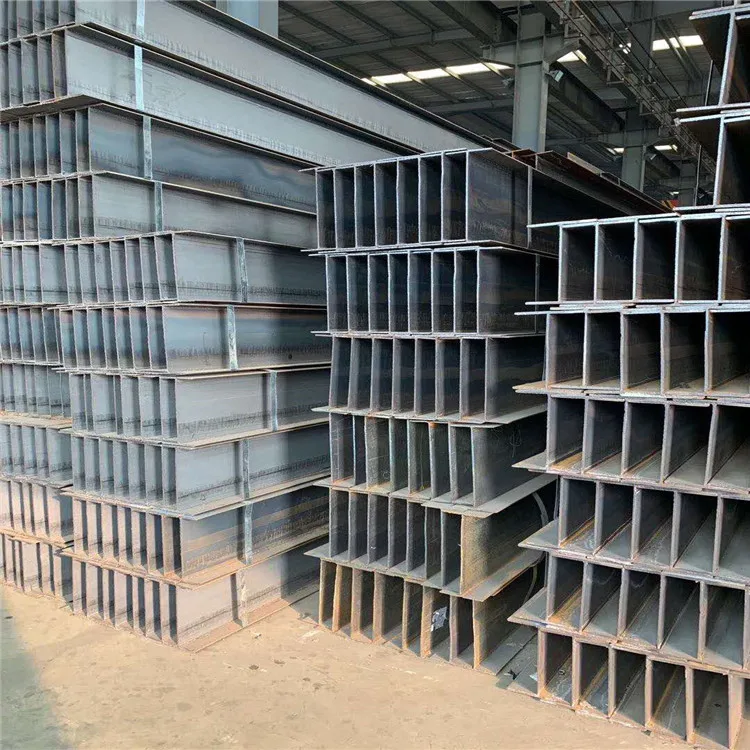

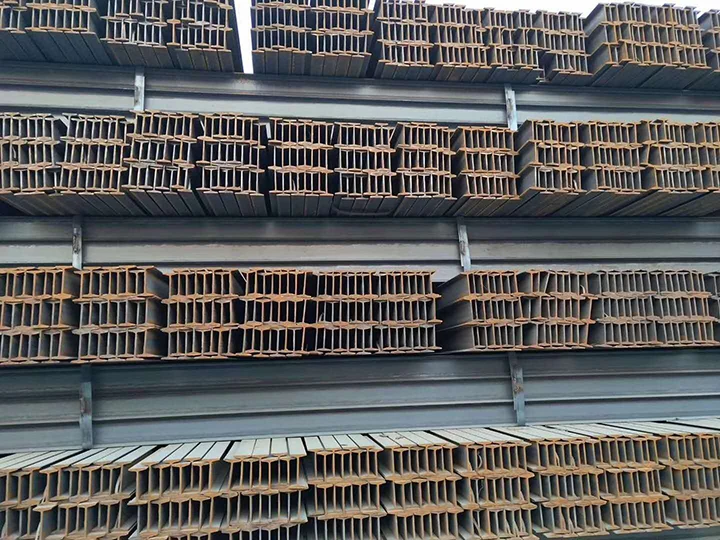

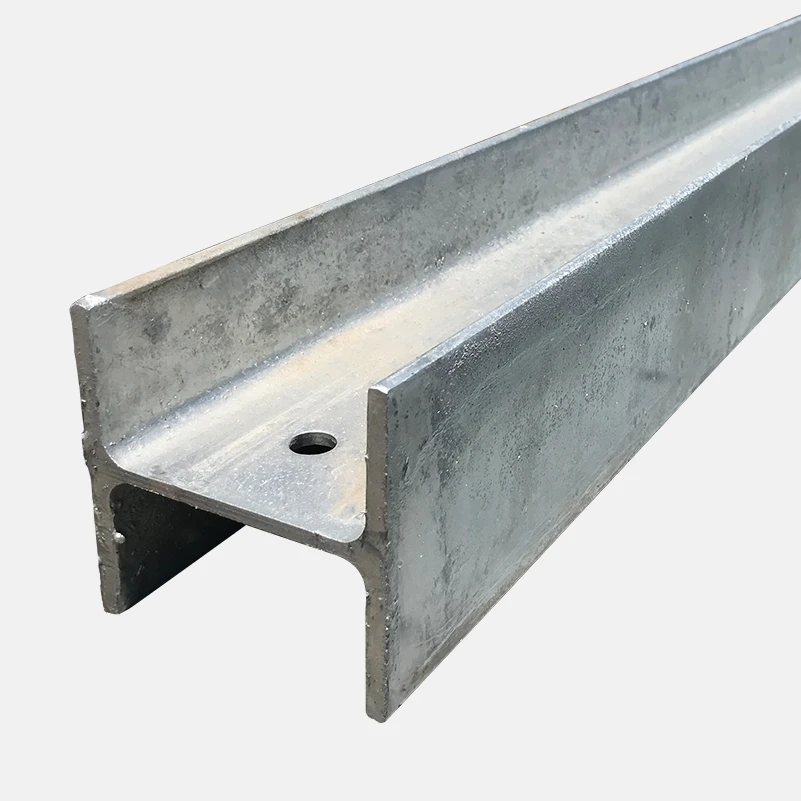

Detail Images

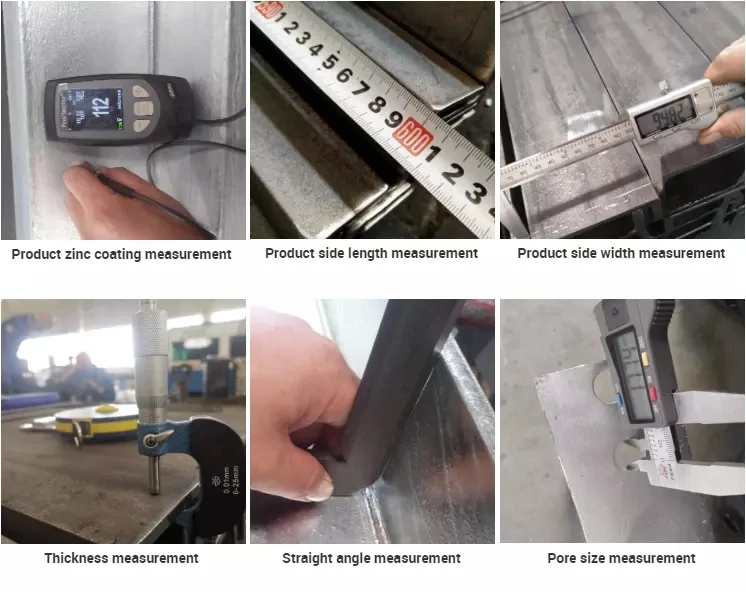

Quality Control
1.SGS and ISO9001 Audited company.
2.Industry experience over 20 years.
3.Management Systems-Internal Software
4.Finished Product Inventory-More Than 500 Tons.
5.Raw Material inventory -Over 800 Mertic Tons.
6.Shipment of goods -More than 30 countries worldwide.
7.We have the most convenient transport and prompt delivery.
8.We offer competitive price with best service.
9.We have high technical production line with top quality products.
10.We have win high reputation based on best quality products.
2.Industry experience over 20 years.
3.Management Systems-Internal Software
4.Finished Product Inventory-More Than 500 Tons.
5.Raw Material inventory -Over 800 Mertic Tons.
6.Shipment of goods -More than 30 countries worldwide.
7.We have the most convenient transport and prompt delivery.
8.We offer competitive price with best service.
9.We have high technical production line with top quality products.
10.We have win high reputation based on best quality products.
Company Profile
Certifications

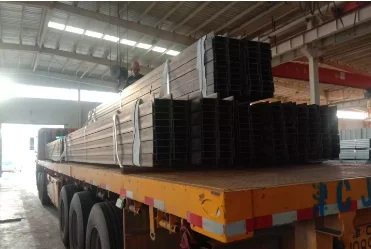

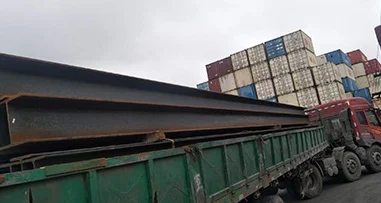

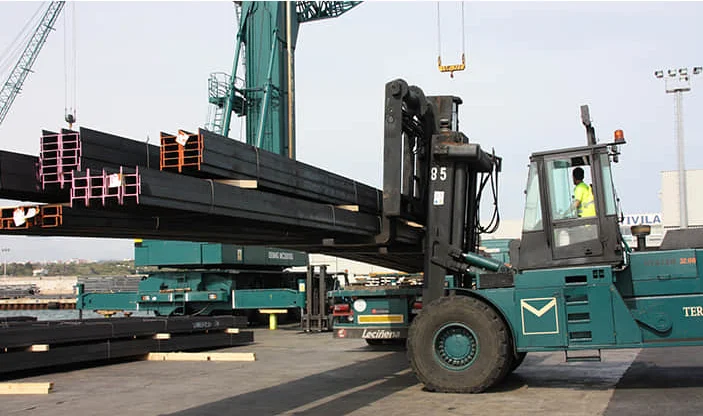

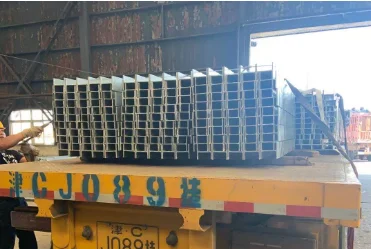

Packing & Shipping
Standard expore sea-worthy packing (with waterproof paper, metal belt pack sheet, then put them in wooden pallet, then put in container) or customized.
Grate care is taken to avoid any damage which might otherwise be caused during storage or transportation. In additon, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.
Grate care is taken to avoid any damage which might otherwise be caused during storage or transportation. In additon, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.

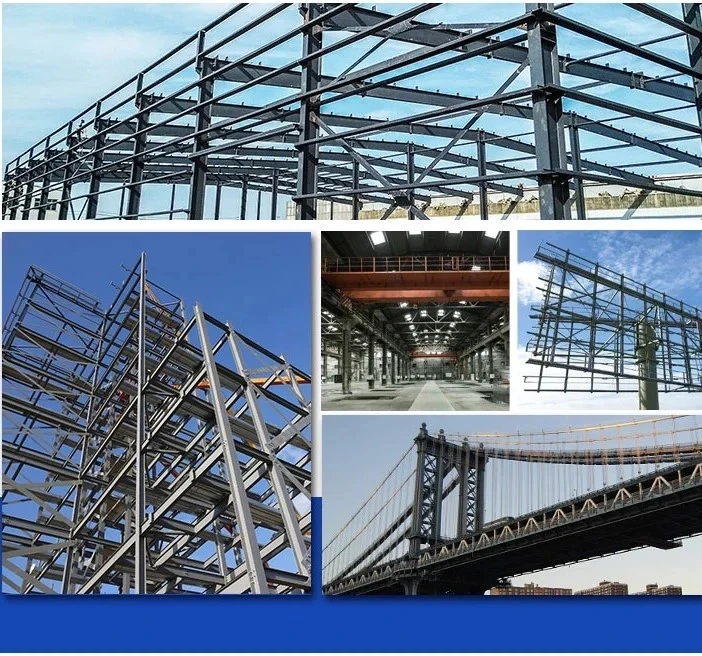

Application
H-beam is widely used in: various civil and industrial building structures; A variety of long-span industrial plants and modern high-rise buildings, especially in areas with frequent seismic activity and high temperature working conditions; Large Bridges with large bearing capacity, good cross-section stability and large span are required; Heavy equipment; A highway; Ship skeleton; Mine support; Foundation treatment and dam engineering; Various machine components.
FAQ
Q: Where is your company ?
A: Our company located in TianJin of China.
Q: How long is your delivery time?
A: Generally is 10-15 workingdays of goods in stock, or 20-30 days if goods are not in stock, it is according to quantitiy.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge.but the customers have to pay the sample courier cost.
Q: What is your terms of payment?
A: We supports L/C,T/T ,Paypal payments. We'll show you the photos of the products and packages before you pay the
balance.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit
A: Our company located in TianJin of China.
Q: How long is your delivery time?
A: Generally is 10-15 workingdays of goods in stock, or 20-30 days if goods are not in stock, it is according to quantitiy.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge.but the customers have to pay the sample courier cost.
Q: What is your terms of payment?
A: We supports L/C,T/T ,Paypal payments. We'll show you the photos of the products and packages before you pay the
balance.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q: How do you make our business long-term and good relationship?
A: We keep good quality and competitive price to ensure our customers benefit
