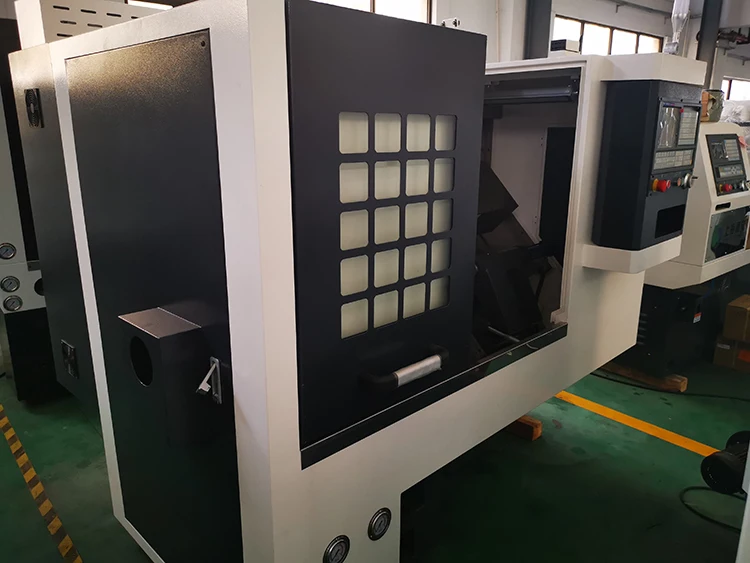

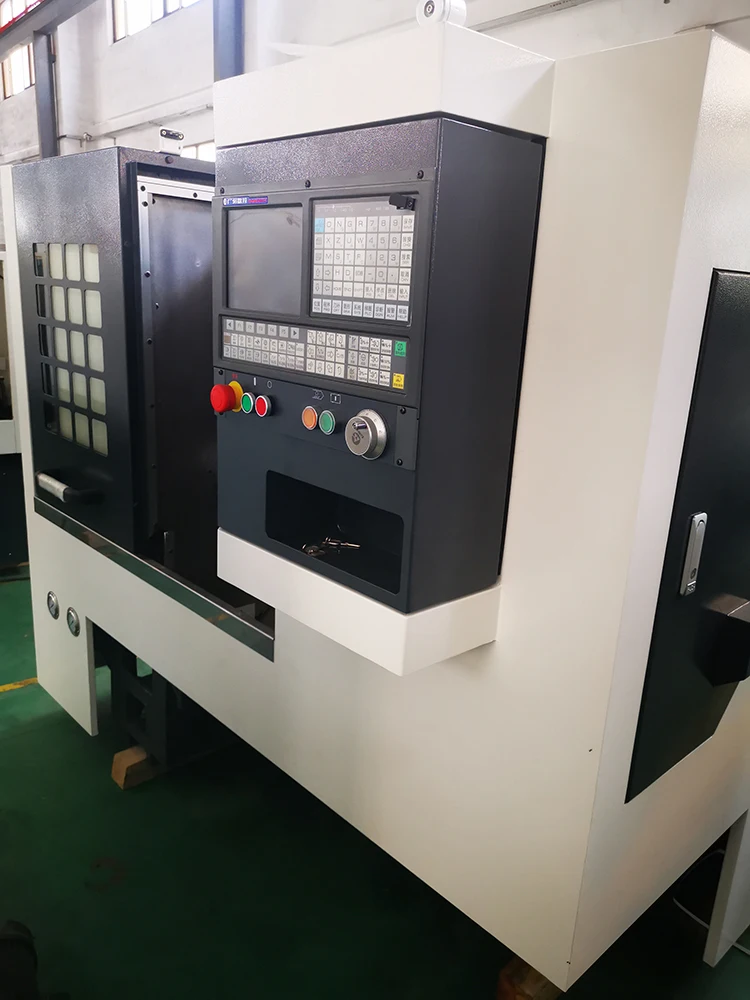

TS 46T hydraulic tool turret hydraulic taiistock slant bedhigh quality CNC lathe machine
- Category: >>>
- Supplier: Liuzhou Gluck Imp& Exp Co. Ltd.
Share on (1600829428136):
Product Overview
Description
Product Description
TS 46T hydraulic tool turret hydraulic tailstock slant bed CNC lathe machine
Max. Swing Diameter over bed | 450mm |
Max. Swing Diameter over carriage | 180mm |
Max Working Length | 300mm |
Spindle Speed | 50-4500r/min |
Spindle Motor Power | 5.5kW(Servo) |
Spindle Bore | 56mm |
Spindle type | A2-5 |
X travel | 150mm |
Z travel | 450mm |
X axix max moving speed | 20000mm/min |
Z axix max moving speed | 20000mm/min |

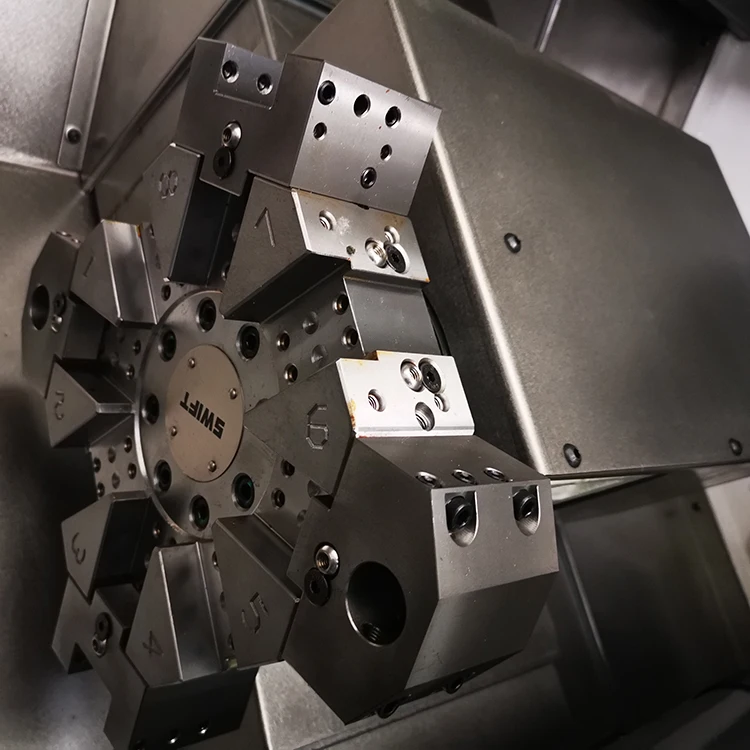

Tool Post Stations | 8 |
Tool Dimension | 20mm×20mm |
Repeatability accuracy (X/Z) | 0.005mm/0.005mm |
Tailstock taper | 60mm |
Tailstock sleeve diameter | 80mm |

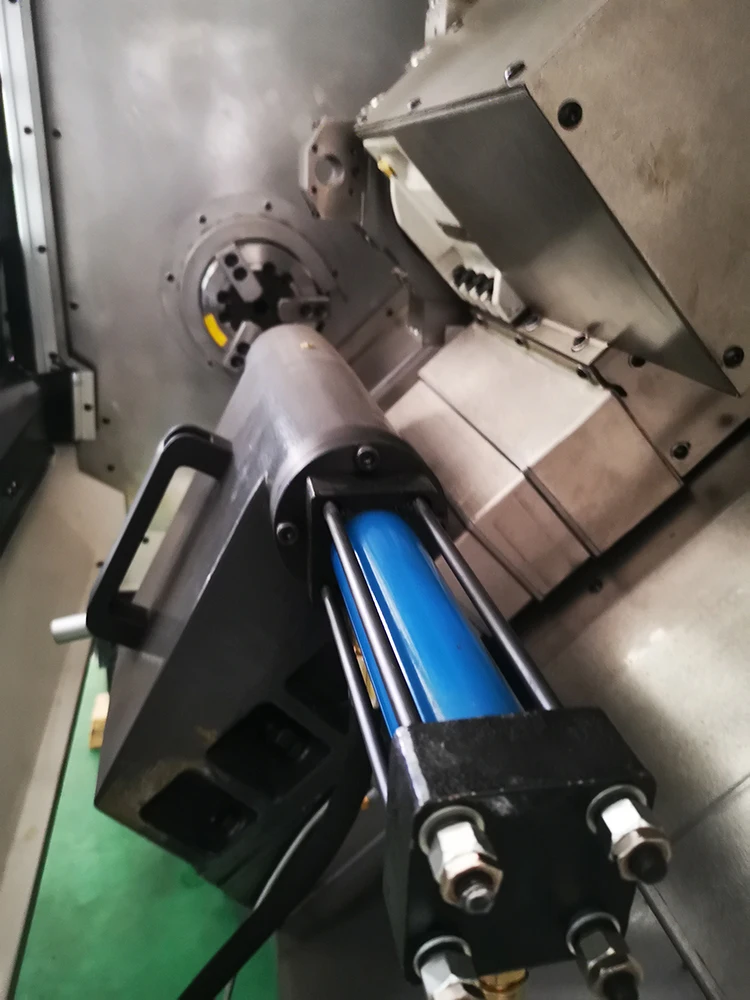

Travel of tailstock | 100mm(Hydraulic Tailstock) |
CNC System | GSK 980TC3 or As required |
Weight (NW) | 2000kg |
Dimension(L*W*H) | 2120×1500×1600mm |
Y axix live tool power head
Automatic chip removal
Automatic feeder

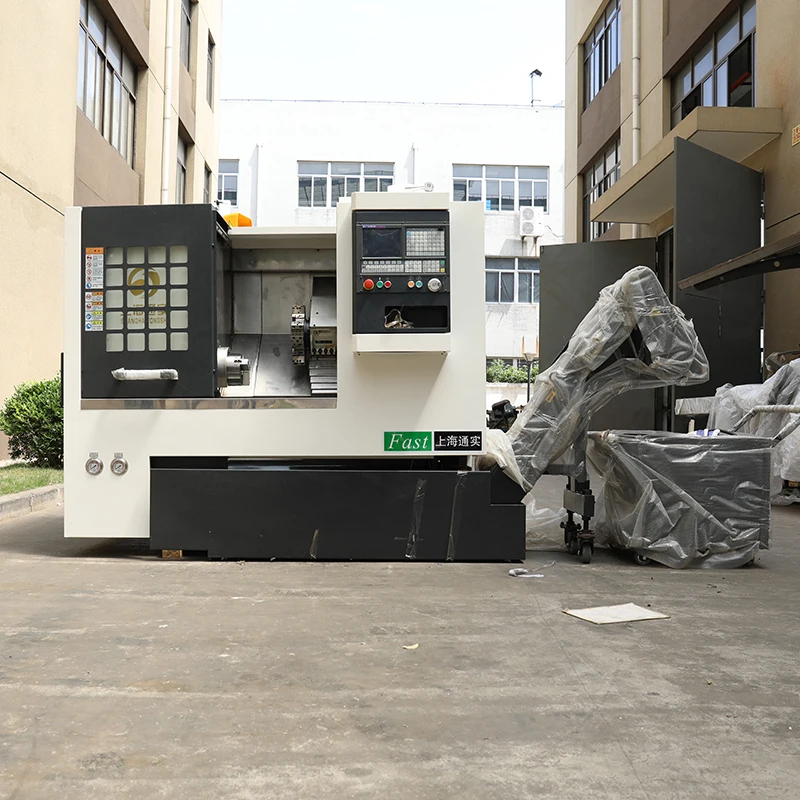

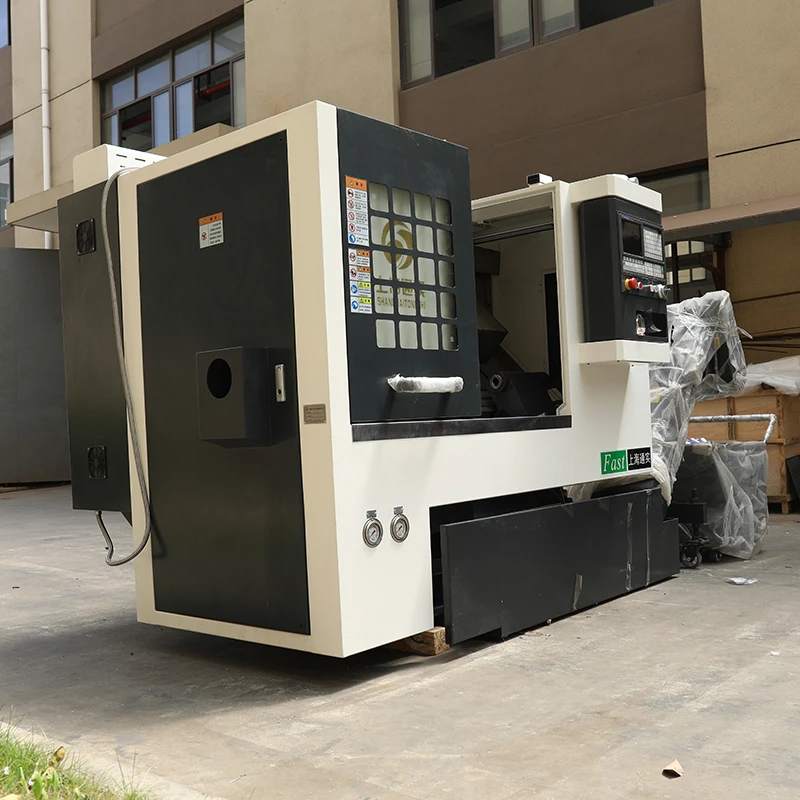

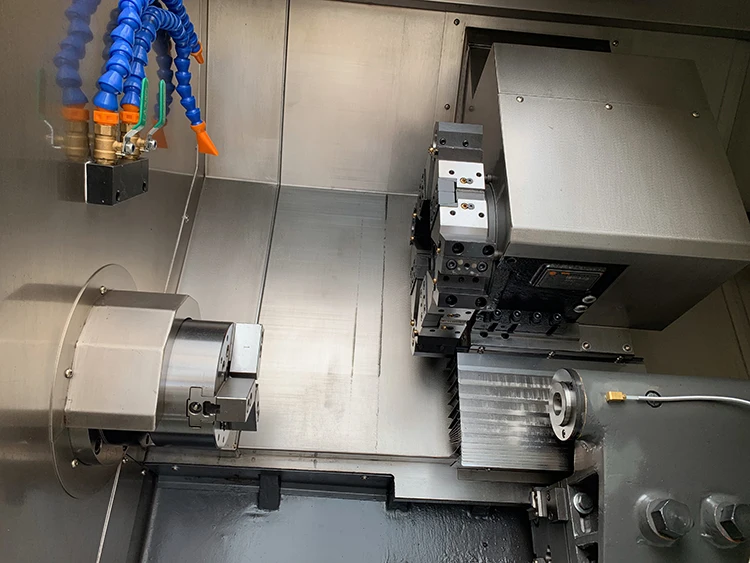

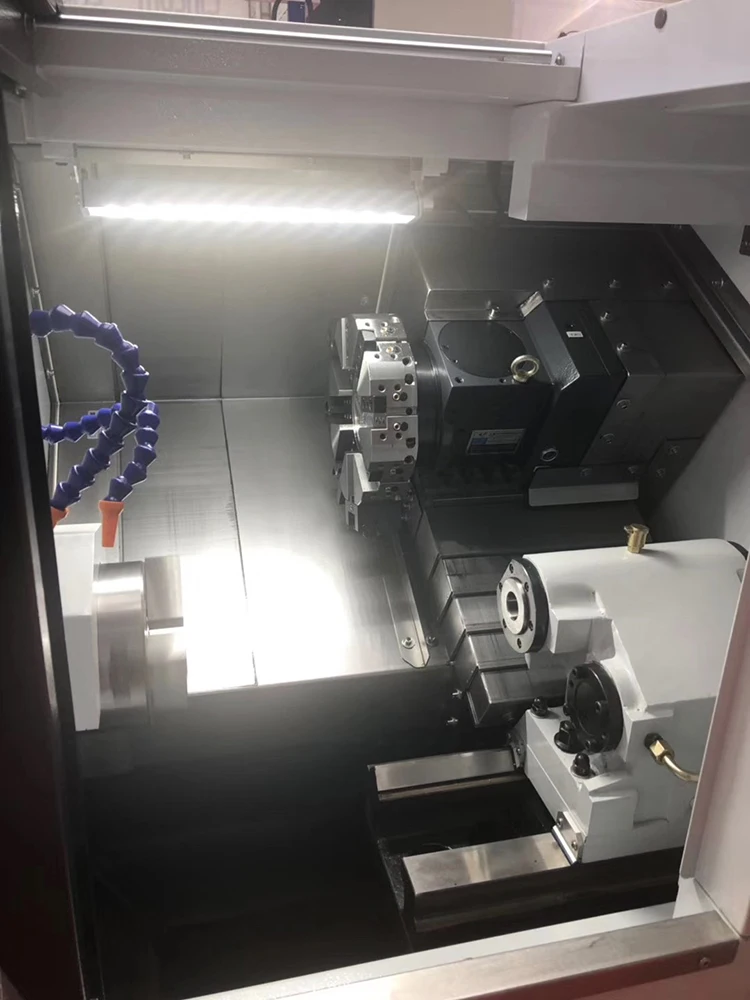

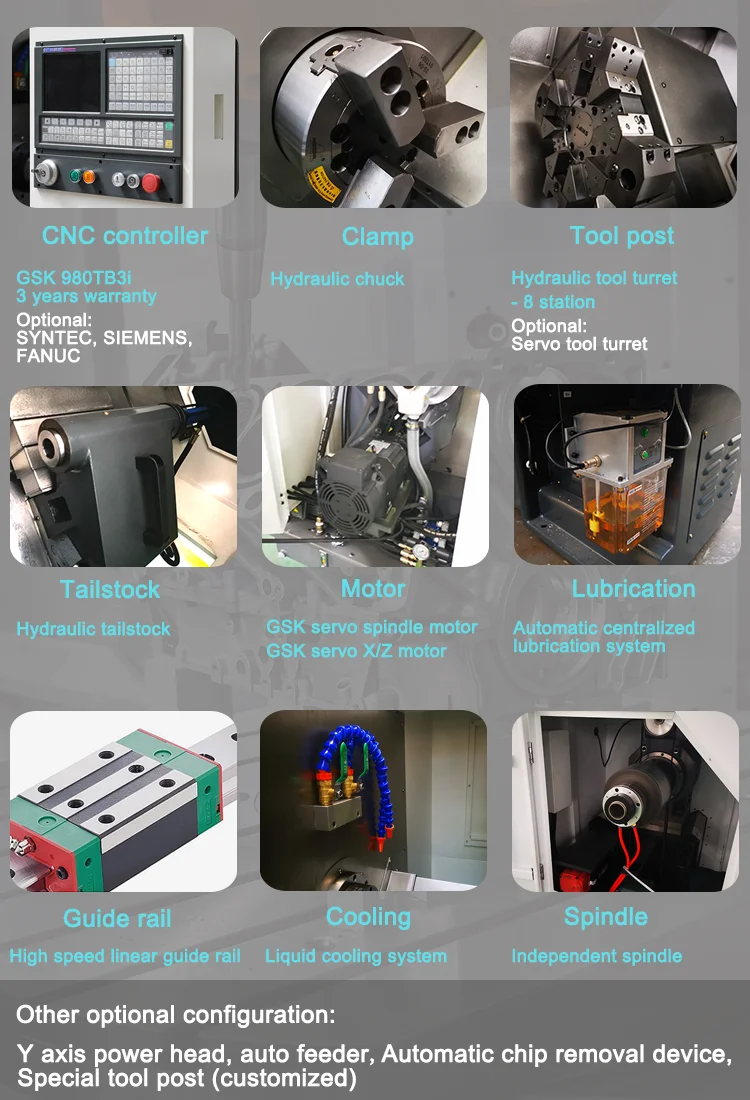

Details Images

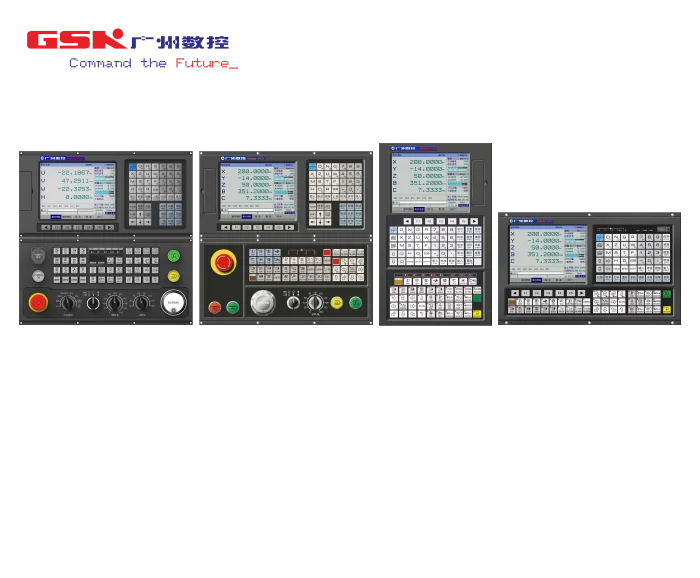

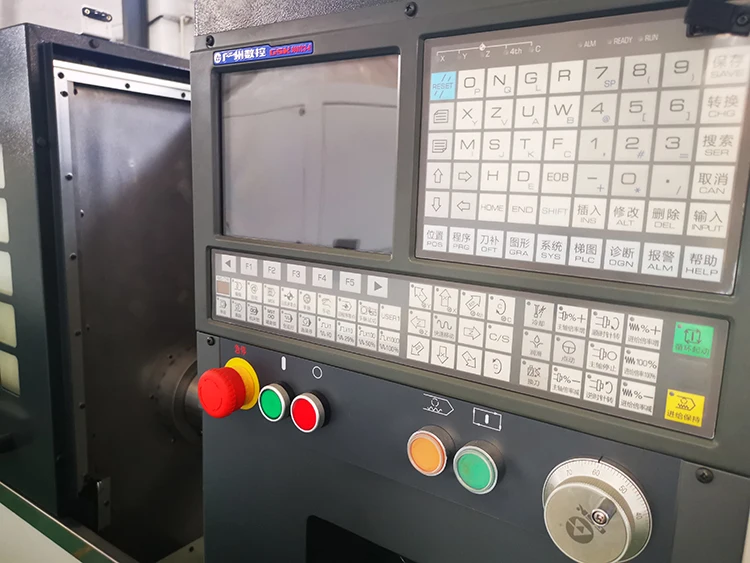

GSK 980TB3i control system

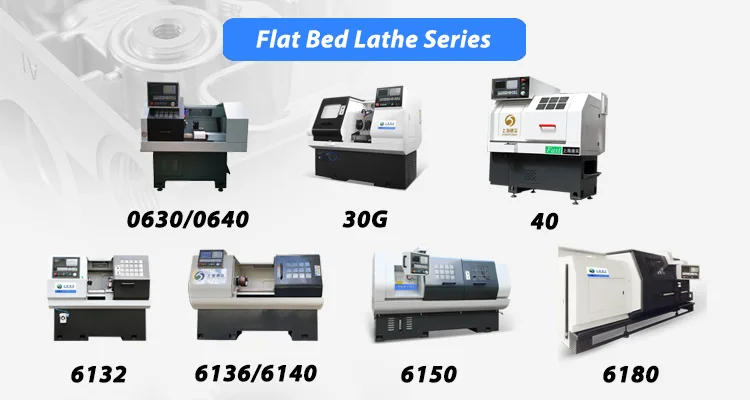

Recommend Products
Model | Structure Style | Swing Diameter over bed(mm) | Processing Length(mm) | Guideway | X travel (mm) | Z travel (mm) | Tailstock |
0630 | Flat bed | 300 | 180 | Hard guideway | 180 | 180 | ○ |
0640 | Flat bed | 400 | 180 | Hard guideway | 250 | 180 | ○ |
6132 | Flat bed | 320 | 350 | Hard guideway | 200 | 400 | ● |
6136 | Flat bed | 360 | 750 | Hard guideway | 180 | 750 | ● |
6140 | Flat bed | 400 | 750 | Hard guideway | 240 | 750 | ● |
6150 | Flat bed | 500 | 1000 | Hard guideway | 300 | 1000 | ● |
6180 | Flat bed | 800 | 1500 | Hard guideway | 500 | 1500 | ● |
30G | Flat bed | 300 | 350 | Linear guideway | 300 | 350 | ○ |
40G | Flat bed | 300 | 280 | Linear guideway | 280 | 280 | ○ |

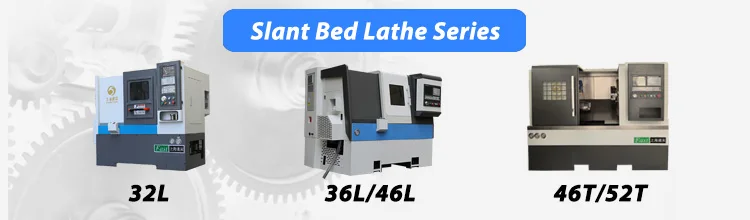

Model | Structure Style | Swing Diameter over bed(mm) | Processing Length(mm) | Guideway | X travel (mm) | Z travel (mm) | Tailstock | Other |
32L | Slant bed | 320 | 100 | Linear guideway | 600 | 250 | ○ | |
36L | Slant bed | 400 | 160 | Linear guideway | 600 | 250 | ○ | |
46L | Slant bed | 450 | 160 | Linear guideway | 720 | 310 | ○ | |
46T | Slant bed | 450 | 300 | Linear guideway | 150 | 450 | ● | Hydraulic tool turret |
52T | Slant bed | 500 | 400 | Linear guideway | 220 | 480 | ● | Hydraulic tool turret |

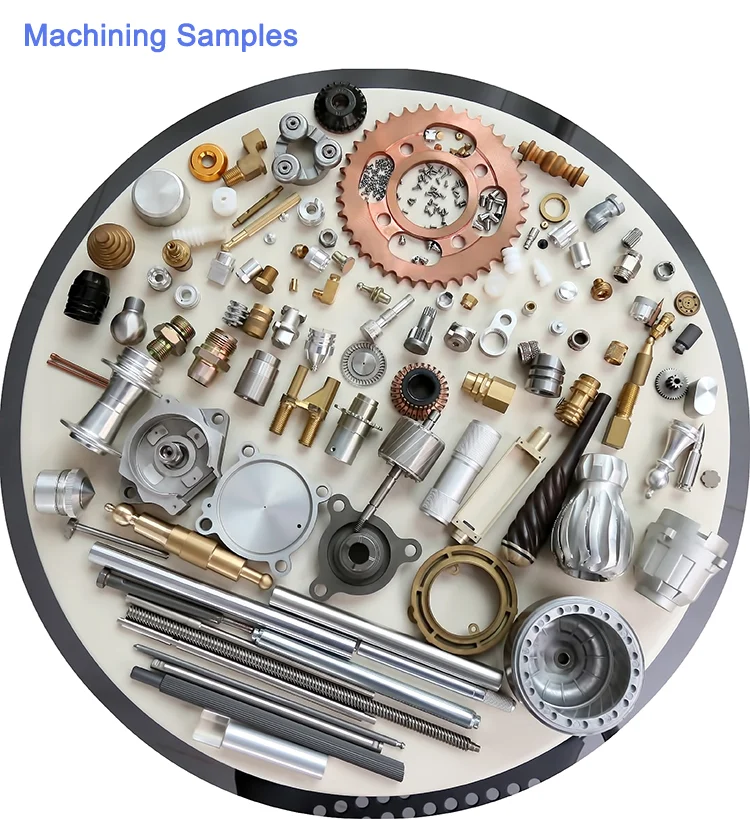

Processed products

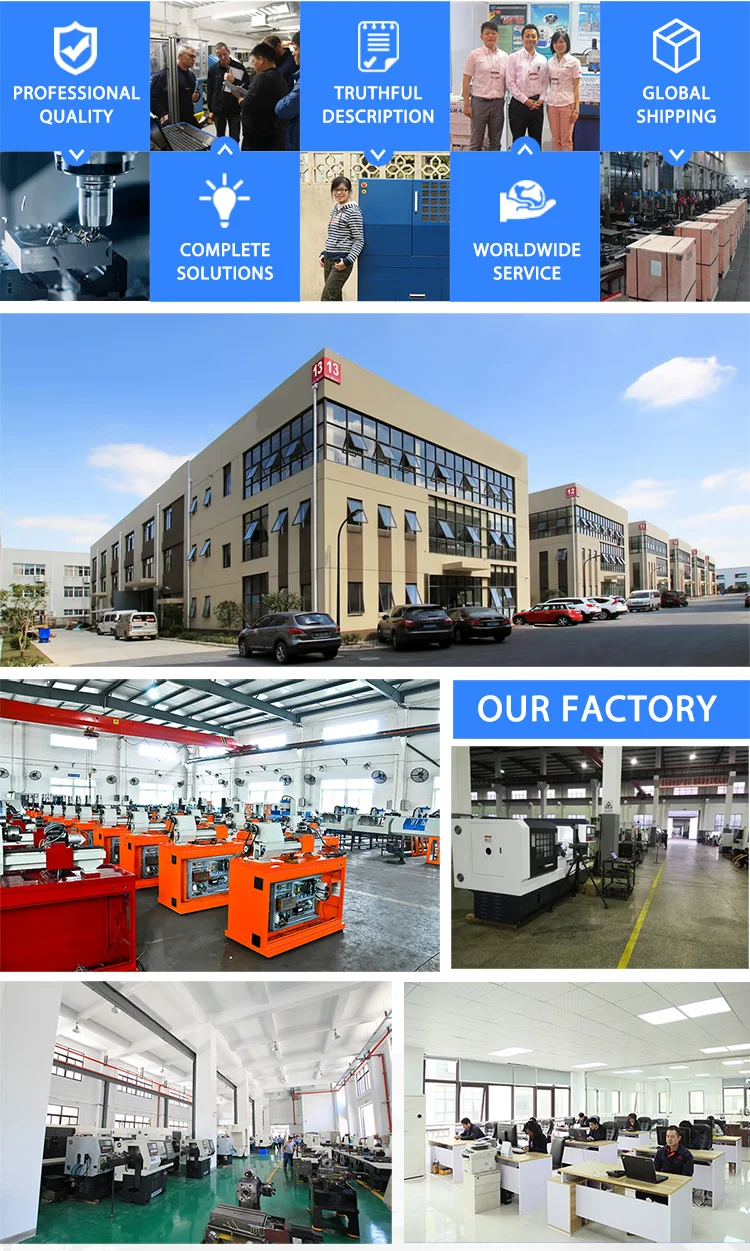

Why Choose Us
Customer Photos
Certifications
Packing & Delivery
Port of loading: Shanghai China.
By Express, by Sea, by Air Freight, depending on your choice.
