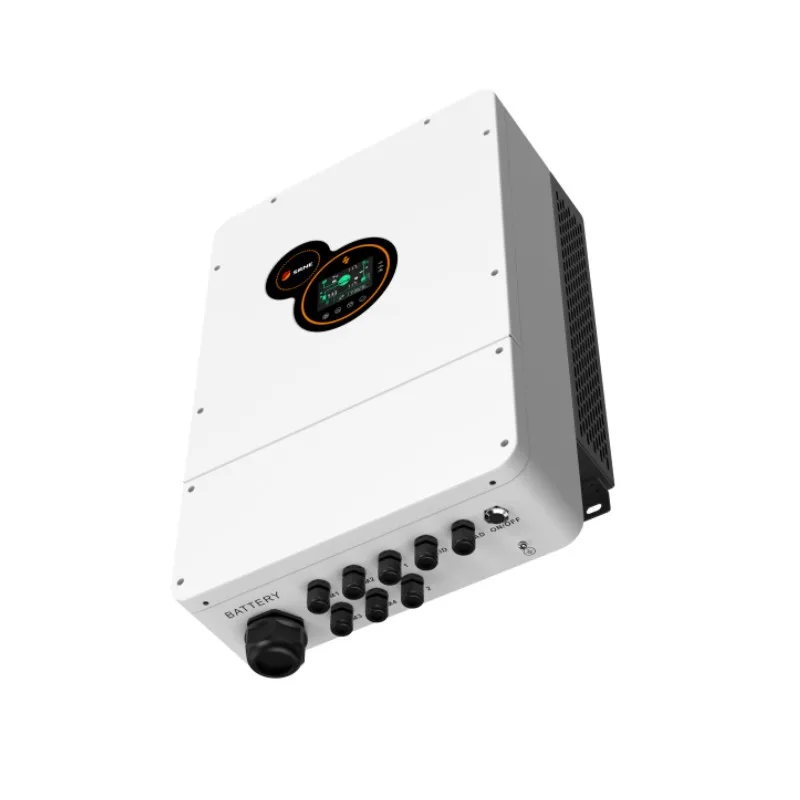

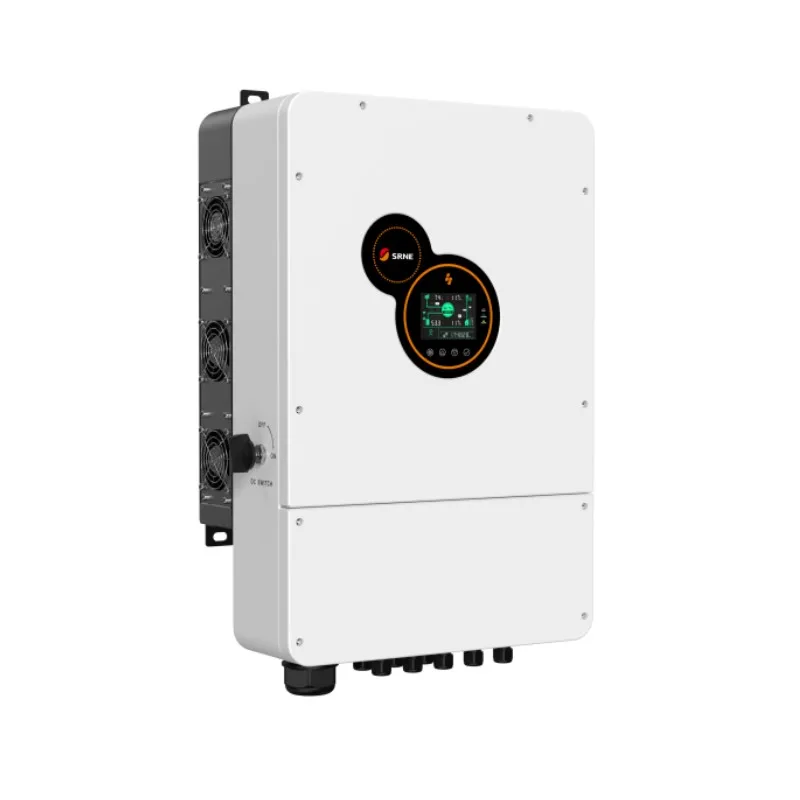

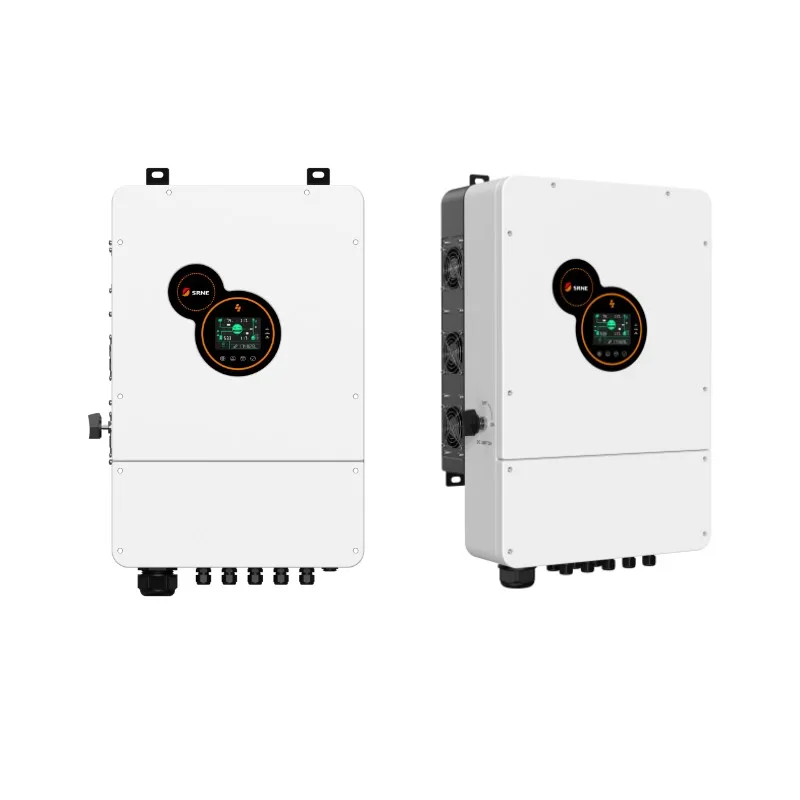

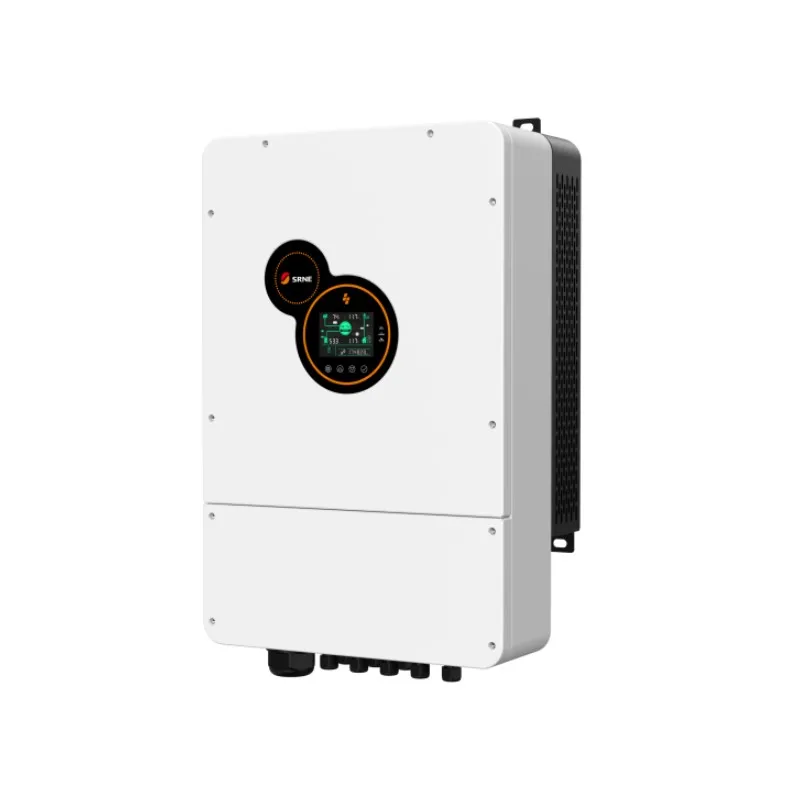

srne SR HES4840S100 H Grid Tie Inverter 4KW 6KW 8KW 10KW 12KW 230Vac 220Vac
- Category: >>>
- Supplier: Srne Solar Co. Ltd.
Share on (1600829446004):
Product Overview
Description
Products Description
Efficient
* Advanced MPPT technologty with up to 99.9% efficiency
* Up to 22A PV input current perfect for high power
* Up to 22A PV input current perfect for high power
Reliable
* Outputs high quality pure sine wave AC power
* IP65 protection degree for outside installation
* IP65 protection degree for outside installation
User-friendly
* Industrial design with a modern aesthetic look
* Easy to install and simple to use
* Easy to install and simple to use
Safety
* 360 degrees of security from hardware to software
* EU and North American safety approvals
* EU and North American safety approvals
All-in-one
* Solar Charger Controller up to 200A charging current
* Support for Li-ion battery BMS communication
* Support for Li-ion battery BMS communication
Intelligent
* Exclusive Li-ion battery BMS dual activation
* Time-slot function to save cost with peak-valley
* Time-slot function to save cost with peak-valley
Specification
MODEL | HES4840S100-H | HES4850S100-H | HES4860S100-H | ||
Rated Output Power | 4000W | 5500W | 6000W | ||
Max.Peak Power | 8,000VA | 11,000W | 12,000W | ||
Rated Output Voltage | 230Vac（split-phase ) | ||||
Load Capacity of Motors | 4HP | 6HP | |||
Rated AC Frequency | 50/60Hz | ||||
Waveform | Pure sine wave | ||||
Switch Time | 10ms（typical） | ||||
Battery Type | Li-ion / Lead-acid / user-define | ||||
Rated Battery Voltage | 48Vdc | ||||
Voltage Range | 40～58Vdc | ||||
Max.MPPT Charging Current | 100A | ||||
Max.Mains/Generator Charging Current | 60A | ||||
Max.Hybrid Charging Current | 100A | ||||
Num. of MPP Trackers | 1 | ||||
Max.PV array power | 4,500W | 6,000W | 6,600W | ||
Max.Input Current | 22A | ||||
Max.Voltage of Open Circuit | 500Vdc | ||||
MPPT Voltage Range | 125～425Vdc | ||||
Input Voltage Range | UPS mode：170～280Vac；APL mode：90～280Vac | ||||
Frequency Range | 50/60Hz | ||||
Bypass Overload Current | 40A | ||||
MPPT Tracking Efficiency | 99.9% | ||||
Max.Efficiency | 97.5% | ||||
European Efficiency | 90% | ||||
Dimensions | 556*345*182mm | ||||
Weight | 19.2kg | ||||
Protection Degree | IP65 | ||||
Operating Temperature Range | -25~60℃,>45℃ derated | ||||
Noise | <60dB | ||||
Cooling Method | Intelligent fan | ||||
Warranty | 5 years | ||||

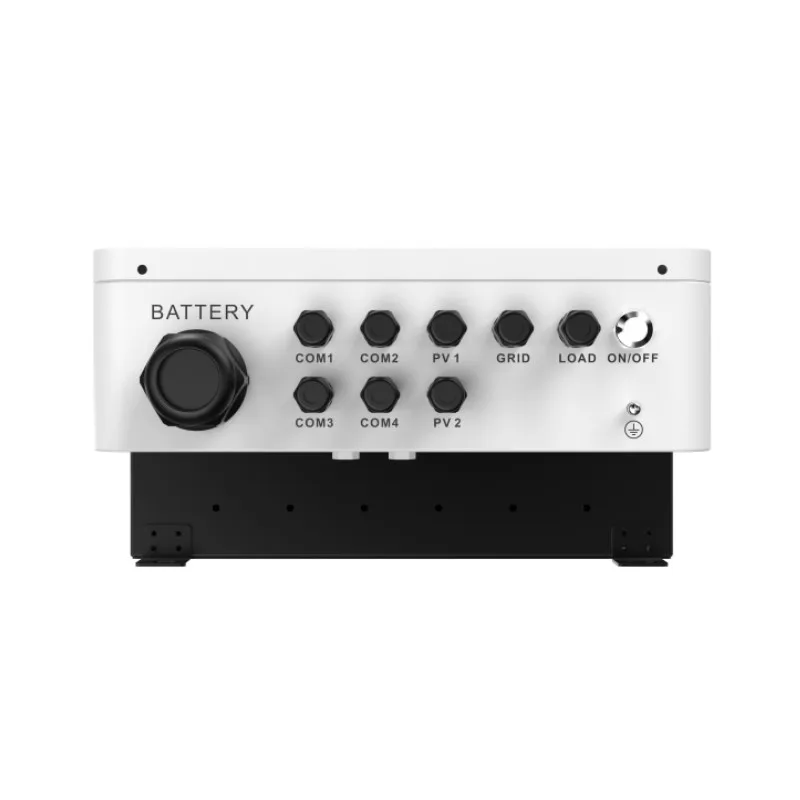

Embedded Interfaces | RS485/CAN/USB/dry contact | ||||
External Modules （Optional） | Wi-Fi/GPRS | ||||
Safety | IEC62109-1, IEC62109-2 | ||||
EMC | EN61000-6-1, EN61000-6-3, FCC 15 class B | ||||
RoHS | yes | ||||
Details Images
Certifications
Company Profile
SRNE SOLAR CO,LTD,established in 2009,is a state level high-tech enterprise that integrates R&D,manufacturing and sales of off-grid solar inverter charger,solar charge controller,etc. At present,SRNE is the world's leading supplier of soalr inverter charger and charge controller.SRNE products won the global customers'trust because of the stable running and excellent perfomance,Which is not only popular in China, but also North America, Europe Australia,Africa,Southeast Asia and other region,in 2017,SRNE enter into offgrid solar inverter charger market After detailed product planning and long-term developing cycle,SRNE offgrid solar inverter charger is ready to come into the market.R&D and product based,along with the excellent after-sale service,SRNE are devoting to promote the new age of solar applications
Packaging & Shipping
FAQ
Q1.What kind of certificates you have for your inverters?
A1:CE(IEC/EN62109-1,-2),ROHS2.0,cETL 2021
Q2.Are u a manufacturer or trading company?
A2:We are a state-level high-tech enterprise that integrates pluralism,R&D and manufacturing solar charge controller ,solar inverter charger
Q3.Can I buy one sample for testing?
A3:Sure,we have a 10 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
Q4.How is the delivery?
A4:Sample:1-2 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
Q5.How is your customers service?
A5:All solar product will be tested strictly one by one before leaving factory.And the defective rate is below 0.1% we do try our best to provide a good customer service.
A1:CE(IEC/EN62109-1,-2),ROHS2.0,cETL 2021
Q2.Are u a manufacturer or trading company?
A2:We are a state-level high-tech enterprise that integrates pluralism,R&D and manufacturing solar charge controller ,solar inverter charger
Q3.Can I buy one sample for testing?
A3:Sure,we have a 10 years experience R&D team and in timely after sale service,can help you fix any technical problem or confusion.
Q4.How is the delivery?
A4:Sample:1-2 working days
Order:within 7 working days depending on the order quantities
OEM order:15-20 working days after confirming the sample
Q5.How is your customers service?
A5:All solar product will be tested strictly one by one before leaving factory.And the defective rate is below 0.1% we do try our best to provide a good customer service.
