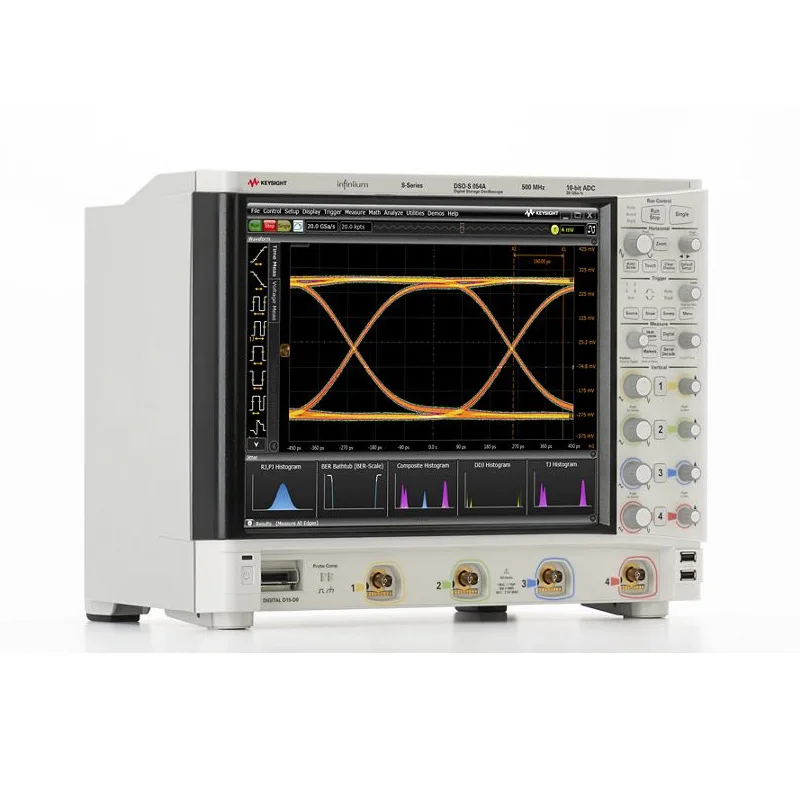

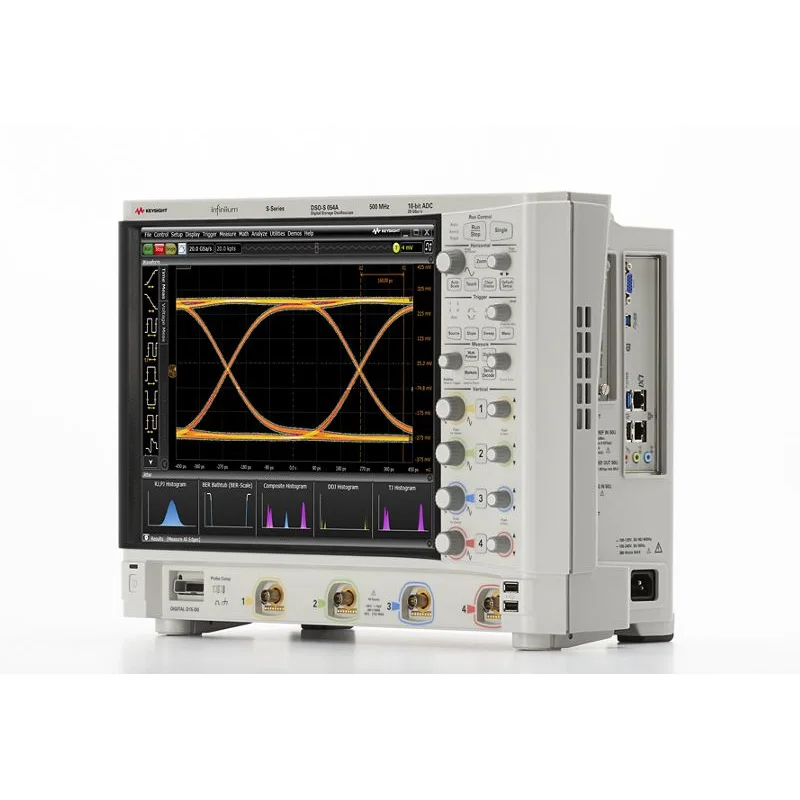

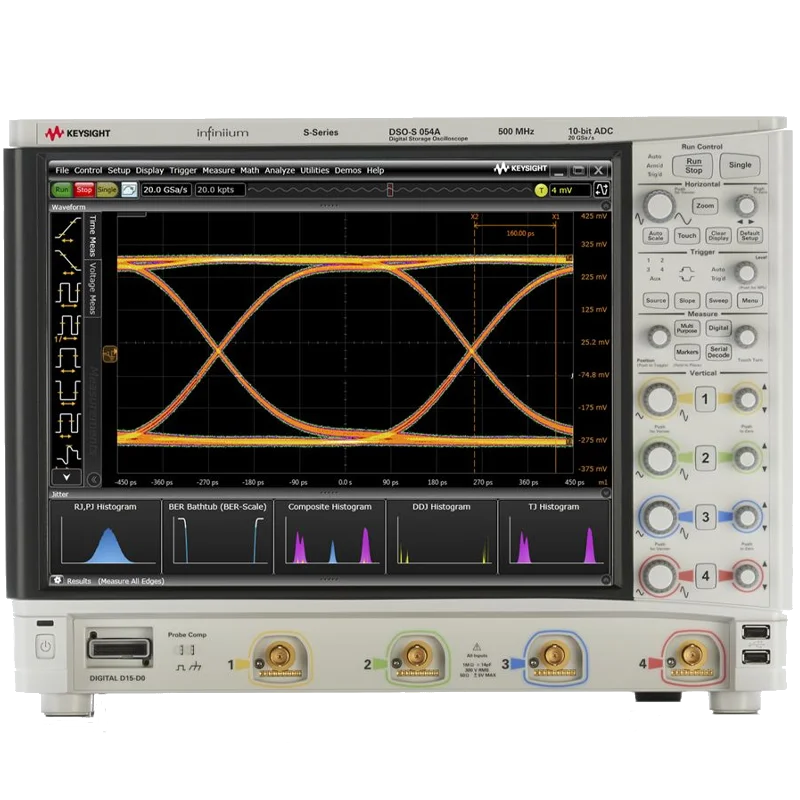

KEYSIGHT Infiniium DSOS054A High Definition Oscilloscope 500 MHz 10 bit 4 Analog Channels
- Category: >>>
- Supplier: Shandong Genesis Electronic Technology Co. Ltd.
Share on (1600829448984):
Product Overview
Description
SOS054A High-Definition Oscilloscope: 500 MHz, 4 Analog Channels

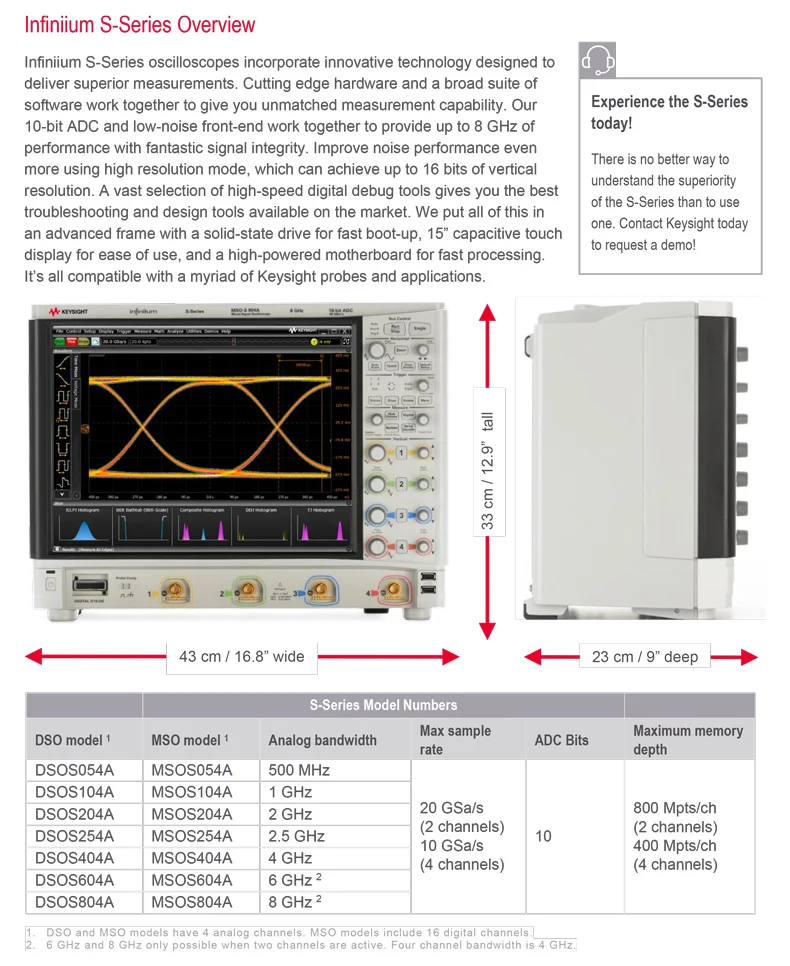

The DSOS054A S-Series oscilloscopes have 500MHz of bandwidth, a 15” XGA capacitive touch screen, and a 10-bit analog-to-digital converter.
SOS054A High-Definition Oscilloscope: 500 MHz, 4 Analog Channels
The DSOS054A S-Series oscilloscopes have 500MHz of bandwidth, a 15” XGA capacitive touch screen, and a 10-bit analog-to-digital converter.
- 500 MHz bandwidth (upgradable)
- 4 analog channels
- achieve up to 16 bits of vertical resolution with our advanced system architecture

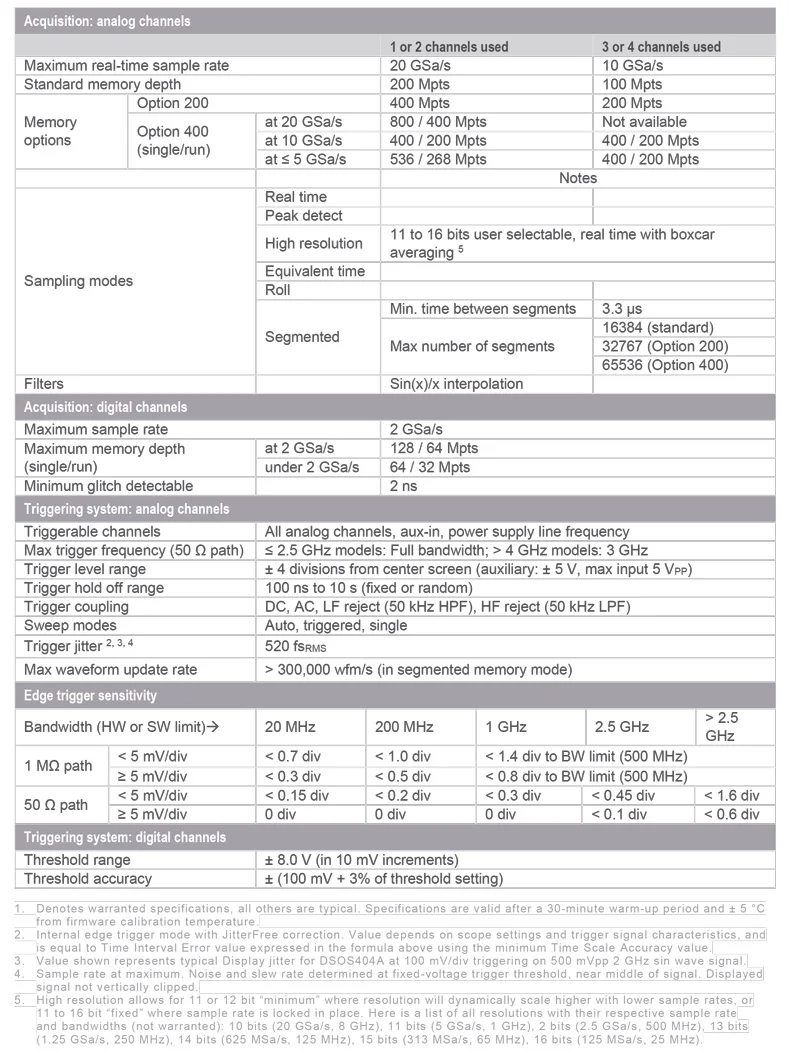

- capture a longer signal trace with 20 GSa/s maximum sample rate and 100 Mpts/channel of standard memory
- get superior signal integrity with an average system effective number of bits (ENOB) of 8.1 bits at full bandwidth

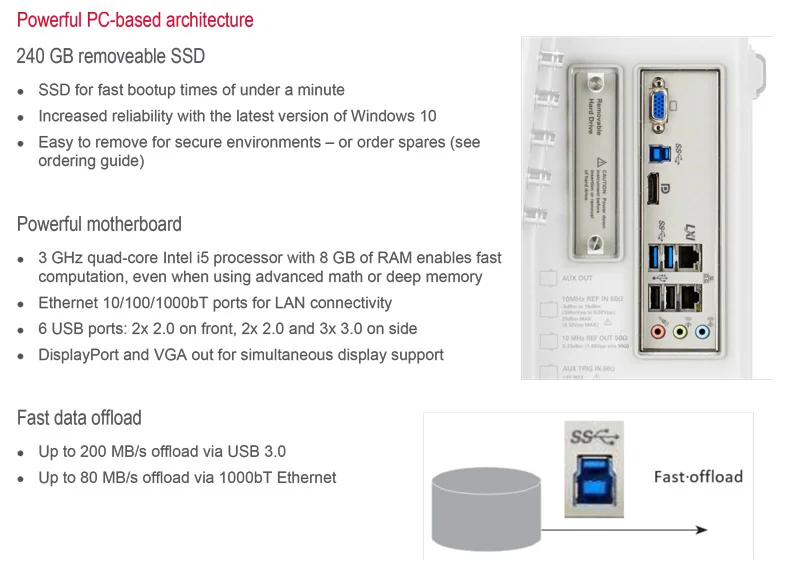

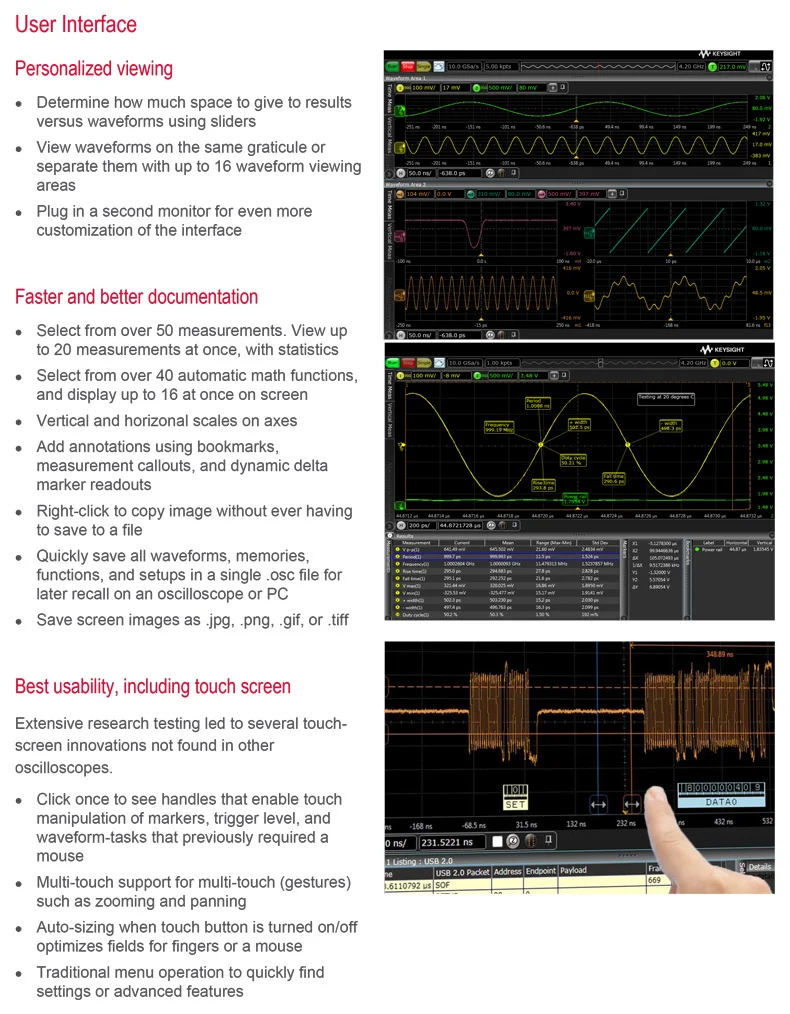

- gain increased usability with the multi-touch supported 15 inch capacitive touch screen and standard solid state drive for fast boot and high reliability

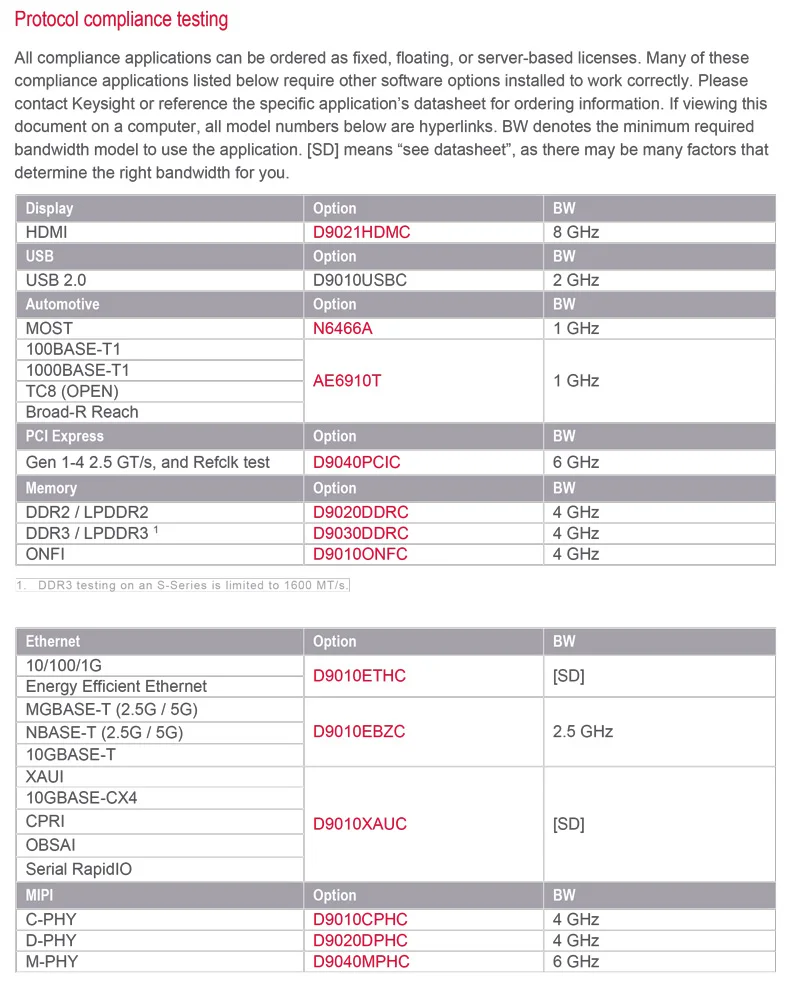

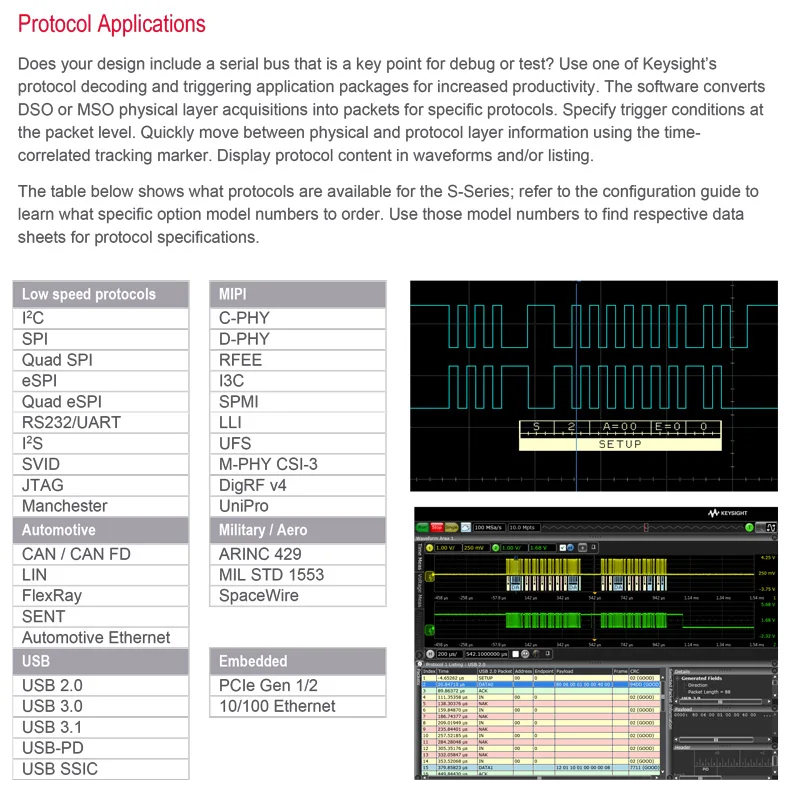

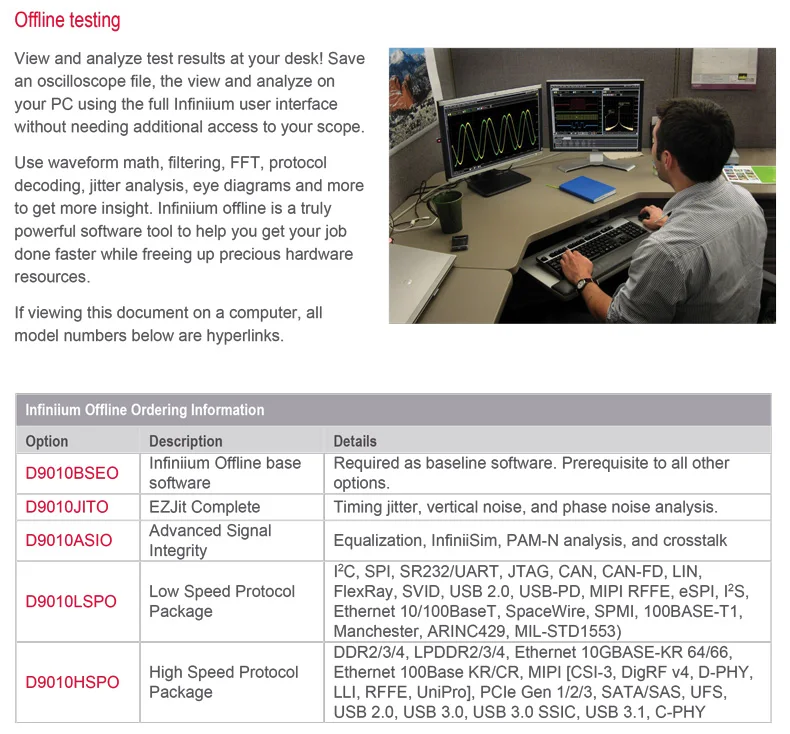

- access a wide range of protocol, compliance, and analysis software
What's included:
- four N2873A 500-MHz passive probes
- probe accessory pouch
- Keysight I/O libraries suite
- localized power cord, front panel cover
- 8 GHz BNC calibration cable
- keyboard and mouse
- user guide and programmer’s guide ship on oscilloscope drive
- service guide available on Keysight.com
