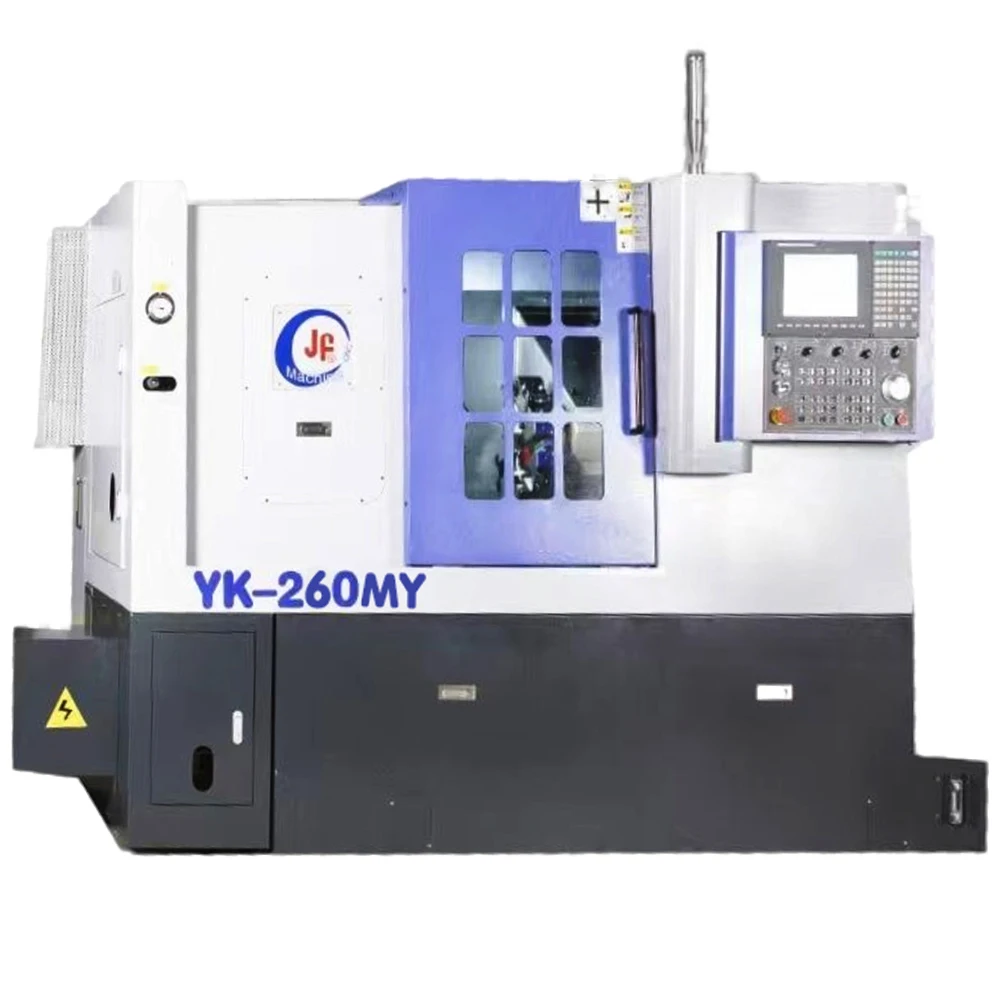

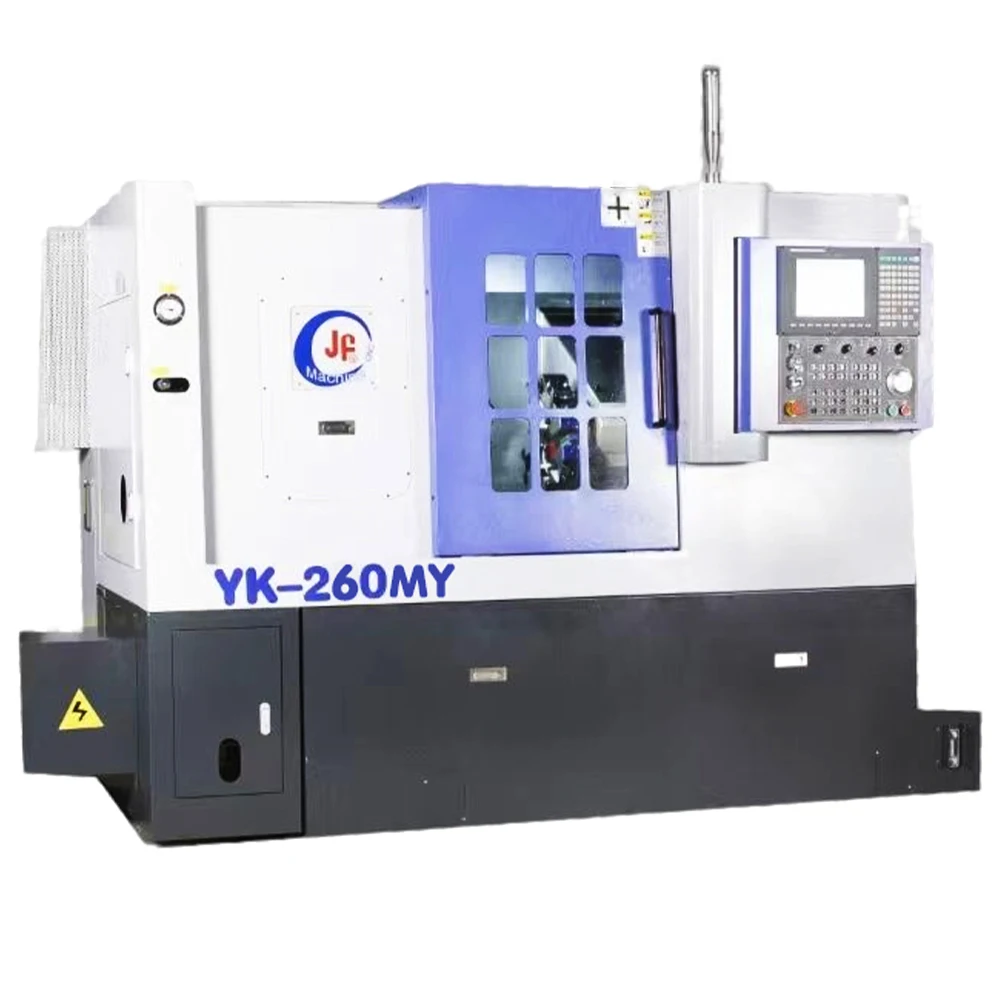

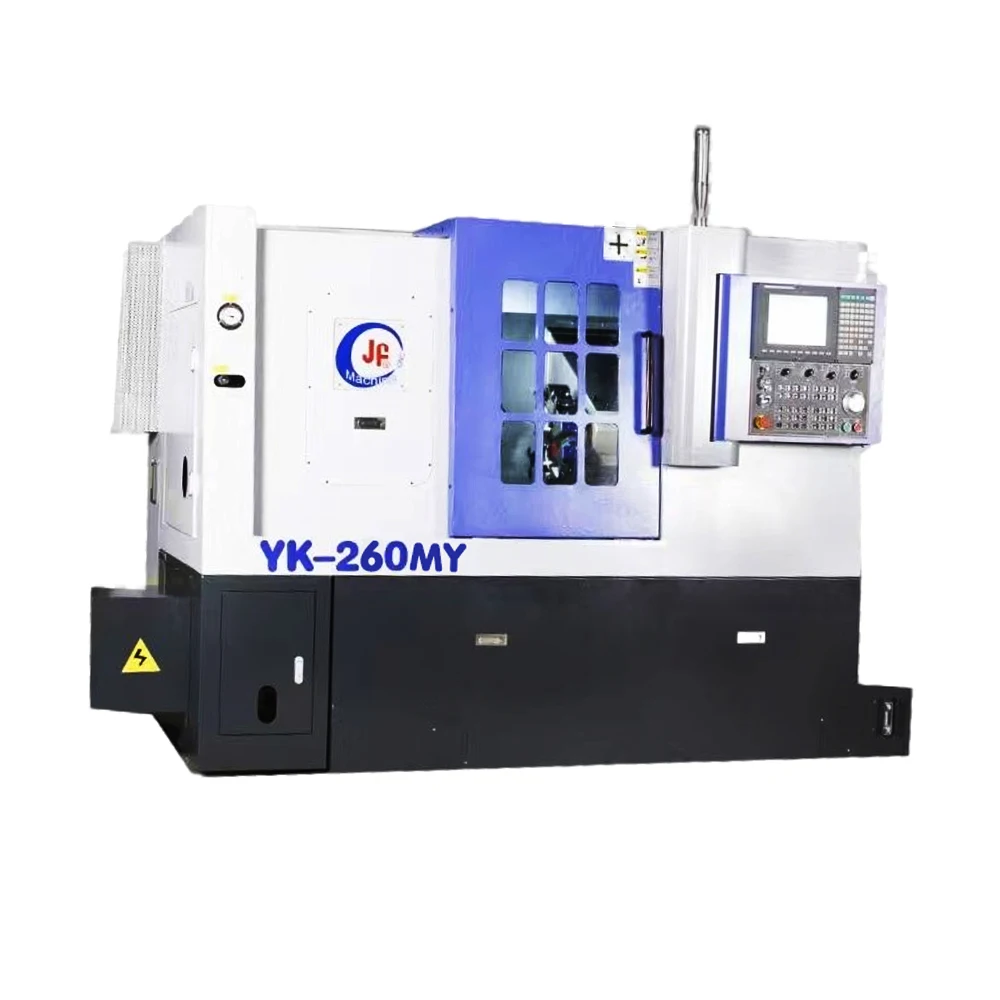

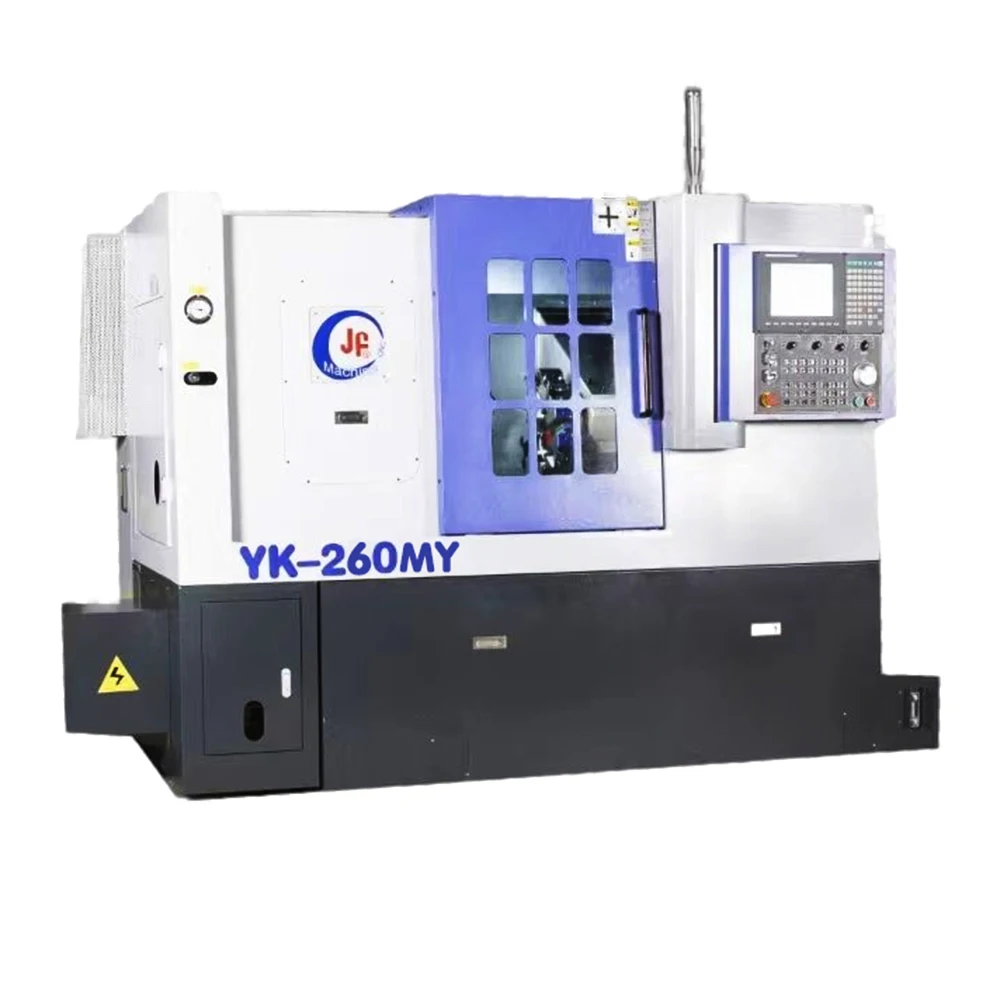

JINN FA YK 260MY New Machining Part Oem Metal Manufacturers Casting Swiss Implants CNC lathe Machine
- Category: >>>
- Supplier: Xiongyi Intelligent Machinery (changzhou) Co. Ltd.
Share on (1600829464542):
Product Overview
Description
Product Description
| YK-260MY(FANUC) | |||||
| Serial number | Content | Parameters or functions | Remarks | ||
| 1 | Basic specifications | Maximum spindle diameter | 520mm | ||
| Maximum machining diameter | 320mm | ||||
| Maximum bar diameter | φ 60mm | ||||
| Maximum machining length | 420mm | ||||
| stroke | X axis | 170mm | |||
| Y axis | ± 50mm | ||||
| Z axis | 435mm | ||||
| Rapid feed | X axis | 24m/min | |||
| Y axis | 24m/min | ||||
| Z axis | 24m/min | ||||
| Tool selection speed | 0.3sec | ||||

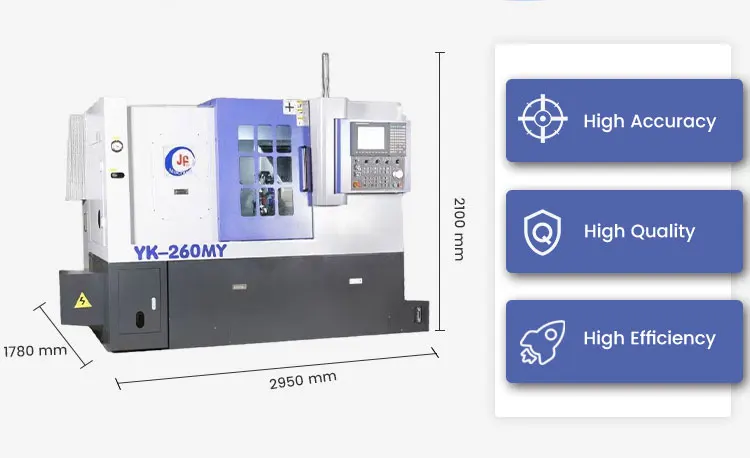

| Mechanical shape (long × wide × High) | 2650×1780×2100mm | ||||
| Total machine weight (kg) | 3750 | ||||
| Repeat positioning accuracy | 0.005 | ||||
| noise | 85dB | ||||
| 2 | principal axis | Motor model and manufacturer | Β IL 12/8000 | FANUC | |
| Transmission mode | belt | ||||
| Motor power (continuous) | 15HP | FANUC | |||
| Motor power (peak direct) | 20HP | FANUC | |||
| Speed range | 45~3500rpm | ||||
| Maximum torque | 157.5nm | FANUC | |||
| Through hole diameter of main shaft | φ seventy-five | ||||
| Spindle nose | A2-6 | ||||
| Spindle chuck | 10 | ||||
| Model of main shaft bearing | Nn3022+110bt10x +nn3020 | ||||
| Diameter of front bearing of main shaft | φ one hundred and ten | ||||
| Lubricating medium | Grace lglc2 | ||||
| Spindle cooling mode | Air cooling | ||||
| Accuracy of spindle bearing | P4 | ||||

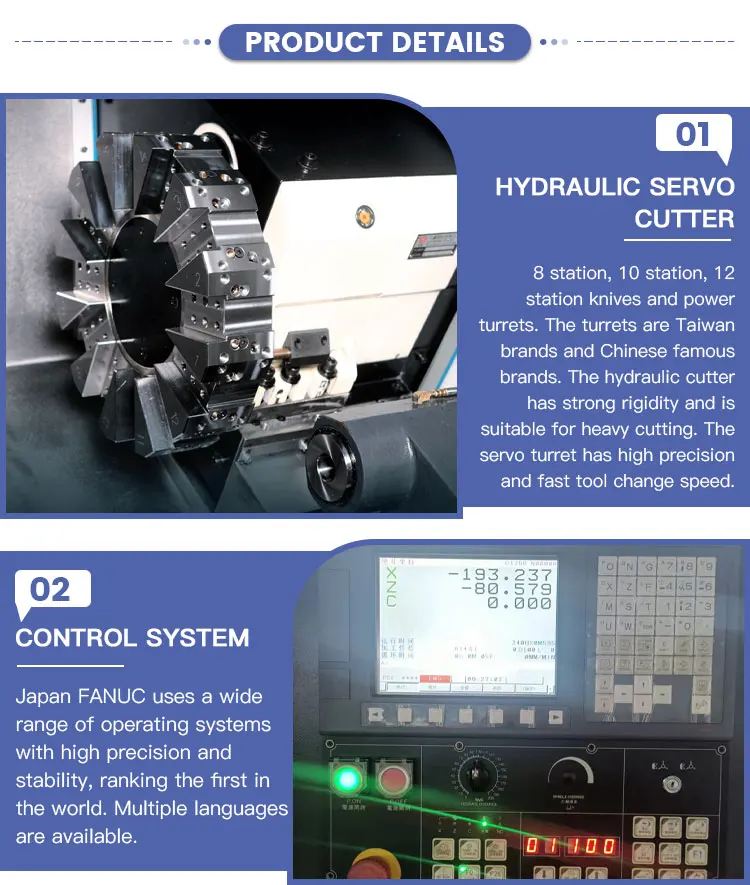

| 3 | Turret | Type and manufacturer of turret | Power turret | ||
| Number of turret positions | 12 | ||||
| Tool selection mode | Manual/Program | ||||
| Od shank size | 25 | ||||
| Enamelled handle diameter | φ thirty-two | ||||
| Power shaft | ER25 | ||||
| YK-260MY(SYNTEC) | |||||
| Serial number | Content | Parameters or functions | Remarks | ||
| 1 | Basic specifications | Maximum spindle diameter | 520mm | ||
| Maximum machining diameter | 320mm | ||||
| Maximum bar diameter | φ 60mm | ||||
| Maximum machining length | 420mm | ||||
| stroke | X axis | 170mm | |||
| Y axis | ± 50mm | ||||
| Z axis | 435mm | ||||
| Rapid feed | X axis | 24m/min | |||
| Y axis | 24m/min | ||||
| Z axis | 24m/min | ||||
| Tool selection speed | 0.3sec | ||||
| Mechanical shape (long × wide × High) | 2650×1780×2100mm | ||||
| Total machine weight (kg) | 3750 | ||||
| Repeat positioning accuracy | 0.005 | ||||
| noise | 85dB | ||||
| 2 | principal axis | Motor model and manufacturer | ASMA-38C018K | ASMA | |
| Transmission mode | Belt | ||||
| Motor power (continuous) | 18.5KW | ASMA | |||
| Motor power (peak direct) | 22KW | ASMA | |||
| Speed range | 45~3500rpm | ||||
| Maximum torque | 216NM | ASMA | |||
| Through hole diameter of main shaft | φ seventy-five | ||||
| Spindle nose | A2-6 | ||||
| Spindle chuck | 10 | ||||
| Model of main shaft bearing | Nn3022+110bt10x +nn3020 | ||||
| Diameter of front bearing of main shaft | φ one hundred and ten | ||||
| Lubricating medium | Grace lglc2 | ||||
| Spindle cooling mode | Air cooling | ||||
| Accuracy of spindle bearing | P4 | ||||
| 3 | Turret | Type and manufacturer of turret | Power turret | ||
| Number of turret positions | 12 | ||||
| Tool selection mode | Manual/Program | ||||
| Od shank size | 25 | ||||
| Enamelled handle diameter | φ thirty-two | ||||
| Power shaft | ER25 | ||||
Please contact us for more equipment parameters.
Company Information
Packaging & Shipping
FAQ
1.What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK,SYNTEC. It depends on your choice.
3:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We specialize in selling all kinds of machine tools, such as CNC lathes, CNC milling machines, vertical machining centers, lathes, Swiss-type lathes, grinding machines and special fixtures for machine tools, tools, non-standard fixtures, tools
5: Where is our factory located? How can I visit there?
A :Our company is located at C307, Block C, Boyunhui, No. 18, Xingao Road, Niutang Town, Wujin District, Changzhou City, Jiangsu Province, China. You are warmly welcomed to visit us.
6. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
