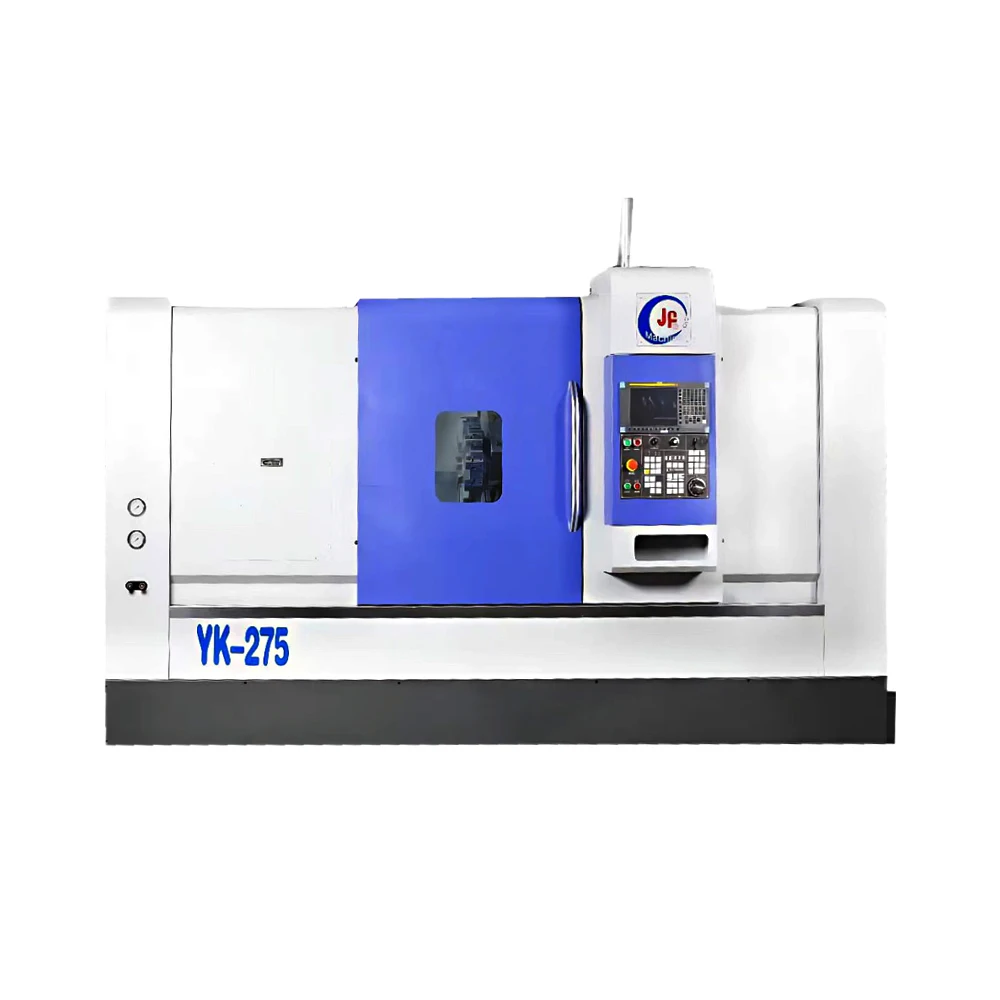

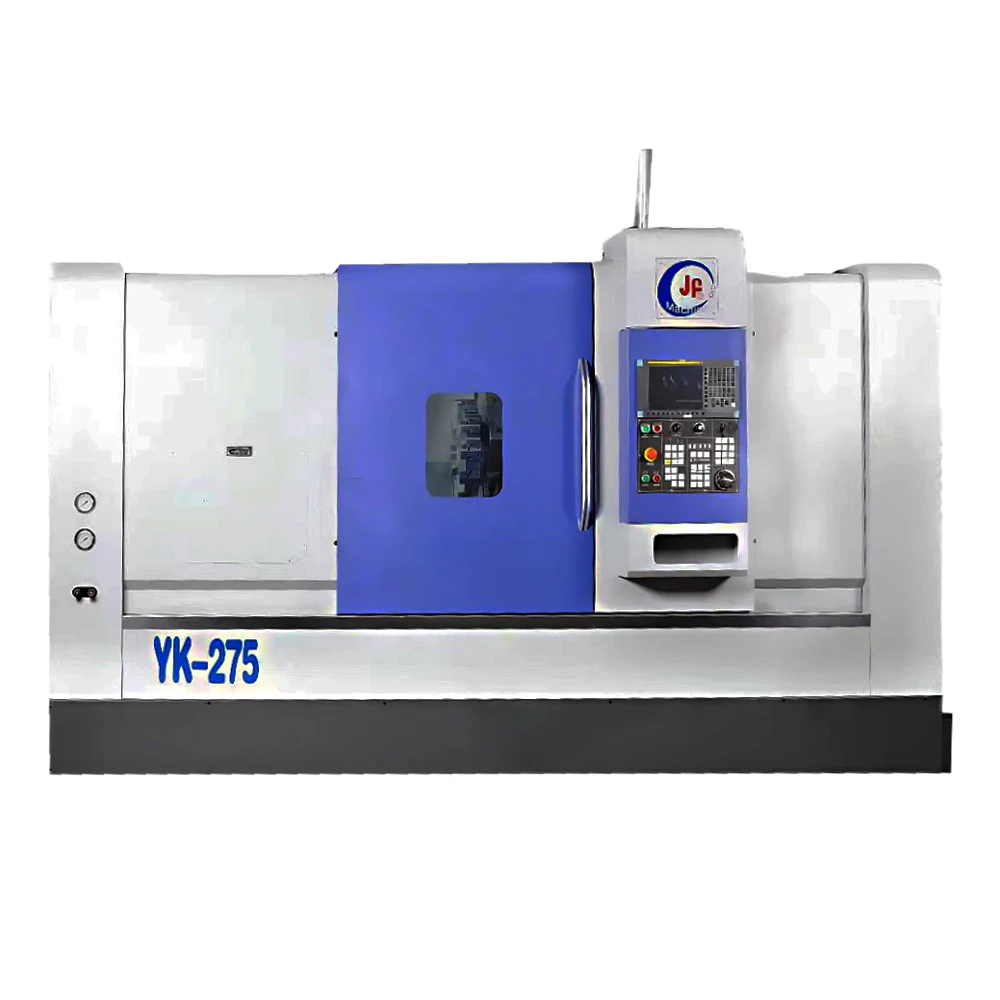

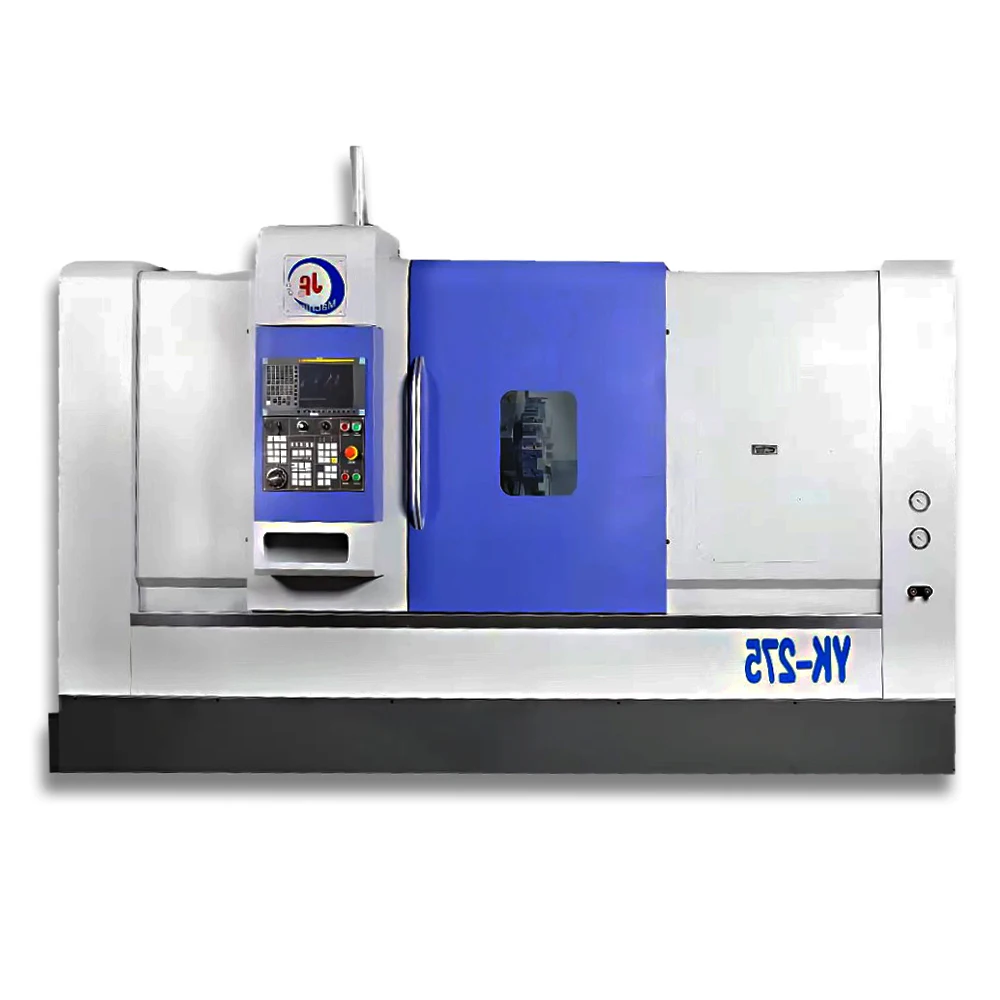

JINN FA YK 275 2 Axis Turning Parts Micro 220V Single Phase Controller CNC lathe Machine
- Category: >>>
- Supplier: Xiongyi Intelligent Machinery (changzhou) Co. Ltd.
Share on (1600829632775):
Product Overview
Description
Product Description
| YK-275(FANUC) | |||||
| Serial No | Content | Parameter or function | remarks | ||
| 1 | Basic specifications | Maximum turning diameter of bed surface | φ 500mm | ||
| Maximum machining diameter | φ 450mm | ||||
| Maximum machining diameter on tool rest | φ 320mm | ||||
| Maximum bar diameter | φ 72mm | ||||
| Maximum machining length | 550mm | ||||
| trip | X axis | 235mm | |||
| Z-axis | 600mm | ||||
| Rapid feed | X axis | 21m/min | |||
| Z-axis | 25m/min | ||||
| Tool selection speed | 0.3s | ||||

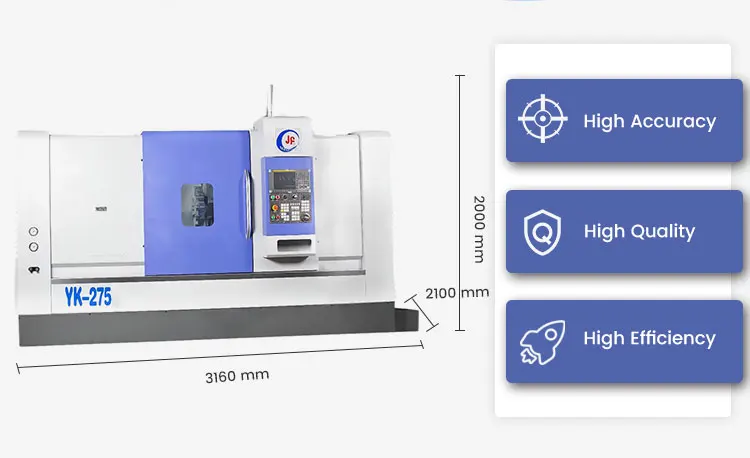

| Mechanical profile (long × wide × High) | 3160*2100*1900mm | ||||
| Total weight of machine (Kg) | 5500KG | ||||
| positioning accuracy | 0.01/100 | ||||
| Repetitive positioning accuracy | 0.003/200 | ||||
| noise | 85dB | ||||
| 2 | principal axis | Motor model and manufacturer | BiP40/6000 | FANUC | |
| Transmission mode | pulley | ||||
| Speed range | 3000rpm | ||||
| Maximum torque | 544Nm | FANUC | |||
| Spindle through-hole | φ 87mm | ||||
| Spindle nose | A2-8 | ||||
| Spindle collet | 10 | ||||
| Main shaft bearing model | NN3026 | ||||
| Diameter of front bearing of main shaft | φ 130mm | ||||
| Lubrication medium | GREASE LGLC2 | ||||
| Spindle cooling mode | Air cooling | ||||
| Accuracy of main shaft bearing | P4 | ||||

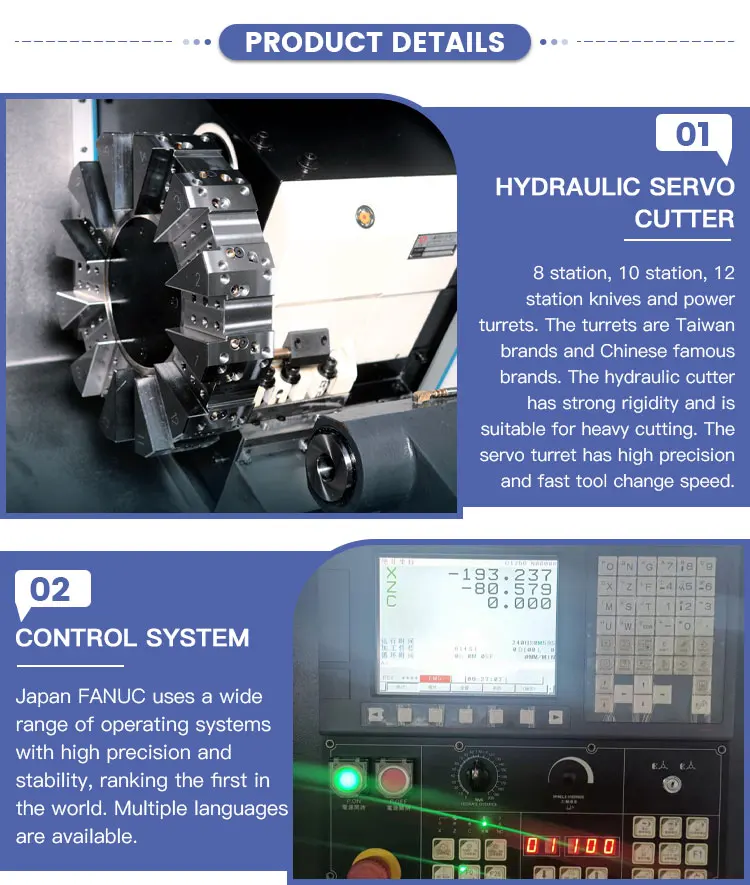

| 3 | Turret | Type of turret | Oil pressure cutter tower | Taiwan | |
| Number of turret positions | 12 | ||||
| Rotating power type | Manual | ||||
| Programs | |||||
| Outer diameter tool handle size | 25mm | ||||
| Diameter of tool holder | φ 40mm | ||||
| YK-275(SYNTEC) | |||||
| Serial No | Content | Parameter or function | Remarks | ||
| 1 | Basic specifications | Maximum turning diameter of bed surface | φ 500mm | ||
| Maximum machining diameter | φ 450mm | ||||
| Maximum machining diameter on tool rest | φ 320mm | ||||
| Maximum bar diameter | φ 72mm | ||||
| Maximum machining length | 550mm | ||||
| trip | X-axis | 235mm | |||
| Z-axis | 600mm | ||||
| Rapid feed | X-axis | 21m/min | |||
| Z-axis | 25m/min | ||||
| Tool selection speed | 0.3s | ||||
| Mechanical profile (long × wide × High) | 3160×2100×2000mm | ||||
| Total weight of machine (Kg) | 5500KG | ||||
| positioning accuracy | 0.01/100 | ||||
| Repetitive positioning accuracy | 0.003/200 | ||||
| noise | 85dB | ||||
| 2 | principal axis | Motor model and manufacturer | ASMA-38C030K | ASMA | |
| Transmission mode | pulley | ||||
| Speed range | 3000rpm | ||||
| Maximum torque | 420Nm | ASMA | |||
| Spindle through-hole | φ 87mm | ||||
| Spindle nose | A2-8 | ||||
| Spindle collet | 10 | ||||
| Main shaft bearing model | NN3026 | ||||
| Diameter of front bearing of main shaft | φ 130mm | ||||
| Lubrication medium | GREASE LGLC2 | ||||
| Spindle cooling mode | Air cooling | ||||
| Accuracy of main shaft bearing | P4 | ||||
| 3 | Turret | Type of turret | Oil pressure cutter tower | Taiwan | |
| Number of turret positions | 12 | ||||
| Rotating power type | Manual | ||||
| Programs | |||||
| Outer diameter tool handle size | 25mm | ||||
| Diameter of tool holder | φ 40mm | ||||
Please contact us for more equipment parameters.
Company Information
Packaging & Shipping
FAQ
1.What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK,SYNTEC. It depends on your choice.
3:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We specialize in selling all kinds of machine tools, such as CNC lathes, CNC milling machines, vertical machining centers, lathes, Swiss-type lathes, grinding machines and special fixtures for machine tools, tools, non-standard fixtures, tools
5: Where is our factory located? How can I visit there?
A :Our company is located at C307, Block C, Boyunhui, No. 18, Xingao Road, Niutang Town, Wujin District, Changzhou City, Jiangsu Province, China. You are warmly welcomed to visit us.
6. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
