Double Lane Square Full Height Turnstile Gate 304 Channel Singal Clear Servo Mechanism Single Full Height Turnstile Gate
- Category: >>>
- Supplier: Shenzhen Unisec Technology Co. Ltd.
Share on (1600829662993):
Product Overview
Description
Product Description

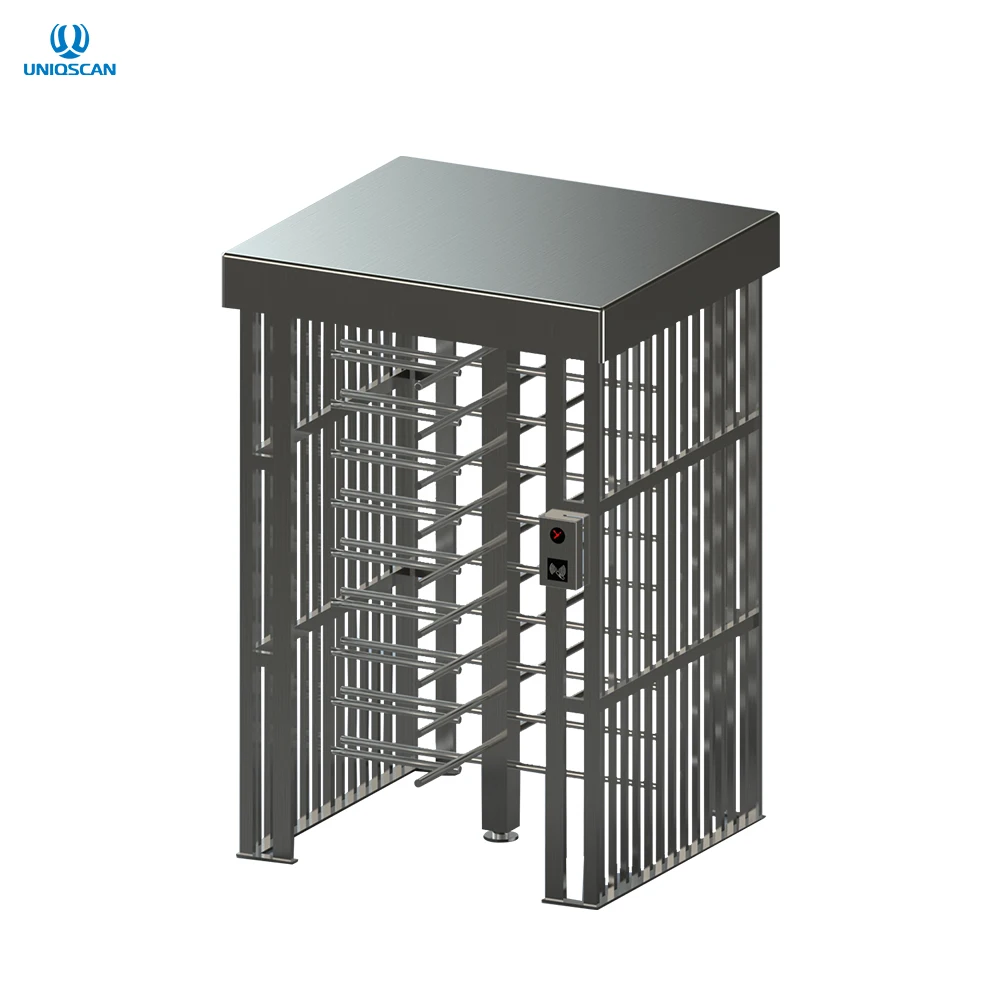

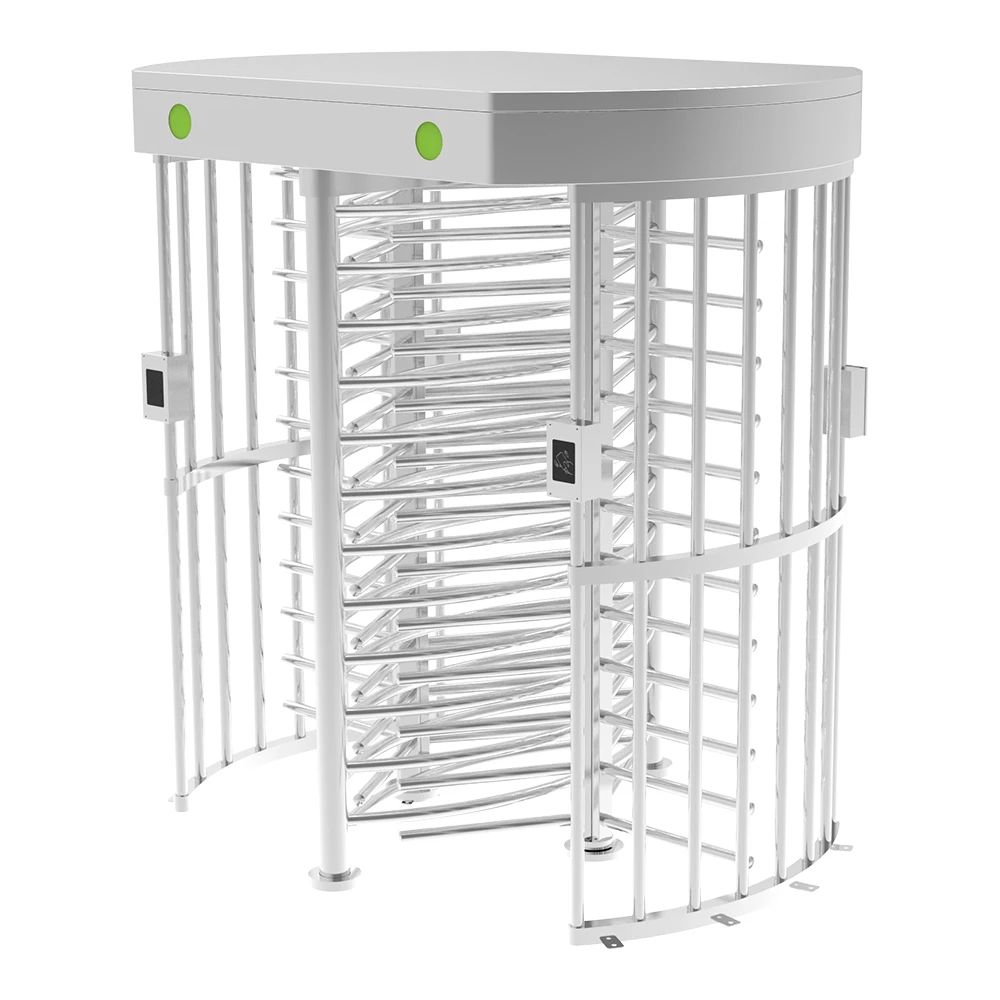

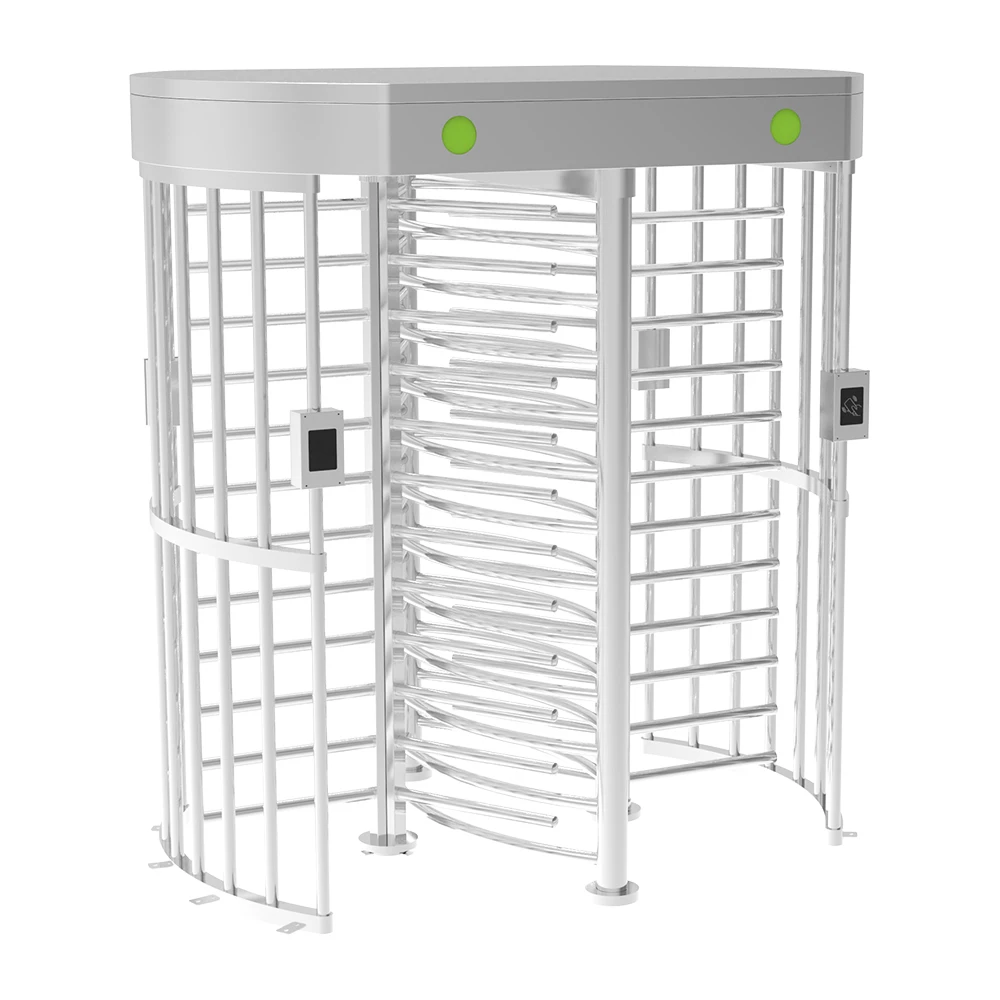

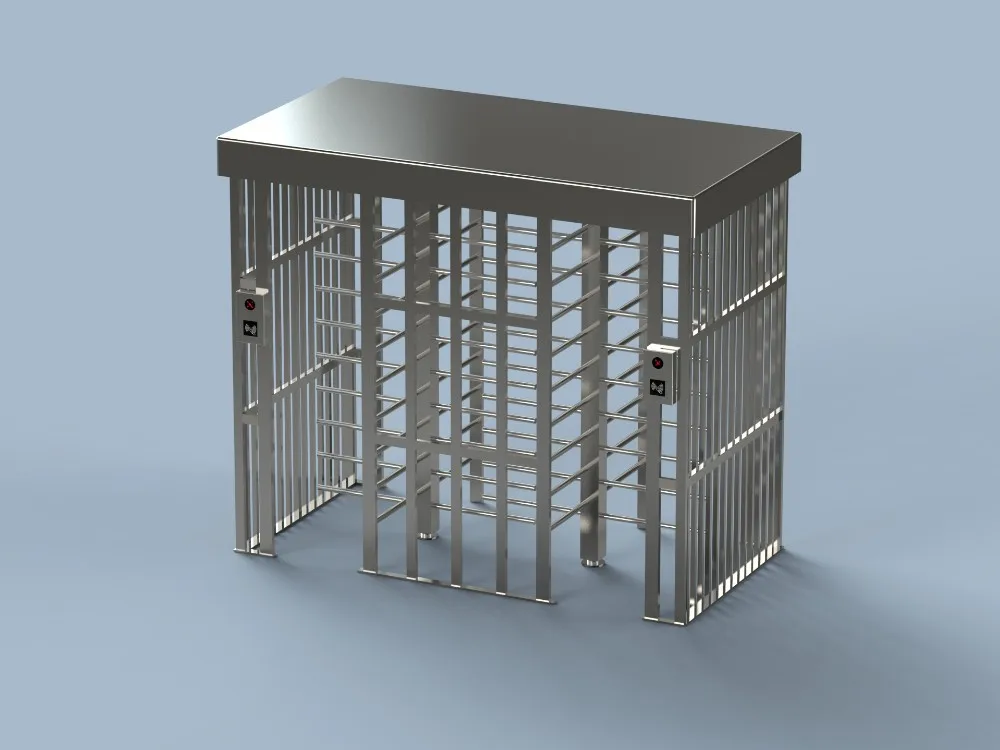

Double Lane Square Full Height Turnstile Gate
Specification
Material | 304 Stainless Steel | ||||

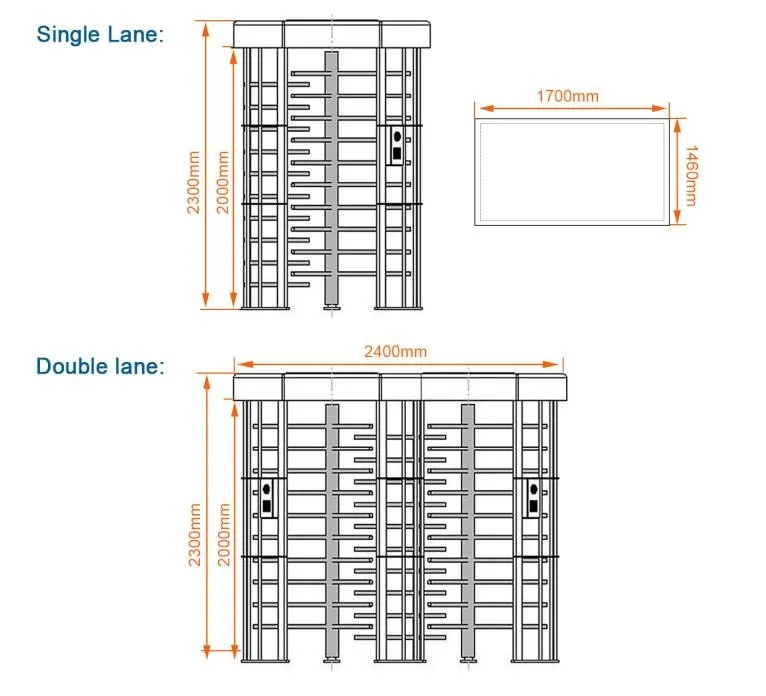

Dimensions | 2400*1460*2300mm | ||||
Card-reading window | Two | ||||
Operating temperature | -25℃ ~ +60℃, RH ≤90% | ||||
Related humidity | ≥90%RH | ||||
Rated power | 120W | ||||
Communication Interface | RS485,distance ≤1200m | ||||
Power supply | AC 220V/110V ±10% 50/60MHZ (optional) | ||||
Pass speed | 35 persons per minute | ||||
Thickness | 1.5mm | ||||
Product Introduction
Introduction
The full high turnstile is designed to provide unsupervised access control for office or building.
The impenetrable construction eliminates any unauthorized access to restricted areas.
To gain authorized passage through the turnstile, the user must present a valid card for the access control system.
Upon presentation of the valid card. the turnstile will unlock and allow the user to pass through the direction requested.

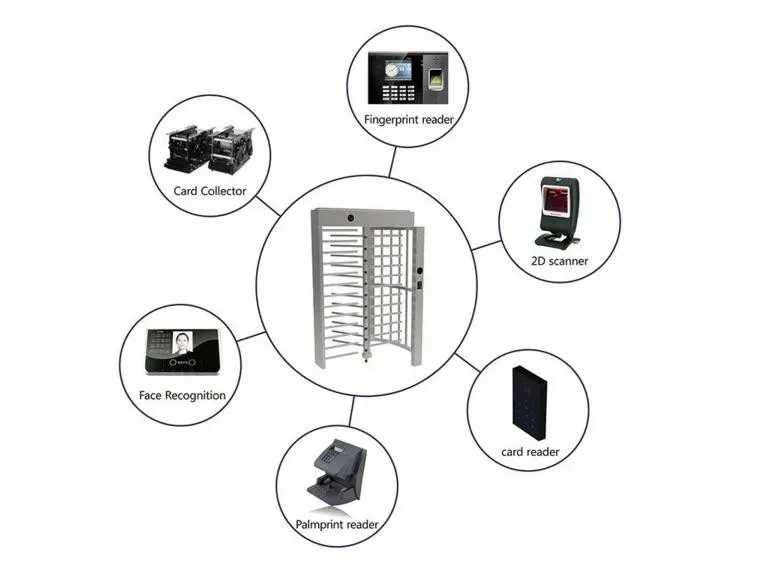

The turnstile can also work with push button, fingerprint and face recognition access control system.
Function
1. Adopt High-level full-automatic mechanism, Brushless DC motor, system operation stable with low noise.
2. Unique two-way anti-reverse function.
3. Anti-pinch and anti-collision function, automatical control system, power board, passage LED indicator, passage mode setting.
4. Anti-shock function, the wing arm is automatically locked when no open signal is received.
5. The power-off the flap is automatically opened and automatically closed when it's powered, which meets the fire protection requirements.
6. With time protection and automatical reset function
7. Unified electrical interface, can be connected with reading and writing equipments.
8. Using standard electrical interface, it can easily intergrate magnetic stripe card, barcode card, ID card, IC card, and other card readers on the device.
Detailed Images

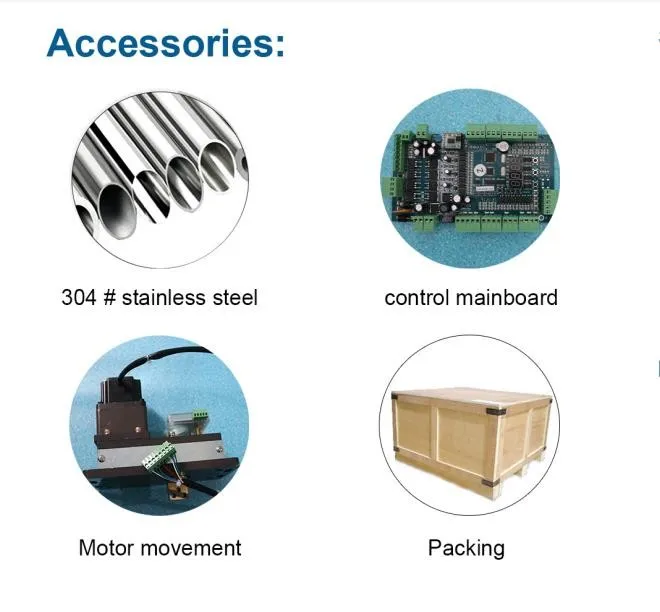

Packing & Delivery

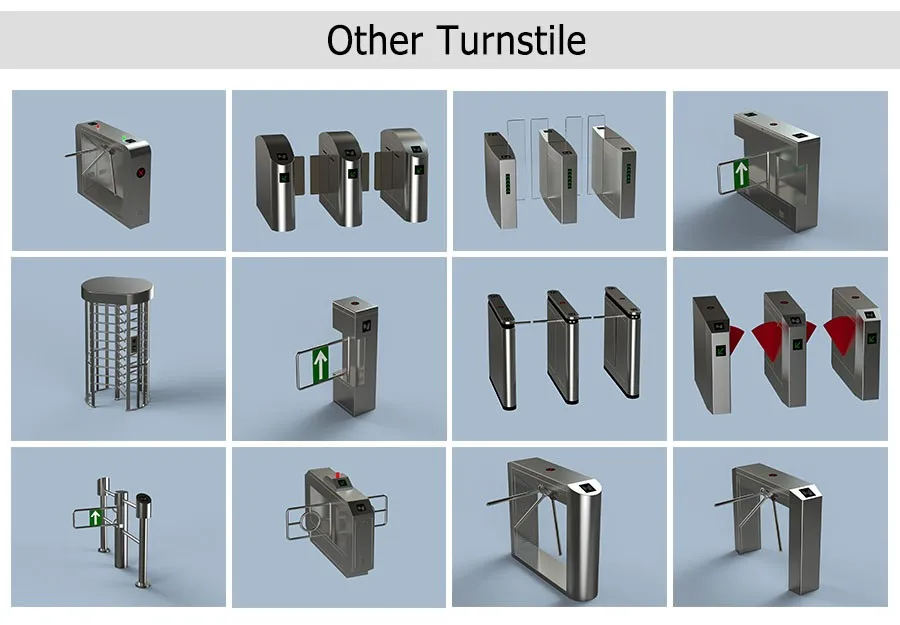

Other products
