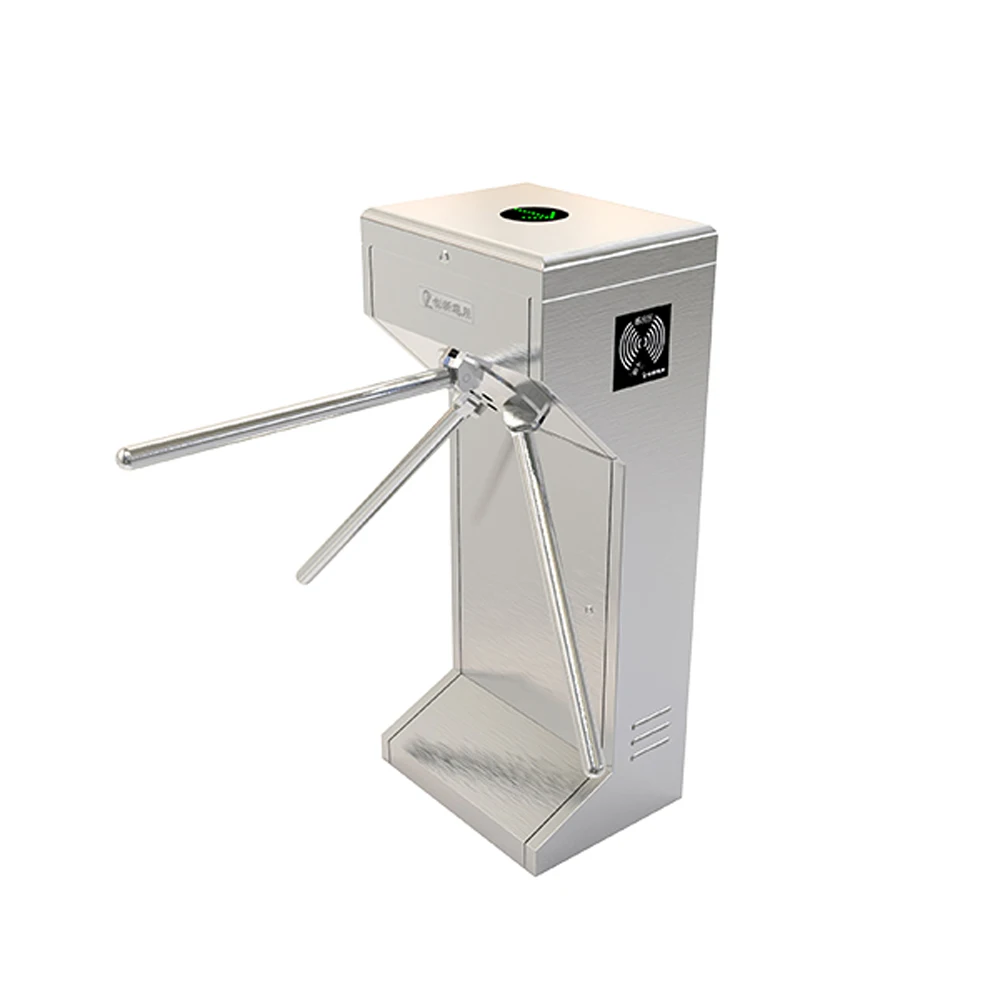

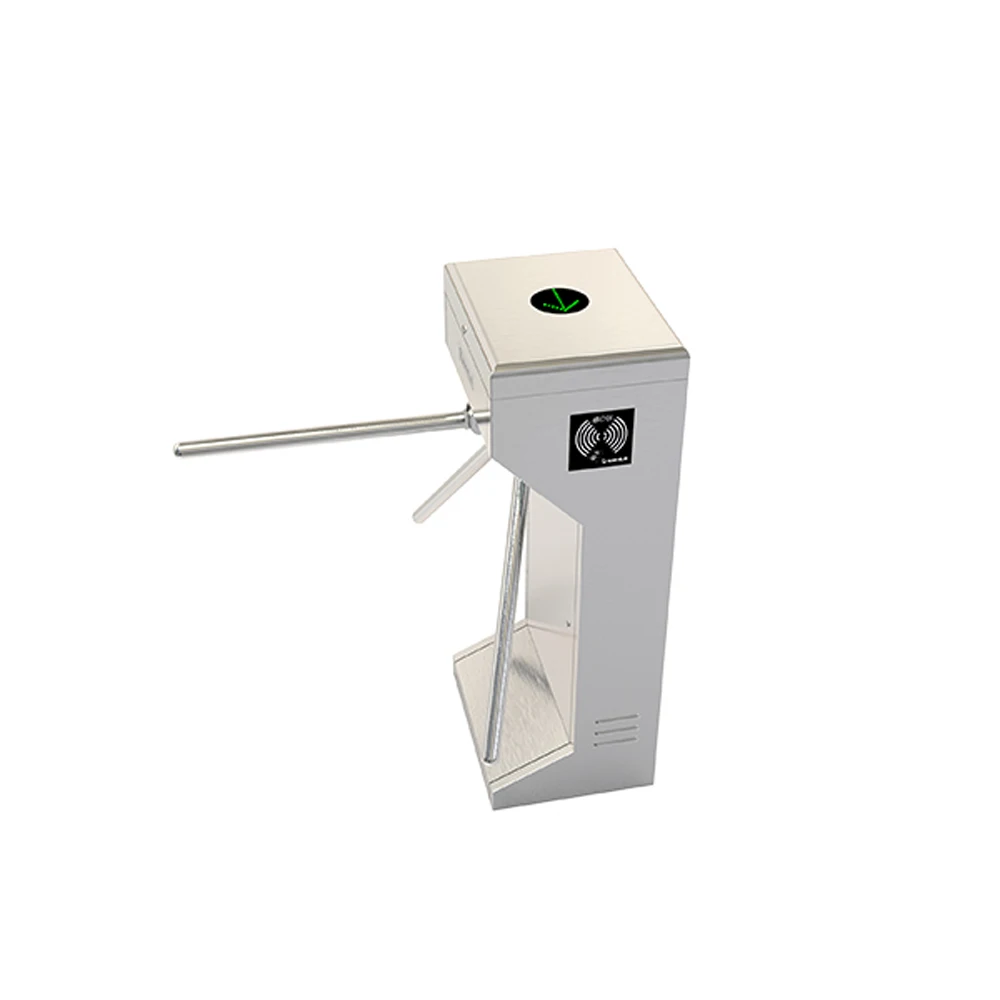

Tourniquet Access Control Automatic Gate QR Code Reader Security Intelligent Tripod Turnstile Mechanism
- Category: >>>
- Supplier: Shenzhen Zebangsheng Technology Co. Ltd.
Share on (1600829672005):
Product Overview
Description
Product Description
* 1. Anti-rust and Anti-corrosion.
* 2. Automatic resent function, if doesn’t pass through within the given time, the permission will be automatically cancelled and the arm will be restored.
* 3. Intelligent motherboard, turnstiles can be configured to allow access in a single direction or bi-directional.
* 4. Prevent trailing. After each pass, the arm is rotated 120 degrees to automatically lock.
* 5. Anti-collision, unable to push with external force when the arm is locked.
* 6. Compatible with various control methods, including remote control, push buttons, IC or ID Card Reading Devices, etc.
* 7. Anti-Panic function. After the gate is powered off, the arm is automatically dropped to facilitate evacuation.
* 2. Automatic resent function, if doesn’t pass through within the given time, the permission will be automatically cancelled and the arm will be restored.
* 3. Intelligent motherboard, turnstiles can be configured to allow access in a single direction or bi-directional.
* 4. Prevent trailing. After each pass, the arm is rotated 120 degrees to automatically lock.
* 5. Anti-collision, unable to push with external force when the arm is locked.
* 6. Compatible with various control methods, including remote control, push buttons, IC or ID Card Reading Devices, etc.
* 7. Anti-Panic function. After the gate is powered off, the arm is automatically dropped to facilitate evacuation.
Turnstile Integrated System:
* 1.Interface various kind of management system
* 2.Communicating and data interchange
* 3.Intergrate multi management software
* 4.We have strong R&D team to assist you development
* 2.Communicating and data interchange
* 3.Intergrate multi management software
* 4.We have strong R&D team to assist you development

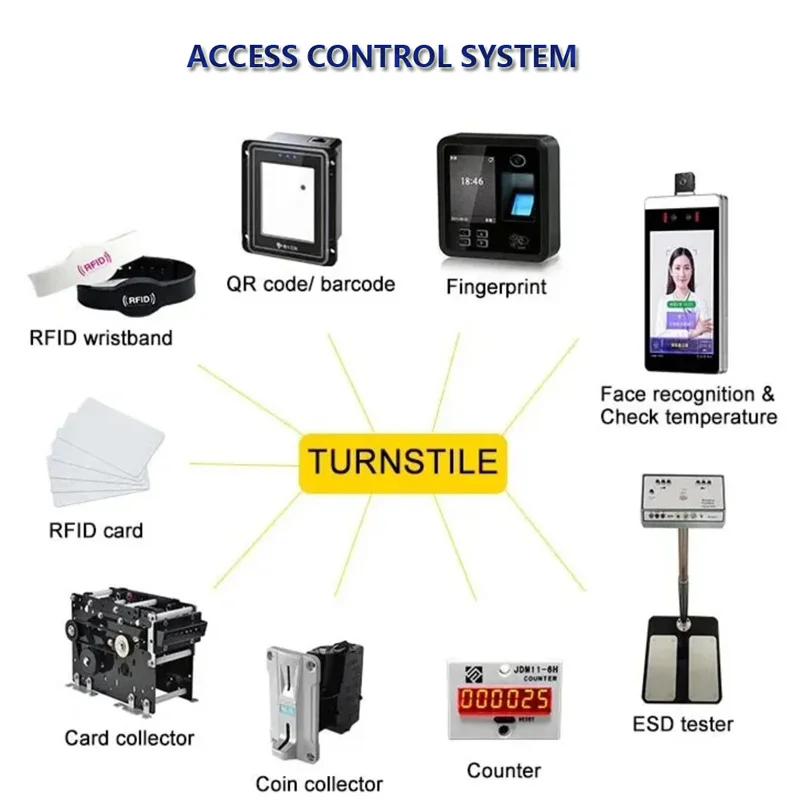

Turnstile Access Control Method:

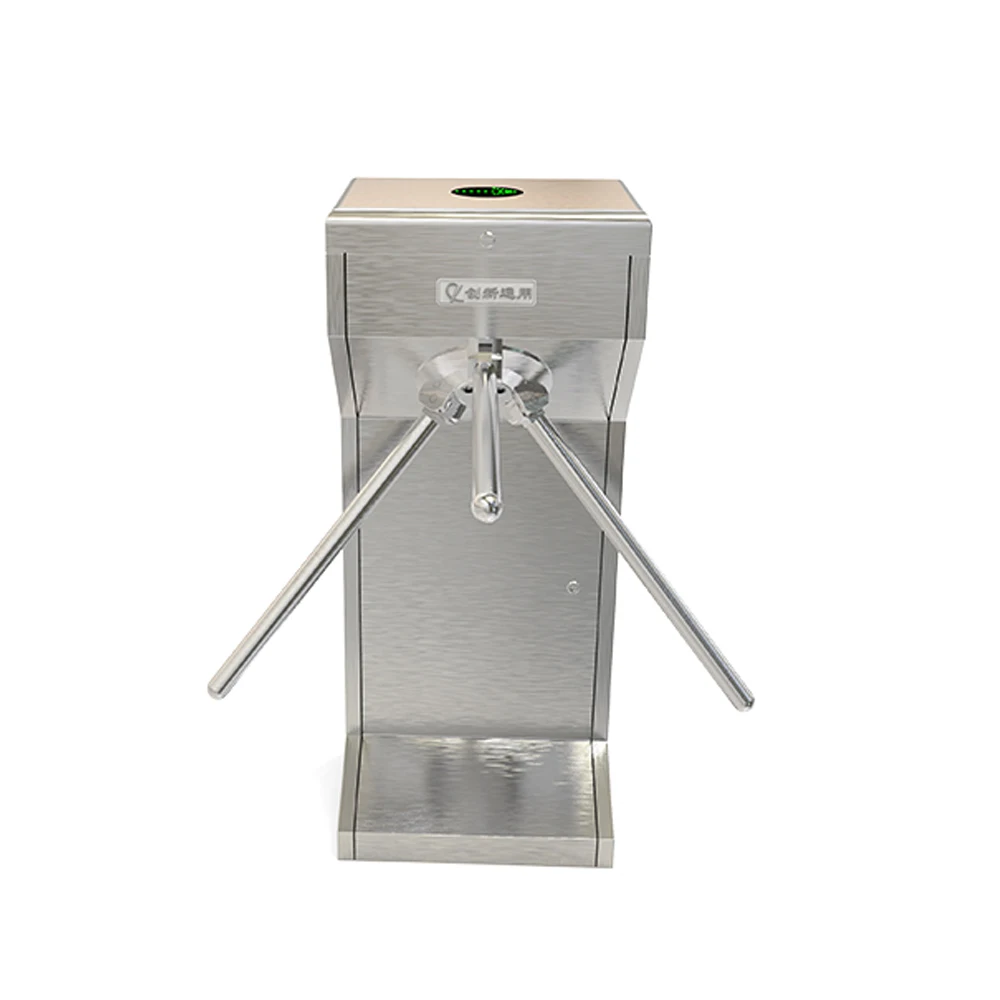

Tripod Turnstile made of stainless steel has a modular design that allows to integrate different types of external equipment: QR-code scanners, biometric readers, card readers, button, IR, coin acceptors etc.
Framework | 304 stainless steel |

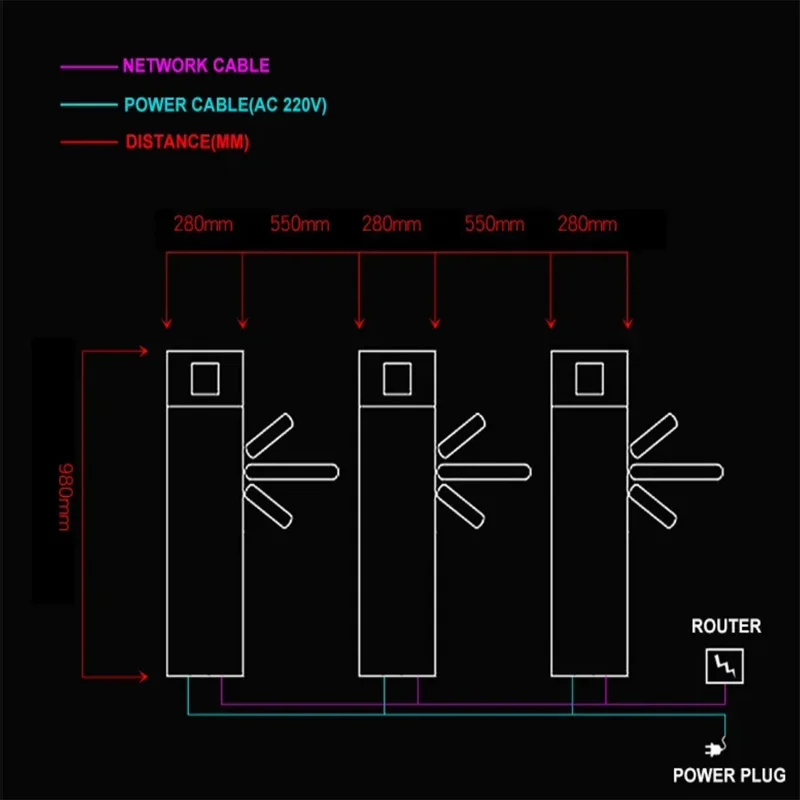

Dimensions | 1200*280*980mm |
Arm length | 600-900mm |
Dry contact | 12V |
LED indicating light | One |
Card-reading window: | Two |
Rated power | 120W |
Operating temperature | -25℃ ~ +60℃, RH ≤90% |
Related humidity | ≥90%RH |
Comunication interface | RS485, distance ≤1200m |
Power supply | AC 220V/110V ±10% 50/60MHZ (optional) |
Opening transit speed: | 30-45 persons per minute |
Closing transit speed: | 30-45 per minute |
FAQ
Q: Did your system have software interface?
A: Yes. We have our own management software.
Q: How does this system link to other system?
A: Equipment could link to others by TCP/IP.
Q:Does this combo can add extra access control method?
A: Yes,we can extend card reader,fingerprint reader and other method to connect wire with face recognition terminal.
Q: What will happened if power was cut off?
A: Once cut off,the turnstile gates arm would be drop off,it can go through without control.
