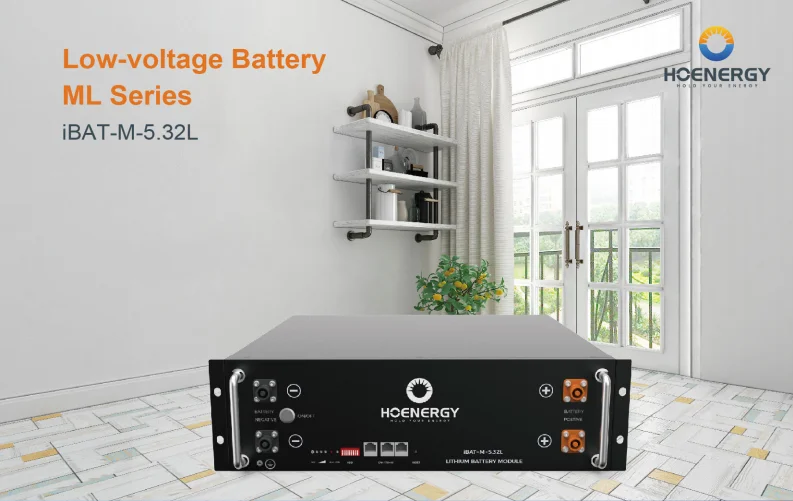

Hoenergy 10.64kWh low voltage household energy storage lithium battery

Share on (1600829692887):


Price:$1,400.00 - $1,600.00

Quantity:


Product Overview

Description



Product Description

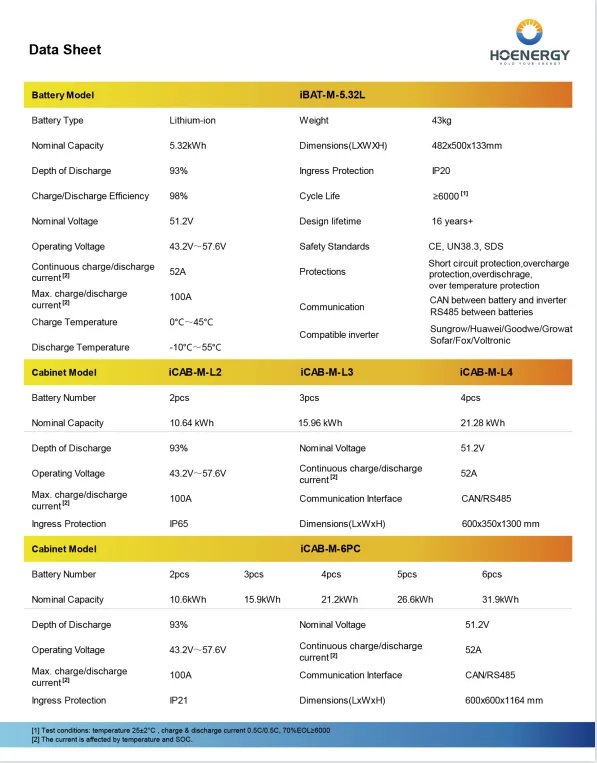

Specification

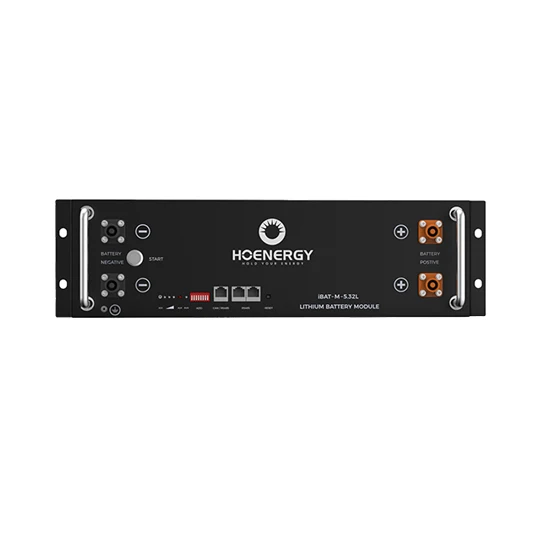

Battery Model
iBAT-M-5.32L
Battery Type
Lithium-ion
Weight
43kg
Nominal Capacity
5.32kWh
Dimensions (L*W*H)
482*500*133mm
Depth Of Discharge
0.93
Ingress Protection
IP20
Charge /Discharge Efficiency
0.98
Cycle Life
≥6000
Nominal Voltage
51.2V
Design Lifetime
16years+
Operating Voltage
43.2V-57.6V
Safety Standard
CE,UN38.3,SDS
Continues Charge /Discharge
52A
Protection
Short circuit protection ,overcharge protection ,overdischarge ,over temperature protection
Max.Charge /Discharge Current
100A
Charge Temperature
0℃-45℃
Communication
CAN between battery and inverter RS485 between batteries
Discharge Temperature
-10℃-55℃
Compatible Inverter
Sungrow/Huawei/Goodwe/Growat Sofar/Fox/Voltronic

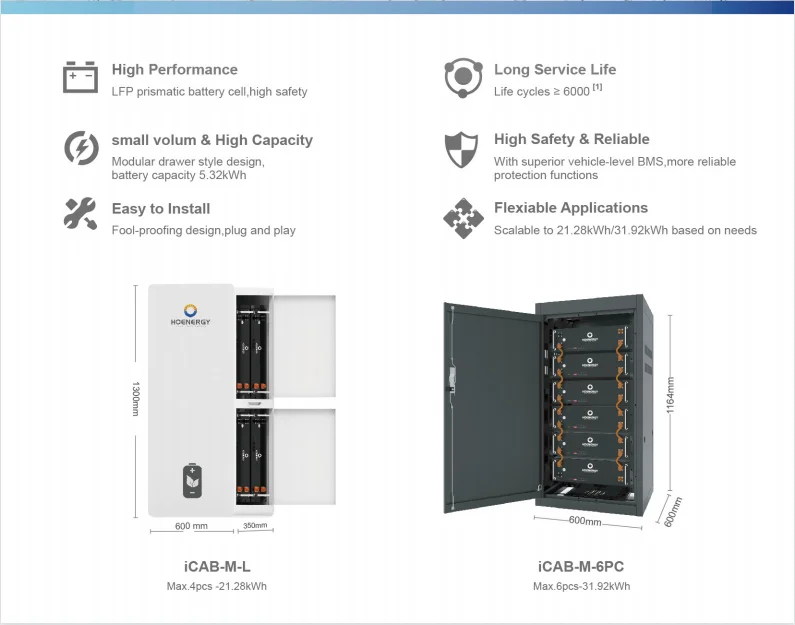

Cabinet Model
iCAB-M-L2
iCAB-M-L3
iCAB-M-L4
Battery Number
2pcs
3pcs
4pcs
Nominal Capacity
10.64kWh
15.96kWh
21.28kWh
Depth Of Discharge
0.93
Nominal Voltage
51.2V
Operating Voltage
43.2V-57.6V
Continues Charge /Discharge Current
52A
Max.Charge /Discharge Current
100A
Communication Interface
CAN/RS485
Ingress Protection
IP65
Dimensions (L*W*H)
600*350*1300mm

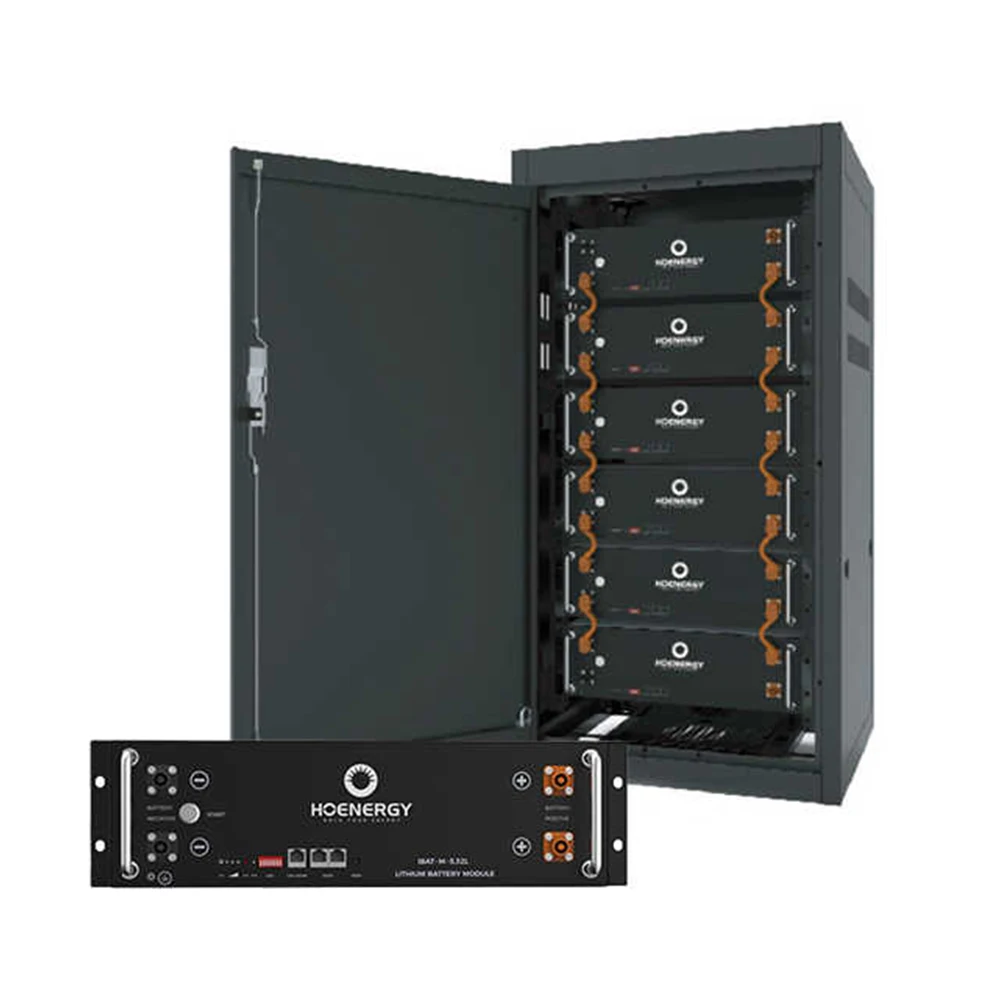

Cabinet Model
iCAB-M-6PC
Battery Number
2pcs
3pcs
4pcs
5pcs
6pcs
Nominal Capacity
10.6kWh
15.9kWh
21.2kWh
26.6kWh
31.9kWh
Depth Of Discharge
93%
Nominal Voltage
51.2V
Operation Voltage
43.2V-57.6V
Continues Charge /Discharge Current
52A
Max.Charge /Discharge Current
100A
Communication Interface
CAN/RS485
Ingress Protection
IP21
Dimensions (L*W*H)
600*350*1300mm
(1)Test conditions:temperature 25±2℃,charge &discharge current 0.5C/0.5C,70%EOL≥6000.
(2)The current is affected by temperature and SOC.

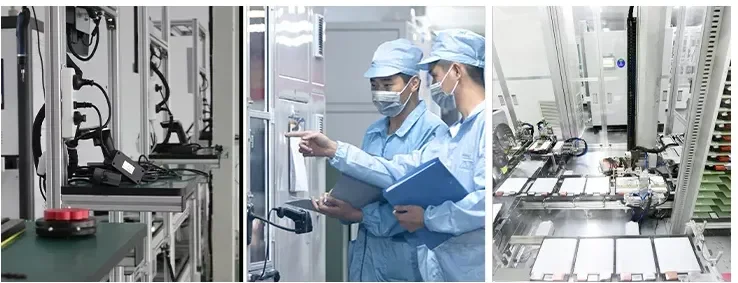

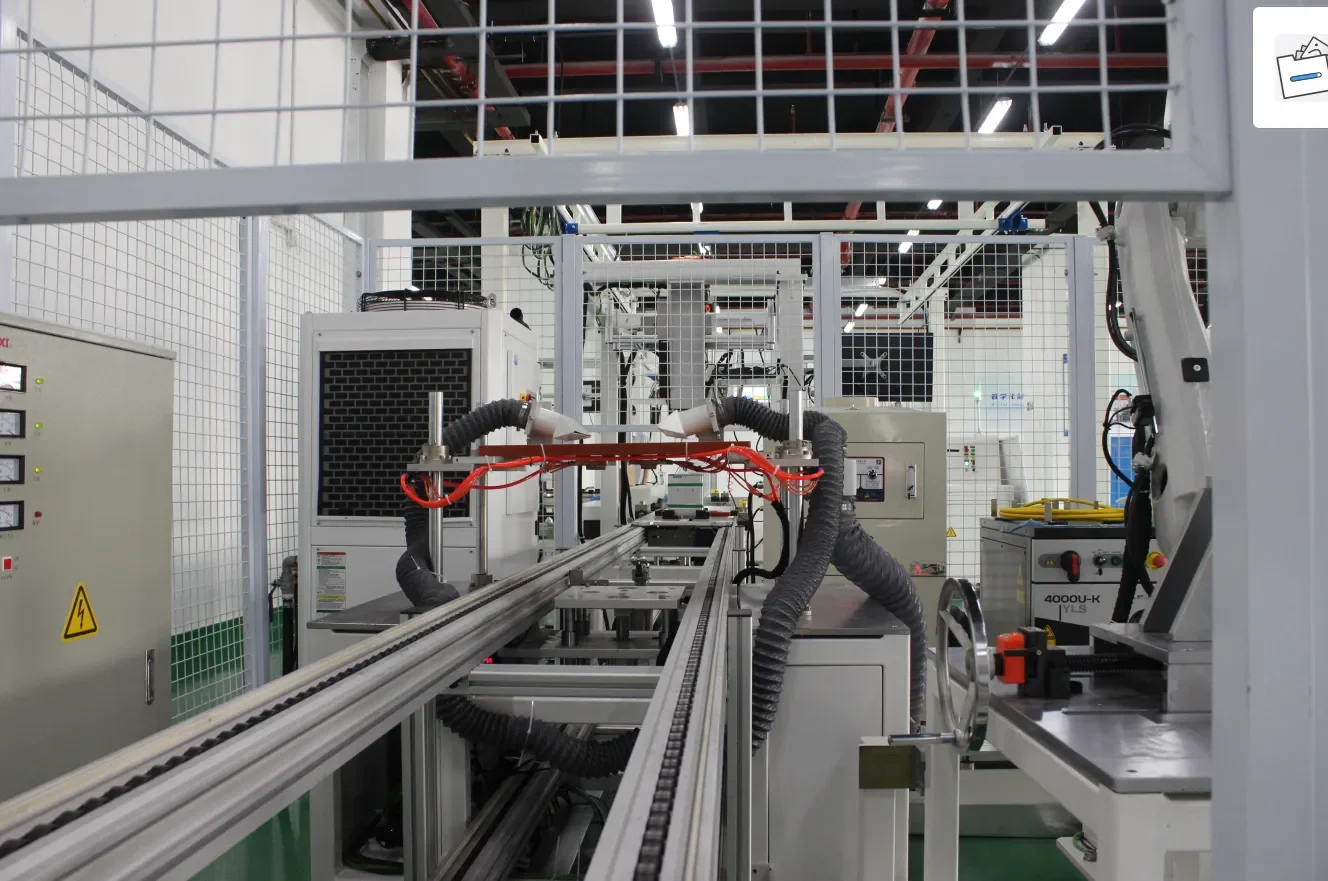

Factory Overviews






Packing & Delivery




Certificate




FAQ


1. who are we?
We are based in jiangsu, China, start from 2022,sell to Western Europe(20.00%),Northern Europe(20.00%),Mid East(20.00%),Southeast
Asia(15.00%),North America(15.00%),Eastern Europe(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar Panel, Solar Inverter, Solar Energy Machinery Fittings, Off Grid Solar System, On Grid Solar System

4. why should you buy from us not from other suppliers?
Jiangsu Goyue is a high-tech enterprise, the introduction of advanced automatic production and testing equipment, the company has
obtained ISO9001 quality management system certification, TUV, IEC61215, CE and other authoritative product certification.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
