Product Overview
Description
Overview
Type XGN66-12 fixed closed switchgear (hereinafter referred to as switchgear) is our company’s new generation of high-voltageelectrical appliances complete sets of products, in line with the national standard GB3906《3-35kV ac metal closed switchgear“power department DLT404《 indoor ac high-voltage switchgear ordering technical conditions” requirements, but also meetinternational standards IEC60298《1kV above 52 kV ac metal closed switchgear and control equipment requirements .”
This product absorbs the foreign advanced technology, it is small in size, is only the ordinary switchgear volume 5 The circuitbreaker has the advantages of high reliability and good performance. The switchgear is an indoor complete set of 3.6,7.2,12 kVthree-phase alternating current 50 Hz single busbar segment, which is used for receiving and distributing electric energy. It alsohas the functions of controlling, protecting and monitoring the circuit, which can be used in various types of power plants,substations, industrial and mining enterprises, high-rise buildings and other places, and can also be combined with ring network cabinets to be used in the opening and closing places.
This product absorbs the foreign advanced technology, it is small in size, is only the ordinary switchgear volume 5 The circuitbreaker has the advantages of high reliability and good performance. The switchgear is an indoor complete set of 3.6,7.2,12 kVthree-phase alternating current 50 Hz single busbar segment, which is used for receiving and distributing electric energy. It alsohas the functions of controlling, protecting and monitoring the circuit, which can be used in various types of power plants,substations, industrial and mining enterprises, high-rise buildings and other places, and can also be combined with ring network cabinets to be used in the opening and closing places.
Normal operating conditions
♦ altitude not exceeding 1000 m.
♦ ambient temperature :-25 C 〜+ average temperature not exceeding +35 C 〜+C. within 4 hours
♦ horizontal inclination is not more than 3 degrees.
♦ seismic intensity does not exceed magnitude 8.
♦ no violent vibration and shock and explosion hazard sites.
♦ ambient temperature :-25 C 〜+ average temperature not exceeding +35 C 〜+C. within 4 hours
♦ horizontal inclination is not more than 3 degrees.
♦ seismic intensity does not exceed magnitude 8.
♦ no violent vibration and shock and explosion hazard sites.

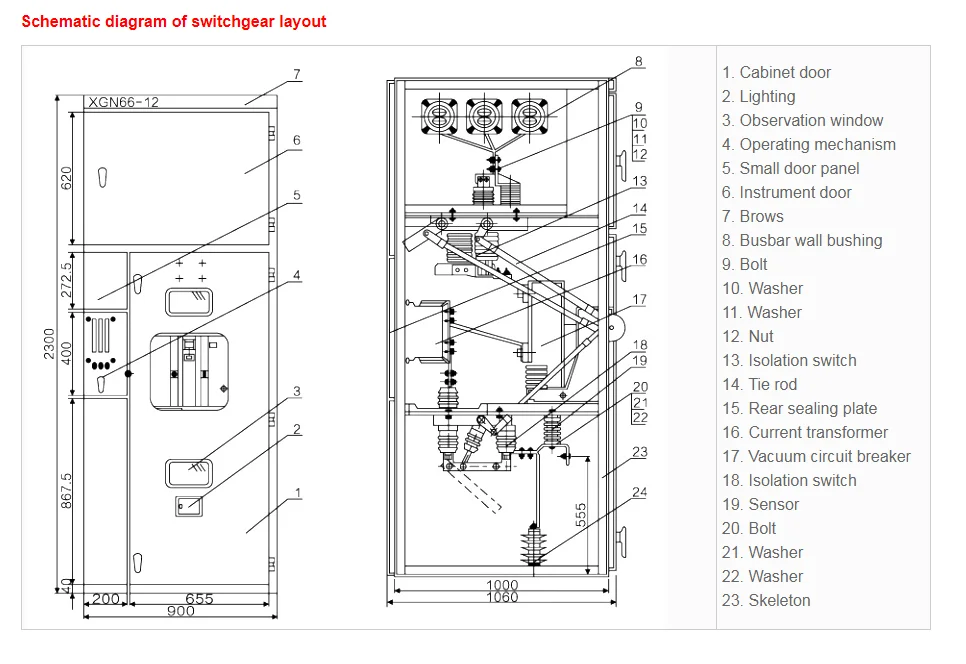

Structural characteristics
♦ The cabinet is welded with high-quality angle steel.
♦ The circuit breaker room is located in the middle (lower) part of the cabinet, which is convenient for installation, debugging
and maintenance. Equipped with VS1 circuit breaker as standard and equipped with pressure release channel to ensure personal safety.
♦ Adopting advanced and reliable rotary isolating switch, it can safely enter the circuit breaker room for maintenance when the main bus is live.
♦ Enclosure protection grade IP2Xo
♦ It is equipped with a compulsory mechanical locking device with reliable functions, which can meet the requirements of “fivepreventions” simply and effectively.
♦ Has a reliable grounding system.
♦ The door is equipped with an observation window, which can clearly observe the working state of the components in the cabinet.
♦ The operating mechanism is locked with the same JSXGN locking mechanism as XGN2-12 cabinet, which is simple, reliable,convenient and practical.
♦ Inlet and outlet cables are lower than the front of the cabinet, which is convenient for users to connect
♦ The circuit breaker room is located in the middle (lower) part of the cabinet, which is convenient for installation, debugging
and maintenance. Equipped with VS1 circuit breaker as standard and equipped with pressure release channel to ensure personal safety.
♦ Adopting advanced and reliable rotary isolating switch, it can safely enter the circuit breaker room for maintenance when the main bus is live.
♦ Enclosure protection grade IP2Xo
♦ It is equipped with a compulsory mechanical locking device with reliable functions, which can meet the requirements of “fivepreventions” simply and effectively.
♦ Has a reliable grounding system.
♦ The door is equipped with an observation window, which can clearly observe the working state of the components in the cabinet.
♦ The operating mechanism is locked with the same JSXGN locking mechanism as XGN2-12 cabinet, which is simple, reliable,convenient and practical.
♦ Inlet and outlet cables are lower than the front of the cabinet, which is convenient for users to connect
item | value |
Place of Origin | Zhejiang,China |
Brand Name | CHSH |
