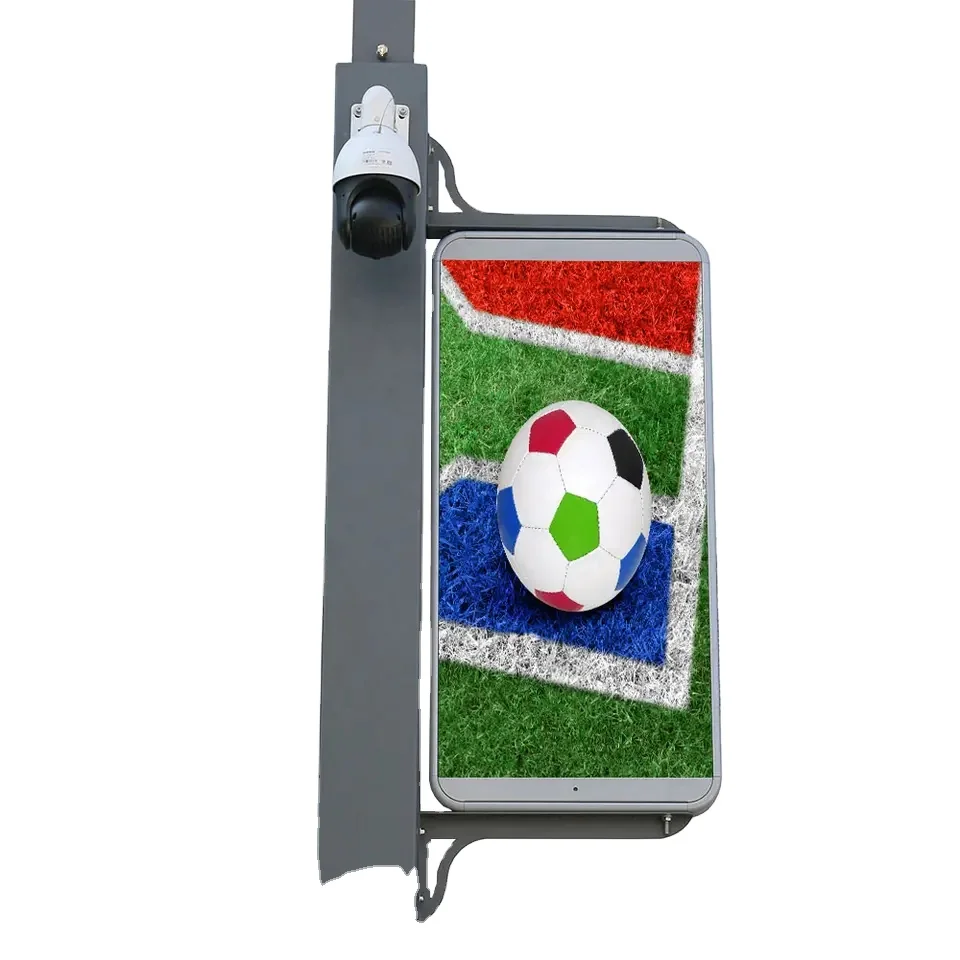

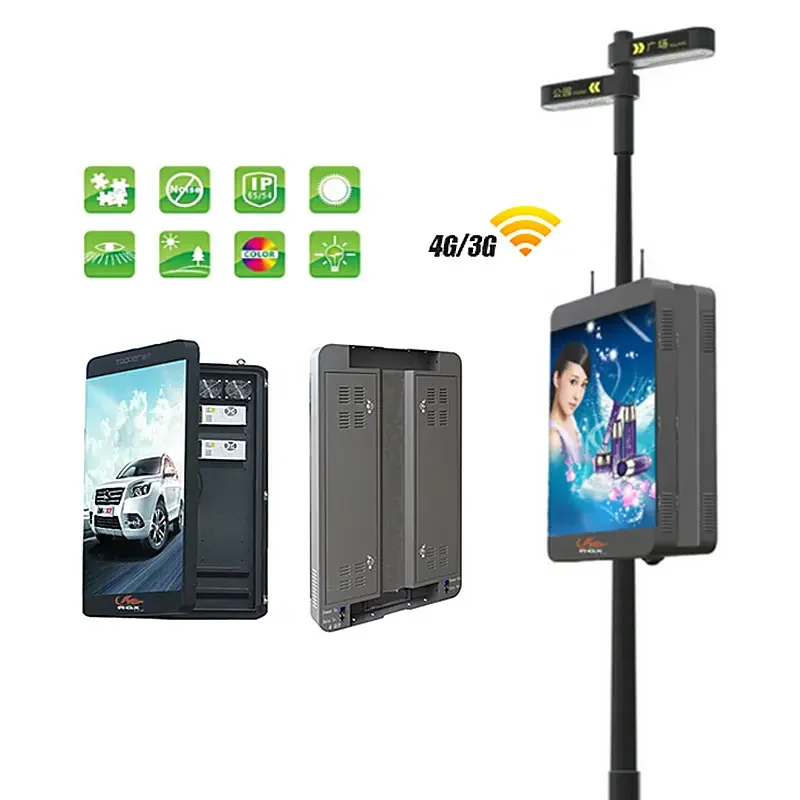

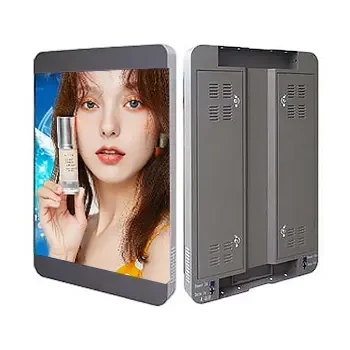

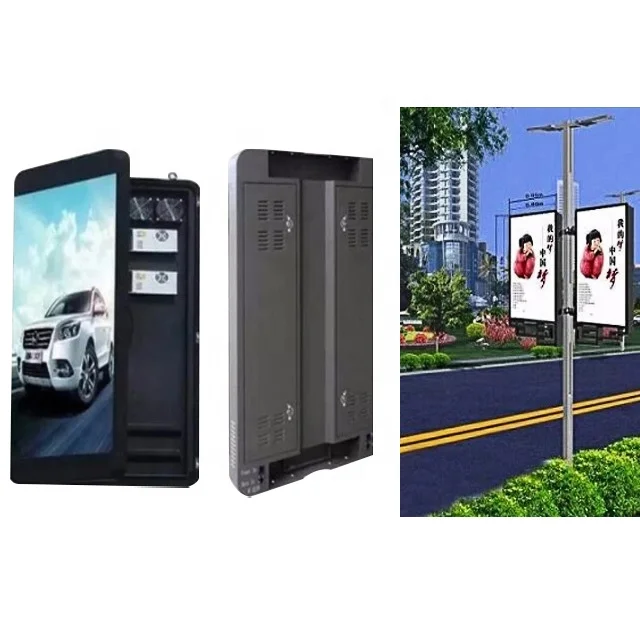

Shenzhen factory Wifi 5G Wireless Single Side P4 Outdoor Waterproof Street Light Lamp Pole Led Display Screen For Advertising
- Category: >>>
- Supplier: Shenzhen Huaxintong Photoelectric Technology Co. Ltd.Shenzhen Ltd.
Share on (1600829763292):
Product Overview
Description
Related Products
Product Description
Super slim and fashion design Automatic startup and shutdown High shock grade, the collision does not affect the normal play
designed for outdoor lighting installation.The cabinet has unique appearance design, modelling is novel and attractive.
Specification
Item | Parameter | Parameter | Parameter | Parameter |
Model | P3 | P4 | P5 | P6 |
Pixel Pitch | 3 mm | 4mm | 5mm | 6 mm |
LED Lamp | SMD1921 | SMD1921 | SMD2727 | SMD2727 |
Density | 111,111dot/m2 | 62,500dot/m2 | 40,000dot/m2 | 27777dot/m2 |
Module Size | 192*192mm | 256*128mm | 320*160mm | 192*192mm |
Port Type | HUB-75D/B | HUB-75D/B | HUB-75D/B | HUB-75D/B |
Cabinet Size | Customized | Customized | Customized | Customized |
Brightness | ≥5500cd/m² | ≥5500cd/m² | ≥5500cd/m² | ≥6500cd/m² |
Best Viewing Distance | ≥3m | ≥4m | ≥5m | ≥6m |
Refresh Rate | ≥1920Hz | ≥1920Hz | ≥1920Hz | ≥1920Hz |
Scan Mode | 1/16Scan | 1/8Scan | 1/8Scan | 1/8Scan |
Lifespan | >100,000(Hrs) | >100,000(Hrs) | >100,000(Hrs) | >100,000(Hrs) |
Max. power consumption | 950W/m2 | 950W/m2 | 950W/m2 | 950W/m2 |
Ave. power consumption | 320W/m2 | 320W/m2 | 320W/m2 | 320W/m2 |
Operation Temperature | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ | -30℃~+60℃ |
Working Humidity | 10%~98%RH | 10%~98%RH | 10%~98%RH | 10%~98%RH |
Storage Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ |
Working Voltage | 100~240V | 100~240V | 100~240V | 100~240V |
IP Grade | IP65/IP67 | IP65/IP67 | IP65/IP67 | IP65/IP67 |

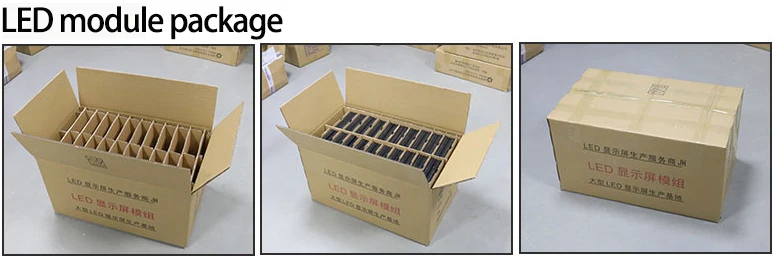

Packing&Shipping

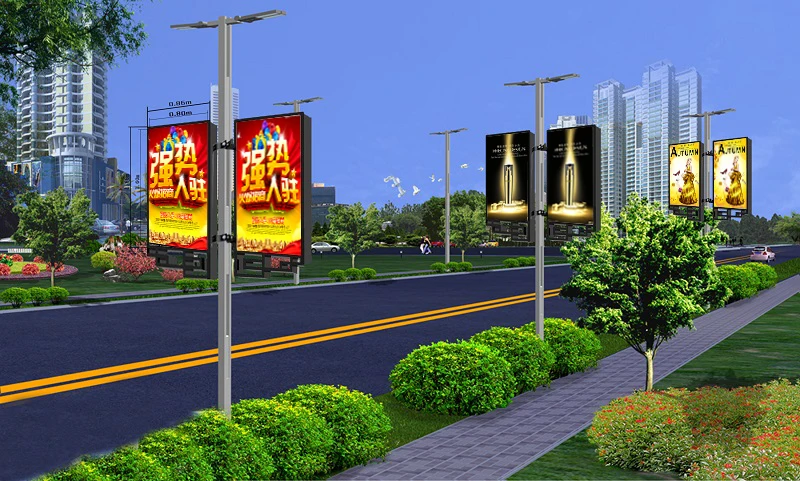

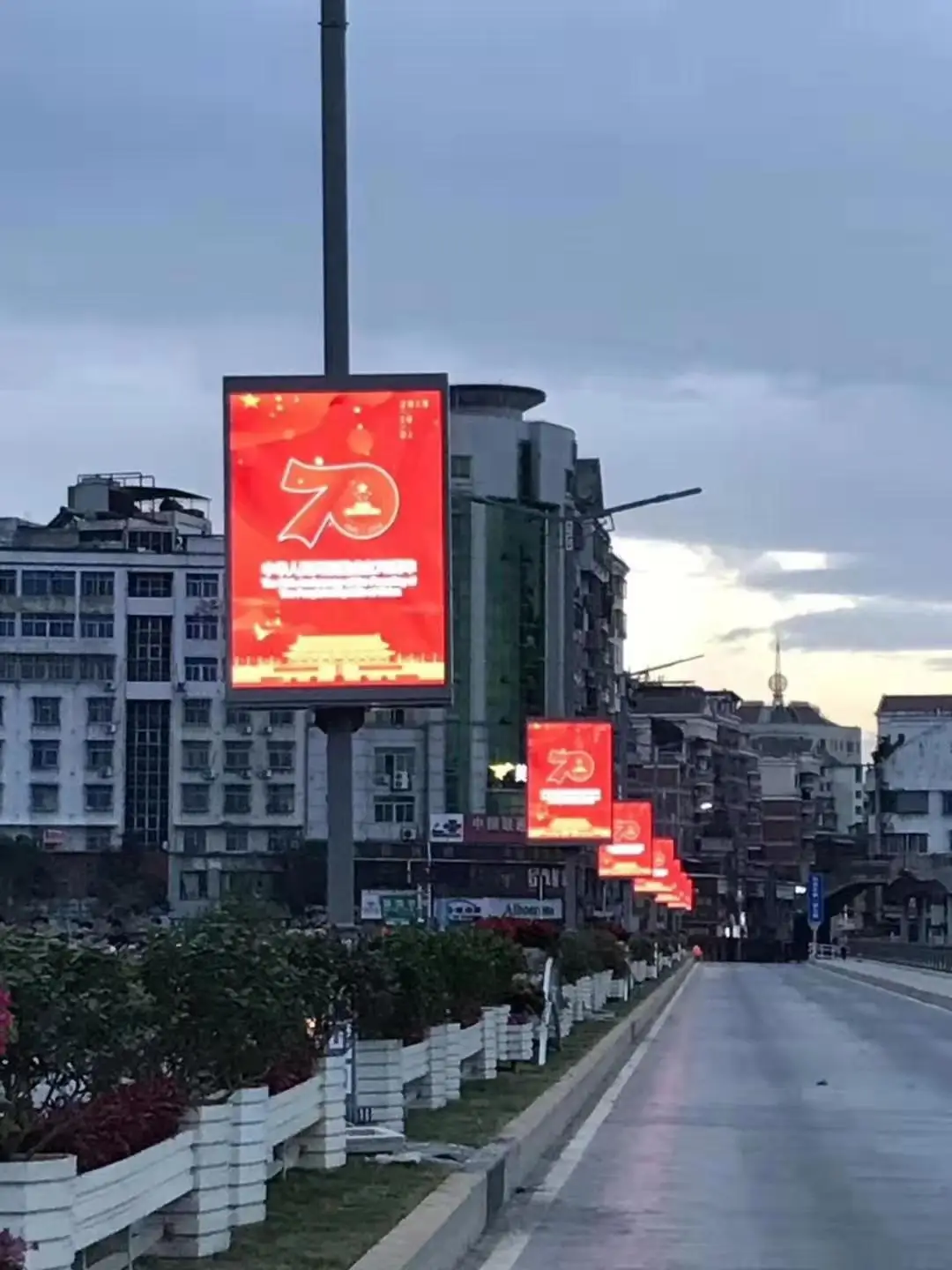

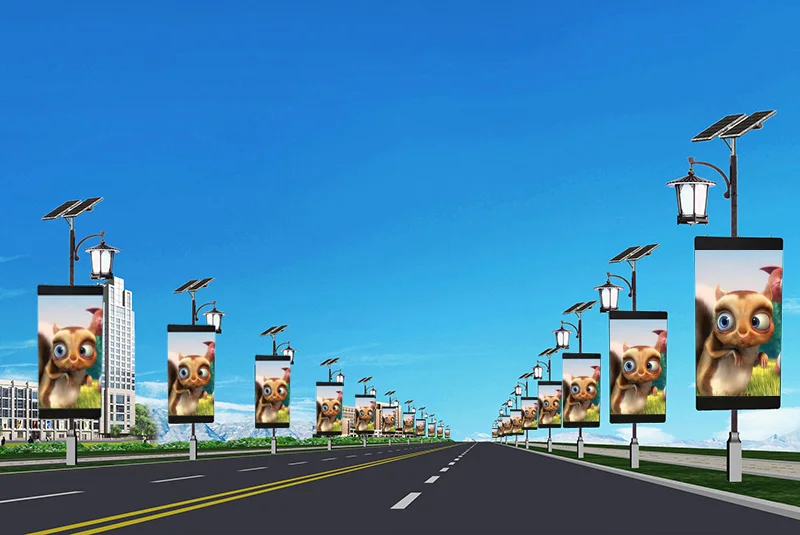

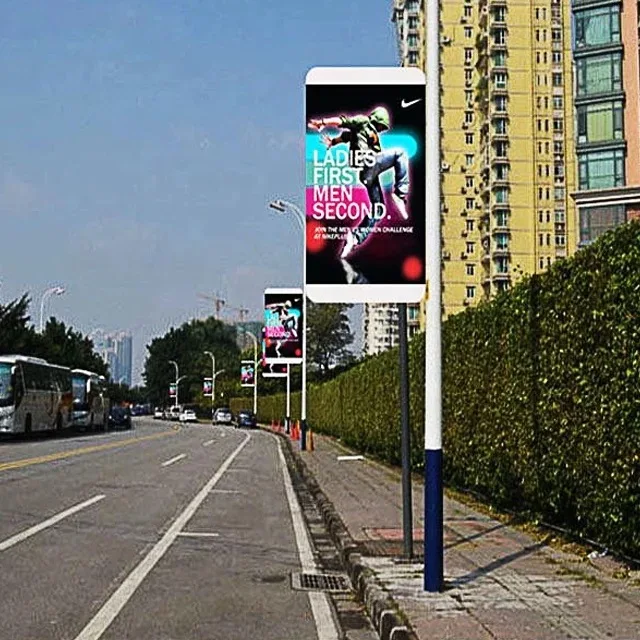

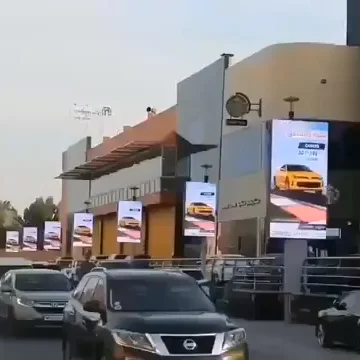

Application
Certifications

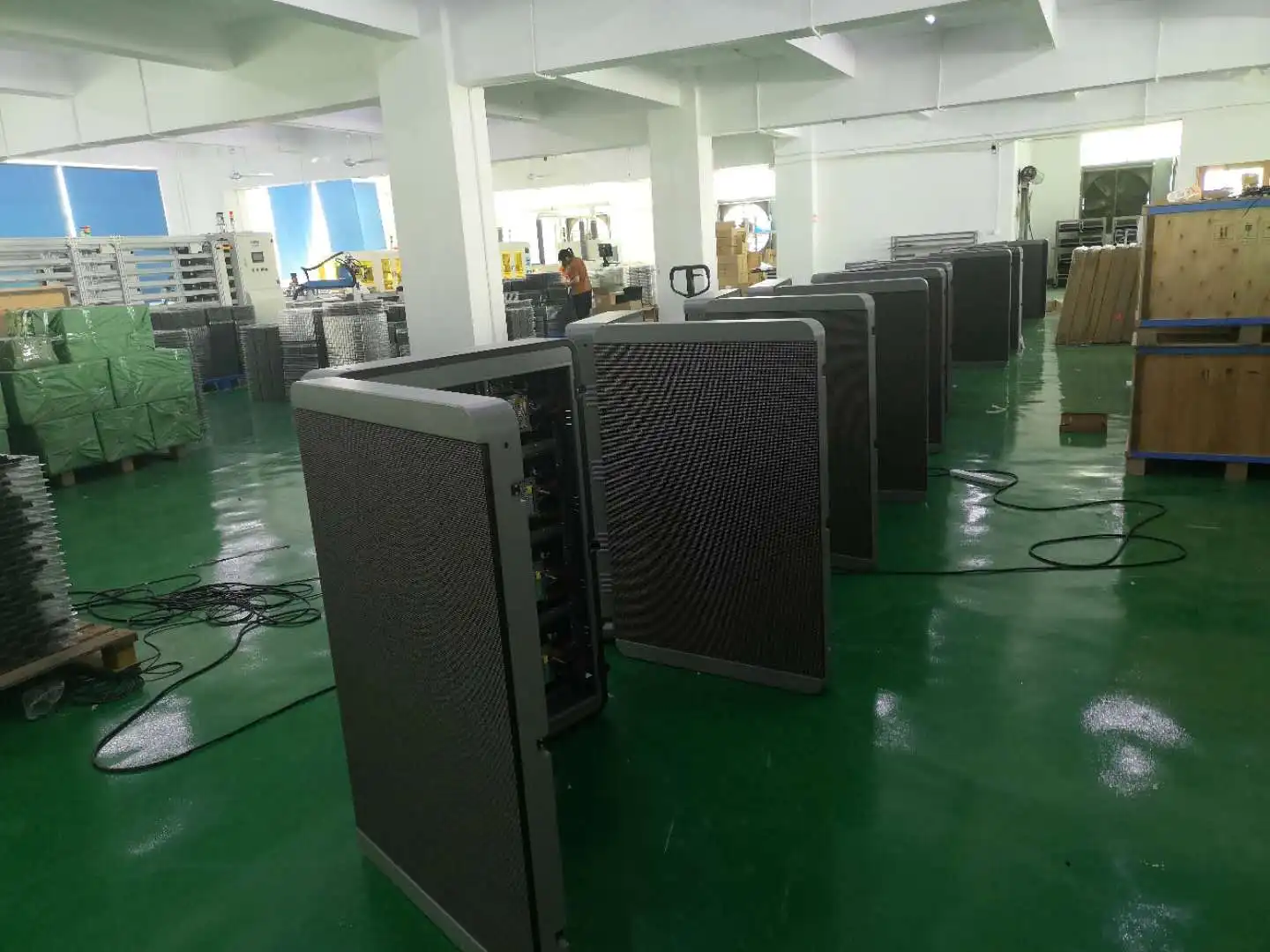

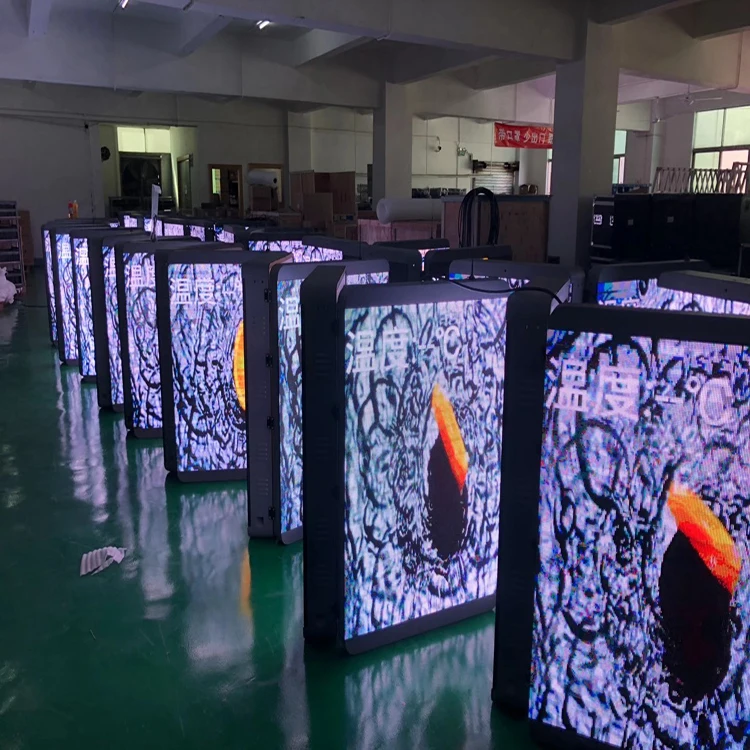

Our Factory
