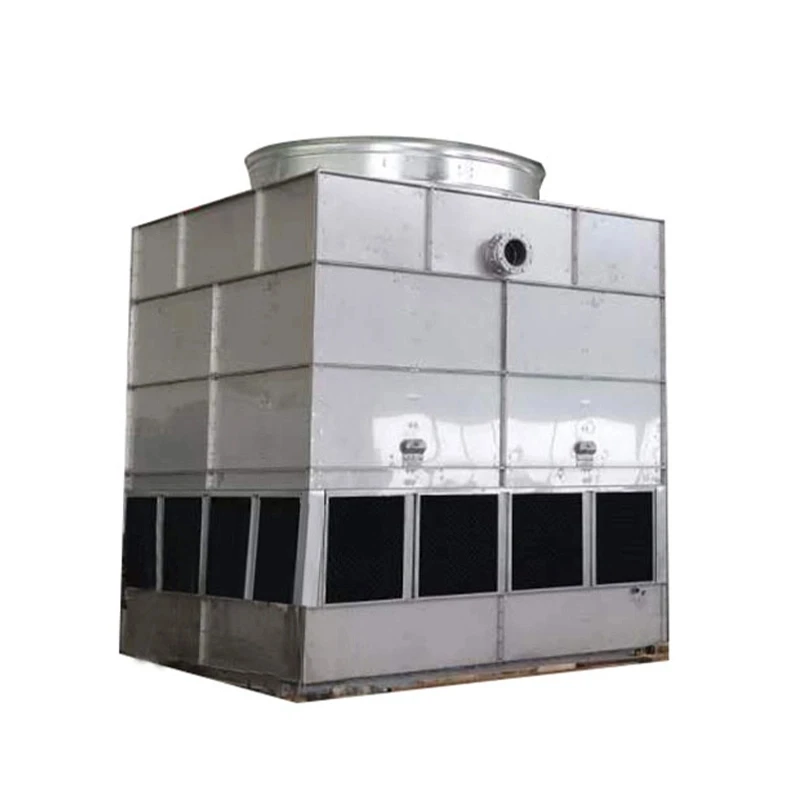

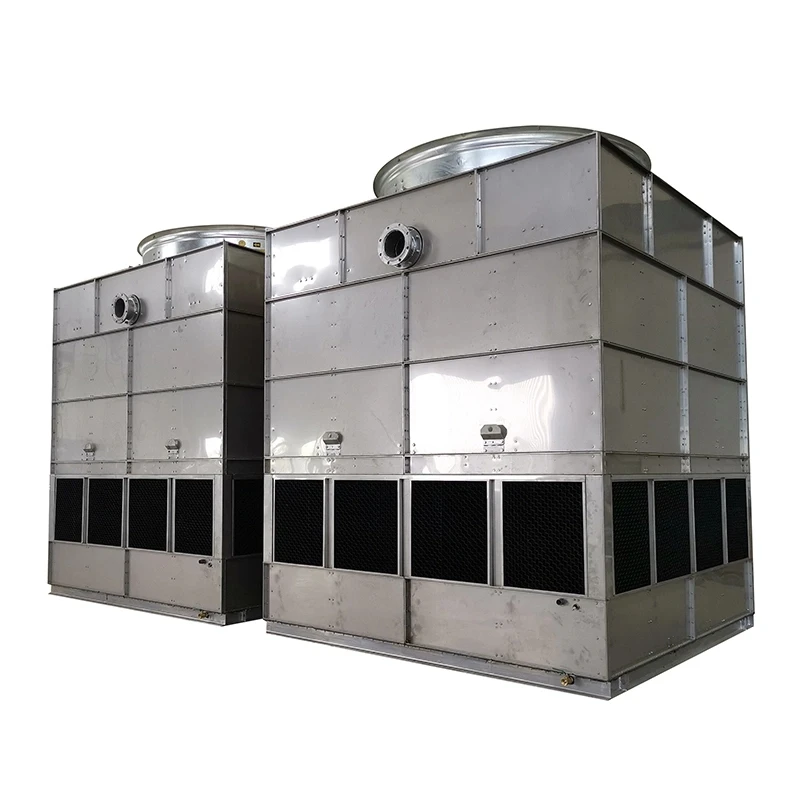

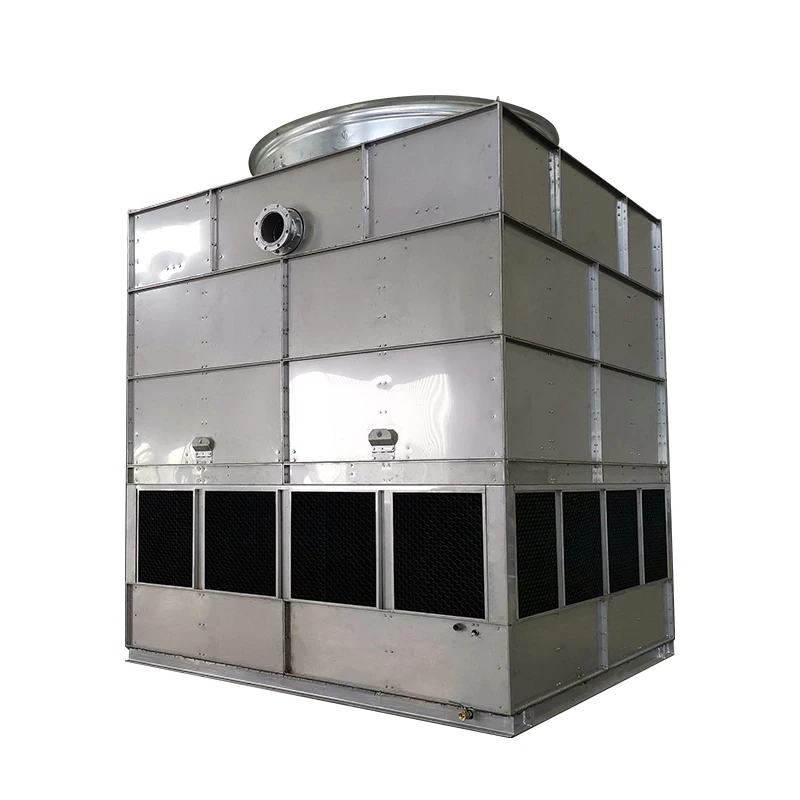

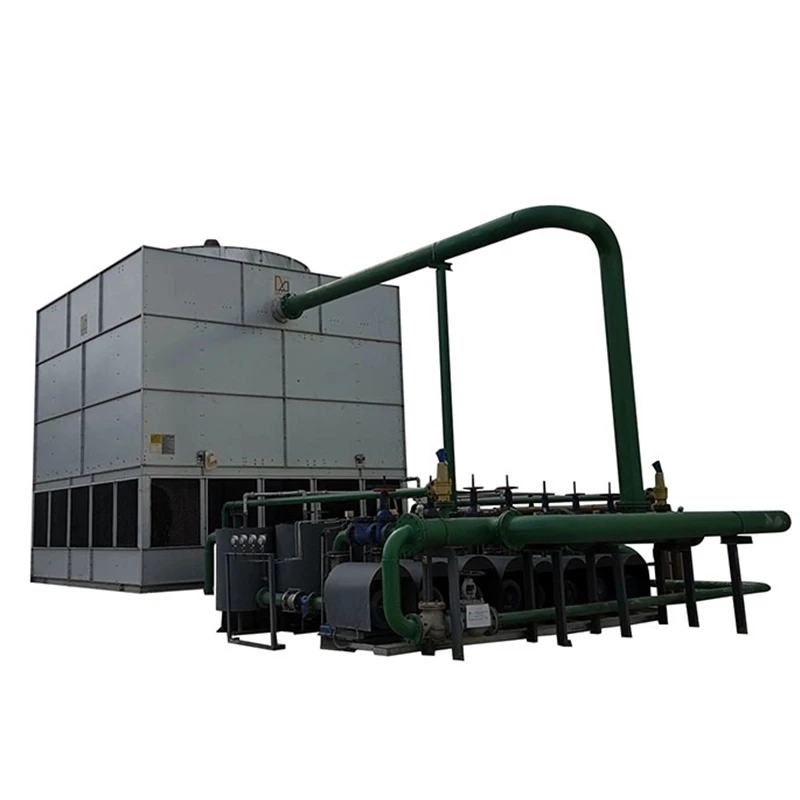

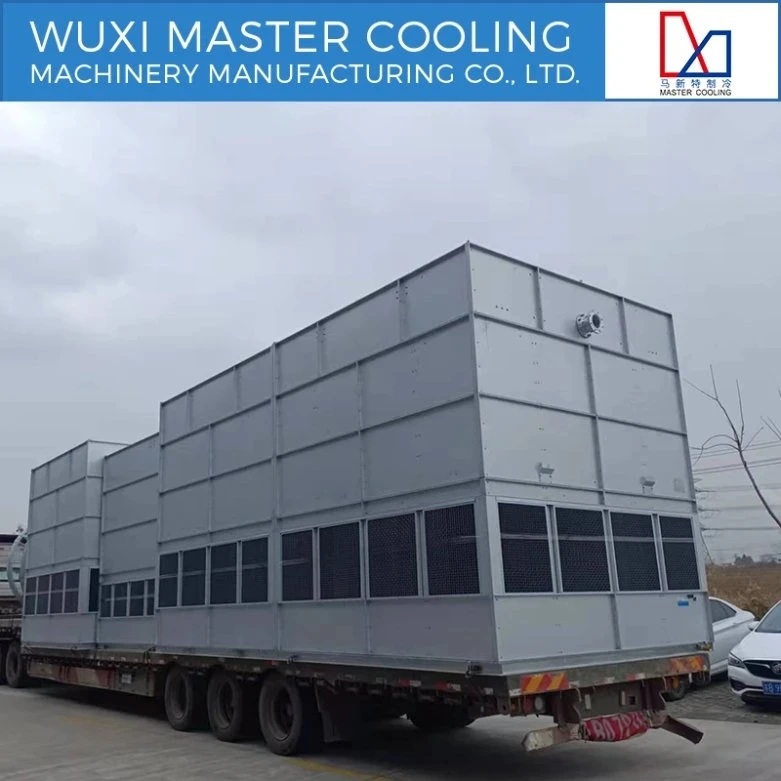

High quality steel square counter flow open cooling tower for industrial. Factory directly sale water cooling tower MSTNK. MST
- Category: >>>
- Supplier: Wuxi Master Cooling Machinery Manufacturing Co. Ltd.
Share on (1600829783053):
Product Overview
Description
Products Description
Cooling Tower Item | Closed Cooling Tower |
Material | Stainless steel or customized |
Application | Manufacturing plant,construction project,hotel,etc |
Customize | Available |
Warranty | 1 year |

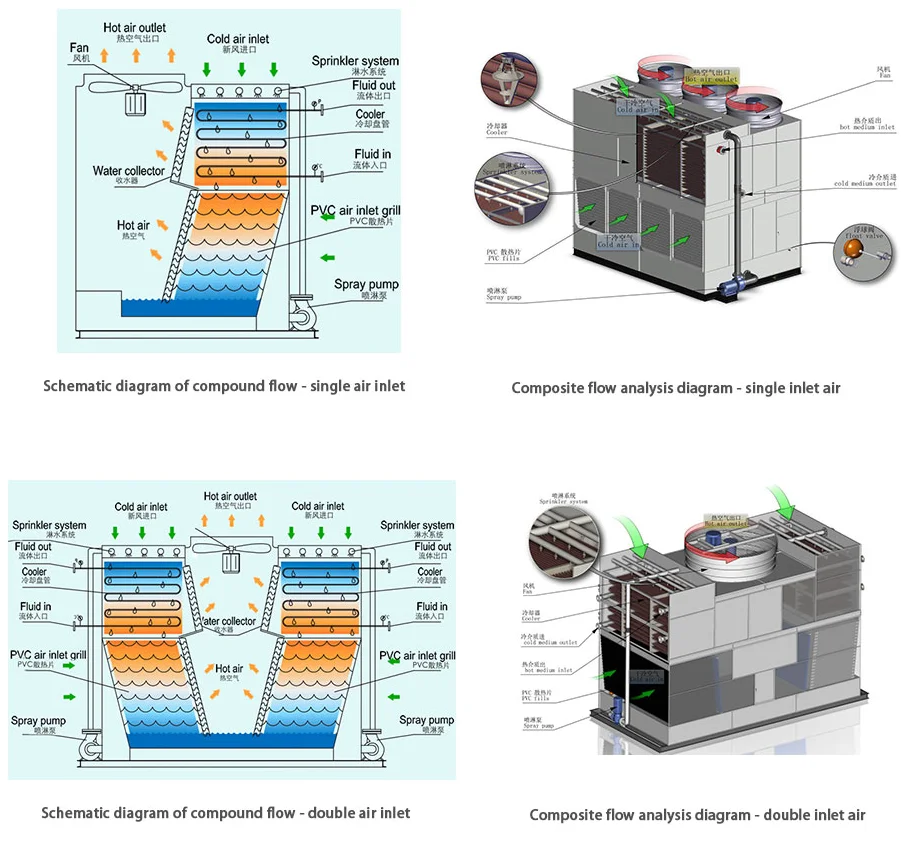

Operational Principle
Internal circulating water system : The circulating water enters the heat exchanger ( also known as the closed cooling tower coil tube ) after heat exchange and heating through the heat source . The waste heat contacts the falling spray water through the outer wall of the coil for heat and mass exchange , and alternates with the dry and cold air entering the upper and side ( single side or double side ) to form saturated hot and humid air . The cooled circulating water is sent to the heat source by the circulating water pump of the system.
External circulating water system : The spray water is sent from the lower water tank to the upper water distribution pipe by the spray water pump . After the water is ejected , it contacts with the heat exchanger pipe , and part of the water evaporates to bring out heat . The heat is discharged by the top fan , and the water is blocked back by the dehydrator with special structure , and the spray water falls into the water collecting tank for recycling.
Characteristiche:
1.The cooling effect is good.Double air intake system , the air inlet window and the top two-way air intake , and sufficient dry and cold air is in contact with the spray water . The cooling fins and coils are arranged on both sides , the fan duct is maximized , and a larger air circulation surface is designed , and the cooling effect is better.
2 Prevent scaling . The cooler is above the filler , and the directions of air intake , exhaust andspray water are formed to flow in the same direction , which effectively avoids dry spots . Thespray water completely covers the outer wall of the pipe to prevent scale formation in thedry spot.
External circulating water system : The spray water is sent from the lower water tank to the upper water distribution pipe by the spray water pump . After the water is ejected , it contacts with the heat exchanger pipe , and part of the water evaporates to bring out heat . The heat is discharged by the top fan , and the water is blocked back by the dehydrator with special structure , and the spray water falls into the water collecting tank for recycling.
Characteristiche:
1.The cooling effect is good.Double air intake system , the air inlet window and the top two-way air intake , and sufficient dry and cold air is in contact with the spray water . The cooling fins and coils are arranged on both sides , the fan duct is maximized , and a larger air circulation surface is designed , and the cooling effect is better.
2 Prevent scaling . The cooler is above the filler , and the directions of air intake , exhaust andspray water are formed to flow in the same direction , which effectively avoids dry spots . Thespray water completely covers the outer wall of the pipe to prevent scale formation in thedry spot.
3 Low noise. PVC filler improves work efficiency and reduces water droplet noise.The fan adopts low-speed wide-page aviation wing blades to reduce noise value.
4 Easy maintenance.Modular assembly for easy installation,disassembly and maintenance.Most parts are
exposed and accessible.It can be inspected and cleaned internally without downtime.The interior space has maintenance access, maintenance guardrails and mainte -nance ladders at the top , which are convenient for maintenance personnel to enter and exitfor inspection and maintenance.
exposed and accessible.It can be inspected and cleaned internally without downtime.The interior space has maintenance access, maintenance guardrails and mainte -nance ladders at the top , which are convenient for maintenance personnel to enter and exitfor inspection and maintenance.
5 Usually used in projects with high inlet water temperature and large temperature difference .

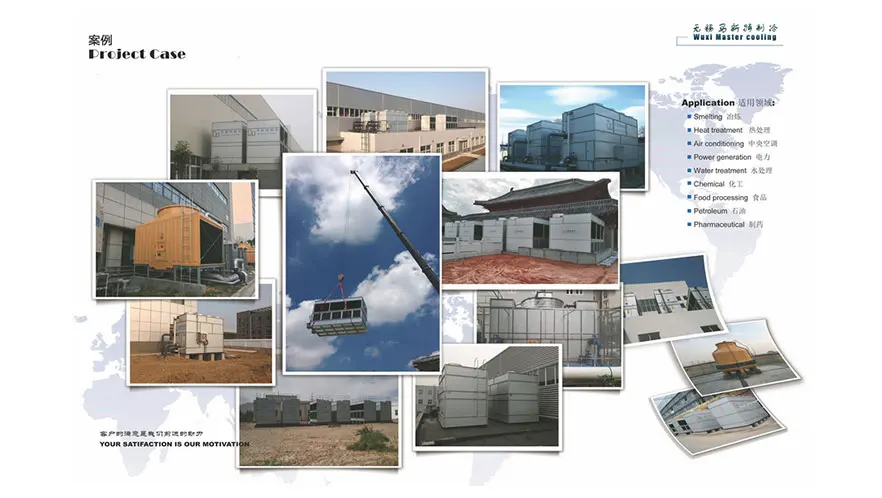

Application
Central air conditioning cooling system, cooling system, air compressor, injection molding ma-chine,intermediate frequency furnace cooling system, cooling system, vacuum furnace, furnacecooling system cooling system, cooling system, heat treatment quenching oil cooling system,quenching,quenching medium liquid cooling system cooling system, the hydraulic oil coolingsystem, copper sulfate, cooling system, water cooling system, water cooling system, coolingsystem, rectifier Conductive seat cooling system, copper bar cooling system, rectifier coolingsystem, capacitor cooling system, thyristor cooling system, silicon rectifier cooling system,vacuum pump cooling system, heating equipment cooling system, cooling tower of heating cooling system and etc.

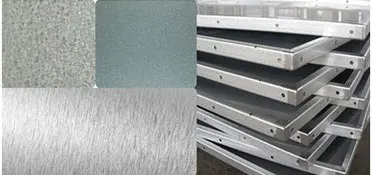

Main Raw Materials
Outer shell:Aluminum-zinc plate/ Superdyma/304SS/316L
Brand:Bao steel/POSCO
High strength and toughness, corrosion resistance,sultable for long distance transportation.Laser cut-ting technology has more fine workmanship.
Thickness:2-3mm
High strength and toughness, corrosion resistance,sultable for long distance transportation.Laser cut-ting technology has more fine workmanship.
Thickness:2-3mm

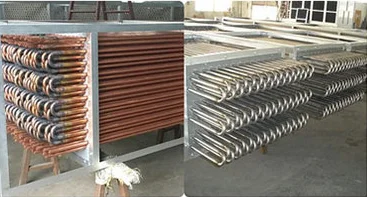

Cooler : SS stainless steel / T2 copper tube
Welding method: manual Stainless steel pipe-seamless pipe durable and superior in high pressure and high strength
conditions.Compared with copper pipes, it is more resistant to corrosion and is not easy to scale. Copper pipe -has the
characteristics of strong texture, corrosion resistance, high temperature resistance and high pressure resistance. Compared with
stainlesteel pipes, it is lighter in weight, better in thermal conductivity, and has high recyclability. Pipe diameter: 16/19mm
Wall Thickness: 0.55-1mm
conditions.Compared with copper pipes, it is more resistant to corrosion and is not easy to scale. Copper pipe -has the
characteristics of strong texture, corrosion resistance, high temperature resistance and high pressure resistance. Compared with
stainlesteel pipes, it is lighter in weight, better in thermal conductivity, and has high recyclability. Pipe diameter: 16/19mm
Wall Thickness: 0.55-1mm

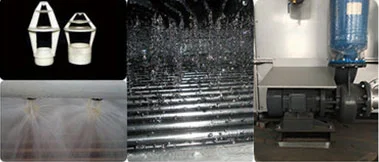

Spray system :
Spray pump ( Motor : Siemens , ABB . TECO , Wannan , JAC )Special circulating water pump , protection grade IP55 ,no leakage ,
long life . Special outdoor motors and specially configured imported bearings are selected to ensure long-term reliable operation
of the pump , with excellent performances such as low power , large flow and low noise -Orchid sprinkler The large-diameter ELLERT
sprinkler is made of corrosionresistant polyvinyl chloride material , which has the characteristics of large flow , uniform spray
and no blockage . point" phenomenon
long life . Special outdoor motors and specially configured imported bearings are selected to ensure long-term reliable operation
of the pump , with excellent performances such as low power , large flow and low noise -Orchid sprinkler The large-diameter ELLERT
sprinkler is made of corrosionresistant polyvinyl chloride material , which has the characteristics of large flow , uniform spray
and no blockage . point" phenomenon

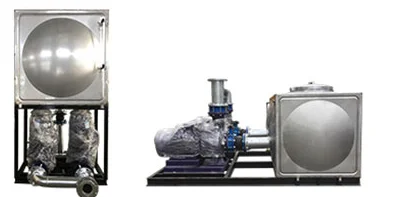

Main circulation system:
The main pump is used and the backup pump can beautomatically put into operation when a fault occursHiah efficiency , low noise
and low vibration Type : vertical / horizontal , small tower can also choose one-piece connection( Motor : Siemens , ABB , TECO ,
Wannan , JAC )
and low vibration Type : vertical / horizontal , small tower can also choose one-piece connection( Motor : Siemens , ABB , TECO ,
Wannan , JAC )

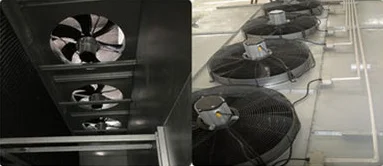

Exhaust system :
The low-speed fully enclosed motor adopts ultra-wide fan blades . The fan is composed of aluminum blades and steel hubs . It has the advantages of small wind resistance , large air volume , low noise , high efficiency and reliable performance . The protection level is IP55 , andit should be used outdoors( Blade optional : aluminum alloy , hollow aluminumalloy carbon fiber polyethylene.

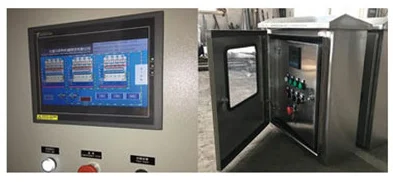

Control system :
The control system can be selected according to thecustomer's own needs :Common control / PLC intelligent controlPCL intelligent
control system supports local and remote control , and can be adjusted according todifferent working conditions.
control system supports local and remote control , and can be adjusted according todifferent working conditions.

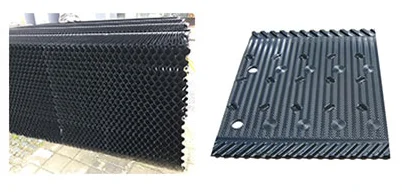

PVC fills - Dewaterer:
The function of the filler is that when it is in contact with heated spray water , it can conduct cooling and heat exchange , so
that the spray water can be evenly contacted with the cold air , evaporated to form saturated hot air the heat is discharged out
of the machine by the fan , and the water vapor has a water collector . Block back the condensation as water droplets slide down
to the sump . Therefore , high-quality PVC raw materials are particularly important for the heat exchange of cooling towers , and
can also effectively reduce water drift and save water resources.
that the spray water can be evenly contacted with the cold air , evaporated to form saturated hot air the heat is discharged out
of the machine by the fan , and the water vapor has a water collector . Block back the condensation as water droplets slide down
to the sump . Therefore , high-quality PVC raw materials are particularly important for the heat exchange of cooling towers , and
can also effectively reduce water drift and save water resources.

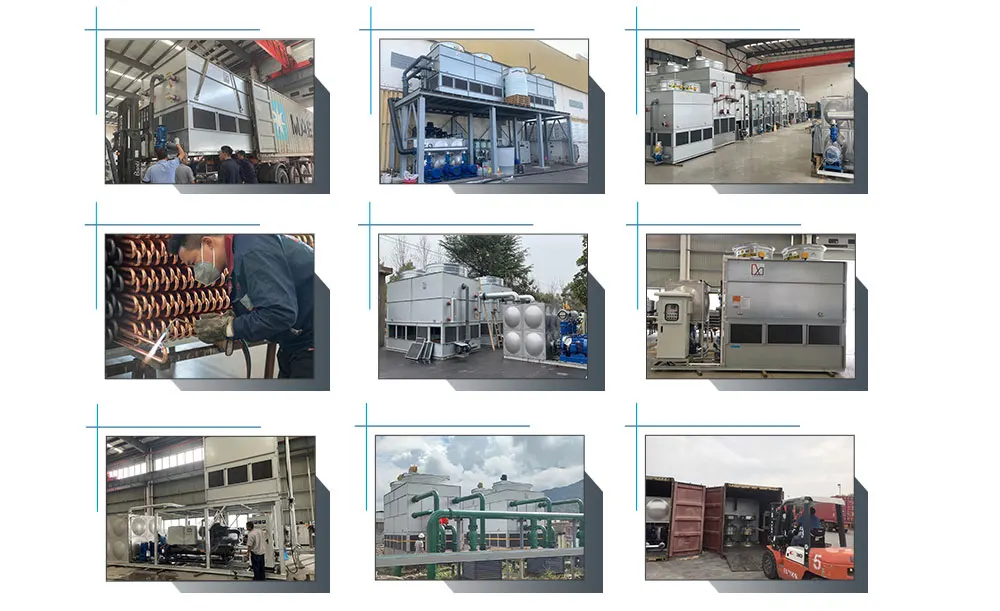

Company Profile
Wuxi Master Cooling Machinery Manufacturing Co , Ltd is a professional manufacturer of cooling system . Our company is located in Wuxi national industrial park , we have convenient transportation and elegant environment , with modern factory , advanced technologyand equipments.
Our mainly productions are closed cooling tower , opened cooling tower , evaporative condenser , chiller , RO system and other accessory parts . Our products are widely used inelectric power , chemical industrial , metallurgy , cooling , light industrial , civil facilities andother fieldsWe have an excellent scientific research and development team whom onstantly desian new products always more efficient and more innovative in order to meet the different needs from different customers.
Our core competencies are the reasonable price with superior quality and also our products own high efficiency , environmental protection , easy installation , operation and maintenance , long service life and what matters most is that we pay more attention to customers feelings . al protection , easy installation , operation and maintenance , long service life and whatmatters most is that we pay more attention to customer's feelings.
Our mainly productions are closed cooling tower , opened cooling tower , evaporative condenser , chiller , RO system and other accessory parts . Our products are widely used inelectric power , chemical industrial , metallurgy , cooling , light industrial , civil facilities andother fieldsWe have an excellent scientific research and development team whom onstantly desian new products always more efficient and more innovative in order to meet the different needs from different customers.
Our core competencies are the reasonable price with superior quality and also our products own high efficiency , environmental protection , easy installation , operation and maintenance , long service life and what matters most is that we pay more attention to customers feelings . al protection , easy installation , operation and maintenance , long service life and whatmatters most is that we pay more attention to customer's feelings.
Why Choose Us
(1)We have complete service of cooling tower equipment
(2)We can provide the perfect water treatment solutions and cooling system
(3)We provide OEM/OEM service
(4)Can you see the running machine in our factory?
Yes. Before making your decision ,you can test-run the equipment in our factory
(5)How long of the warranty time?
Our warranty period is 1 year.
(6)We have a strong after-sales team and technical solutions, we can provide you with a full range of solution applications.
(2)We can provide the perfect water treatment solutions and cooling system
(3)We provide OEM/OEM service
(4)Can you see the running machine in our factory?
Yes. Before making your decision ,you can test-run the equipment in our factory
(5)How long of the warranty time?
Our warranty period is 1 year.
(6)We have a strong after-sales team and technical solutions, we can provide you with a full range of solution applications.
FAQ
More information needed when you request a proper cooling tower
1:Water Flow Rate: m³/h
2:Inlet and Outlet Water Temp: ℃
3:Wet-bulb Temp.: ℃
4:Regular Power Supply is 380V, 50HZ,3-Phrase . If different please specify .
For more details and reach us more quickly, please contact by Regina at Whatsapp/Tel/Wechat : +86 18912361965
1:Water Flow Rate: m³/h
2:Inlet and Outlet Water Temp: ℃
3:Wet-bulb Temp.: ℃
4:Regular Power Supply is 380V, 50HZ,3-Phrase . If different please specify .
For more details and reach us more quickly, please contact by Regina at Whatsapp/Tel/Wechat : +86 18912361965
