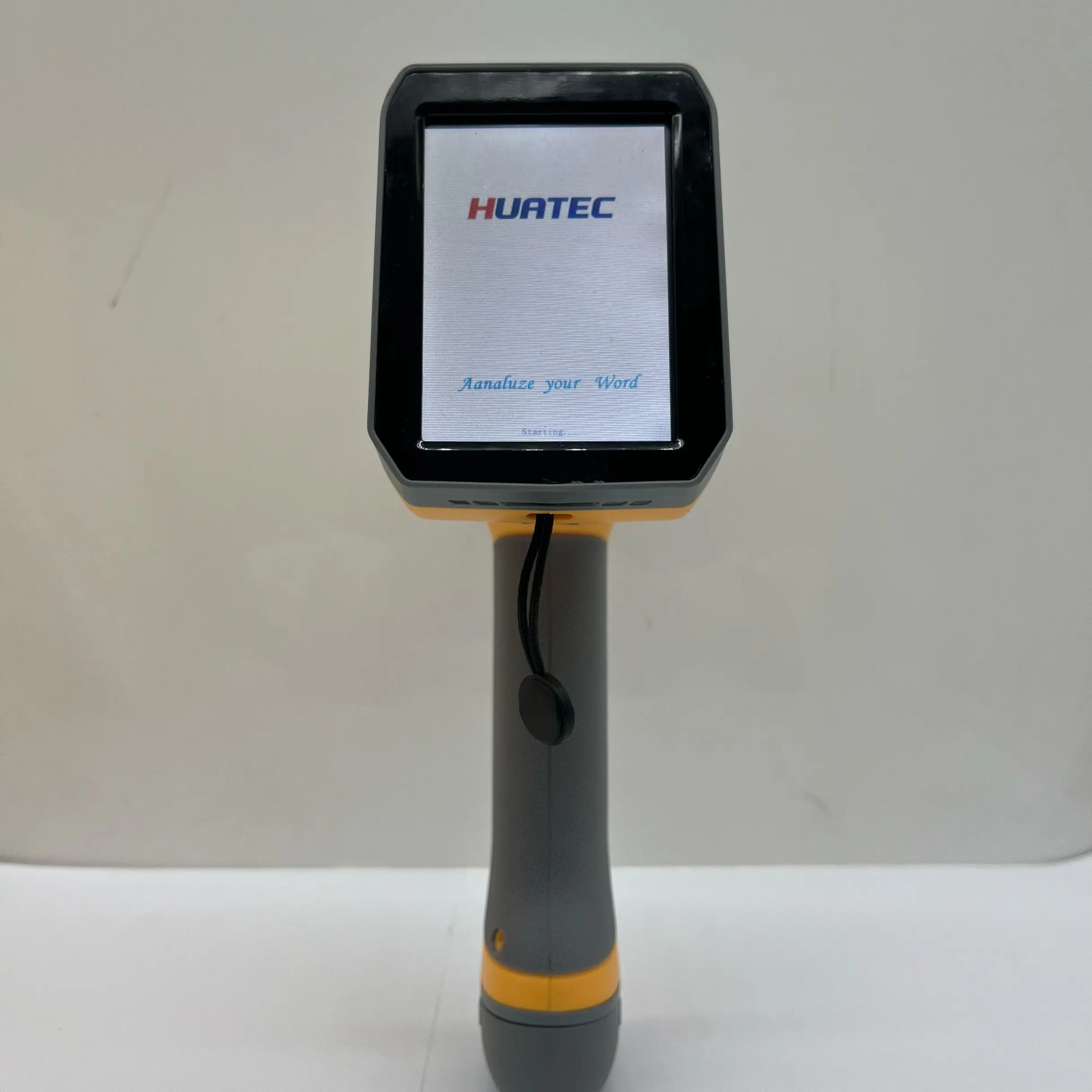

HXRF 980Plus Platinum Palladium Rhodium Ternary Catalyst Analyzer

HXRF-980Plus Platinum Palladium Rhodium Ternary Catalyst Analyzer

Commodity description

The automobile catalyst mainly contains precious metal elements such as copper, rhodium and palladium, which are used to purify automobile exhaust. Generally, if other elements, such as cerium and zirconium, appear in the automobile catalyst, the catalytic strength will be higher; In diesel engines, barium can be reduced to nitrogen; Titanium and tungsten are common in trucks.

The internal ceramic honeycomb structure of the catalytic converter is coated with a carrier coating containing platinum, palladium and rhodium elements. In order to enhance the performance of the catalytic converter, other elements can also be added to the coating.

In addition to accurately measuring the content of platinum, palladium and rhodium, the element group of HXRF-980plus analyzer also contains a variety of other elements that are usually added to the carrier coating. The platinum group elements recovered from automotive catalytic converters account for more than half of the market share of platinum and palladium, as well as the vast majority of rhodium. In addition to accurately measuring the content of platinum, palladium and rhodium, HXRF-980plus test element also contains a variety of other elements that are usually added to the carrier coating. It also contains elements that need to be analyzed to prevent fraud. These elements are added to the catalyst materials by illegal elements in order to enhance the value of precious metals by improper means.

Reliable results

Before testing, the reference standard sample shall be crushed, dried and filtered with a sieve to obtain a sample with uniform grain size and texture, and then the sample shall be put into the 4 # μ M In the cup sealed by the Prolene film, the sample in the cup is finally detected by the analyzer. To obtain representative and accurate results, samples need to be prepared. It is misleading to analyze the surface of ceramic honeycomb structure without preparing samples. Analyze 30 samples with HXRF-980plus analyzer, and use 30 seconds for each test. The analysis results obtained by all models of analyzers are highly consistent with the actual situation. Even if the sample contains a large number of other elements, the comparison results also maintain a certain degree of coincidence.

Commodity parameters

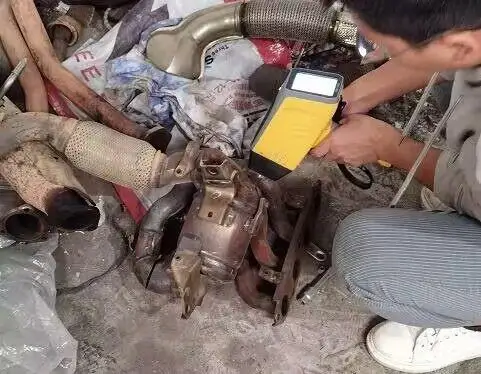

*HUATEC Group hand-held three-way catalytic analyzer is light in weight, easy to carry, high in accuracy, stable and nondestructive. It can quickly detect palladium (pd) content in 3 seconds, rhodium (Rh) content in 15 seconds, and platinum (Pt) content in 30 seconds. The whole test process only needs 30 seconds to get accurate data. The HUATEC Group hand-held three-way catalytic analyzer HXRF-980PLU uses high resolution and high count rate SDD detector (the resolution of German KETEK can reach 129ev), American MOXTEK 50kv variable high-voltage X-ray tube, Swiss stepping motor and other core components. The detection limit of three-way catalyst: platinum (Pt) 20ppm, palladium (Pd) 10ppm, rhodium (Rh) 10ppm. Please call for specific parameters of HXRF-980 configuration for economical si pin. The hand-held three-way catalytic analyzer is a fast, effective and low-cost element analysis method. It can detect platinum, rhodium, palladium and other metal elements in automotive catalyst in a very short time, providing a quick and simple detection method for practitioners of precious metal recovery of automotive catalyst. The hand-held three-way catalytic analyzer quickly analyzes the magnesium and uranium multi-element, and the detection results are from parts per million to 100%. This analyzer is extremely rugged and can work well in harsh environments.

*HXRF-980plus is a HUATEC GROUP standard configuration instrument, which is mainly used for nondestructive, rapid and accurate analysis and detection of alloy elements and identification of alloy grades on site. Quickly analyze the content of more than 25 elements from magnesium (Mg) to uranium (U). The instrument adopts one button anti stupidity operation to remove complex operation options and effectively prevent manual misoperation. Features: One key on/off operation without redundant actions; Automatically calibrate the instrument without manual operation; The license plate number and data will be issued from 45 seconds of startup to 0.8 seconds of test; One button sample detection function, software automatic timing lock, automatic stop testing function; If there is no sample in front of the test window, X-ray will be automatically turned off within 2 seconds.

*Analysis elements and modes;

*Soil model (Mg-U);

*Analysis scope of standard configuration mode, if there are special elements, additional elements can be added;

*Three way catalytic analysis mode;

*Pt, Pd, Rh, a total of three standard elements, ternary carrier elements (Ce, Zr, Ba, Ni, Se, Ta, Pb, Ti, W);

Technical Specifications :

1. Detector: Germany KETEK super large area SDD detector (resolution lower than 129ev), Peltier effect semiconductor refrigeration system, which can simultaneously record analysis data and spectrogram

2. Excitation source: Moxtek high-power miniature X-ray tube, W target, 4W high-power X-ray tube, variable voltage tube voltage of 50KV, tube current of up to 200 μ A

3. Filter: equipped with 8 filters, the Swiss stepping motor can automatically switch according to the test elements

4. Standard sheet: Swiss motor, built-in 316 standard sheet/window protection cover

5. Calculation methods: Alloy HUATEC GROUP 8.0, FP-EC, various calculation methods, and the instrument has been calibrated before delivery; The instrument has the function of establishing targeted calibration curve, which is suitable for precise testing of specific samples.

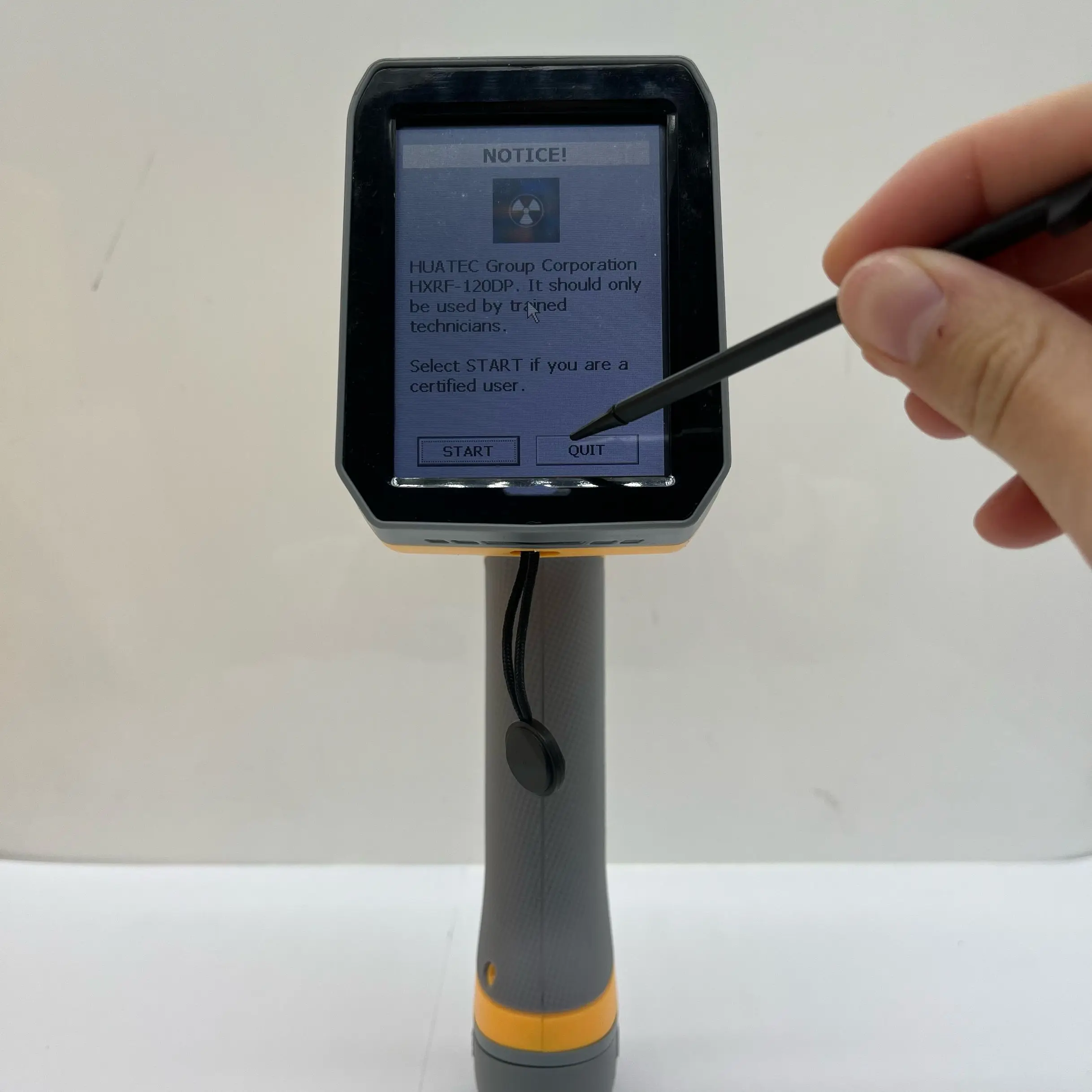

6. Computer processor and operating software: Windows CE6.0 system (the latest version), high-resolution TFT industrial color high-definition touch screen, ergonomic, solid, dust-proof, waterproof, and clearly visible in any light conditions

7. Heat dissipation: large area aluminum alloy and silica gel are used, and the heat dissipation area is 1/3 more than that of peers. The integrated body design is solid, waterproof, dust-proof, antifreeze, and vibration proof, and can be used normally in harsh environments.

8. Data display: elements can be displayed in order or not according to test requirements;

9. Data export: one is to directly export data through storage device SD card or USB flash disk; One is to export data through PC software;

10. Data format: pdf or Excel format, including element content, atlas, image, etc., and a variety of templates for selection;

11. Data transmission: MicroSD card, USB, WIFI, Blue tooth, cloud disk; With WIFI/Blue tooth adapter

12. Hot plug technology: large capacity capacitance, supporting direct battery replacement without power off;

Standard delivery:

1. 1 instrument

2. 1 box

3. 2 batteries

4. 1 charger

5. 1 paper manual

6. 316 disc 1 piece

7. 1 anti fall wrist strap

8. 1 USB flash disk for software data backup

9. 5 window films
