Long up to 5 km distance Wireless Smart Alphanumeric Coaster Pager System for Manufacturing & Warehouses Retekess TD166
- Category: >>>
- Supplier: Henan Eshow Electronic Commerce Co. Ltd.
Share on (1600829789263):
Product Overview
Description
Retekess Details Images
Retekess Products Description

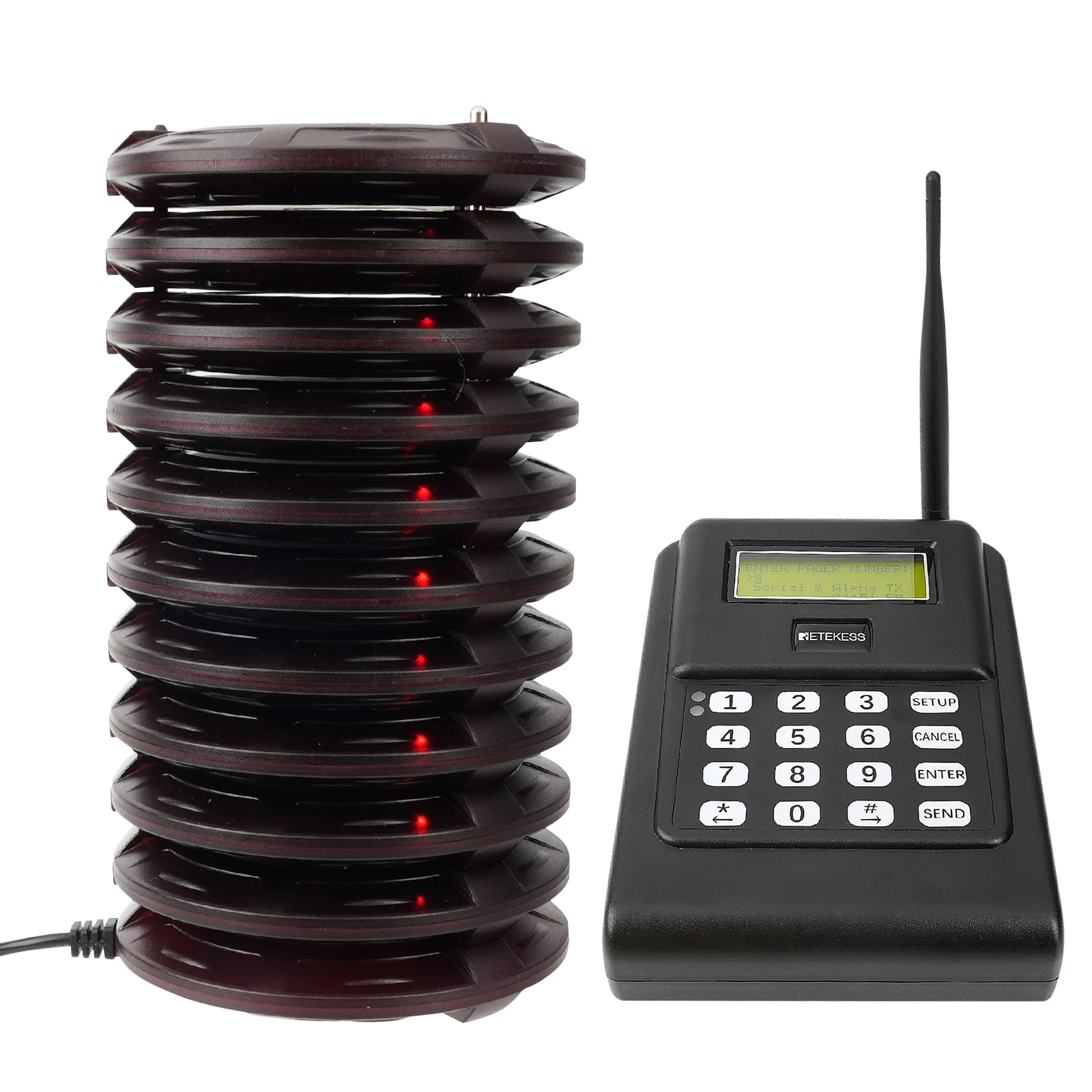

Retekess TD166 Wireless Paging System for Manufacturing & Warehouses
It is a communication system that requires a high degree of coordination for logistics, warehousing, and factories. A high-end wireless communication device designed for major warehouse distribution centers and processing plants to ensure the highest communication efficiency, reduce labor costs, improve work efficiency, and improve organization and accuracy.
Characters:
For paging system in manufacturing & warehouses
Super long distance for 5 kilometers.
FM 433.92 Less susceptible to interference
Support PC & customized software service
For pagers of TD166 warehouse pager
56 characters
Up to 9999 pagers can be added
Infrared sensor pager
9 quick messages can be preset
For keypad of TD166
Touch keys and offline keyboard
Material ABS, easy to clean
Connect to the PC software with USB cables
It is a communication system that requires a high degree of coordination for logistics, warehousing, and factories. A high-end wireless communication device designed for major warehouse distribution centers and processing plants to ensure the highest communication efficiency, reduce labor costs, improve work efficiency, and improve organization and accuracy.
Characters:
For paging system in manufacturing & warehouses
Super long distance for 5 kilometers.
FM 433.92 Less susceptible to interference
Support PC & customized software service
For pagers of TD166 warehouse pager
56 characters
Up to 9999 pagers can be added
Infrared sensor pager
9 quick messages can be preset
For keypad of TD166
Touch keys and offline keyboard
Material ABS, easy to clean
Connect to the PC software with USB cables

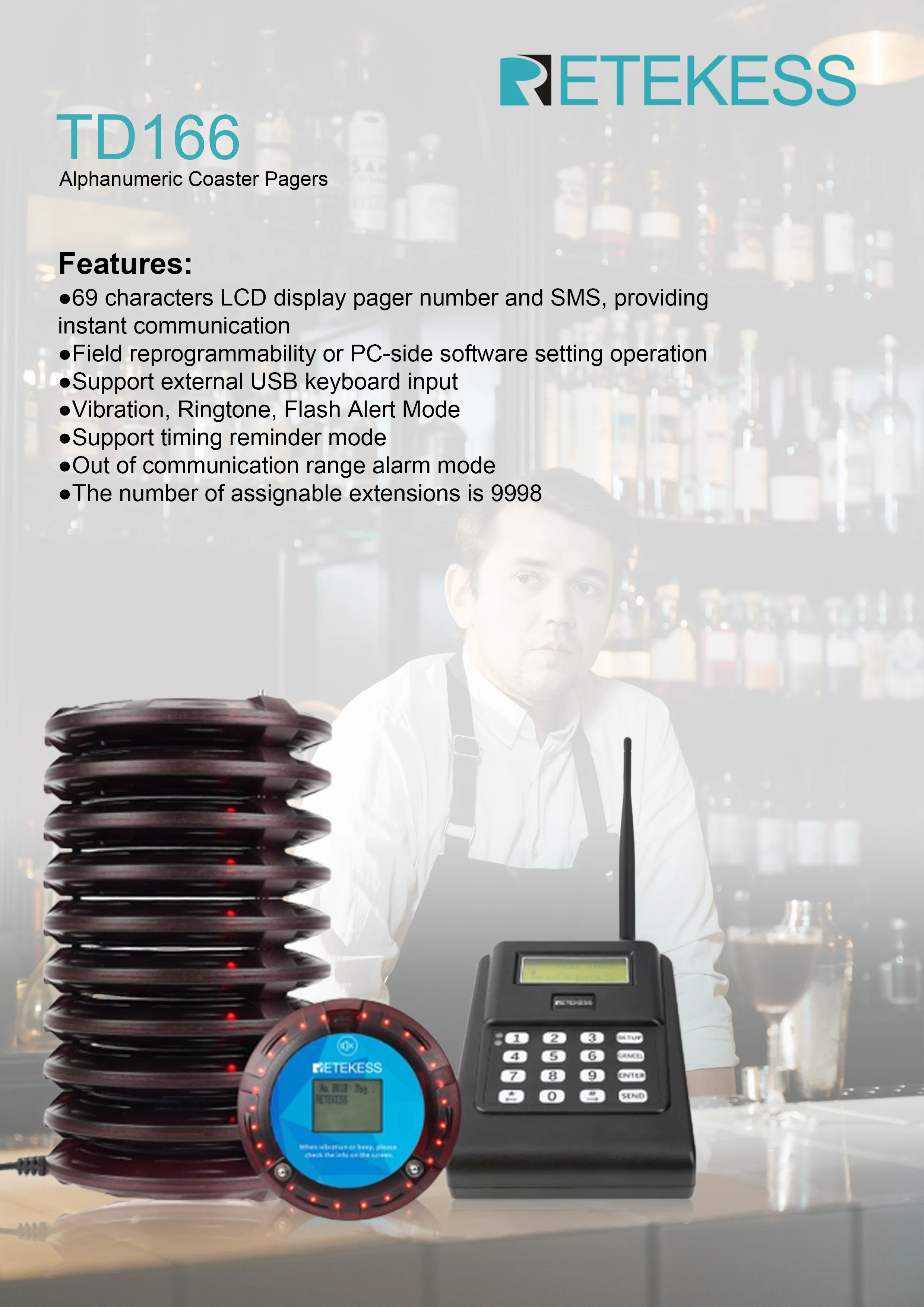

Features:
69 characters LCD display pager number and SMS, providing instant communication
Field reprogrammability or PC-side software setting operation
Support external USB keyboard input
Vibration, Ringtone, Flash Alert Mode
Support timing reminder mode
Out of communication range alarm mode
The number of assignable extensions is 9998
Field reprogrammability or PC-side software setting operation
Support external USB keyboard input
Vibration, Ringtone, Flash Alert Mode
Support timing reminder mode
Out of communication range alarm mode
The number of assignable extensions is 9998
Super long-distance: communication distance of 5 kilometers
Touch buttons, offline keyboard input, support serial port connection to computer
Alphanumeric Text: Send full-text messages of 56 characters in large buildings with 5 km coverage and no interference
Create up to 9 predefined messages
Support PC software operation (no monthly fee) and customized software services
Helper in scheduling, quickly notifies drivers and crews
Overhead PA speaker system eliminated
Minimizes staff response time and machine downtime
Reduce labor costs and improve storage and distribution efficiency

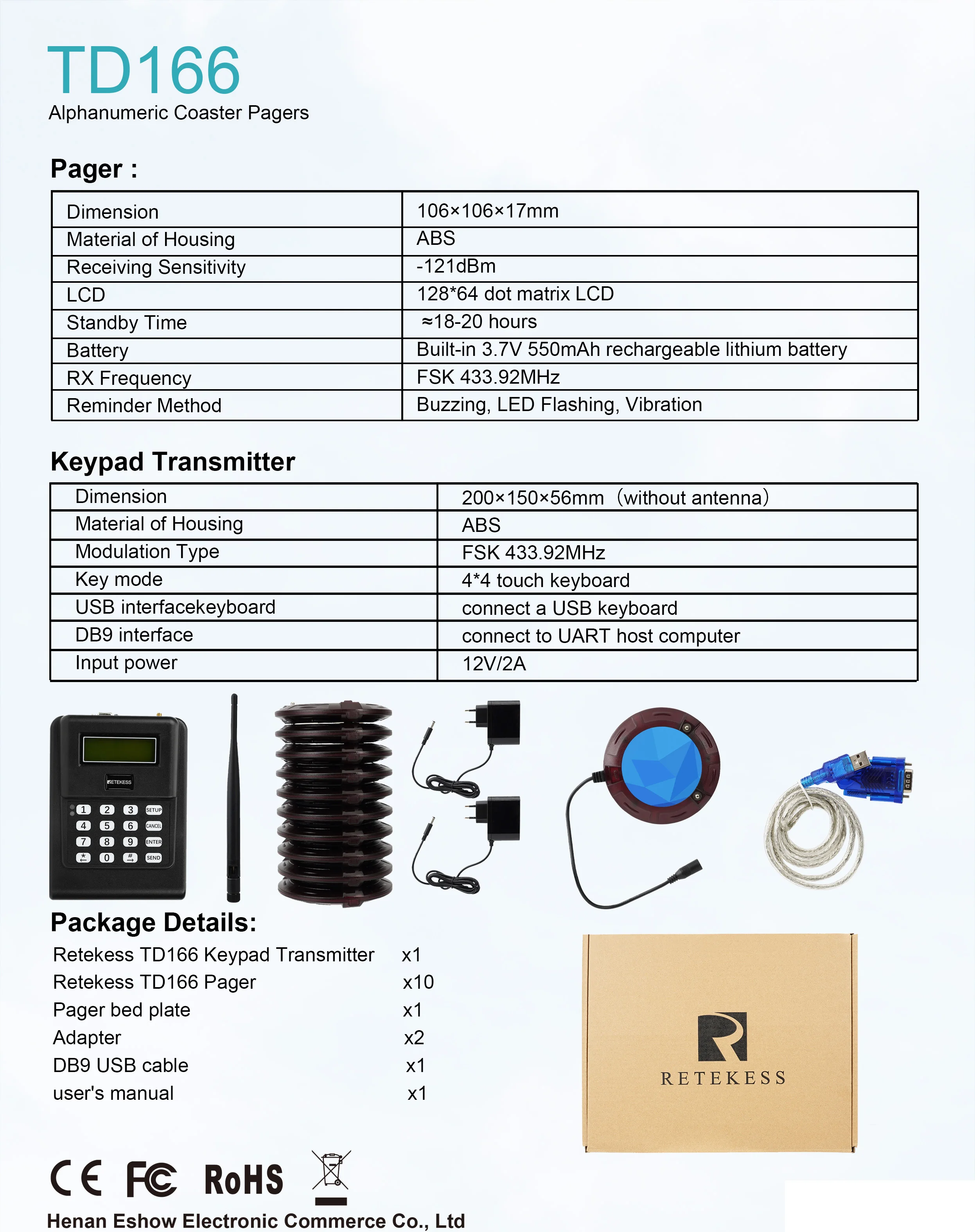

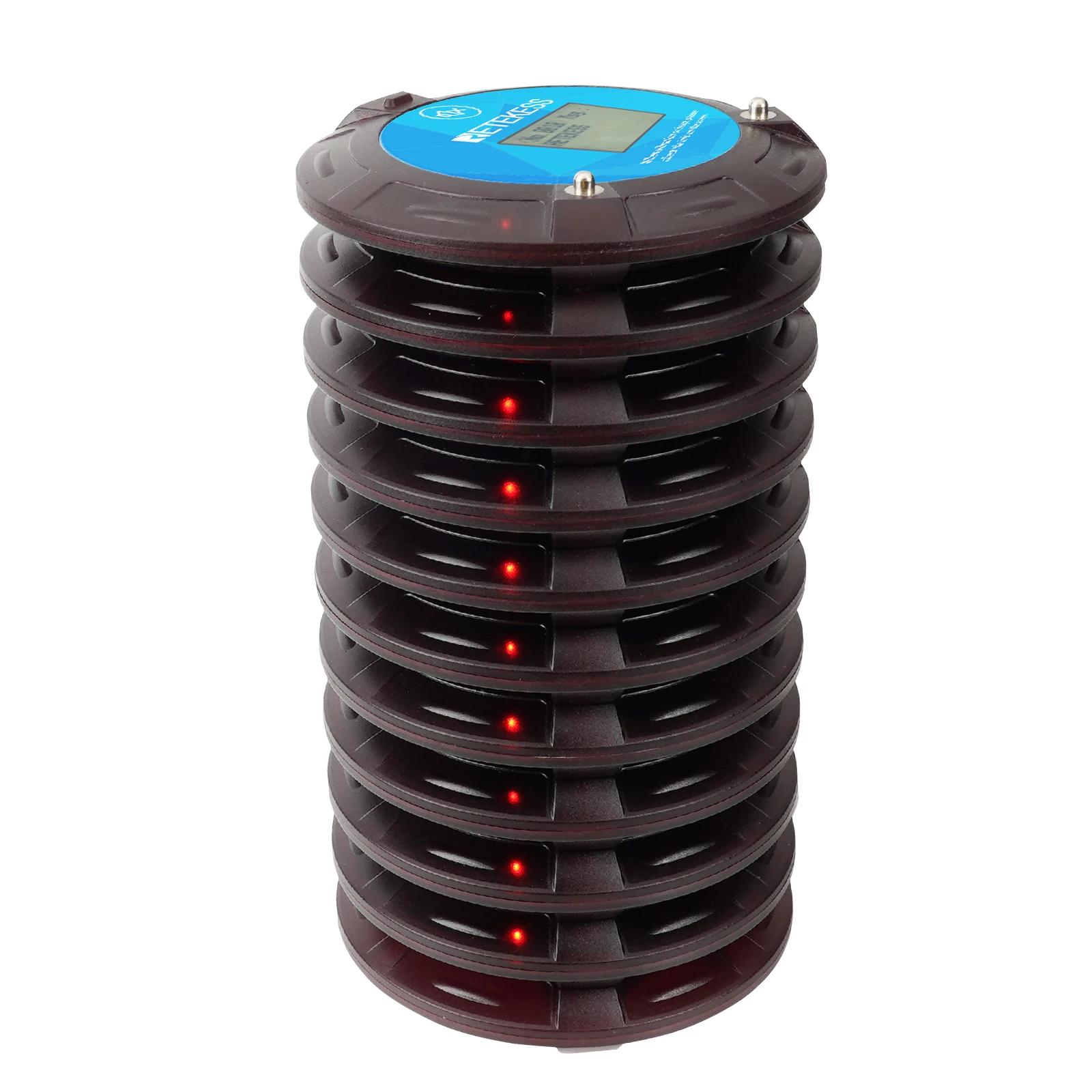

Pager
Dimension:106×106×17mm
Material of Housing: ABS
Receiving Sensitivity:-121dBm
LCD: 128*64 dot matrix LCD
Standby Time: ≈18-20 hours
Battery: Built-in 3.7V 550mAh rechargeable lithium battery
RX Frequency:FSK 433.92MHz
Reminder Method: Buzzing, LED Flashing, Vibration
Keypad Transmitter
1.Dimension: 200×150×56mm（without antenna）
2.Material of Housing: ABS
3. Modulation Type: FSK 433.92MHz
4. Key mode: 4*4 touch keyboard
5. USB interface: connect a USB keyboard
6. DB9 interface: connect to UART host computer
7. Input power: 12V/2A
Touch buttons, offline keyboard input, support serial port connection to computer
Alphanumeric Text: Send full-text messages of 56 characters in large buildings with 5 km coverage and no interference
Create up to 9 predefined messages
Support PC software operation (no monthly fee) and customized software services
Helper in scheduling, quickly notifies drivers and crews
Overhead PA speaker system eliminated
Minimizes staff response time and machine downtime
Reduce labor costs and improve storage and distribution efficiency
Pager
Dimension:106×106×17mm
Material of Housing: ABS
Receiving Sensitivity:-121dBm
LCD: 128*64 dot matrix LCD
Standby Time: ≈18-20 hours
Battery: Built-in 3.7V 550mAh rechargeable lithium battery
RX Frequency:FSK 433.92MHz
Reminder Method: Buzzing, LED Flashing, Vibration
Keypad Transmitter
1.Dimension: 200×150×56mm（without antenna）
2.Material of Housing: ABS
3. Modulation Type: FSK 433.92MHz
4. Key mode: 4*4 touch keyboard
5. USB interface: connect a USB keyboard
6. DB9 interface: connect to UART host computer
7. Input power: 12V/2A
Function Settings:
1. Send text message and pre-set message
You can edit text messages (up to 56 characters) to send to each pager. At the same time, you can also set 9 fixed messages in advance, and use the shortcut to send. For example, set [please come to dispatch room] as the No.1 fixed message. You can enter 11 can send the pre-set it.
2. Super long range 5 kilometers
Working distance up to 5 km, meets the needs of large factories, warehouses and other workplaces
3. Connect Software
Using the DB9 cable (included in the package) to connect the transmitter to computer, then you can use the software to change the transmitter settings and call the pagers. Note: The software supports windows Vista SP2/7 /8/10 /11 system, does not support windows XP; The software needs to install net 6.0 desktop to run
Why you need:
Minimize crowds in waiting line
Reduce staff chaos & improve ambience
Notify people faster
Reduce staff cost
Improves work efficiency
Enhances the restaurant's image
Reduce staff chaos & improve ambience
Notify people faster
Reduce staff cost
Improves work efficiency
Enhances the restaurant's image
Note:
1.You can always add more transmitting host + pager to the system as your business grows, if you need more please feel free to contact us.
2.The receiver is on standby for 48 hours. In order to ensure the normal work, please charge it in time.
2.The receiver is on standby for 48 hours. In order to ensure the normal work, please charge it in time.

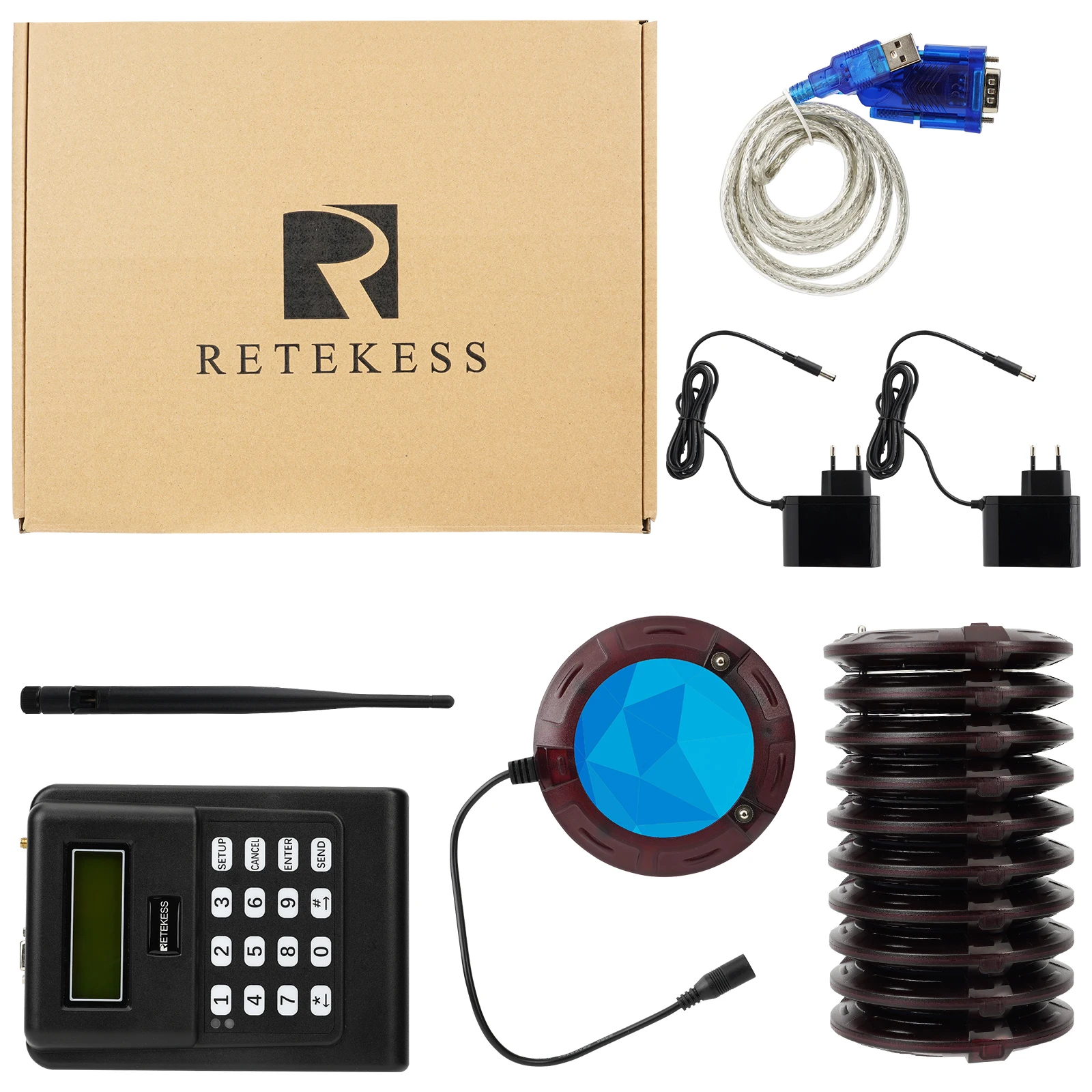

Retekess Package Including
1*Retekess TD166 Keypad Transmitter
10*Retekess TD166 Pager
1*Pager bed plate
2*Adapter
1* DB9 USB cable
1* user's manual
