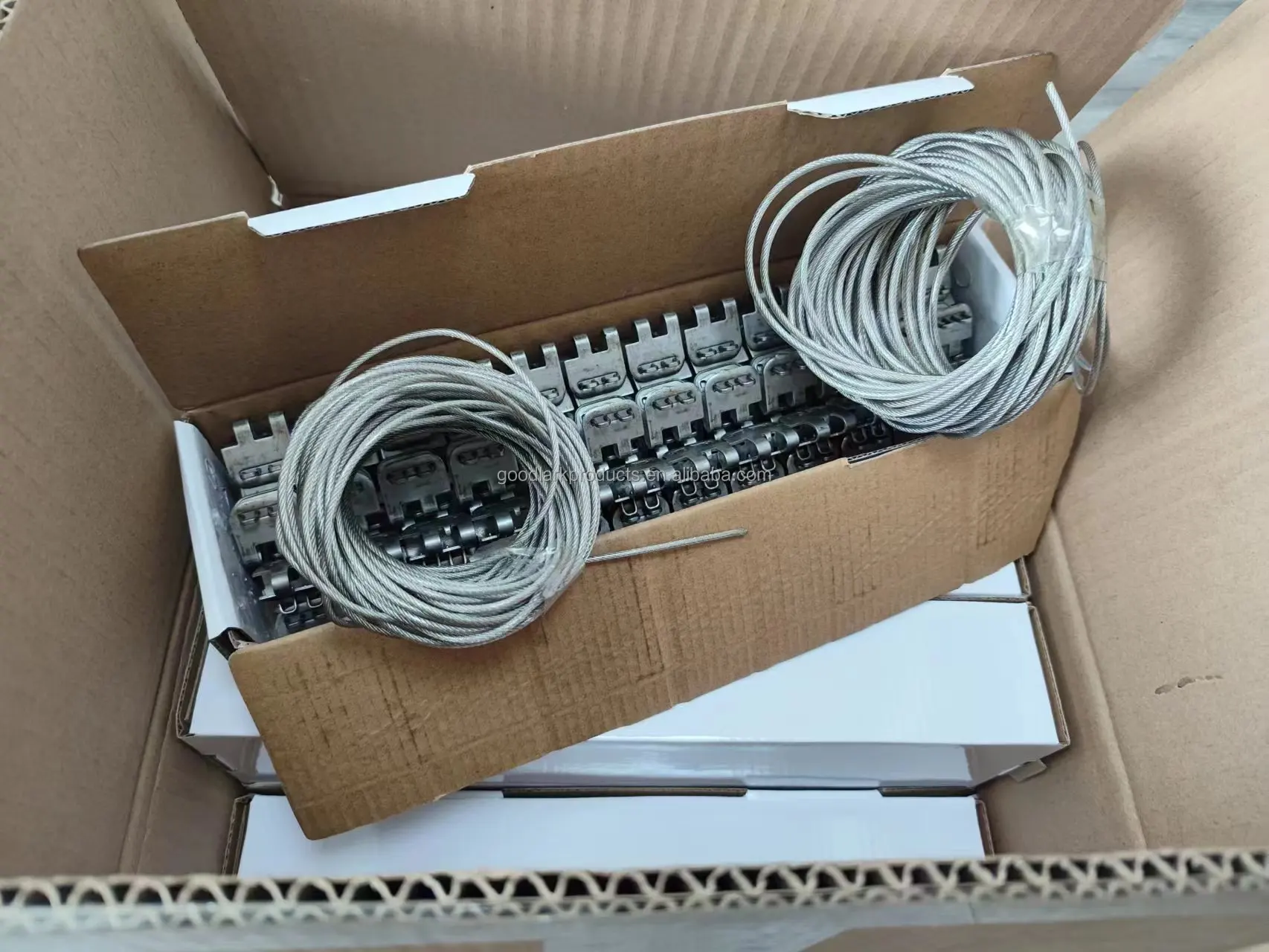

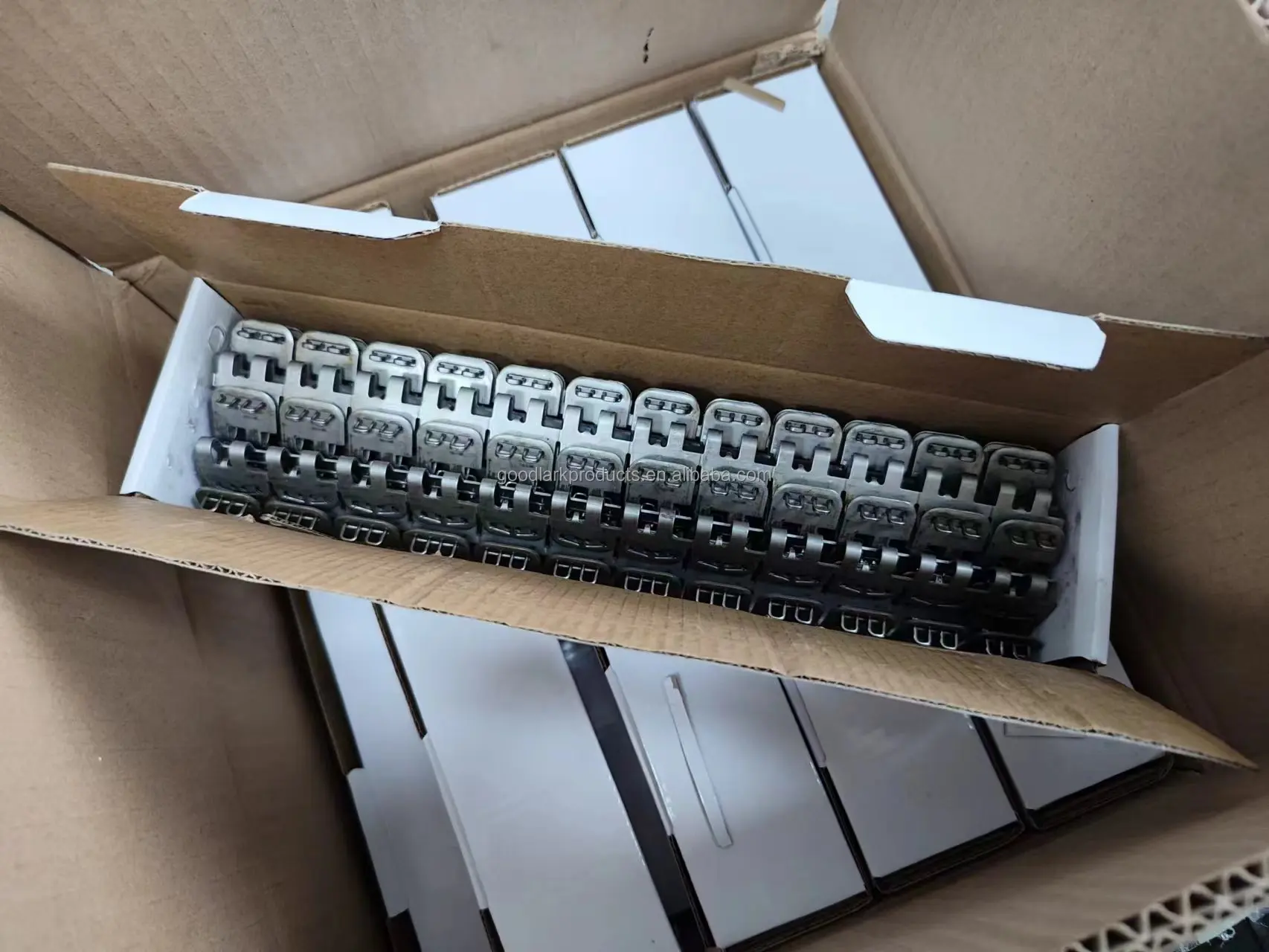

300MM R2 Rivet Hinged System Zinc Stainless Steel Conveyor Belt Lacing Fastener Packed in Carton

300MM R2 Rivet Hinged System Zinc Stainless Steel Conveyor Belt Lacing Fastener Packed in Carton

Category: >>>
Supplier: Yancheng Goodlark International Trade Corp. Ltd.Yancheng Ltd.

Price:$50.00-55.00

Quantity:

Product Overview

Description

Products Description

Title goes here.

The Conveystar min. type systems include

·R1

·R2

·R3

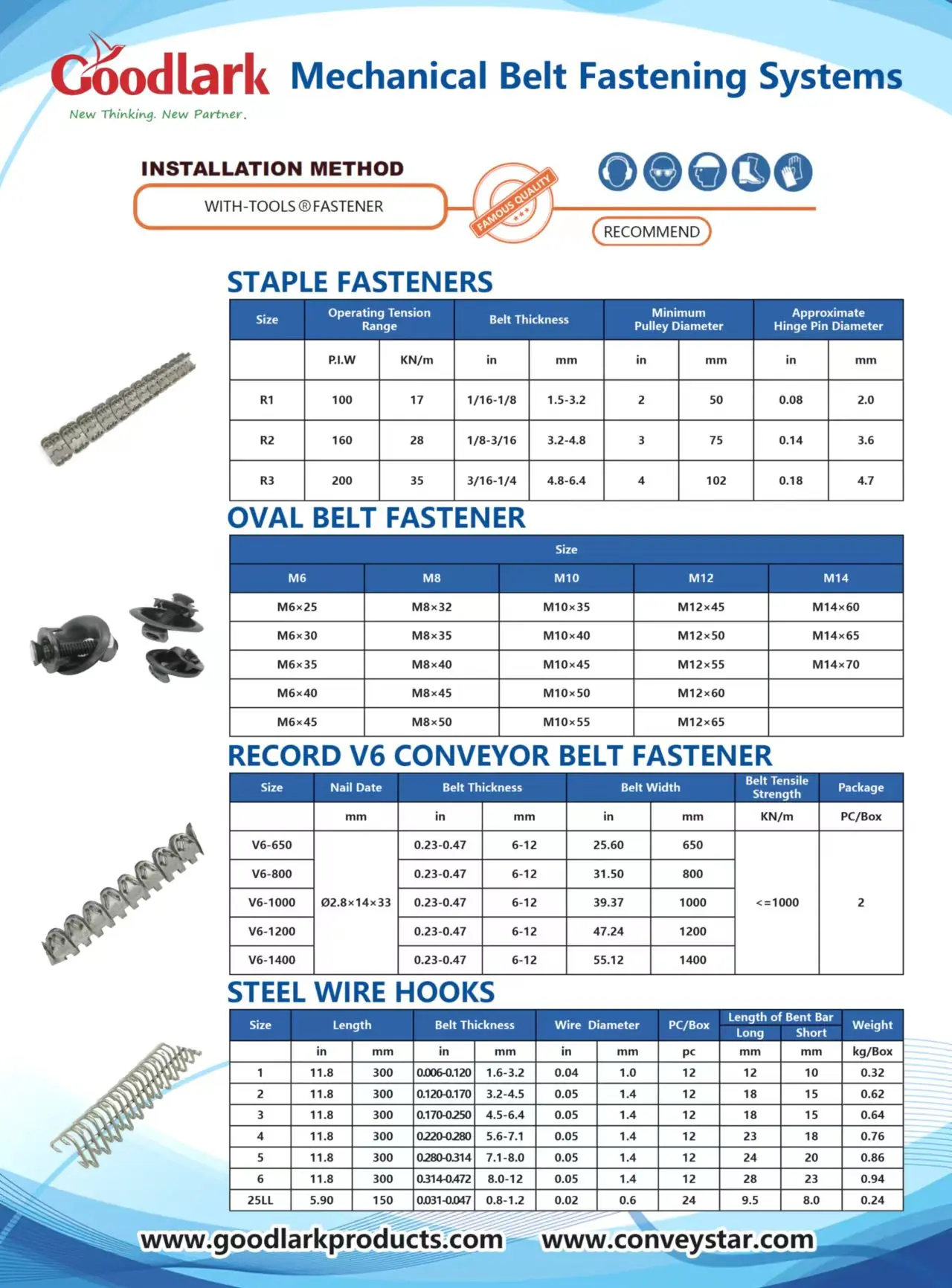

Size	Operating Tension Range			Belt thickness			Minimum Pulley Diameter		Approximate Hinge Pin Diameter
	P.I.W	KN/M	IN	MM	IN	MM	IN	MM
R1 ( RS 62 )	100	17	1/16-1/8	1.5-3.2	2	50	0.08	2.0
R2 ( RS 125)	160	28	1/8-3/16	3.2-4.8	3	75	0.14	3.6
R3 ( RS 187)	200	35	3/16-1/4	4.8-6.4	4	102	0.18	4.7

The 2-6mm mini type belt fastener for industry. The main applications are:
Distribution Centres .

Laundries .

Food Industry.
Filter Press Industry .

General Industry

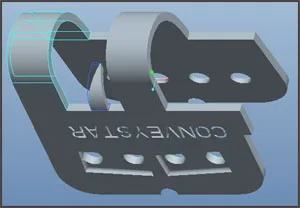

For use with modern lightweight, high-strength belting. Designed to operate smoothly over slider bedtroughing conveyor applications.The Conveystar 2-6mm mine type belt fasteners is a very strong belt fastener; hinged plates are held in compression with high-tensile stainless steel staples. A unique feature of this style of product, compared to conventional lightweight belt fasteners, is that the staples are clinched 90 degrees to the direction of the pull of the belt.
Therefore, it is virtually impossible for the staple to open under load. The staples are also unique. While other brands may be rectangular, with their narrow dimension in line with the pull of the belt, The Conveystar 2-6mm mine type belt fasteners are oval shaped with smooth, rounded edges. This design feature reduces the possibility of the staple damaging belting fabric.
