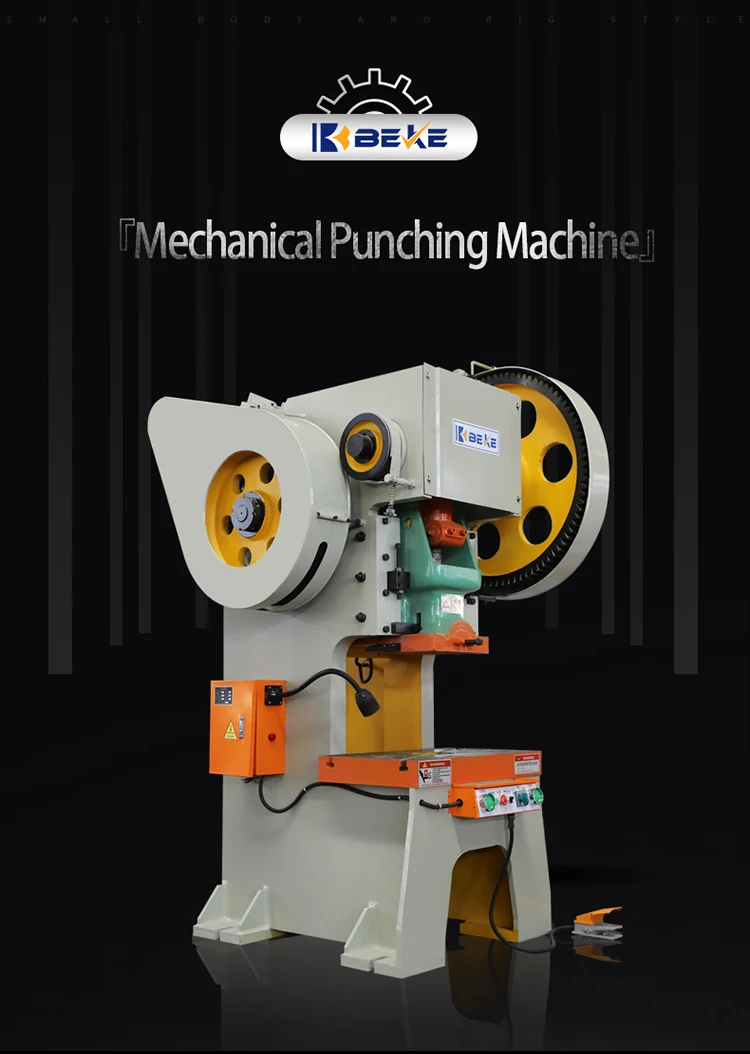

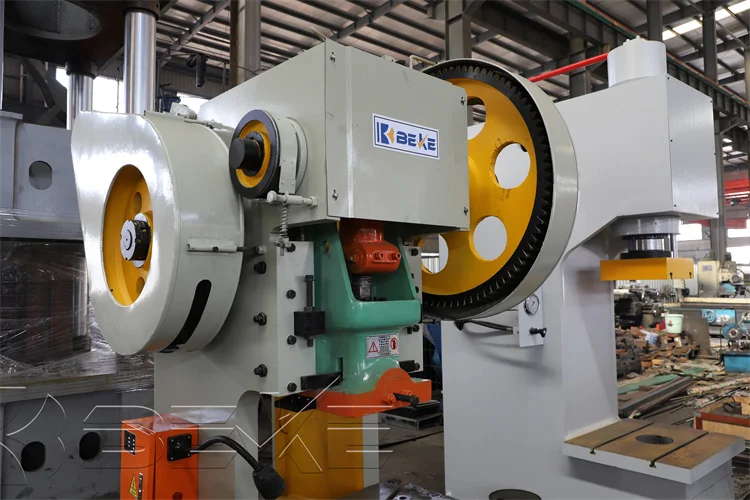

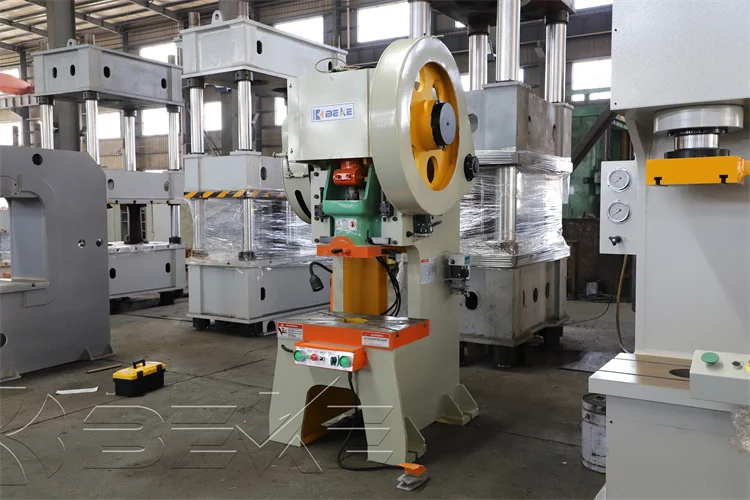

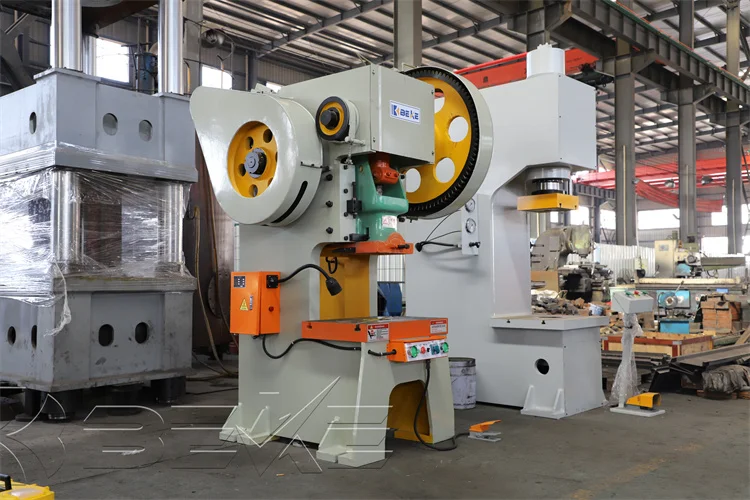

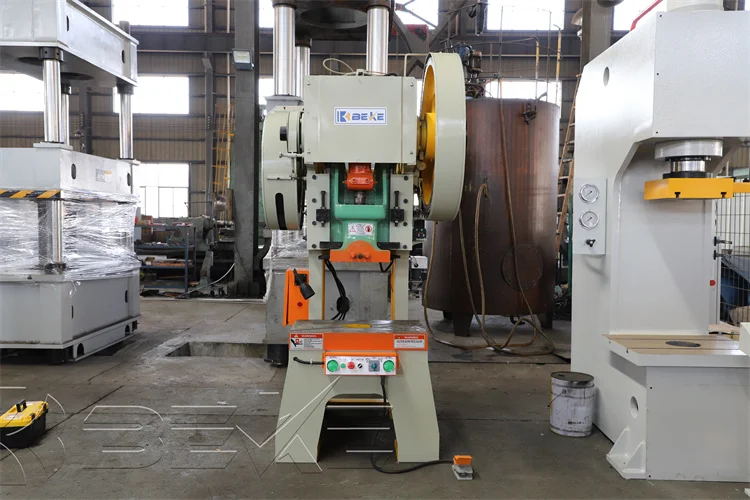

J23 Series Mechanical 250 ton Manual Power Press C Type Eccentric Punching Machine
- Category: >>>
- Supplier: Nanjing Beke Cnc Machinery Co. Ltd.
Share on (1600829838340):
Product Overview
Description
Product Description
Technical Details
Technical Parameters | Unit | J21-63 |
Nominal Pressure | kn | 630 |
Nominal Pressure Stroke | mm | 4 |
Slider Stroke | mm | 100 |
Slider Stroke Times | mm-1 | 50 |
Max Closed Height | mm | 380 |
Die Height Adjustment | mm | 60 |
Distance from Slider Center to Machine Body | mm | 240 |
Bolster Size(F×B-L×R) | mm | 410×630 |
Bolster Blanking Hole Dia | mm | 190 |
Slider Subface Size(F×B-L×R) | mm | 220×310 |
Shank Hole Size(Dia×Depth) | mm | 50×70 |
Column Gaps | mm | 350 |
Bolster Thickness | mm | 80 |
Max. Inclined Angle of Machine(0) | 20 | 20 |
Motor Power | kw | 5.5 |
Motor Speed | R/min | 1440 |
Machine Outline Size(L×W×D) | mm | 1500×1200×2480 |
Weight | T | 3.5 |
Packaging & Shipping

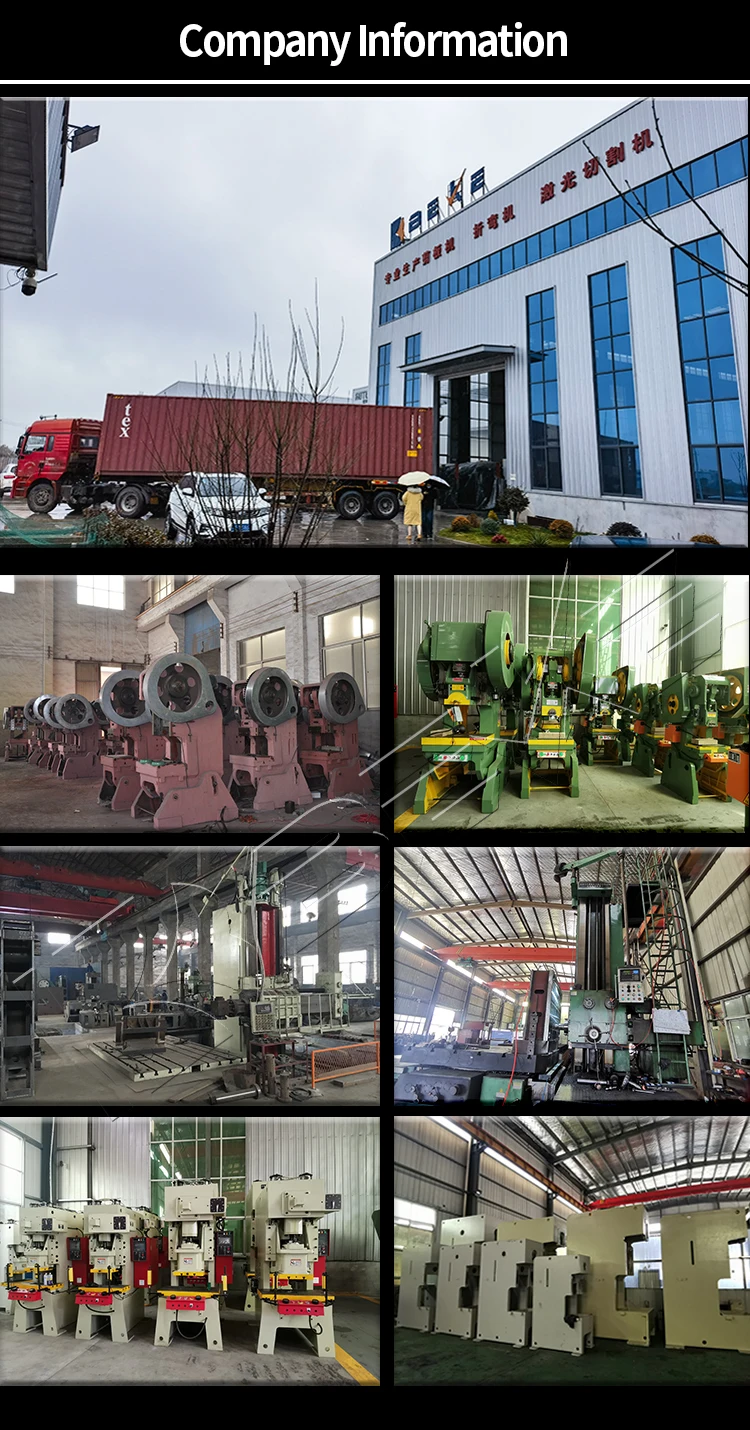

Company Information
